Simple Home Automation (custom Bluetooth Application)

by EDISON SCIENCE CORNER in Circuits > Electronics

1045 Views, 9 Favorites, 0 Comments

Simple Home Automation (custom Bluetooth Application)


in this tutorial i am going to show you,how to build a simple home automation(that is we can controll our home appliences with our smartphone)

Home automation using custom android app (remotexy) full tutorial...WOW! (edison creation's) (EC12)

watch video for full tutorial

Things Needed

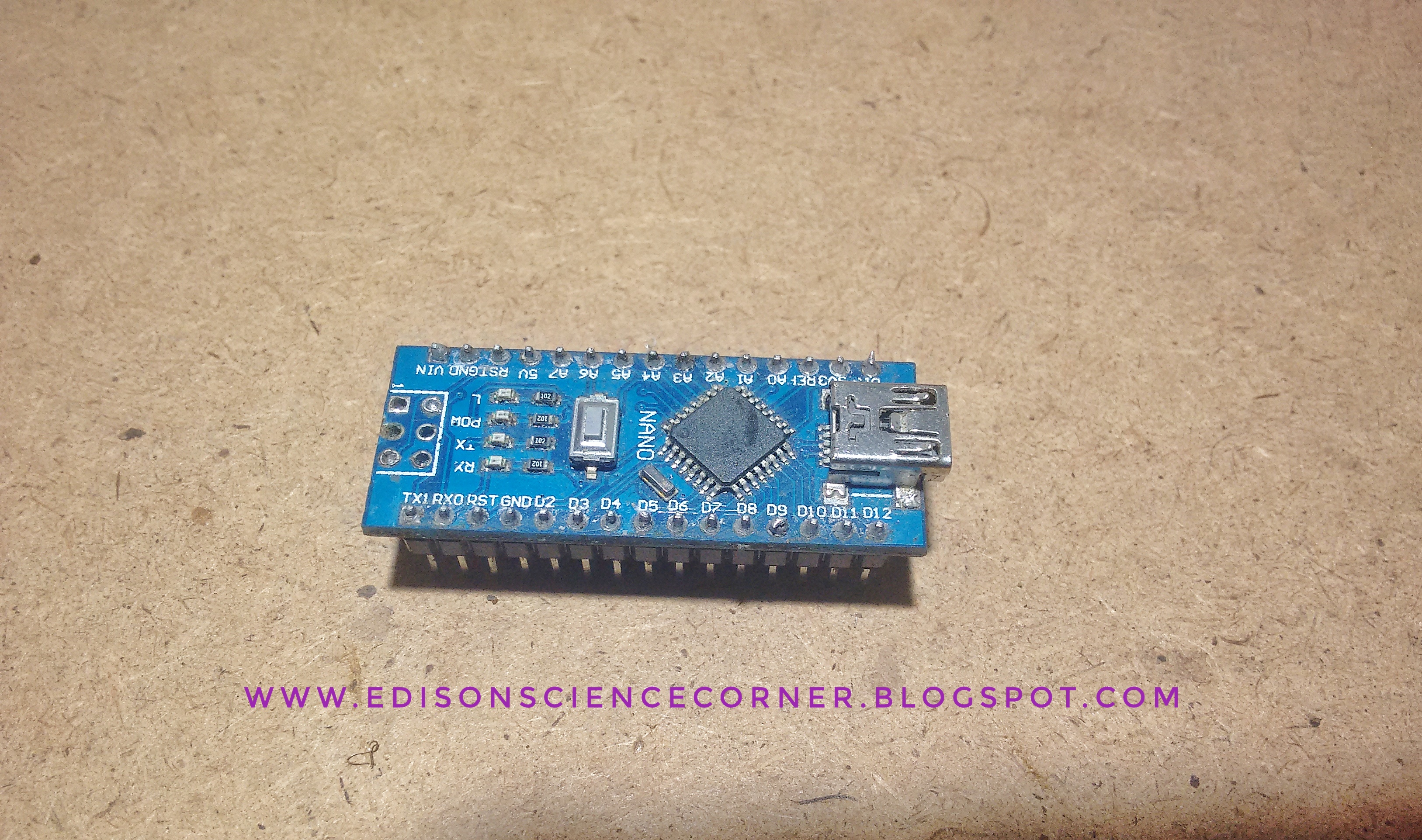

1.arduino

you can use any arduino thats builts with atmega 328(uno,pro mini..etc)

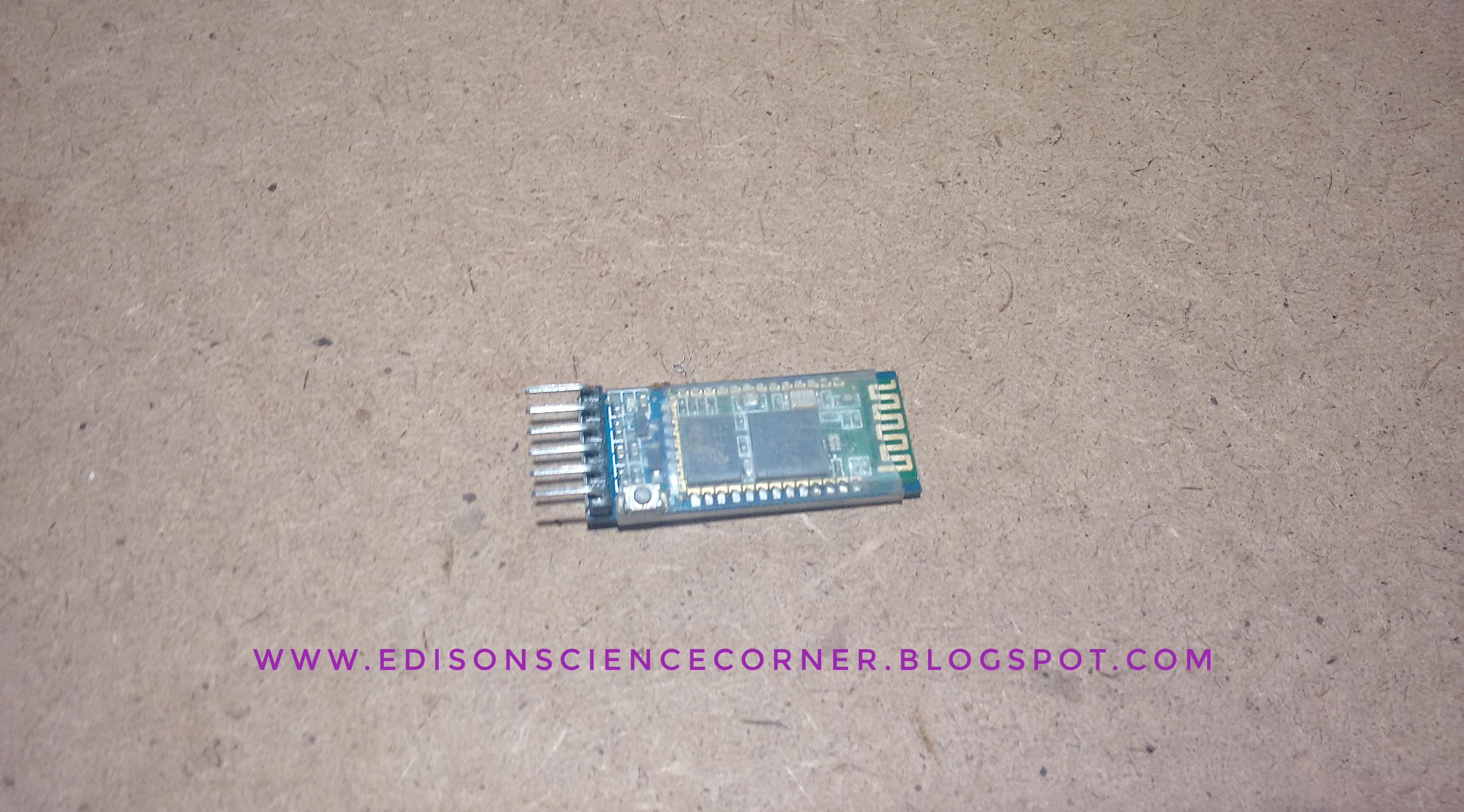

2.hc 05 bluetooth module

you can use either hc05 or hc06

3.2 channel relay moddule

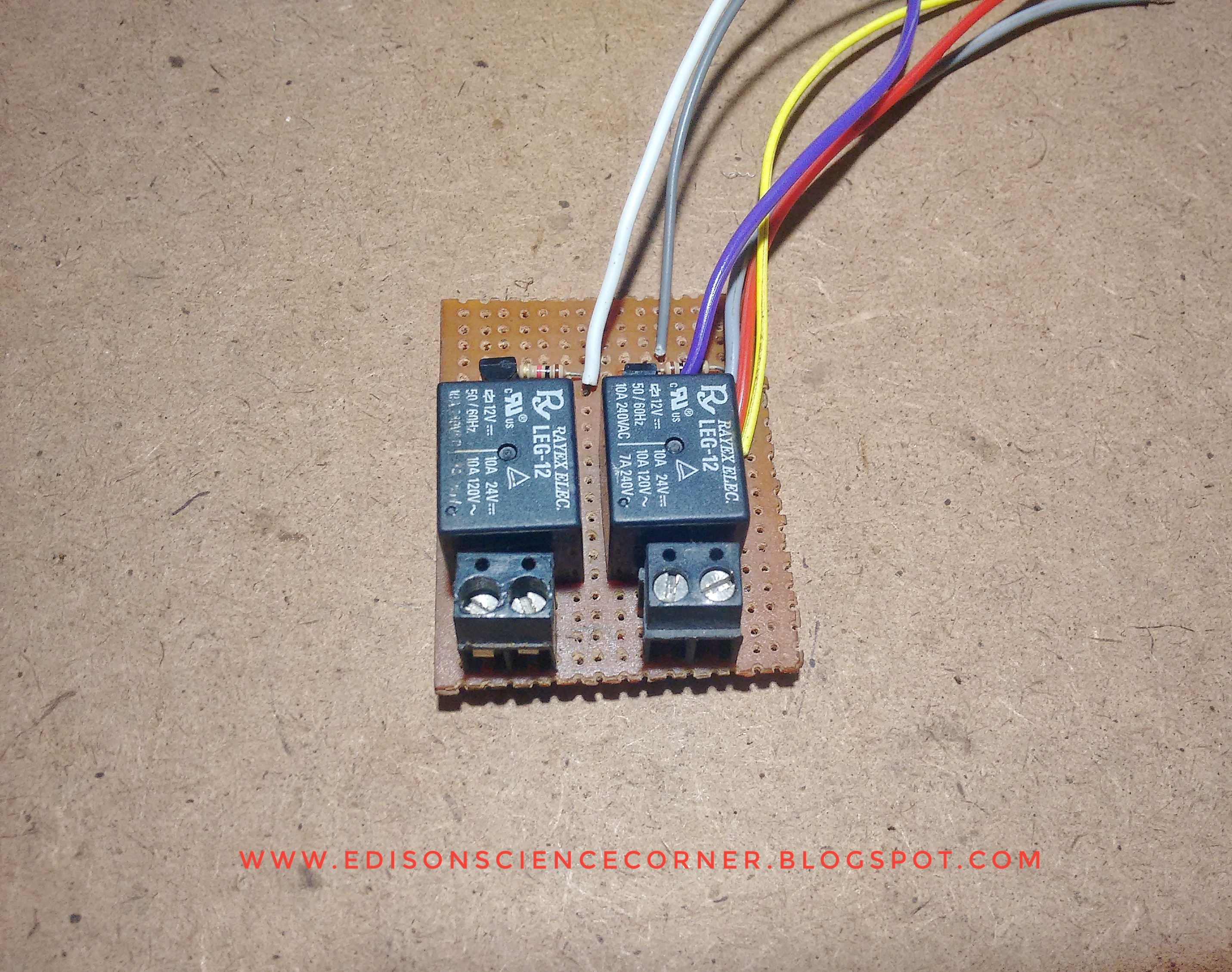

i am using home made relay module

How to Make Relay Module

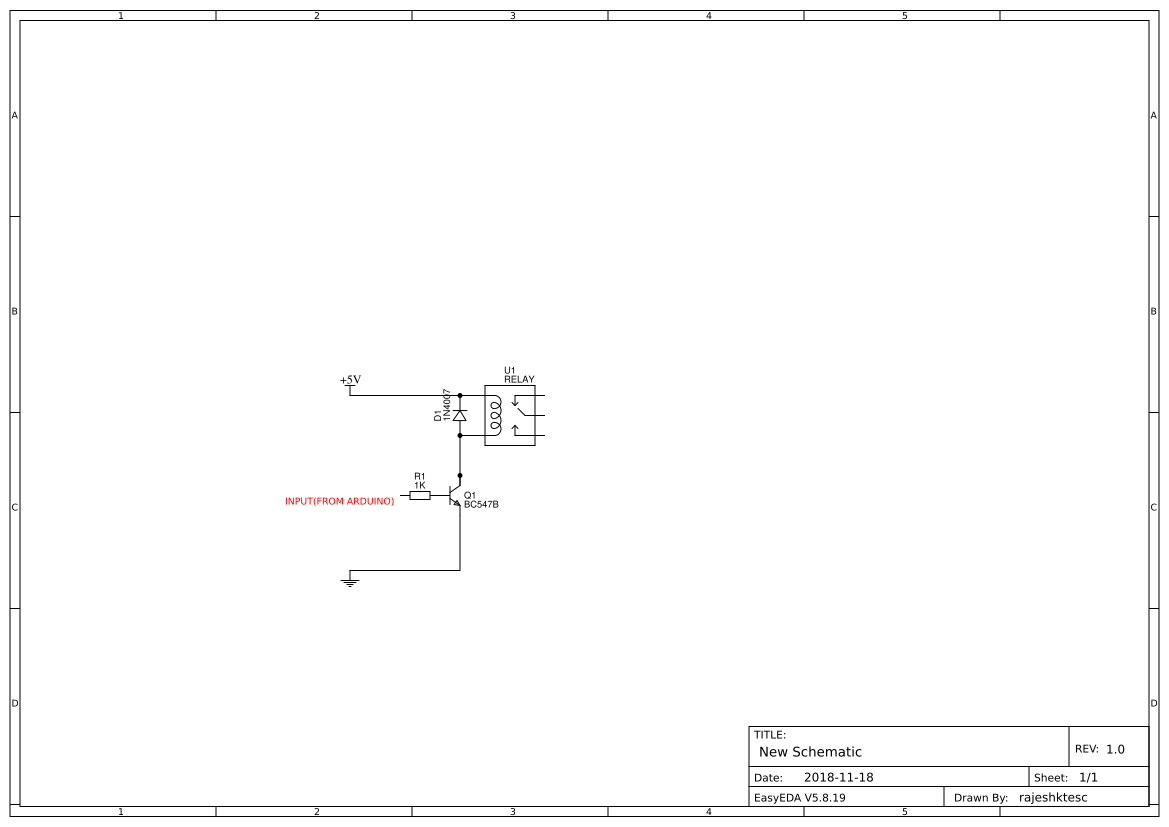

follow the circuit to make relay module

Circuit and Connections

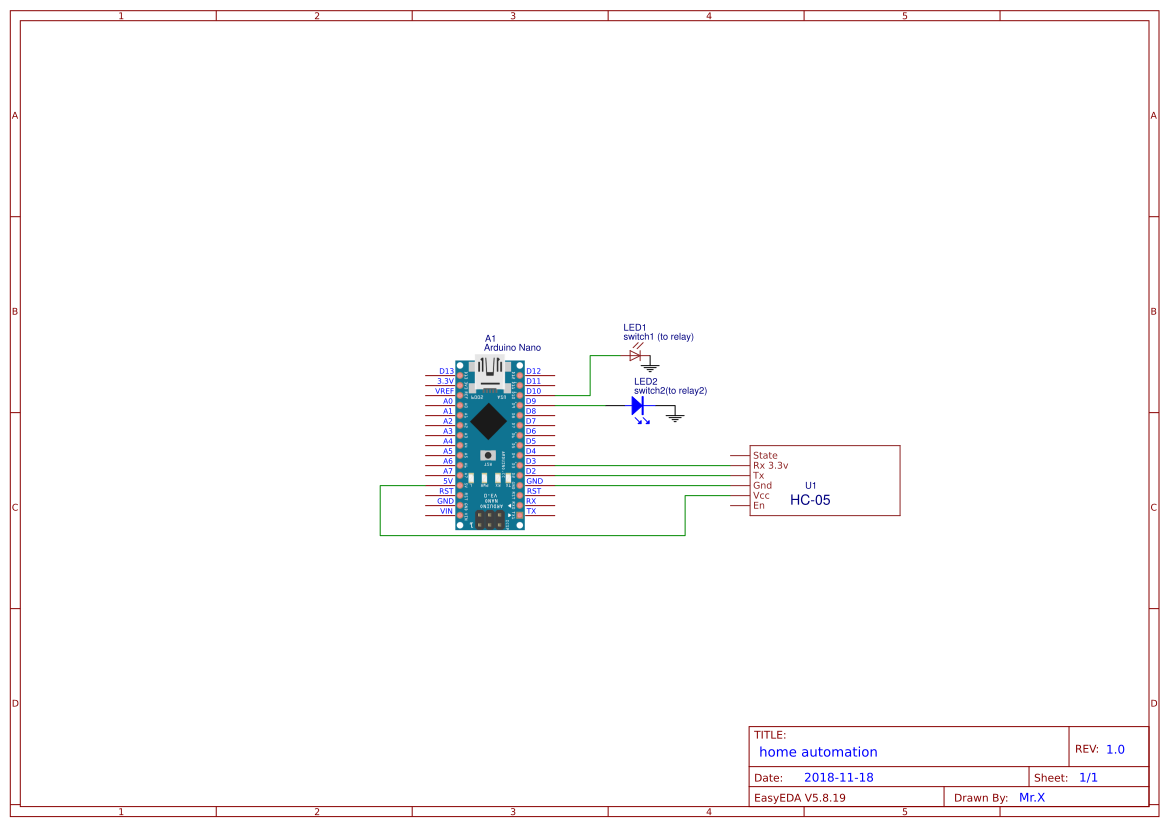

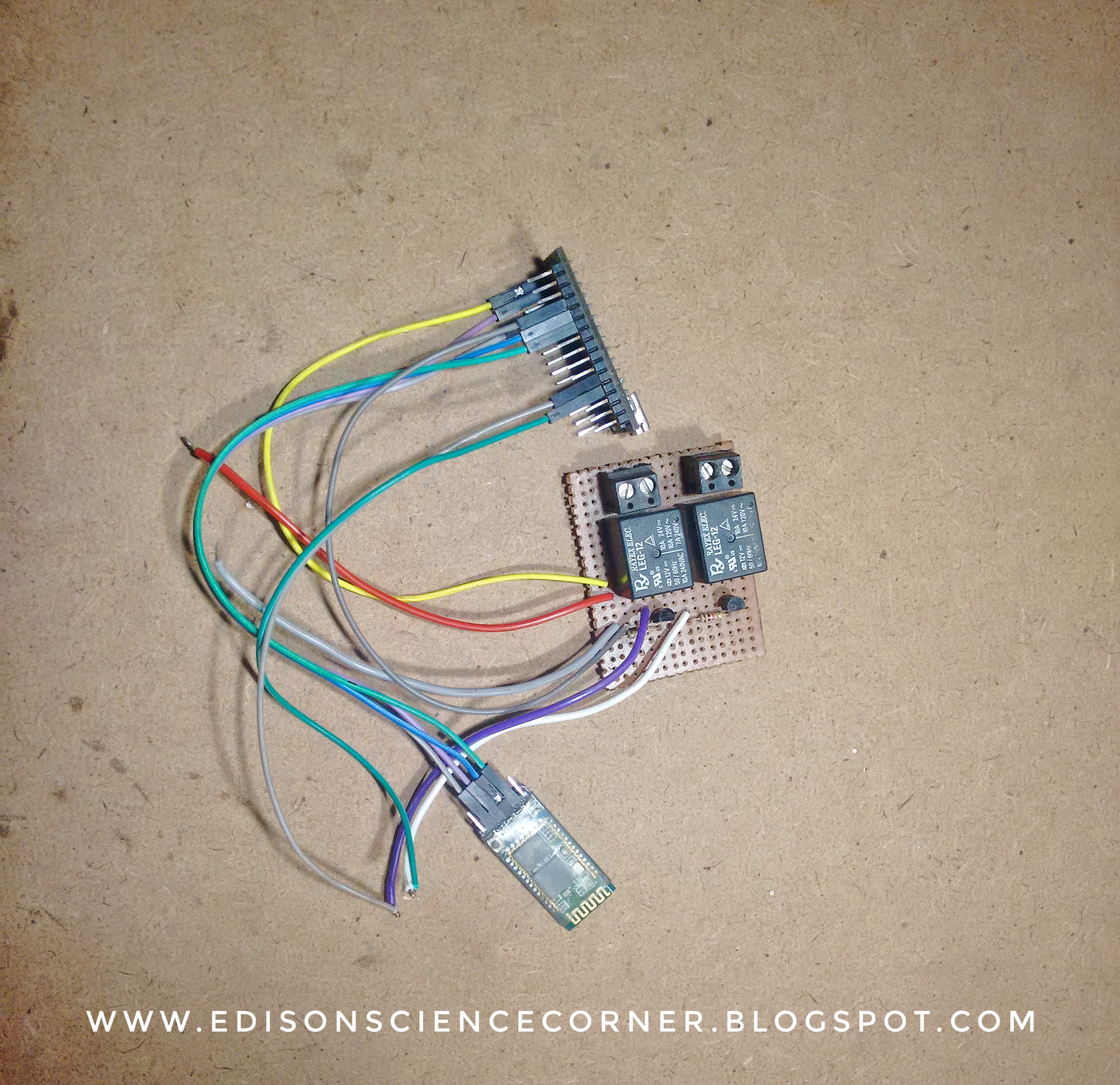

follow circuit diagram and solder everything in a common pcb

watch video for clear idea

video

Code and Application

code and circuit

dowload remotexy from playstore or appstore

pair with bluetooth (password 1234)

Thanks ,happy Making

comment your doubts and suggetions

check my blog

esc

subscribe my youtube channel

edison creations
