Simple Dc generator
A direct current (DC) generator is an electrical machine which converts mechanical energy into direct current electricity.
Important : A direct current (DC ) generator can be used as a DC motor without any constructional changes and vice versa is also possible - Solar electric motor.
The simplest DC generator contain a fidget spinner with iron insertions, 3 neodymium magnet discs, a coil iron -less, a reed switch and a led. This is a simple project which can be completed using just a few components.
![fidget spinner with iron insertions.jpeg](/proxy/?url=https://content.instructables.com/FJX/GKX5/JM6KVIIO/FJXGKX5JM6KVIIO.jpg&filename=fidget spinner with iron insertions.jpeg)
![led.jpg](/proxy/?url=https://content.instructables.com/FJ0/FDNF/JM6KVIIR/FJ0FDNFJM6KVIIR.jpg&filename=led.jpg)
![reed switch.jpg](/proxy/?url=https://content.instructables.com/F1J/WESI/JM6KVIIP/F1JWESIJM6KVIIP.jpg&filename=reed switch.jpg)
![neodymium magnet discs.jpg](/proxy/?url=https://content.instructables.com/FKT/BYAT/JM6KVIIU/FKTBYATJM6KVIIU.jpg&filename=neodymium magnet discs.jpg)
![old nokia charger.jpeg](/proxy/?url=https://content.instructables.com/FHO/SW3O/JM6KVIIV/FHOSW3OJM6KVIIV.jpg&filename=old nokia charger.jpeg)

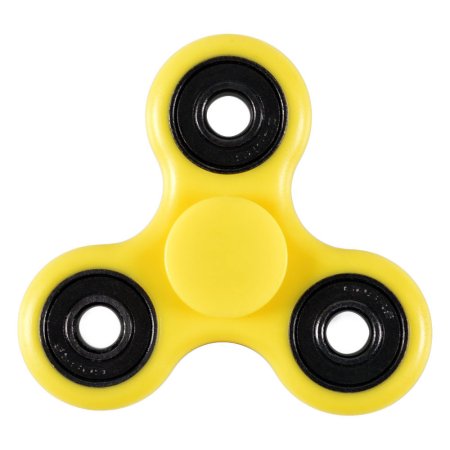

1. fidget spinner with iron inssrtions
2. led

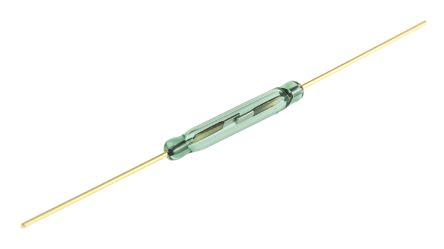

3. reed switch

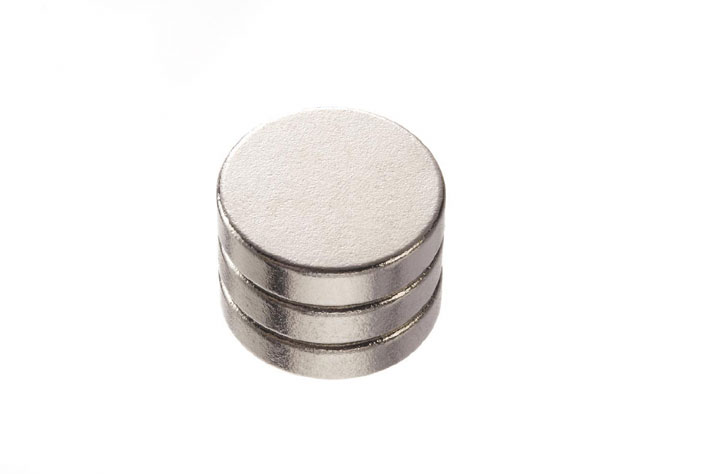

4. three neodymium magnet discs
5. coil iron less ( Inside NOKIA ACP-7 Europe Standard Charger (Original) has a specification of 230 V, 50 Hz, 4.8 VA.) - the charger contains 2 coils. The one with the thin cooper wire is needed.
Operations :

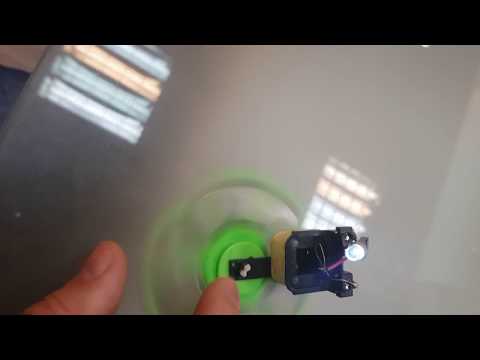

![new science projects 2018 : simple DC generator - science project](/proxy/?url=https://content.instructables.com/FRH/DEML/JM6KVIF4/FRHDEMLJM6KVIF4.jpg&filename=new science projects 2018 : simple DC generator - science project)
Dc generator operations :
Steps :
1. Start by placing the neodymium magnets on the fidget spinner ( no glue needed)
2. remove the coil iron less from the old charger, the charger contains 2 coils - the one with the thin wire needed .
3. fix the reed switch on the coil iron less output wire
4. connect the led. ( reed switch, free output coil wire ) respect the polarity ("+" and" - ") - use a digital voltmeter
5. using a peace of plastic create the coil holder and stik the coil on the fidget spinner - glue needed
6. Now, it's time to use your generator! Spin it as fast as you can and watch your led light up !
Note :
![reed switch.jpg](/proxy/?url=https://content.instructables.com/FIF/Z0IQ/JM6KVITK/FIFZ0IQJM6KVITK.jpg&filename=reed switch.jpg)
The reed switch is responsable for the Dc voltage, without using the reed switch the output of the generator it will be Ac voltage !
The reed switch is an electrical switch operated by an applied magnetic field.
A science toolbar project. All our projects : http://sciencetoolbar.com
