Simple Adapter From Bulb Light E27 to Socket

Hello!

Have you ever had a situation when you need a socket, and nearby, from sources of electricity, there is only a light bulb. And here I was in this situation. So I decided to make an adapter from the bulb holder E27 to the socket.

Took a led light bulb and old light socket. First of all, I disassemble the light bulb.

I disassemble the socket and disconnect the metal frame of the socket.

I try to insert the socket into the body of the bulb.

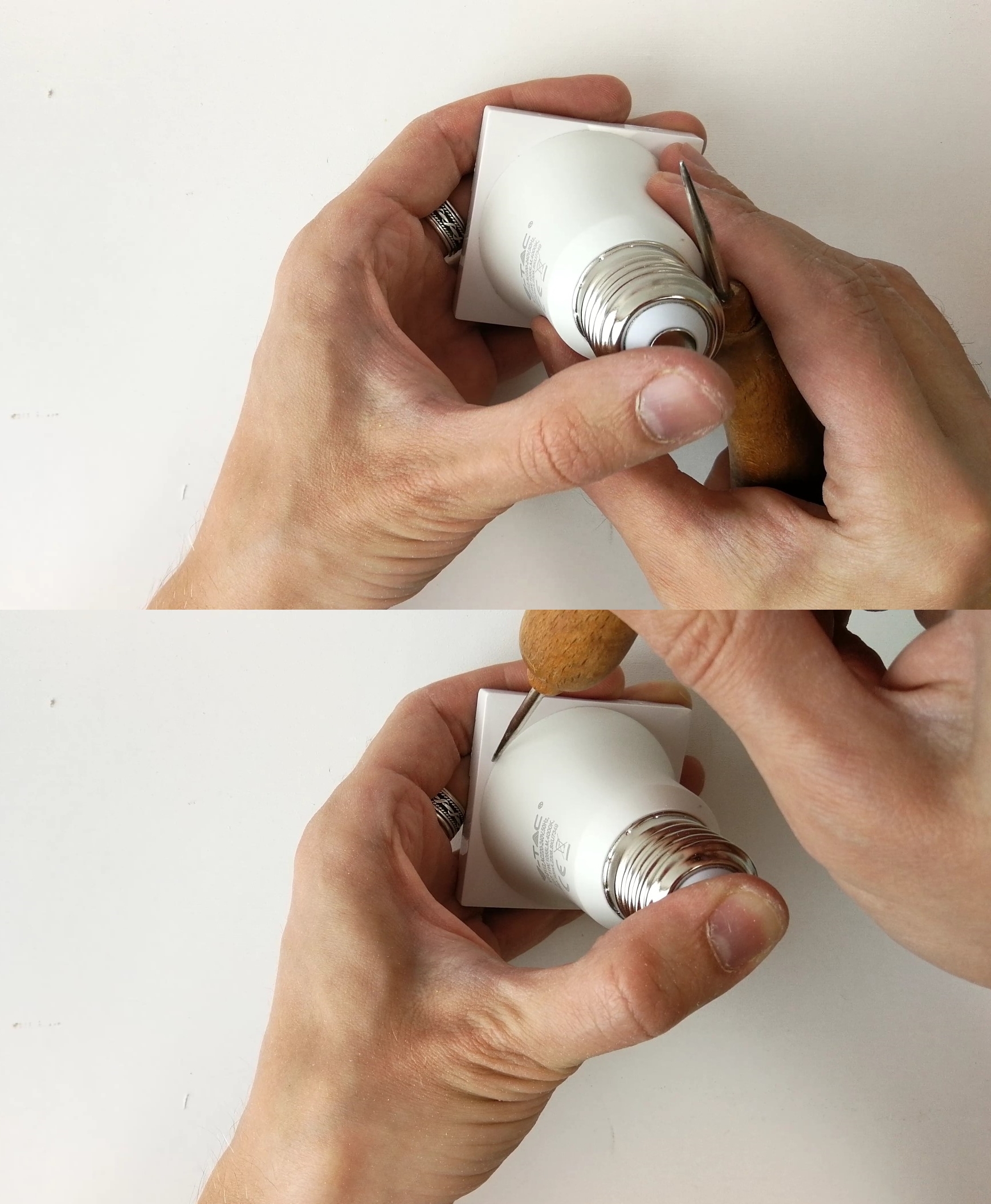

The socket didn't fit. I take scissors on metal and cut off all superfluous. Then I take the light bulb, put it to the cover of the socket and circle the contour of the bulb. Used an awl.

I cut off everything superfluous with Scissors.

I drill the base of the bulb. Solder the wire to a larger cross-section.

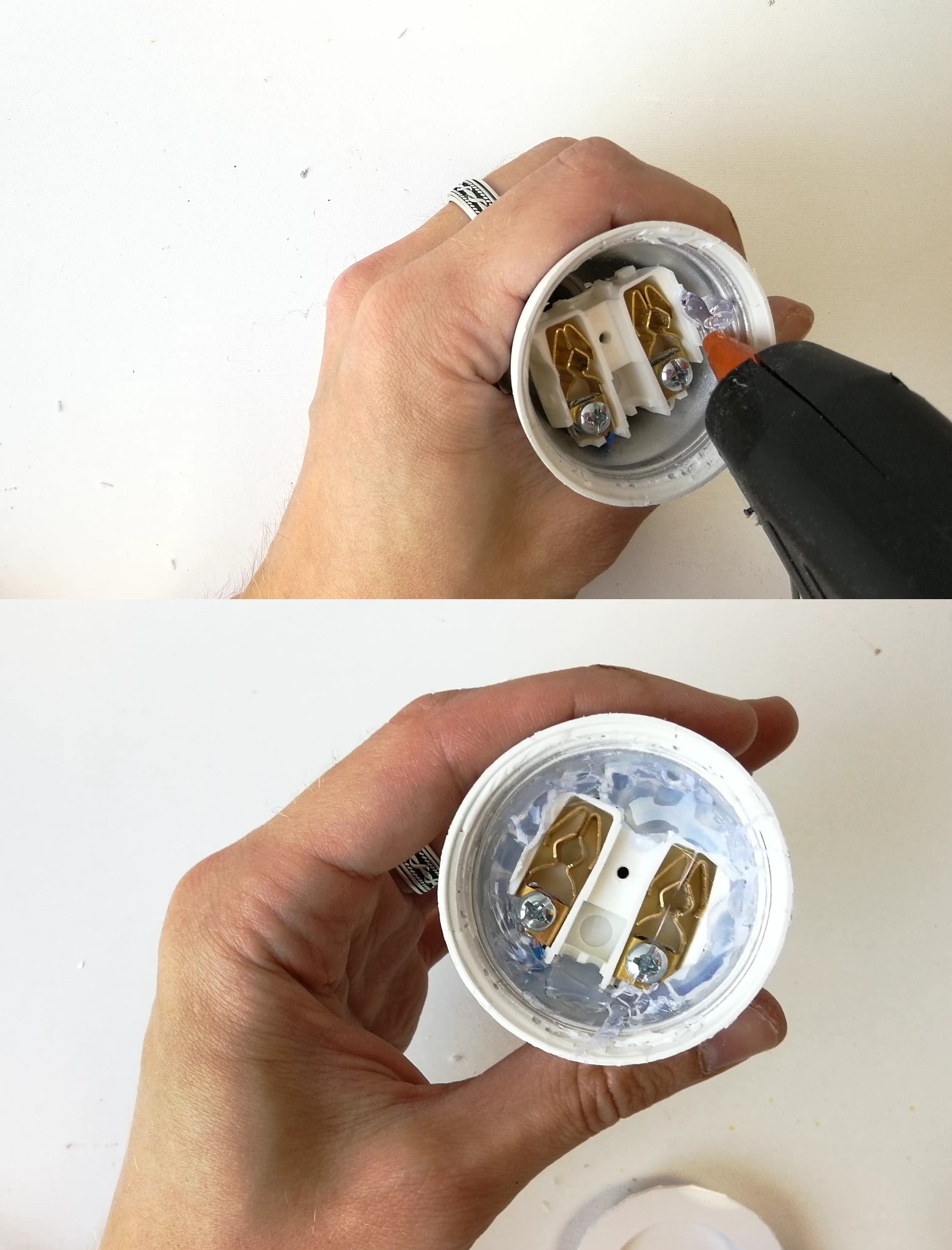

With the help of thermal glue, I fix the socket in the body of the bulb.

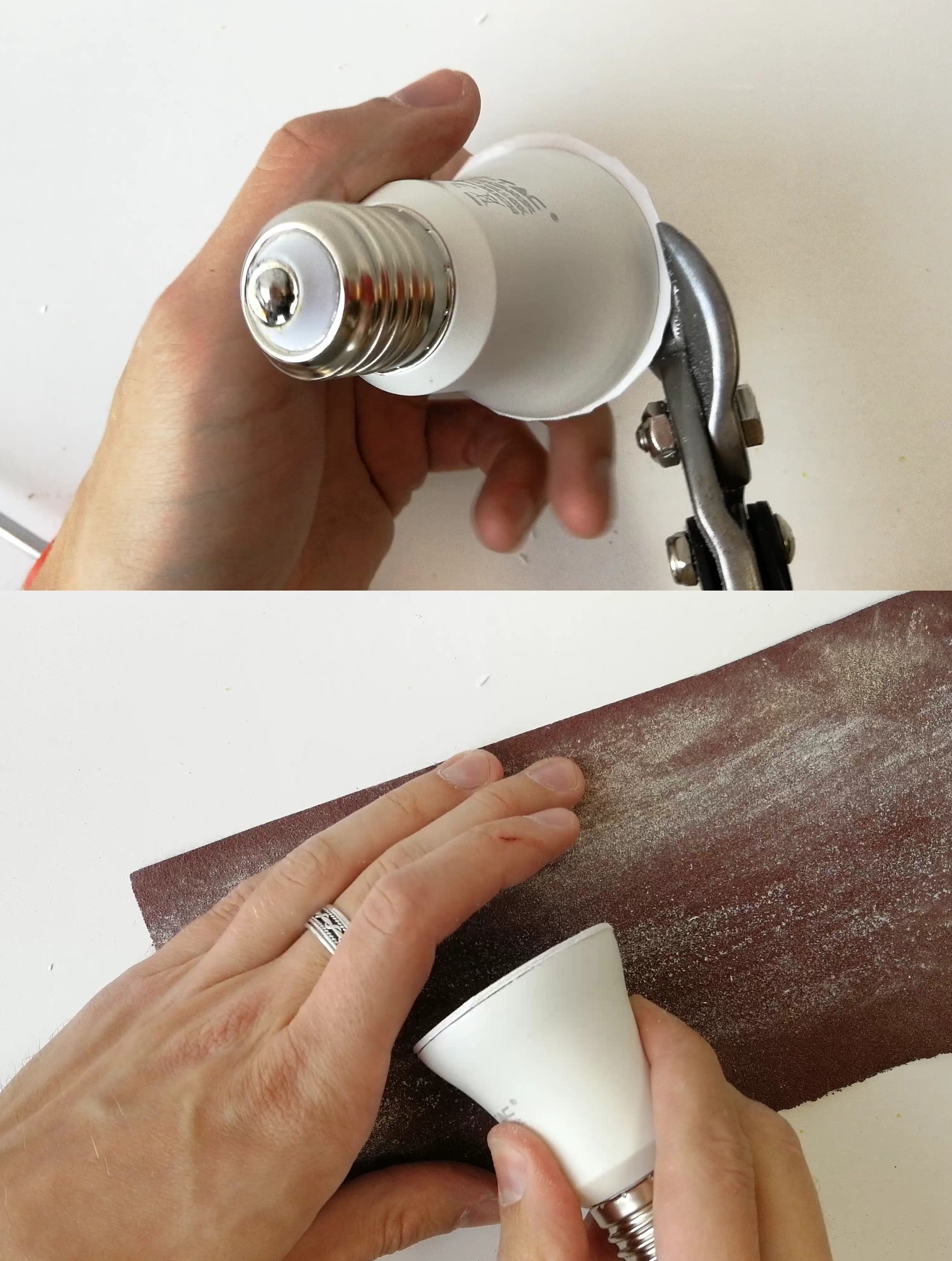

I fasten the cover from the socket. I sand the contour of the edge with sandpaper

Сhecking how it works

While I was making this outlet, I came up with another version of this adapter. It is more convenient to use and, most importantly, you will have a light source.

Again disassemble the bulb.

I check how the contacts are located.

To get to the bottom contact, I drilled the base of the bulb.

I make a hole in the ceiling of the bulb and stretch the wire.

I insert and solder the wires to the contacts of the bulb

I removed the excess solder on the bottom contact of the bulb.

With scissors on the metal, I make a small notch.

Checking how it works

Both options have the right to life, but I liked the second option more. It is more functional, you still have the light source, you can on/off the instrument with the network filter button.

I agree that in everyday life such homemade products are not useful, but in an emergency very useful.

Thanks for your attention.
