Simple 555 PWM
![IMG_0873.JPG](/proxy/?url=https://content.instructables.com/F51/SUM2/IG2HER2H/F51SUM2IG2HER2H.jpg&filename=IMG_0873.JPG)
![IMG_0876.JPG](/proxy/?url=https://content.instructables.com/FDN/S5I8/IG2HER2O/FDNS5I8IG2HER2O.jpg&filename=IMG_0876.JPG)
![IMG_0874.JPG](/proxy/?url=https://content.instructables.com/FXS/8WKU/IG2HER2J/FXS8WKUIG2HER2J.jpg&filename=IMG_0874.JPG)

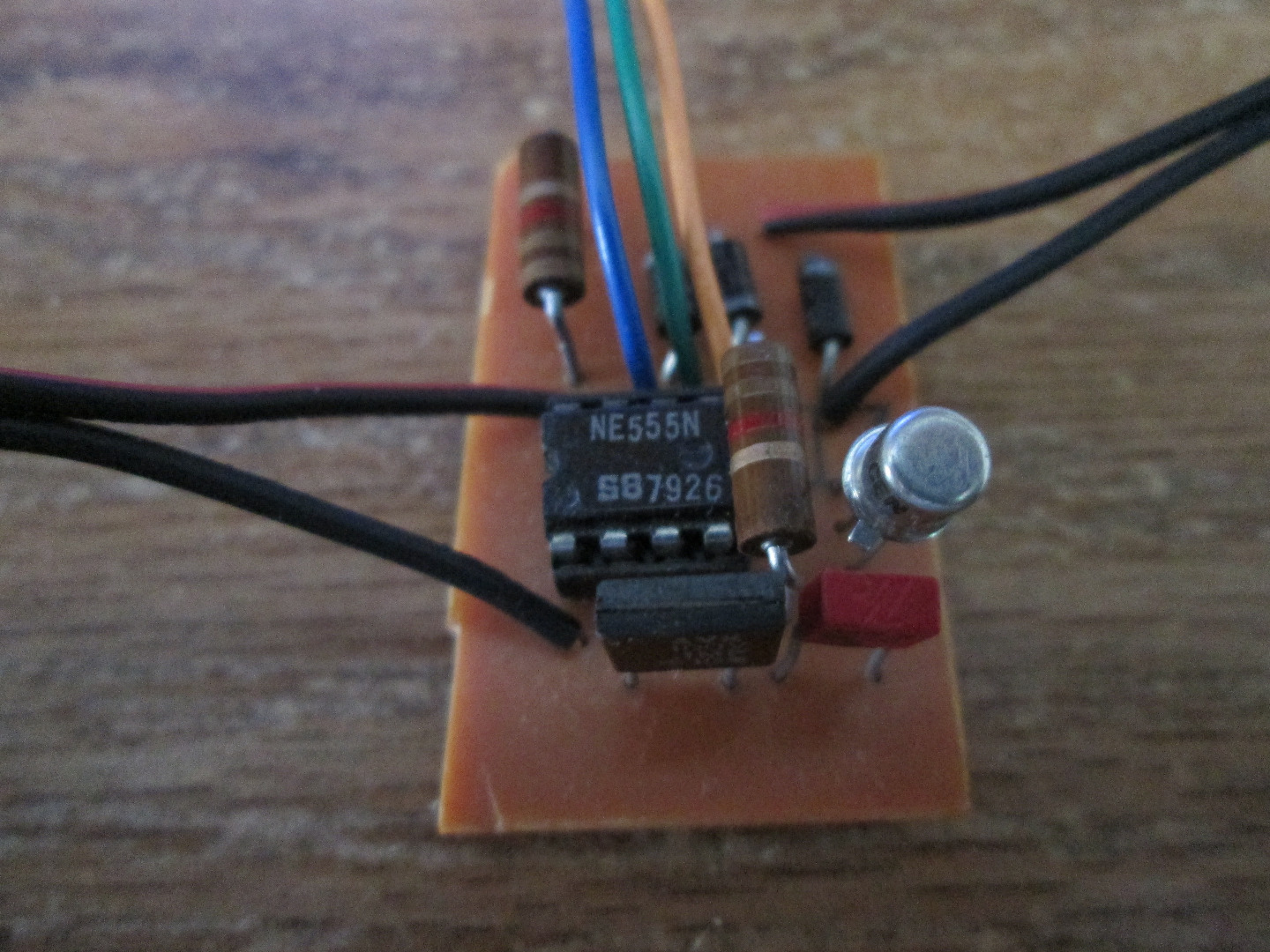

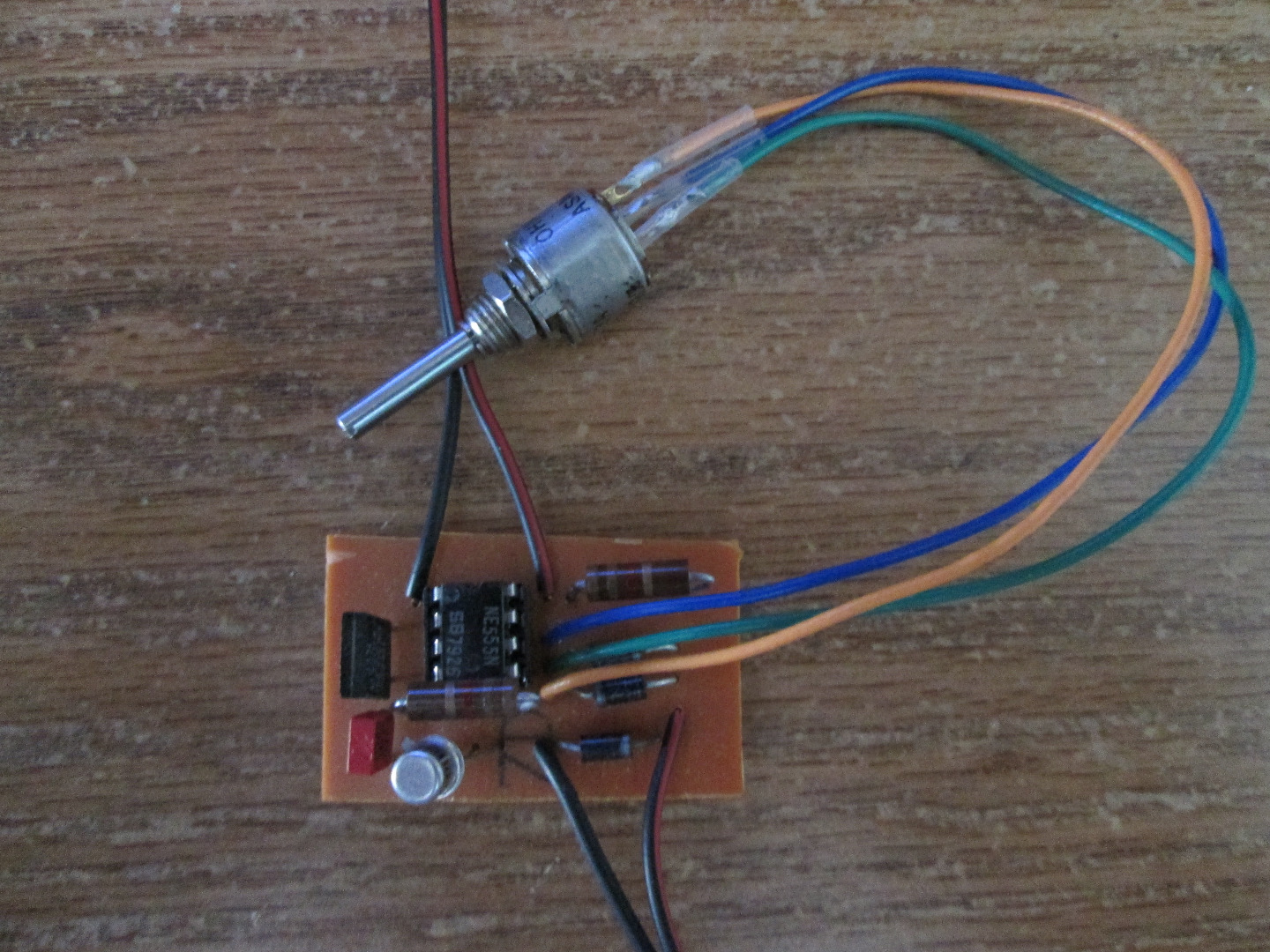

This circuit sets up the common 555 timer IC to output a PWM pulse that can be varied by the position of a connected potentiometer. PWM (pulse width modulation) is commonly used to control the speed of motors or brightness of LED's. With just a few common electronic components this is one of the simplest PWM circuits you can make.
The Circuit
![555pwm.jpg](/proxy/?url=https://content.instructables.com/FCC/Z48E/IG2HER2E/FCCZ48EIG2HER2E.jpg&filename=555pwm.jpg)
![pcb.jpg](/proxy/?url=https://content.instructables.com/F24/IORZ/IG2HER2W/F24IORZIG2HER2W.jpg&filename=pcb.jpg)
I've included the circuit schematic and PCB layout, the PCB layout may have to be altered based on the transistor you use. The transistor determines how much current you can control, I used a 2n2222a which can supply up to 800ma. The voltages that can be controlled range from 5-15 volts. I used my 555 PWM to control the speed of 3 12volt DC computer fans that use 180ma each.
