Simple 3D Printed Pen Stand
![IMG20211026175205.jpg](/proxy/?url=https://content.instructables.com/F8M/QYGR/KV83PQV0/F8MQYGRKV83PQV0.jpg&filename=IMG20211026175205.jpg)
![IMG20211026222046.jpg](/proxy/?url=https://content.instructables.com/FCZ/C84O/KV83PQYP/FCZC84OKV83PQYP.jpg&filename=IMG20211026222046.jpg)
Often, I have difficulties in finding a pen when required and at other times I have a lot of them lying around on my table. To find a balance between these instances, I decided to 3D print a simple pen stand .
My requirements were simple:
- There should be atleast 5 slots for holding pen.
- It should be somewhat aesthetic.
- It should be small - Not a fan of those gigantic pen holders.
- It should not tip over (usually happens with small penholders).
Required Supplies:
- 3D Printer
- PLA Filament (1.75mm in my case)
Measure the Diameter of Pen
![IMG20211026221134.jpg](/proxy/?url=https://content.instructables.com/F0D/QLJ6/KV83PQW4/F0DQLJ6KV83PQW4.jpg&filename=IMG20211026221134.jpg)
I generally use 2-3 different types of pens. So I measured the diameter of each and found that none of them exceeded 9 mm. So I chose 10 mm (1mm margin, just in case) as the diameter of the slot. To overcome the tip over issue, I experimented with three different heights ( 10 mm,15 mm & 20 mm). Both 15 mm and 20 mm seemed stable, so I recommend height greater than or equal to 20 mm ( You can go for larger heights too, but I wanted the stand to be small)
Design the Stand

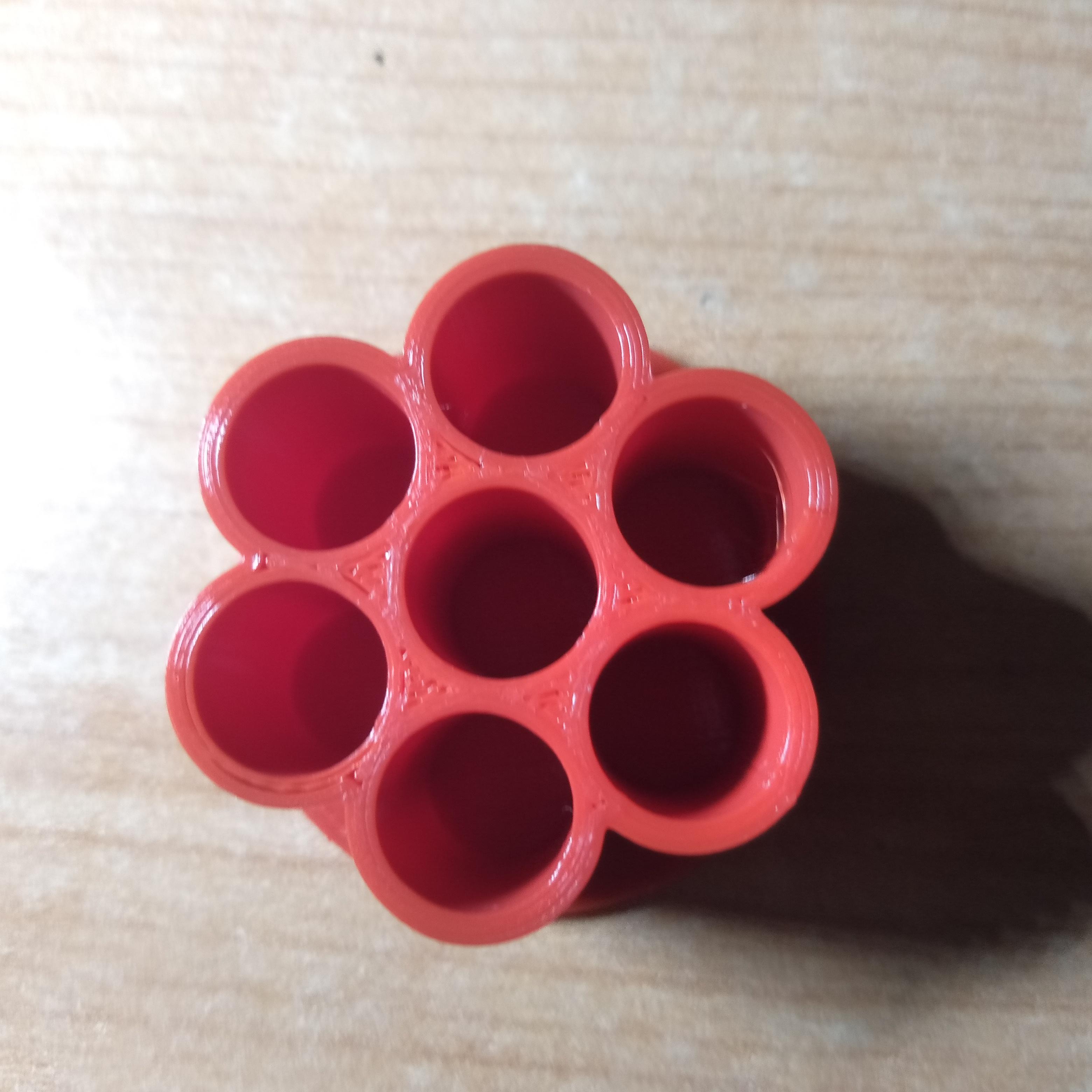

Keeping in mind the diameter of the pen, design a slot and then place it around according to your needs. I made a circular design with 7 slots. Each circular slot has an internal diameter of 10mm.
Print!!
![IMG20211026175145.jpg](/proxy/?url=https://content.instructables.com/FQ3/IQII/KV83PQZV/FQ3IQIIKV83PQZV.jpg&filename=IMG20211026175145.jpg)
![IMG20211026175159.jpg](/proxy/?url=https://content.instructables.com/FRU/W11O/KV83PR0L/FRUW11OKV83PR0L.jpg&filename=IMG20211026175159.jpg)
I used a printer setting with 30% infill and default temperature settings for PLA (200° C for the hot end and 65° C for the bed ). The .stl file is attached below.
Downloads
It's Ready
![IMG20211026222042.jpg](/proxy/?url=https://content.instructables.com/FQB/UM74/KV83PQYO/FQBUM74KV83PQYO.jpg&filename=IMG20211026222042.jpg)
Finally, it's done.

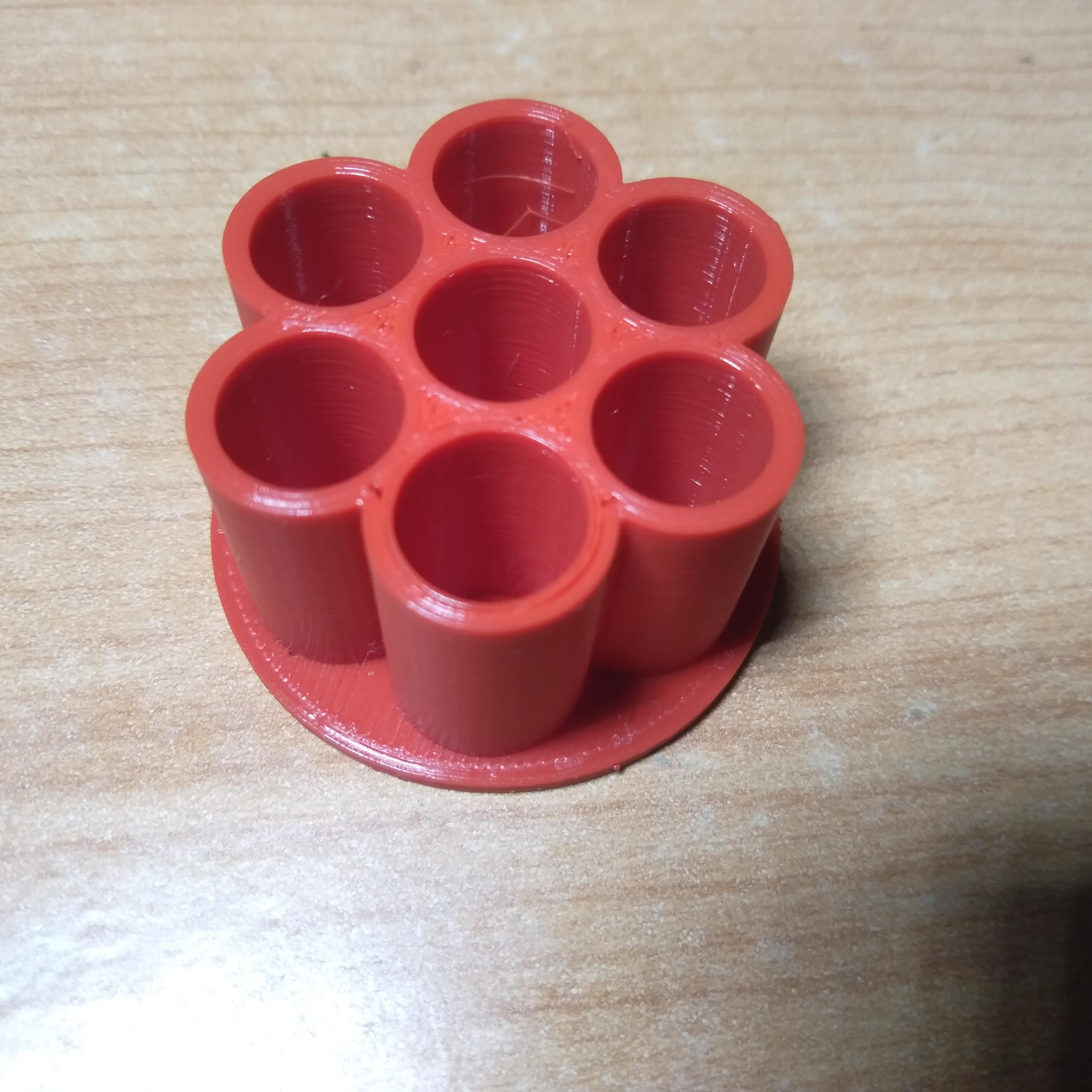

The pen stand has 7 slots and fits aesthetically well to my table. Also it is fairly small. So I can gladly say that this project met all my requirements.
Ah finally, I will be able to organize my table a bit and find a pen without any hassle 😂
