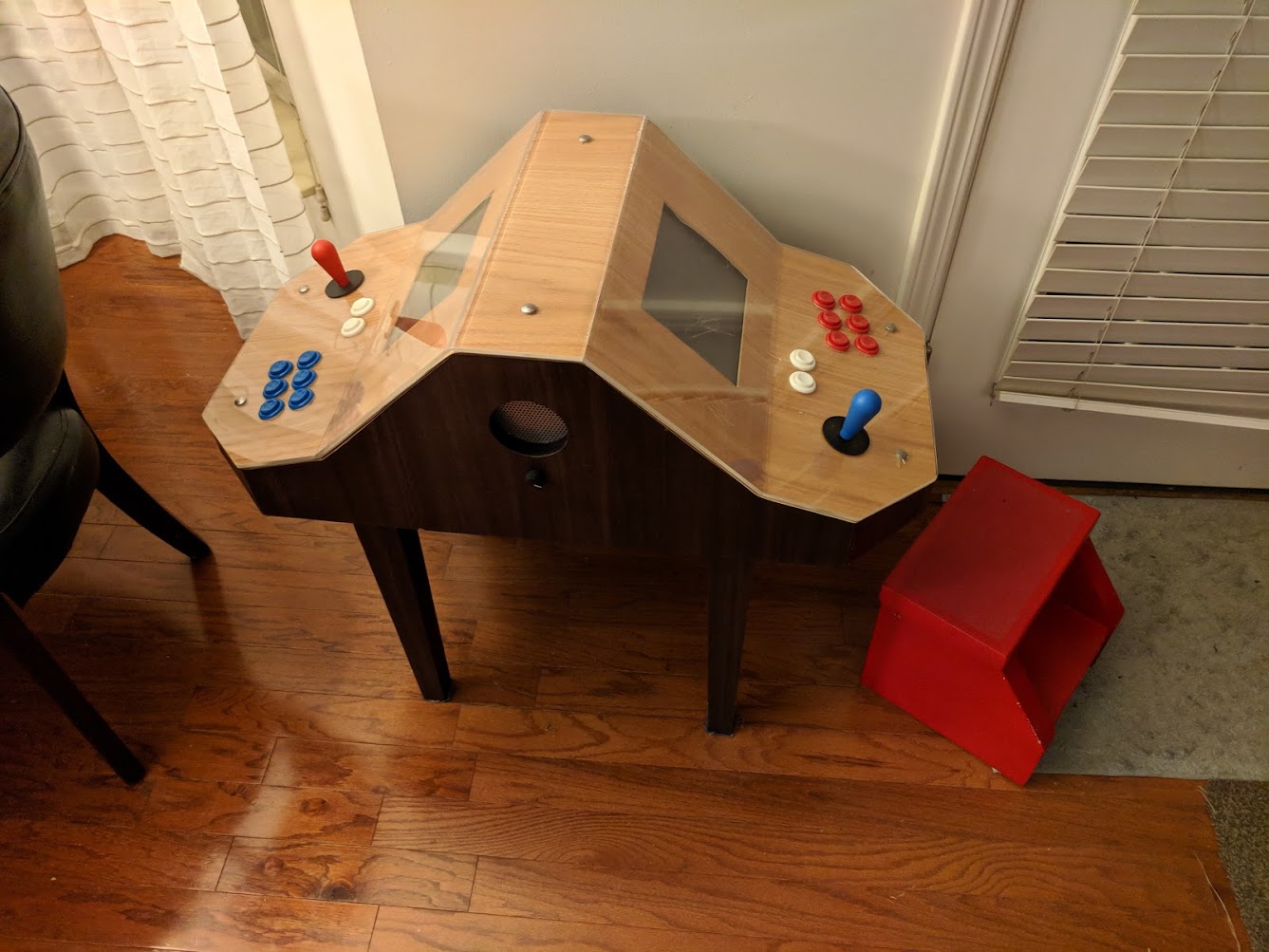

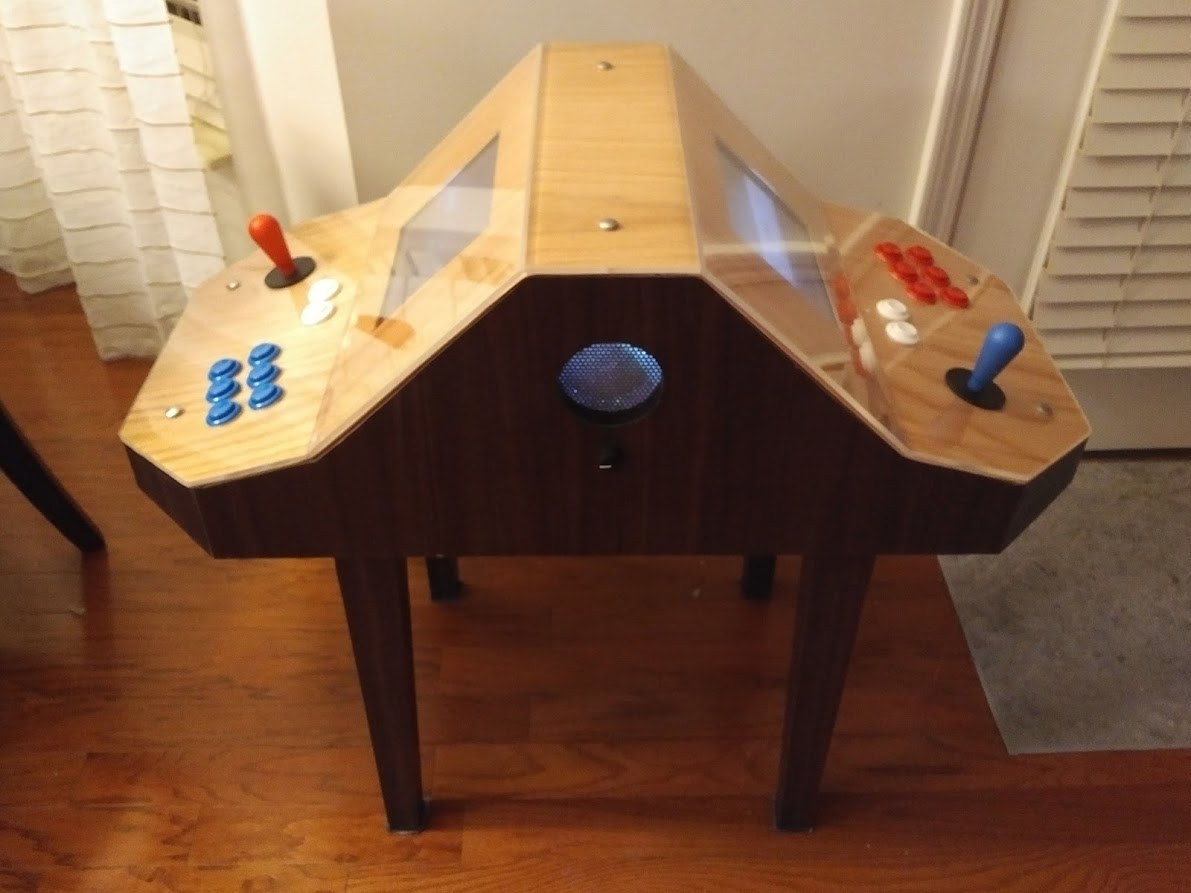

Short Two-Headed Arcade Cabinet

My wife wanted another kid, but I wanted to build a retropie game cabinet, so I built a short one with two monitors.

Most of the supplies are from ebay


4 Pre-made table legs

1" x 12" pine wood

Formica veneer

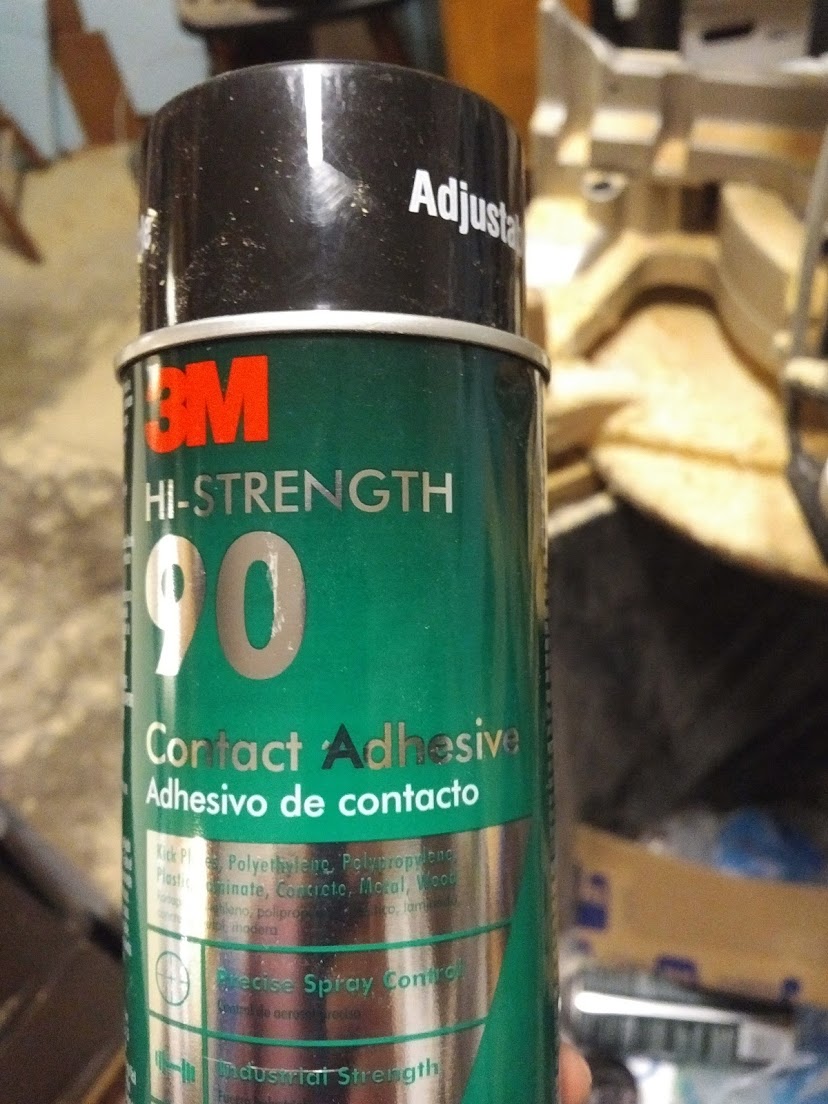

Spray adhesive

Drill

Wood
screws

Hole saw

Jig saw

2 joysticks

16 arcade buttons

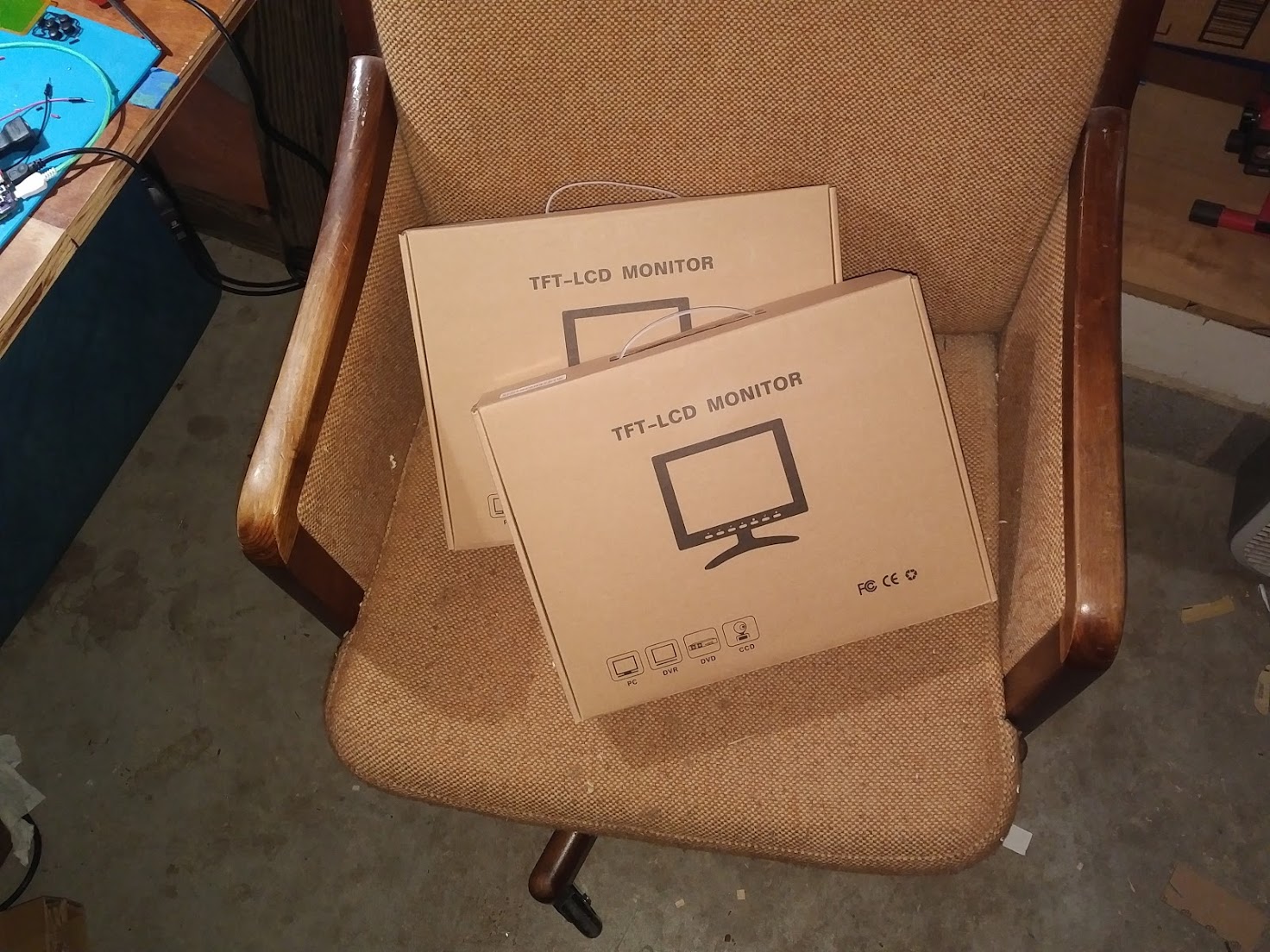

2 - 10" monitors

Plexiglass

Power strip

3' led strip

Raspberry pi 2b running retropie

HDMI dual monitor adapter

2 - 100w 3" speakers

300w audio amp

Volume controller

112v system power switch

Power button for pi

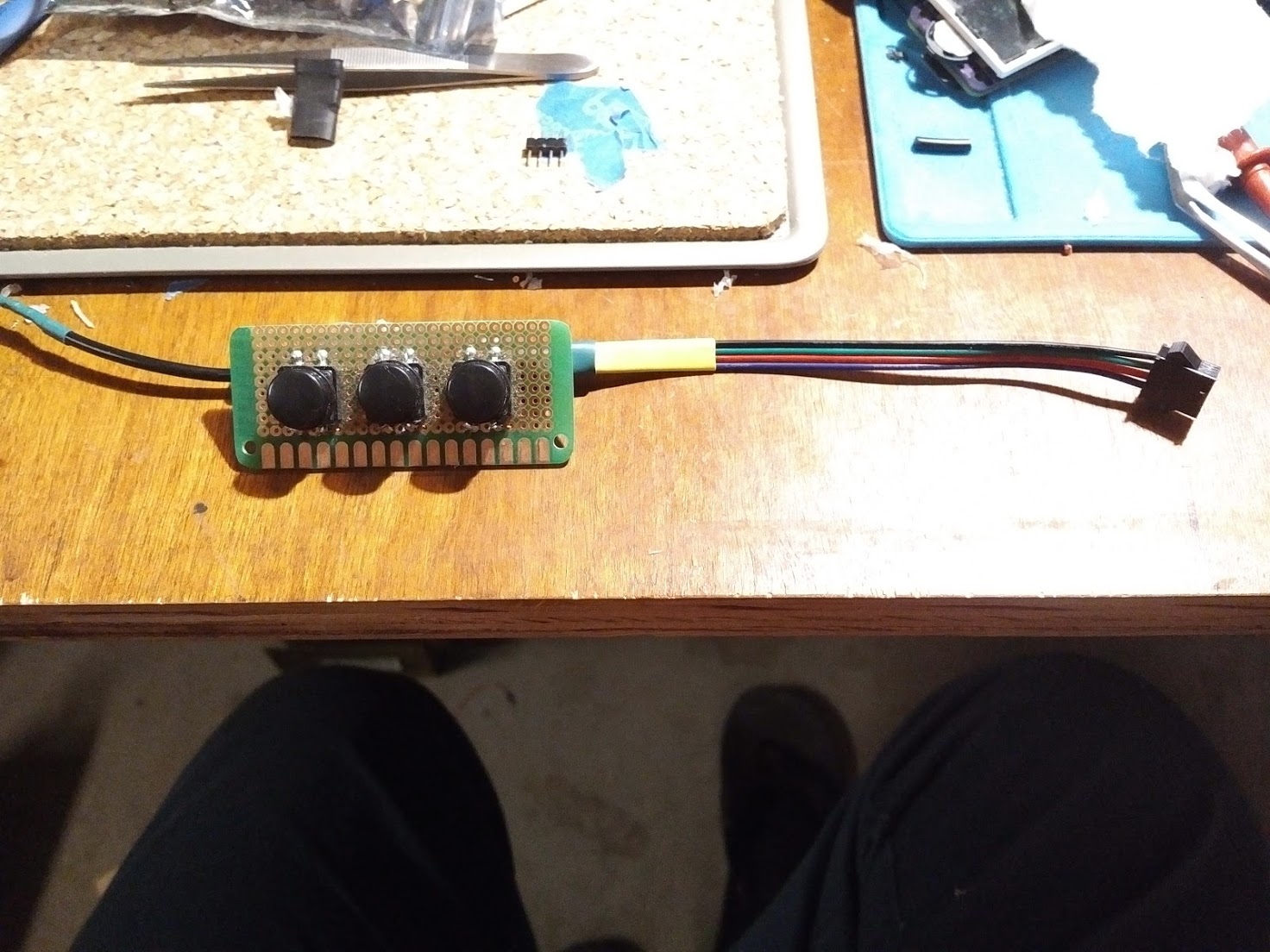

3 momentary buttons for internal leds

Peg board

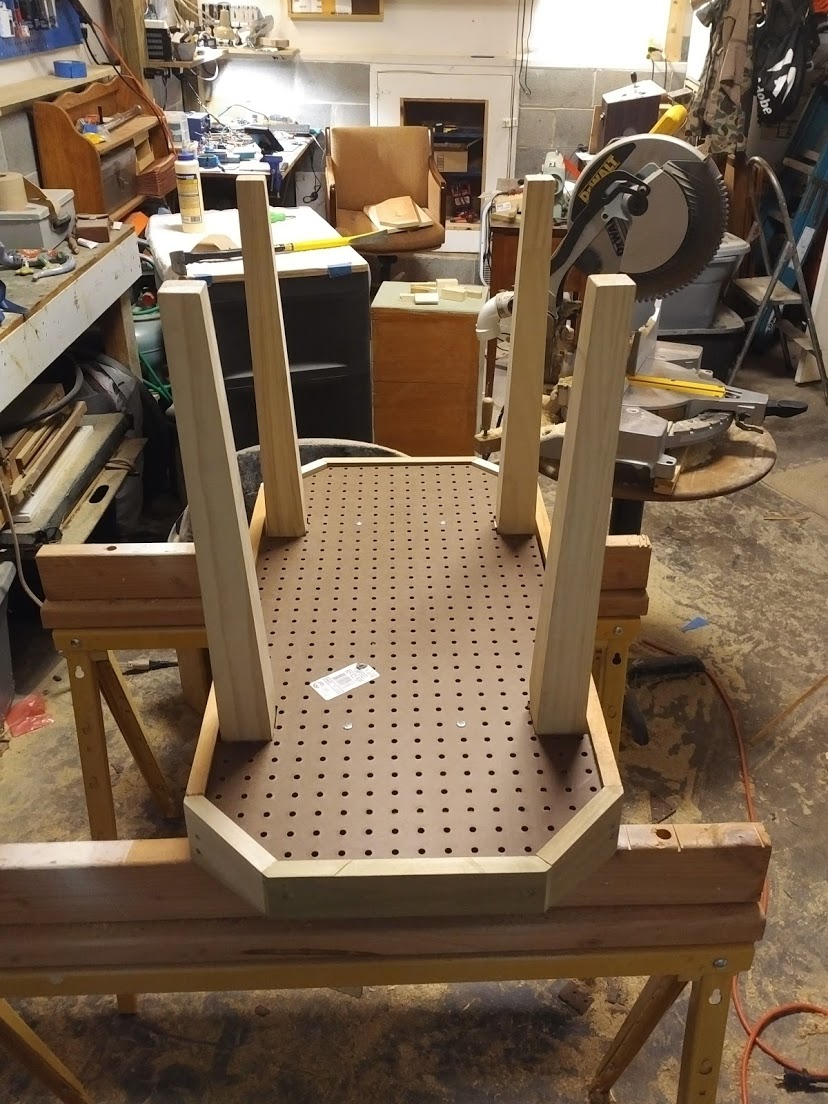

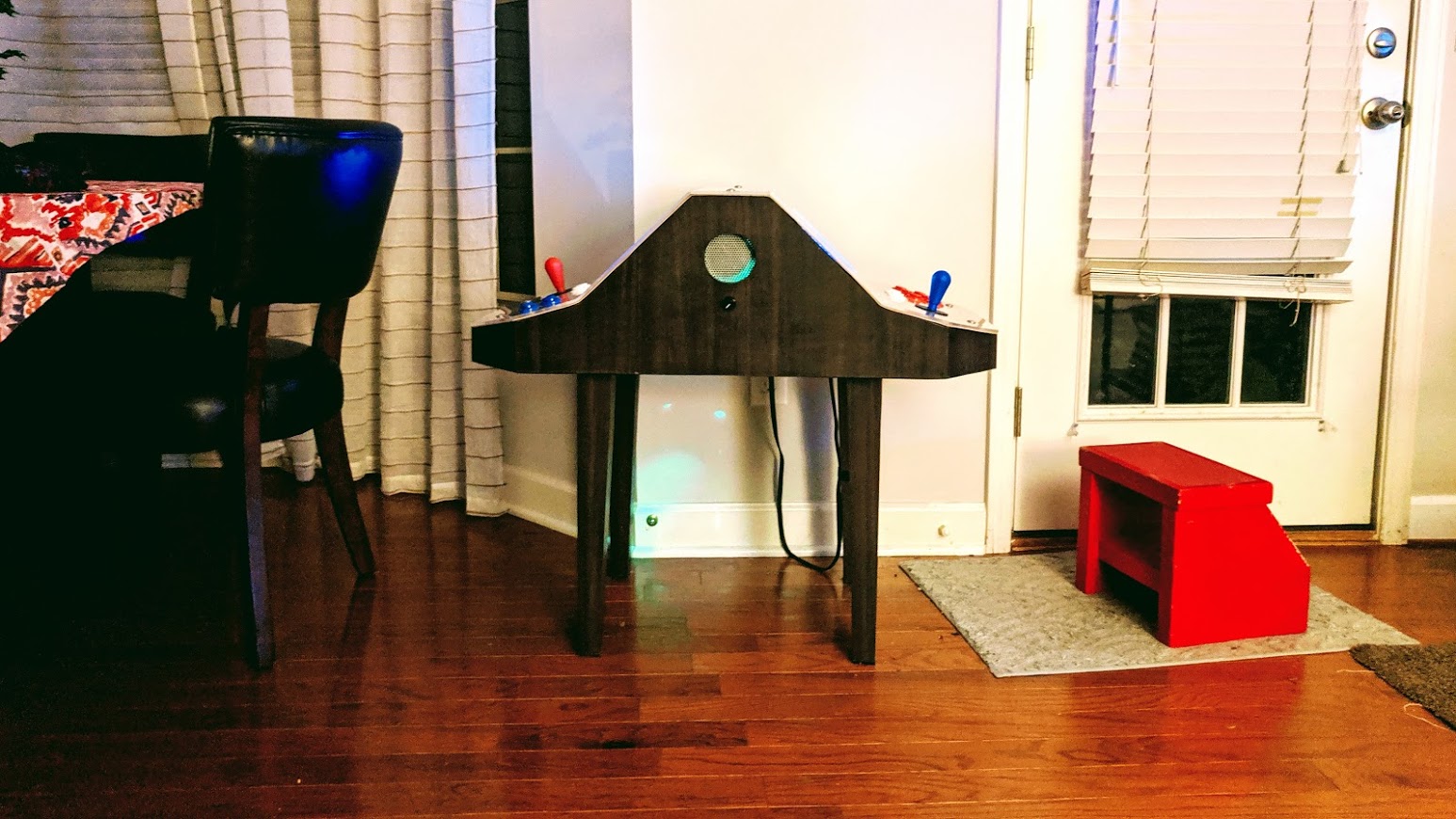

• I started with a prefabricated coffee table base; four legs and a rectangle which I shortened a bit.

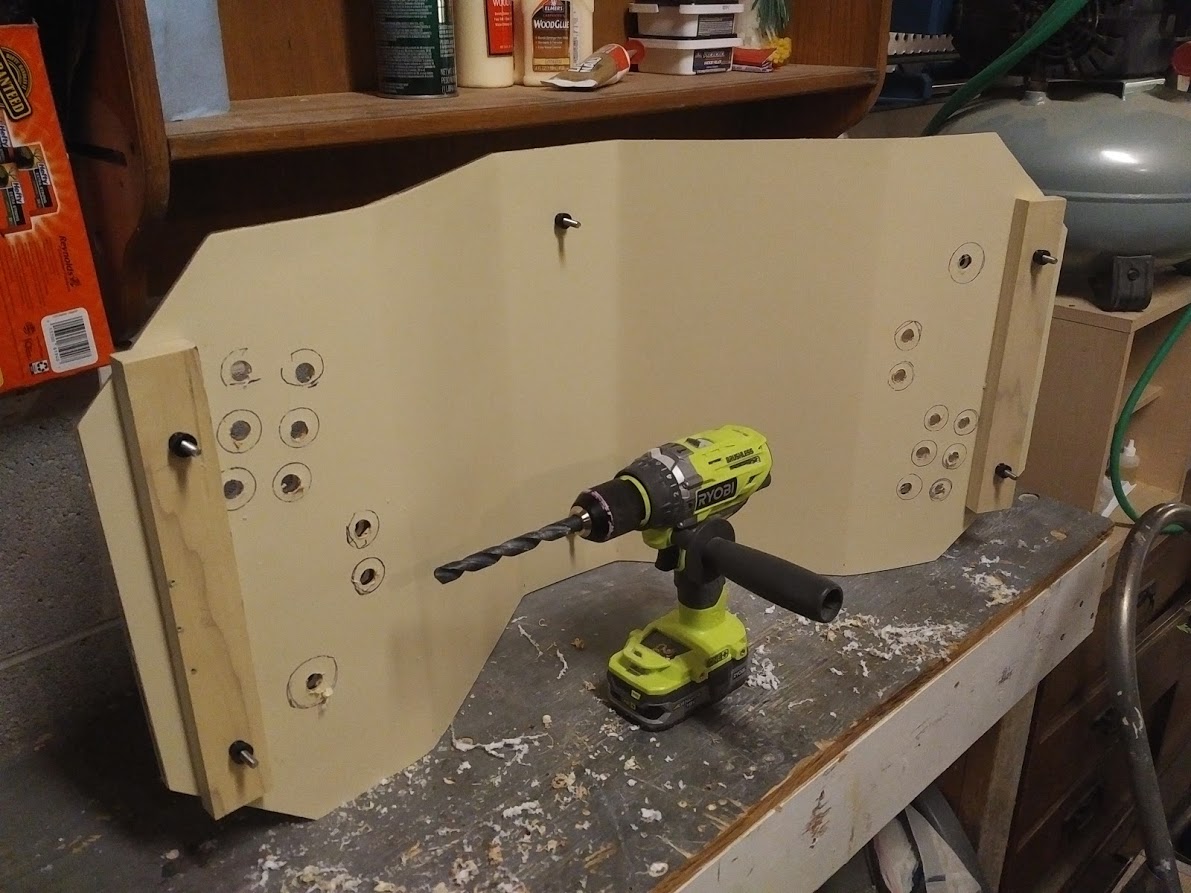

• Next I cut some panels that would position the monitors at a comfortable angle and allow space for the internal components.

• For the removable bottom panel, I used a piece of pegboard fastened by 4 screws.

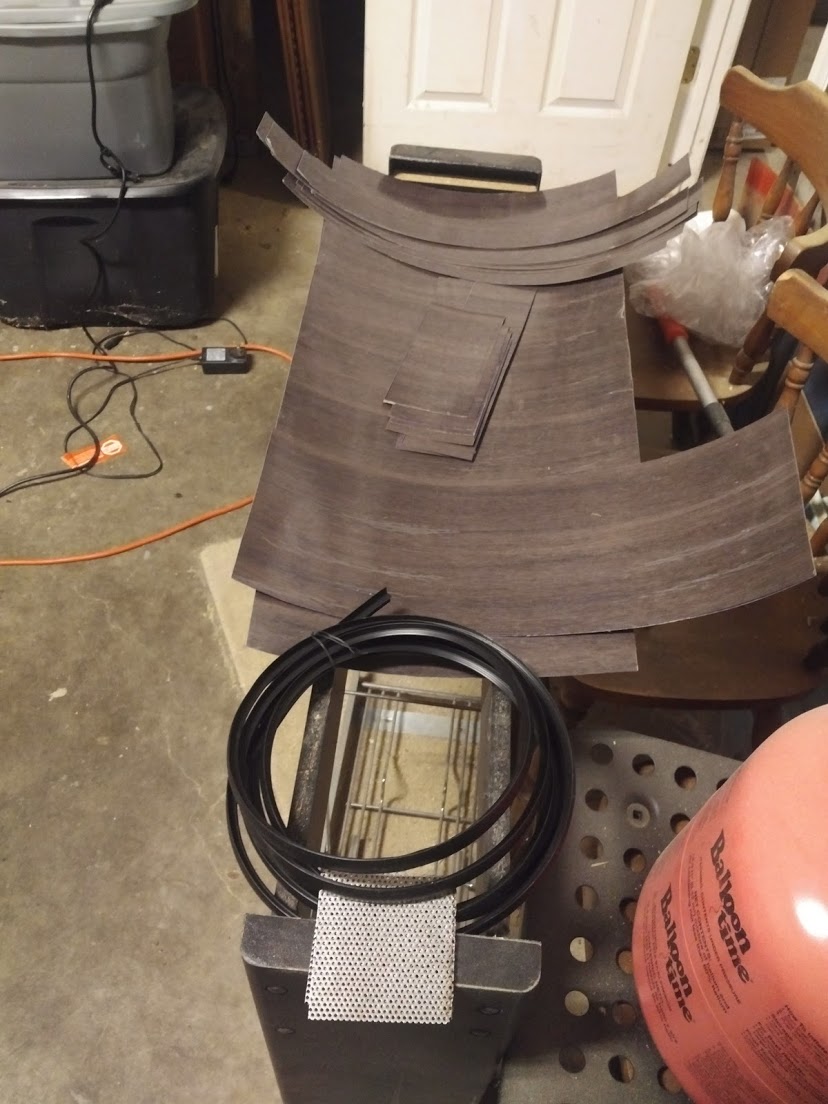

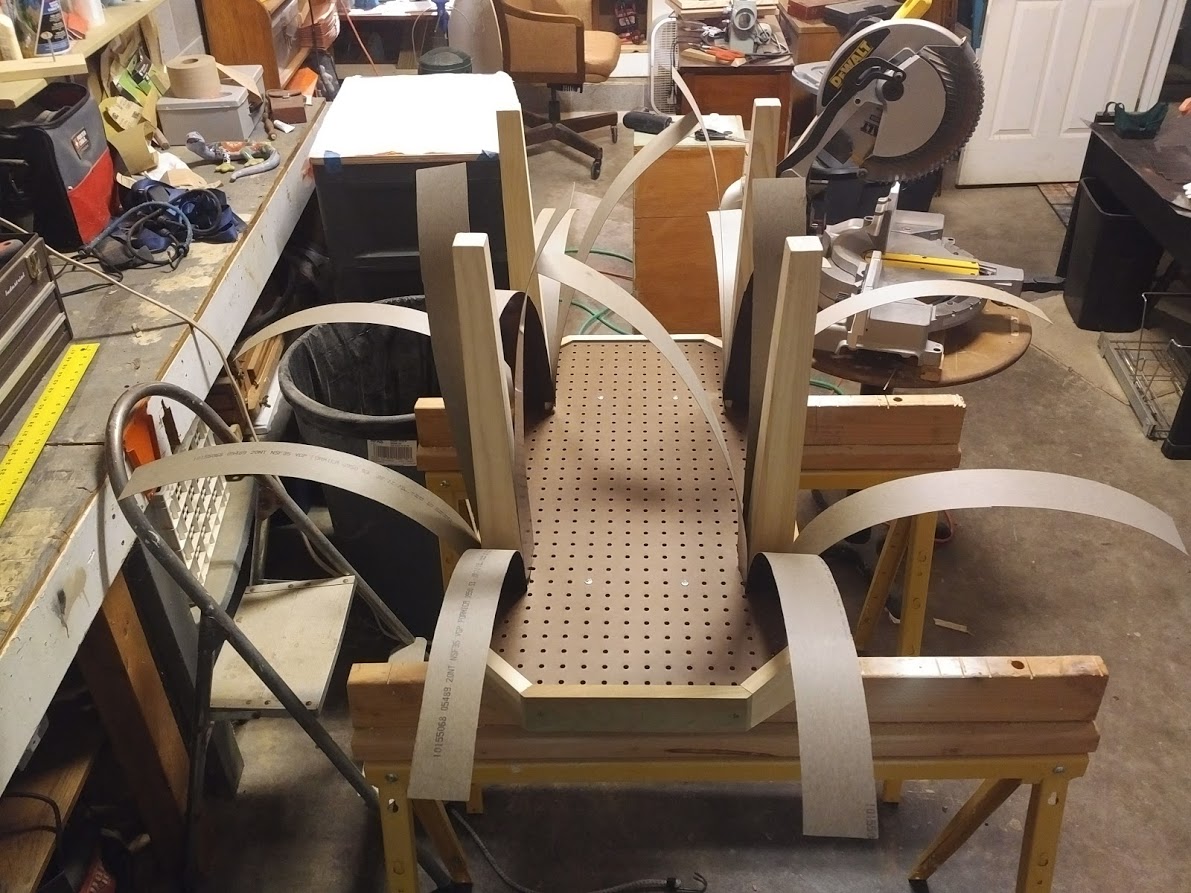

• The surface is "upholstered" with left over formica from a different project.

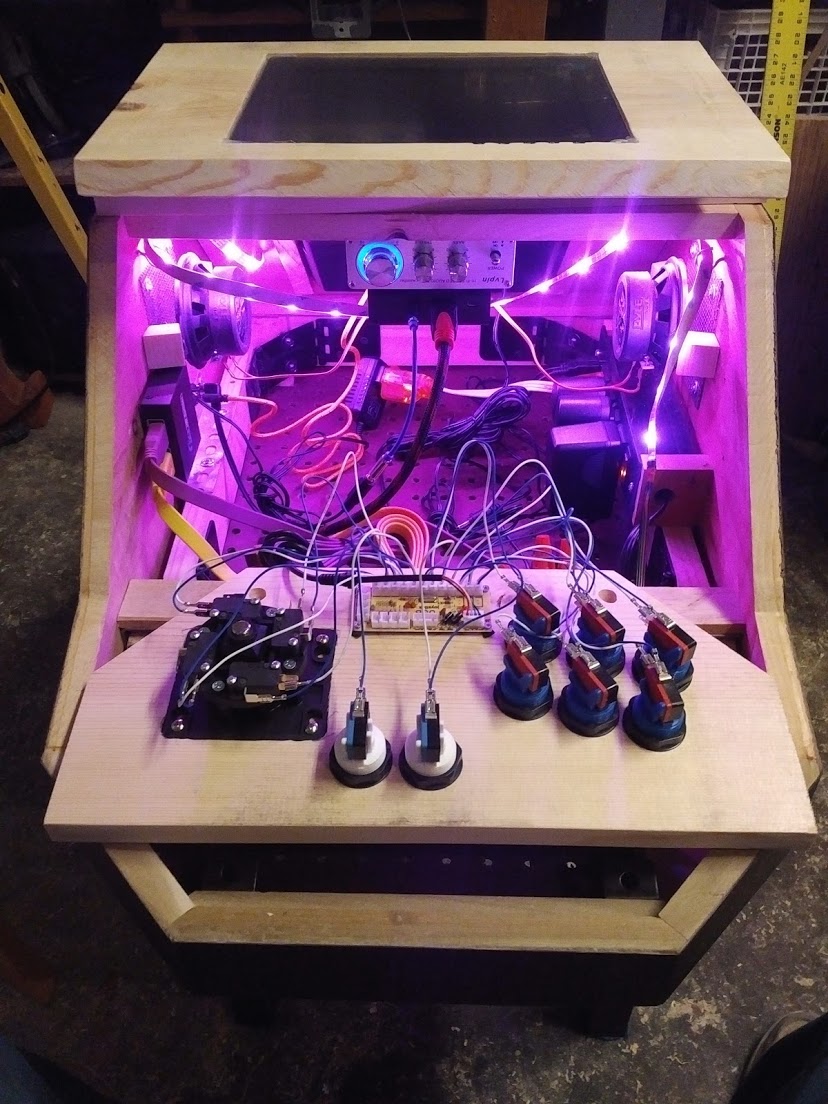

• Everything that needs power plugs into the power strip mounted on the inside.

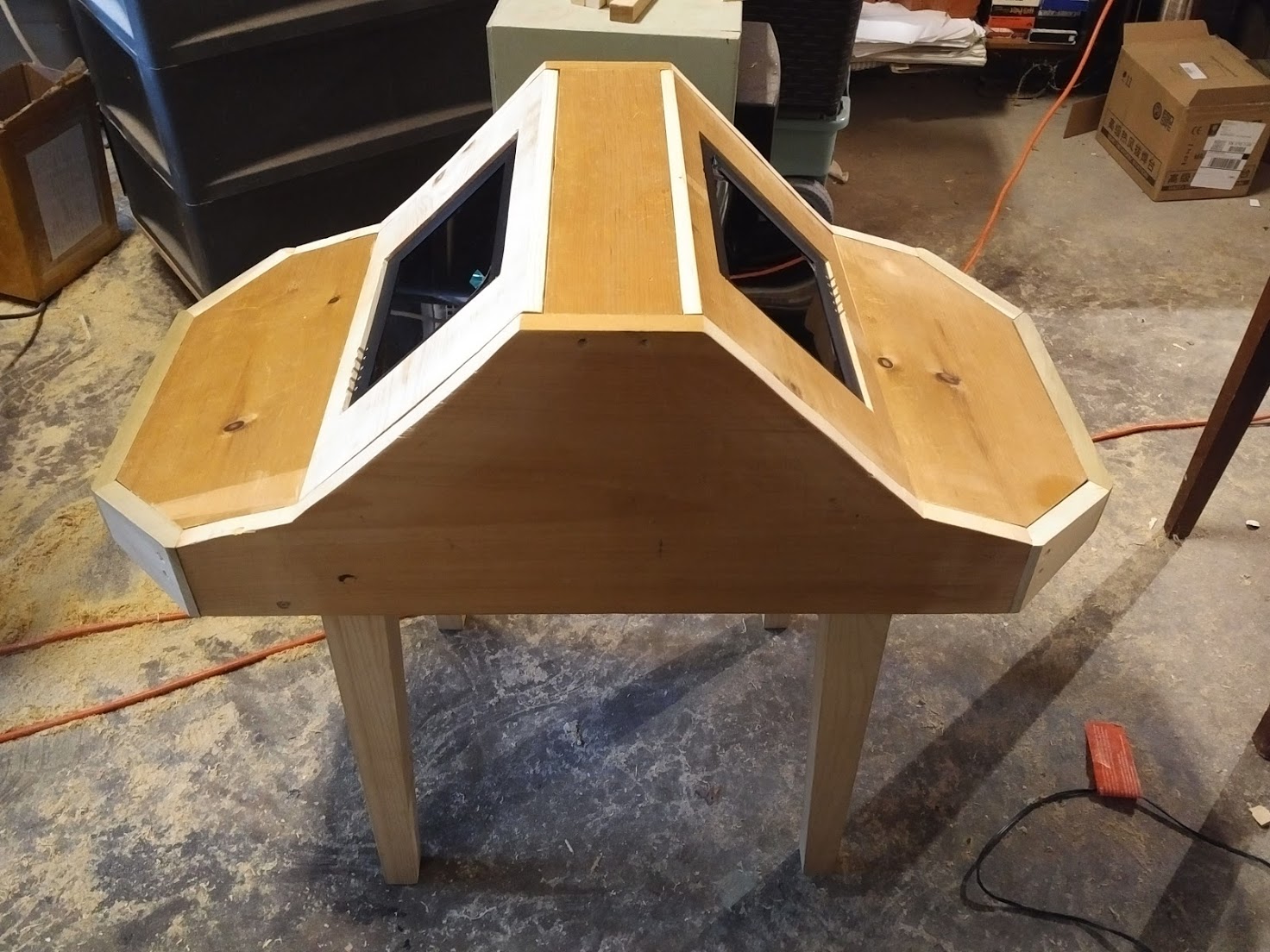

• The holes for the monitors were cut with a jig-saw

• A 3" hole saw was used to make the holes for the speakers on the sides.

• As an embellishment I included USB Powered RGB 5050 LED Strip Lighting.

• The power buttons, led strip controls and USB ports are on the bottom of the "Player 1" side.

• The volume control knob is in the center of one side, below the speaker hole.

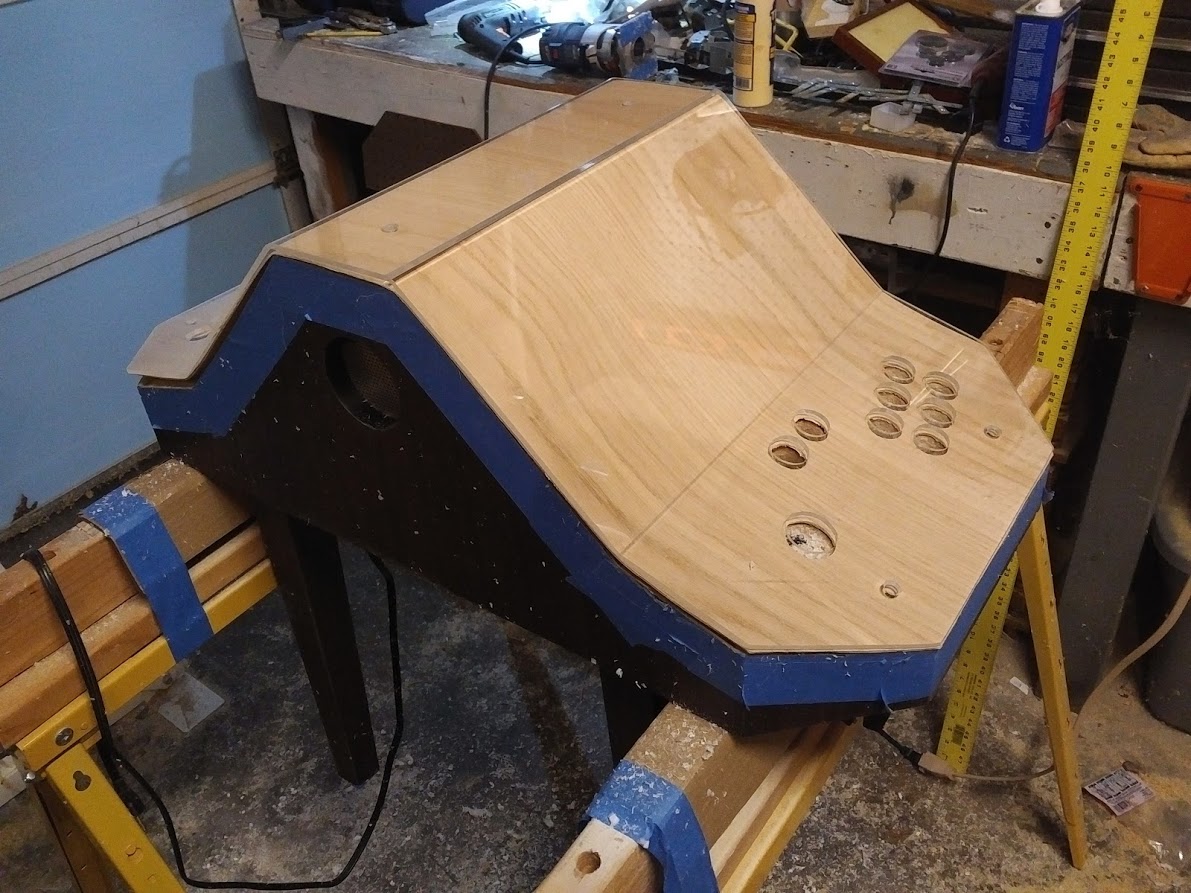

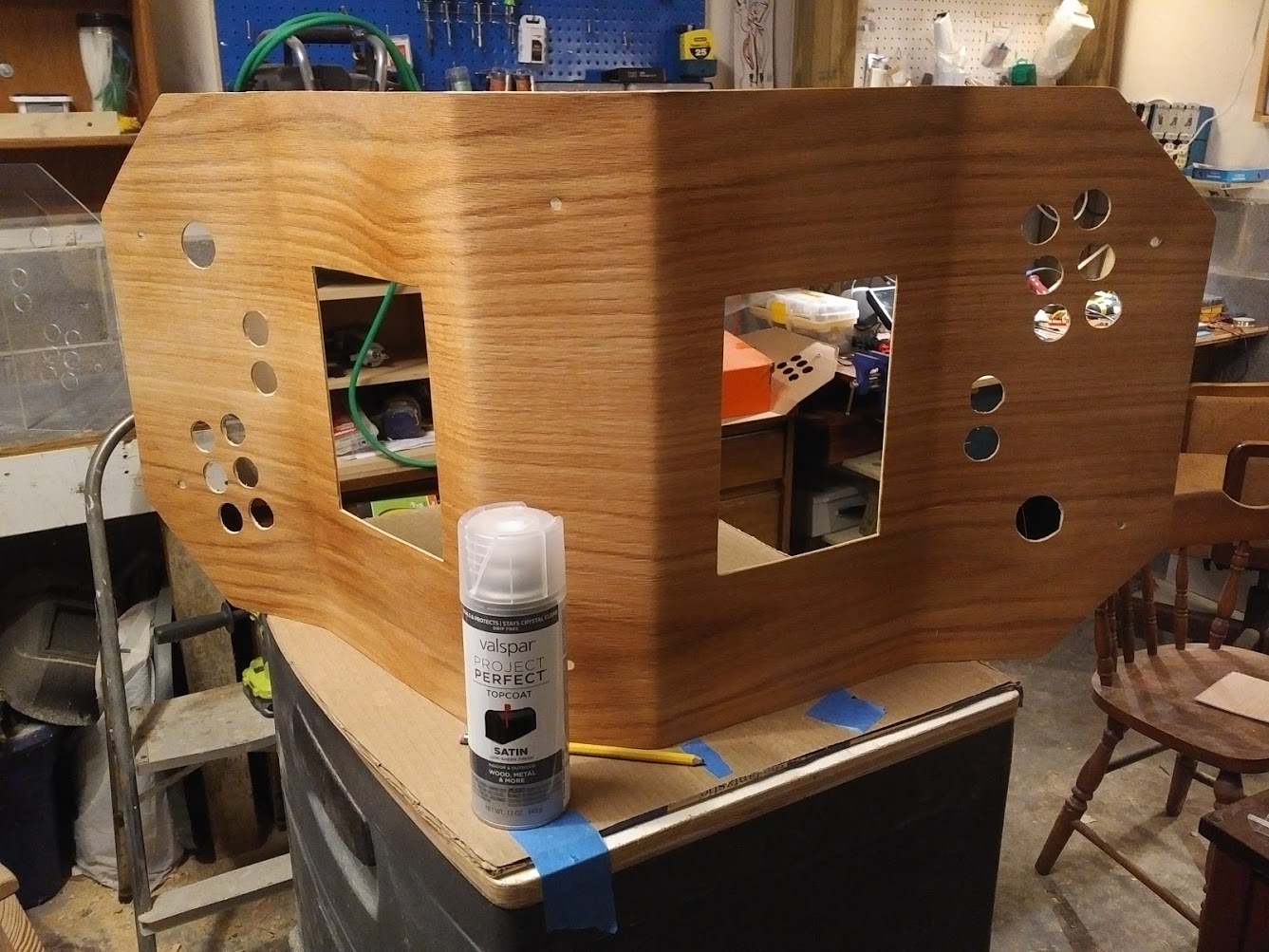

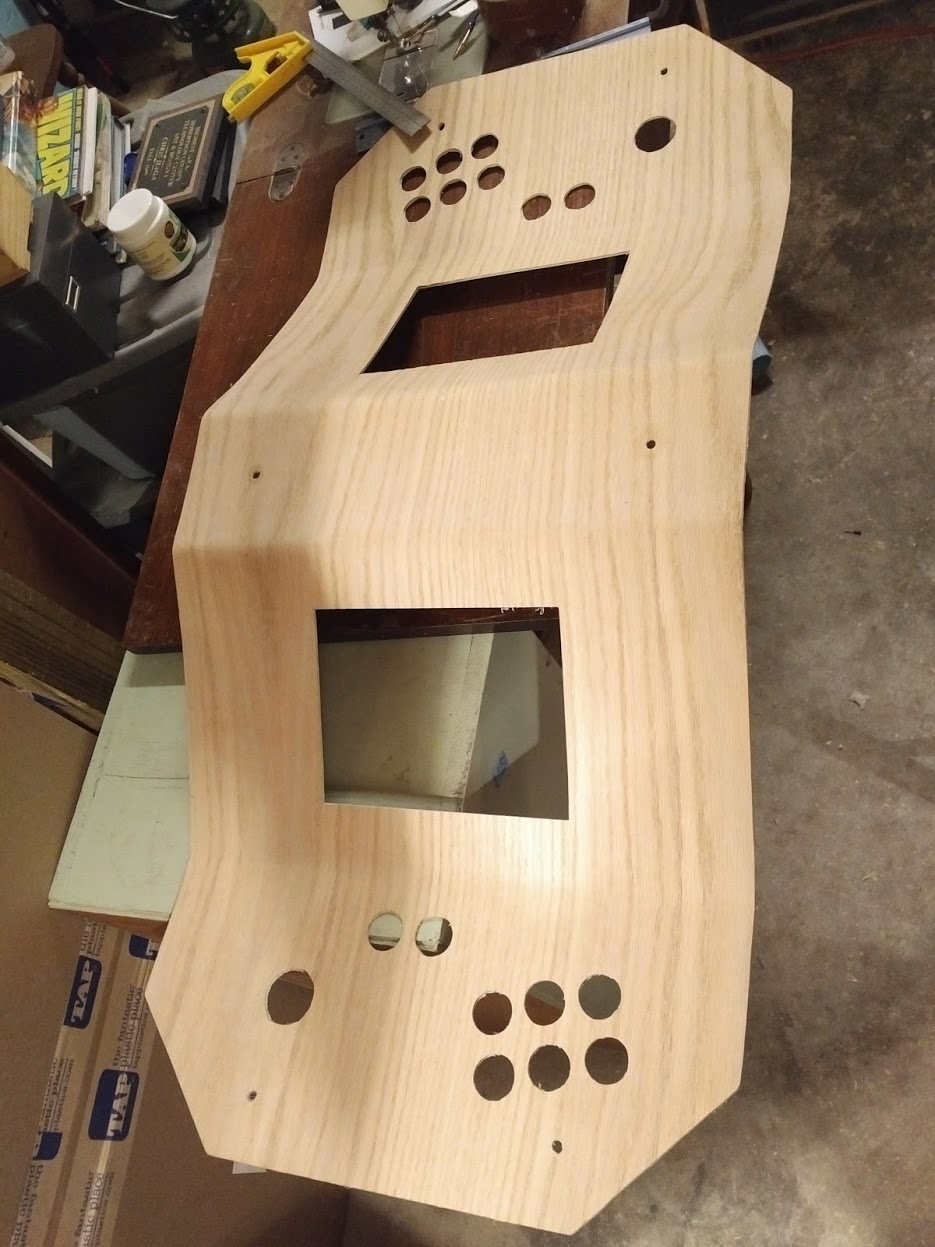

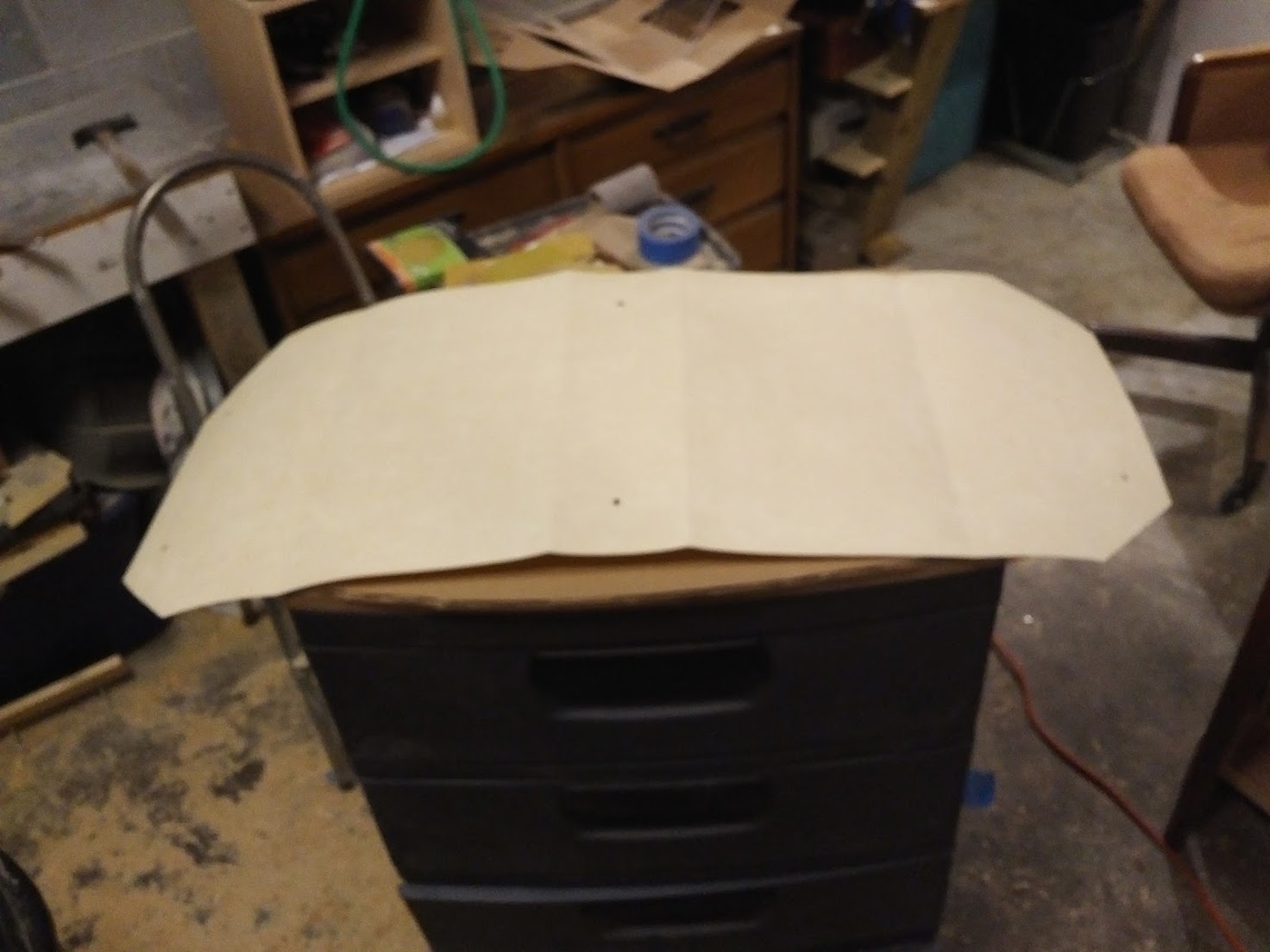

• For the top, I adhered a wood veneer onto a thin sheet of plastic, and cut holes relative to the screens and buttons.

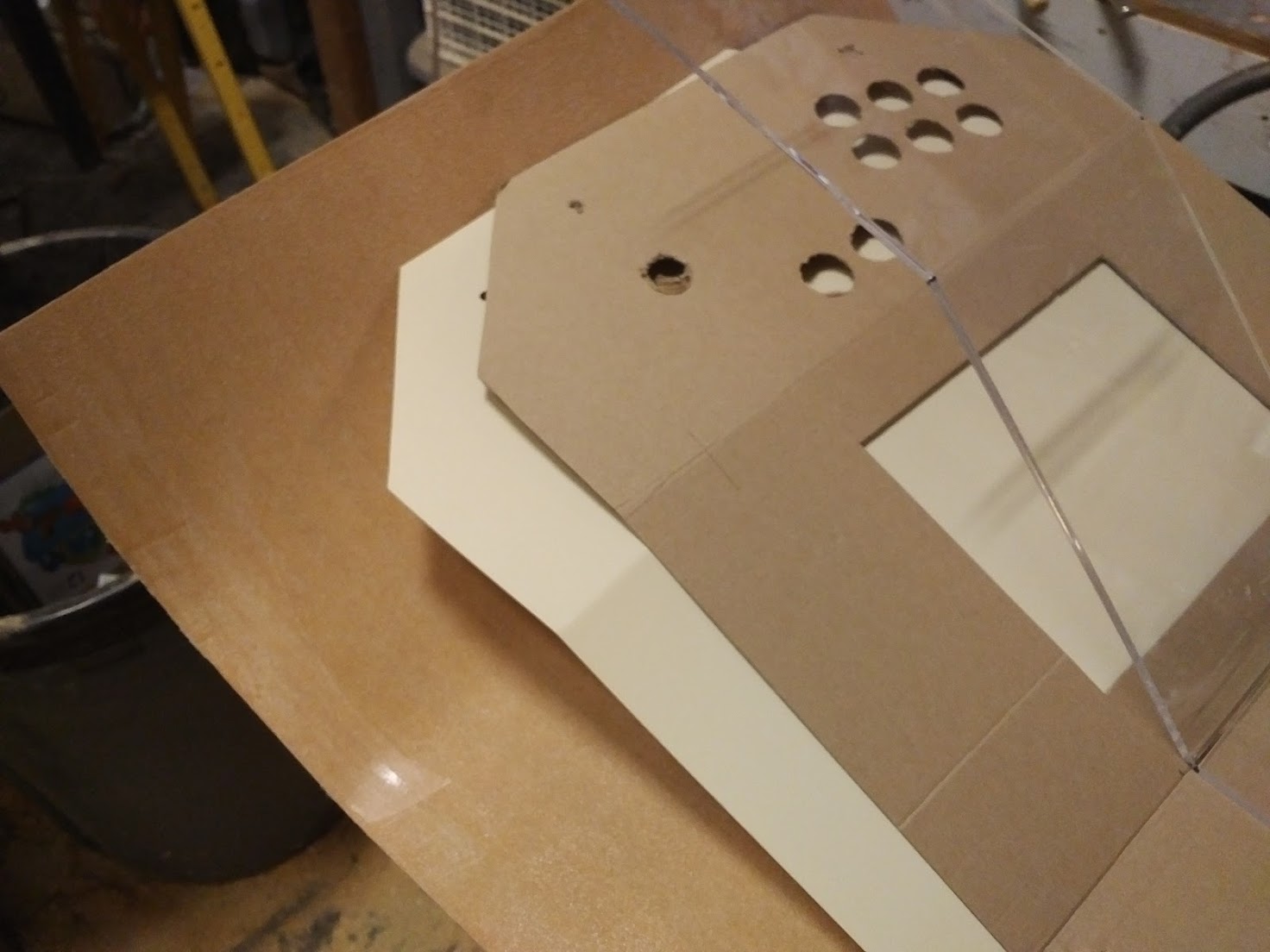

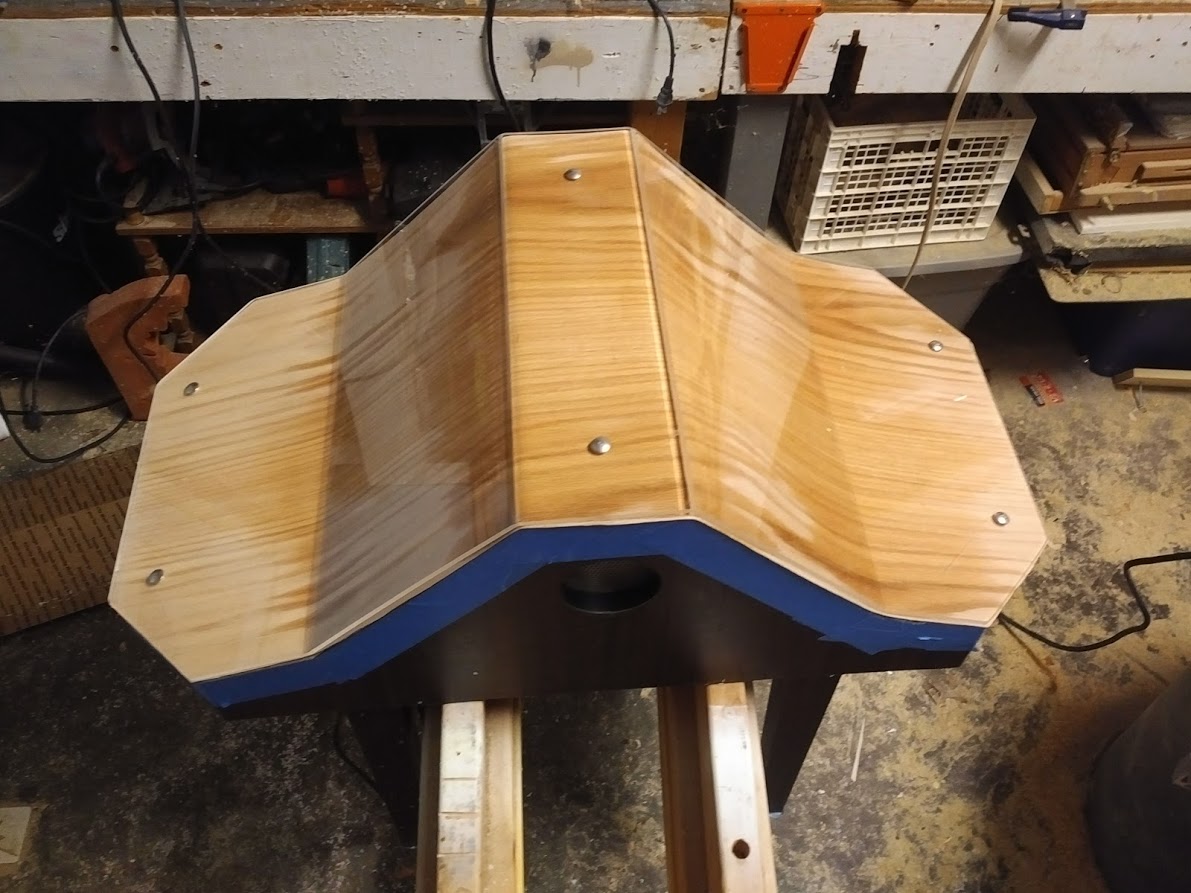

• This wood/plastic sheet is sandwiched between the body and a piece of plexiglass and is held in place with 6 carriage bolts.

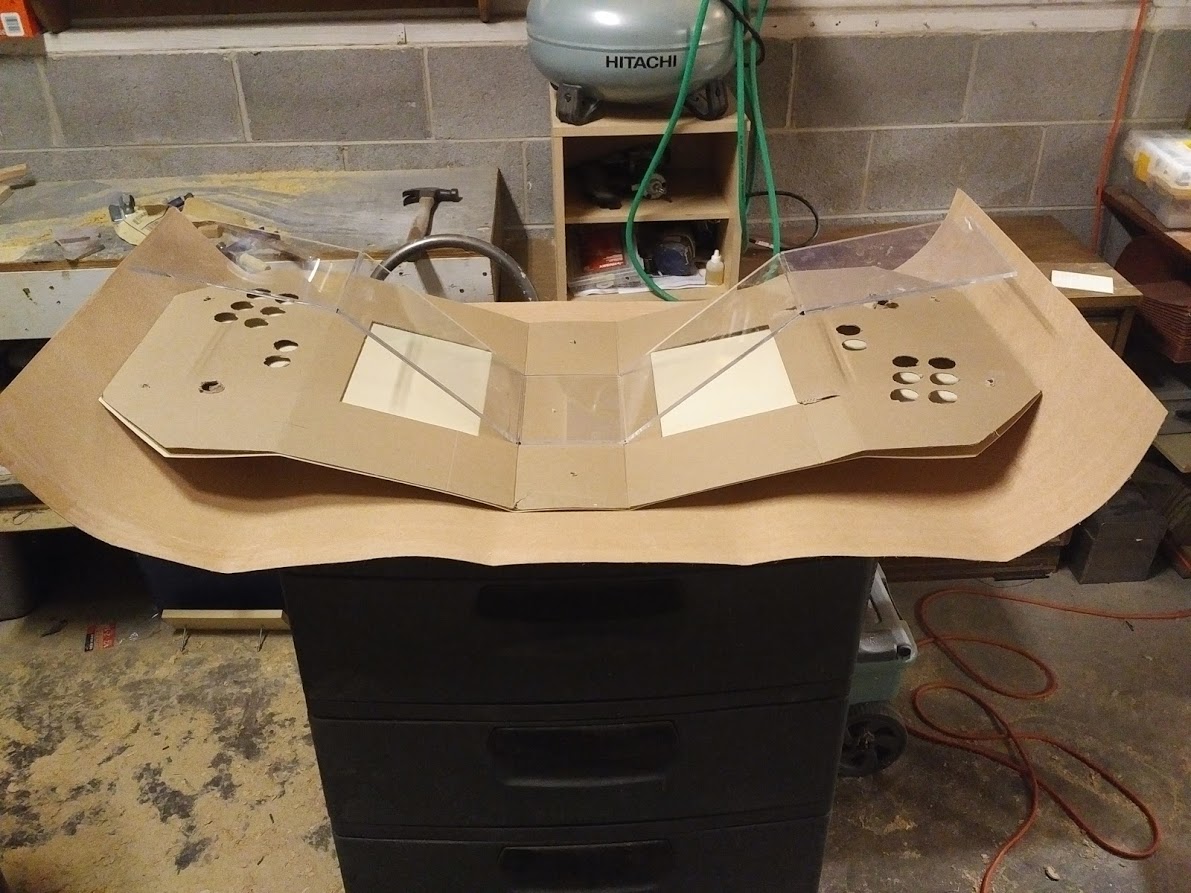

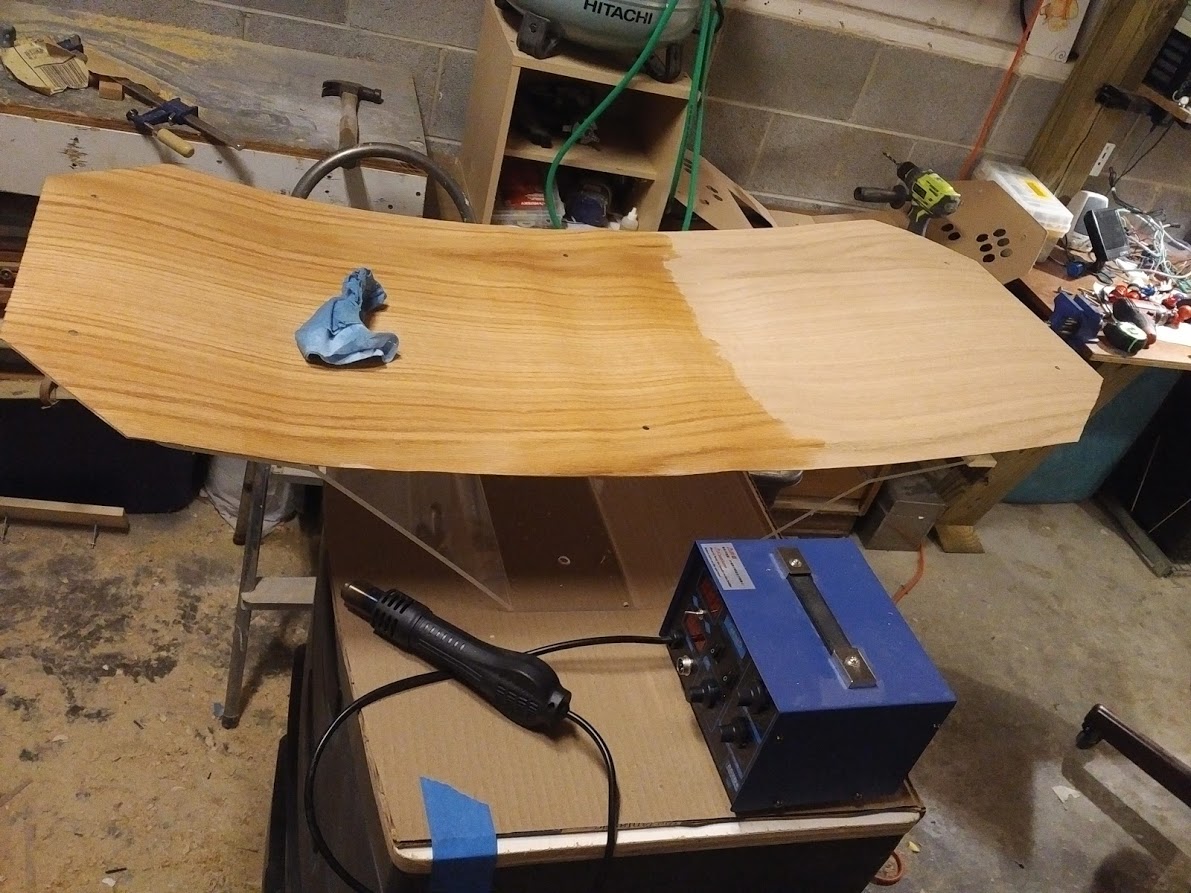

• The plexiglass was cut with a jig saw and shaped with a plastic bending tool.

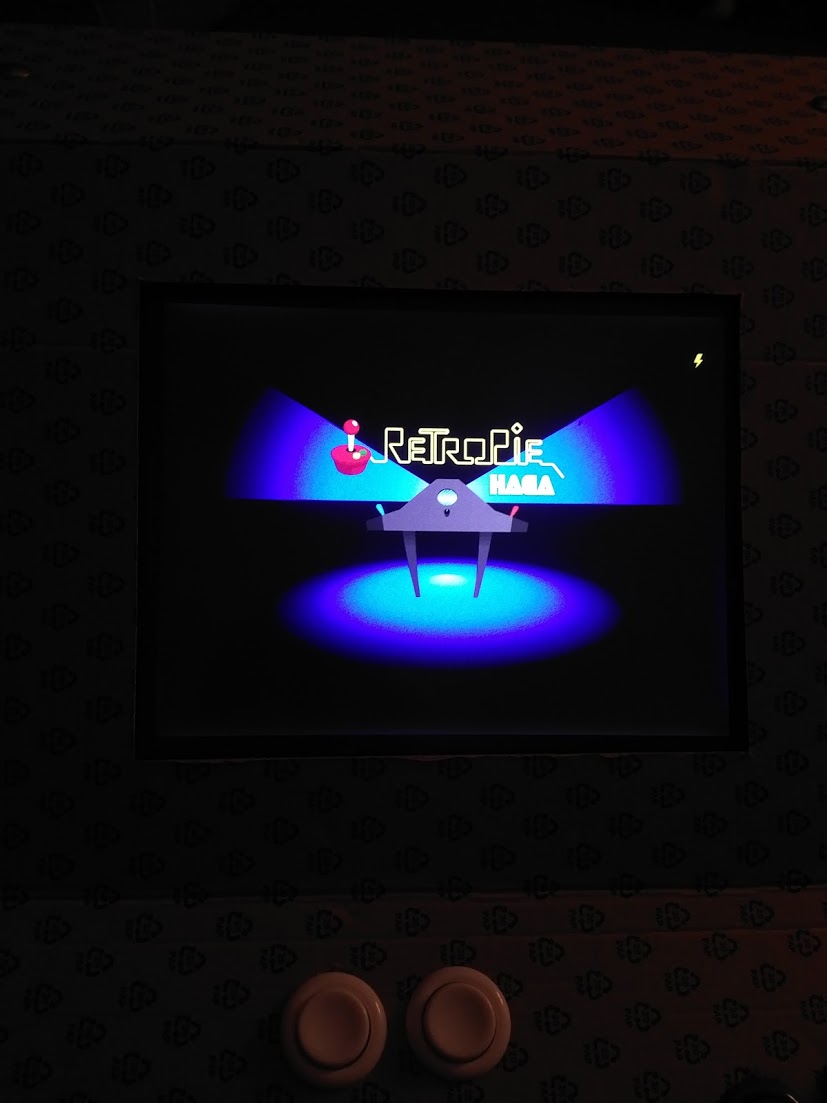

• Through the retropie interface, I was able to upload a custom mp4 video with an illustration of the game cabinet.

So far my older kids and I have gotten a lot of enjoyment out of it.
