Shadow Play Clock (TINKERCAD USED)
by kansalnaman23 in Circuits > Arduino
910 Views, 9 Favorites, 0 Comments
Shadow Play Clock (TINKERCAD USED)
Today we will be learning how to make a shadow plate clock.
Supplies
You will need.

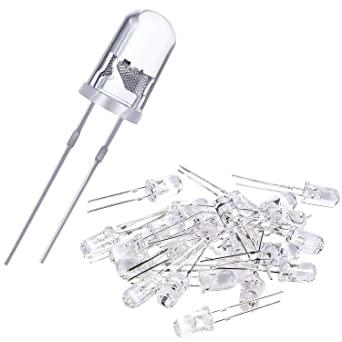

1. Pack of LED lights. 50 pcs

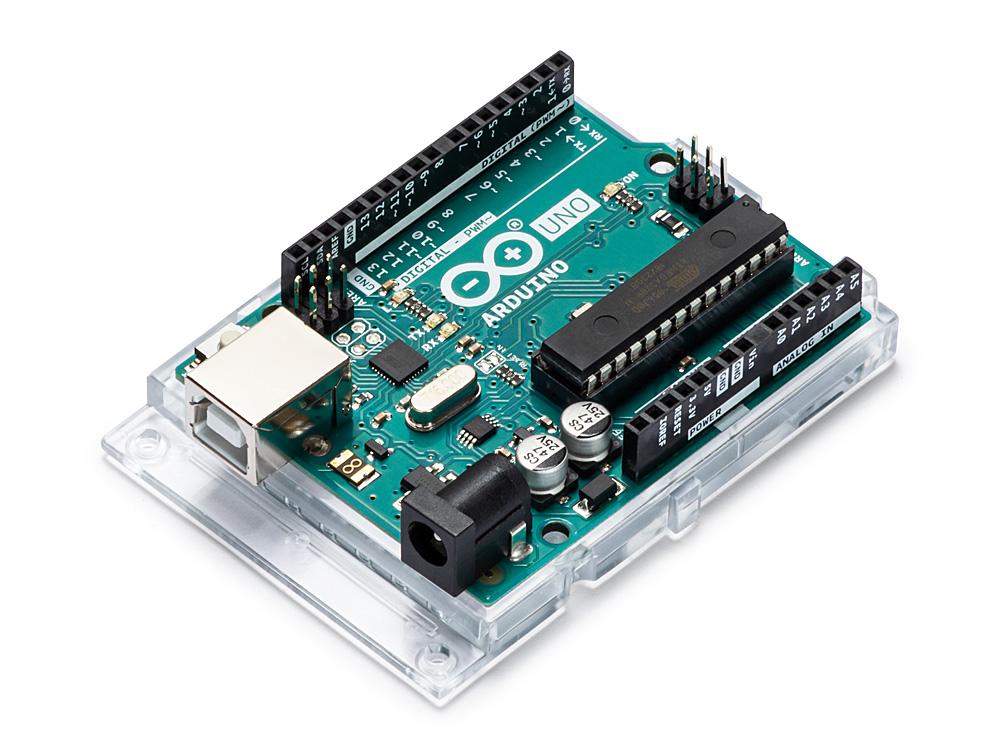

2. Ardiuno UNO r3

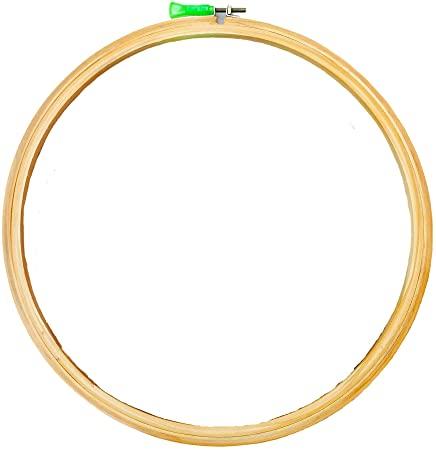

3. Embroidery ring.
4. Wood
5. Thin white paper
6. Bunch of wires
7. Laptop for coding
Fixing Led on the Ring.
Making a shadow Play Clock is pretty simple.
Take the LED lights and use a glue gun or a super glue and paste all the led lights around the embroidery ring.
Take the LED lights and use a glue gun or a super glue and paste all the led lights around the embroidery ring.
Some Soldering
Now once you have fixed all the LED lights solder their (+)
Now solder the (-) of individual led with a wire. Have a seperate - wire of each led.
Now solder the (-) of individual led with a wire. Have a seperate - wire of each led.
Connecting Wires
Use the circuit diagram USING TINKERCAD
Now connect each pair of led with the ardiuno digital as well as analog pins
That is the - wire.
When you are done your shadow Play Clock is almost ready.
Use the code in this repository
https://github.com/NamanKansal230505/shadow-Play-clock
Choosing Ardiuno
If you are making a small clock then ardiuno UNO is good. But If you want to make a big clock then I will recommend you ardiuno MEGA.
If u have ardiuno Uno r3 then make two pair of the (+) wire of led. Which means connect the (+) wire of led with eachother that is a pair of two.
If u have ardiuno Uno r3 then make two pair of the (+) wire of led. Which means connect the (+) wire of led with eachother that is a pair of two.
Boom Your Shadow Play Clock Is Ready.
Power up your ardiuno with a laptop charger.
How It Works !!
So we have now made a clock now let's test it.

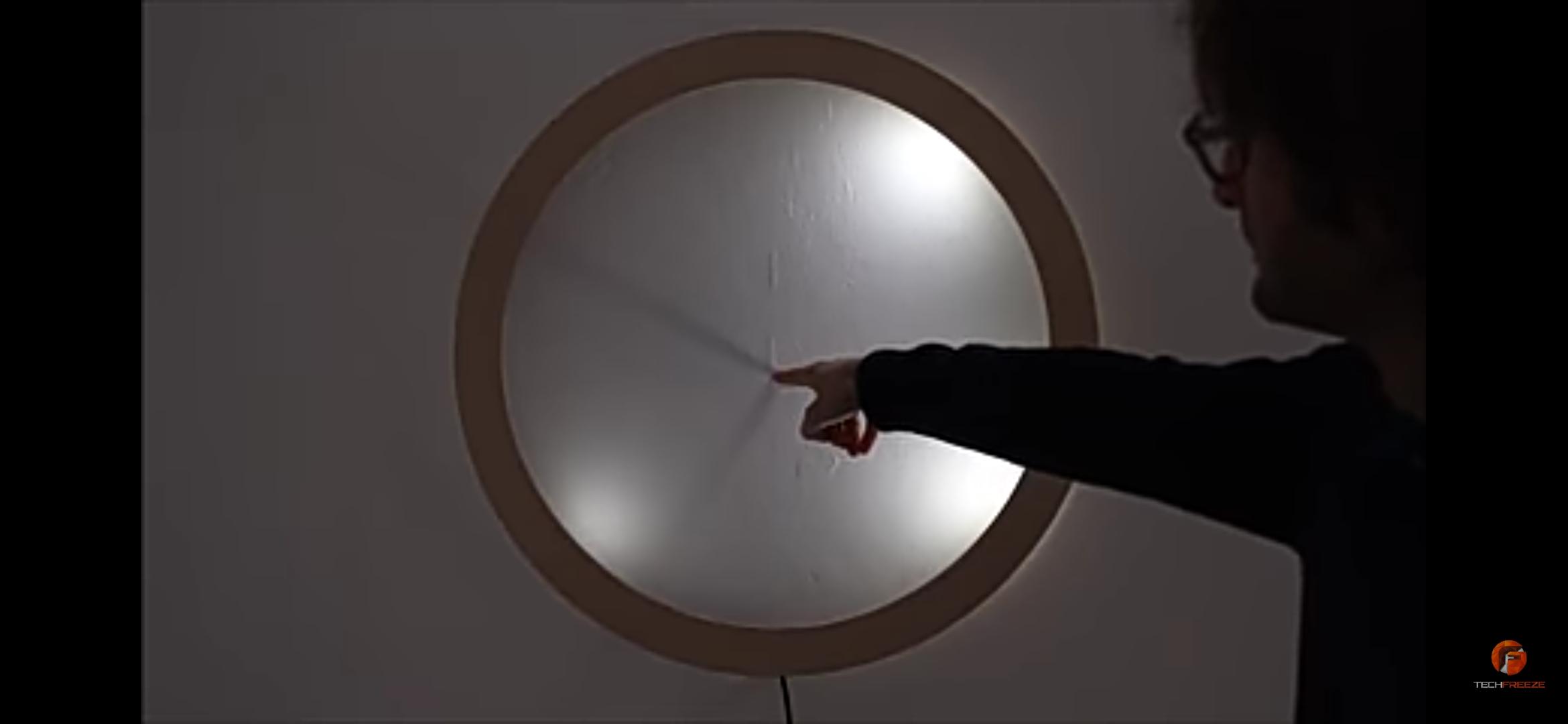

Touch your finger in the middle. Three pair of LED will be High other pairs will be low. And by this there will be two shadow line one will be hour hand and other will be minutes hand.
Voila !! If you have any query comment me down
Touch your finger in the middle. Three pair of LED will be High other pairs will be low. And by this there will be two shadow line one will be hour hand and other will be minutes hand.
Voila !! If you have any query comment me down
