Sewing Mannequin or Armor Stand

Sewing Mannequin or Armor Stand

Main

• duct tape body
• functional underwear

Skeleton

• waste pipe

Filling

• foam plate
• crushed foam
• mounting moam
• duct tape

Stand

• 600x450x4 mm steel plate
• black paint for metal
• M8 countersunk screw
• 1 m M8 threaded rod
• nut
• extension nuts
• screw washer
• 0,5 m steel tube
• 0,5 m rubber tube
• floor protectors

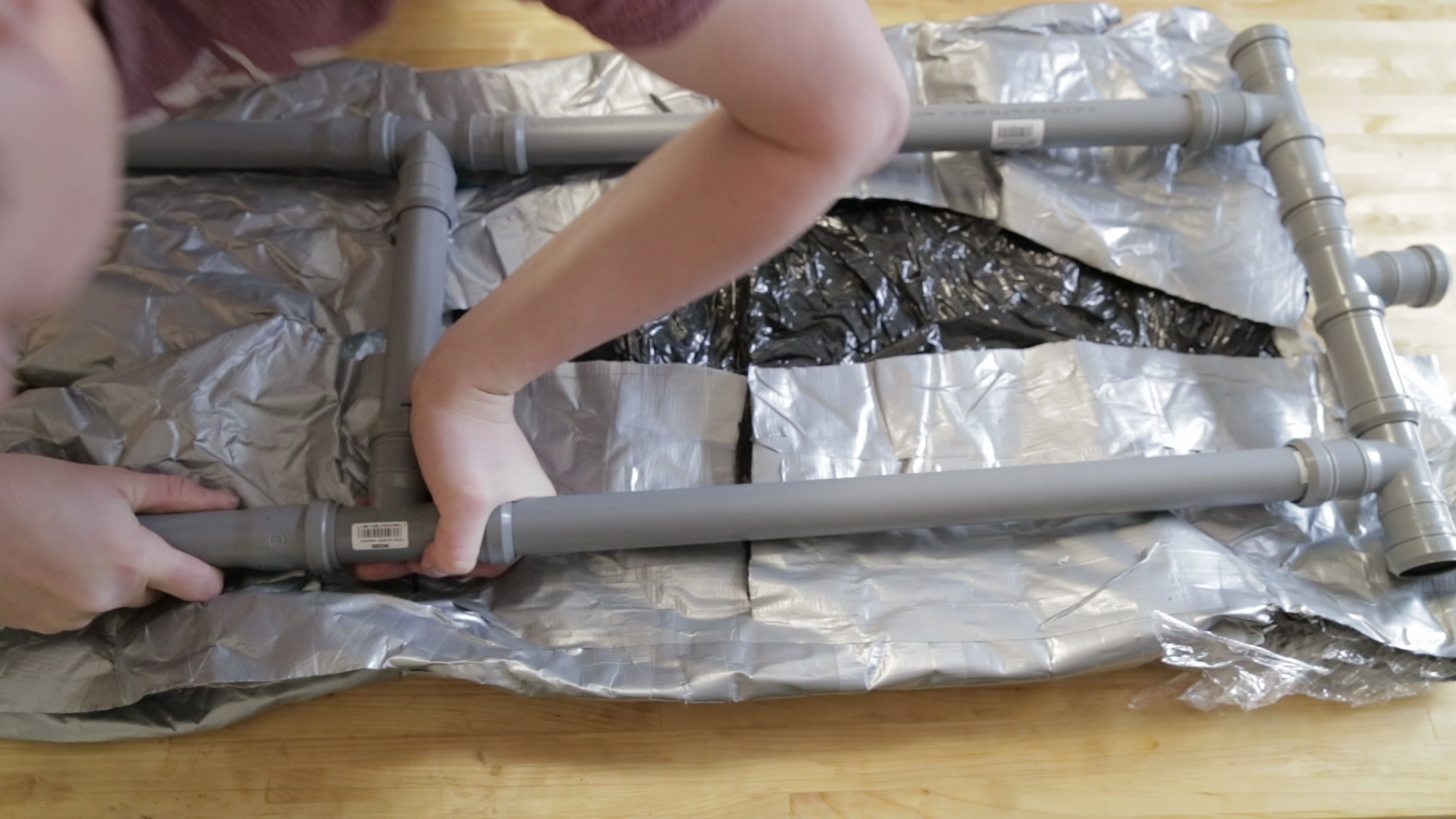

I started at the shoulders, using three T-profiles so that they were symmetrical on each side.
I measured the rest of the tubes according to the dimensions of the body and I cut them.

I used crushed foam for filling and tried to squeeze it as much as I could. After that I taped the holes.

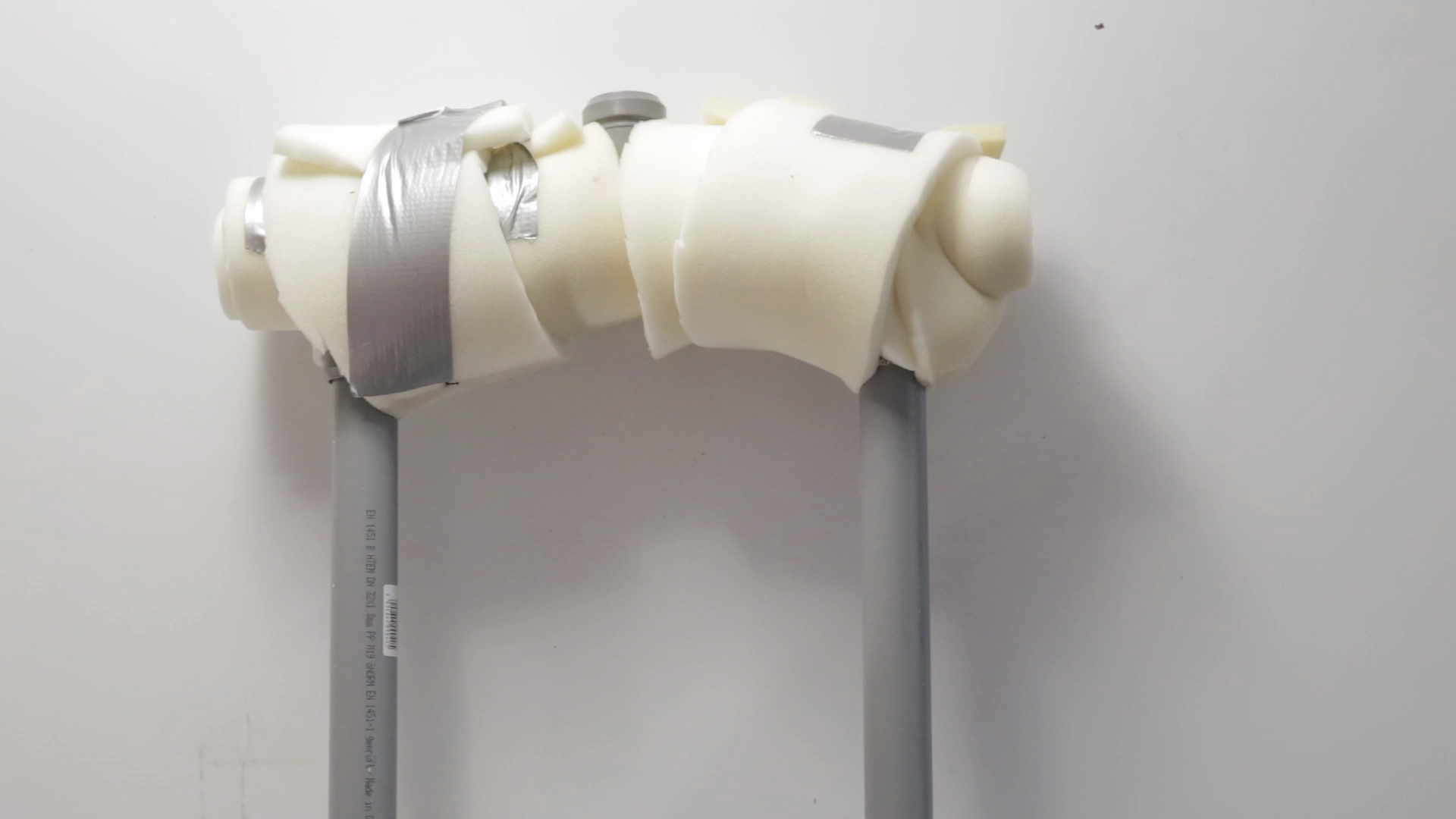

I rolled the foam plate around the tubes.

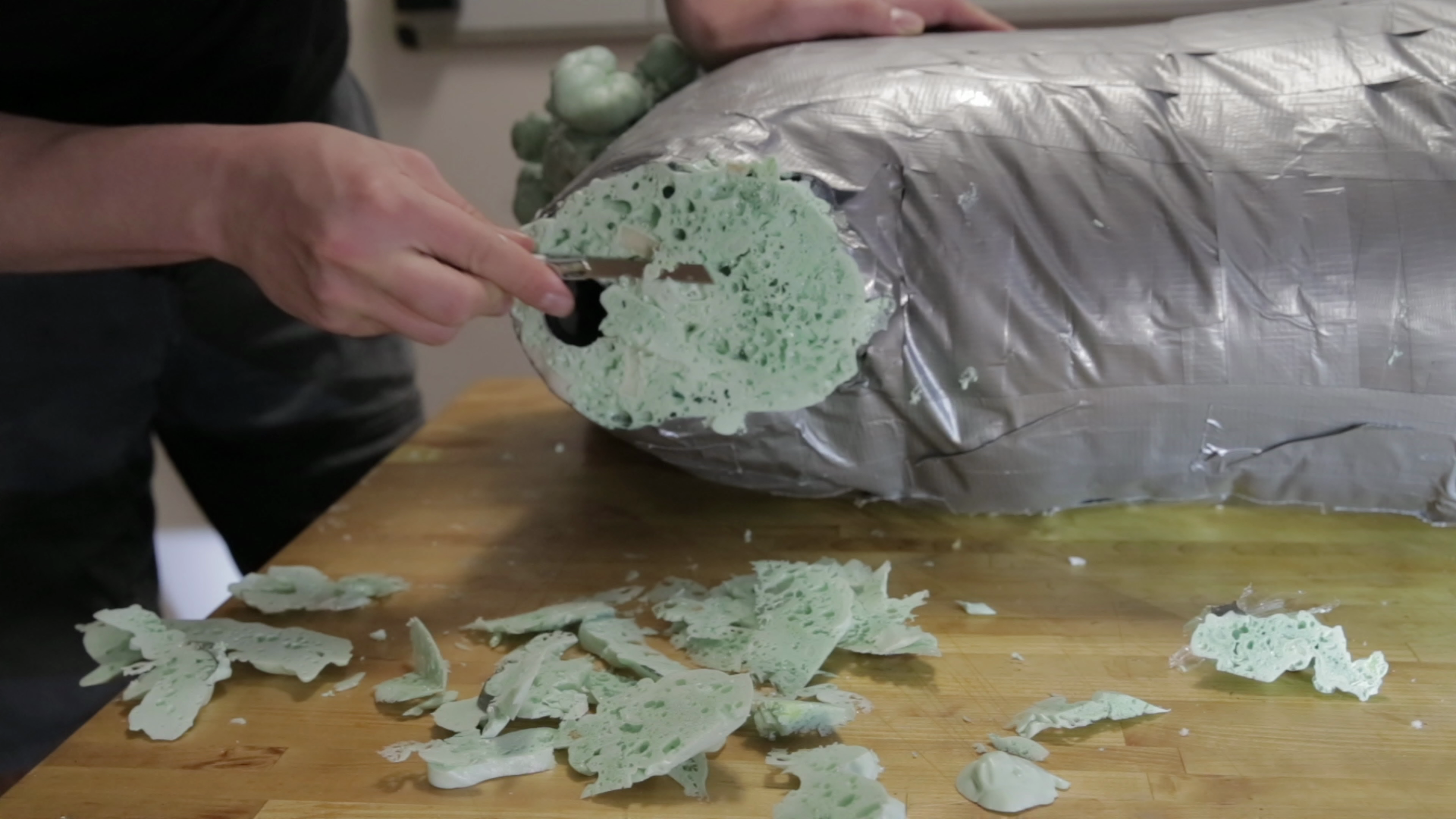

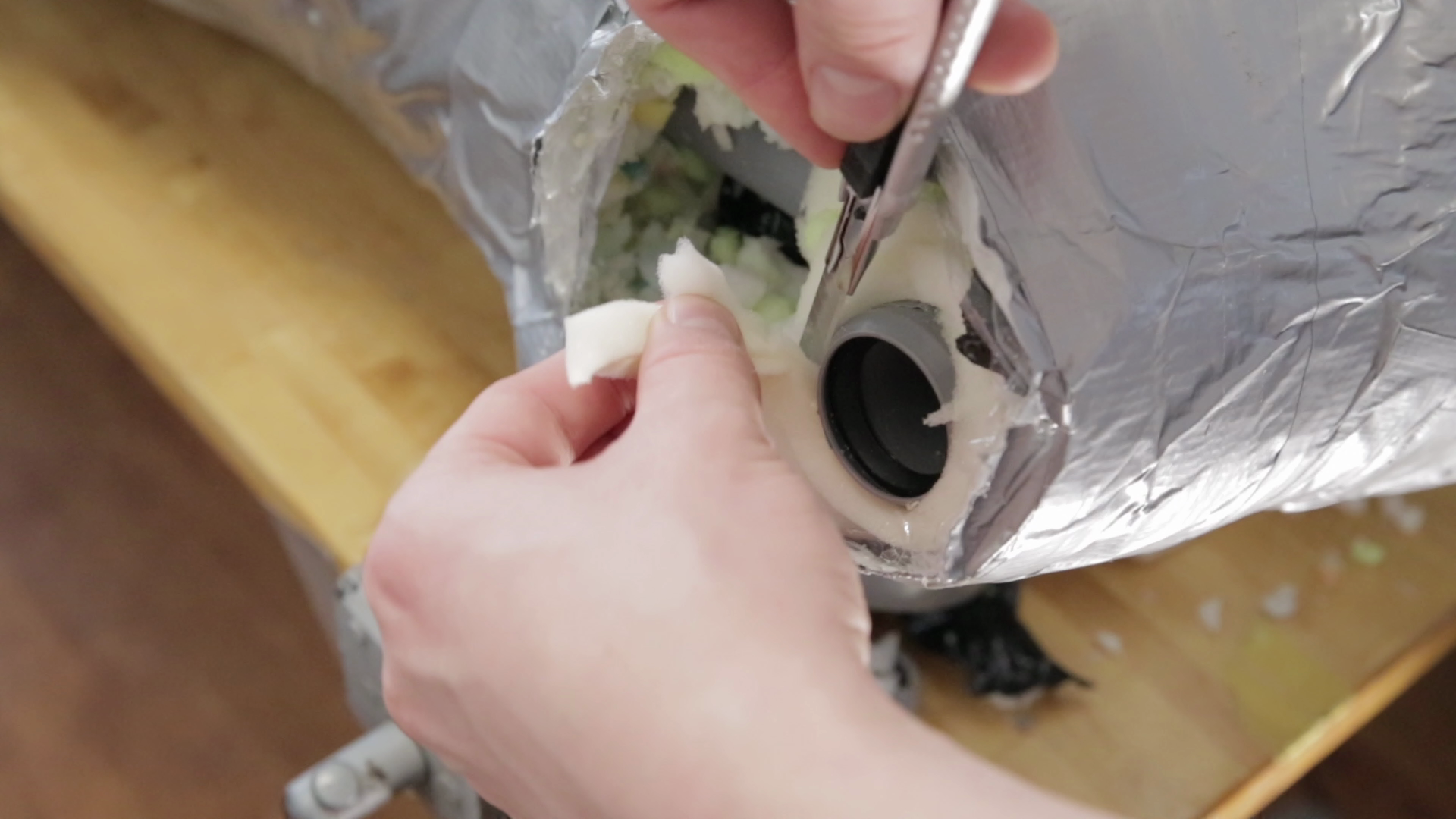

I removed the excess foam and fill the holes with mounting foam. When the foam was dry I cut it and sanded it.

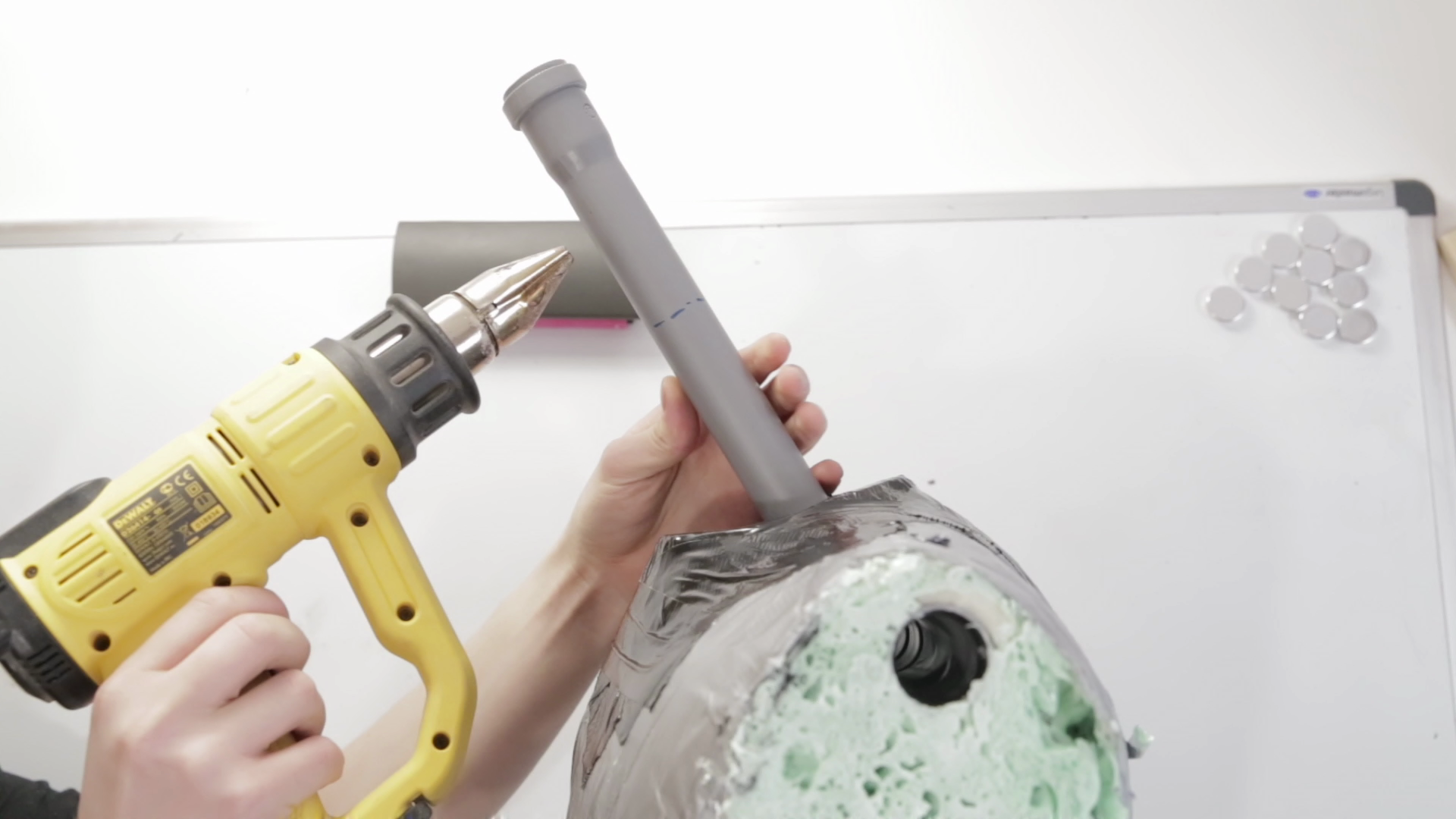

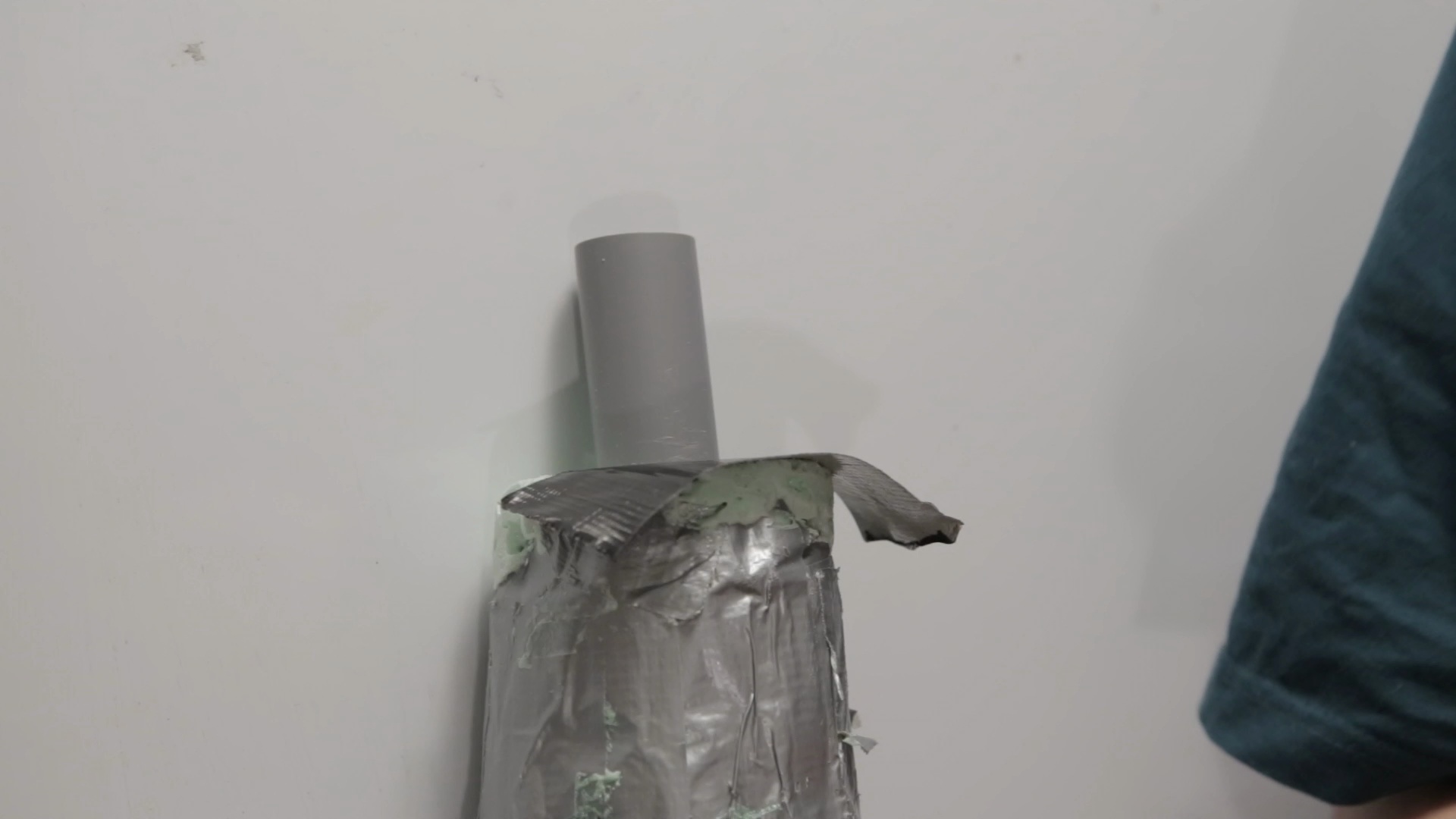

I heated up the pipe so I could bend it and cut it. I put duct tape neck on the body and fill it with mounting foam. I sanded it and cover it with black duct tape.

I cut the foam so that both legs were symmetrical.

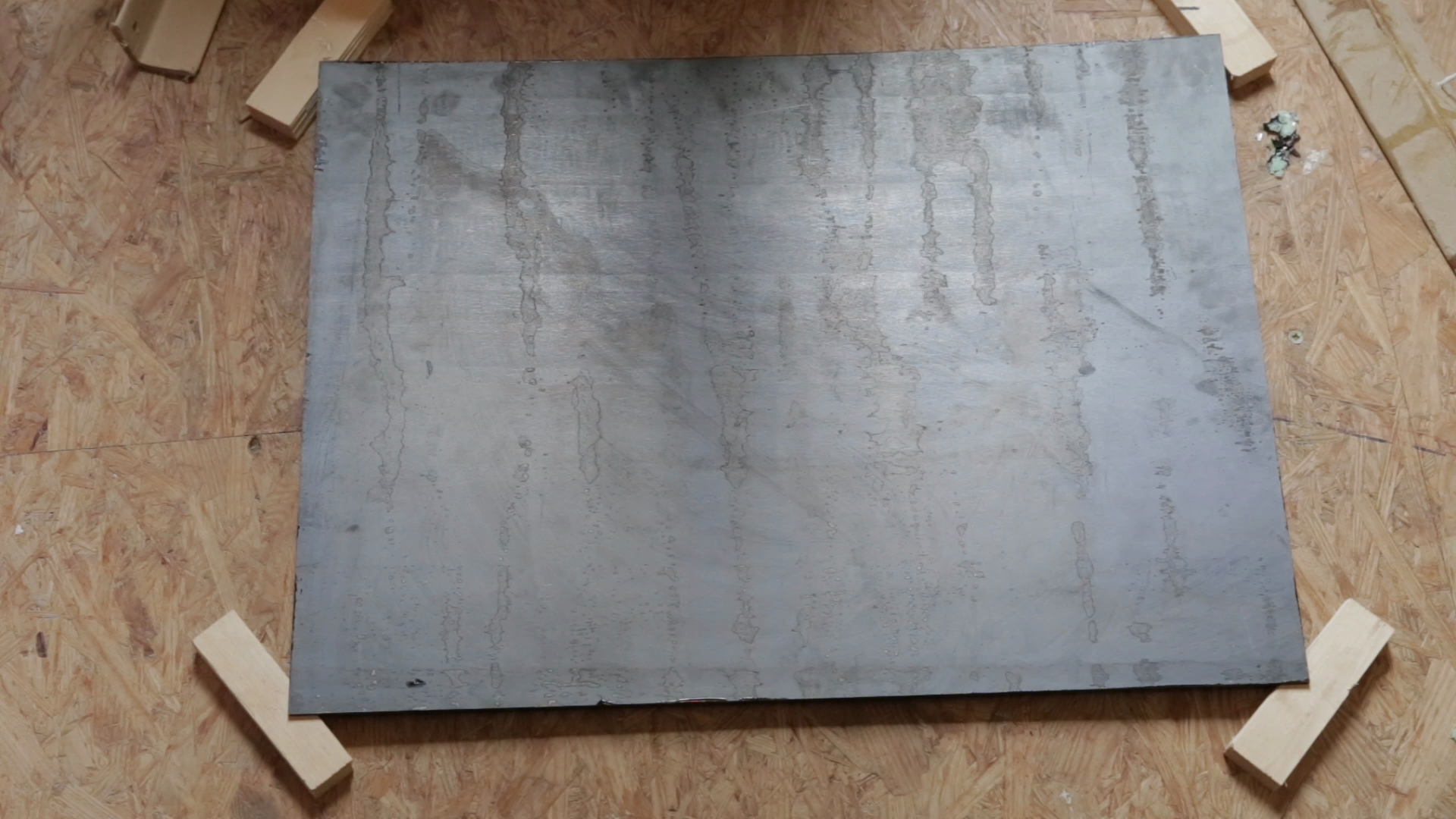

600x450x4 mm steel plate

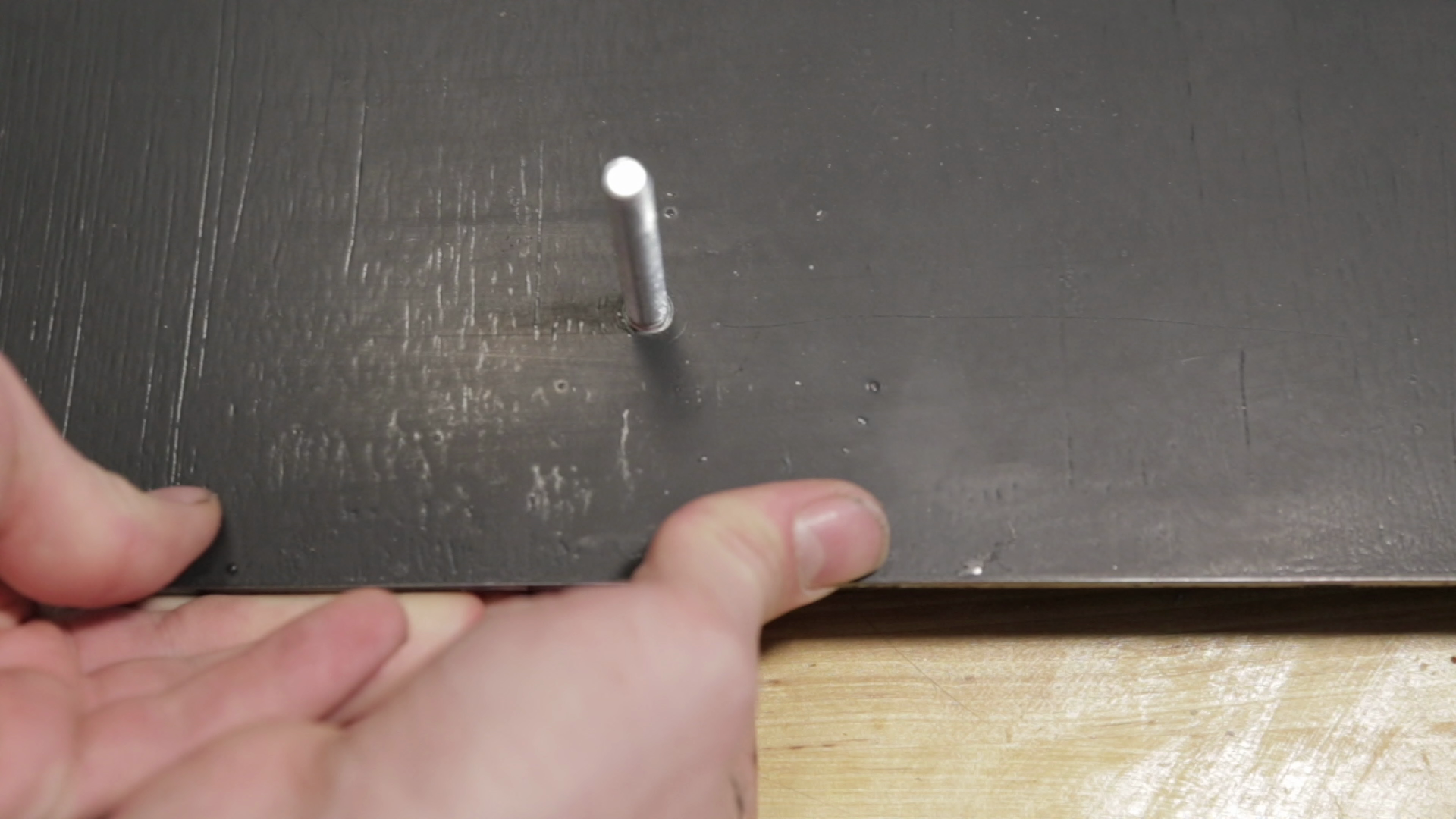

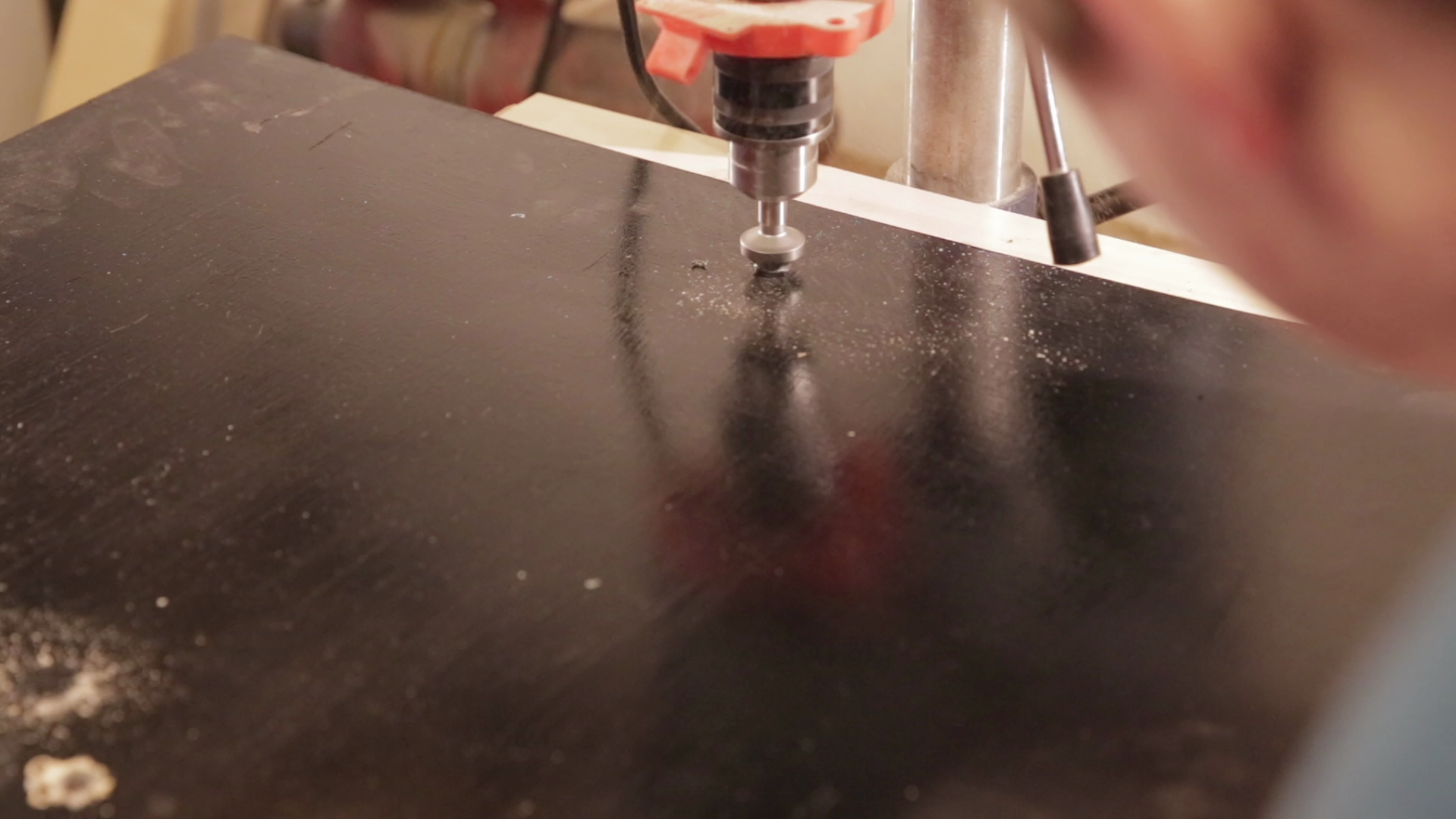

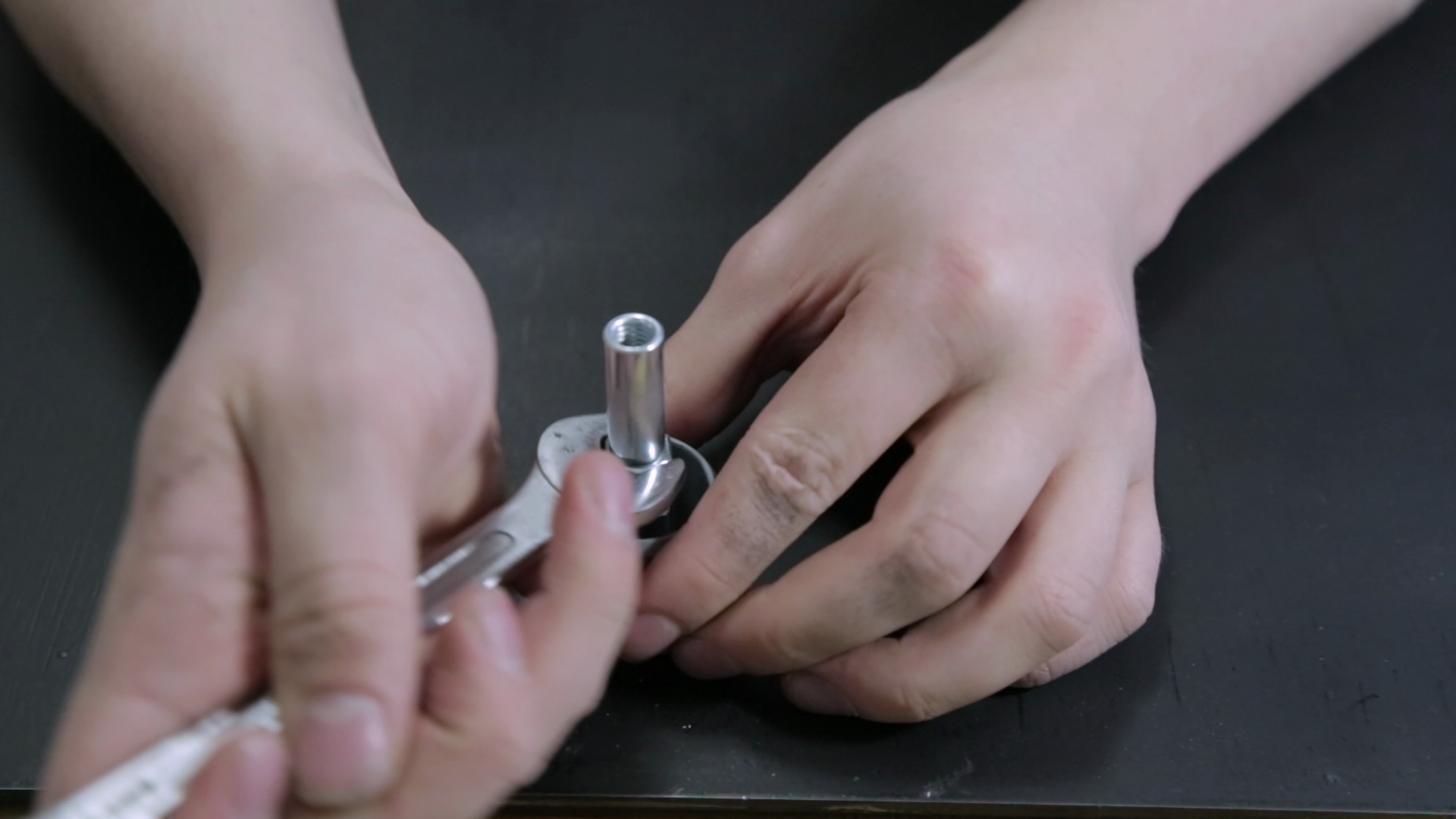

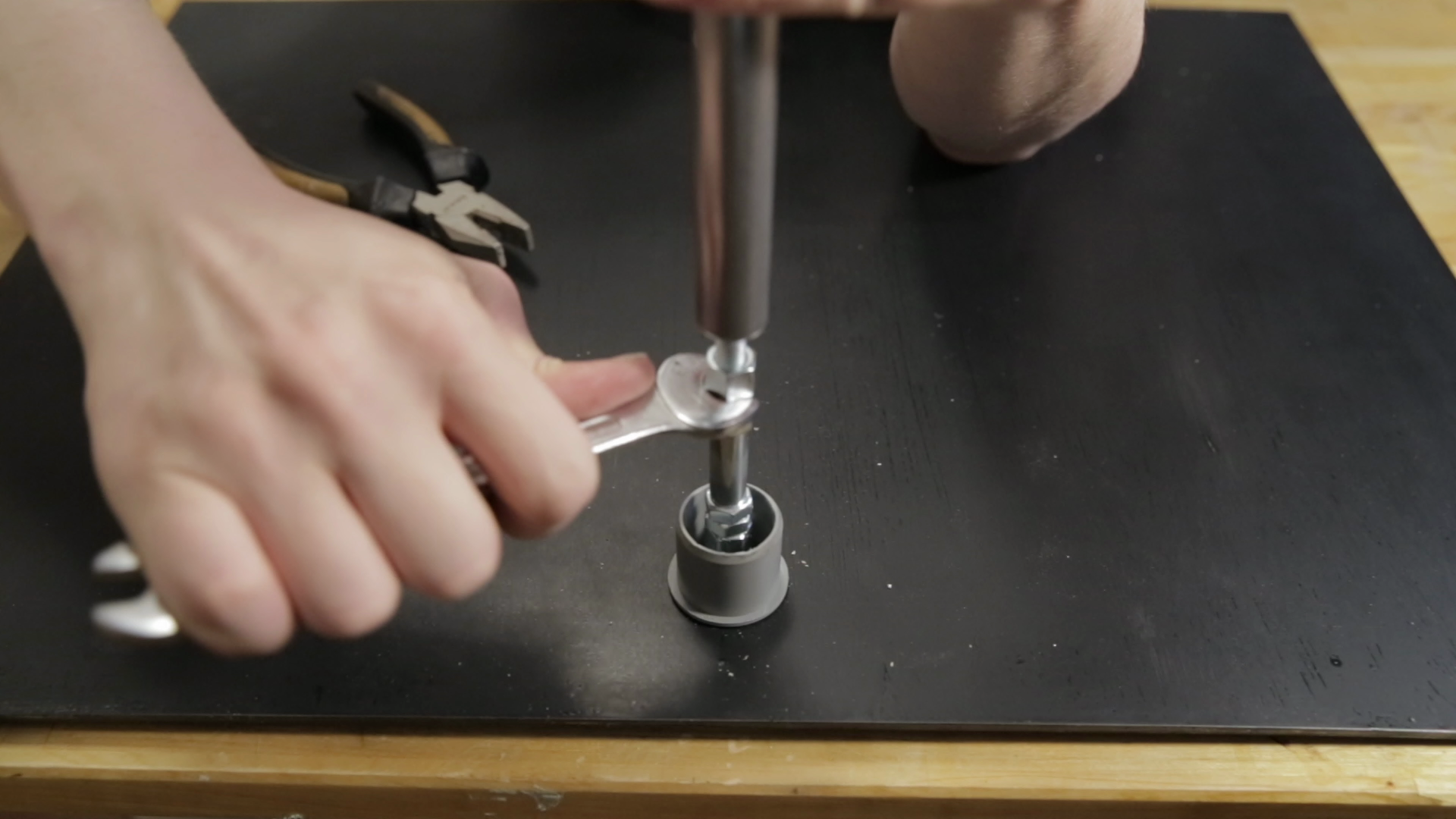

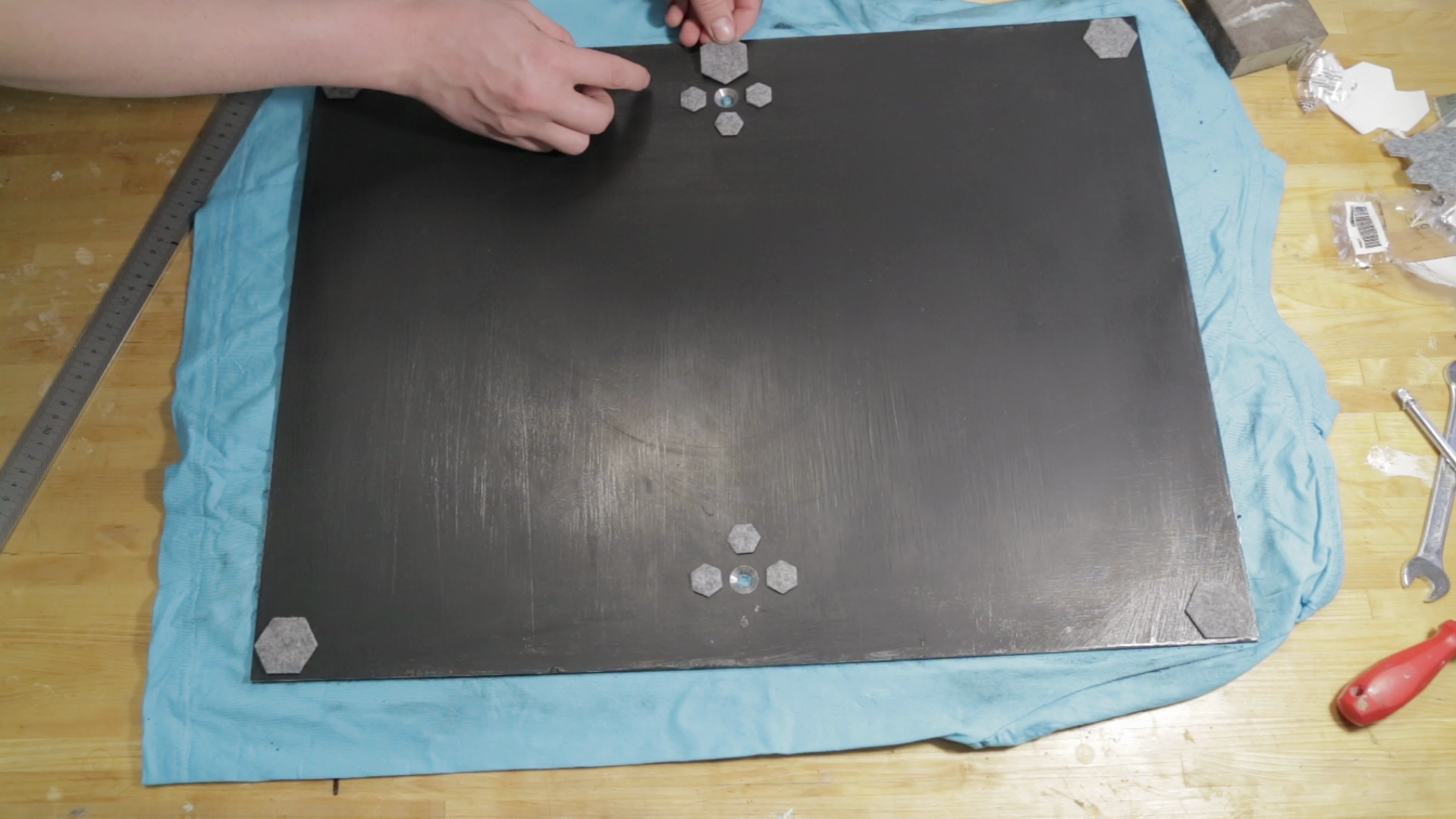

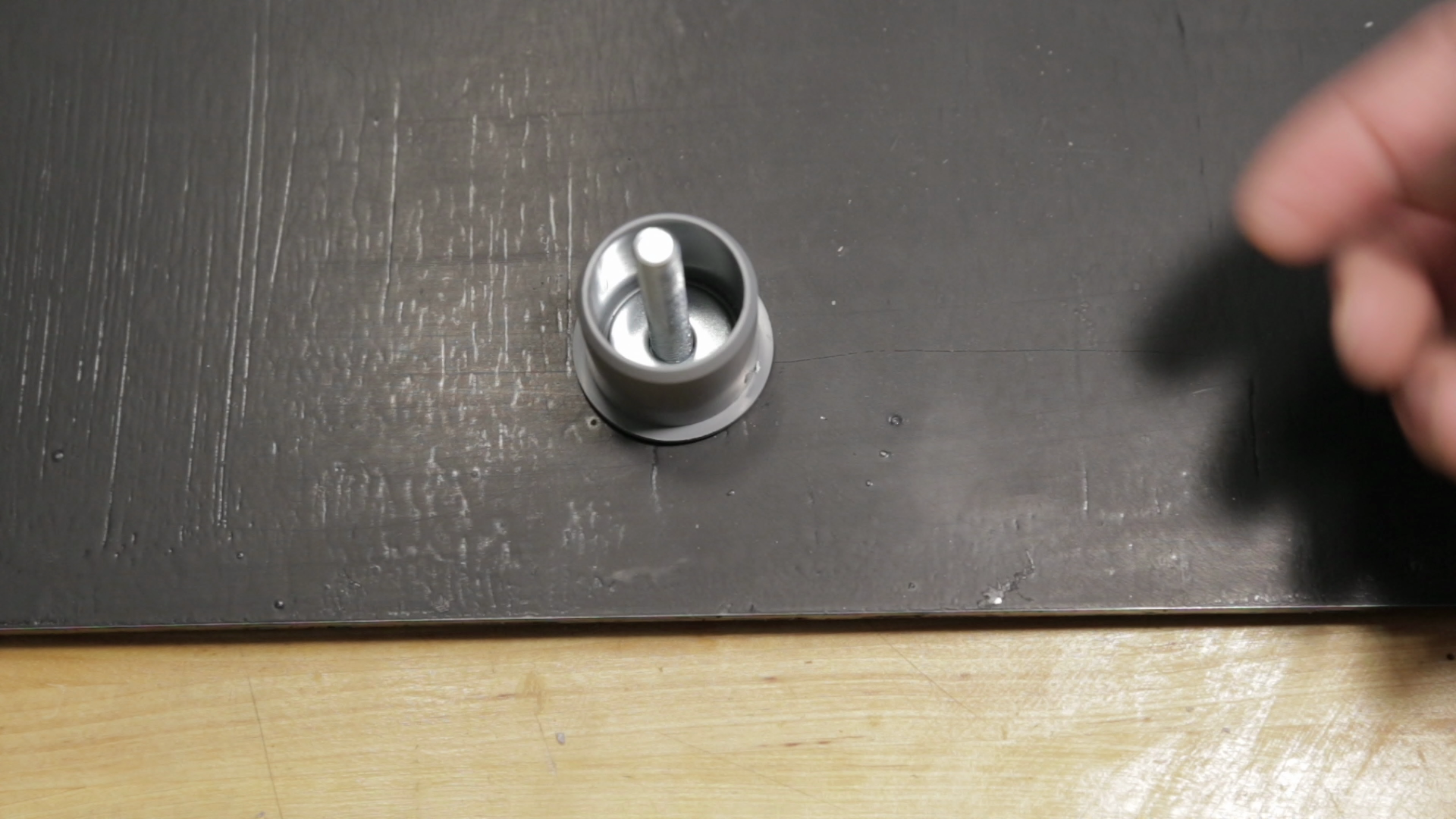

I dye it black and then sand it. Drilled 2 holes for countersunk screws. I connected the threaded rod to the screw using an extension nut. I slipped a steel tube onto the threaded rod and tightened the nut. Rubber tube protects the thread.

I used functional underwear to cover the tape.
