Settlers of Catan


Settlers of Catan is a multiplayer board game

The game consists of where you trade, build, and settle

Below I made a step by step of how to make the board game

Supplies

¼in MDF

Assorted color paint(Recommended:Green, Dark Green,Gray, Red, Yellow)

Design

File_000 (1).jpeg

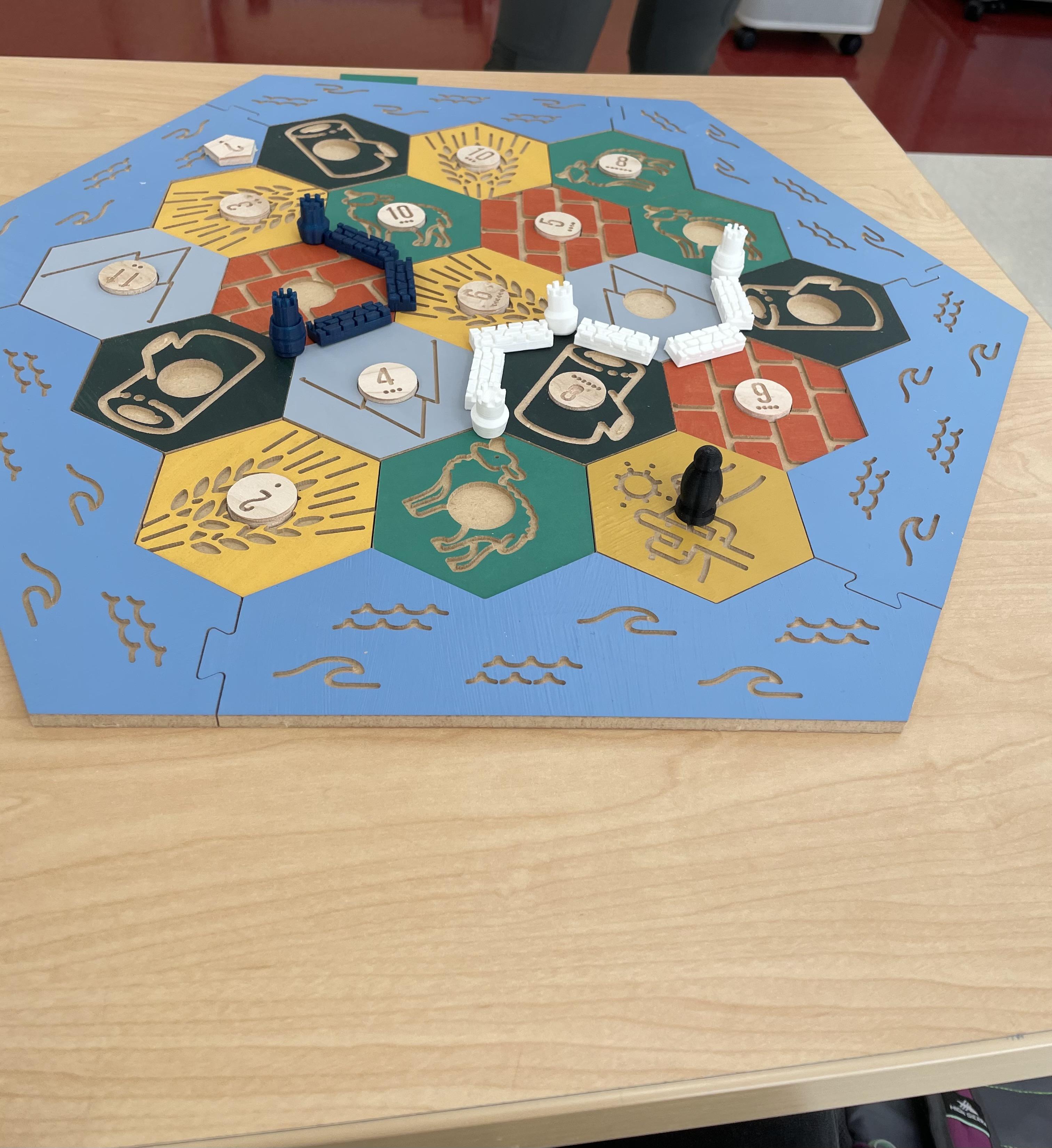

Below is the Onshape file for the board, feel free to change any dimension

https://cad.onshape.com/documents/8fe1b769331b2c5a...

For the hexagon tiles, I used 12x8 inch squares of MDF or whatever dimension that fits all of the designs

Paint the MDF to the respective colors

Carving and Printing


https://easel.inventables.com/projects/v0f1AXWAc16...

https://easel.inventables.com/projects/f0a1hVJKnL2...

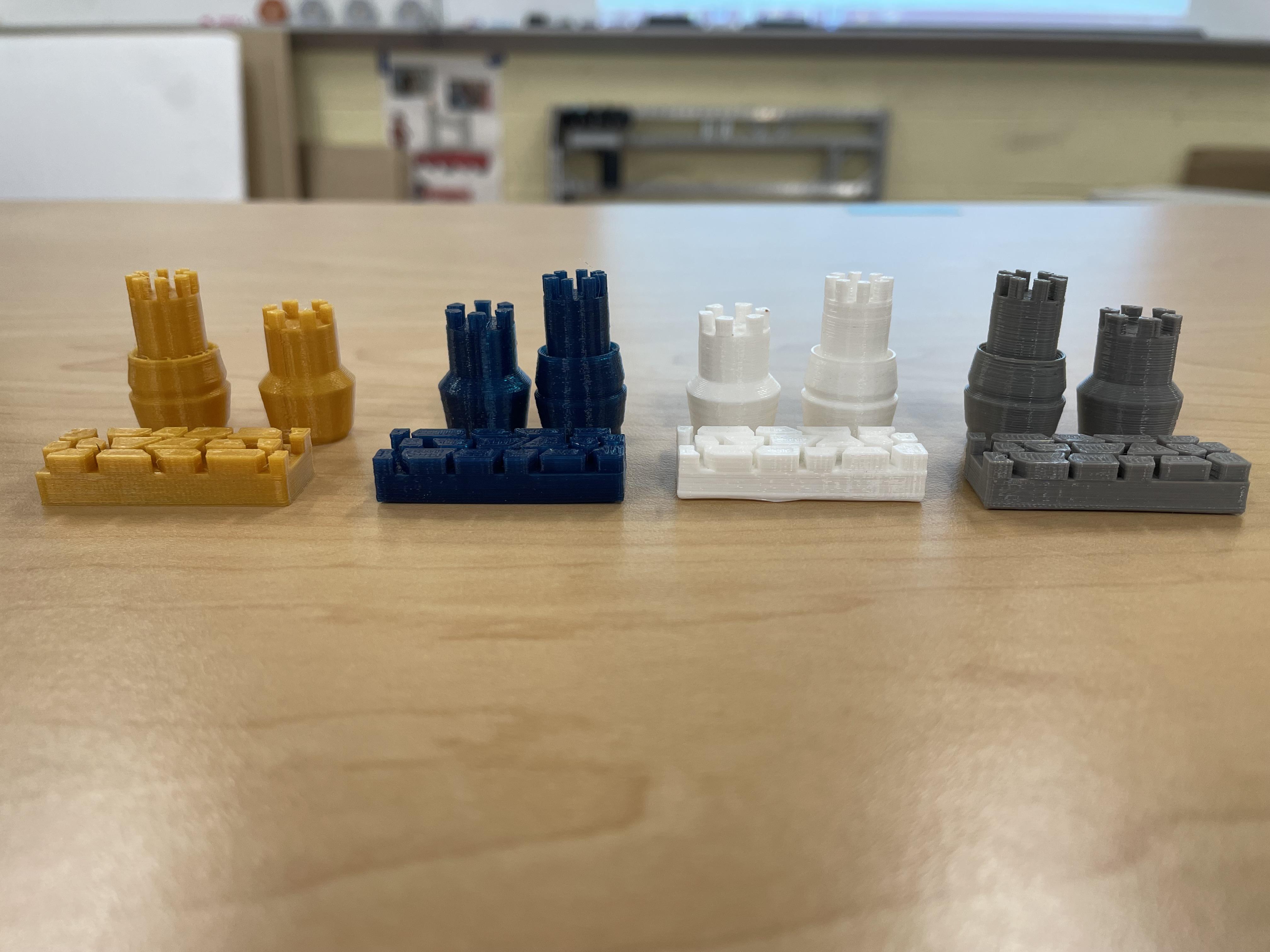

Print 4 sets of each color of your choice

15 road pieces x4

5 Settlement pieces x4

4 City pieces x4

1 Robber

1 trophy of each design

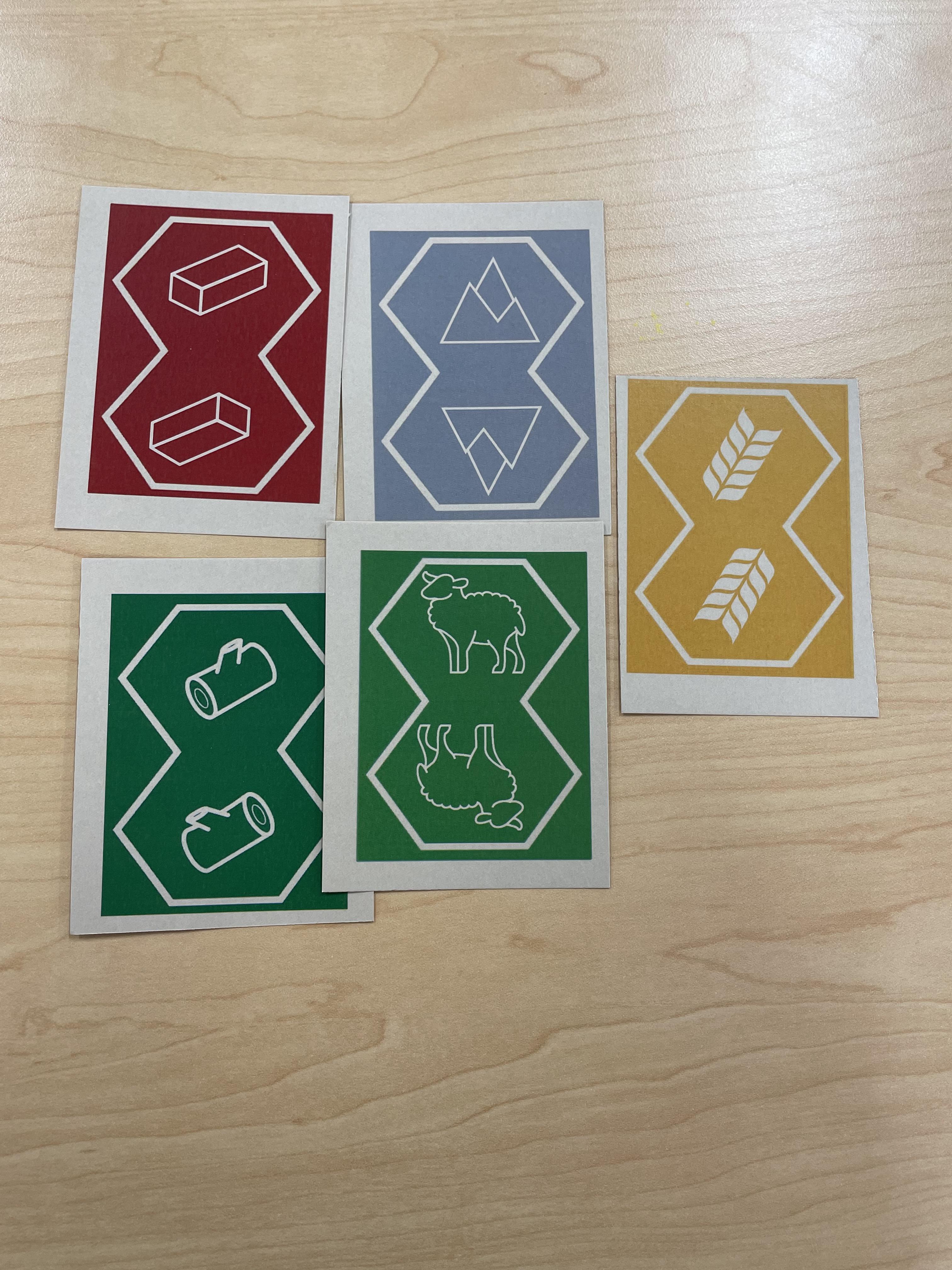

The cards can be made in google drawing with any design of your choice but it is recommended for the design to match the hexagons

The games pieces were printed on a Prusa printer but any printer will do

For infill on the pieces I set them to 30%

Make sure your MDF is secured to the workplace with a waste board underneath the material Follow all the instructions on the easel software

I would recommend using sandpaper to clean up the edges of the carve since there will be loose material leftover from the carve.

Playing the Game

Follow the standard rules of Catan, below is a video reference
