Sequential Discovery Puzzle Box
![cover.jpg](/proxy/?url=https://content.instructables.com/FYB/5GMW/KZIF9H7Z/FYB5GMWKZIF9H7Z.jpg&filename=cover.jpg)
![IMG20220208155942-2.jpg](/proxy/?url=https://content.instructables.com/FKX/AC0Q/KZE4YD6W/FKXAC0QKZE4YD6W.jpg&filename=IMG20220208155942-2.jpg)
![IMG20220208154857-2.jpg](/proxy/?url=https://content.instructables.com/FN3/KY49/KZE4YD6T/FN3KY49KZE4YD6T.jpg&filename=IMG20220208154857-2.jpg)
![IMG20220208154938-2.jpg](/proxy/?url=https://content.instructables.com/FHP/AM51/KZE4YD6U/FHPAM51KZE4YD6U.jpg&filename=IMG20220208154938-2.jpg)
![Puzzle box](/proxy/?url=https://content.instructables.com/FVZ/JHC2/KZIF9G5Z/FVZJHC2KZIF9G5Z.jpg&filename=Puzzle box)

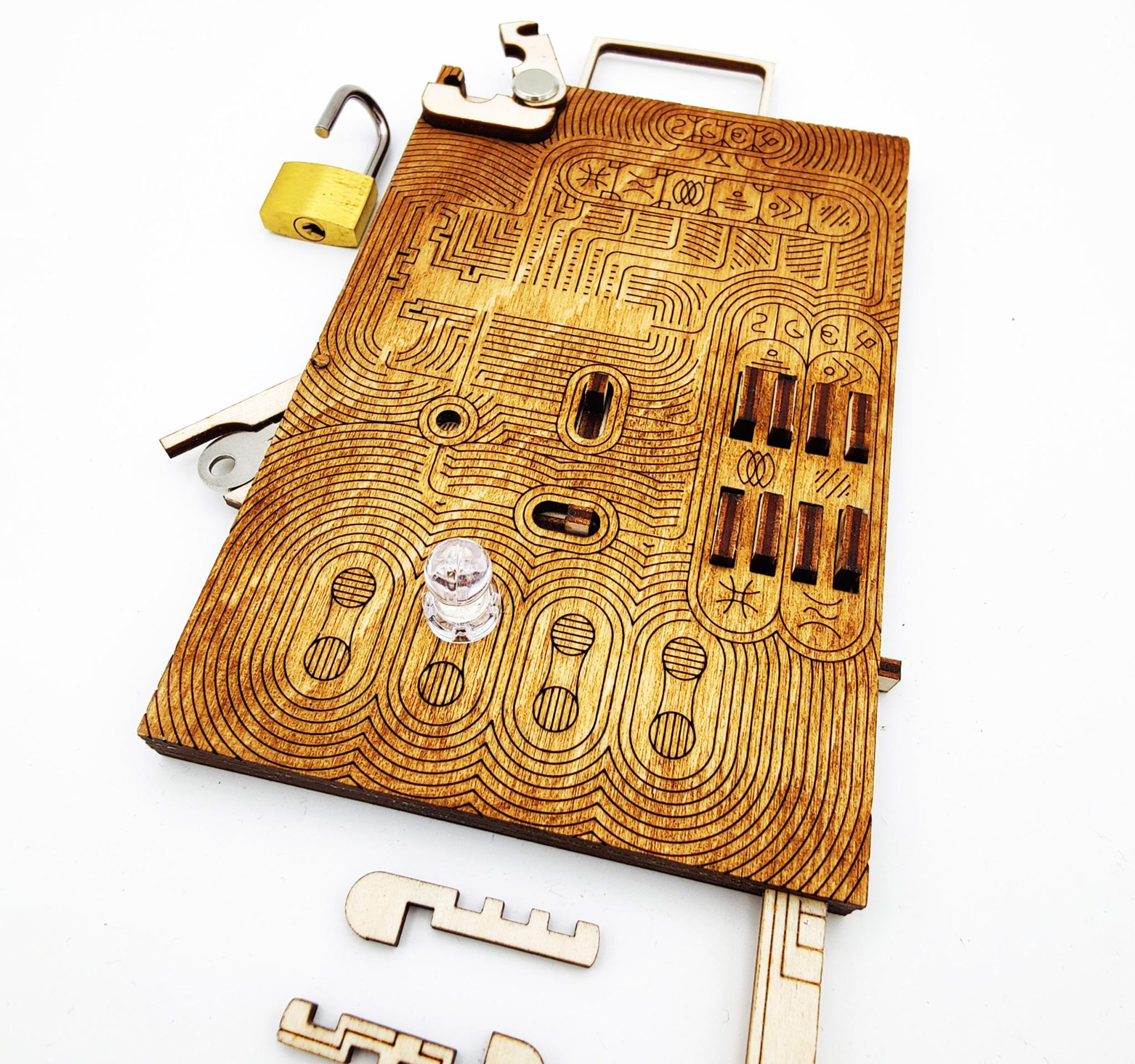

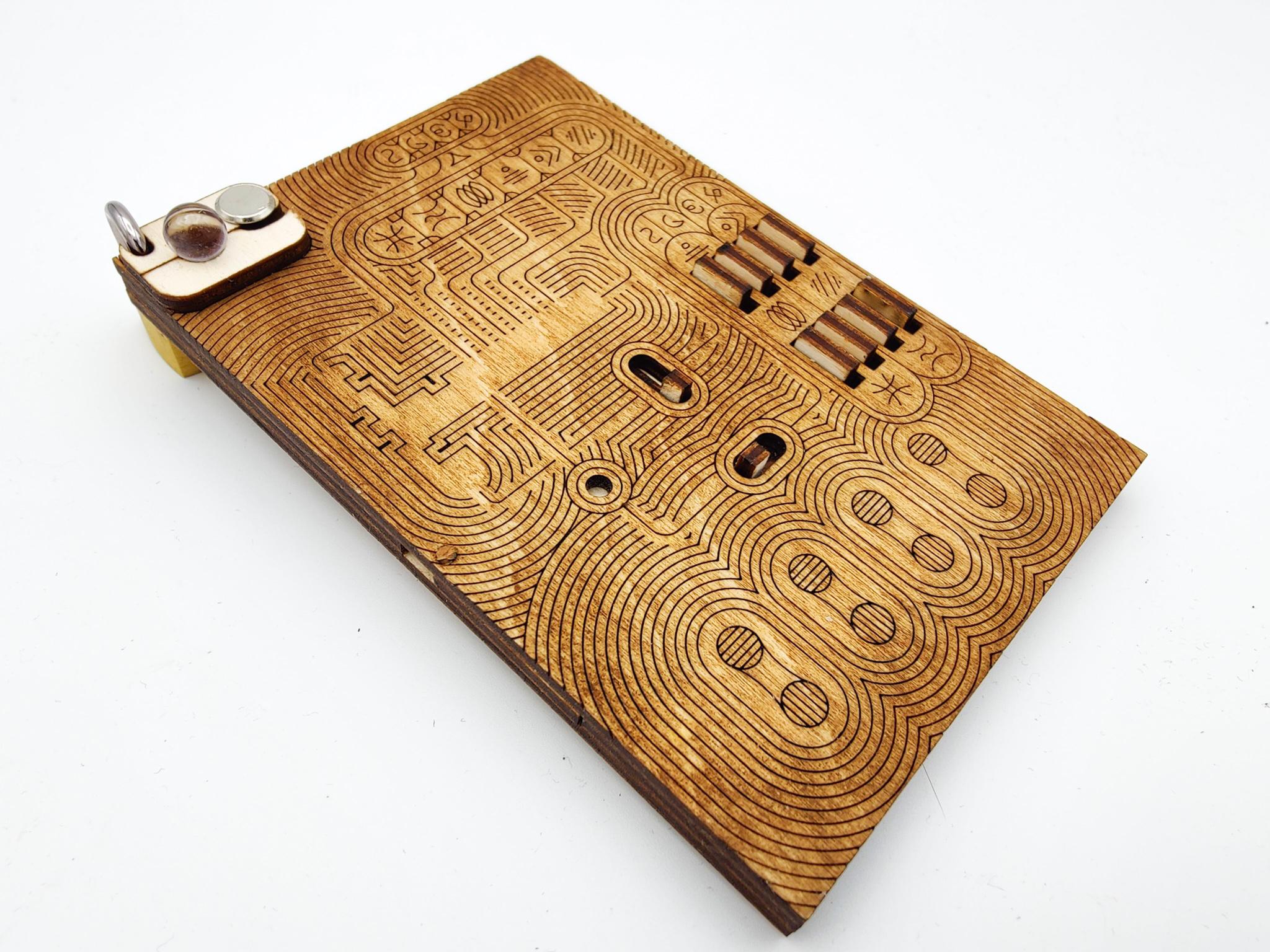

In this simple puzzle box you have to open a tiny drawer by deciphering hints engraved on its top.
Some tools included need to be used to unlock other tools and solve enigmas which makes it a "Sequential Discovery" kind of puzzle.
Designing this puzzle and writing this article required A LOT of time.
I'm sharing it for free but i'm very open to tips.
You can also buy this box or any other of my puzzle boxes from this website:
You can also request a kit of this box if you want to build it by yourself. Just specify it when filling the form on the website.

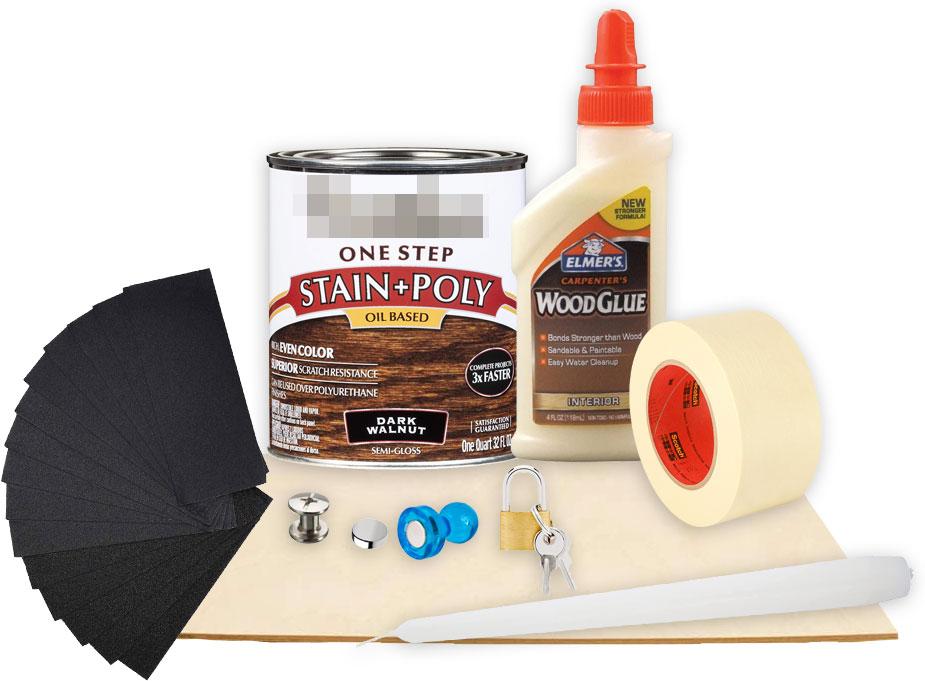

Supplies
![tools.jpg](/proxy/?url=https://content.instructables.com/FAD/ZZDP/KZE4XIJ9/FADZZDPKZE4XIJ9.jpg&filename=tools.jpg)
x22 - 6x2mm (0.23" x 0.07") magnets (amazon)
x1 - Tiny luggage padlock (amazon)
x1 - Push pin fridge magnet (amazon)
x1 - 6mm (1/4") chicago screw (amazon)
x1 - 300+x150+x3mm (11.8+" x 5.9+" x 1/8") birch plywood sheet (amazon)
x1 - Masking paper tape roll (amazon)
x1 - Wood varnish (amazon)
x1 - Wood glue (amazon)
x1 - Sandpaper 80-120grit (amazon)
x1 - Threadlocker (amazon)
x1 - 2.5mmØ wooden skewer (amazon)
x1 - candle or candle wax
x1 - Wood carving knife or a cutter
x1 - Caliper (amazon)

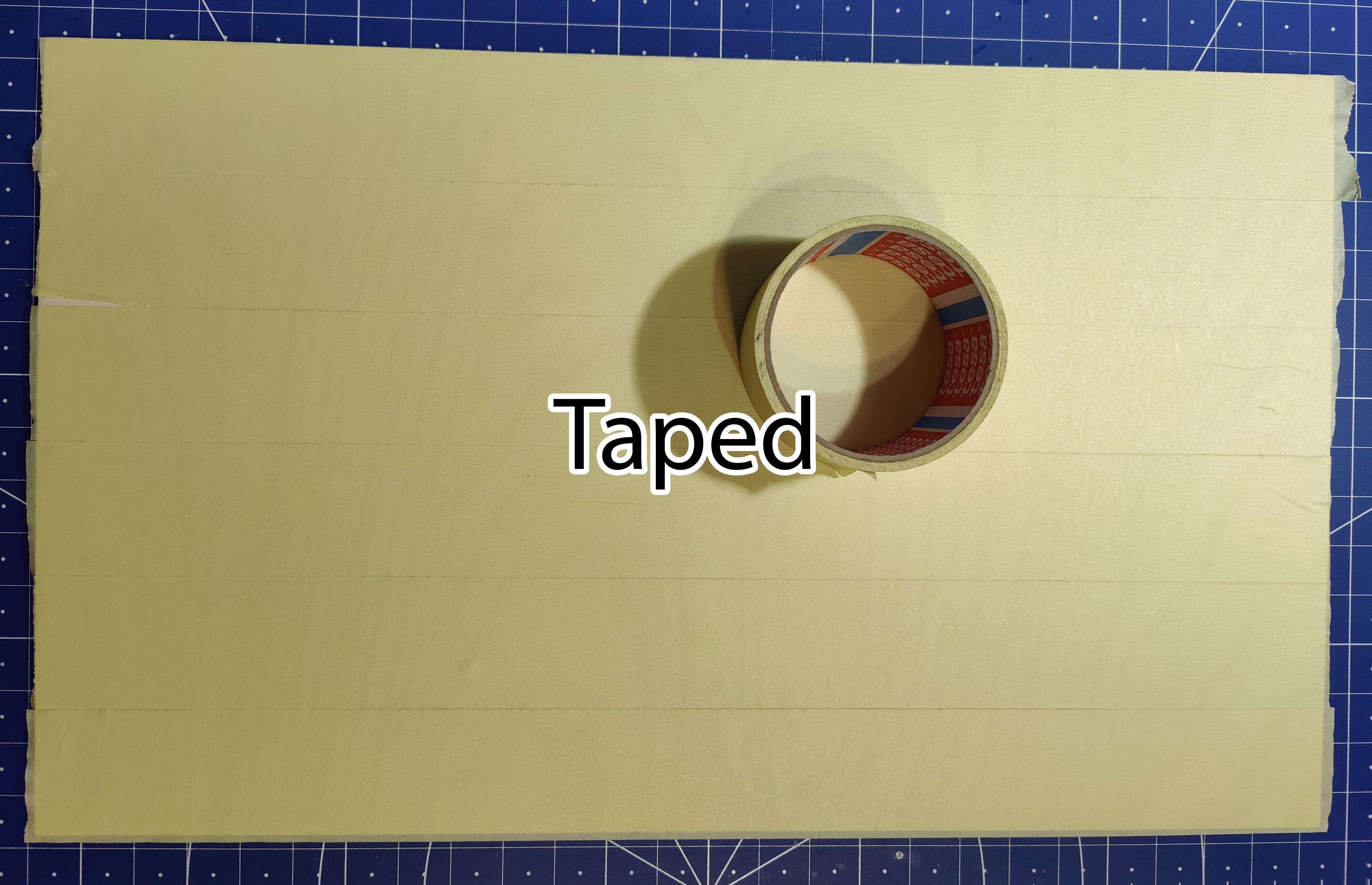

Tape the Wood Sheet
![wood1.jpg](/proxy/?url=https://content.instructables.com/FYP/49UB/KZE4XJ81/FYP49UBKZE4XJ81.jpg&filename=wood1.jpg)
![wood2.jpg](/proxy/?url=https://content.instructables.com/FE2/SPOP/KZE4XJ82/FE2SPOPKZE4XJ82.jpg&filename=wood2.jpg)
Taping the wood sheet will avoid leaving burn marks on the wood.
Laser cutters usually make burning marks due to the heat and ventilation next to the laser head which doesn't looks good.
Adding tape makes it so the burning marks are only left on the tape, leaving the wood under it much cleaner.
Laser Cut
![glowforge.jpg](/proxy/?url=https://content.instructables.com/F7I/BHLT/KZE4XITT/F7IBHLTKZE4XITT.jpg&filename=glowforge.jpg)
Use the attached SVG to cut the plywood sheet.
Red lines are cut through paths.
Gray lines are scoring path (light cut that must not cut through the wood but just its surface)

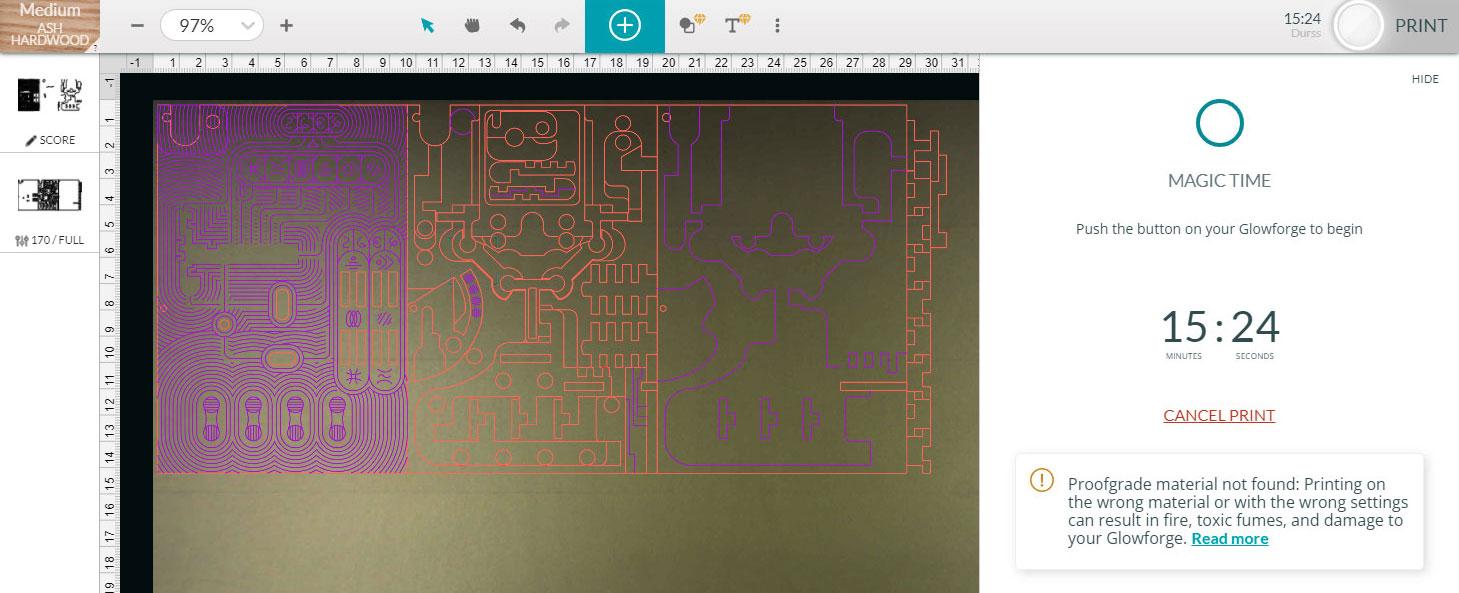

The image above shows the params i'm using and estimated cutting time on my Glowforge basic.
IMPORTANT: The SVG has been exported from illustrator. It's not the most SVG compliant software. Before lasercutting it make sure the magnets' holes are ~5.8mm. If it's not the case, scale the design accordingly.
For example if the holes are 4mm on your software, scale the design by a factor of 5.8/4 => 1.45
Downloads
Peel Off Masking Tape
![tape1.jpg](/proxy/?url=https://content.instructables.com/FZN/XZH4/KZE4XJAV/FZNXZH4KZE4XJAV.jpg&filename=tape1.jpg)
![tape2.jpg](/proxy/?url=https://content.instructables.com/FRI/ZMRG/KZE4XJAX/FRIZMRGKZE4XJAX.jpg&filename=tape2.jpg)
Remove the masking tape from all the cut wood parts
Sanding Moving Parts
![IMG20220206221656.jpg](/proxy/?url=https://content.instructables.com/FCJ/XMX7/KZE4XJY8/FCJXMX7KZE4XJY8.jpg&filename=IMG20220206221656.jpg)
![IMG20220206222116.jpg](/proxy/?url=https://content.instructables.com/FDF/T5FN/KZE4XK5Z/FDFT5FNKZE4XK5Z.jpg&filename=IMG20220206222116.jpg)
![IMG20220206222210.jpg](/proxy/?url=https://content.instructables.com/FSN/X6Q2/KZE4XK6N/FSNX6Q2KZE4XK6N.jpg&filename=IMG20220206222210.jpg)
Many parts will have to slide between the top and bottom parts of the puzzle.
For them to be able to slide you will have to sand them so they are at least 0.2mm thinner.
Use the 80grit sand paper to scratch as much of the parts then soften it with higher grit if you have any.
Measure with a caliper, if you have one, the thickness before sanding and make sure the part is as evenly
thinner as possible.
The parts that need to be thinner are all the ones on the picture above.
Be careful not to sand the sides that have lines on them, these are important hints to solve the box !
Wax Moving Parts
![IMG20220206230701.jpg](/proxy/?url=https://content.instructables.com/FOA/61UK/KZE4XKRE/FOA61UKKZE4XKRE.jpg&filename=IMG20220206230701.jpg)
Sanding the parts made sure that they won't be clamped between the top and bottom parts but it probably won't be enough to make them slide smoothly. There will still be lots of friction.
To reduce that friction, we will use candle wax.
Simply rub a candle on the bottom side of the pieces as well as their sides.
Glueing Middle Parts
![assembly.gif](/proxy/?url=https://content.instructables.com/FGX/I1FW/KZE4Y8BE/FGXI1FWKZE4Y8BE.gif&filename=assembly.gif)
![glue.jpg](/proxy/?url=https://content.instructables.com/FK5/NJWJ/KZE4XP6X/FK5NJWJKZE4XP6X.jpg&filename=glue.jpg)
Many pieces have to be glued as precisely as possible on the back piece.
Use the template lines to help you place the pieces correctly.

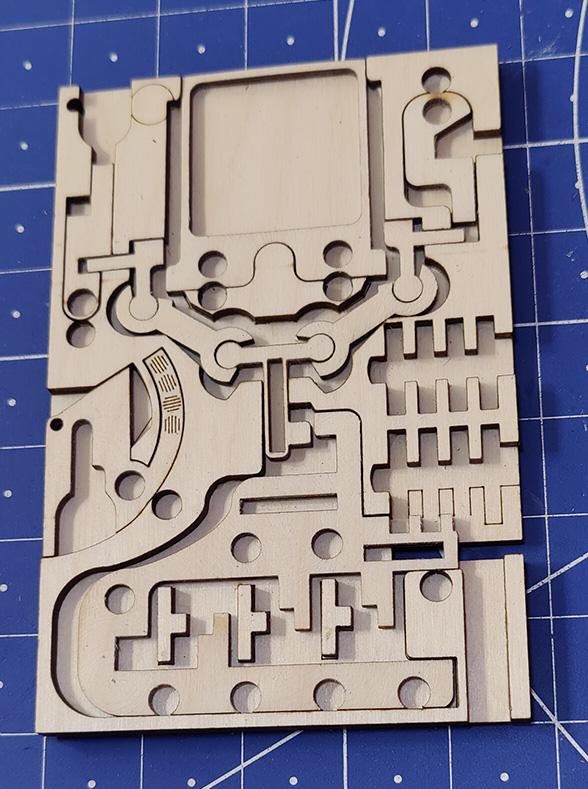

Once all the pieces are glued, place the moving parts as in the 2nd picture and make sure they all slide properly
Critical Part 1
![part1.jpg](/proxy/?url=https://content.instructables.com/FZP/8L18/KZE4XRCU/FZP8L18KZE4XRCU.jpg&filename=part1.jpg)
![part1.gif](/proxy/?url=https://content.instructables.com/FCW/09I4/KZE4XROG/FCW09I4KZE4XROG.gif&filename=part1.gif)
There are some parts that must slide really well or the puzzle reset won't work properly.

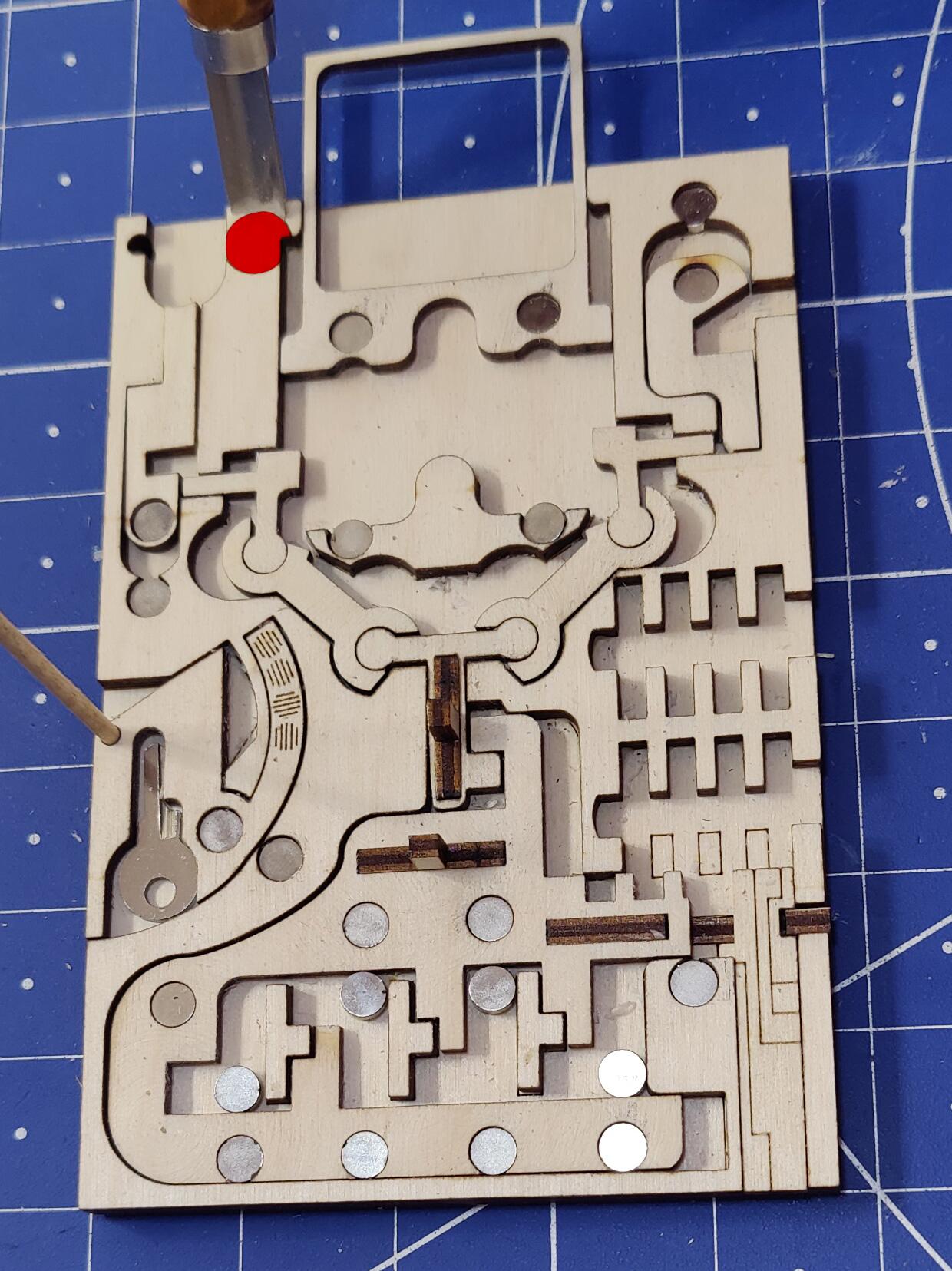

The first one is the top right part in red on the picture above.
To make sure it slides properly and the mechanism won't stay locked, push it down against the little rod (in blue).
Apply a constant pressure downward on the red part and pull down the green part.
The red part should be free to go down on place of the blue part.
If not then try to very slightly shorten the blue rod.
See the attached video to better understand the manipulation if necessary.
Critical Part 2
![part2.jpg](/proxy/?url=https://content.instructables.com/F2I/C5S6/KZE4XRRZ/F2IC5S6KZE4XRRZ.jpg&filename=part2.jpg)
![part2.gif](/proxy/?url=https://content.instructables.com/FO2/FQEY/KZE4XRS0/FO2FQEYKZE4XRS0.gif&filename=part2.gif)
Now we need to do the same test for the top left part.
This time put the red part down, make sure the blue part goes inside its groove, and apply constant pressure upward on red part while pulling down the green part.
The red part should be able to go up.
If it does not, try to slightly shorten the blue rod.
Adding Magnets
![magnets.jpg](/proxy/?url=https://content.instructables.com/FGQ/BGEQ/KZE4XSZT/FGQBGEQKZE4XSZT.jpg&filename=magnets.jpg)
Here comes the tricky part!
You have to place all the magnets the proper way.
The picture above shows you how which way you need to place them.
But you have to make sure the red is attracted to the push pin magnet!
The idea is that the push pin will need to attract the magnet from the outside top of the box.
Make Sure It Works

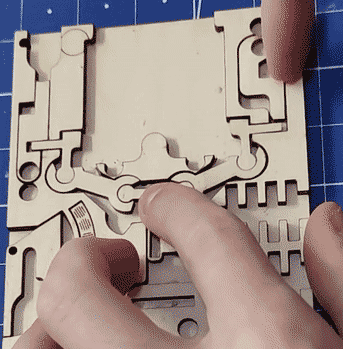

![magnet1.gif](/proxy/?url=https://content.instructables.com/F51/F0Q0/KZE4XU73/F51F0Q0KZE4XU73.gif&filename=magnet1.gif)
![magnets2.gif](/proxy/?url=https://content.instructables.com/FF7/HPUN/KZE4XU75/FF7HPUNKZE4XU75.gif&filename=magnets2.gif)
![magnets3.gif](/proxy/?url=https://content.instructables.com/FTU/K6WN/KZE4XU76/FTUK6WNKZE4XU76.gif&filename=magnets3.gif)
![magnets4.gif](/proxy/?url=https://content.instructables.com/F9B/RQ41/KZE4XU77/F9BRQ41KZE4XU77.gif&filename=magnets4.gif)
Before glueing the top of the box we need to make sure things slide properly one last time.

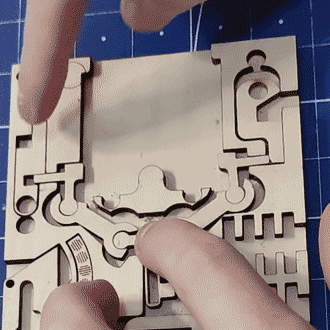

- Push the key holder on the left very gently, it should automatically close at some point
- The top right part should be pushed down
- The top left part should be pushed up
- When everything in "open" state (top right parts on the top, top left part the bottom), pulling down the middle part should release the top left/right parts.
If any of these do not work, you might have to sand the sides of the moving parts to reduce the friction against the fixed parts.

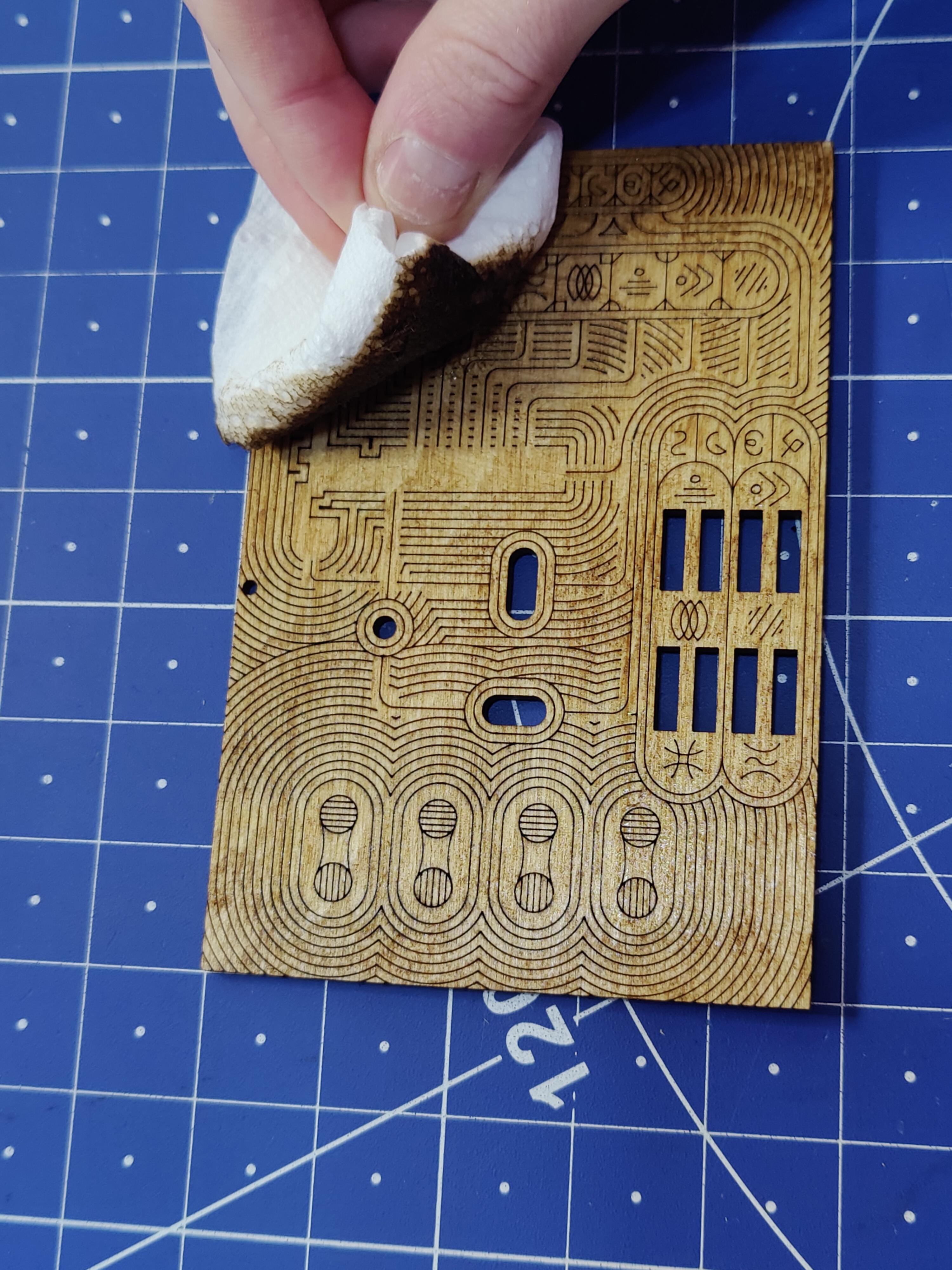

Varnish the Top Part
![IMG20220206214036.jpg](/proxy/?url=https://content.instructables.com/FOW/VEEU/KZE4XW4W/FOWVEEUKZE4XW4W.jpg&filename=IMG20220206214036.jpg)
I'm no varnish expert so there might be a better way of doing this.
But, what I do is I put varnish on a tissue then I rub the wood surface with it and repeat the process until all parts are covered.
Add the Padlock System

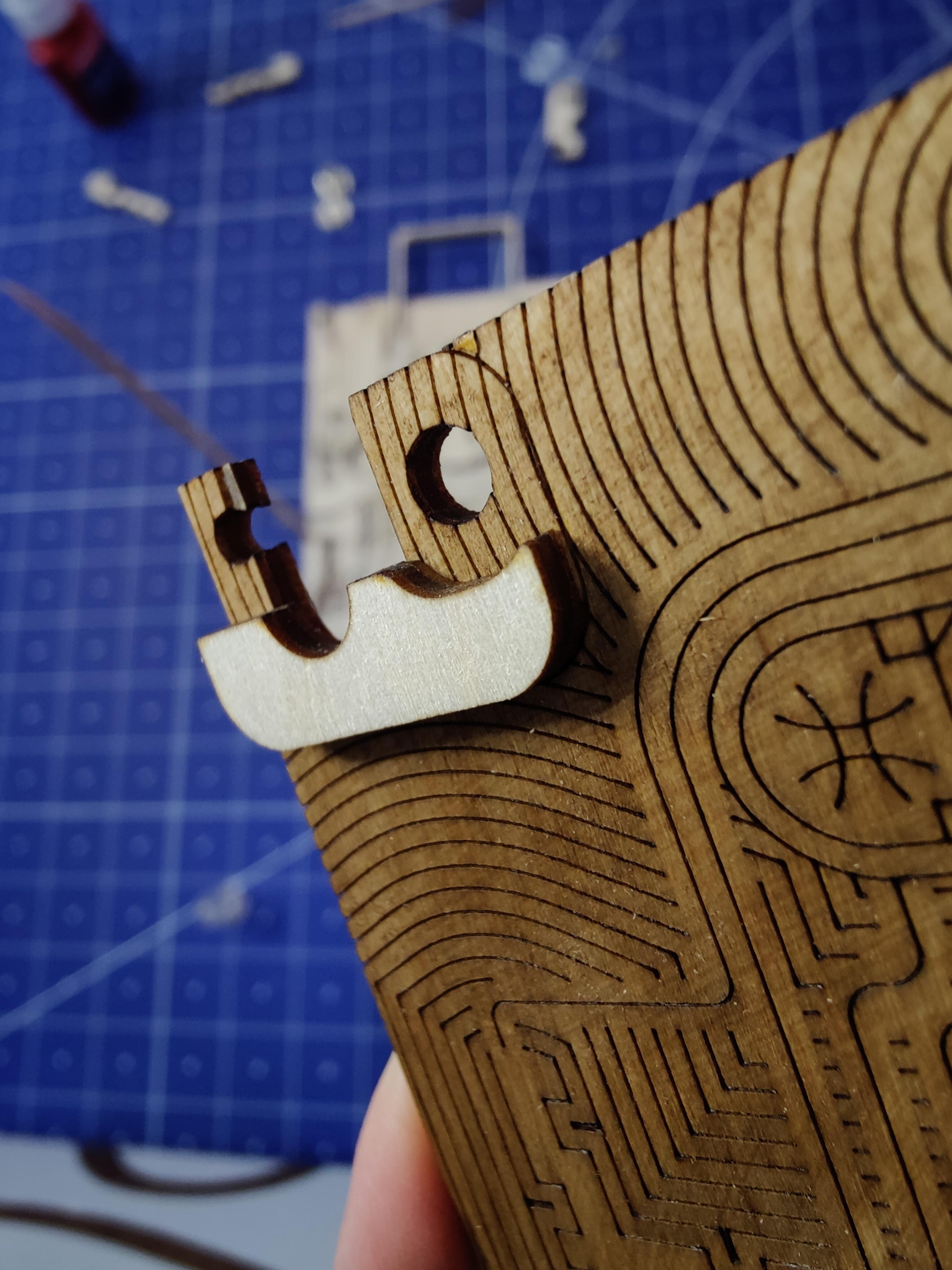

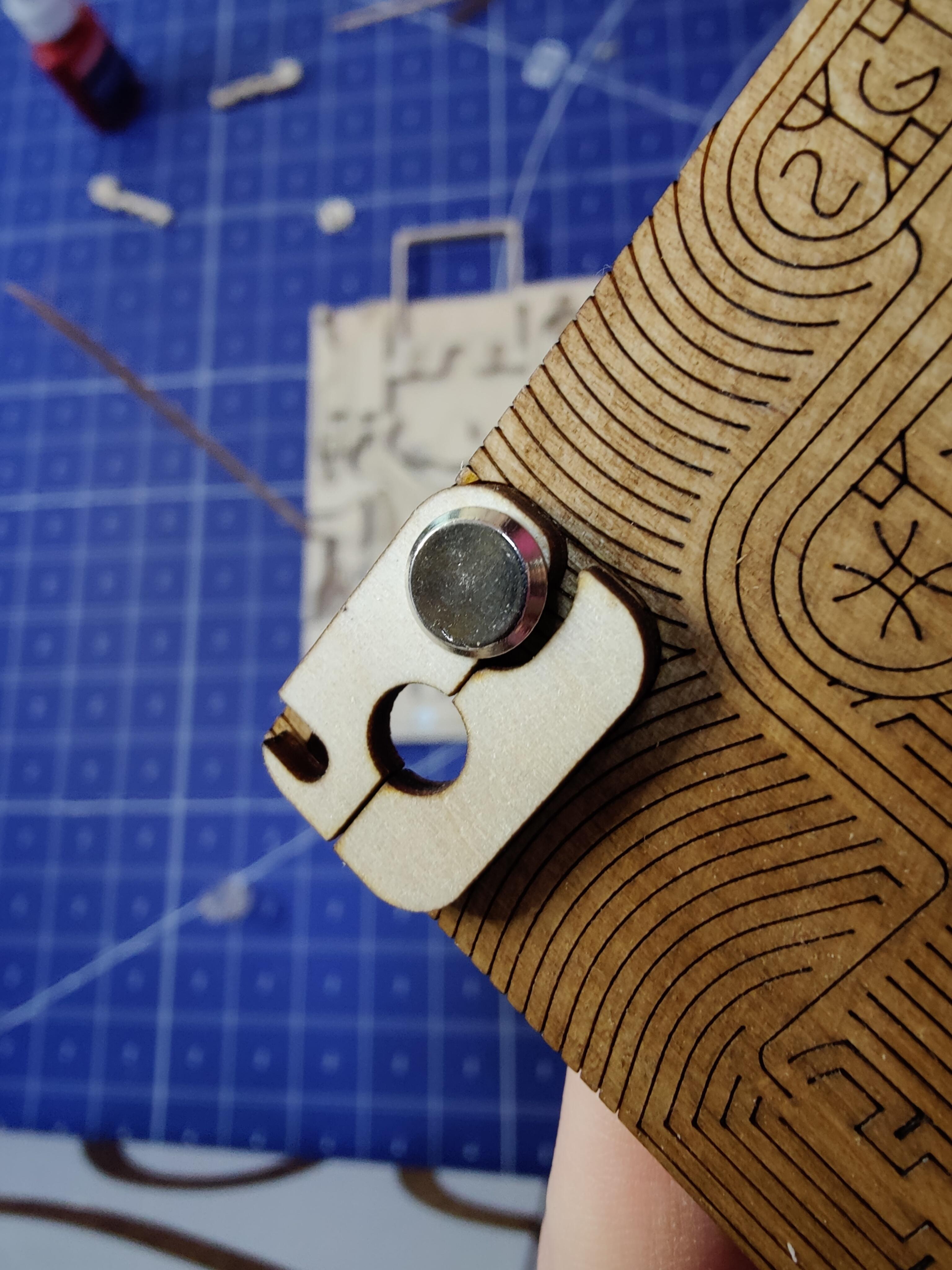

![IMG20220207003359.jpg](/proxy/?url=https://content.instructables.com/FU9/G1F4/KZE4XX7A/FU9G1F4KZE4XX7A.jpg&filename=IMG20220207003359.jpg)
![IMG20220207004202.jpg](/proxy/?url=https://content.instructables.com/FXR/KJHR/KZE4XX7G/FXRKJHRKZE4XX7G.jpg&filename=IMG20220207004202.jpg)
![IMG20220207003422.jpg](/proxy/?url=https://content.instructables.com/FC1/WIC3/KZE4XX7H/FC1WIC3KZE4XX7H.jpg&filename=IMG20220207003422.jpg)
Glue the fixed part (image 1) on top.
Put threadlocker on the chicago screw (image 2) and assemble it on the top part (image 3)
Digging a Hole
![carving.jpg](/proxy/?url=https://content.instructables.com/F6L/WATB/KZE4XZ2V/F6LWATBKZE4XZ2V.jpg&filename=carving.jpg)
The chicago screw of the top part has some thickness that would induce a gap if we tried to glue the top part.
To avoid that we need to dig the red part of the picture for ~1,5mm.
You should have a laser cut line indicating the area to dig.
If you have a wood carving knife it's the best, but you can also do it with a cutter as well. Just be careful with your fingers !
Adding Cursors
![cursors.png](/proxy/?url=https://content.instructables.com/FM5/9YAZ/KZE4Y1TP/FM59YAZKZE4Y1TP.png&filename=cursors.png)
![cursors1.png](/proxy/?url=https://content.instructables.com/FPD/02K2/KZE4Y34B/FPD02K2KZE4Y34B.png&filename=cursors1.png)
![cursors2.png](/proxy/?url=https://content.instructables.com/F4Y/JGI1/KZE4Y52U/F4YJGI1KZE4Y52U.png&filename=cursors2.png)
![cursors4.jpg](/proxy/?url=https://content.instructables.com/F2L/MZ8I/KZE4Y52T/F2LMZ8IKZE4Y52T.jpg&filename=cursors4.jpg)
10 cursors can be moved from the outside of the box.
There are only 2 kinds of cursors as shown on the first image.
The two cursors named "1" must be inserted on the parts as shown in the second image.
The cursors named "2" must be set inside the grooves on the right of the board and in the proper orientation.
They all have a short lead and a long lead and must be placed as shown on the 3rd and 4th images

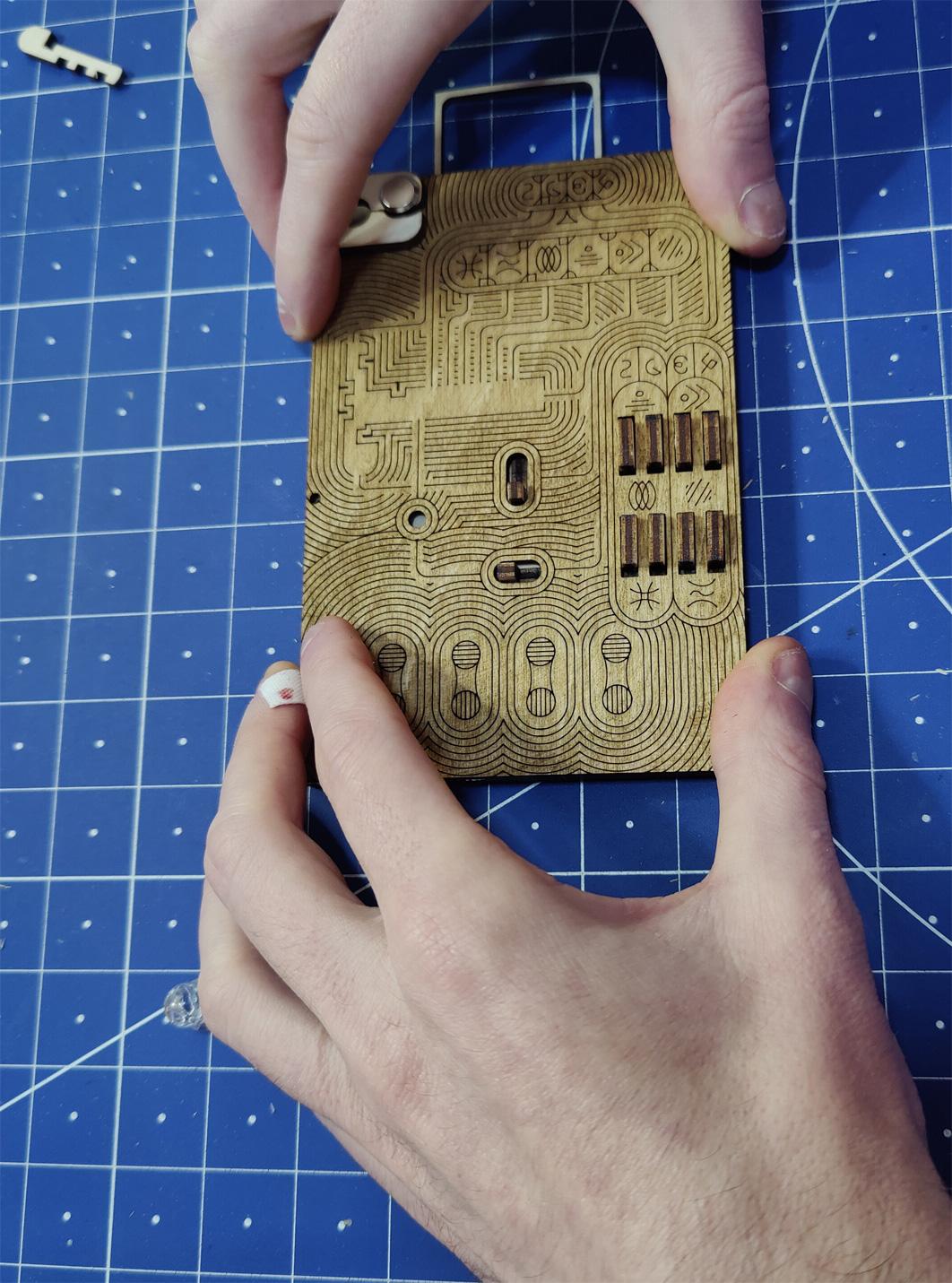

Glue Last Layer
![glue.jpg](/proxy/?url=https://content.instructables.com/FFI/0OPC/KZE4Y5YR/FFI0OPCKZE4Y5YR.jpg&filename=glue.jpg)
![end1.jpg](/proxy/?url=https://content.instructables.com/F0A/TYQ5/KZE4YAHT/F0ATYQ5KZE4YAHT.jpg&filename=end1.jpg)
![end2.jpg](/proxy/?url=https://content.instructables.com/FK8/HNH2/KZE4YAHU/FK8HNH2KZE4YAHU.jpg&filename=end2.jpg)
Final step, gluing the top part above the others.
Put glue on all the red parts but be VERY careful not to put too much glue.

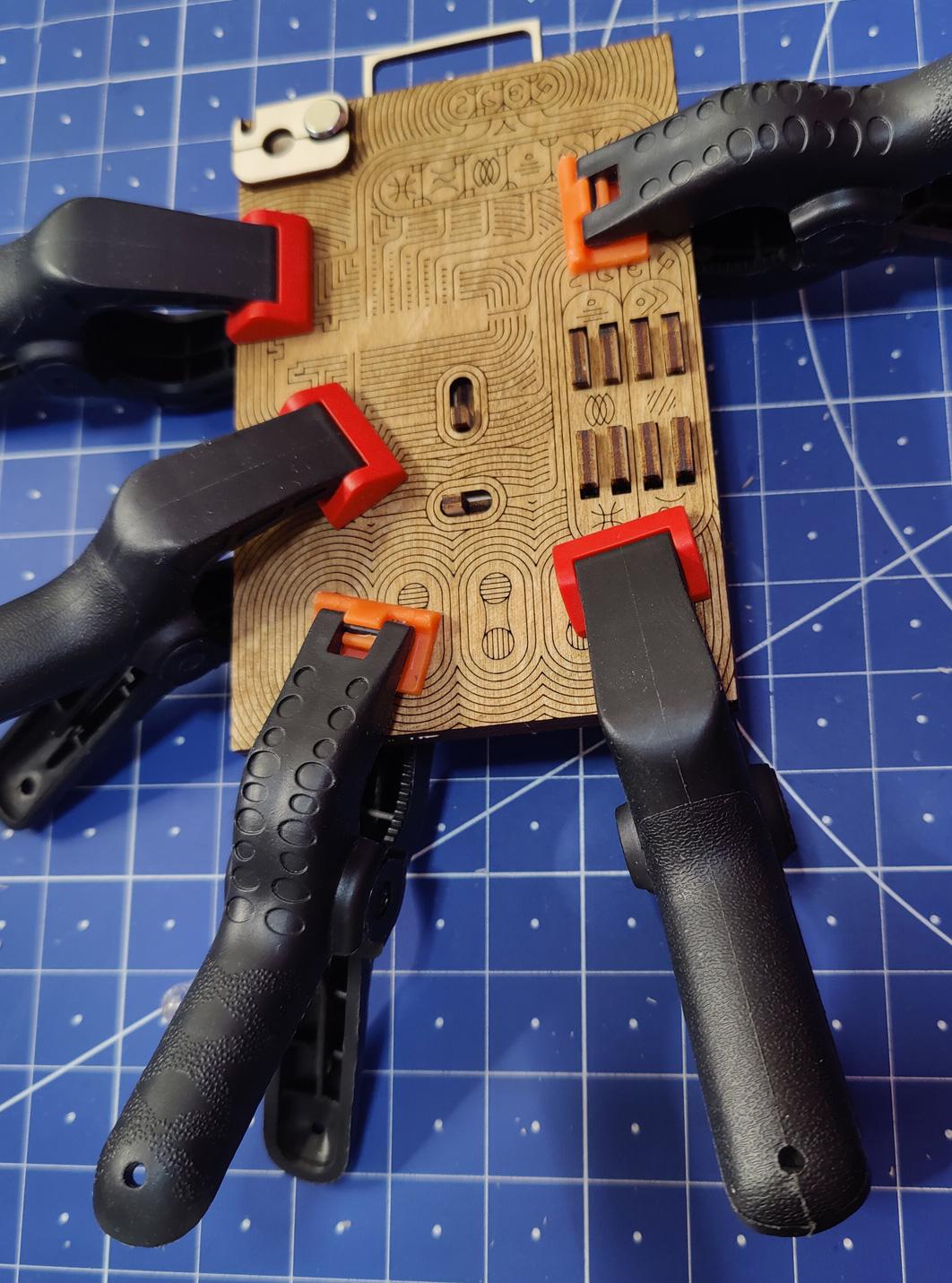

We will clamp the board after to make sure it sticks properly and this will spread the glue a lot. If you put too much glue near the moving parts of the mechanism, the glue may flow into them and glue them which would completely break the puzzle.
Once glue is applied, put the top part above it and clamp it.
Aligning might be quite tricky due to all the cursors that must fit on their holes. You may want to use a toothpick to wiggle the cursors one by one until the top part fits.
Last thing, cut a 9mm long chunk of the skewer and insert it inside the tiny hole on left of the board. This will be the rotation axis of the key's drawer.
Tip : Don't try to close the final drawer before gluing the top board, magnets will drive you crazy, just leave it opened, you'll close it once glue has dried
Solving the Box
![Puzzle box](/proxy/?url=https://content.instructables.com/FC4/IIZL/KZIF9G60/FC4IIZLKZIF9G60.jpg&filename=Puzzle box)
I won't explain the riddles to solve but the video above shows the steps to reproduce to open the box.
You will want to do that a first time to close the drawer left open on the previous step.
Once all the steps are done you'll be able to close the drawer and pull down the last cursor to keep it in place.
Just reproduce the other steps backward and the box will be reset.
Hope you enjoy !
Solution
![spoiler.png](/proxy/?url=https://content.instructables.com/FK4/NLUL/KZZKLF1U/FK4NLULKZZKLF1U.png&filename=spoiler.png)
The next step will spoil you the riddles solutions !
Stop here if you want to search by yoursel !
Release the First Key
![1.png](/proxy/?url=https://content.instructables.com/FQB/DZJ8/KZZKLF8K/FQBDZJ8KZZKLF8K.png&filename=1.png)
![2.png](/proxy/?url=https://content.instructables.com/FBA/DXOB/KZZKLF8L/FBADXOBKZZKLF8L.png&filename=2.png)
![3.png](/proxy/?url=https://content.instructables.com/F7T/DXTE/KZZKLF8M/F7TDXTEKZZKLF8M.png&filename=3.png)
To unlock the first wooden key, look at the tiny symbols on the corners.
The 4 symbols on the first row have corners that match only one symbol of the second row.

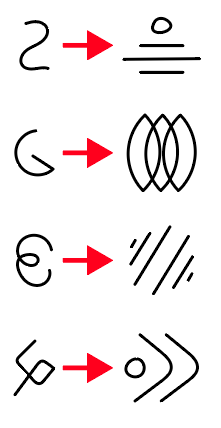

This gives you a symbols association that will help you configure the first 4 sliders.
Manipulate the Magnets
![4.gif](/proxy/?url=https://content.instructables.com/FG0/IS41/KZZKLFZC/FG0IS41KZZKLFZC.gif&filename=4.gif)
![5.png](/proxy/?url=https://content.instructables.com/FVO/OVTV/KZZKLFNN/FVOOVTVKZZKLFNN.png&filename=5.png)
When opening the key holder, a tiny hole shows a sequence of horizontal and vertical lines in this order:
- Vertical
- Horizontal
- Vertical
- Vertical
This tells you where to place the hidden magnets with help of the previously unlocked push pin magnet.
Unlock the Second Key
![6.png](/proxy/?url=https://content.instructables.com/FG9/WQ69/KZZKLFQ2/FG9WQ69KZZKLFQ2.png&filename=6.png)
![7.png](/proxy/?url=https://content.instructables.com/F1I/2K4T/KZZKLFQ3/F1I2K4TKZZKLFQ3.png&filename=7.png)
![8.png](/proxy/?url=https://content.instructables.com/FZS/P1LC/KZZKLFQ4/FZSP1LCKZZKLFQ4.png&filename=8.png)
![9.png](/proxy/?url=https://content.instructables.com/FXB/C6QE/KZZKLFQ5/FXBC6QEKZZKLFQ5.png&filename=9.png)
![11.png](/proxy/?url=https://content.instructables.com/FMJ/ETCR/KZZKLG64/FMJETCRKZZKLG64.png&filename=11.png)
![10.png](/proxy/?url=https://content.instructables.com/F68/LKHE/KZZKLFQ6/F68LKHEKZZKLFQ6.png&filename=10.png)

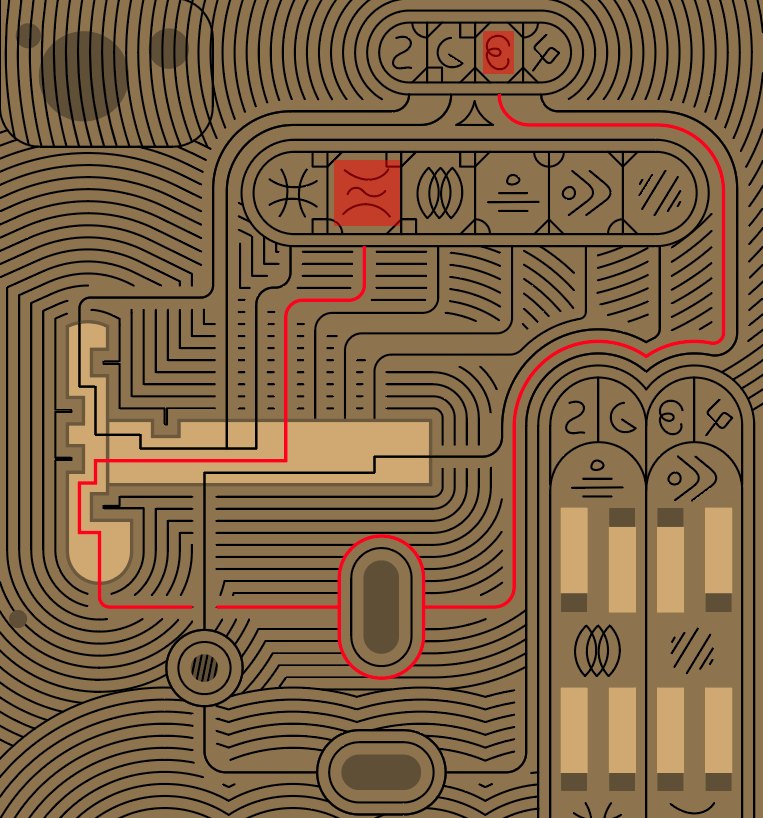

Place the first wooden key and the wooden stick unlocked after the previous step as shown on the images on the same shaped placeholders.

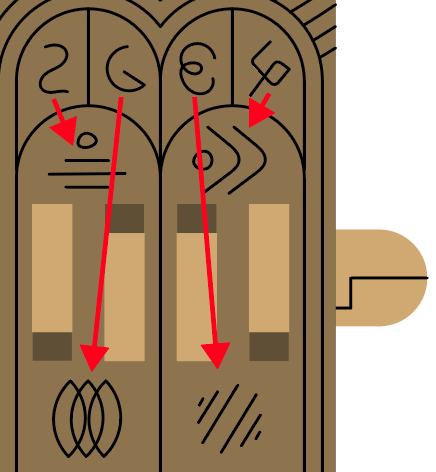

This will complete paths highlighted in red and give you a second symbols association.
This association gives you the second row of cursors' configuration
Congrats
Everything else is shown in the video on the step 16.
I evaluate the difficulty to a level of 3/5 but it really depends on everyone's logic :)
