Secret Charger Compartment

by pucksurfer in Circuits > Electronics

1934 Views, 13 Favorites, 0 Comments

Secret Charger Compartment

14, 8:29 PM.jpg

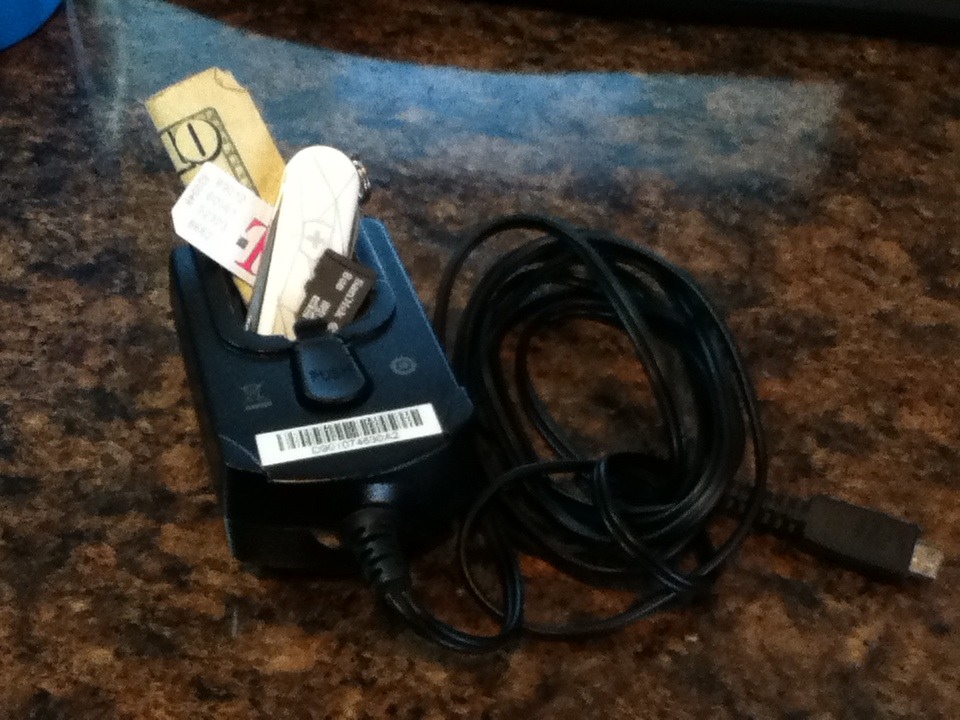

In this instruct able I will show you how to make an easy, ten minute project that will keep you younger sisters out of your stuff. (Or other siblings, parents, roommates, etc.) it is a natural looking phone charger with a hidden space inside to hide your stuff. This is a simple way to hide your stuff in the open and with easy access.

Things You'll Need

14, 8:29 PM.jpg

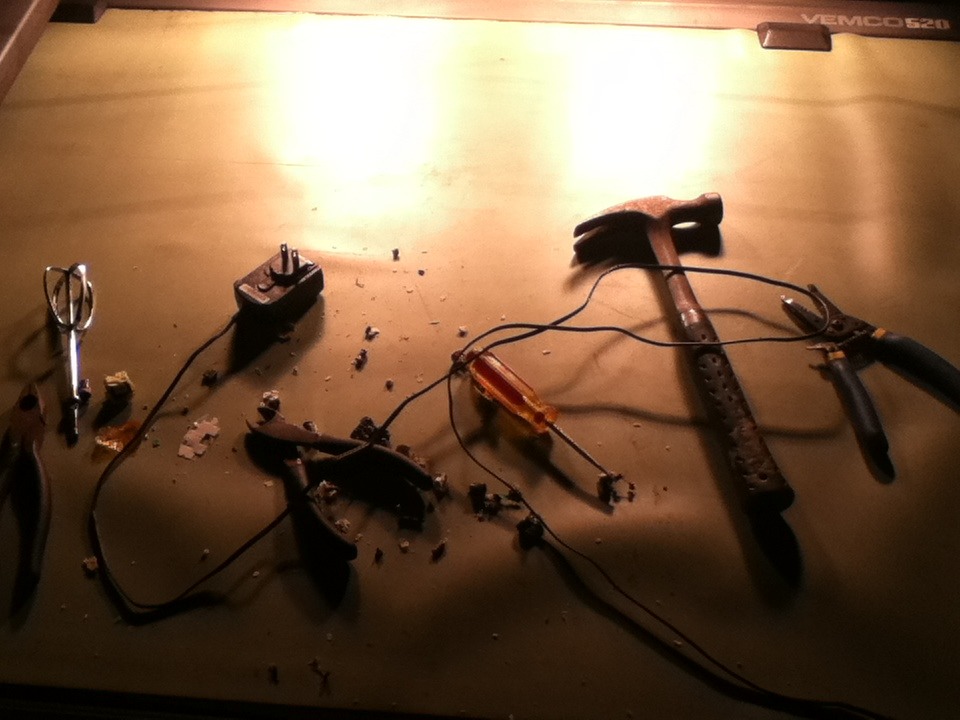

You are going to need these things:
-a phone charger with a plug that slides off
-something to cut the plastic with
-something to pull out the circuit board with
-electrical tape (optional but recommended)

Cut It Open

14, 8:29 PM.jpg
First you are going to slide open the top and cut out the plastic that was concealed behind it. This is going to be where you access your stuff from.

Pull Out the Circuit Board

14, 8:29 PM.jpg
14, 8:29 PM.jpg
14, 8:29 PM.jpg
14, 8:29 PM.jpg
14, 8:29 PM.jpg
Now you are going to need to pull out the circuit board. This may prove rather difficult and tedious but don't worry, it will all be worth it.

Finishing Up

14, 8:29 PM.jpg
Now you just have to make sure the plug still slides easily on and off and then you might want to put some electrical tape onto the plug to make it more safe. Enjoy!
