Scrolling Wheel With Steering Wheel.
by kondzio29 in Circuits > Gadgets
8508 Views, 16 Favorites, 0 Comments
Scrolling Wheel With Steering Wheel.
So... Hi! welcome in my next instructable.I make a scrolling wheel with steering wheel for games, and I decided to share this with you. This informations are not accurate, but you can easily make your own controller.
Parts!
I use cardboard for box/ case ald optical mouse and parts from:
-Lego(steering wheel)
-HDD(scroll wheel)
this is actually prototype. Cardboard is enaugh strong for this project and it isn't too heavy.
Tracking Wheel

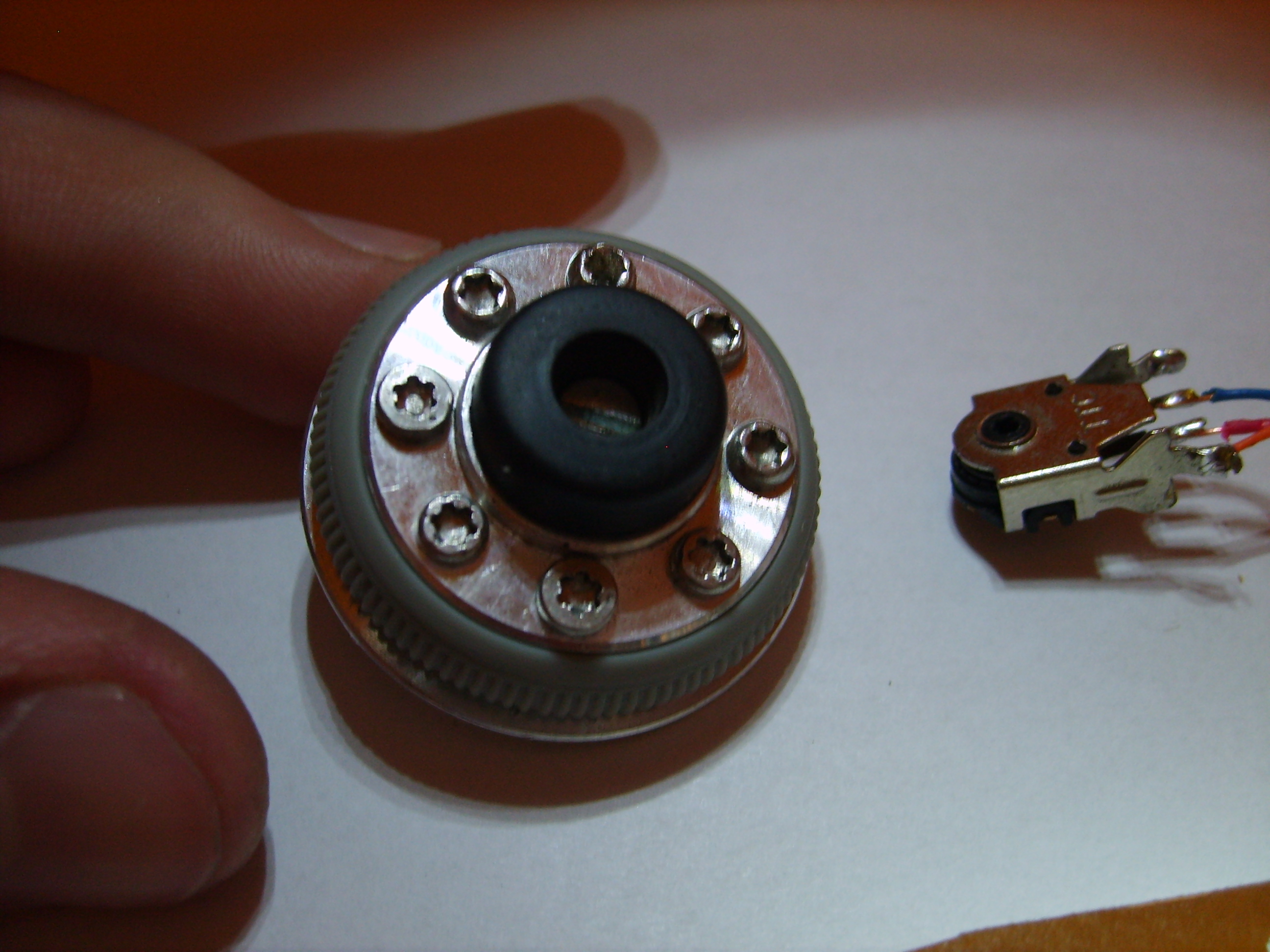

Tracking wheel is main part of steering wheel consists of:
Tracking plate
and casing
When I turn my wheel right the cursor will go to the right side of screen(to use it like controller for games I use a program)

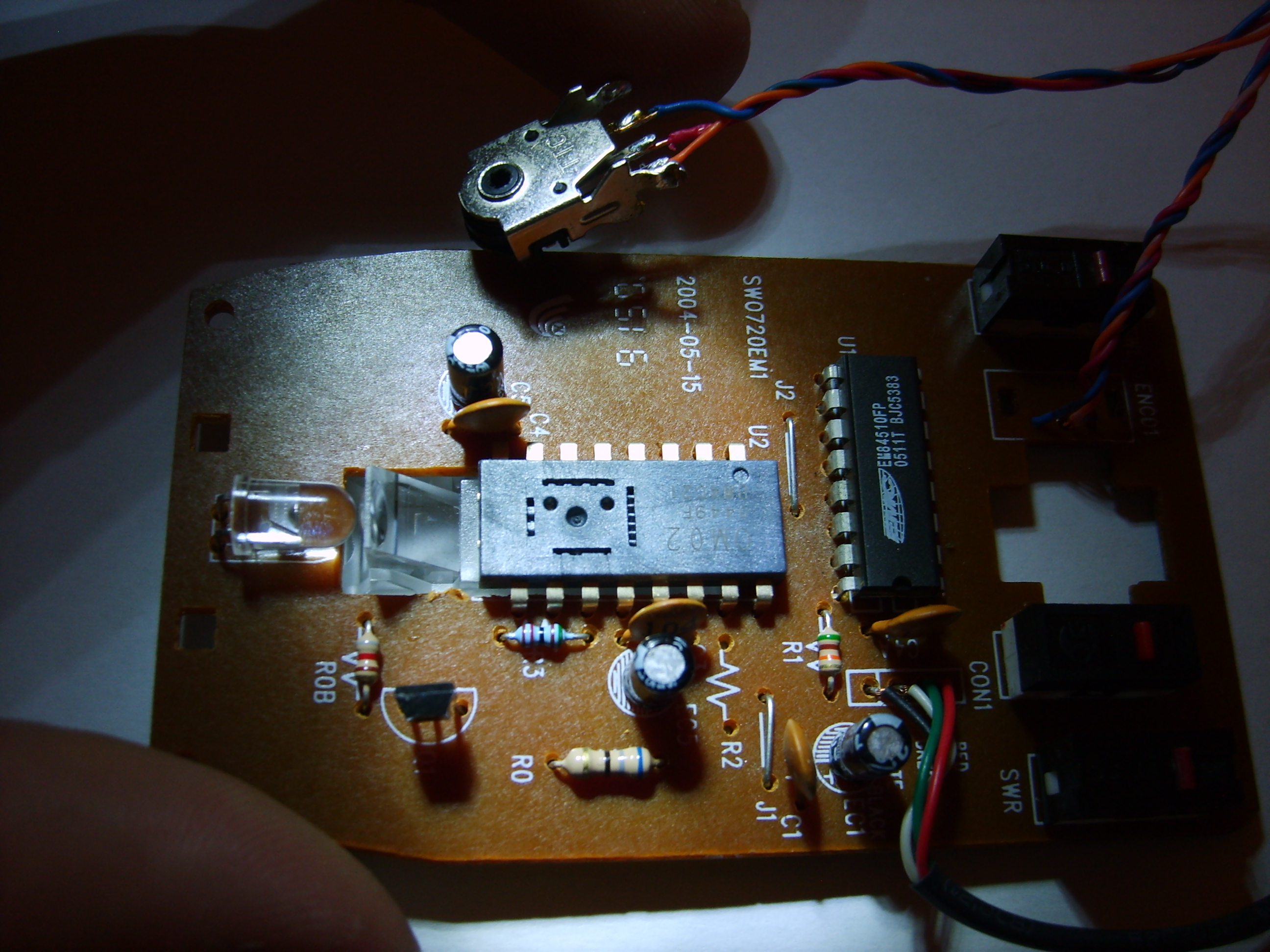

Optical Senor.

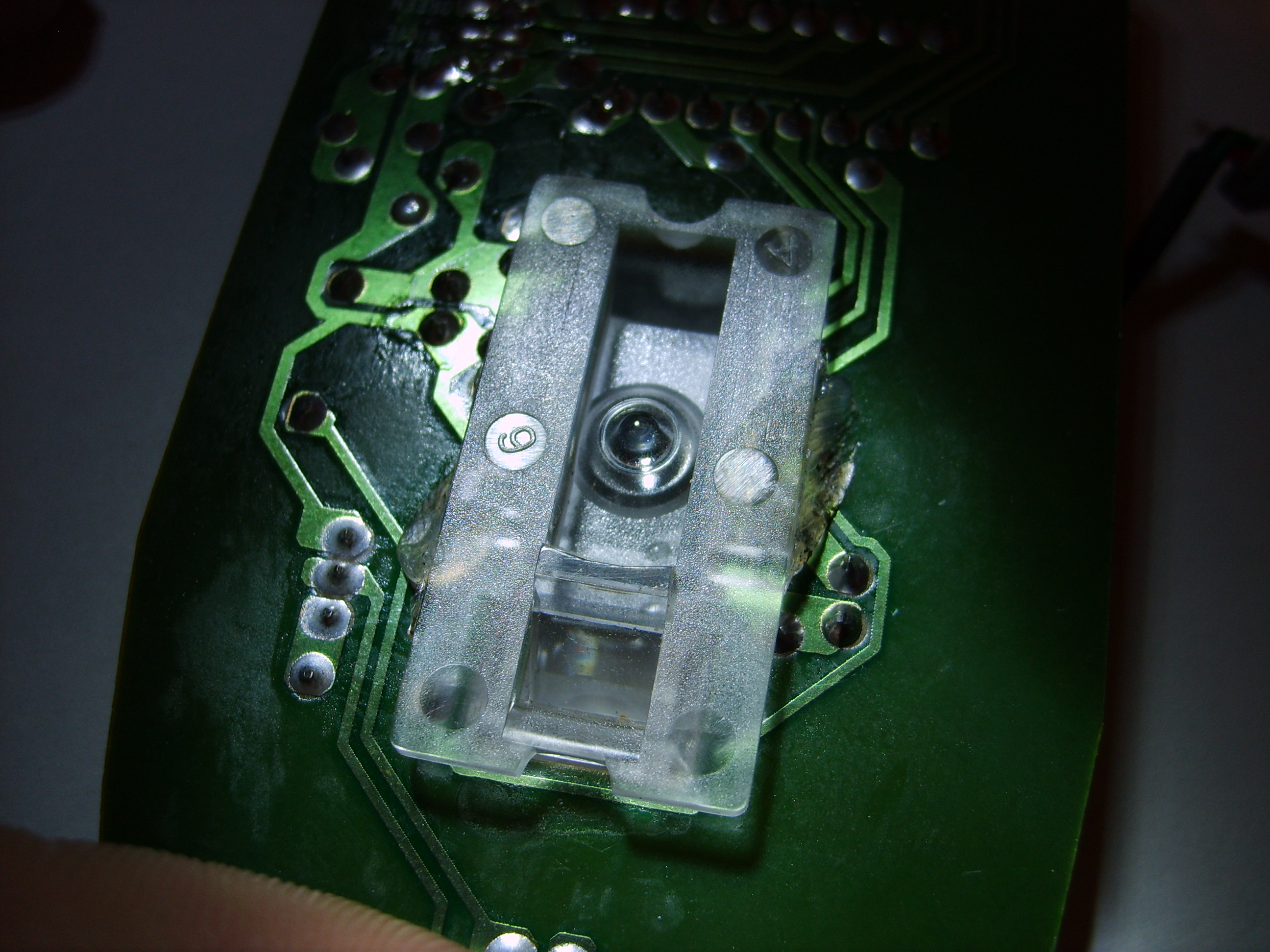

I had toextend thewiresfrom the scrolling wheel and glue the lens to PCB.

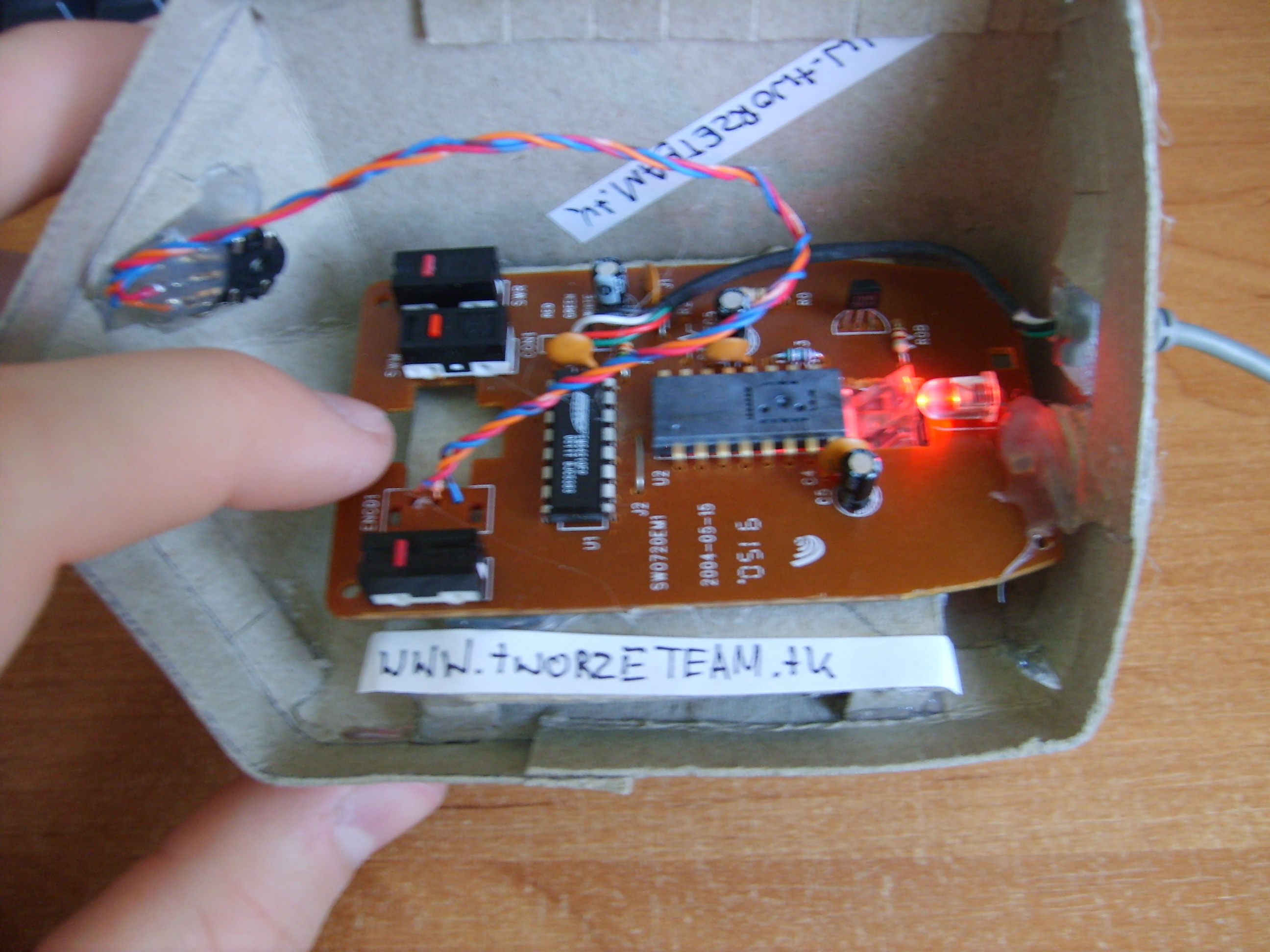

Put Everything Together!
I must make box a little bigger because tracking wheel is bigger than I think.

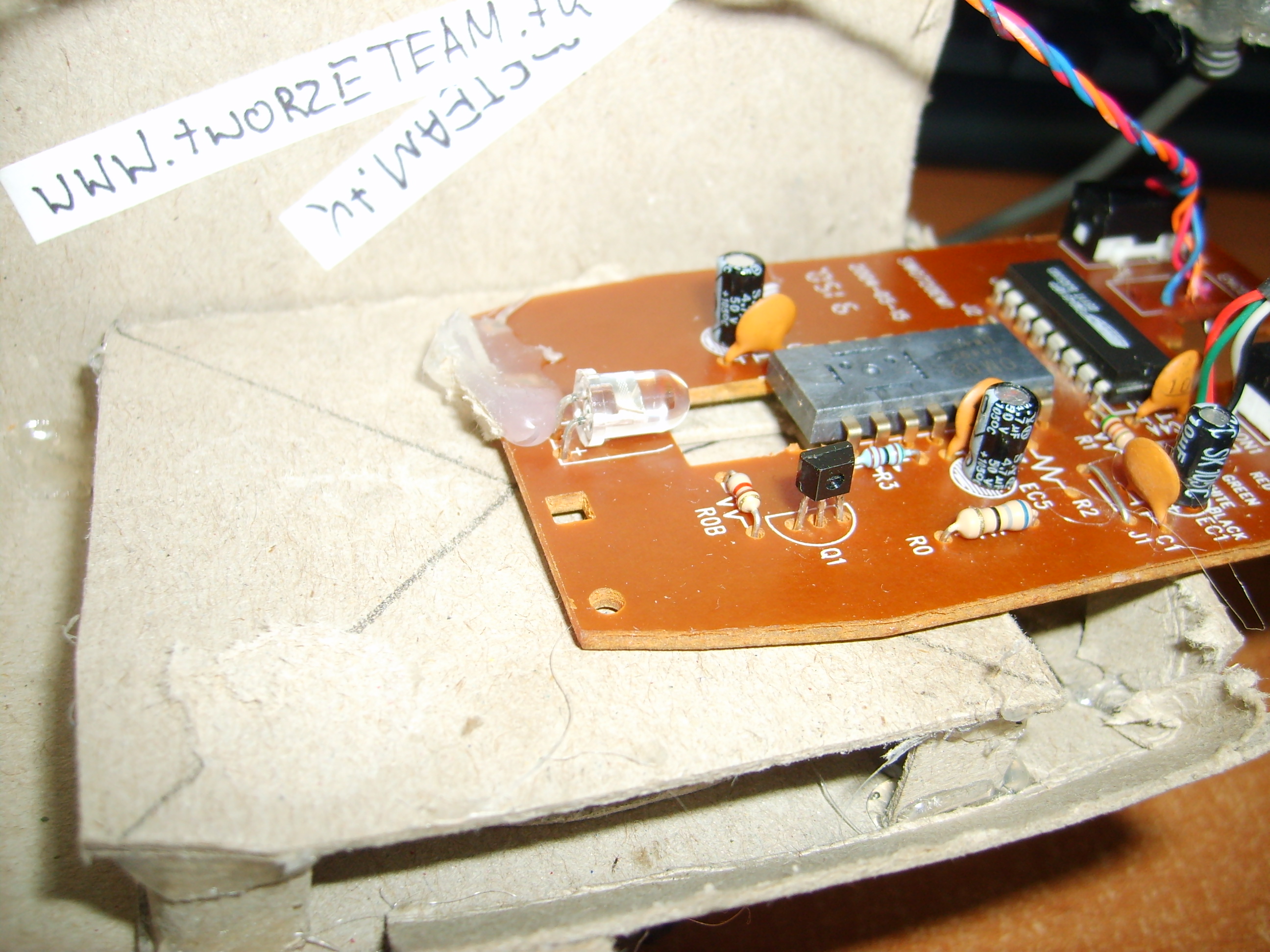

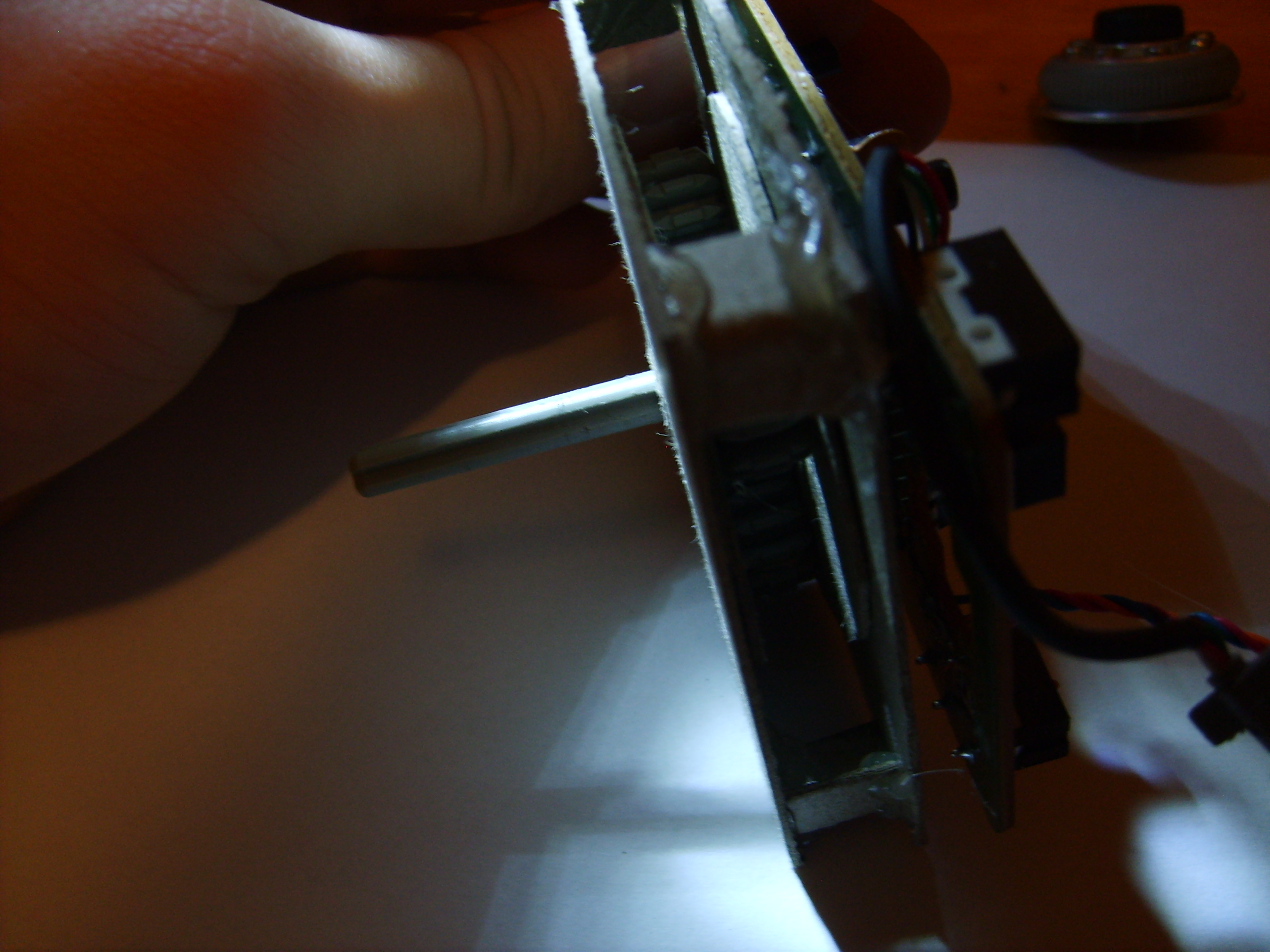

I glued the optical sensor to tracking wheel and the scroll sensor to the casing.
I glued the optical sensor to tracking wheel and the scroll sensor to the casing.
A Little Big Problem.
WhenI putit all togetherandconnectit to computer, I noticedthatthe optical sensoris placednot goodsowhenI turn the wheel rightcursor is going left awwww...I need tomake bigger casing!

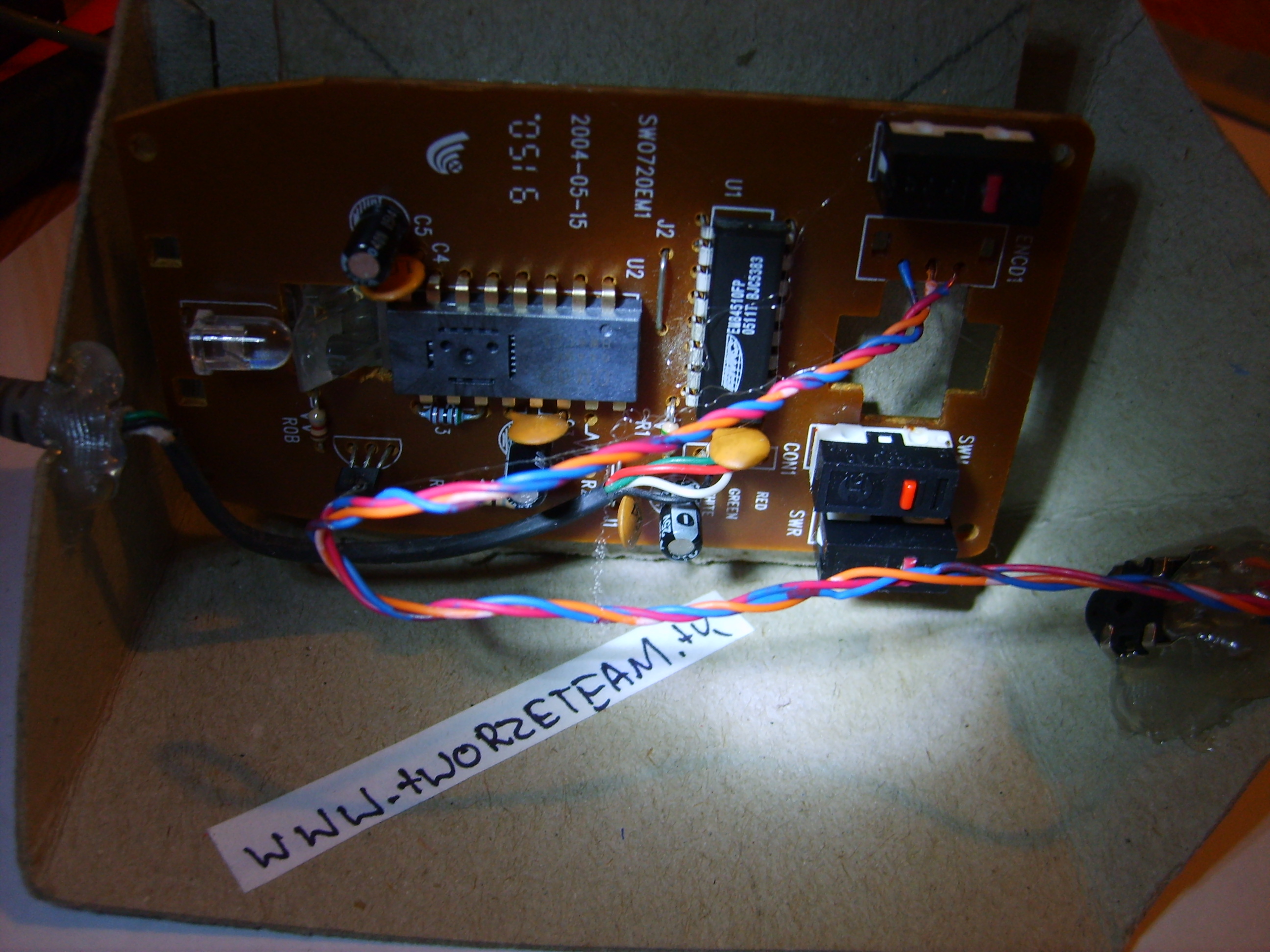

I turned180 degreesPCB and every thing it's all right.
I turned180 degreesPCB and every thing it's all right.
ThE End!
My project is finished! I can use scroll wheel to:
-resizing the active window
-Transparencychanges
-volume changes
-scroll the pages
-zoom the map in Google Maps
And the steering wheel I use To:
-playing race games
-resizing the active window
-Transparencychanges
-volume changes
-scroll the pages
-zoom the map in Google Maps
And the steering wheel I use To:
-playing race games
The Applications I Use.
I use two applications:
Volumouse (with Window resize plugin)
PPjoy (probably with PPjoymouse inside)
PPjoymouse(I cannot find a download link)
You can find how to use a volumouse there: in whatsisface instructable
And I try to show you how to use a PPjoy and PPmouse:
1. Download and install application
2. Open a "Configure Joysticks"(picture 1 and 2)
3. Add a new Joystick by clicking "Add" and set Parallel port to "Virtual joystick" in new window(pic 2)
3. Click "Add" and "Done"
4. Now open a PPjoymouse and go playing!
Thanks for wathing!
visit my website: www.tworzeteam.tk
don't forget to rate!
(5. you can go to control panel and calibrate your joystick)
