Screw and Bolt Toy

This Instructables will teach you how to make a screw and bolt.

Start With the Screw

Screen Shot 2022-01-12 at 10.46.28 AM.png

Screen Shot 2022-01-12 at 10.47.28 AM.png

You want to start with a wide cylinder that is 25mm wide. Then you want to put another cylinder that will be longer inside the 25 mm cylinder. You want the longer cylinder to be 20 mm wide.

Screen Shot 2022-01-12 at 10.48.10 AM.png

You then want to thread the longer cylinder by hitting the thread button.

Screen Shot 2022-01-12 at 10.50.37 AM.png

In this step, we are going to start with the bolt. You want to make a cylinder that is 25 mm wide

Screen Shot 2022-01-12 at 10.52.28 AM.png

Screen Shot 2022-01-12 at 10.52.48 AM.png

You want to then put a cylinder through the 25 mm cylinder. Make that cylinder 22 mm. Next, thread the 22 mm cylinder. Then, cut the threaded cylinder out of the 25mm cylinder. This will make it so that there are threads inside the 25 mm cylinder.

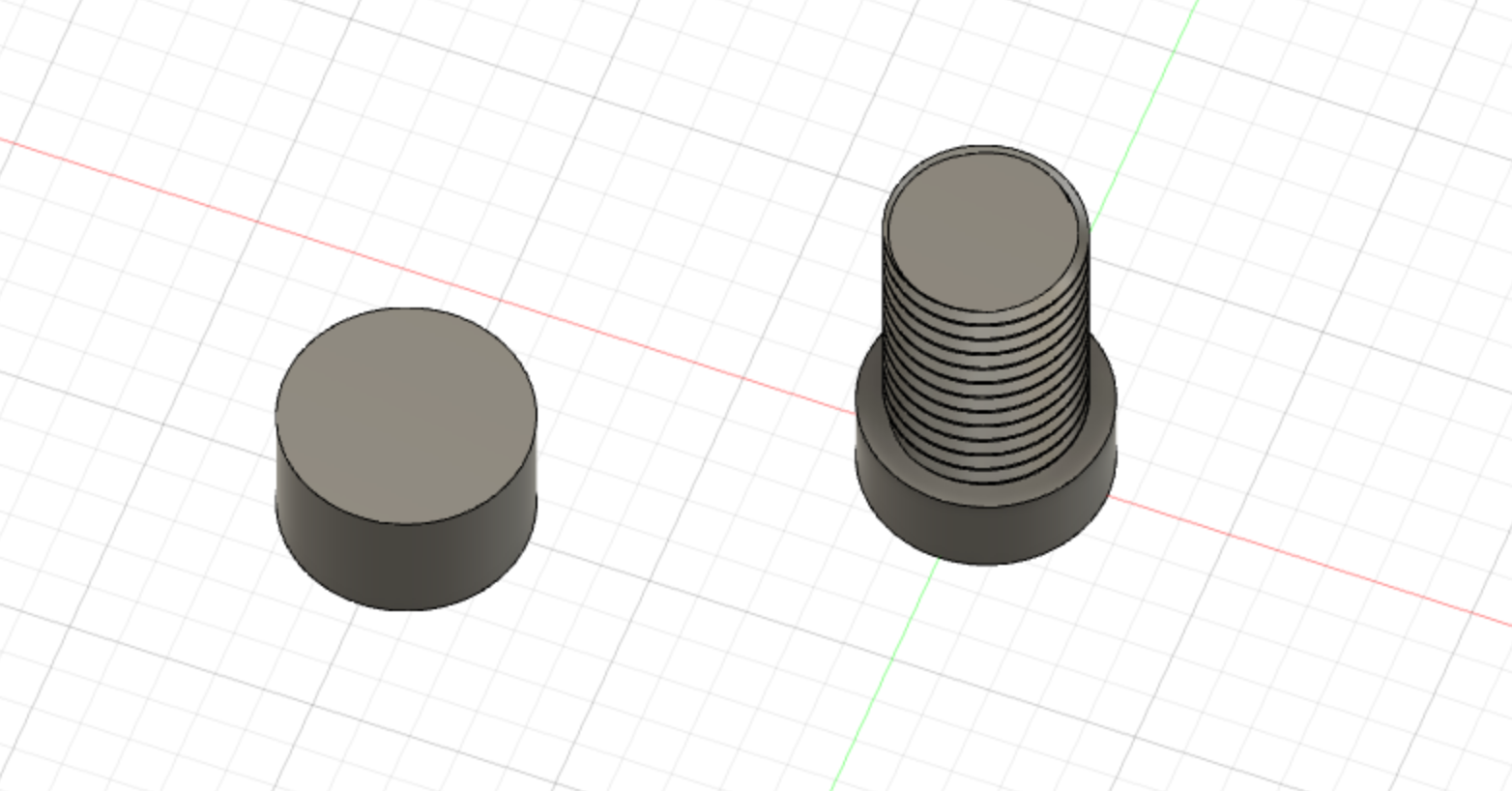

The Final Product

Screen Shot 2022-01-12 at 10.54.43 AM.png
