Scrapwood Table & Stool Set

by RecklessRedneckWoodWorks in Workshop > Woodworking

4469 Views, 126 Favorites, 0 Comments

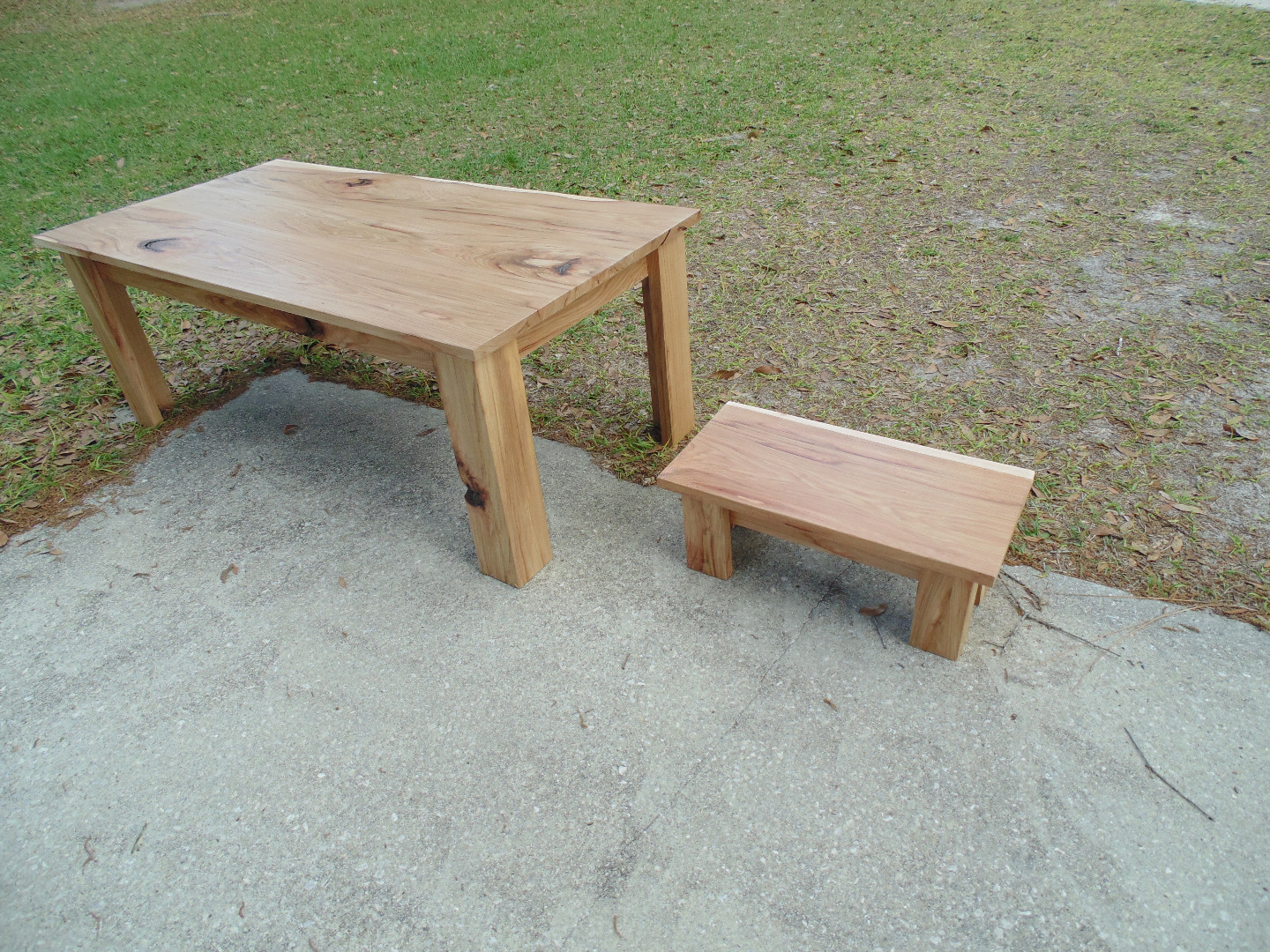

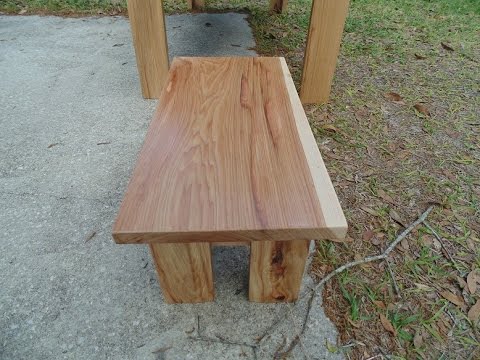

Scrapwood Table & Stool Set

2016-01-13 17.51.31.jpg
2016-01-12 22.11.25 - Copy.jpg
2016-01-13 17.51.43 - Copy.jpg

So I do a lot of cooking, As well as woodworking, And one of the forms of cooking I love best is smoking. This leaves me with lots of hickory scraps, So I thought I would put some of them to good use. Enjoy :)

Step 1 : the Cut Lists

2016-01-12 21.25.26 - Copy.jpg
2016-01-13 17.45.52.jpg

The Table :

2 - 8 3/4" x 48" x 3/4"

1 - 6 1/4" x 48" x 3/4"

2 - 2 3/4" x 42 3/4" x 3/4"

2 - 2 3/4" x 20" x 3/4"

4 - 3 1/2" x 17" x 1"

4 - 2 1/2" x 17" x 1"

The stool :

1 - 9 1/2" x 19 1/4" x 3/4"

2 - 2 3/4" x 5 1/2" x 3/4"

2 - 2 3/4" x 13 3/4" x 3/4"

4 - 2 3/4" x 6 3/4" x 1"

4 - 1 3/4" x 6 3/4" x 1"

Step 2: the Tops.

2016-01-11 19.51.33 - Copy.jpg
top pocket.png
glue top.png

Table :

Start by drilling the pocket holes along both sides of the 6 1/4 inch wide board.

then use pocket hole screws and glue to attach the 2 - 8 3/4 inch board to each side. this makes your top.

When the glue dries, sand it all smooth!

Stool :

Simply cut out the 9 3/4 inch by 19 1/4 inch board you will be using for the top.

Step 3 : the Skirts

Snapshot 4 (4-3-2016 12-57 AM).png
stool skirt.png

Table :

Start by drilling pocket holes into the 2 longer skirt pieces. (2 3/4 x 42 3/4 x 34)

then glue and screw them to the shorter skirt pieces. (2 3/4 x 20 x 3/4)

Stool :

Start by drilling pocket holes into the 2 longer skirt pieces. (2 3/4 x 5 1/2 x 3/4)

then glue and screw them to the shorter skirt pieces. (2 3/4 x 13 3/4 x 3/4)

Step 4 : Glue Up the Legs

table leg.png
stool leeg.png
stool leg.png

Table AND stool :

Glue the skinny leg boards to one side of the wider legs. clamp securely. no need to use nails or screws here. Just glue. clamp, and let dry :)

Step 5 : Attach the Skirts

Snapshot 11 (4-3-2016 1-35 AM).png
Snapshot 12 (4-3-2016 1-36 AM).png

Table AND stool :

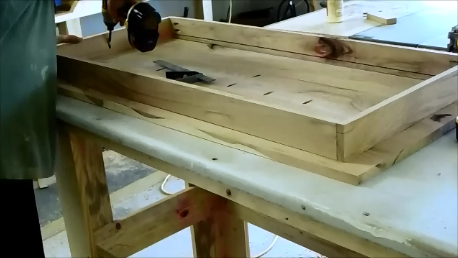

Again, The procedure here is the same for both the stool AND the table. Using pocket holes and pocket hole screws, Simply attach the skirt to the top. real simple. Glue it and screw it, and let it dry.

Step 6 : Put the Legs on Them

Snapshot 13 (4-3-2016 1-42 AM).png
Snapshot 14 (4-3-2016 1-43 AM).png
Snapshot 15 (4-3-2016 1-43 AM).png
Snapshot 16 (4-3-2016 1-43 AM).png

Table AND stool :

Again, same procedure for both the table and stool. glue the legs, and attach them to the skirt, using pocket hole screws through the skirt into the legs. no pocket holes required, but the screws work great!!

Step 7 : Enjoy Your Work

2016-01-13 17.51.31.jpg

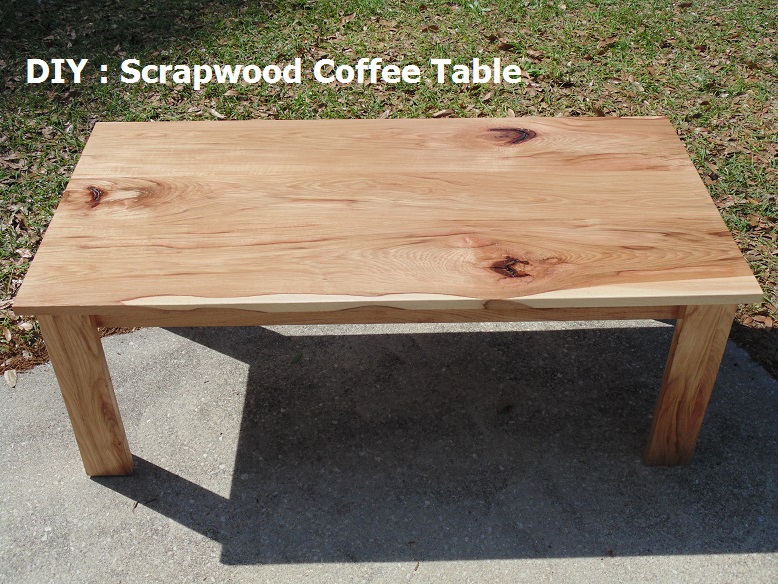

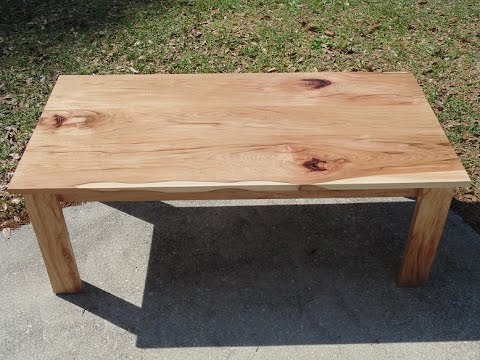

Scrapwood Coffee Table Build
Scrapwood Step Stool Build

You are almost done. Apply the finish of your choice, And enjoy them for years to come! I hope you enjoyed this Instructable, And until next time, Enjoy!!

PS : Thanks for your continued support!! Now get out there and build something cool!!
