Scrap Wood Wine Glass Rack

by JON-A-TRON in Workshop > Furniture

21968 Views, 443 Favorites, 0 Comments

Scrap Wood Wine Glass Rack


This is a handsome wine glass rack made from scrap wood and wooden dowels. It takes about an hour to make using only a few hand tools.

Tools & Materials


Tools:

  • Circular saw
  • Hand drill
  • 7/16" drill bit + countersink bit
  • Palm sander
  • Tape measure, straight edge, & pencil

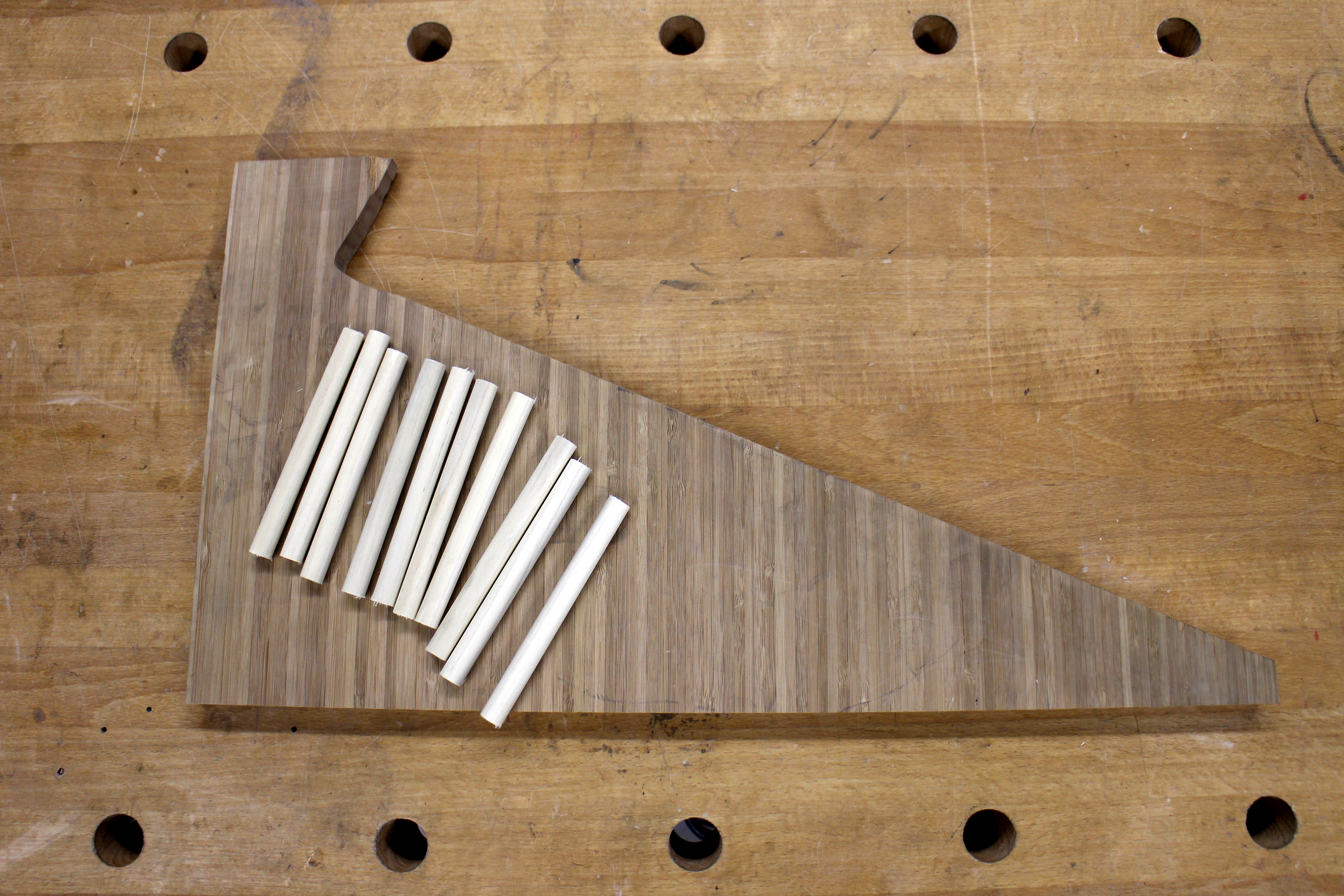

Materials:

  • Scrap wood (I used a piece of 3/4" Plyboo)
  • Wooden dowels, 7/16" diameter

Measure the Wine Glasses

measure cup.jpg
measure stem.jpg

The bowl of my wine glasses measures about 3" in diameter and the stem is about 7/16". I placed the dowels at 1" O.C. (on center) to hold the stems with 2 1/2" O.C. between. This gives me about a 1/2" gap for the stem and 3 1/2" of room for the bowl.

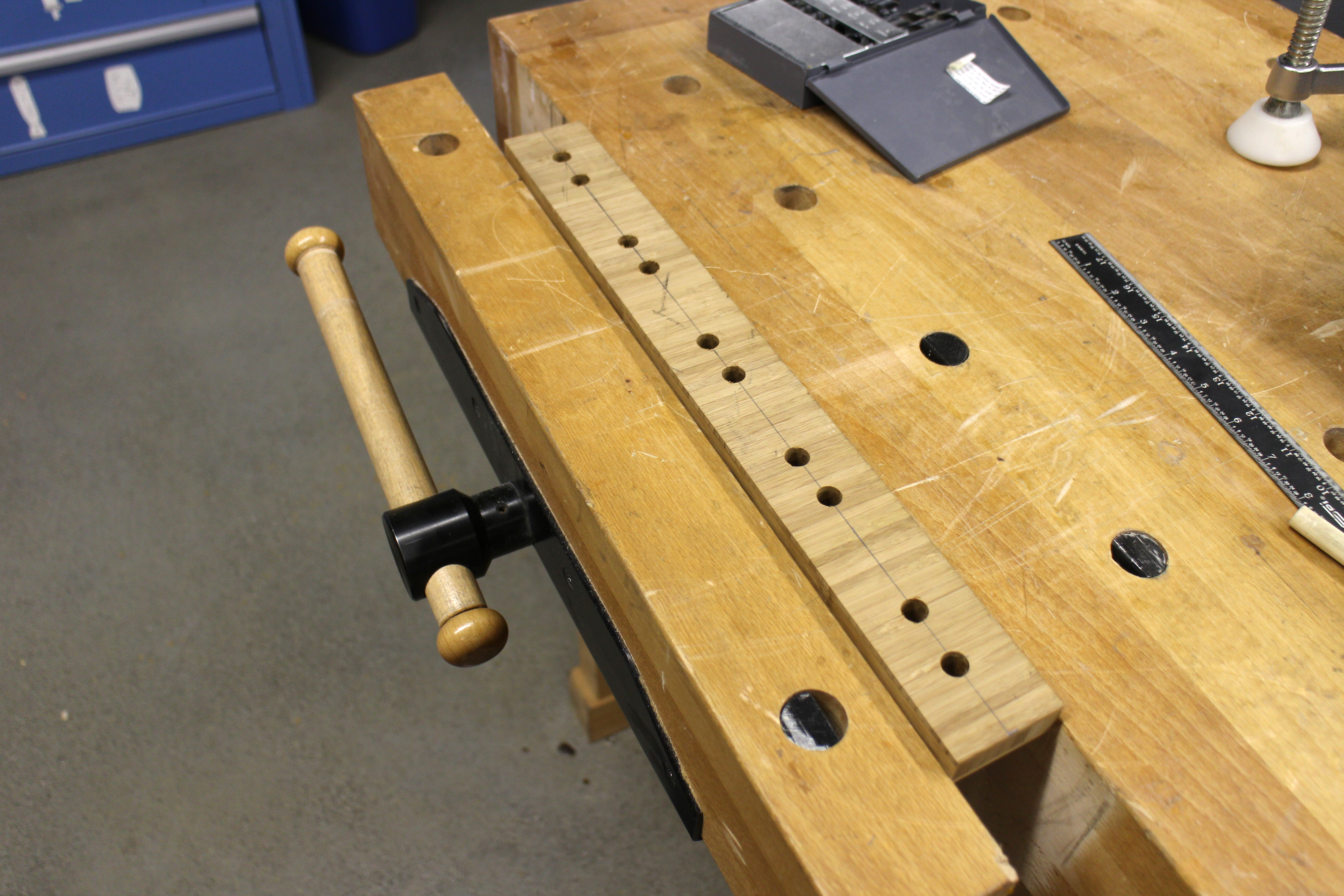

Mark, Cut & Drill


1. Mark out the boundary of the base: 17 1/2" X 2"

2. Clamp the piece down and cut out the rectangle using a circular saw.

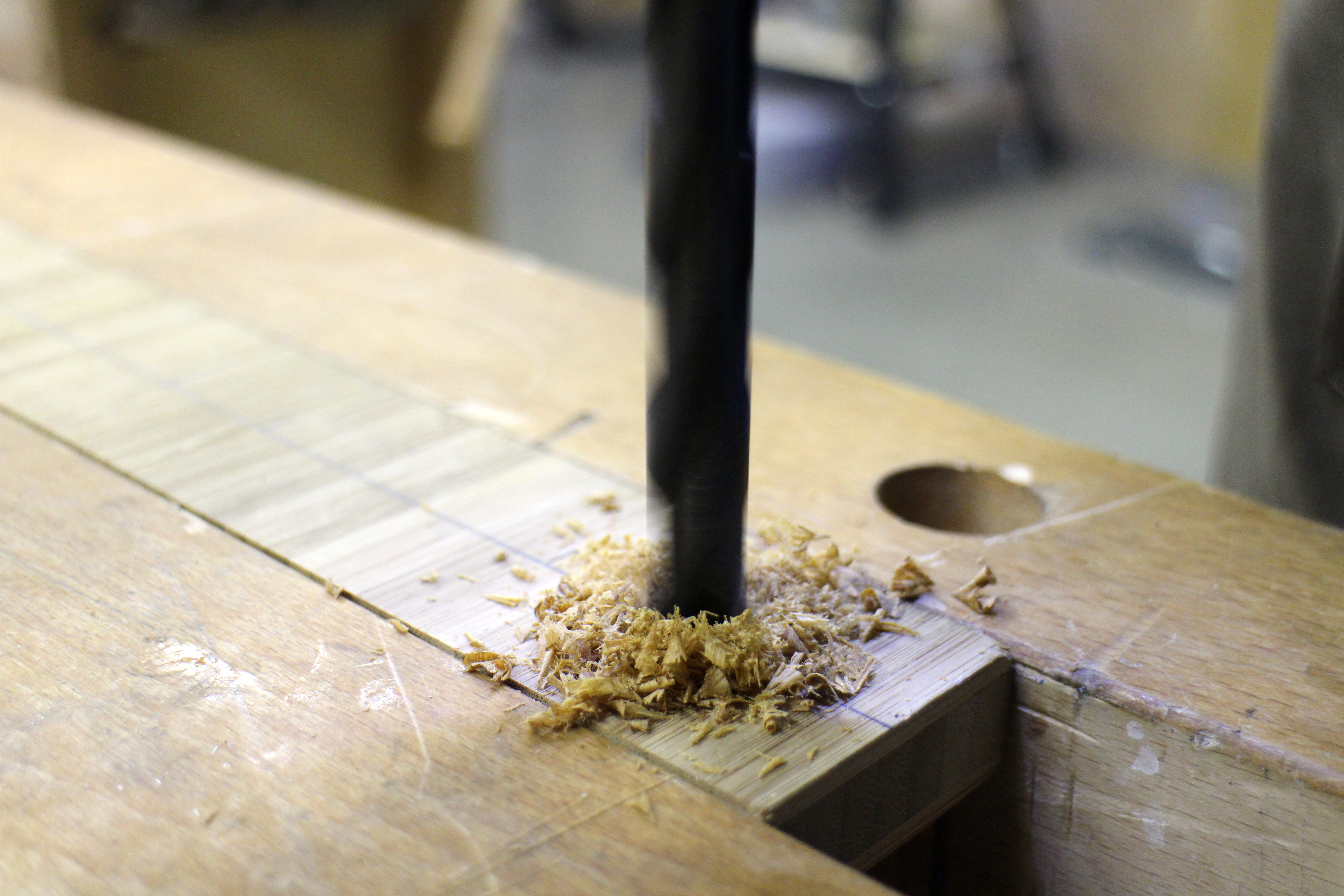

3. Mark out the centerlines of the holes and drill them using the 7/16" bit.

4. Drill 2 countersink holes for screwing the rack to the wall later.

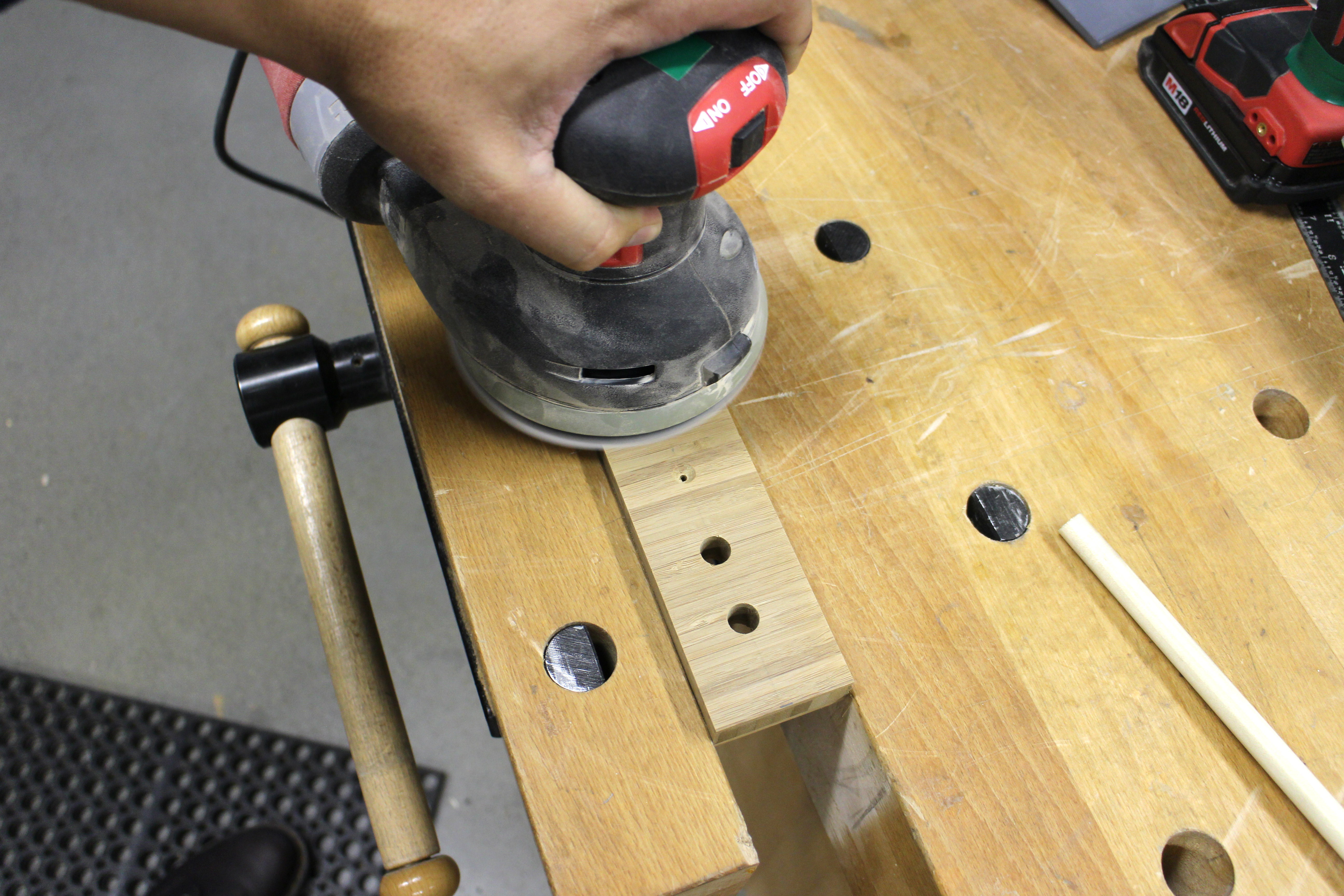

Sanding


Since plyboo is very dense, I opted not to use any finish and just sand it with 180 grit sandpaper and a palm sander. I eased the edges as well.

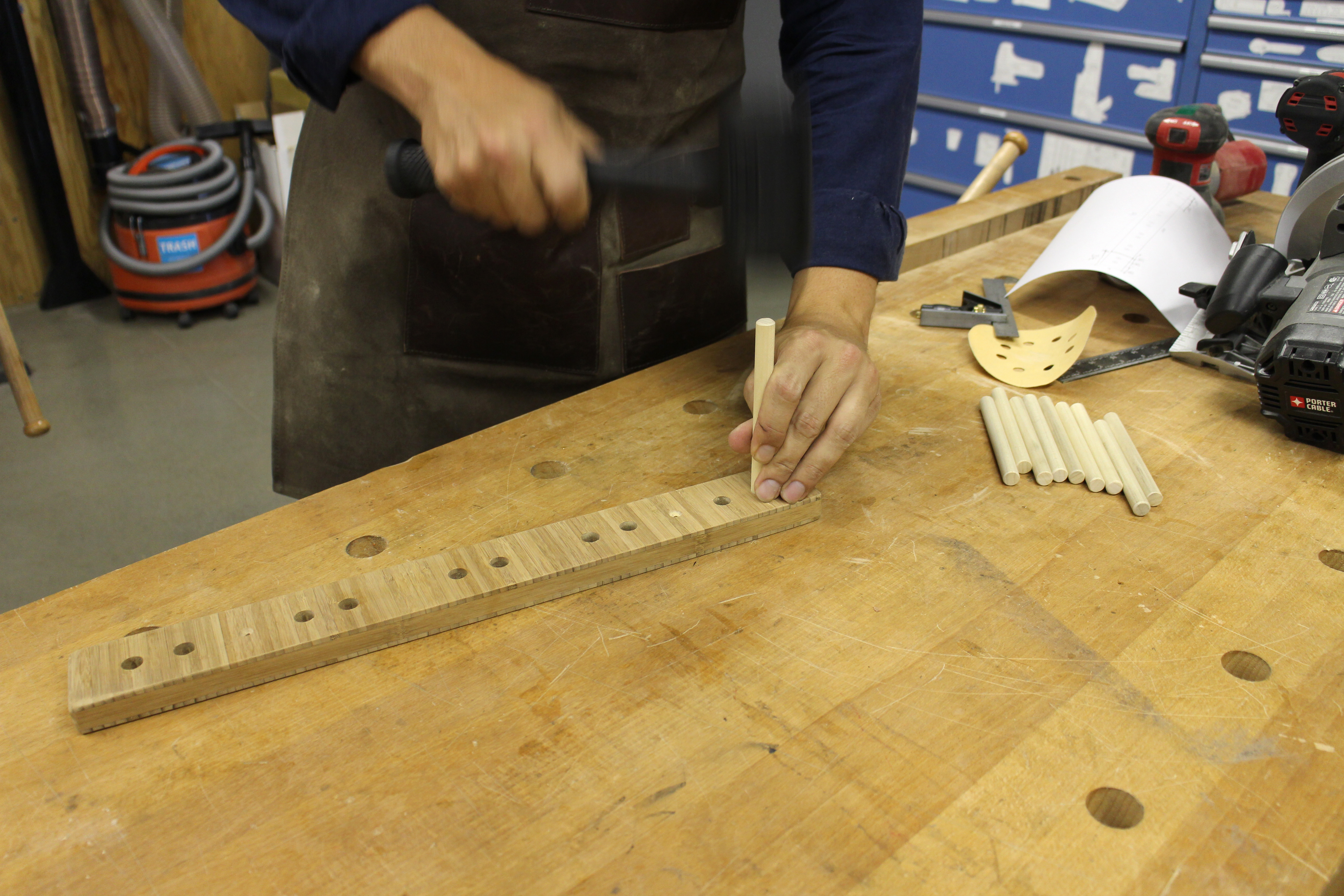

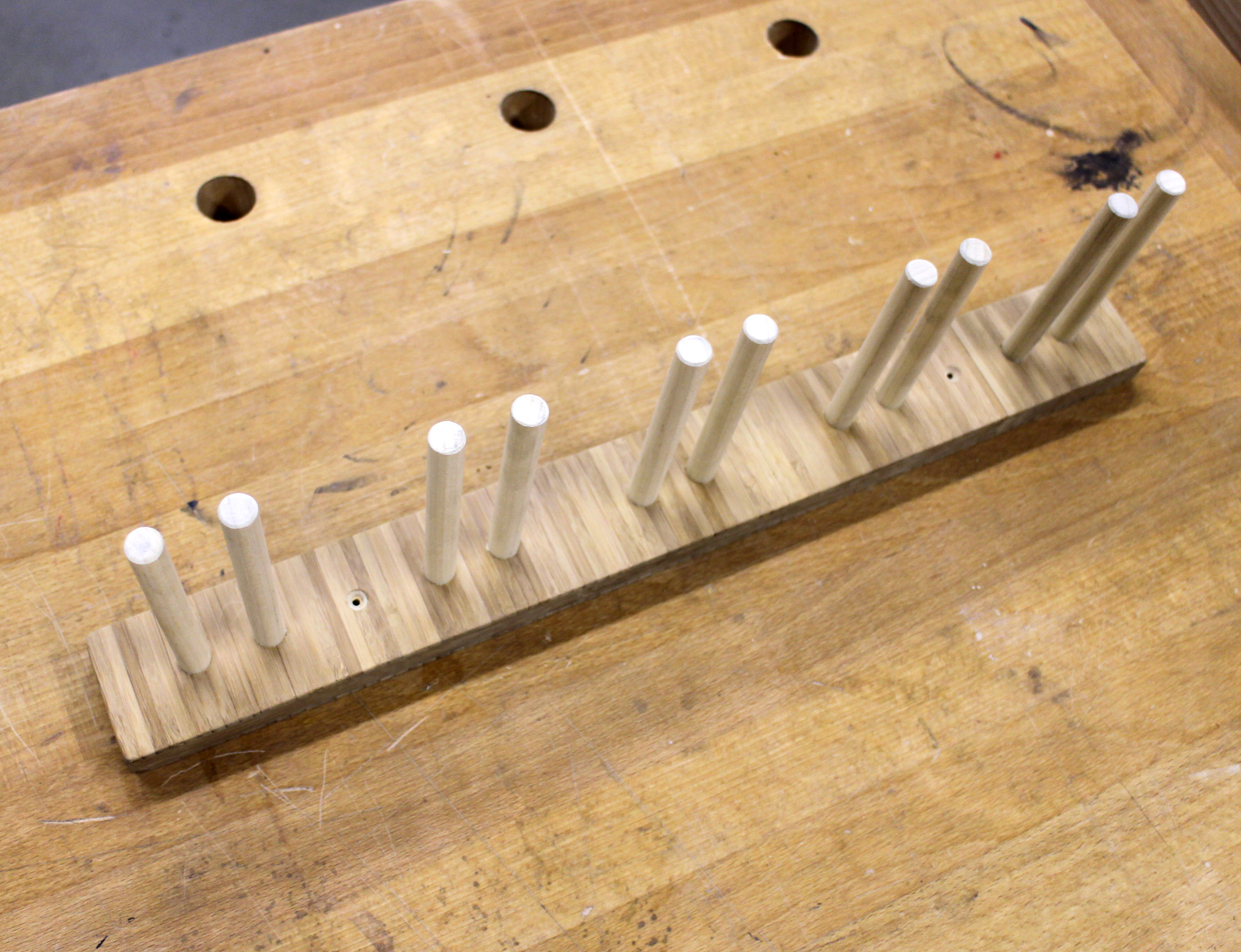

Add the Pegs


I cut the dowel down to 4 3/4" lengths, but anything that leaves a peg of 3" or more will be safe. Hammer in the pegs with a rubber mallet and you're done.

Screw It to a Wall and Display Your Glasses


I used square drive countersunk screws (instead of philips head or flat) because they look unique. I think it's always good practice to make exposed fasteners look intentional; using non-standard hardware is a good way to do that.
