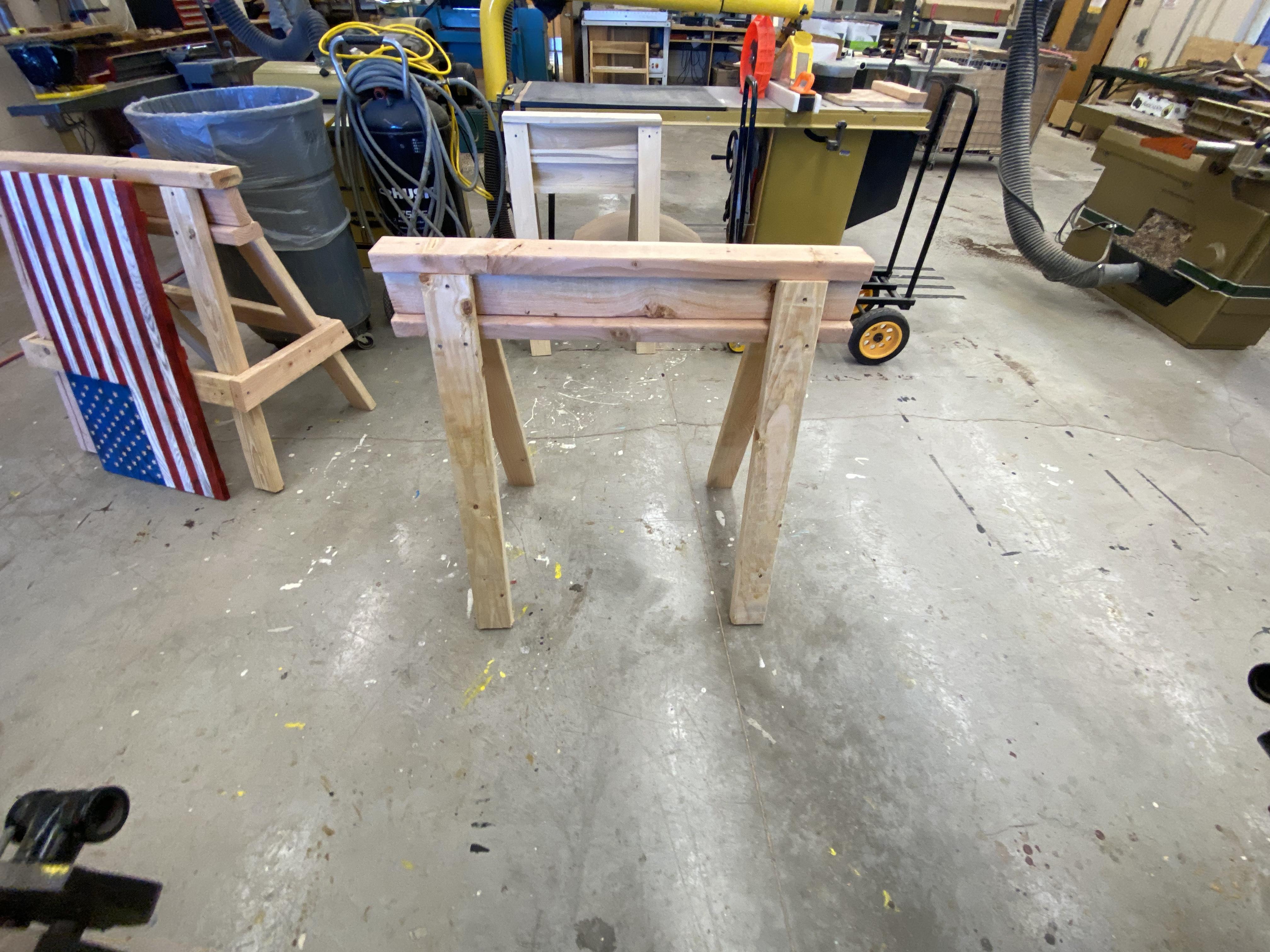

Saw Horses

For one saw horse

Supplies

4- 2x4’s
28- 2 1/2 screws

I Beam and Legs

Cut 3 pieces of 2x4 at 36 inches
Put 4 screw on each side of the i beam as shown in the picture

Then Cut 4 pieces of 2x4 at 34 inches
And put 3 screw in each leg into the ibeam as showed in the picture

Supports

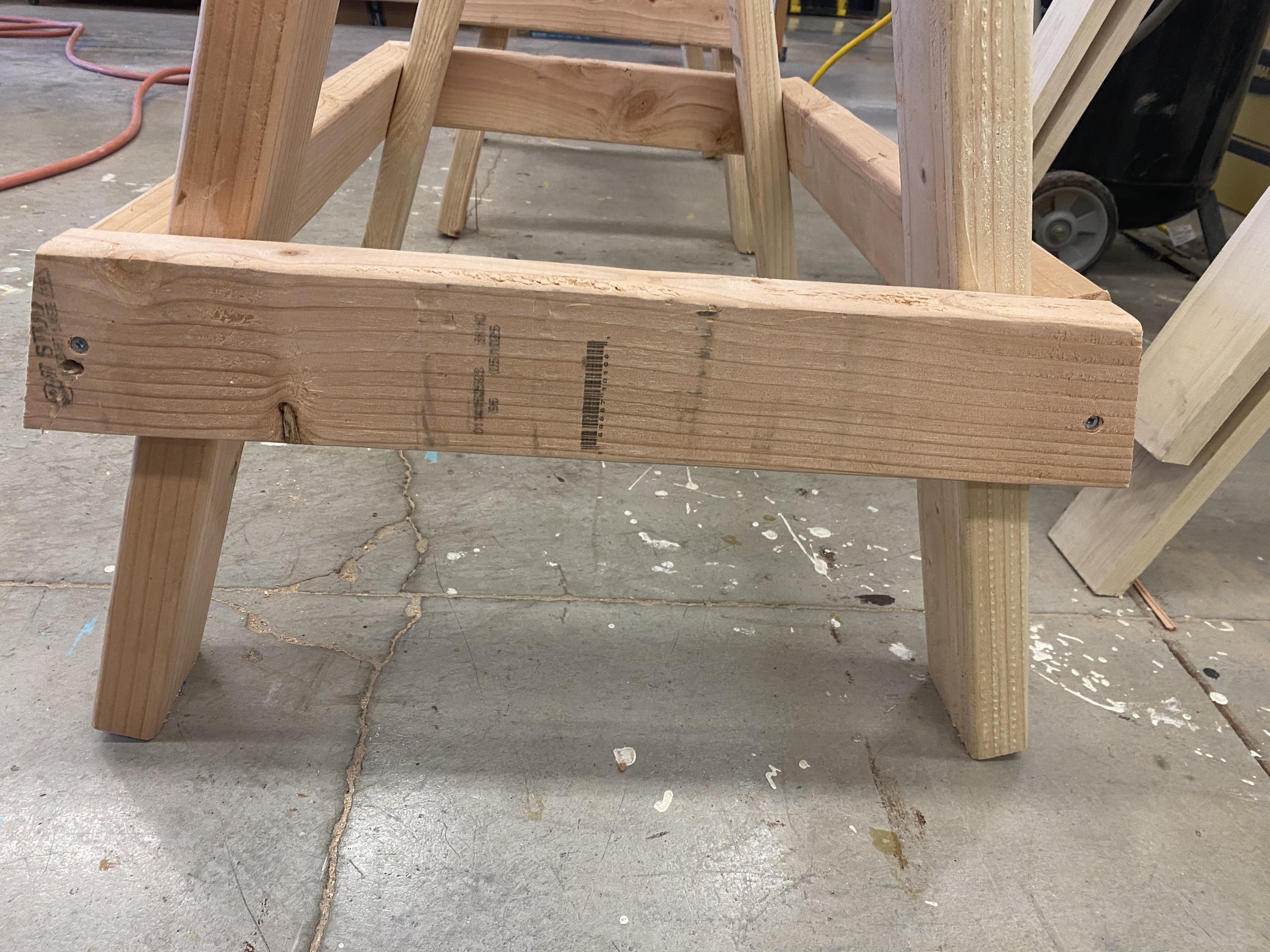

Cut 2 pieces of 2x4 at 33 inches
Then screw them into the legs 22 inches down from the top of the leg as shown in the picture

MAKE SURE ITS LEVEL

Supports (2)

Then cut 2 pieces of 2x4 at 21 inches and cut the edges on a 15 degree angle as shown in the photos

Then screw them into the side of the first support
