Saw Handle for Tree Pruner
![P1000732.JPG](/proxy/?url=https://content.instructables.com/FJY/ORWN/IRXSZ0VS/FJYORWNIRXSZ0VS.jpg&filename=P1000732.JPG)
Adapt a tree-pruner so it can be used as a handsaw.
Tree Pruner Is a Little Too Long
![P1000718.JPG](/proxy/?url=https://content.instructables.com/F3D/W3XA/IRXSZ0RP/F3DW3XAIRXSZ0RP.jpg&filename=P1000718.JPG)
Like about eight feet too long. It's great for getting at high branches, but I have some overgrown shrubs with quite thick branches which need reduced. The branches are too close together to allow easy access for a bow saw or even a handsaw.
To adapt the blade from the pruner to hand-held use, you will need:-
Tools:-
Tenon saw
Sandpaper (say about 120 grit)
Hand drill
4mm bit (about 3/16 inch)
7mm bit (about 9/32 inch)
Small spanner
Materials:-
Thick dowel about 32mm (inch and a quarter)
Danish oil or other finish
Two M6 bolts with washers and nuts

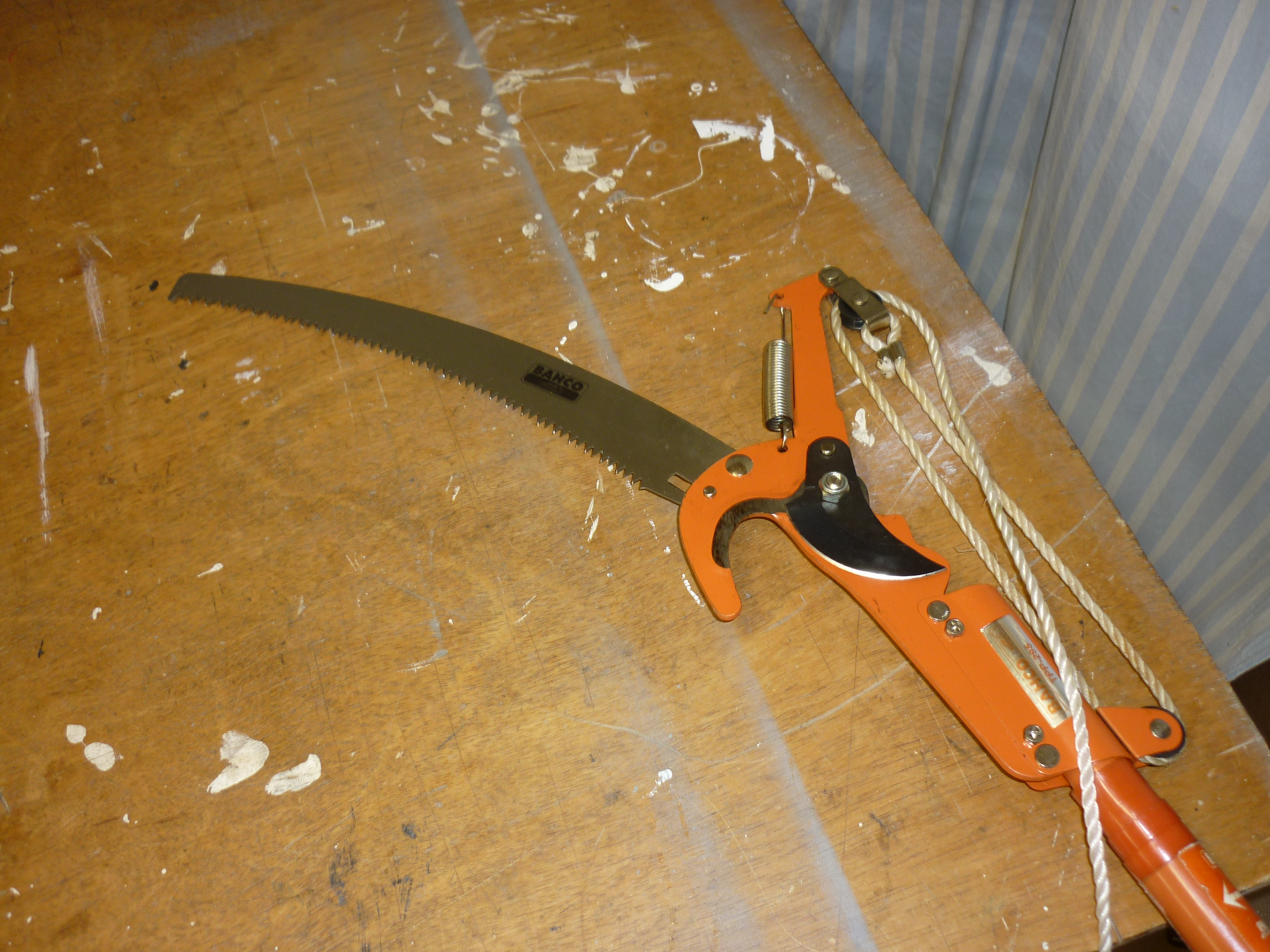

Remove the Blade From the Pruner
![P1000719.JPG](/proxy/?url=https://content.instructables.com/FB2/CQ6W/IRXSZ0TK/FB2CQ6WIRXSZ0TK.jpg&filename=P1000719.JPG)
Pretty simply done by unscrewing the wing-nut, but just in case it wasn't clear.

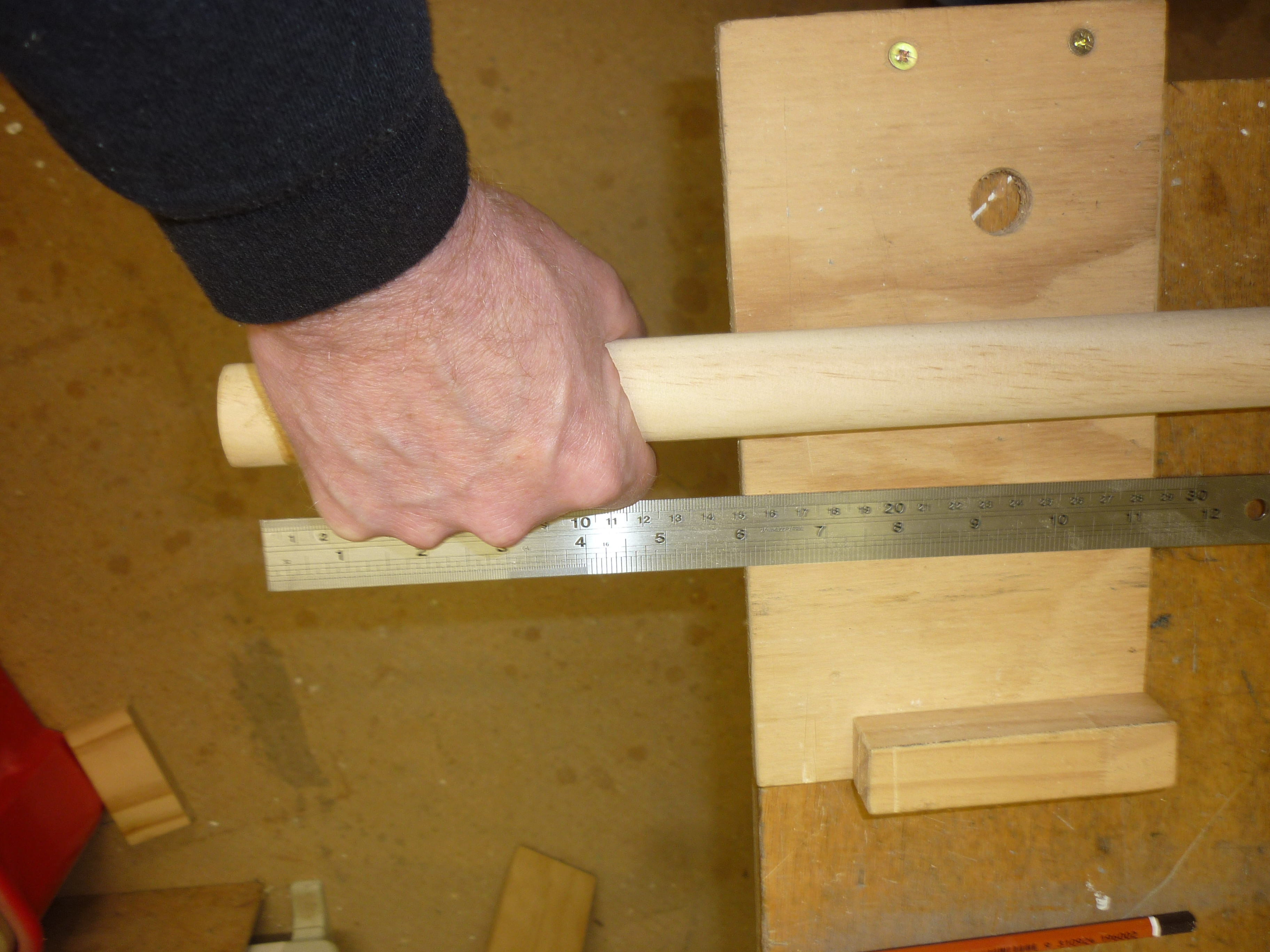

Measuring the Handle
![P1000721.JPG](/proxy/?url=https://content.instructables.com/F6F/6NCU/IRXSZ292/F6F6NCUIRXSZ292.jpg&filename=P1000721.JPG)
I couldn't be bothered doing that, so I just grabbed the dowel and cut a reasonable chunk. I think it ended up at about six inches (150mm).
Making the Slot for the Blade
![P1000722.JPG](/proxy/?url=https://content.instructables.com/F3J/4WHE/IRXSZ0TX/F3J4WHEIRXSZ0TX.jpg&filename=P1000722.JPG)
![P1000723.JPG](/proxy/?url=https://content.instructables.com/F5Z/CUXP/IRXSZ0U1/F5ZCUXPIRXSZ0U1.jpg&filename=P1000723.JPG)
![P1000724.JPG](/proxy/?url=https://content.instructables.com/F2C/199Q/IRXSZ0U5/F2C199QIRXSZ0U5.jpg&filename=P1000724.JPG)

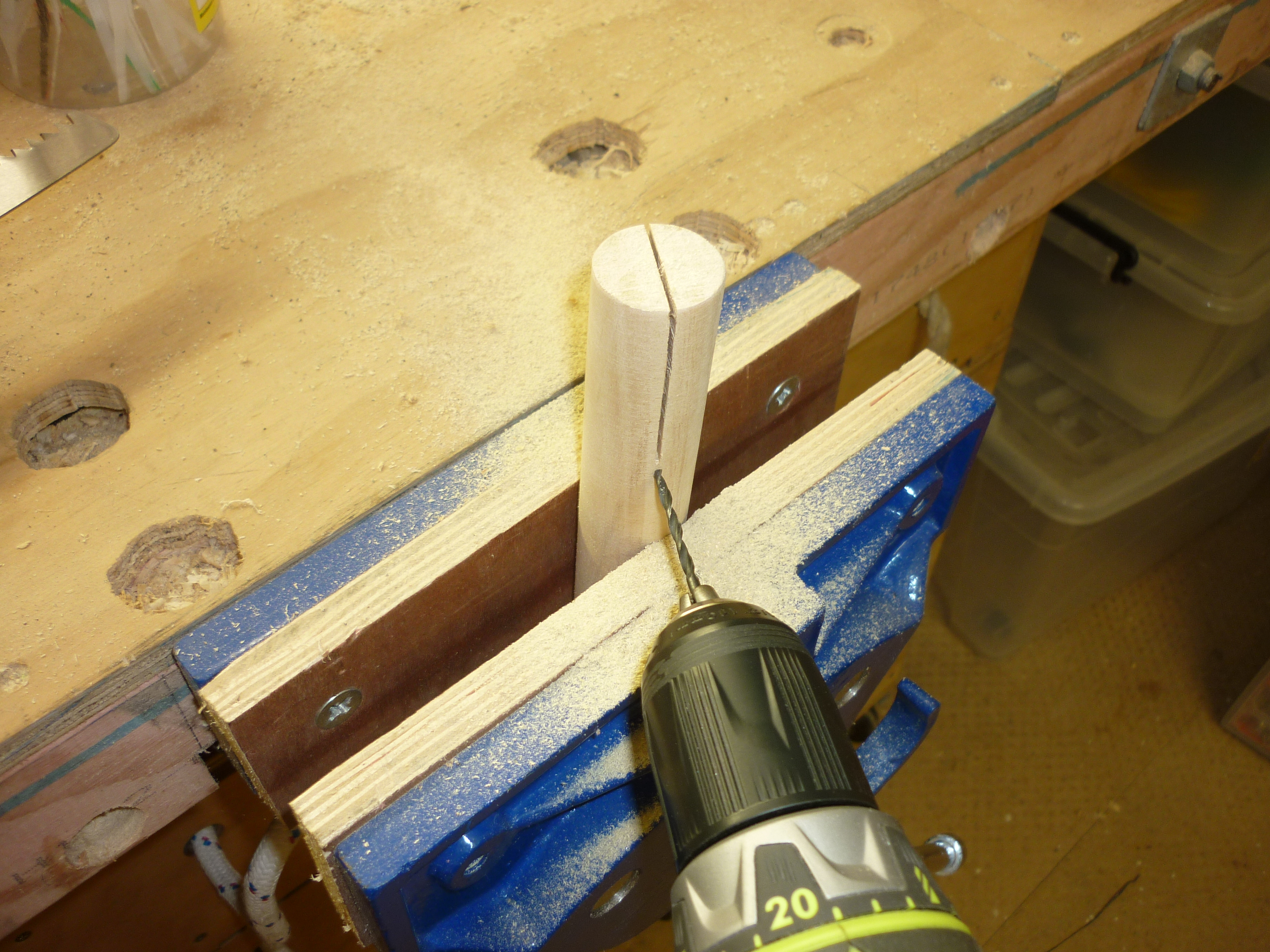

First, I sanded off the outside of the dowel. It wasn't great quality, so this gave a much nicer finish. Holding the paper at each end and "towelling" gave a great finish really quickly.
Then I made the slit of the blade to inhabit.
Once I had that cut most of the way, I could align the drill by eye to put a 4mm hole through to reduce the chance of the wood splitting. Then I took the cut down to meet the hole.
Making the Bolt Holes
![P1000726.JPG](/proxy/?url=https://content.instructables.com/FV4/0NQI/IRXSZ0UB/FV40NQIIRXSZ0UB.jpg&filename=P1000726.JPG)
![P1000728.JPG](/proxy/?url=https://content.instructables.com/FOT/1JAR/IRXSZ0UG/FOT1JARIRXSZ0UG.jpg&filename=P1000728.JPG)
![P1000729.JPG](/proxy/?url=https://content.instructables.com/FD2/S5NG/IRXSZ0V9/FD2S5NGIRXSZ0V9.jpg&filename=P1000729.JPG)

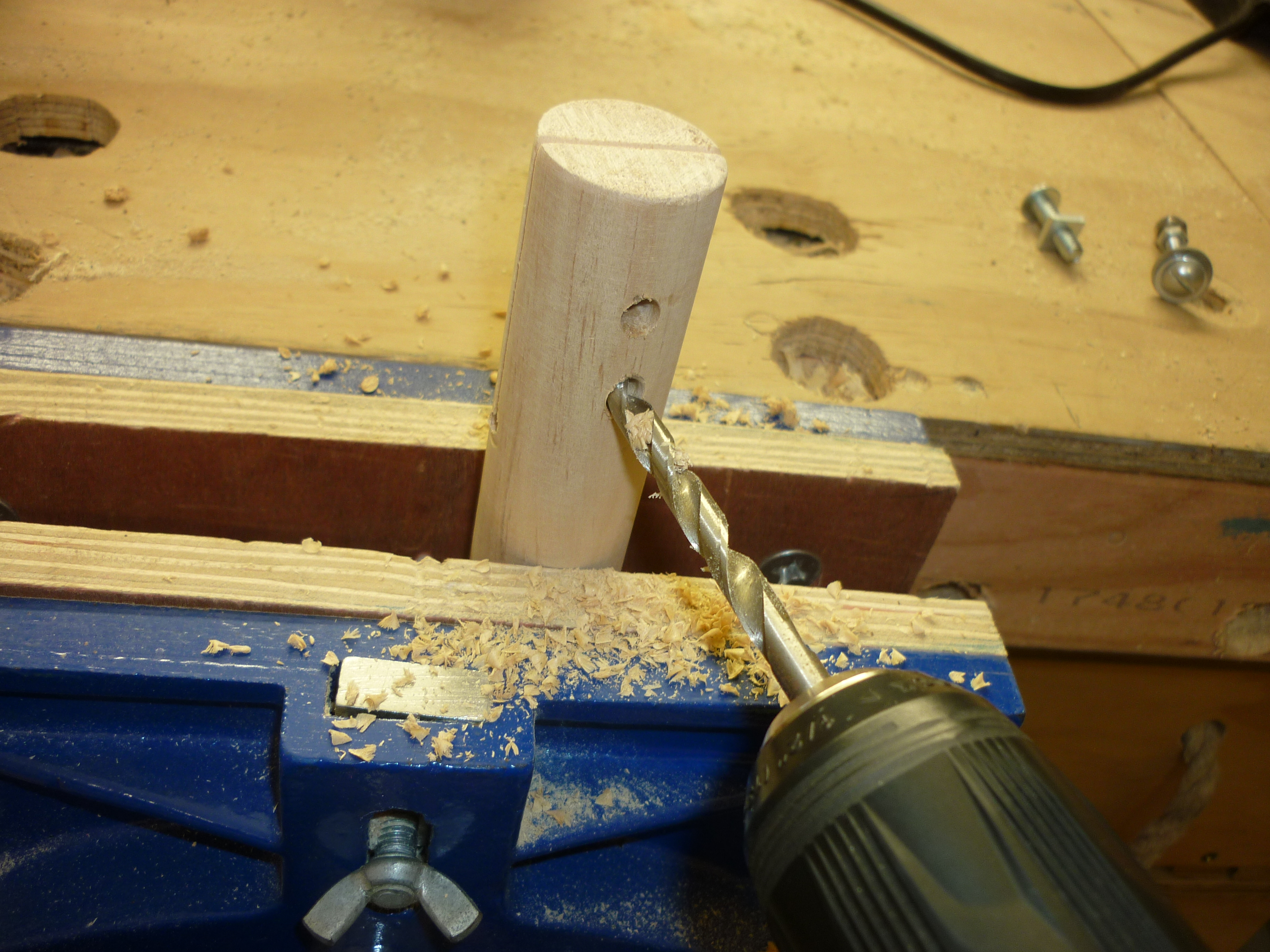

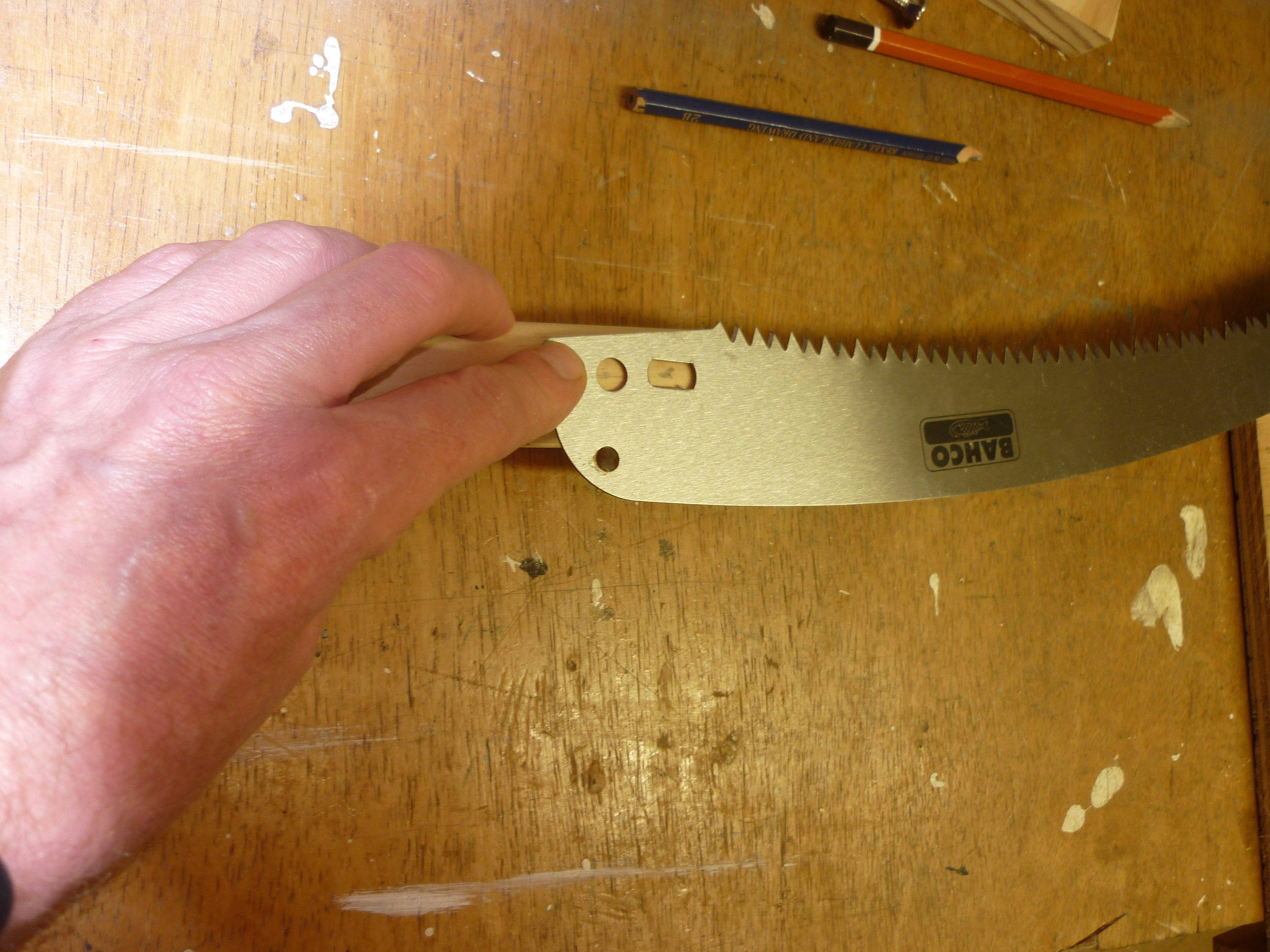

I offered the blade to the handle, making sure that the cut was horizontal, then marked where the bolt holes needed to be.
Then I drilled the bolt holes (carefully). If you have a drill press, you'll be able to drill all the holes for this project much more accurately. Oversizing the bolt holes gave me the margin to do this quick-and-dirty.
Do a test-assembly to make sure everything is right before finishing.
Finishing
![P1000731.JPG](/proxy/?url=https://content.instructables.com/FST/9NIE/IRXSZ0VP/FST9NIEIRXSZ0VP.jpg&filename=P1000731.JPG)
![P1000732.JPG](/proxy/?url=https://content.instructables.com/FQ2/W6BM/IRXSZ315/FQ2W6BMIRXSZ315.jpg&filename=P1000732.JPG)
I used Danish Oil to give an OK finish to what is going to be a well-used tool.
I hooked one of the screw holes over a bit of wire to allow me to brush all over.

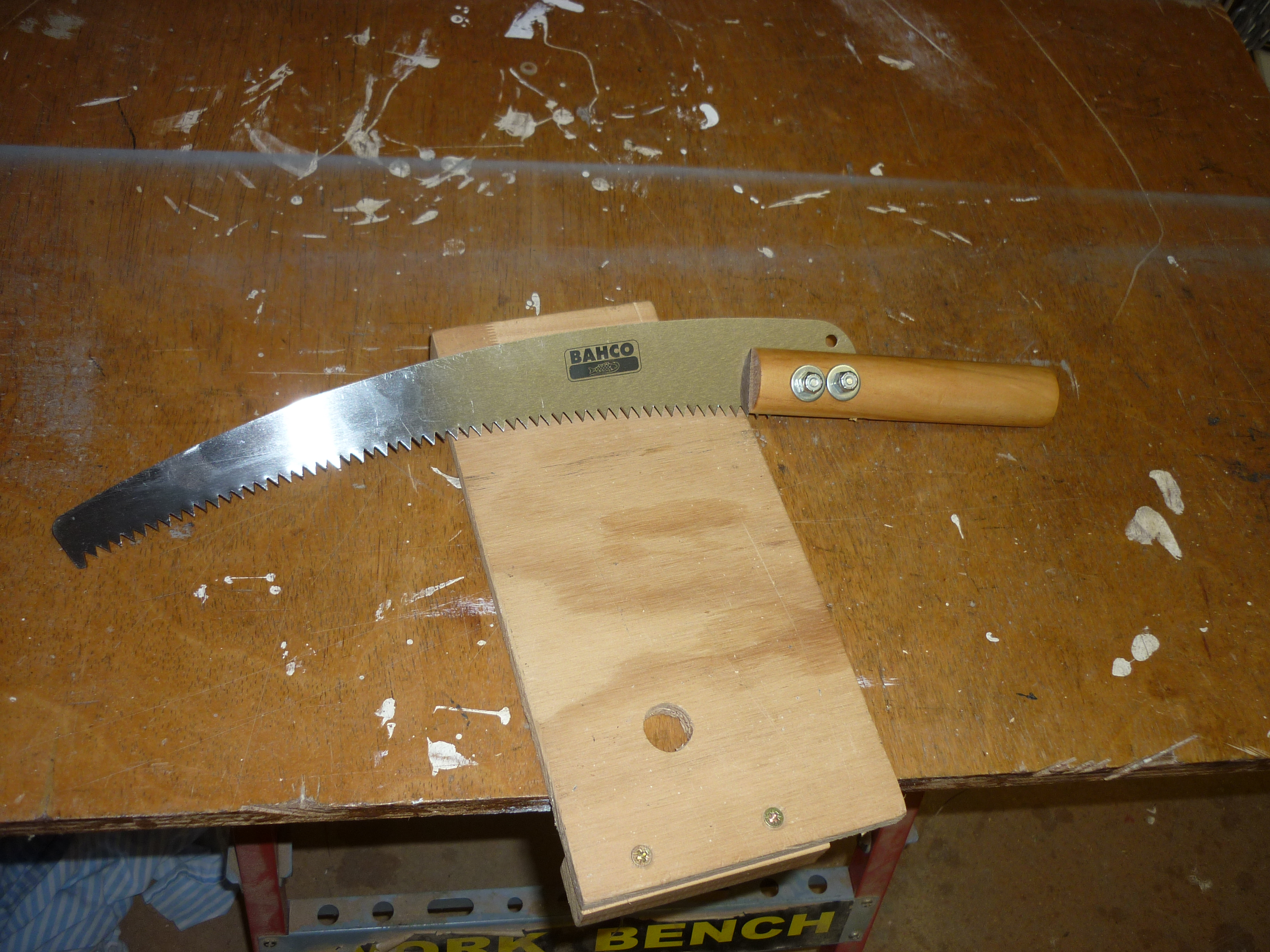

Finally, all assembled. Looks good, feels comfortable, and I'll be using it later today if the weather brightens up.
