SOLAR CAP MOBILE CHARGER

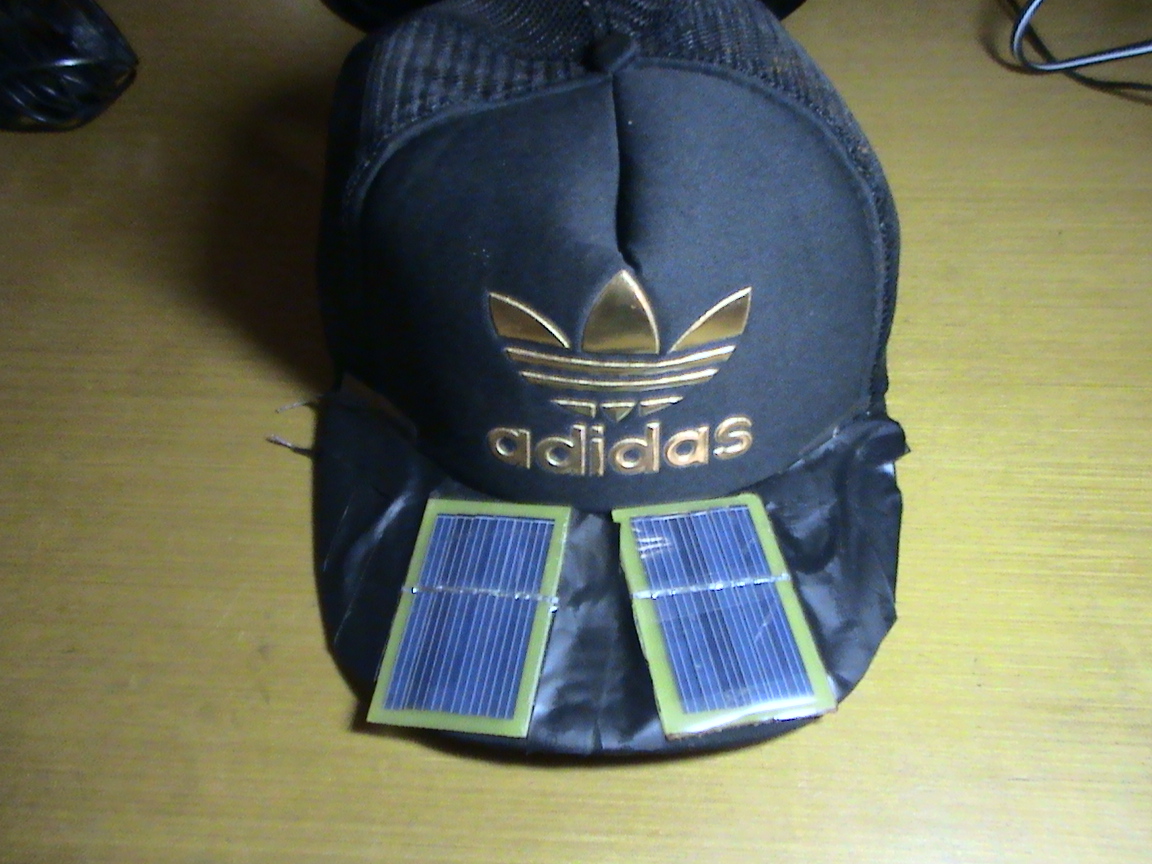

This is a very simple 5 minute instructable where you'll learn how to build a cap fitted with solar panels which can charge your phone efficiently.

Materials Required:
1. A Cap
2. Wires( take the ones which match your cap color)
3. Soldering Iron
4. Solder
5. Tape
6. A Mobile Charger
7. Mobile
8. Light
9. And yeah, Solar Panels

NOTE: My charger gives an output of 6V and 300mA, so I've chosen my Solar Panels accordingly. Where each panel's Voltage output is 3V and 300mA. So when I connect my two panels in series, the voltage is added while the current remains untouched. Hence they produce 6V(3V+3V) and 300mA.

Well, now all you have to do is to connect your solar panels in series to increase their voltage and bring the positive and negative connections to a side of the cap.

Now cut out your charger's wire and separate the positive and negative terminal of it. Later connect your charger wires with the connections on your cap.
Be careful when connecting your positive to the positive side and negative to the negative terminal.

Now very carefully... wait wait wait! Get some safety for yourself and then plug your charger pin into the phone. If you do it safely, you are great! Haha!!! okay, lets be serious! Now plug the pin into the phone.


And Tadaaaa!!! You've made your very own solar cap mobile charger! Go outside your home or sit under a lamp. Or sun dry your cap and charge your phone!
