SMUDGER’s Death Project G1– Ethan Sim

I wanted to built a more special sound amplifier inspired by games structure and animation drawings.

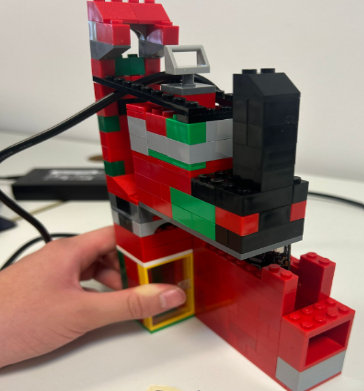

I name it SMUDGER’s Death Project G1. It look like a red cranky crane, There is a front black portion lego piece which I named it  Smudger to be lifted by the CRANKY crane. I made all red because red is like electricity. Placing the microbit and buzzer into the bottom red slot, it is as if the crane is screaming out loud.

1. Lego

2. Microbit

3. Makecode

I made a bowl like prototype which I named it Ethan catch it all for visually handicapped to have a system to help them pour hot coffee into a cup safely. Using the same thinking process, I tried again using lego pieces to put together a crane- like structure.

A thin long hollow to contain the microbit and buzzer will be sufficient. We can decorate the above structure whichever way we like to make it look like a crane.

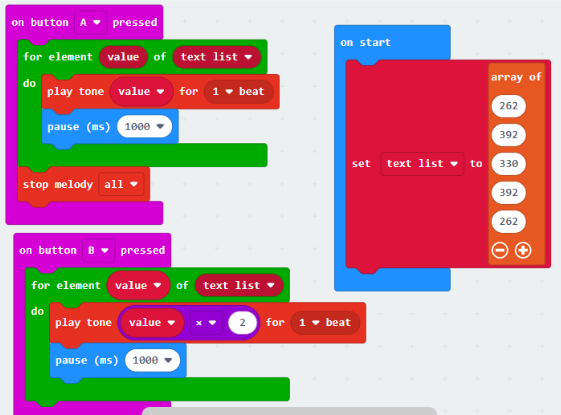

I went download the following code to microbit and buzzer.

I made use of array for a range of tune frequency.

Using loops, I program for it to play the list of tune when I press the input button A and button B on the micro:controller board microbit .
