SMD Soldering - the Fastest Tutorial

by Heideachim in Circuits > Soldering

497 Views, 0 Favorites, 0 Comments

SMD Soldering - the Fastest Tutorial


We are going to solder an SMD. In fact, this is really easy. And it is faster than through-hole parts. Trust me.

Solder One Pad

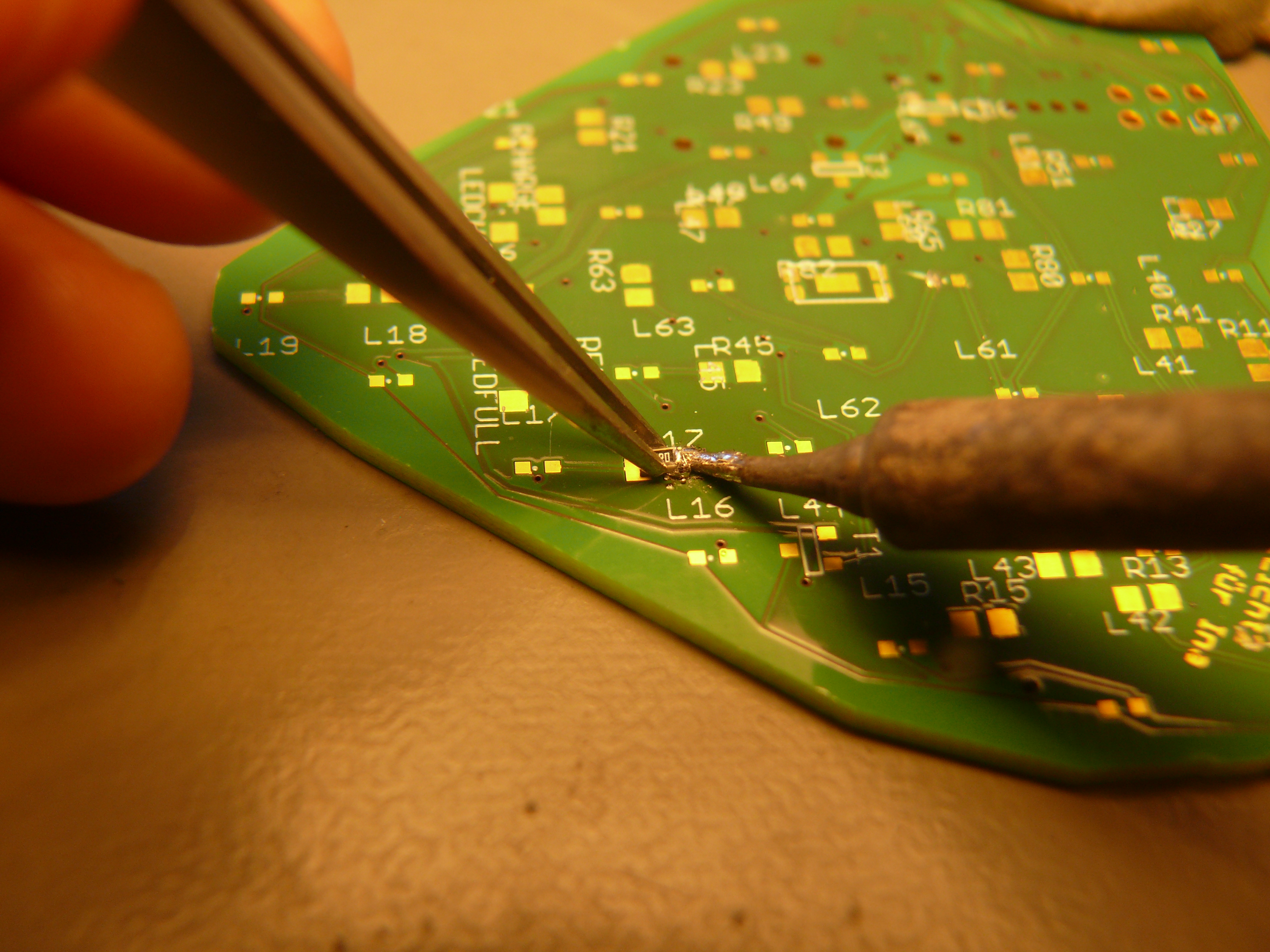

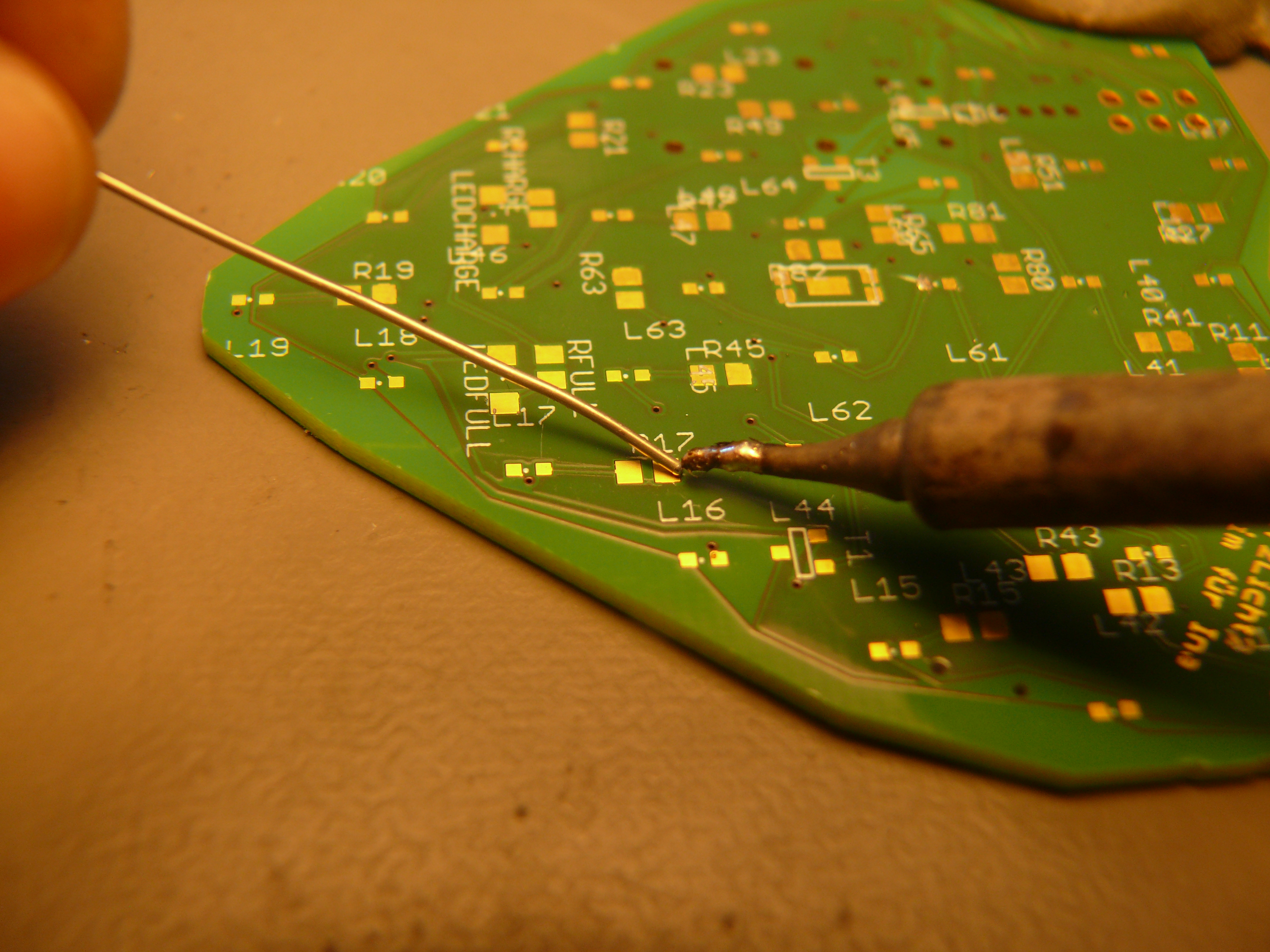

Put solder on one pad.

Solder the SMD

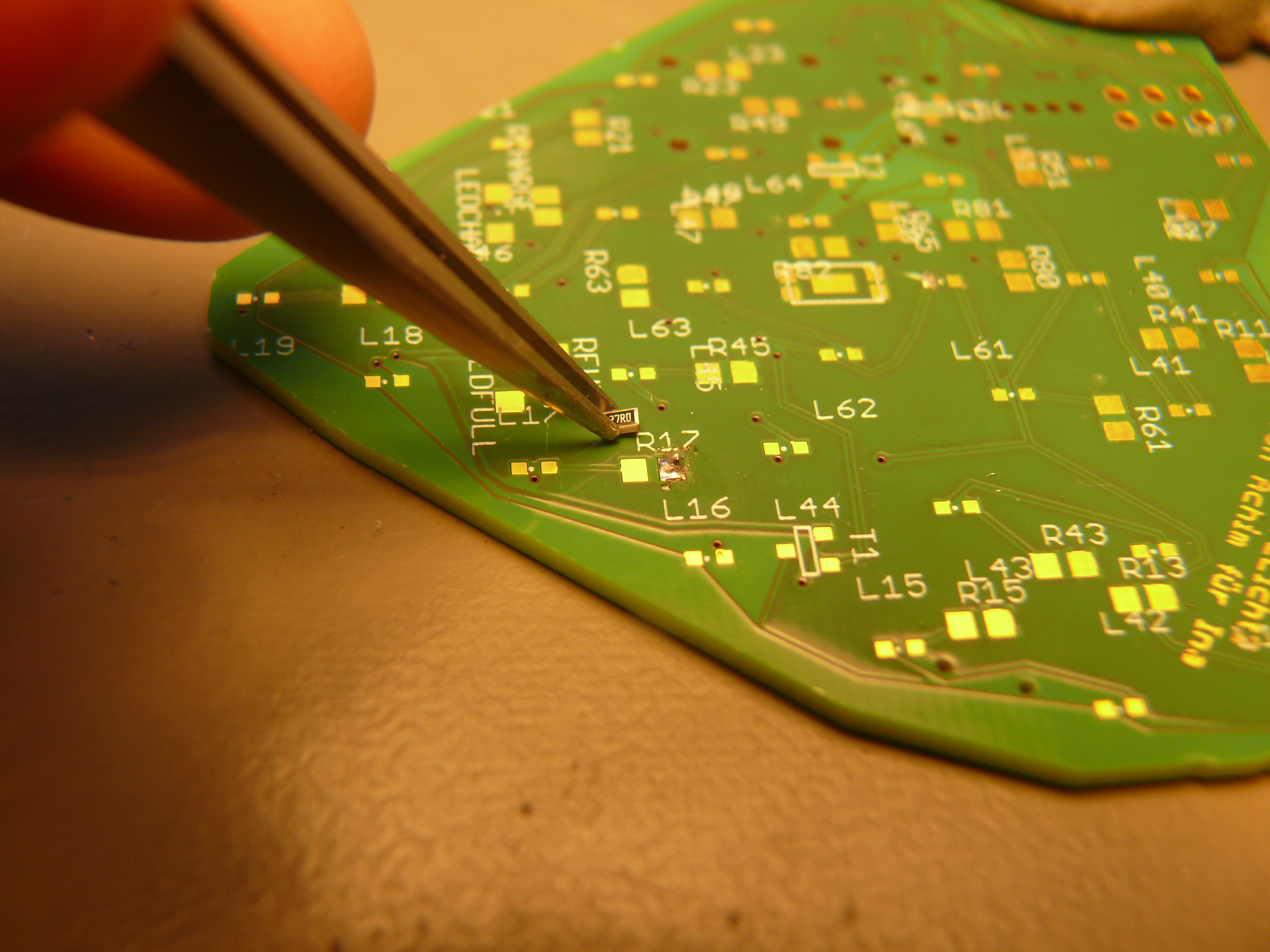

Grab the SMD with some tweezers.

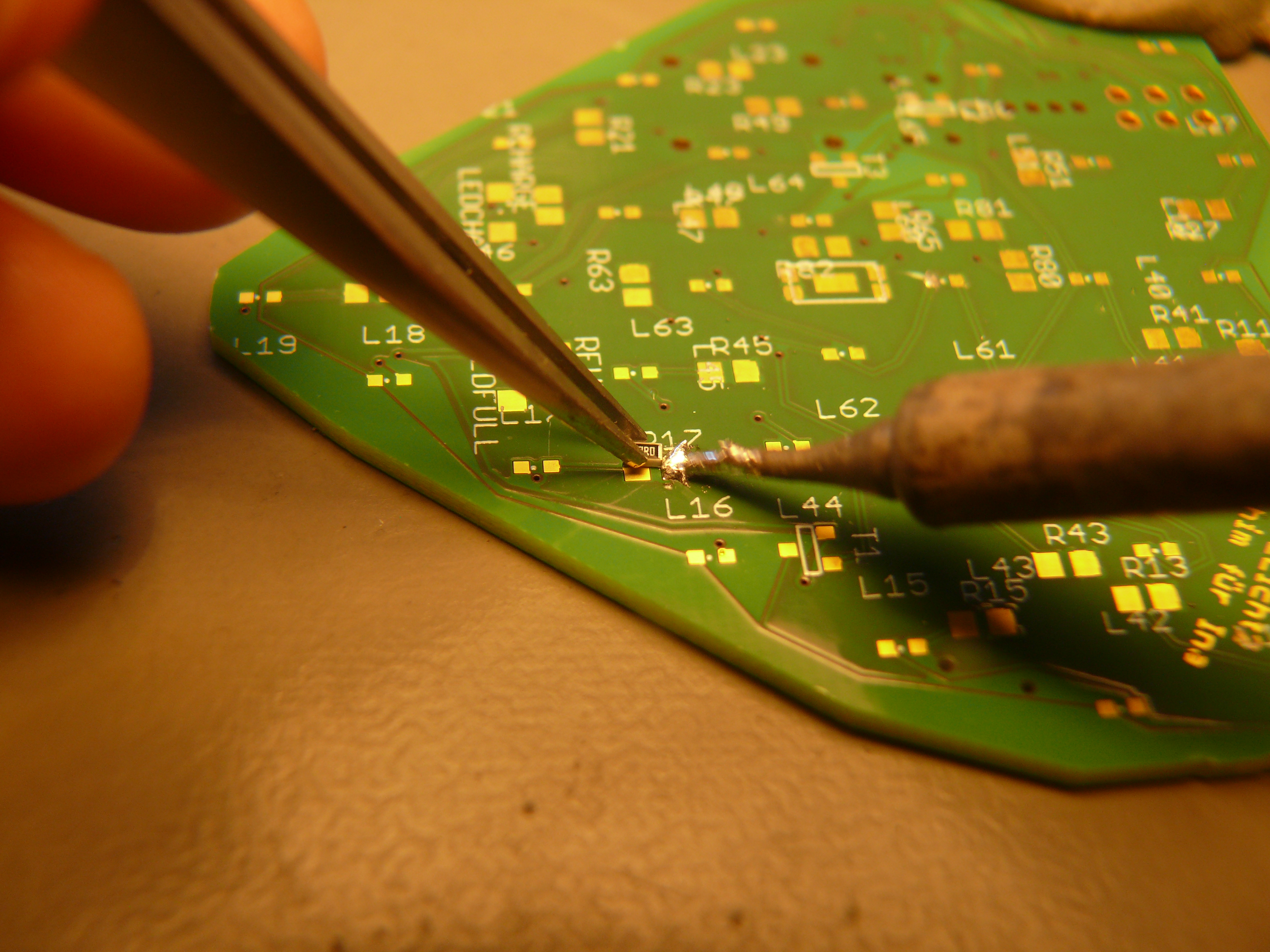

Melt the solder and move the SMD into the molten solder.

Turn the Board


Turn the board so that the not-soldered pad is close to the soldering iron.

Solder Other Pad


Solder this pad.

Done!

Congratulation! With a little bit of practice, you will never want to go back to through-hole parts again. They occupy too much space and soldering them takes much longer...
