SMART INSTALL Rtl_433 Receiver ON WINDOWS WORKSTATION AND VMWARE WITH RTL SDR

rtl_433 turns your Realtek RTL2832 based DVB dongle into a 433.92MHz generic data receiver quick and easy installation.

Tools used:

• VMware Workstation Player
• GNU Radio Live SDR Environment
• omerbanan/rtl_433

Install Requirements:

Windows system machine with 4gb of ram and dual core processor, hackrf or rtl sdr device.

Pre Installation:

• Download GNU Radio Live SDR Environment
  3.7.11Download VMware Workstation Player
• Install VMware Workstation Player
• Start VMware Workstation Player
• Create a new virtual machine , installer disc image file (iso) with GNU Radio Live SDR Environment image
• Open virtual machine
• Download rtl_433-master.zip from Link: https://github.com/merbanan/rtl_433

• Install rtl_433

installation rtl_433:

Download rtl_433-master.zip from Link: https://github.com/merbanan/rtl_433

Unpack the source code and rename directory in rtl_433

Open terminal to the top level directory rtl_433 and insert command:

cd rtl_433/

autoreconf --install

./configure

make

sudo make install

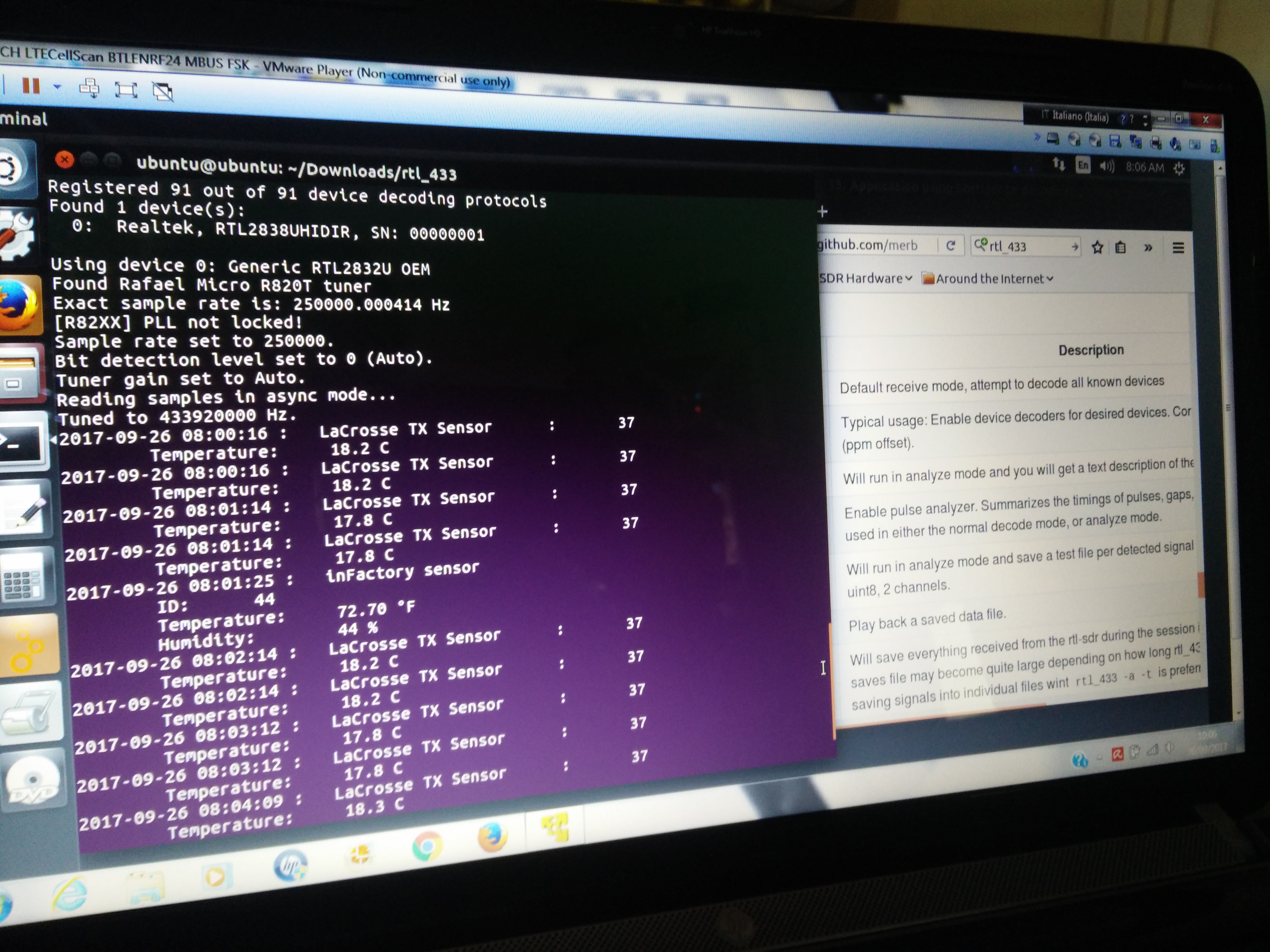

Running:

Default receive mode, attempt to decode all known devices,open terminal insert:

rtl_433 -G

More option and examples Link:

https://github.com/merbanan/rtl_433

Debug Mode (Recommended is very interesting) ,open terminal insert:

rtl_433 -G -D

or/and change frequency example:

rtl_433 -f 433.8e6 -D

or/and explore other ISM Band:

rtl_433 -f 315.92e6 -D
rtl_433 -f 433.92e6 -D (Default)

rtl_433 -f 868.92e6 -D (Tested message detected and debuged!)

rtl_433 -f 915.92e6 -D
