SIMON SAYS BOX

by jackiegarcia7890 in Circuits > Arduino

1691 Views, 10 Favorites, 0 Comments

SIMON SAYS BOX


Authors:

Jackelyn Garcia- JGarcia8710@csum.edu

Hector Villalobos- HVillalobos7936@csum.edu

Allan Hambly- AHambly1472@csum.edu

(For more questions contact us at our emails above)

Here is the YouTube video for our project:

Acknowledgements:

California Maritime Academy (ET Department)

Professor Chang-Siu

Erin Cole

Gage Sturgeon

Jack Whelan

The Idea:

The Simon Says Box is a combination between the game Simon and an Arduino project called The Useless Box, along with our own touches. In our game, there are four different colored LEDs that will randomly display a sequence of colors. At the start of the game, one color is displayed in which the player is to correctly match it by pressing the corresponding colored button. If the color is correctly matched, the game will add a second color in addition to the first. Each time the colors displayed are matched in the correct order, the players moves on to the next level where one more color is added to the previous pattern. This tests the player's ability to memorize the patterned sequences and makes it more challenging as they move on to each level. An LCD screen was incorporated in order to keep track of what level the player is on and also designate when the player has lost (this is part of our losing sequence). In addition, our losing sequence includes the function of two servo motors, with arms attached to them, that work together to bring out a customized 3D printed sign that may say something like "Sucker!" The game is programmed to go up to 100 levels, making the game almost impossible to beat, so good luck in trying to beat it!



Supplies

Here is a spreadsheet containing all the items used, their according prices, where to purchase:

Project Functionality

Screen Shot 2021-05-15 at 12.30.42 PM.png

Description:

Once the game is turned on by flipping the switch, a greeting state will initiate to then begin the game play state. As demonstrated above, the game play state commences by having a random light (in this case yellow) blink. The player has 3 seconds to press the correct button (the arrow signifies the pressing of the button) in order to pass this level. When the correct button pressed is detected, all the lights will blink once in order to signify the completion of that level and to prepare the player for the next sequence. There are two ways in which a player can lose. The first, as mentioned, if the player exceeds more than 3 seconds without pressing the correct button (per light) the losing sequence will initiate which is shown in the bottom right figure. The second way to lose is demonstrated by the lower half of the figures. In this case, the light to match is the color blue, however the player has incorrectly pressed the red button which then triggers the lose sequence. The game will automatically restart after this.

Circuit Diagram

Screen Shot 2021-05-16 at 3.09.01 PM.png

Description:

Our circuit is powered by a six volt source which comes from a battery pack containing four AA batteries. This is more than enough power to power all our elements. Our six volt source powers the Arduino, servo motors, and LCD screen directly. The Arduino regulates the six volts to provide five volts for all four of our arcade buttons and four LEDs. The LEDs, arcade buttons, and servo motors are all connected to the digital pins of the Arduino, however the LCD screen we used, connects to the A4 and A5 analog pins. We were fortunate to have an I2C LCD screen which comes with a built in potentiometer and reduces the amount of pins needed for it to work. Typical LCD's will require a lot more digital pins which minimizes the pin availability for other components. Lastly, our on/off toggle switch was wired to the positive side of the battery pack and then grounded. The battery pack comes with an on and off switch that we left on so that the toggle switch is means of turning the game on or off.

Power Consumption:

Our power source which comes from the four AA batteries provides us with six watts of power to work with. Each servo motor uses five volts and takes 360 mA of current which results in a power draw of 1.8 watts each (x2 servo motors). The Arduino also runs off of five volts and takes 80 mA of current which results in a power draw of 0.4 W. The LEDs operate at three volts and 30 mA, drawing 0.09 watts each (x4 LEDs). Finally, the LCD screen operates at five volts and 30 mA of current which draws 0.15 watts of power. This results in a total power draw of 4.51 watts which means 75.17% of our power is used with a remaining 24.83% readily available.

State Machine Diagram

Screen Shot 2021-05-16 at 12.44.14 PM.png
Screen Shot 2021-05-16 at 12.45.17 PM.png

Description:

Above, the state machine diagram of our game is shown. As shown, once the game is switched on, it will start by first displaying a greeting and introduction on the LCD screen. Once the greeting and introduction state is over it will prepare for the game play state by displaying a score/level of zero on the LCD screen and blinking the light in order to signify that the game is about to start. During the game play state, one LED will blink at random so that the player starts off by matching one light during the first level. The game will then check is the player has pressed the right button and if that is true it will throw out a total of "n" number of lights to match. This means every time the correct pattern is matched, one more random light is displayed in the next level in addition to the current pattern. The game play state will continue on until a wrong button is pressed, the player exceeds the 3 second limit time frame to press the correct button, or level 100 is passed. Then the losing sequence will then occur in which the LCD screen displays a message such as "YOU LOSE!" and the servo arms will work together to bring out the 3D printed sign that says "SUCKER!" The game then automatically resets.

*Note: Our game does not have a winning sequence because passing level 100 is highly improbable. This is why even if you were to pass level 100 some how it is still designed to transition in to the losing sequence.



Code

Introduction and Greeting

#include <LiquidCrystal_I2C.h>
#include<Wire.h>

char array1[] = "Simon Says!  ";
char array2[] = "Hello, Player";
char array3[] = "Lets Play   ";
char array4[] = "YOU LOSE!";


LiquidCrystal_I2C lcd(0x27, 16, 2);<br>
lcd.init();
  lcd.backlight();

  lcd.setCursor(15, 0); // set the cursor to column 15, line 0
  for (int positionCounter = 0; positionCounter < 13; positionCounter++)
  {
    lcd.scrollDisplayLeft(); //Scrolls the contents of the display one space to the left.
    lcd.print(array1[positionCounter]); // Print a message to the LCD.
    delay(tim); //wait for 250 microseconds
  }

delay(1500);

  lcd.clear(); //Clears the LCD screen and positions the cursor in the upper-left  corner.
  lcd.setCursor(15, 0); // set the cursor to column 15, line 1

  for (int positionCounter = 0; positionCounter < 13; positionCounter++)
  {
    lcd.scrollDisplayLeft(); //Scrolls the contents of the display one space to the left.
    lcd.print(array2[positionCounter]); // Print a message to the LCD.
    delay(tim); //wait for 250 microseconds
  }

  delay(1500);<br>

The first state consists of the LCD screen displaying the proper introduction and greeting. The first chunk of code is provided for you to see what LCD library we used as well os what each of our arrays stand for. The second chunk of the code is simply for the LCD introduction messages in which we included in our setup so that it will always begin by displaying this message when the game is turned on. The lcd.init() and lcd.backlight() are required to always be stated in order for the LCD properties to function. The lcd.cursor() function allows you to describe what location you want to start your cursor at which will display the first letter of your message. The 'for' statement allowed us to display our messages with a scrolling effect which shifted to the words towards the let side of the LCD screen.

Game Play State

<strong><br></strong> //The actual game will begin. Random LEDS will begin to genetate and be outputted to the user.
    for (int y = 0; y <= 99; y++)
    {
      //function for generating the array to be matched by the player
      digitalWrite(ledpin[0], HIGH);
      digitalWrite(ledpin[1], HIGH);
      digitalWrite(ledpin[2], HIGH);
      digitalWrite(ledpin[3], HIGH);


        delay(25);
      }

      digitalWrite(ledpin[0], LOW);
      digitalWrite(ledpin[1], LOW);
      digitalWrite(ledpin[2], LOW);
      digitalWrite(ledpin[3], LOW);
      delay(1000);

      for (int y = turn; y <= turn; y++)
      { //Limited by the turn variable
        Serial.println(""); //Some serial output to follow along
        lcd.print("Score: ");
        lcd.print(score);
        score++;
        Serial.print(y);
        Serial.println("");
        randomArray[y] = random(1, 5); //Assigning a random number (1-4) to the randomArray[y], y being the turn count
        for (int x = 0; x <= turn; x++)
        {
          Serial.print(randomArray[x]);

          //This for loop will output the randomly generated LEDs to the user
          for (int y = 0; y < 4; y++)
          {

            if (randomArray[x] == 1 && ledpin[y] == 8)
            { //if statements to display the stored values in the array
              digitalWrite(ledpin[y], HIGH);

              delay(400);
              digitalWrite(ledpin[y], LOW);
              delay(100);
            }

            if (randomArray[x] == 2 && ledpin[y] == 9)
            {
              digitalWrite(ledpin[y], HIGH);

              delay(400);
              digitalWrite(ledpin[y], LOW);
              delay(100);
            }

            if (randomArray[x] == 3 && ledpin[y] == 10)
            {
              digitalWrite(ledpin[y], HIGH);

              delay(400);
              digitalWrite(ledpin[y], LOW);
              delay(100);
            }

            if (randomArray[x] == 4 && ledpin[y] == 11)
            {
              digitalWrite(ledpin[y], HIGH);

              delay(400);
              digitalWrite(ledpin[y], LOW);
              delay(100);
            }
          }
        }
      }
      //Will go into the input function and check and see if user input mathced program generated LED
      input();

This part of the code allows us to begin the game play state. As mentioned the game play state starts off by blinking all the lights once so LED's are put HIGH then LOW in order to give off the blinking effect. The score/level is also started off at zero and is dependent on the turn counter which we named ''turn". The LCD will print the according score/level and will add one point for the next time it has to display the updated score. Then the randomArray[ ] function is used to output the amount of lights that will be displayed as the levels increased. The random sequence is then displayed to the user and then enters an input check to see if the player has pressed the correct buttons.

Button Check

<strong><br></strong>
void input() { //Function for allowing user input and checking input against the generated array

  for (int x = 0; x <= turn;)
  { //Statement controlled by turn count

    for (int y = 0; y < 4; y++)
    {

      buttonstate = digitalRead(button[y]);

      if (buttonstate == LOW && button[y] == 2)
      { //Checking for button push
        digitalWrite(ledpin[0], HIGH);

        delay(200);
        digitalWrite(ledpin[0], LOW);
        inputArray[x] = 1;
        delay(250);
        Serial.print(" ");
        Serial.print(1);
        if (inputArray[x] != randomArray[x]) { //Checks value input by user and checks it against
          fail();                              //the value in the same spot on the generated array
        }//The fail function is called if it does not match
        x++;
      }
      //These if statements will first check and see which button the user clicked. Based on that, the program will
      //check and determine if the user chose the correct button
      if (buttonstate == LOW && button[y] == 3)
      {
        digitalWrite(ledpin[1], HIGH);

        delay(200);
        digitalWrite(ledpin[1], LOW);
        inputArray[x] = 2;
        delay(250);
        Serial.print(" ");
        Serial.print(2);
        if (inputArray[x] != randomArray[x]) {
          fail();
        }
        x++;
      }

      if (buttonstate == LOW && button[y] == 4)
      {
        digitalWrite(ledpin[2], HIGH);

        delay(200);
        digitalWrite(ledpin[2], LOW);
        inputArray[x] = 3;
        delay(250);
        Serial.print(" ");
        Serial.print(3);
        if (inputArray[x] != randomArray[x]) {
          fail();
        }
        x++;
      }

      if (buttonstate == LOW && button[y] == 5)
      {
        digitalWrite(ledpin[3], HIGH);

        delay(200);
        digitalWrite(ledpin[3], LOW);
        inputArray[x] = 4;
        delay(250);
        Serial.print(" ");
        Serial.print(4);
        if (inputArray[x] != randomArray[x])
        {
          digitalWrite(ledpin[0], LOW);
          digitalWrite(ledpin[1], LOW);
          digitalWrite(ledpin[2], LOW);
          digitalWrite(ledpin[3], LOW);
          fail();
        }
        x++;
      }
    }
  }
  lcd.clear();
  delay(500);
  turn++; //Increments the turn count, also the last action before starting the output function over again
}

This part of the code starts by detecting what button the player pressed and lighting the corresponding color of that button when pressed if correct. The game checks that the player's input matches the random array that was given. If it does not match, then the code moves on to the losing sequence. If the inputs are correct, then the turn counter increases by one, which moves the player on to the next level and the random array which generates the number of lights displayed is also increased by one.

Losing Sequence

<strong><br></strong>void fail() { //Function used if the player fails to match the sequence

  for (int y = 0; y <= 2; y++)
  { //Flashes lights for failure

    digitalWrite(ledpin[0], HIGH);
    digitalWrite(ledpin[1], HIGH);
    digitalWrite(ledpin[2], HIGH);
    digitalWrite(ledpin[3], HIGH);

    delay(200);
    digitalWrite(ledpin[0], LOW);
    digitalWrite(ledpin[1], LOW);
    digitalWrite(ledpin[2], LOW);
    digitalWrite(ledpin[3], LOW);

    delay(200);
  }
  //Reset score to 0
  score = 0;
  lcd.clear();
  lcd.print("YOU LOSE!");
  delay(2000);
  turn = -1; //Resets turn value so the game starts over without need for a reset button

 switchofffunc();

}



   void switchofffunc()
   {
   //Moving door
    for(pos = 80; pos < 170; pos += 3)
    {
    doorServo.write(pos);
    delay(15);
    }

    //Moving hand
    for(pos = 0; pos < 130; pos += 4)
    {
    handServo.write(pos);
    delay(60);
    }

    //hiding hand
    for(pos = 130; pos>=0; pos-=4)
    {
    handServo.write(pos);
    delay(60);
    }

    //hiding door
    for(pos = 170; pos>=80; pos-=3)
    {
    doorServo.write(pos);
    delay(25);
    }
   }

When the button check state acknowledges that the player input does not match the random array given the game enters the losing sequence. Here once the wrong button is pressed all the lights will blink three times and the LCD will display the message "YOU LOSE!" In addition, the servo motor arms are called to function in which the Lid Arm moves first to open the lid so that the arm with the sign attached to it saying "SUCKER!" can come out for the player to see. The score/level is reset to zero and the turn counter is set to -1 so that the game automatically restarts.

Code File

Here is our entire code:

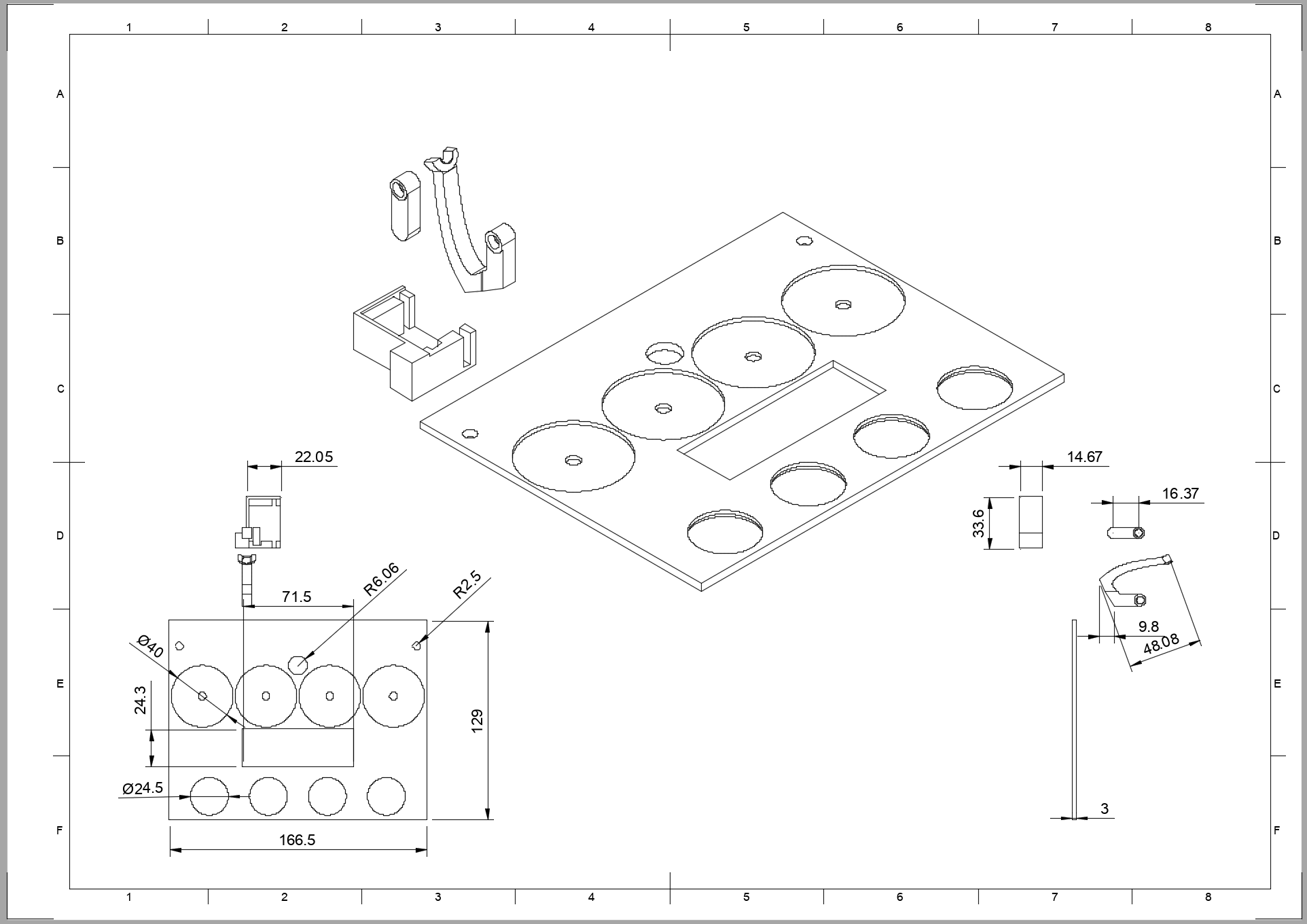

CAD Drawing

Screen Shot 2021-05-06 at 10.59.16 AM.png
Screen Shot 2021-05-06 at 10.58.53 AM.png

Our CAD Drawings helped us visualize and improve our design as we went deeper in to planning. The base design of our Simon Says Box is largely inspired by the "Useless Box" as shown. This includes the way the lid is placed and where the arms are able to come out. However, we designed a larger room of space to mount the buttons, LEDs, and LCD screen. We decided to 3D print our entire design except for the functioning components such as buttons, LEDs, LCD and servo motors. The components that were 3D printed are the box itself, the lid, the hinge (all items in dark grey), servo motor casings (light grey), the arms for the servos (depicted in orange). and the sign (light blue). The LEDs were covered by ping pong balls cut in half in order to display a cleaner finish and a wider range of visible light.

Manufacturing


This is our design and dimensioning for our game however, there is lots of room for adjustment if desired. We used PLA filament for all our 3D printed parts. The casings for our servo motors were designed for the ones we used which are the SG90 servo motors. The LCD screen compartment was precisely dimensioned so that it can be fit and held by compression. The compartment for the buttons, LEDs and the ping pong balls were also precisely measured. We found that depending on the quality of the 3D print, the LED holes might have to be adjusted as needed. The ping pong balls were super glued on so not as much precision is needed as long as they're cut the right way. We recommend cutting them a little more than half way and using the half with less overall material for a better fitting. The files attached under "Supplies" will contain all the dimensions used for our parts.

Assembly

Screen Shot 2021-05-16 at 4.19.53 PM.png

Because there are lots of pins that go to the Arduino, there are many wires to keep track of as you can see in the picture above. We started off by first soldering the buttons and LEDs to our cookie board in order to arrange them in an organized fashion. We then soldered the other elements such as the servo motors, LCD screen, toggle switch, and lastly the battery pack. It's important that the switch built in to the battery pack is left ON so that the toggle switch is in control of the game turning on and off. We used heat shrink not only to insulate the exposed wires, but to also color code and further organize our wires. After soldering all our components, we fastened the hinge to our box and lid. We also used the soldering gun and set it to 250 F to melt the filament and stick the servo motor casings, with the servo motors already in it, on. Super glue is an alternative to this method, but if you are to melt the filament, you should not touch the gun to the plastic for more than a second at a time. We found that melting it together by dots at a time worked well. Also, be careful to not touch the servo motor itself with the soldering gun. Although we didn't do this, we recommend placing the switch in first, melting the servo motor with the sign arm on in place to make sure that it can clear the bottom of the switch where its terminals are located. It also looks a lot cleaner if the sign and its arm are placed so that they are centered to the box when they come up. Next, the servo motor with the lid arm can be melted on. Because the lid area is tight in space we made sure that the servo motor for the switch was as centered as possible to evenly lift the lid up while still clearing the arm of the other servo motor.

Then we put in the LCD, LEDs and buttons in. It's important to make sure that the colors of LEDs and buttons align properly. Once those components were settled in, we arranged the Arduino, cookie board, and battery so that they all fit nicely inside the box. We then fastened the base plate with all the components in place onto the box. Lastly, we super glued our cut ping pong balls to finish it up.

The assembly does not necessarily need to be in this order but, it's what worked for us. To make it a lot easier in the long run, we strongly recommend to color code your wires because there are lots of them and otherwise they are easy to mix up or miss.

Conclusions and Improvements


Conclusion

This project was very fun to code and build. Our main goal was to create a game similar to that of Simon, but with a few extra touches that would make it unique. To do this, we incorporated features of the Useless Box in order to create a cool losing sequence. The game is in fact very challenging and is designed to make it nearly impossible to win with up to 100 levels to play. The coding aspect of this project was definitely the most challenging, but as we got the hang of it we each had the opportunity to learn how to customize it to our own liking. There's a lot of room for creativity with coding the introduction part and losing sequence of the LCD screen which was super cool! In addition, the wiring and soldering portion of the project was very time consuming and we had to be very meticulous so that our wiring was correct. As we went through, we had quite a few changes compared to our original idea, but it resulted in this cool final product!

Improvements

  • To make it more realistic, the amount of levels could be decreased and a winning sequence could be added at the end.
  • The sign arm could be adjusted a little more to fit better with the sign.
  • Two hinges can be placed, opposed to one so that there is more freedom of placing the lid servo and its arm along the back of the box. This would also help even the lid when the arm lifts it up.
  • Audio could be implemented to make the game more interacting.
