SDR for Graduation Work

I'm student and this gadget I will use to make my graduation work about security/

• 1 MHz to 6 GHz operating frequency
• half-duplex transceiver
• up to 20 million samples per second
• 8-bit quadrature samples (8-bit I and 8-bit Q)
• compatible with GNU Radio, SDR#, and more
• software-configurable RX and TX gain and baseband filter
• software-controlled antenna port power (50 mA at 3.3 V)
• SMA female antenna connector
• SMA female clock input and output for synchronization
• convenient buttons for programming
• internal pin headers for expansion
• Hi-Speed USB 2.0
• USB-powered

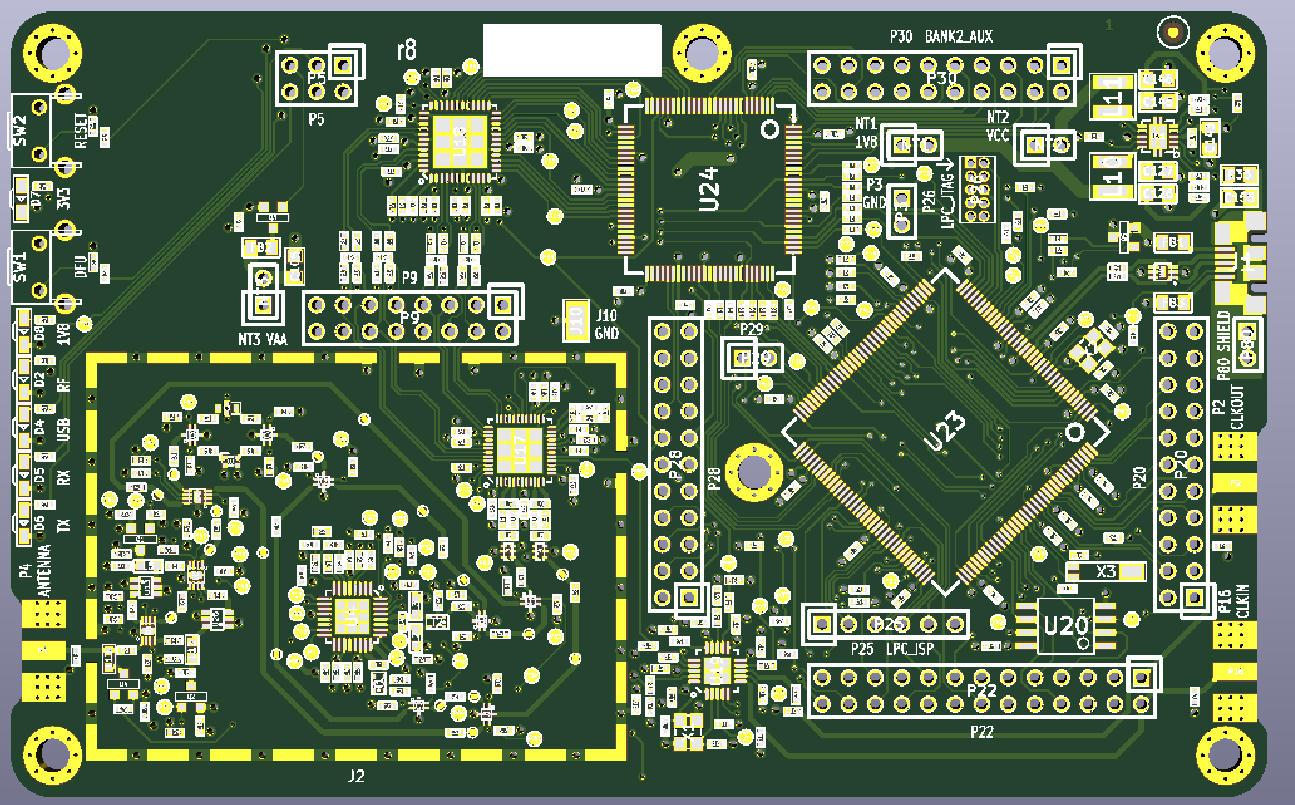

Gerber File : https://github.com/NoClaus/My-PCB-project/blob/master/gerbers42.zip

Full Process is shown using Screenshots Step-wise

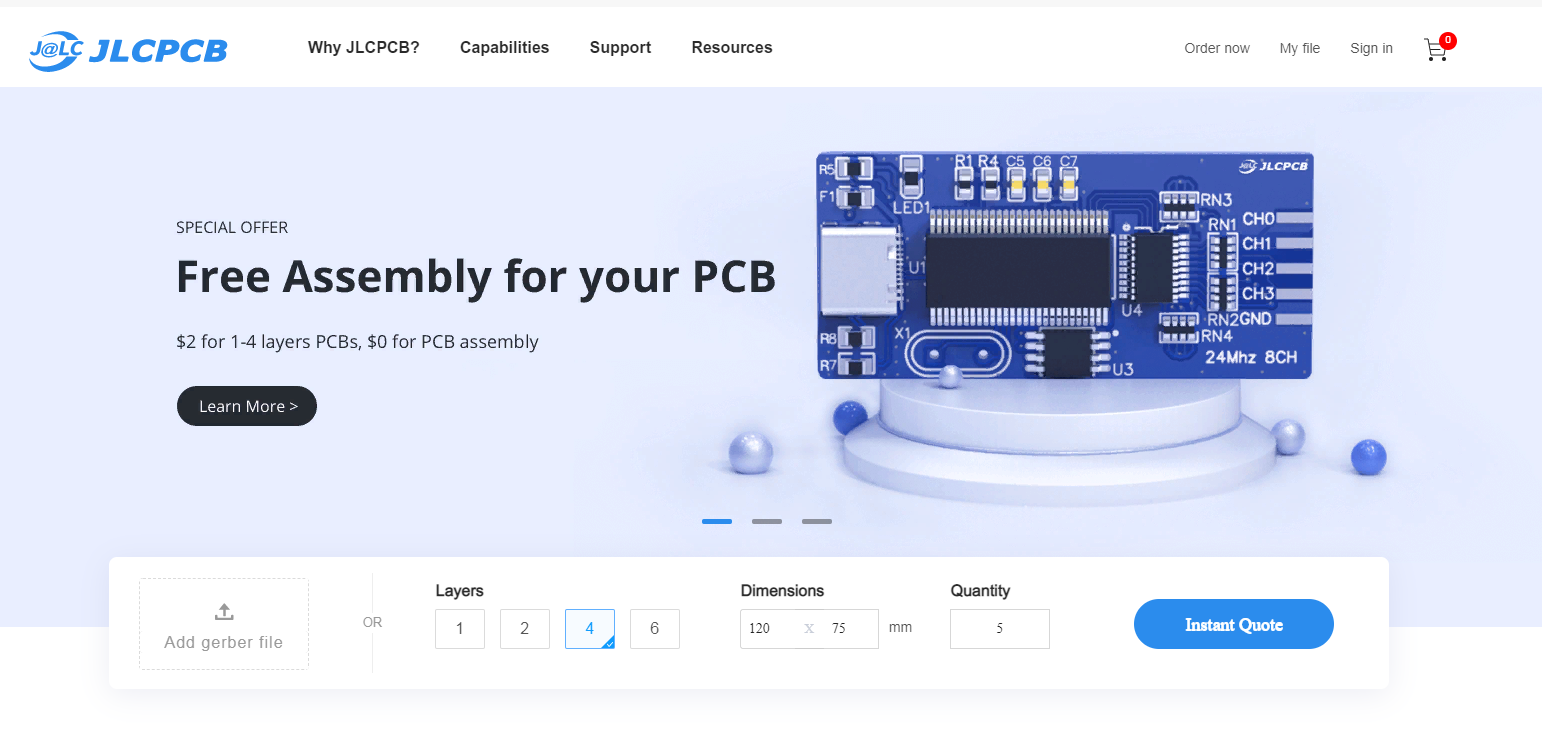

Now we have got the PCB design and it’s time to order the PCB’s. For that, you just have to go to JLCPCB, and click on the “QUOTE NOW” button. JLCPCB is also a sponsor of this project. JLCPCB (ShenzhenJLC Electronics Co., Ltd.), is the largest PCB prototype enterprise in China and a high-tech manufacturer specializing in quick PCB prototype and small-batch PCB production.

You can order a minimum of 5 PCBs for just $2. To get the PCB manufactured, upload the Gerber file you downloaded in the last step. Upload the.zip file or you can also drag and drop the Gerber files. After uploading the zip file, you’ll see a success message at the bottom of the file that is successfully uploaded. You can review the PCB in the Gerber viewer to make sure everything is good.

You can view both the top and bottom of the PCB. After making sure our PCB looks good, we can now place the order at a reasonable price. You can order 5 PCBs for just $2 but if it’s your first order then you can get 10 PCBs for $2. To place the order, click on the “SAVE TO CART” button.
