SD Card Size GAME Console With Pico
by David_Lin in Circuits > Microcontrollers
801 Views, 4 Favorites, 0 Comments
SD Card Size GAME Console With Pico
![DSC_2520.jpg](/proxy/?url=https://content.instructables.com/FP6/E4MG/KM7QQE3W/FP6E4MGKM7QQE3W.jpg&filename=DSC_2520.jpg)

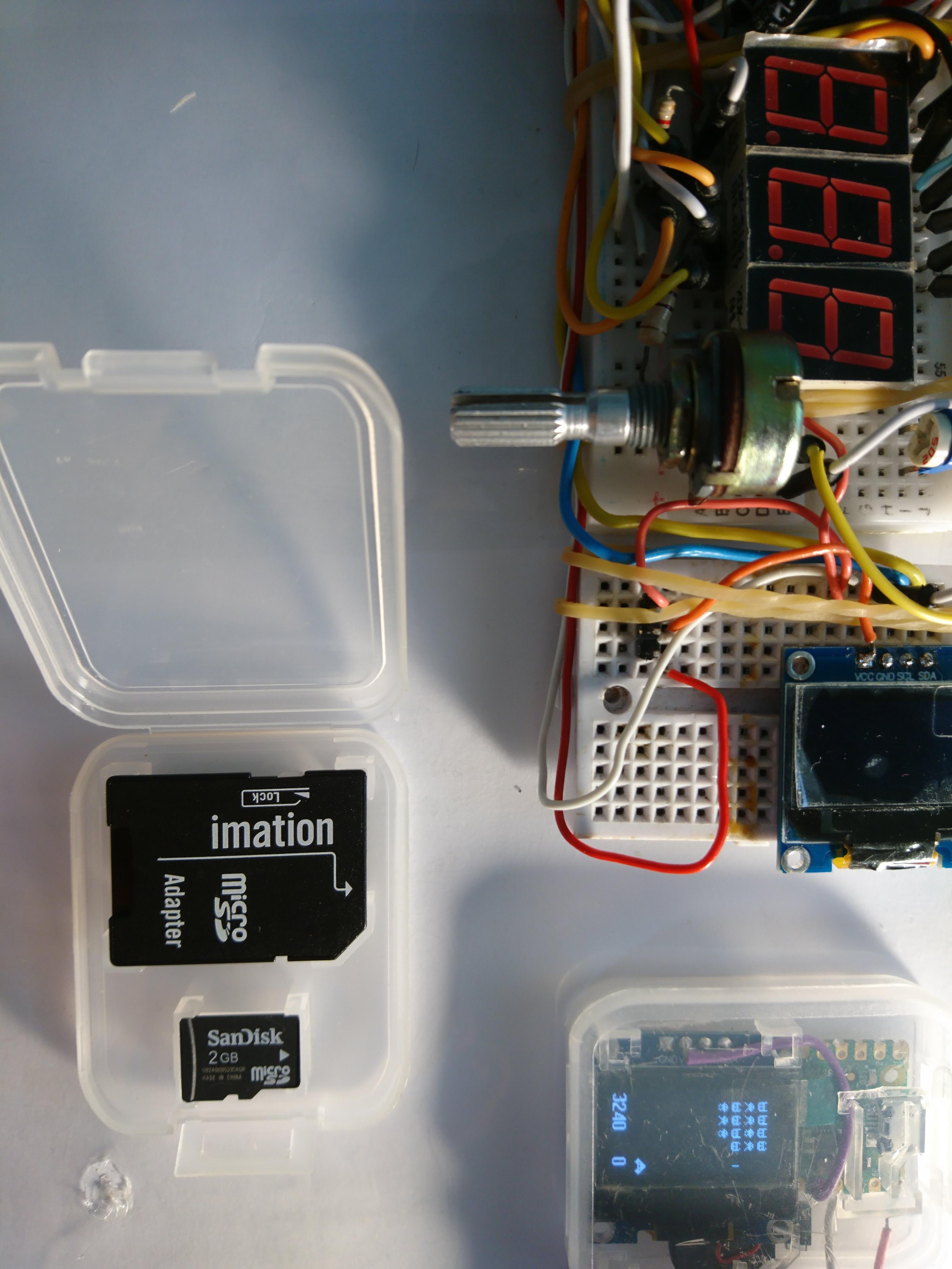

i was wondering about how to put MCU and displayer into an SD card !
i use the pico to slim SD card case, finally! By now.
it is powerful when you use the pico 2040, you will find out it at the very first time .
it's tiny but very powerful !
MATERIALS
![DSC_2543.jpg](/proxy/?url=https://content.instructables.com/F7J/S09K/KM7QQE62/F7JS09KKM7QQE62.jpg&filename=DSC_2543.jpg)
![RPi_pico_track.jpg](/proxy/?url=https://content.instructables.com/F7B/JSDL/KM9643VS/F7BJSDLKM9643VS.jpg&filename=RPi_pico_track.jpg)
![tools.jpg](/proxy/?url=https://content.instructables.com/FMO/3619/IT22OVII/FMO3619IT22OVII.jpg&filename=tools.jpg)
![DSC_0095.JPG](/proxy/?url=https://content.instructables.com/F4N/J6HQ/IT22OV3V/F4NJ6HQIT22OV3V.jpg&filename=DSC_0095.JPG)
1. SD card case * 1

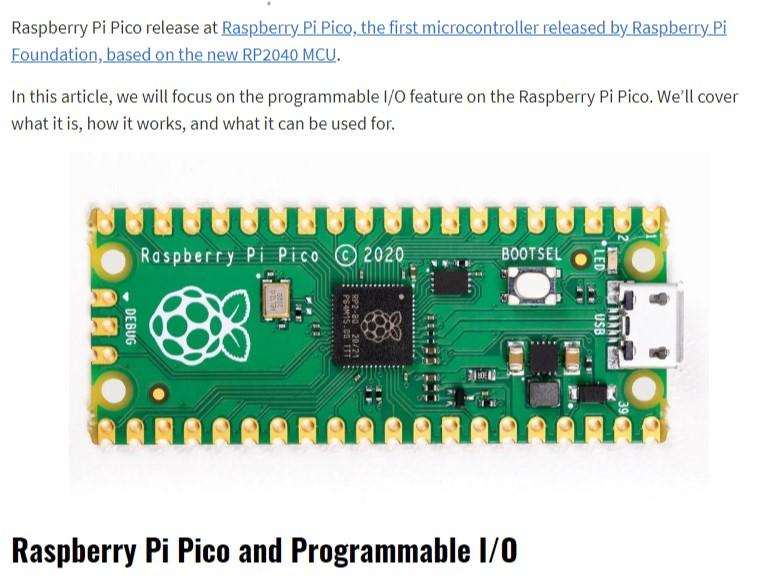

2. Pi pico 2040 * 1
3. ssd1306 display * 1
4. cutter * 1
5. 3V coin battery * 1
6. coin battery case * 1
7. small bizzer * 1
8. small pot (1M) * 1
9. some wires
Circuit Diagram
![pico_ckt.jpg](/proxy/?url=https://content.instructables.com/FWL/T77Y/KM9645QY/FWLT77YKM9645QY.jpg&filename=pico_ckt.jpg)
i cut the pico into 2 pieces in order to put it in the SD card case !
pico -- ssd1306
3.3V ------VCC
GND ----- GND
GP8----- SDA (SDATA)
GP9 ---- SCL (SCLK)
pico -- POT
3.3V -----POT left pin
ADC0--- POT center pin
GND-----POT right pin
pico -- pizzer
GP11 ---- pizzer +
GND ----- pizzer -
CODE
![DSC_2530.JPG](/proxy/?url=https://content.instructables.com/FDN/T45G/KMCC9RYV/FDNT45GKMCC9RYV.jpg&filename=DSC_2530.JPG)
the pico use the python language.
Connect to Power
![SD card size GAME demo](/proxy/?url=https://content.instructables.com/F1E/2WH5/KMDGF8R3/F1E2WH5KMDGF8R3.jpg&filename=SD card size GAME demo)

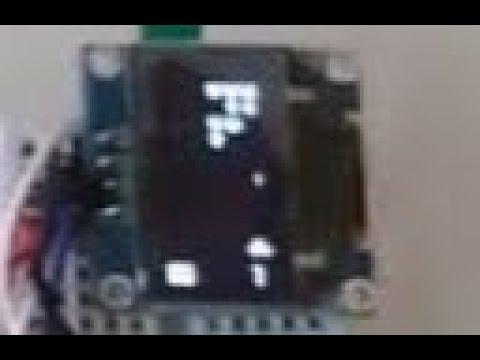

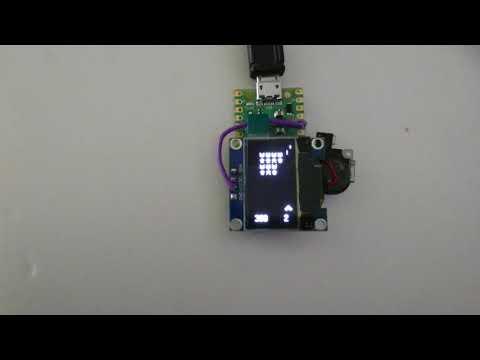

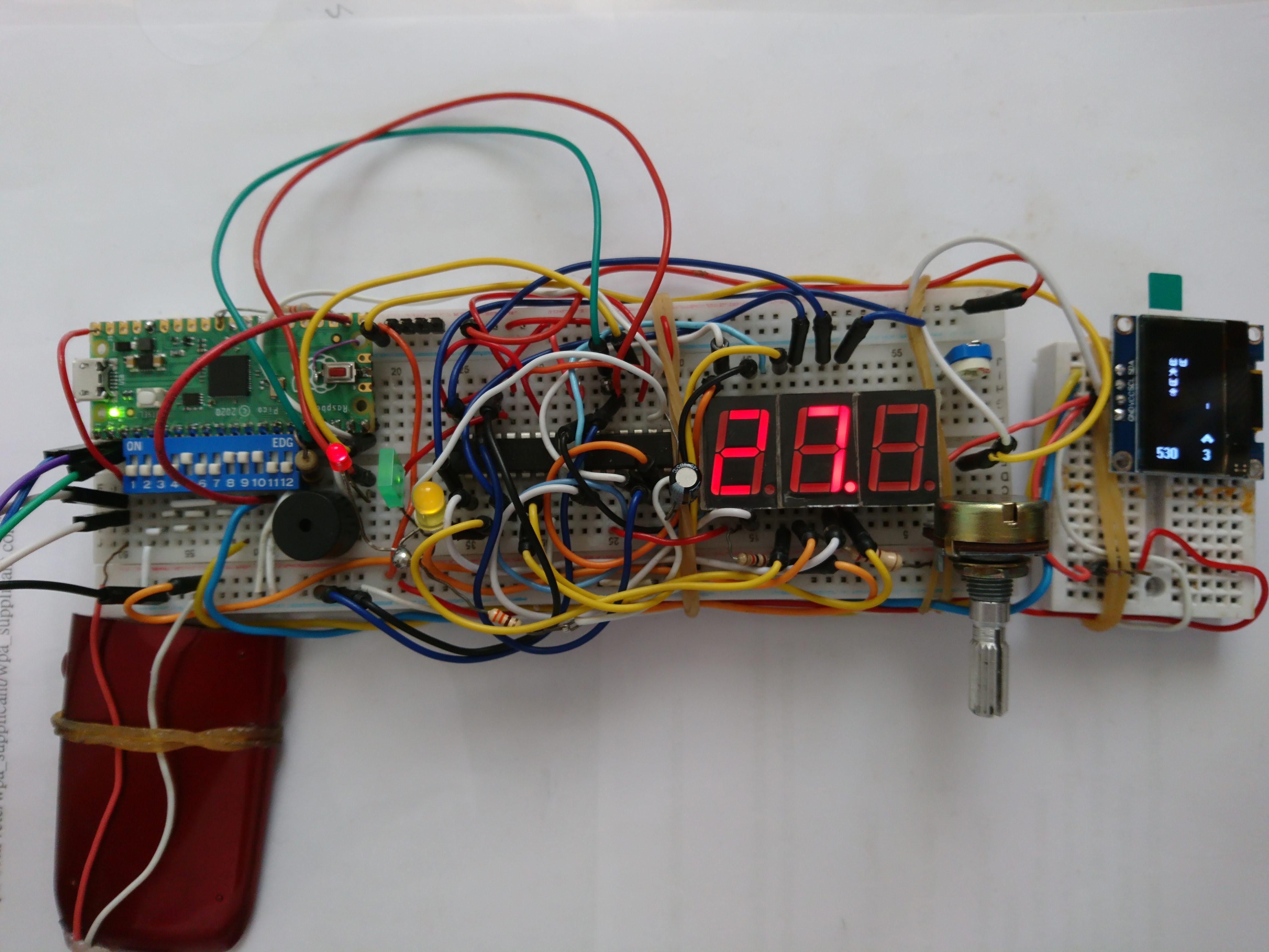

test run !
4 Put They All Together
![SD card size Game console with pico part1](/proxy/?url=https://content.instructables.com/FCF/AI9K/KM9643AP/FCFAI9KKM9643AP.jpg&filename=SD card size Game console with pico part1)
![SD card size Game console with pico part2](/proxy/?url=https://content.instructables.com/FZL/8ZT7/KM7QRHPH/FZL8ZT7KM7QRHPH.jpg&filename=SD card size Game console with pico part2)
HAVE FUN !
