SB Serial Servo Motor Connection With Raspberry PI
Affordable, powerful & open-source digital servo (UART) motors with Torque, Speed, Position Feedback and full 360-degree rotation mode.
The complete guide of tutorial regarding the process of usage of the Raspberry Pi to control SB-Servo motor. The user needs to have the components that are mentioned above. There are following ways that one needs to follow with the same order

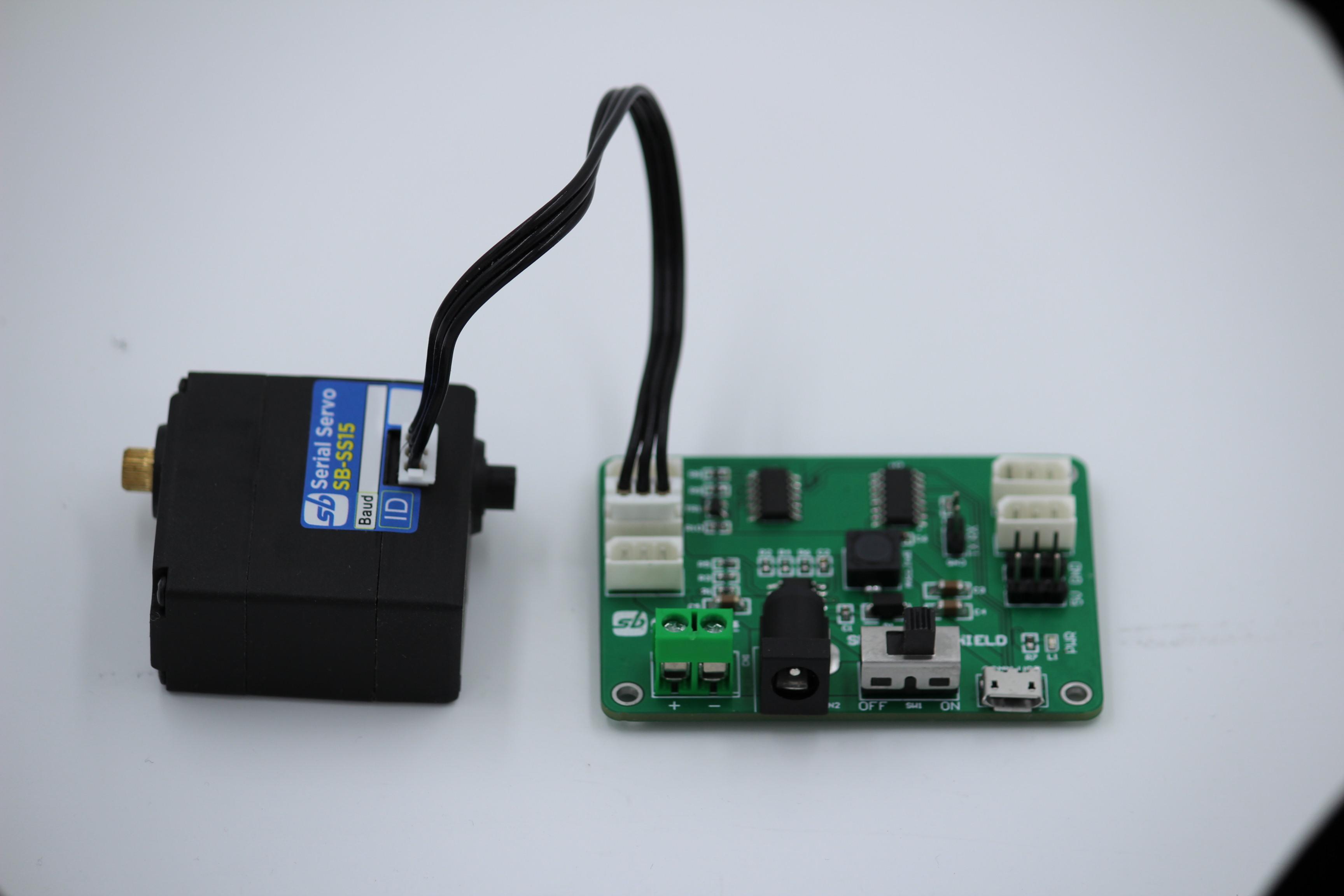

1. One needs to connect the SB-servo shield on top of the Raspberry Pi GPIO header. There are white ports which are implanted on the servo shield to connect with servo motors.
2. This device needs to connect with an external power supply,which must be DC, to provide the power to the servo shield.
3. The user should turn on the slider switch to operate Raspberry pi. One should maintain the ideal output power supply should be between 6 to 8.5 V.
The process to operate the servo motor with the usage of PYTHON language is on our GITHUB repository.
One can also follow the below tutorial video for step by step instruction.
