Rustic Shelf With Hammer Head Hooks
![Cover image final.jpg](/proxy/?url=https://content.instructables.com/F5J/OJ73/IXGFUKM0/F5JOJ73IXGFUKM0.jpg&filename=Cover image final.jpg)

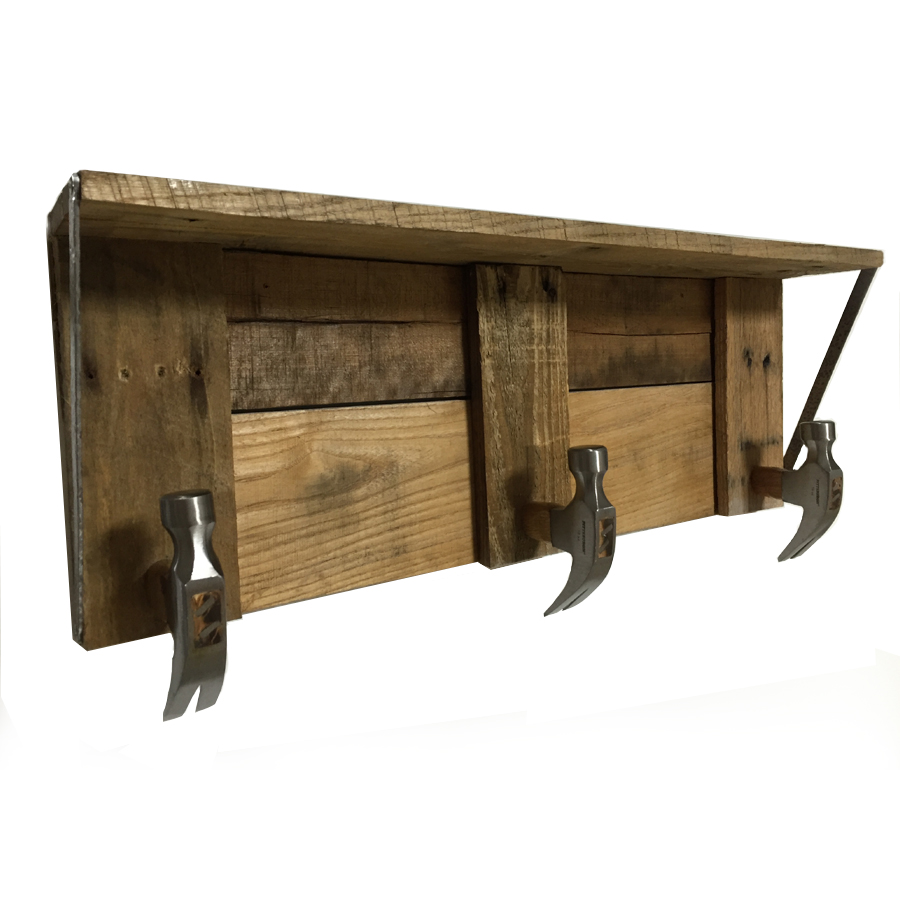

In this Instructable I make a rustic shelf with hammer heads for the clothes hooks. I thought about making this out of a nicer wood but I had some leftover pallet wood and decided to use it instead. If I don’t like it I can always unscrew the hammer heads and attach them to a nicer shelf. I purchased the hammers awhile ago at Harbor Freight for around $3-$4 ea. I bought them because they were cheap and thought I could use them for something other than their intended use. I didn’t have a set design or plan for these I just put it together as I went along. There were no major issues except for the split wood. That was something I should have fixed before I glued and screwed it on to the back. This is also the first time I tried adding a hammered texture to metal which I feel really added to the overall look of the piece. If I were to make this again I would probably add something to the bottom edge it feels like it is missing something but I don’t have any ideas at the moment.
Build video.
![1.png](/proxy/?url=https://content.instructables.com/F3G/OYIL/IXGFNCEL/F3GOYILIXGFNCEL.png&filename=1.png)
![2.png](/proxy/?url=https://content.instructables.com/FGM/2J4L/IXGFNCGP/FGM2J4LIXGFNCGP.png&filename=2.png)
These are the three hammer heads that I used for this project. As I said in the intro I bought these for about $3-$4 each at the time, which I don't consider terribly expensive considering what "nice" coat hooks can cost.
![3.png](/proxy/?url=https://content.instructables.com/FGY/7VJC/IXGFNCHK/FGY7VJCIXGFNCHK.png&filename=3.png)
![4.png](/proxy/?url=https://content.instructables.com/FCQ/SB90/IXGFNCJI/FCQSB90IXGFNCJI.png&filename=4.png)
![6.png](/proxy/?url=https://content.instructables.com/F06/312E/IXGFNCMP/F06312EIXGFNCMP.png&filename=6.png)
![7.png](/proxy/?url=https://content.instructables.com/FSW/IWB5/IXGFNCOP/FSWIWB5IXGFNCOP.png&filename=7.png)

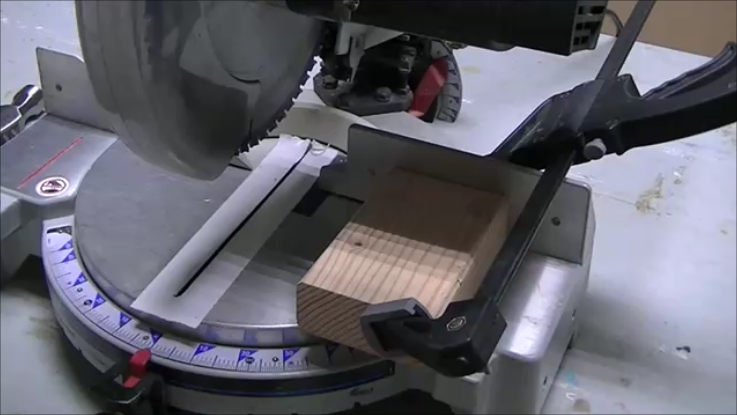

The first thing I did was cut off the hammer heads. I setup a stop block on my miter saw and cut off the handle at what I thought looked like the right length. I probably should have put some type of spacer in the gap under the handle to support the piece while I made the cuts. In the end this didn't affect the cuts but it probably would have been safer.
![8.png](/proxy/?url=https://content.instructables.com/F6E/J255/IXGFNCQD/F6EJ255IXGFNCQD.png&filename=8.png)

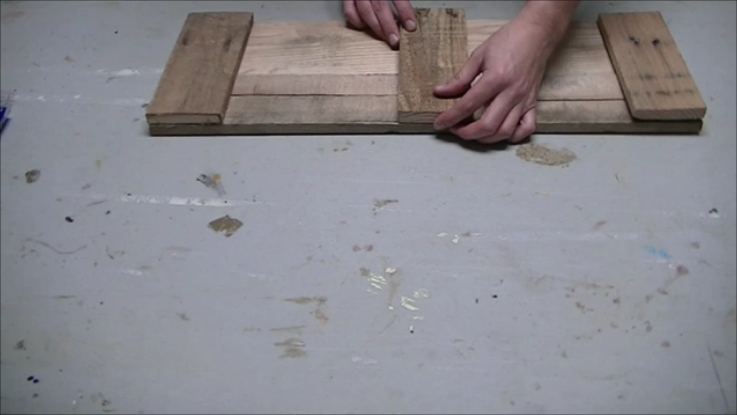

I didn't have an actual plan for the shelf so I just tried a few different things placing the wood in various configurations until I found one that I liked. I also played around with the positioning of the hammer heads to see what looked best. At this point nothing is glued or screwed.
![9.png](/proxy/?url=https://content.instructables.com/FU0/96RU/IXGFNCR7/FU096RUIXGFNCR7.png&filename=9.png)
![10.png](/proxy/?url=https://content.instructables.com/FF7/P4A3/IXGFNCTP/FF7P4A3IXGFNCTP.png&filename=10.png)
![11.png](/proxy/?url=https://content.instructables.com/FMU/EUK8/IXGFNCU0/FMUEUK8IXGFNCU0.png&filename=11.png)
Since this is pallet wood I didn't measure the lengths to cut, instead I just placed each piece where it would be attached and marked where I would need to make the cut. The pallet wood is far from perfect and it is easier and probably more accurate to mark the cut then measure it.
![12.png](/proxy/?url=https://content.instructables.com/F99/YMIM/IXGFNCWA/F99YMIMIXGFNCWA.png&filename=12.png)
![13.png](/proxy/?url=https://content.instructables.com/F3C/GX2O/IXGFNCXO/F3CGX2OIXGFNCXO.png&filename=13.png)
![14.png](/proxy/?url=https://content.instructables.com/F4K/NKCP/IXGFNCZX/F4KNKCPIXGFNCZX.png&filename=14.png)

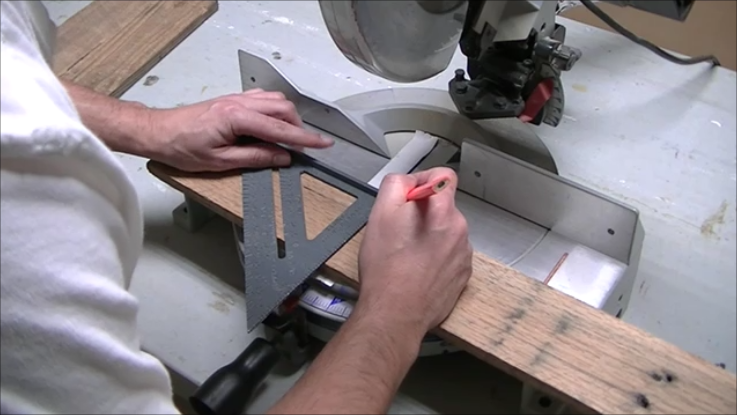

I used a square to transfer the mark across the front of the board and used my miter saw to make the cut for all three pieces.
![15.png](/proxy/?url=https://content.instructables.com/FWT/N9NQ/IXGFND24/FWTN9NQIXGFND24.png&filename=15.png)
![16.png](/proxy/?url=https://content.instructables.com/FEB/6QHX/IXGFND3R/FEB6QHXIXGFND3R.png&filename=16.png)
![17.png](/proxy/?url=https://content.instructables.com/FY6/XVZD/IXGFND4N/FY6XVZDIXGFND4N.png&filename=17.png)
![18.png](/proxy/?url=https://content.instructables.com/F4M/FLZO/IXGFND6O/F4MFLZOIXGFND6O.png&filename=18.png)
![19.png](/proxy/?url=https://content.instructables.com/FBO/W9SZ/IXGFND8F/FBOW9SZIXGFND8F.png&filename=19.png)
After making the cuts I check the fit again and then added glue to the vertical pieces and then placed the horizontal pieces on top of them.
![20.png](/proxy/?url=https://content.instructables.com/F5Y/Y6YD/IXGFND9C/F5YY6YDIXGFND9C.png&filename=20.png)
![21.png](/proxy/?url=https://content.instructables.com/F3E/FQNK/IXGFNDAQ/F3EFQNKIXGFNDAQ.png&filename=21.png)
![22.png](/proxy/?url=https://content.instructables.com/FAC/5TM9/IXGFNDCD/FAC5TM9IXGFNDCD.png&filename=22.png)
Next I pre-drill all the pilot holes and screwed the horizontal pieces to the vertical ones.
![23.png](/proxy/?url=https://content.instructables.com/FDA/33X5/IXGFNDEH/FDA33X5IXGFNDEH.png&filename=23.png)
![24.png](/proxy/?url=https://content.instructables.com/F5K/0XO4/IXGFNDG3/F5K0XO4IXGFNDG3.png&filename=24.png)
![25.png](/proxy/?url=https://content.instructables.com/F4Q/X86P/IXGFNDH0/F4QX86PIXGFNDH0.png&filename=25.png)
Its the same process for the center vertical piece. I find the center of all the pieces and then add glue making sure to pre-drill pilot holes and then finally add the screws.
![26.png](/proxy/?url=https://content.instructables.com/FBX/F9U7/IXGFNDIF/FBXF9U7IXGFNDIF.png&filename=26.png)
![27.png](/proxy/?url=https://content.instructables.com/FZQ/PTIZ/IXGFNDK5/FZQPTIZIXGFNDK5.png&filename=27.png)
![28.png](/proxy/?url=https://content.instructables.com/FC5/NU2J/IXGFNDKL/FC5NU2JIXGFNDKL.png&filename=28.png)
![31.png](/proxy/?url=https://content.instructables.com/FOY/N2A3/IXGFNDP9/FOYN2A3IXGFNDP9.png&filename=31.png)
Next it was time to add the piece on top that would make the shelf. I added glue to the top edges and here again made sure to pre-drill pilot holes and attach the shelf with screws. I used a clamp to hold the shelf in place while I screwed it together. The last picture shows what the shelf looks like from the top once it has been screwed.
![32.png](/proxy/?url=https://content.instructables.com/F3C/MCJI/IXGFNDQS/F3CMCJIIXGFNDQS.png&filename=32.png)
![33.png](/proxy/?url=https://content.instructables.com/FU5/MWGX/IXGFNDRL/FU5MWGXIXGFNDRL.png&filename=33.png)
![34.png](/proxy/?url=https://content.instructables.com/FNL/J6RD/IXGFNDTP/FNLJ6RDIXGFNDTP.png&filename=34.png)
![36.png](/proxy/?url=https://content.instructables.com/FY8/OVV3/IXGFNDWA/FY8OVV3IXGFNDWA.png&filename=36.png)

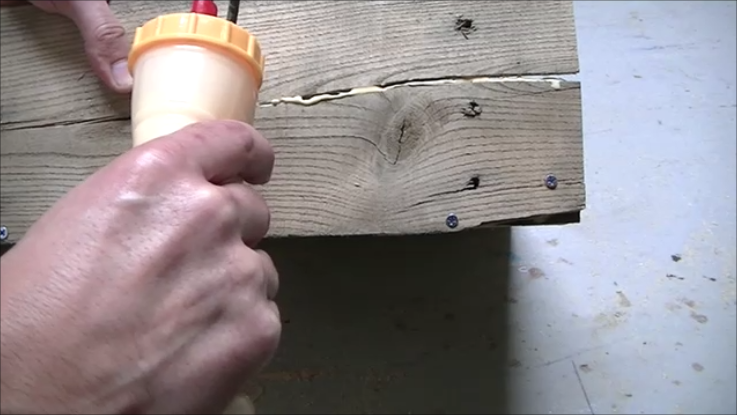

I should have fixed this crack before screwing the shelf to the rest of the piece. It was a simple fix I just added glue to the crack and used a brush to shove the glue in to the crack and then clamped it for 24 hours to let the glue dry. The cracks add to the rustic look.
![37.png](/proxy/?url=https://content.instructables.com/FCG/HR76/IXGFNDXO/FCGHR76IXGFNDXO.png&filename=37.png)
![38.png](/proxy/?url=https://content.instructables.com/FNV/35Q0/IXGFNDZA/FNV35Q0IXGFNDZA.png&filename=38.png)
![39.png](/proxy/?url=https://content.instructables.com/FIZ/J4RH/IXGFNDZN/FIZJ4RHIXGFNDZN.png&filename=39.png)

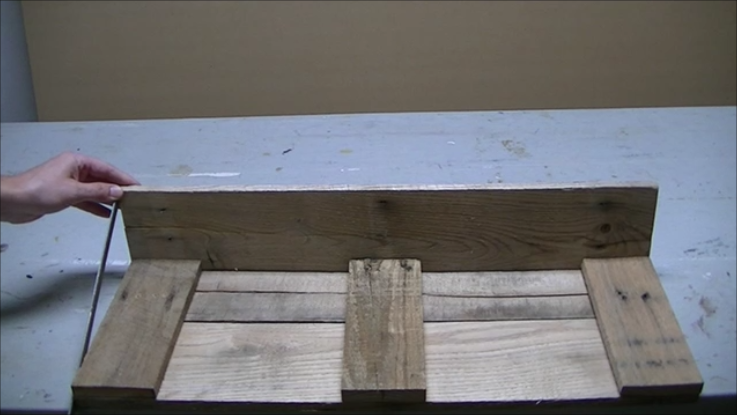

I didn't think the top shelf joint was very strong so I added some metal support pieces. This is just some 1/2 inch wide mild steel that I cut to length. Here again I didn't use a tape measure to get the length I just held the steel up to the two corners and marked where I would make the cut. I used my angle grinder fitted with a cut off wheel to make the cuts.
![40.png](/proxy/?url=https://content.instructables.com/FL3/WGII/IXGFNE19/FL3WGIIIXGFNE19.png&filename=40.png)
![41.png](/proxy/?url=https://content.instructables.com/FZA/Z8XY/IXGFNE31/FZAZ8XYIXGFNE31.png&filename=41.png)
![42.png](/proxy/?url=https://content.instructables.com/FH7/LOVE/IXGFNE3E/FH7LOVEIXGFNE3E.png&filename=42.png)

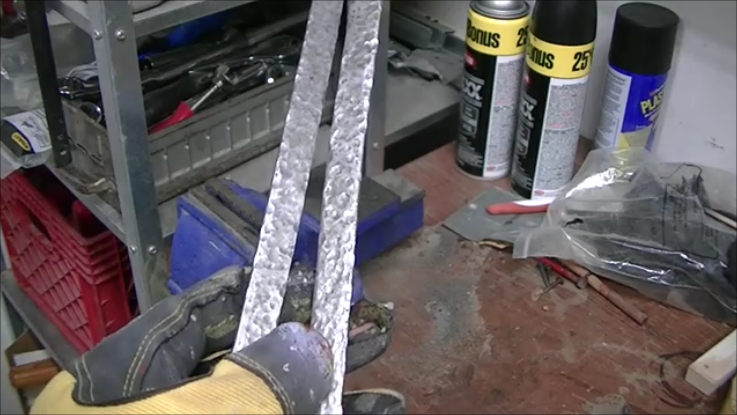

I felt the steel bracing looked a little too new and decided to add some character to the metal. So I took my ball peen hammer and began randomly hammering the entire surface of the steel, front and back. After quite a bit of hammering I got the look I was after.
![43.png](/proxy/?url=https://content.instructables.com/FZJ/7M1N/IXGFNE4S/FZJ7M1NIXGFNE4S.png&filename=43.png)
![44.png](/proxy/?url=https://content.instructables.com/F1K/7U77/IXGFNE6E/F1K7U77IXGFNE6E.png&filename=44.png)

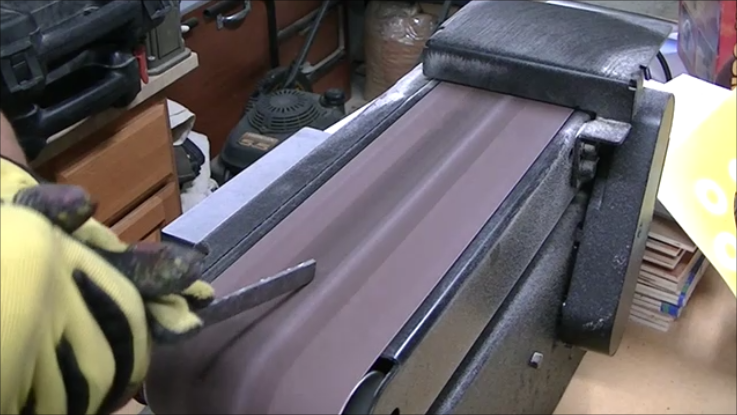

I used my belt sander to round over the edges.
![45.png](/proxy/?url=https://content.instructables.com/FTG/TC2G/IXGFNE7S/FTGTC2GIXGFNE7S.png&filename=45.png)
![46.png](/proxy/?url=https://content.instructables.com/F3Q/NS27/IXGFNE7Y/F3QNS27IXGFNE7Y.png&filename=46.png)
![47.png](/proxy/?url=https://content.instructables.com/FQS/BZZP/IXGFNE87/FQSBZZPIXGFNE87.png&filename=47.png)
![48.png](/proxy/?url=https://content.instructables.com/F2Z/90TL/IXGFNE9L/F2Z90TLIXGFNE9L.png&filename=48.png)
![49.png](/proxy/?url=https://content.instructables.com/FON/WXMP/IXGFNECL/FONWXMPIXGFNECL.png&filename=49.png)
After rounding over the edges I marked where the screw holes would go and center punched the marks and then drilled the four holes. I also countersunk the holes so the screw heads would sit flush which can be seen in the last picture.
![50.png](/proxy/?url=https://content.instructables.com/FFV/HD14/IXGFNECZ/FFVHD14IXGFNECZ.png&filename=50.png)
![51.png](/proxy/?url=https://content.instructables.com/F8B/43A2/IXGFNEDJ/F8B43A2IXGFNEDJ.png&filename=51.png)
To bring out the hammered texture I sanded the support pieces with some 150-220 grit sand paper. The second picture shows the difference the sanding makes. The top piece is not sanded the bottom one is after sanding.
![52.png](/proxy/?url=https://content.instructables.com/FRK/3AHQ/IXGFNEEJ/FRK3AHQIXGFNEEJ.png&filename=52.png)
![53.png](/proxy/?url=https://content.instructables.com/FTP/XX2V/IXGFNEF3/FTPXX2VIXGFNEF3.png&filename=53.png)
![54.png](/proxy/?url=https://content.instructables.com/FNX/UNO8/IXGFNEF4/FNXUNO8IXGFNEF4.png&filename=54.png)
![55.png](/proxy/?url=https://content.instructables.com/FY0/IUGJ/IXGFNEFH/FY0IUGJIXGFNEFH.png&filename=55.png)

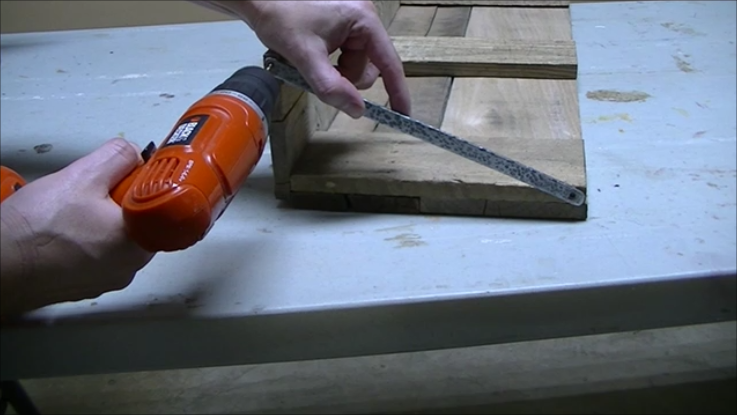

Next I attached the support pieces first making sure to pre-drill pilot holes and then screwing the support pieces to the shelf.
![57.png](/proxy/?url=https://content.instructables.com/FAO/VJBR/IXGFNEG4/FAOVJBRIXGFNEG4.png&filename=57.png)
![58.png](/proxy/?url=https://content.instructables.com/FUB/KKTN/IXGFNEGP/FUBKKTNIXGFNEGP.png&filename=58.png)
Next I pre-drilled the hammer heads for the screws that I would use to attach them to the shelf.
![56.png](/proxy/?url=https://content.instructables.com/FG9/ZT06/IXGFNEG0/FG9ZT06IXGFNEG0.png&filename=56.png)
![60.png](/proxy/?url=https://content.instructables.com/FQJ/6LA2/IXGFNEH8/FQJ6LA2IXGFNEH8.png&filename=60.png)
![61.png](/proxy/?url=https://content.instructables.com/FPL/47TS/IXGFNEHC/FPL47TSIXGFNEHC.png&filename=61.png)
Now it was time to attach the hammer heads to the shelf. First I found the centers and drilled holes all the way through the back piece. I used long screws with washers on them to attach the hammer heads from the back. I did not use glue on the hammer heads because I thought that I might want to make a nicer version of this and reuse the hammer heads sometime later.
![63.png](/proxy/?url=https://content.instructables.com/FV9/HTPV/IXGFNEHW/FV9HTPVIXGFNEHW.png&filename=63.png)
![64.png](/proxy/?url=https://content.instructables.com/FZ8/PGKY/IXGFNEIL/FZ8PGKYIXGFNEIL.png&filename=64.png)
I attached some d-rings to the back so that I could hang it on the wall. The second picture shows what the shelf looks like from the rear.
![65.png](/proxy/?url=https://content.instructables.com/FXU/GKG3/IXGFNEIM/FXUGKG3IXGFNEIM.png&filename=65.png)
Lastly I sprayed a clear coat on the entire piece including all the metal to help protect the wood and also the bare metal.
![IMG_4348.JPG](/proxy/?url=https://content.instructables.com/F5B/NUHT/IXGFNEJV/F5BNUHTIXGFNEJV.jpg&filename=IMG_4348.JPG)
![IMG_4349.JPG](/proxy/?url=https://content.instructables.com/FLS/CHO8/IXGFNEK1/FLSCHO8IXGFNEK1.jpg&filename=IMG_4349.JPG)

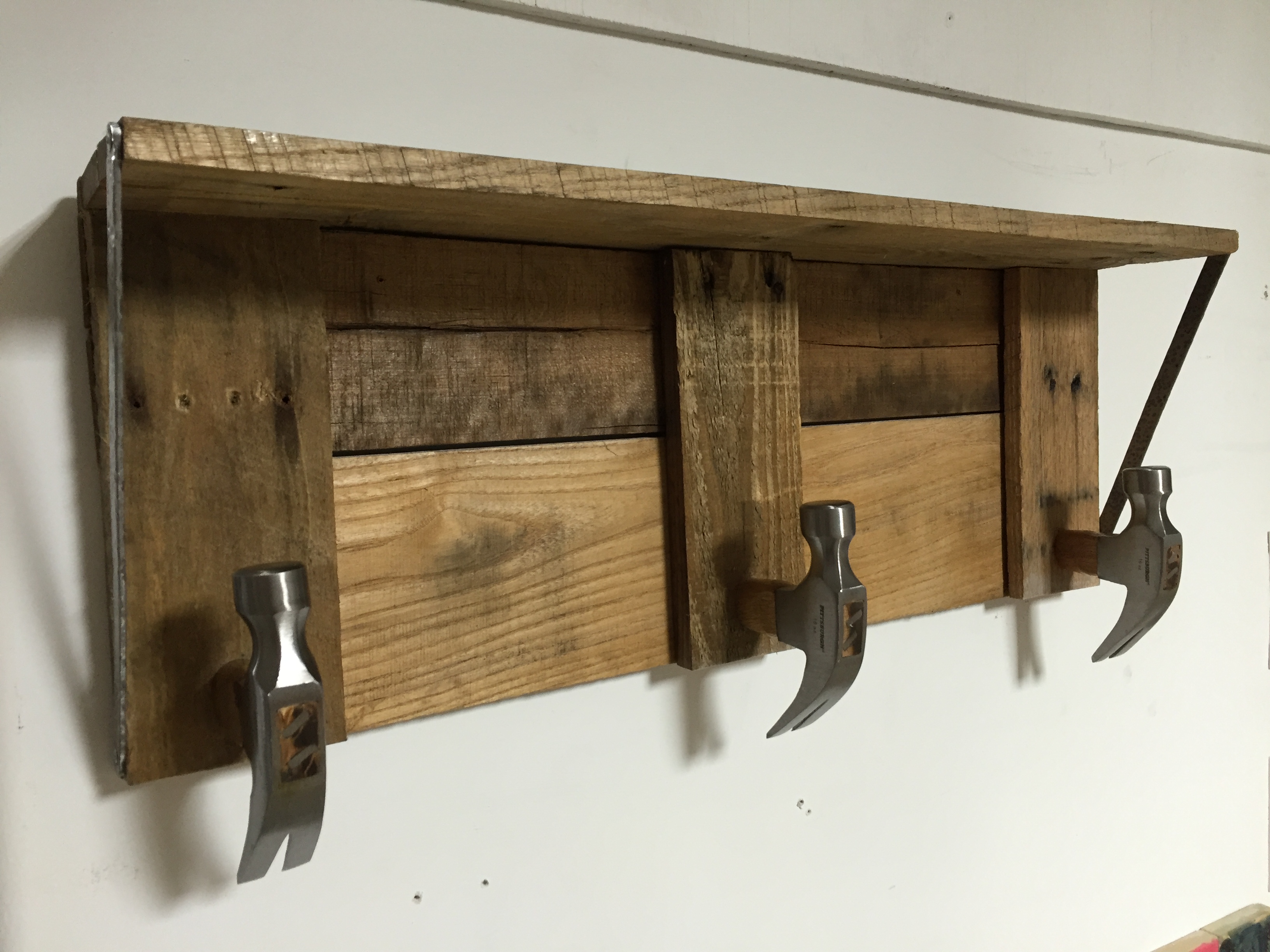

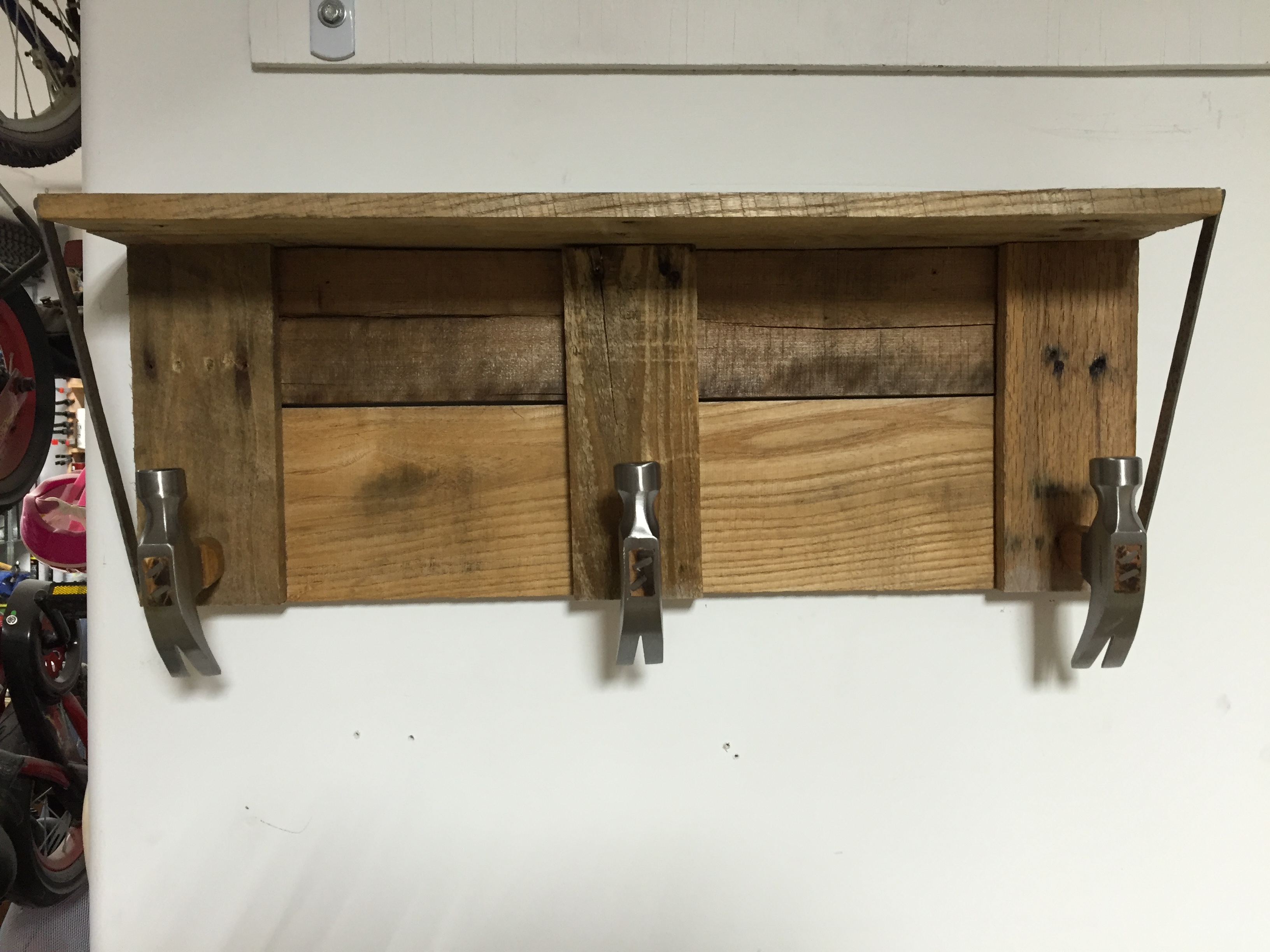

Here are a couple of pictures of what the shelf looks like on the wall. Overall I really like the way it came out it is definitely rustic and a fairly simple project to build. I hope you enjoyed this Instructable and find it useful. Thanks for taking the time to read all of this.
