Run Brushless Motor by Arduino + L298

This instructable will show how to run DC Brushless motor (taken from HDD) with H-Bridge L298

Take out DC brushless motor from broken HDD. This motor has 3 output wire. Next step will show how it run

Brushless motor has rotation part (called rotor) running without any electrical contact. This will allow it can run in high speed

Statistic part (called stator) will make rotating magnetic field to rotate rotor

In phase 1, head of coil green is (+) and coil blue is (-). Sum of magnetic field of those two coil will make total magnetic direction as in picture -> make rotor rotate to this direction and stop here.

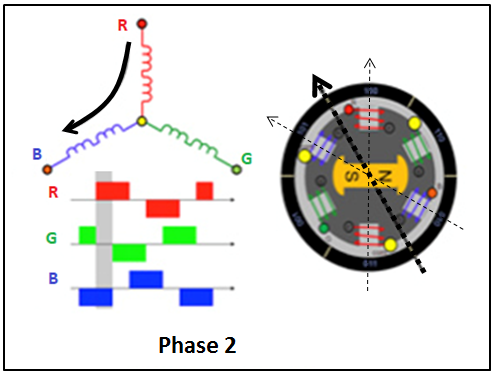

Next in phase 2, head of coil red is (+) and coil blue is (-). Again, total magnetic direction as in picture -> make rotor rotate this direction and stop here.

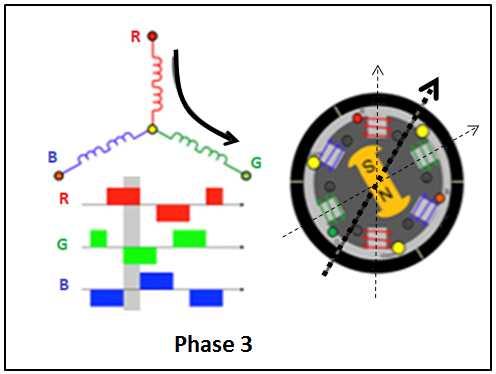

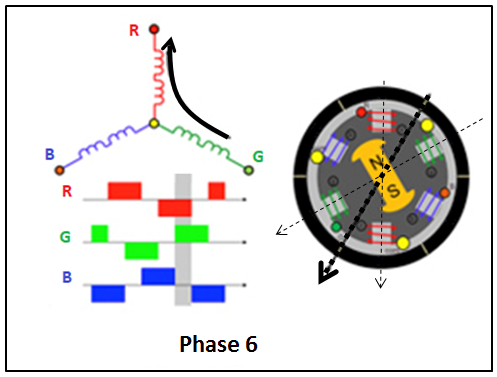

Again in phase 3, 4, 5, 6, it will make rotor rotates 1 circle.

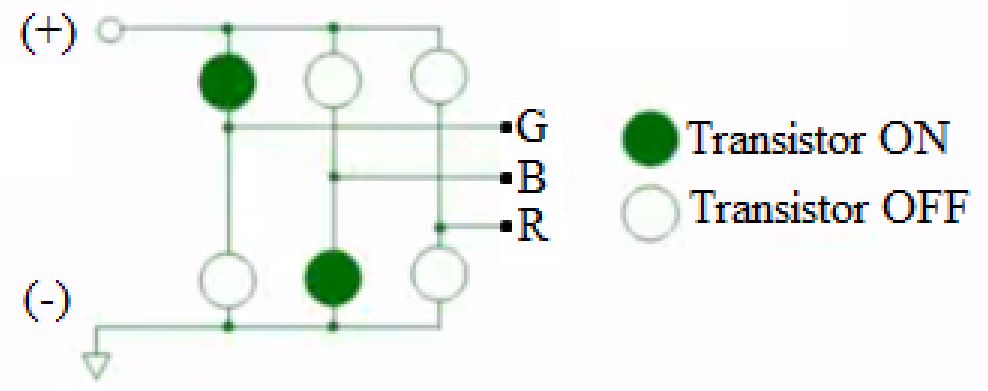

Three pairs of resistor is connected to head of coil green, blue, red -> those transistors will be ON/OFF synchronized to make magnetic field rotating (as in above step explaination)

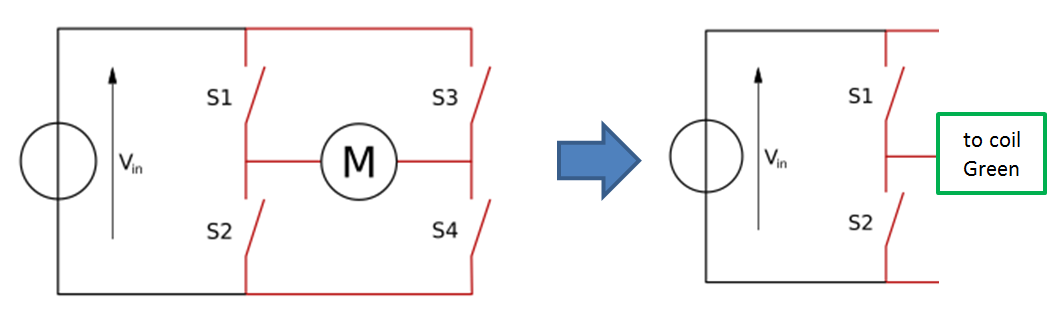

Half of H-bridge is used as 1 pair of transistor.

See inside L298 IC, it is possible to flow current from this H-bridge to another H-bridge

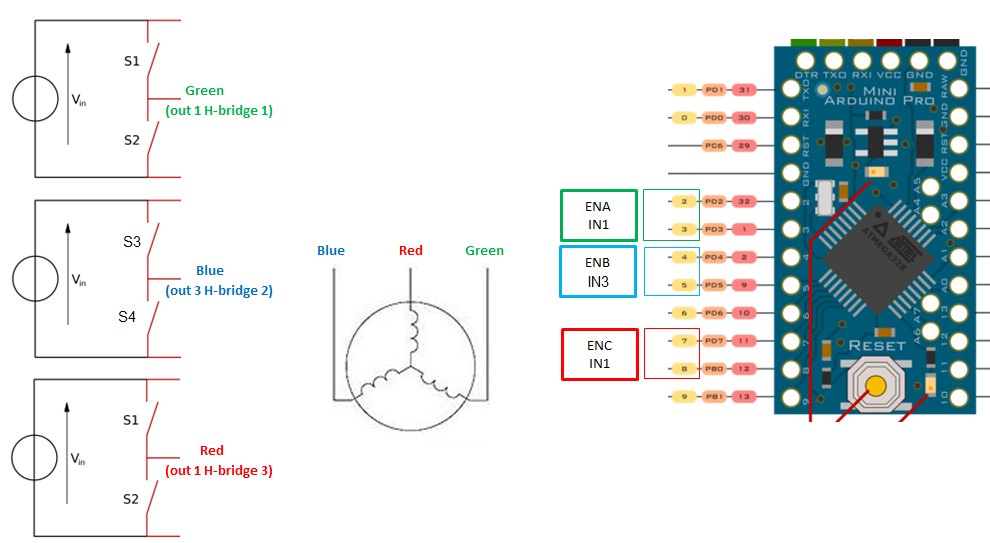

Connect H-bridge to motor and Arduino (Pro Mini) as in picture

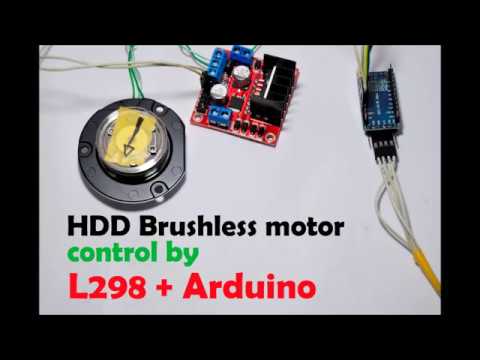

Here is my result connection

The code will implement the pattern as in picture, which will apply power to each coil as in step 2

Entire code for Arduino is here (Google share)
