Rubber Band Wine Rack

by craftsfamship in Living > Kitchen

6097 Views, 180 Favorites, 0 Comments

Rubber Band Wine Rack

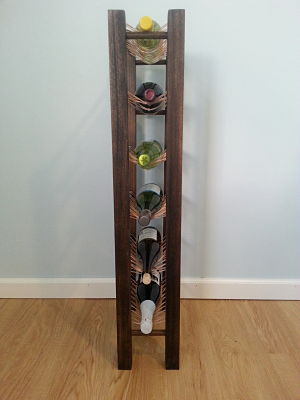

rubber band wine rack display 4.jpg

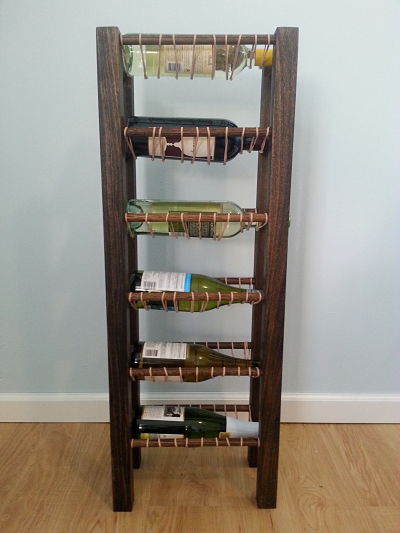

rubber band wine rack display 2.jpg

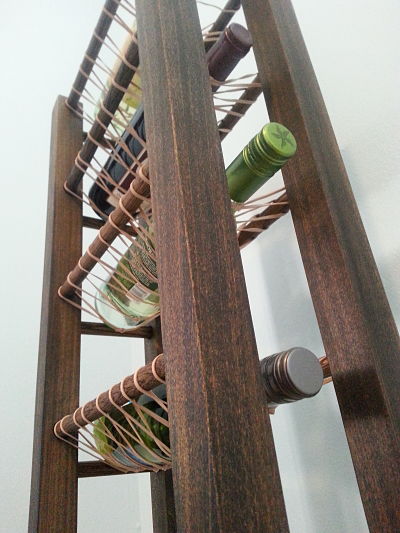

rubber band wine rack display 3.jpg

Nothing says classy, sophisticated wine storage like nestling your bottles of wine on this rubber band wine rack!

Supplies:

  • 4 qty 1-3/4" x 36" square wood dowel
  • 6 qty 5/8" x 36" round dowel
  • 120 qty #33 rubber bands (3-1/2"x1/8")
  • wood glue
  • sand paper
  • stain and beeswax optional

Tools:

  • Drill
  • 5/8" drill bit
  • saw
  • mallet
  • measuring tape

Cut List:

  • 12 qty 5/8" round dowel @ 12"
  • 8 qty 5/8" round dowel @ 5-1/2"

Drill Holes

rubber band wine rack drill holes.jpg

Drill 28 holes with 5/8" drill bit to 1" depth.

Sides of wine rack:

One side on each of 4 square dowels will get 6 holes 6" apart starting at 1/2" down from the top.

Back side of wine rack:

One side each on 2 square dowels will get 6 holes 6" apart starting at 2" down from the top. Make sure these holes get drilled on the proper side so that they will face one another when assembled.

Front side of wine rack:

One side each on 2 square dowels (the 2 not already drilled for the back) will get 2 holes 2" down from the top and 4" from bottom. Again make sure the side you're drilling will face the other dowel when assembled.

Sand and Stain

rubber band wine rack stained.jpg

Sand all the pieces. You can also stain and polish the individual pieces at this stage.

Assemble Front and Back Frame

rubber band wine rack front and back.jpg

Insert the round dowels into the sides for the front and back section. It's a pretty tight fit so we only used and very small amount of wood glue. You'll probably need a mallet to hammer the sides

Rubber Bands

rubber band wine rack rubber bands.jpg

Loop rubber bands inside one another to create a knot in the middle. You'll end up with 60 pairs, 10 for each level. You'll want to have the rubber bands on the dowels before attaching the sides in the next step.

Assemble the Sides

rubber band wine rack final assembly.jpg

Place dowels on back side of wine rack and then carefully fit the top
part into the holes with a small amount of wood glue. Use a mallet to hammer into place.

Place Wine Bottles in Rack

rubber band wine rack display 1.jpg

Put in some wine bottles starting from the bottom to the top and enjoy your new wine bottle storage!
