Rubber Band Lamp

by krivas in Workshop > Lighting

14397 Views, 340 Favorites, 0 Comments

Rubber Band Lamp

P1030489aaa copy.jpg

Make this super cool rubber band lamp with a few pieces of wood and some rubber bands!

Gather Matherials

  • (2) 4" Square Wood Plaques. I got a 4 pack from Hobby Lobby for $2.99
  • (4) 3/8" x 8" Wooden Dowels- you can get a long dowel and cut it to size
  • Drill & Bits: Spur Point (3/8"), Spade Bit (3/4")
  • Lamp Cord Set: Snap-In Pigtail Candelabra-Base Socket and Cord Switch
  • Candelabra Bulb (preferably a low-heat bulb like an LED- rubber bands can catch fire if there is enough heat)
  • Hammer
  • Wood Glue
  • #64 Rubber bands

Drill

P1030577 copy.jpg
P1030576 copy.jpg
P1030522 copy.jpg

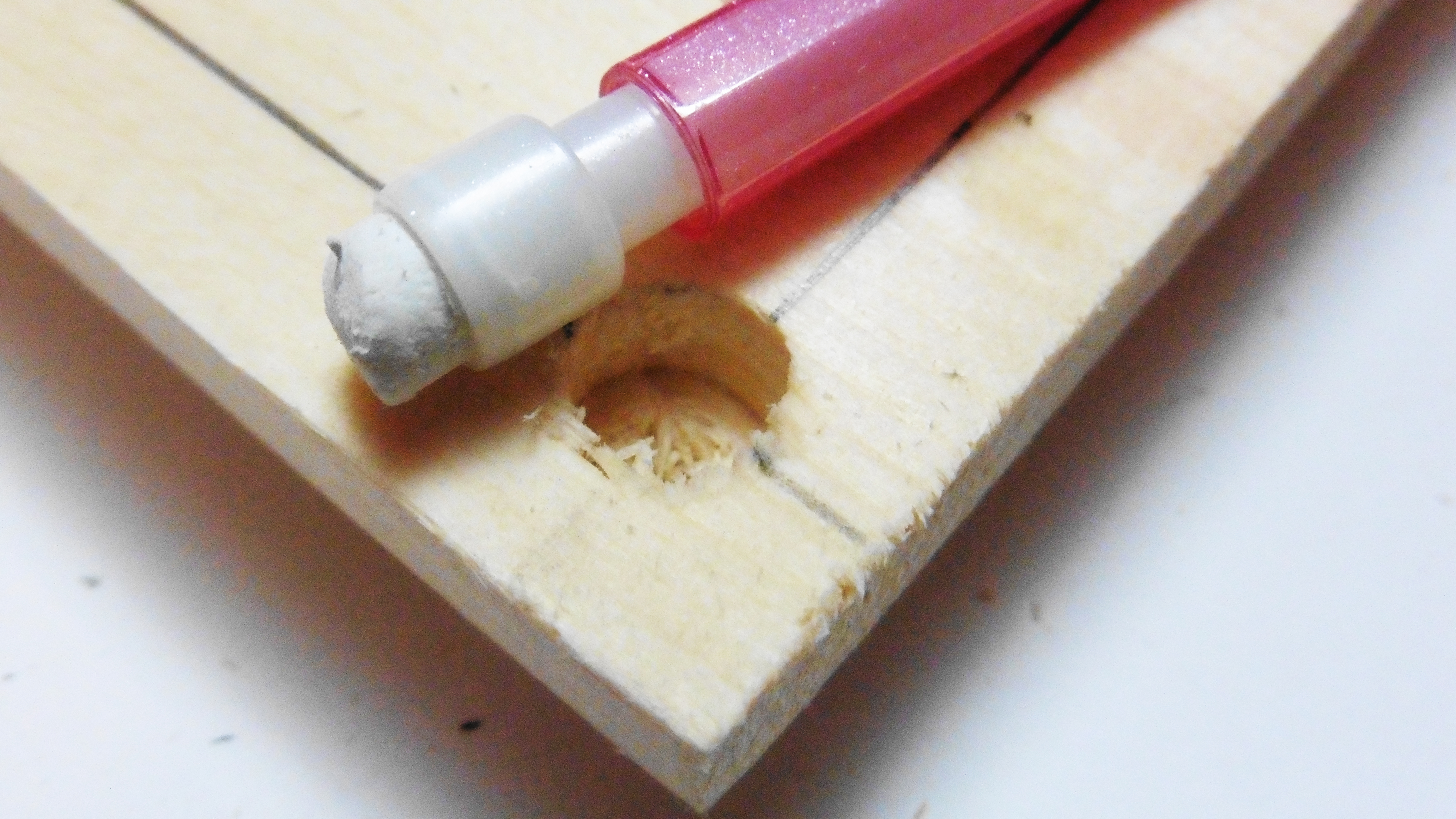

Get your wood plaques. With a pencil, mark out a square whose edges are 3/8" away from the edge of the wood (I tried making the holes closer to the edges and the wood ended up splitting, which made the corners break off). After you have everything marked, use a drill to make holes in the corner of the square that are 3/8" wide and about 1/3" deep; be careful not to drill all the way through.

Drill Some More

P1030518 copy.jpg
P1030524 copy.jpg

Mark the center of the plaque and drill a hole that is 3/4" wide- I used a spade bit to do this (1" wide might work as well, depending on the size of your bulb). When drilling, make sure to have a scrap piece of wood under you plaque for when the bit comes through the bottom. I went 3/4 of the way down and not all the way through because I didn't want a huge hole in the bottom of the lamp.

Lighting

P1030525 copy.jpg
P1030528 copy.jpg
P1030529 copy.jpg
P1030532 copy.jpg

Install the cord by squeezing the metal part in and pushing it down into the hole. It should fit snugly. Excuse my dirty cord- it came from an old lamp.

Clean Up

P1030540 copy.jpg
P1030546 copy.jpg

Clean up pencil marks with an eraser and a wet cloth. I used the eraser first, then the cloth, then the eraser again. This got rid of most of the pencil marks.

Build

P1030533 copy.jpg
P1030537 copy.jpg
P1030573 copy.jpg

Put a dab of glue into each hole and place the dowels into the holes. Give them a hit with a hammer to make sure they are firmly in place. When attaching the top put some glue into the holes, insert the dowels and tap with hammer- to prevent any damage, make sure to put something between the hammer and the wood.

Rubber Bands

P1030552 copy.jpg
P1030561 copy.jpg
P1030567 copy.jpg
P1030568 copy.jpg
P1030565 copy.jpg
P1030412 copy.jpg
P1030421 copy.jpg
P1030449 copy.jpg
P1030451 copy.jpg
P1030448 copy.jpg

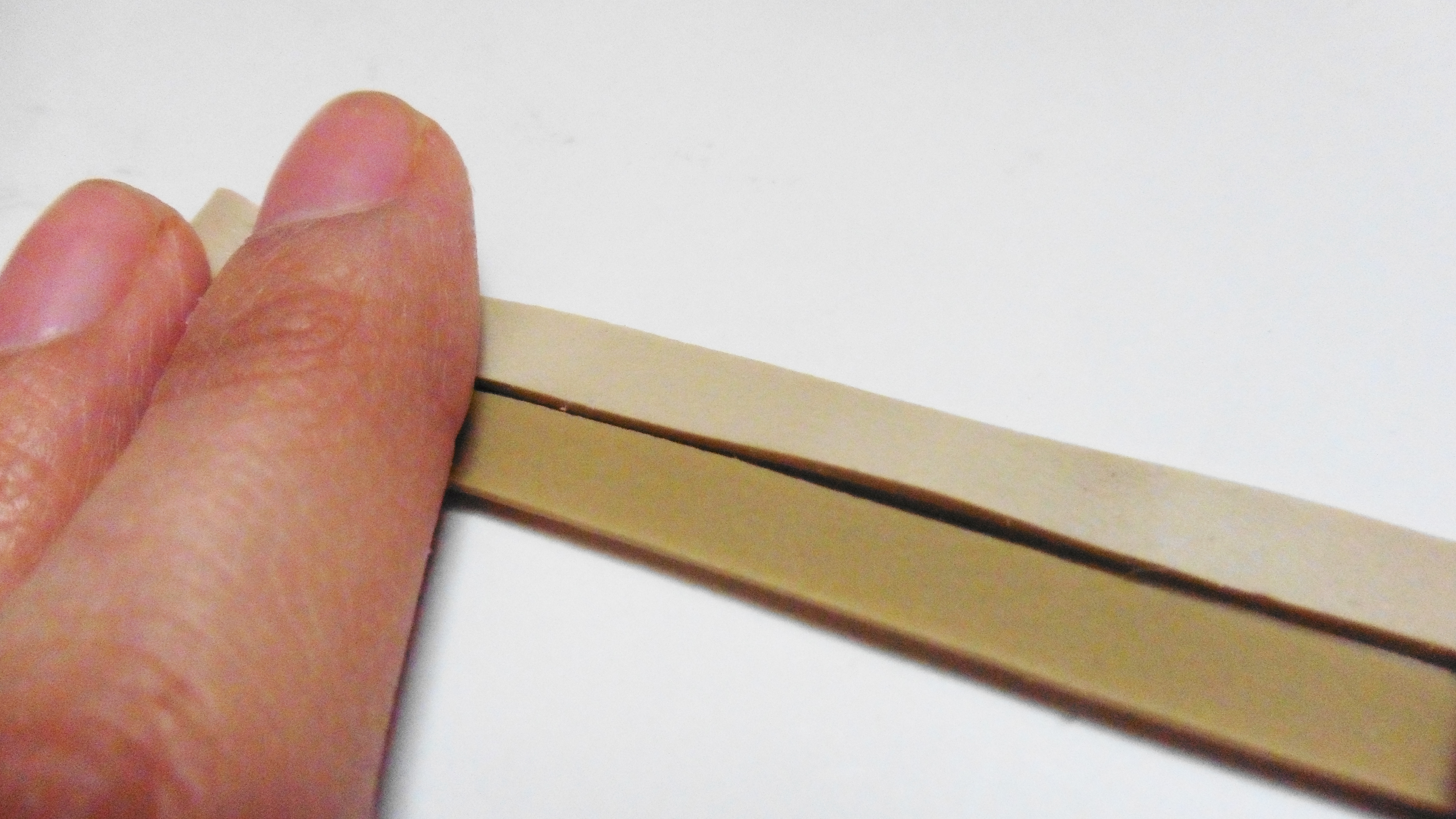

Stretch all of the rubber bands before use. When you stretch them, they should turn a lighter shade. If there are dark spots or if the color is splotchy, stretch the dark spots and they should lighten up.

Put the rubber bands on by stretching them around the top of the lamp and pulling them down to the bottom.

Bulb

P1030460 copy.jpg
P1030473 copy.jpg

Move some rubber bands aside so that you can insert the bulb. I put the bulb in before putting the rubber bands on because I didn't want to break the bulb while I was handling the lamp.

Done!

P1030489aaa copy.jpg
P1030515 copy.jpg

Arrange the rubber bands however you please!
