Rubber Band Instrument

Rubber Band Instrument

My daughter needed a rubber-band-based instrument so after some brainstorming we came up with an instrument that had the rubber bands stretched inside a PVC tube. The rubber bands are stretched between brass nails hammered into 3 x 1/4" birch wood planks. The bottom wood is fixed to the bottom of the PVC pipe. The top wood is arranged to slide upward and increases the tension on the rubber bands and increases the pitch.

1 - 36 inch length of 3 inch PVC pipe

1 - 24 inch long 3 inch x 1/4" birch board cut into two 12 inch lengths.

2 - Wood block 1 x 2" wood block; one 3" long, one 4" long

4 - Rubber Bands

4 - 1/2 inch brass nails

1 - Nylon webbing strap as needed.

1 - Optional Foot Hold; 3 inch x 1/4 inch by 8 inches long birch wood

Miscellaneous wood screws

Hot Glue

Cut the PVC pipe as shown to provide a nice opening to access the interior of the PVC pipe where the rubber bands will live!

Be careful as you cut the curve so as to not bind the saw blade. I used a band saw but a coping saw should work too.

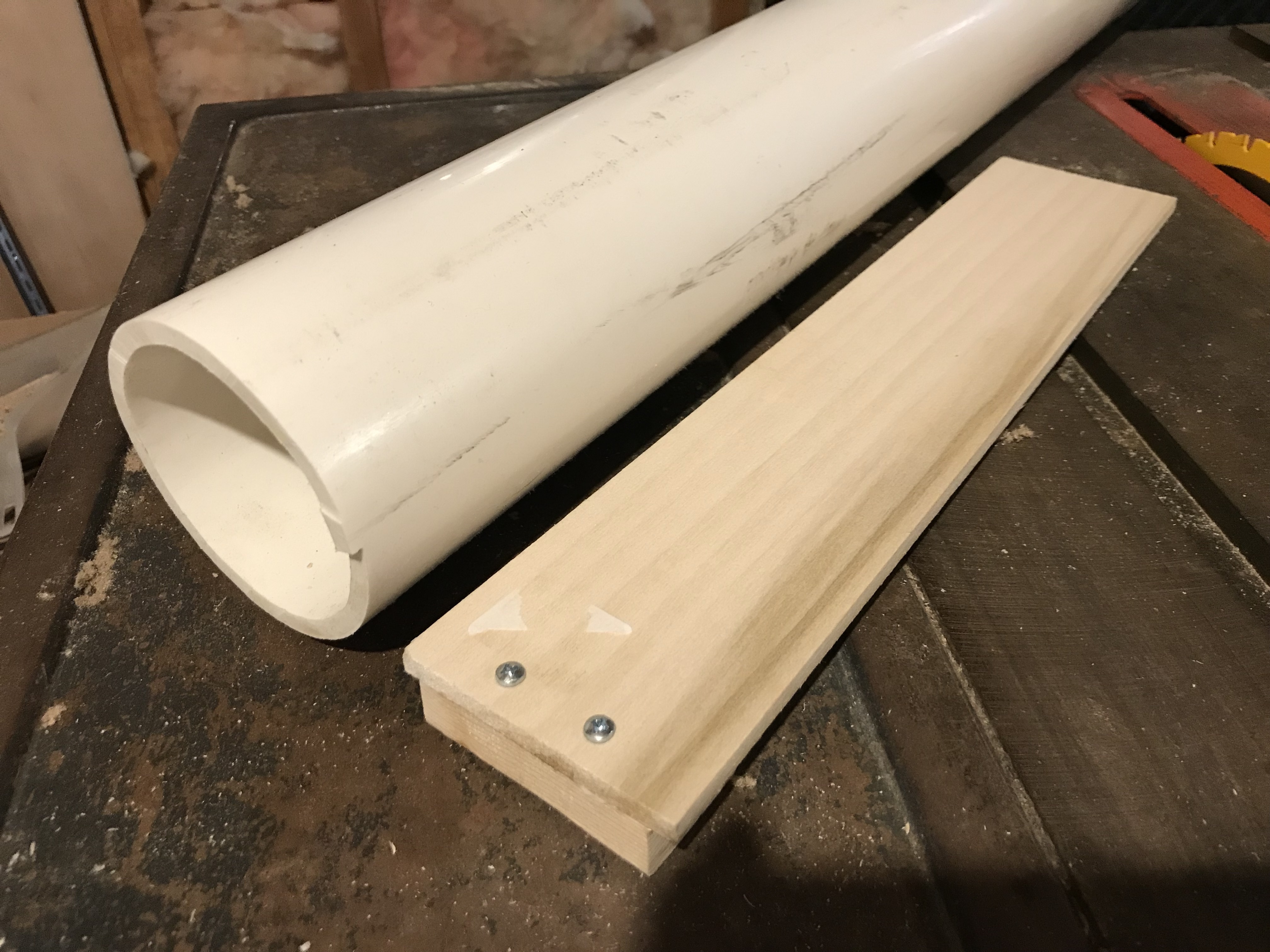

The two 3 inch wide boards slide nicely inside the PVC tube.

Blocks are glued and screwed onto the end of each of them. Drill pilot holes in the block so screws can easily pass through to board.

The bottom board has a block that is just slightly smaller in width than the board so it will fit into the PVC tube.

The top board will need to slide and will have a block that is wider than the tube (extends past the edge of the tube on both sides) so that it will not slide down into the tube, but can be pulled out of the PVC tube.

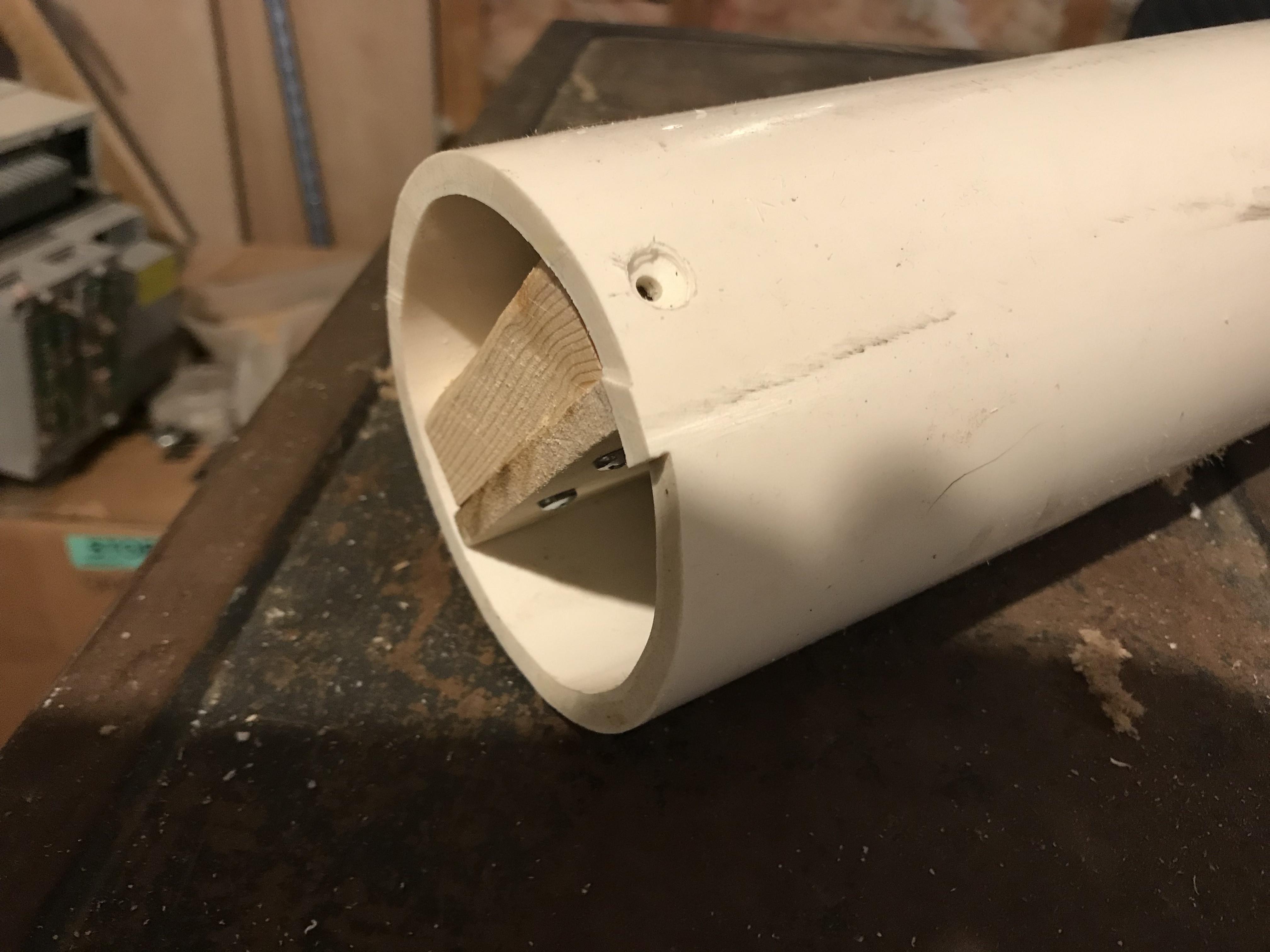

Holes are drilled through the PVC tube sides so that screws can be screwed through the PVC tube into the bottom board block to fasten the bottom board to the PVC tube. This fixes the bottom board into place inside the bottom of the PVC tube.

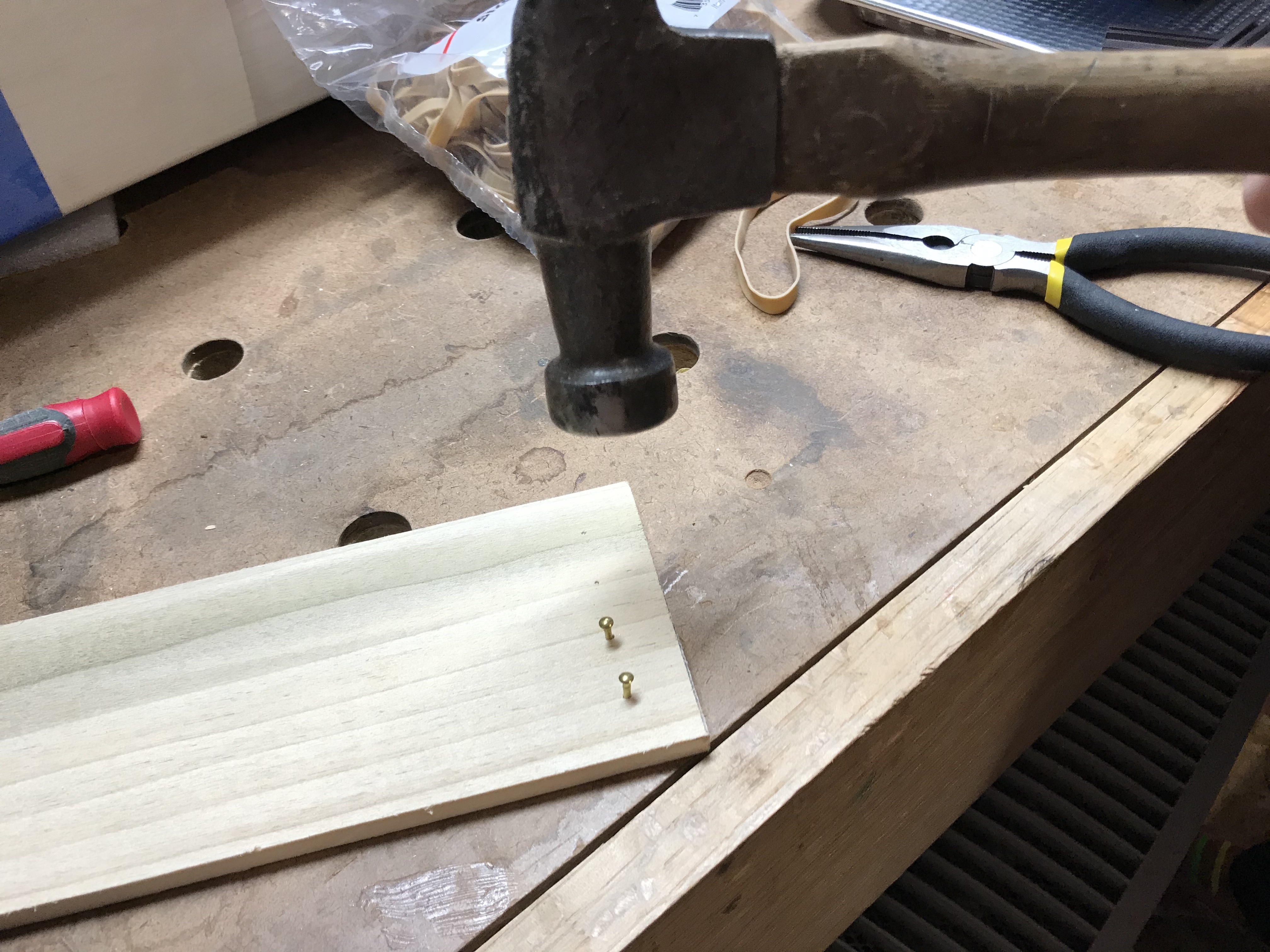

Brass nails are hammered into the top edge of the bottom board for attaching the rubber bands.

Brass Nails are hammered into the bottom edge of the top board in a staggered fashion so that the rubber bands each have a different tension and tone. Install the rubber bands between the sets of nails on the top and bottom boards.

Add the strap by measuring a suitable amount of nylon webbing. The webbing was doubled over and a screw was driven through the webbing into the PVC pipe. The point of the screw inside the PVC tube was covered with hot glue to prevent injury.

A wood foot hold was attached to the bottom of the wood block on the bottom board with screws so that the PVC tube could be held to the ground if the instrument was played sitting down.

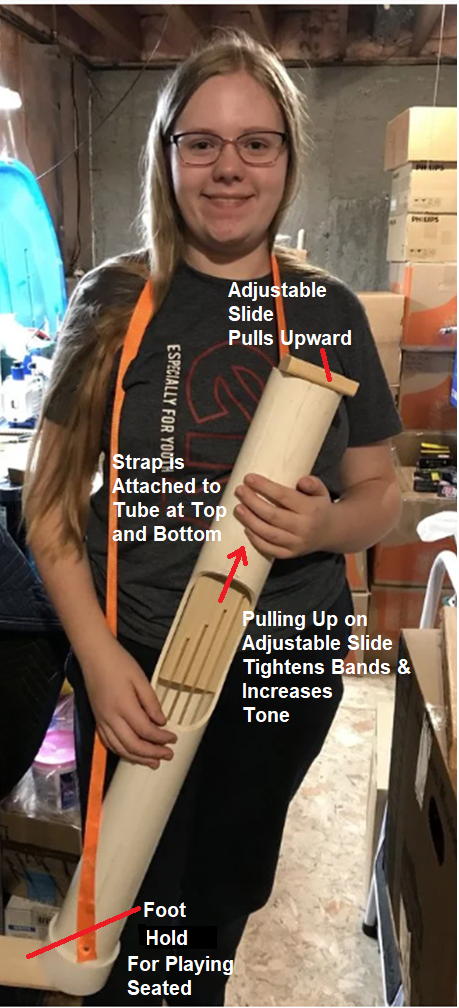

The instrument can be played standing or sitting. Pluck the rubber bands....

The tone of the rubber bands can be changed by pulling up on the top board and sliding it upward to increase the tension on the rubber bands. If you are sitting you can put your foot on the foot hold and pull up on the top board. If standing you can't really pull up on the top board so a block of wood can be inserted between the top board block of wood and the top of the PVC pipe to essentially shim the top board upward in a fixed modified-tone setting.

[In hind sight we would have made the difference in tension between each of the 4 rubber bands greater (staggered more) so that there was a more noticeable difference in tone.]
Have fun playing your rubber band instrument. Enjoy!
