Router Table / Jigsaw 45-Degree Cuts / Rip Cut Blade Guide

• In this instructable / video I will show you how to integrate router into the table / workbench and give you some tips.
• I will show you my made 45 degree cut sled and rip cut guide to get perfect perpendicular cut.
• I will show you what I made with these new accessories for my made jigsaw table.

How I made this table: https://www.instructables.com/id/DIY-SmallPortabl...

How I made first accessories for this table: https://www.instructables.com/id/Accessories-for-...

If you want to make something similar yourself here is the plans.

FREE PLANS: Workbench - http://bit.ly/SPCWorkbench

All Accessories - http://bit.ly/WorkbenchAccessoriesV2

Provided Amazon links are affiliates

Tools You'll Need:

• Router https://amzn.to/2DVXXZC
• Drill: https://amzn.to/2U5QQmL
• Large drill bit https://amzn.to/2LB5FgQ
• Jigsaw https://amzn.to/2rg4uXx
• New jigsaw blade (metabo) http://bit.ly/2FrUeFg
• Clamps https://amzn.to/2E8EBkQ
• Tape measure https://amzn.to/2rfS4Ph

Materials You'll Need:

For router fence:

• 18mm thickness plywood (local hardware store)
• Small wood screws 4x (local hardware store)
• Wood glue: https://amzn.to/2E8Baus

For 45 degree sled:

• 6mm thickness plywood (local hardware store)
• 18mm thickness plywood (local hardware store)
• Wood glue: https://amzn.to/2E8Baus
• Sandpaper https://amzn.to/2M1mUE7

For Rip cut guide:

• 18mm thickness plywood (local hardware store)
• Bolts 2x M6x50 (local hardware store)
• Clamping knobs 32mm M6 https://amzn.to/2zBBFcp
• Threaded e-nut M6 https://amzn.to/2rhZCB4
• 2x bearings 607ZZ 7x19x6 https://amzn.to/2JluuHv
• 4x M6 washers (local hardware store)
• 4x M6 nuts (local hardware store)
• Wood glue: https://amzn.to/2E8Baus

You can follow me:

• YouTube: https://www.youtube.com/channel/UCaaSGD6wIhpYZhav...
• Instagram: https://www.instagram.com/diyperspective
• Twitter: https://twitter.com/diyperspective
• Facebook: https://www.facebook.com/diyperspective

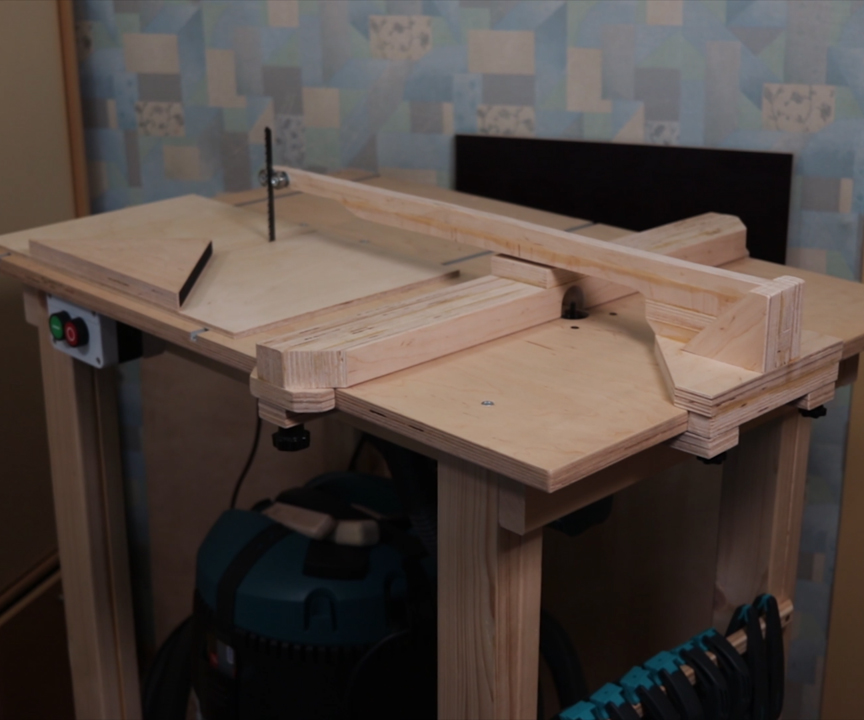

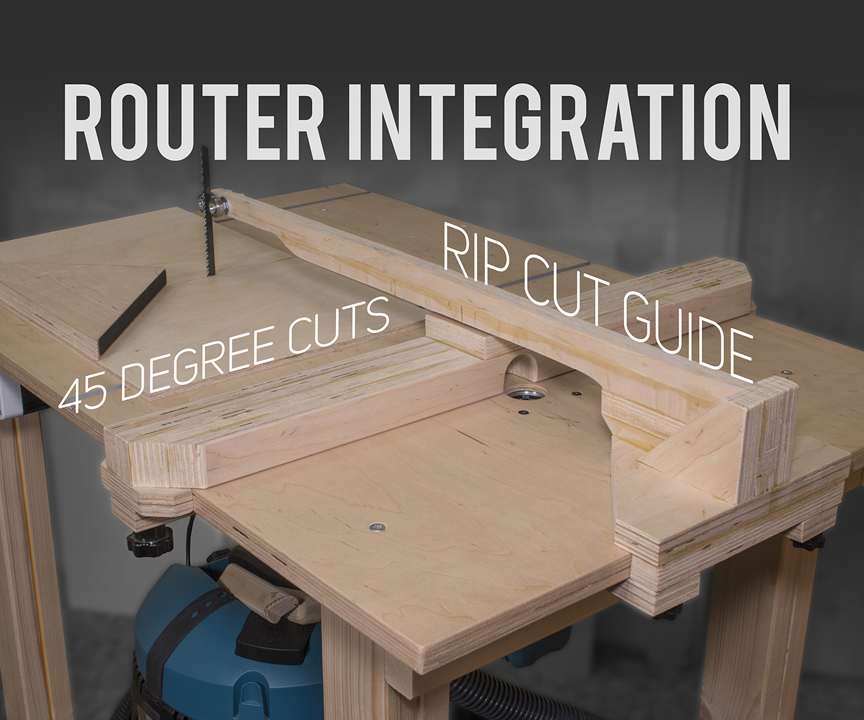

Some preview shots of the router and the fence, 45-degree sled and the rip cut blade guide.

Like what I do? Consider becoming a PATRON! This is a great way to support my work and get extra benefits! https://www.patreon.com/DIYPerspective

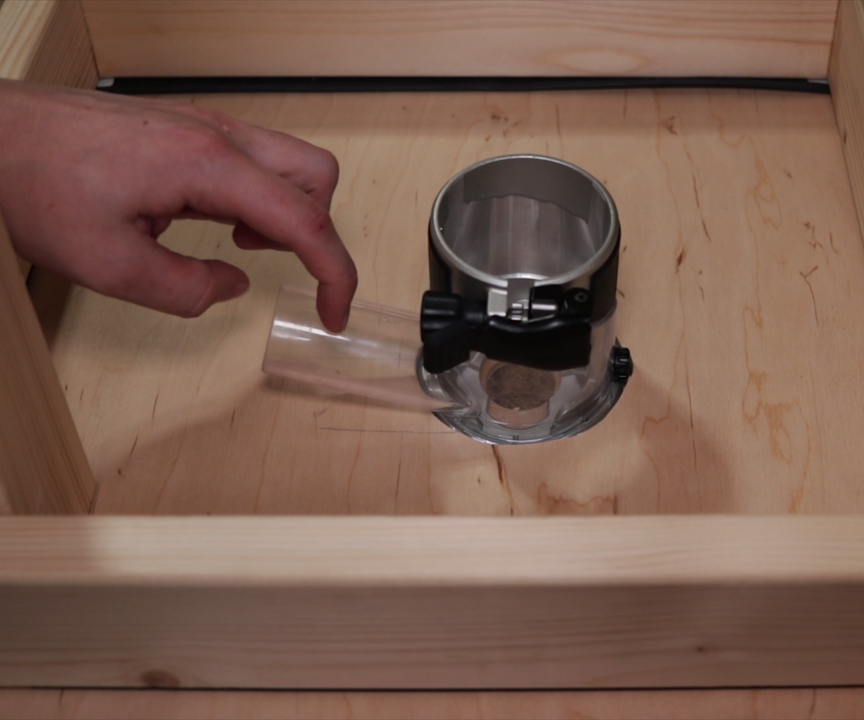

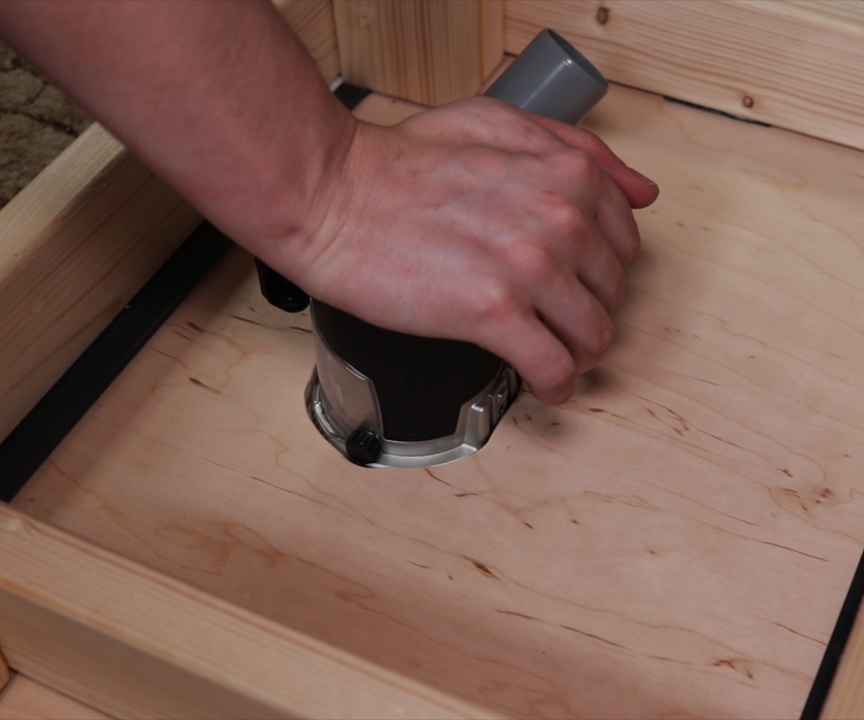

I measured, marked and drilled 3cm diameter hole where I wanted router to be. On other side of the table I marked and routed slot for the router's base to fit in.

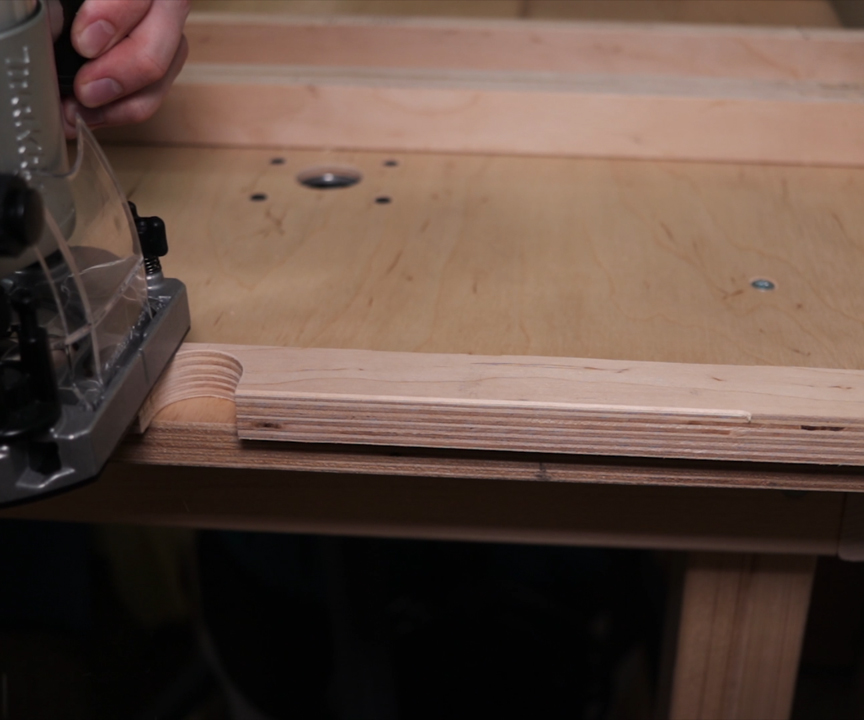

I routed until I had left, plywood thickness of around my router's base pad. Just don't forget to route some space for dust collecting parts if you will use it router not only for edge routing.

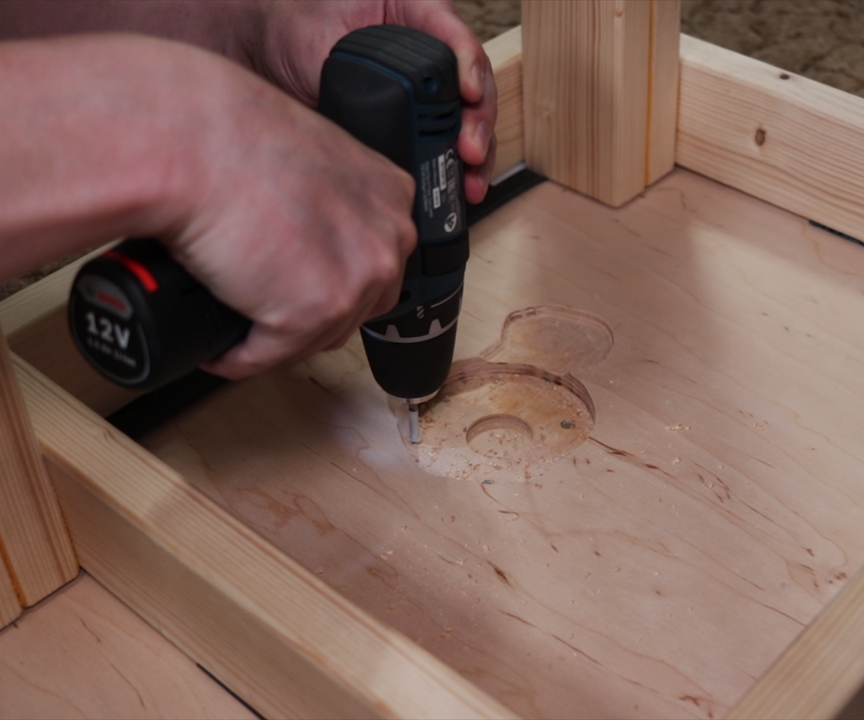

To drill holes in exact spot where those supposed to be, I screwed original bolts to the base and painted them with non-permanent marker pen.

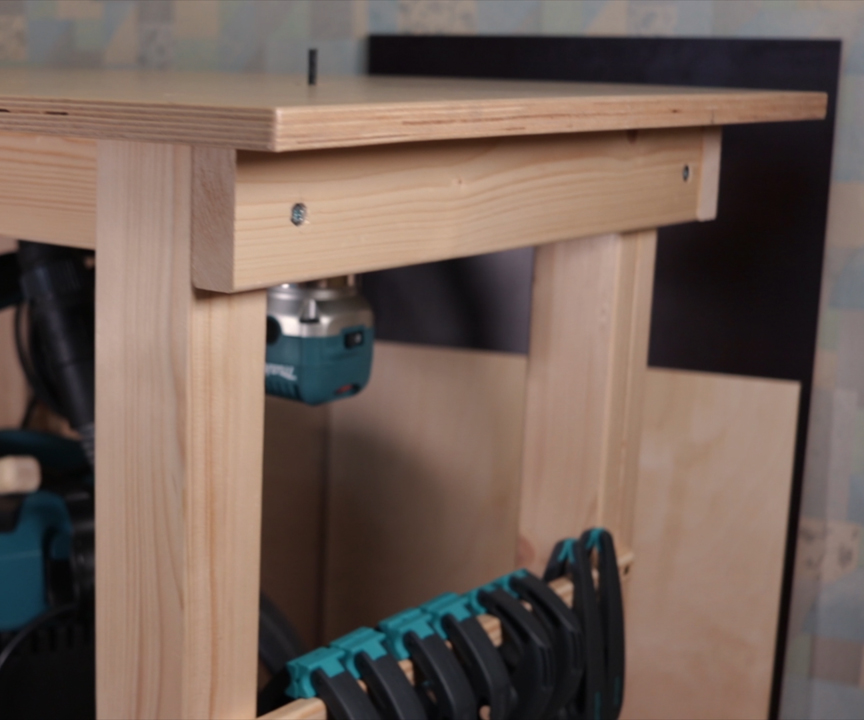

On other side of the table, I countersunk holes, and screwed bolts to the base. I mounted router that it would be facing side of the table and not the front. This way I can slightly modify my rip fence to get router fence as well (2 in 1).

So to do that I ripped two plywood strips of length as my rip fence.

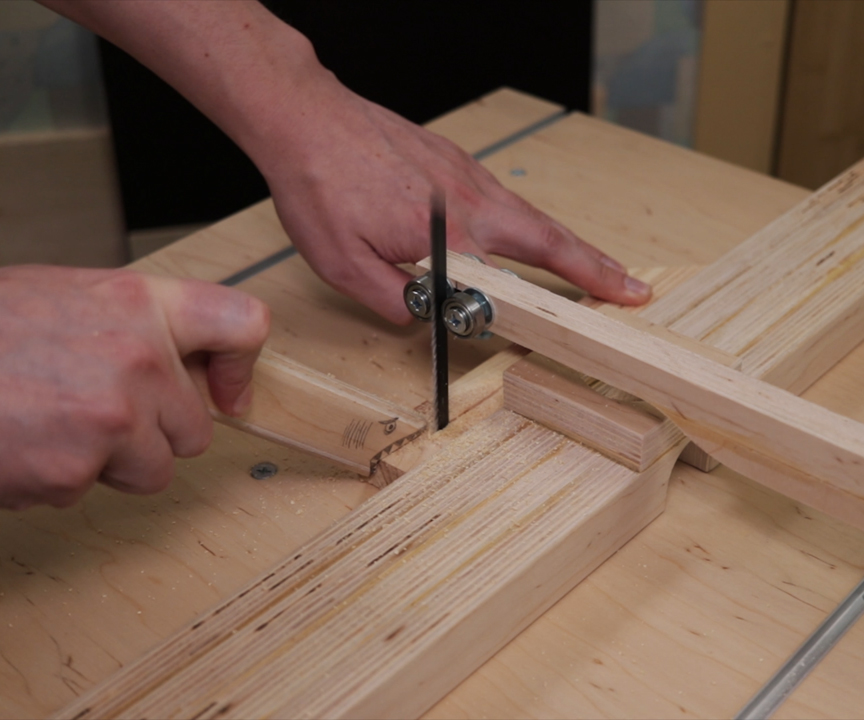

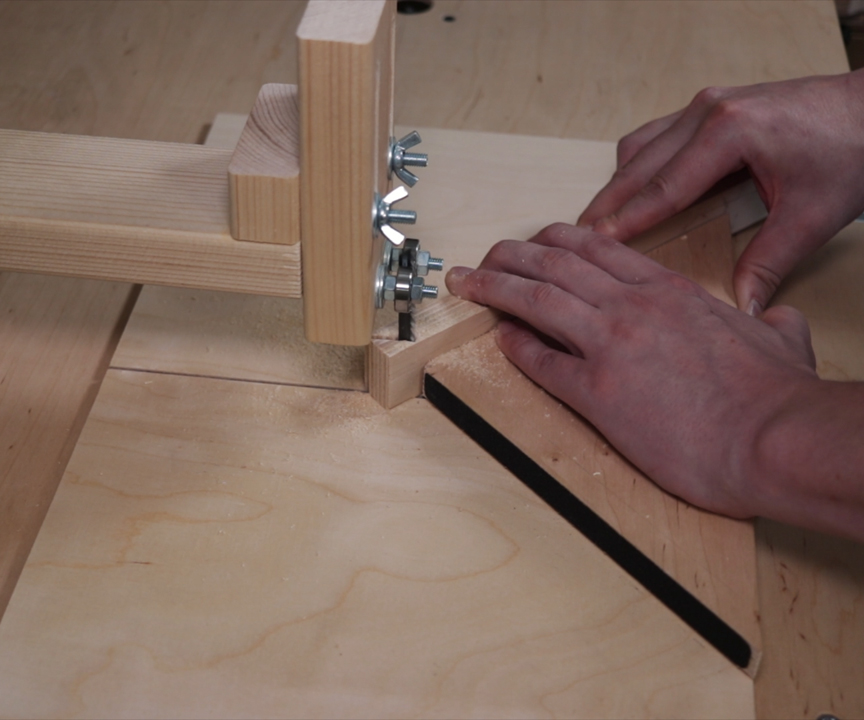

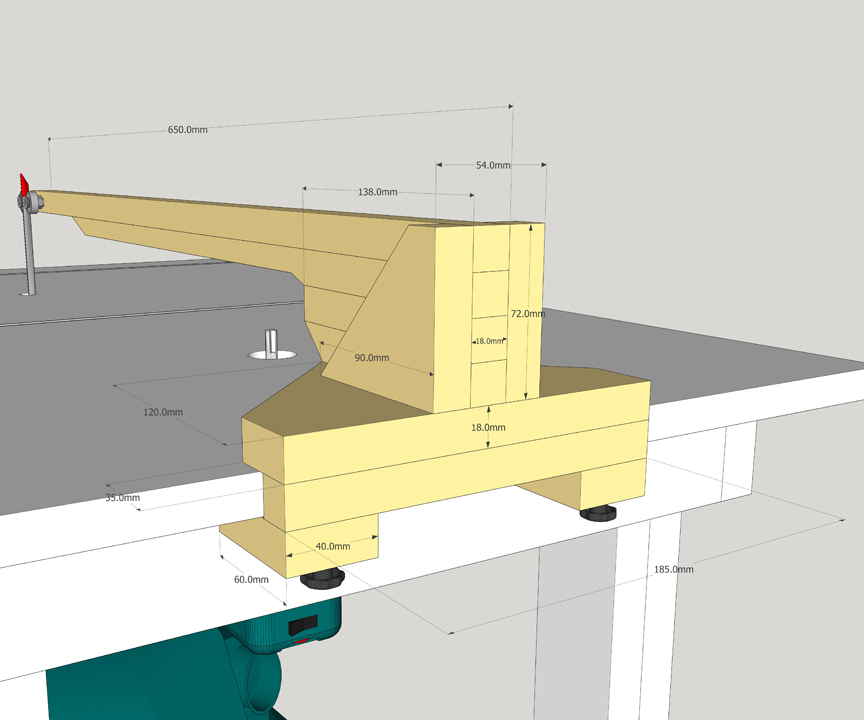

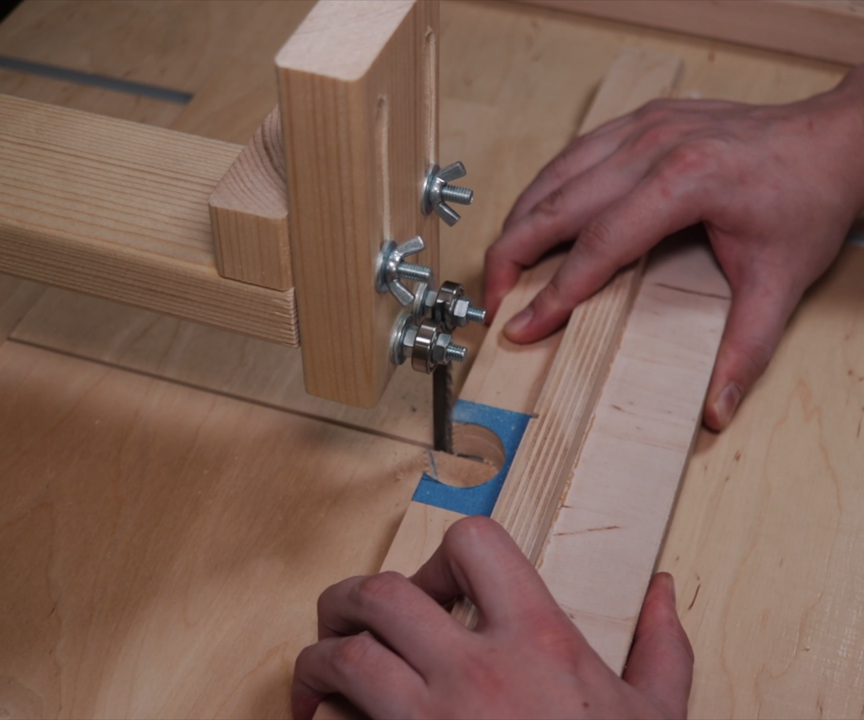

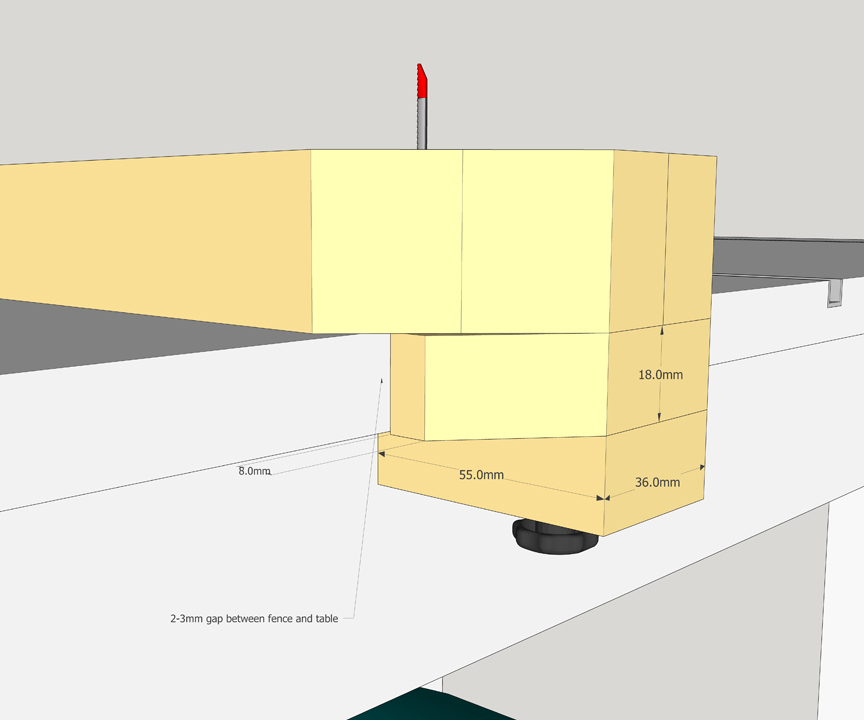

To make rip cuts even more accurate, I made this blade guide. It uses same locking system as my rip fence (https://www.instructables.com/id/Accessories-for-W...).

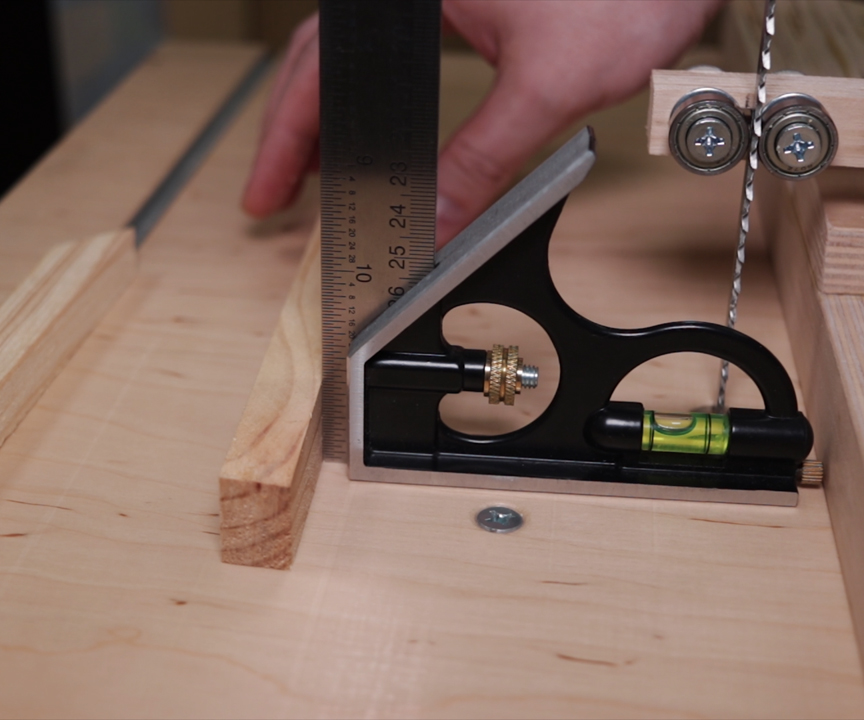

Just make sure your jigsaw doesn't produce too much vibration for this guide to work. I am running my jigsaw at 5/6 speed to get lowest vibrations with fast cutting speed.

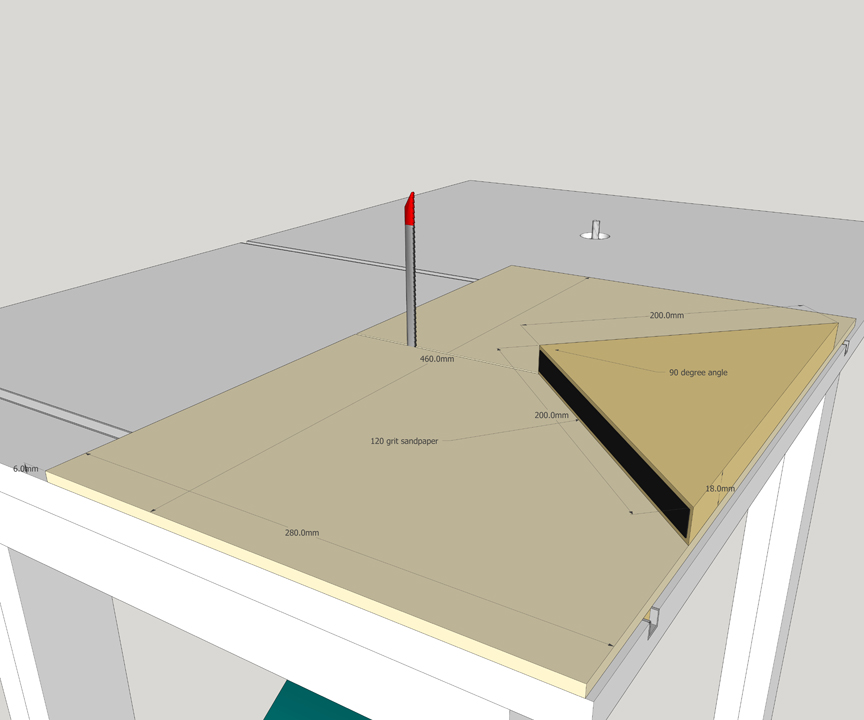

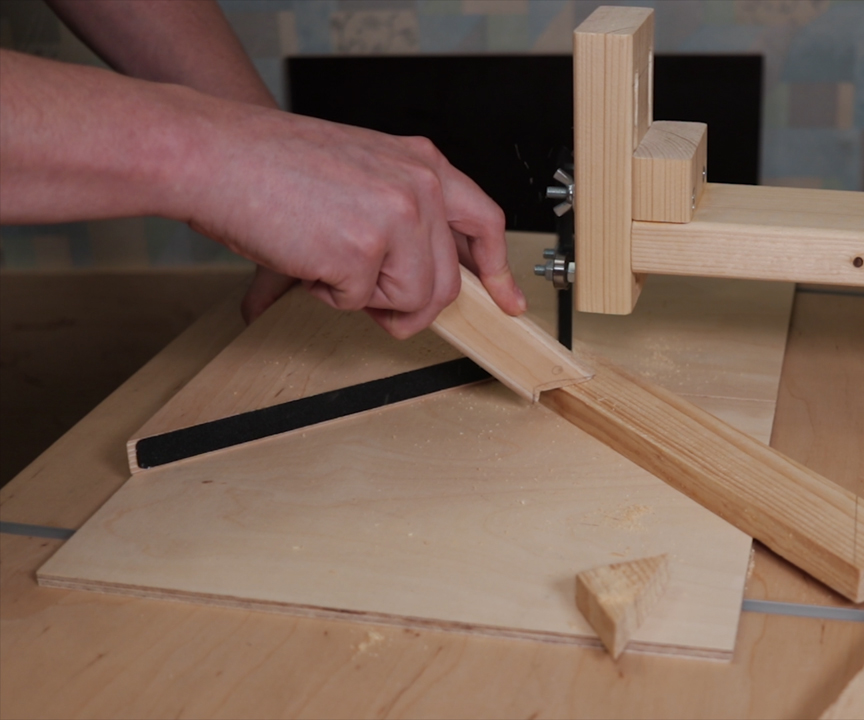

I cut ends of those previously ripped strips with my 45-degree cut sled. It is basically same sled as I made before (https://www.instructables.com/id/Accessories-for-W...), but this has screwed triangle and glued 120 grid sandpaper on the sides.

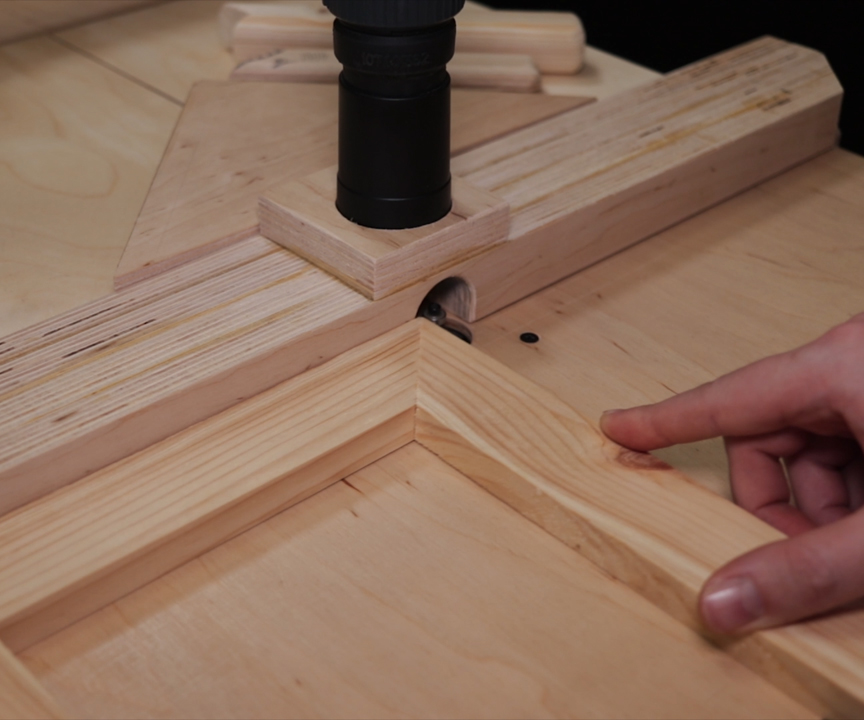

One of the ultimate ways to test if you getting accurate 45 degree cuts is to make picture frame. And in my case this sled makes very precise cuts, considering this is jigsaw.

This is what final result of the fence should look like.

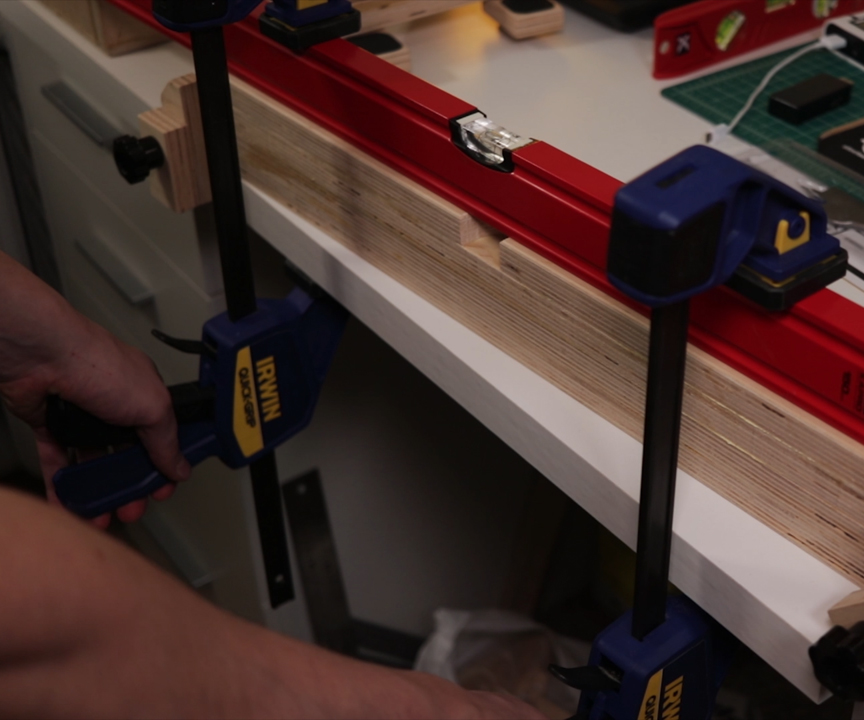

So to get that result, I drilled 3 cm diameter hole into the front of the one of previously ripped strip, cut ends, and chamfered bottom of the strip to prevent dust buildup. Finally, I glued both strips to the fence.

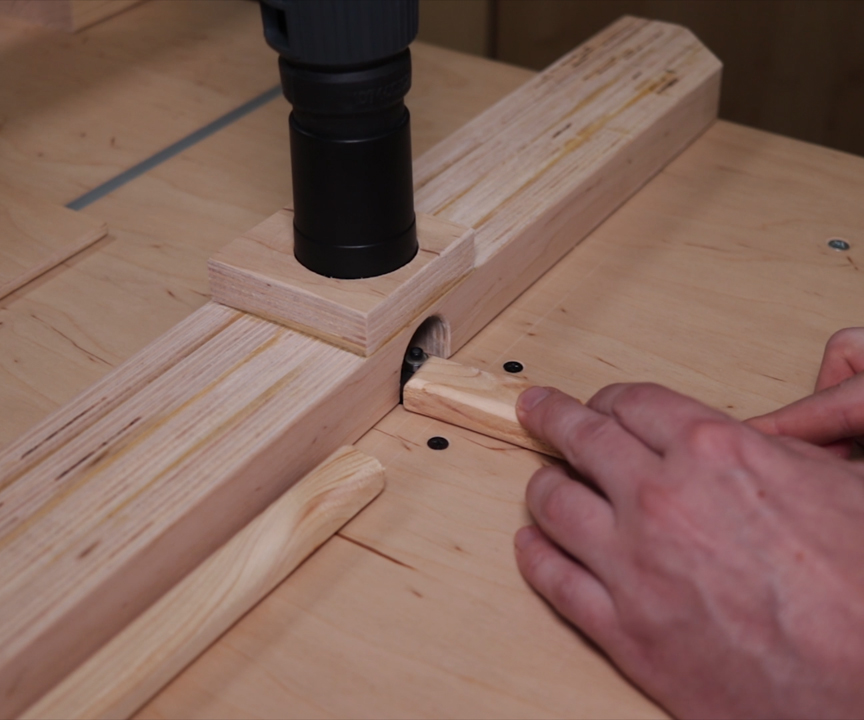

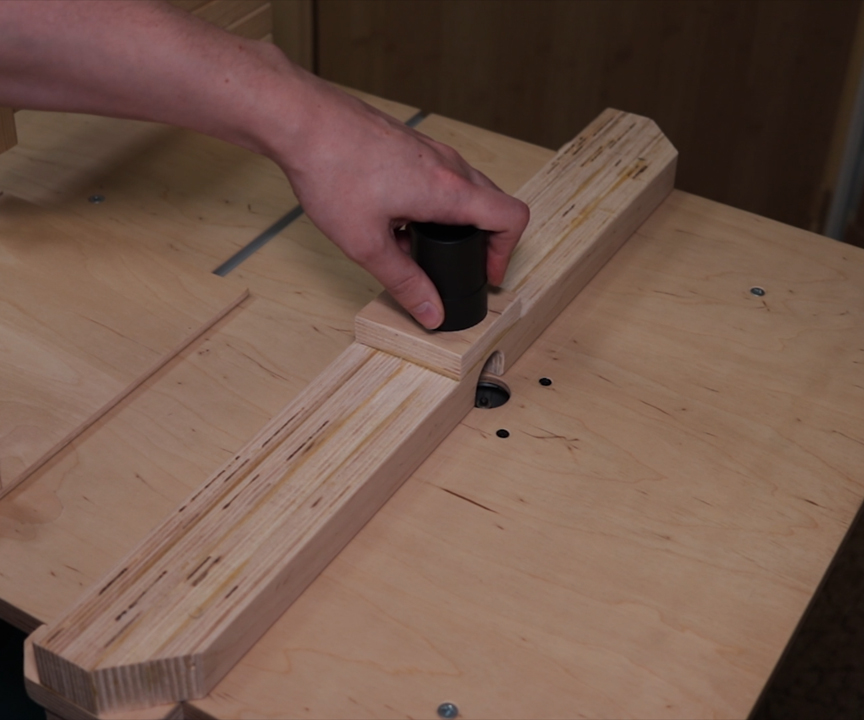

I cut square piece from the same plywood with a hole in it and glued it on top of the fence. This piece will give rigidity and will serve as the place for the vacuum's adapter when edge routing.

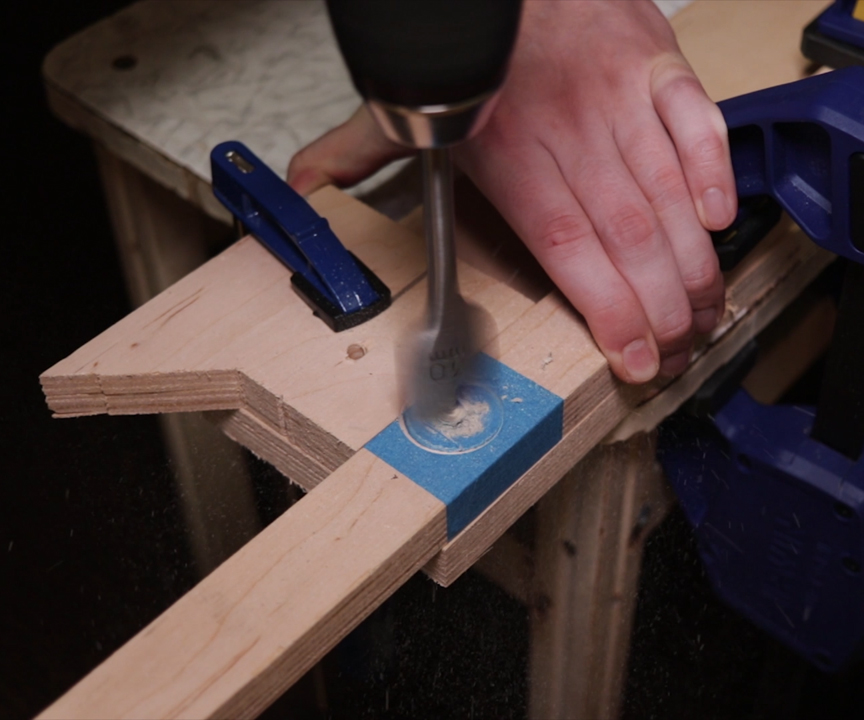

I clamped and drilled hole from the top of the fence with a 3 cm diameter spade drill bit and then I sanded inside.

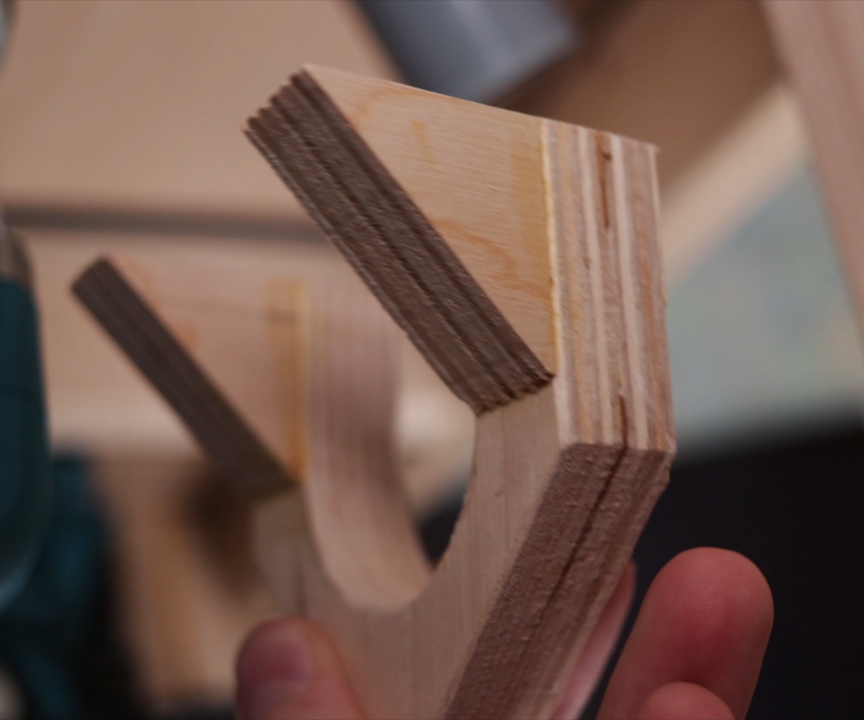

To hold dust collection adapter, I made this simple bracket, nothing fancy.

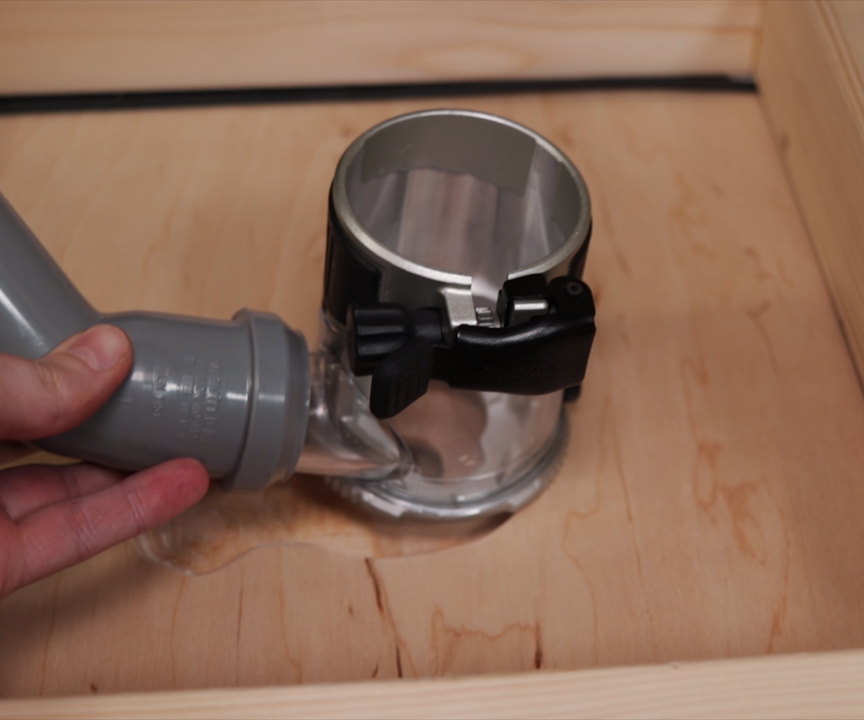

I plug my vacuum, then I plug the router into the vacuum and select that vacuum turn on when I turn on the tool. And that's it, I now can start routing.

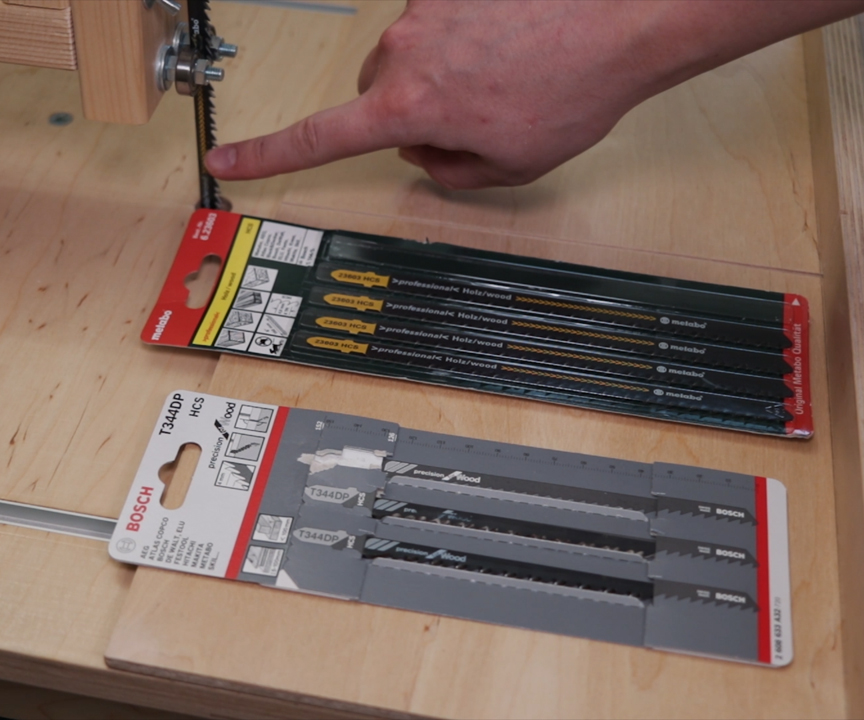

I also updated my jigsaw blade from Bosch T344DP to metabo wood professional 150/4.0 mm (623603000).

Link if you care: http://bit.ly/2FrUeFg

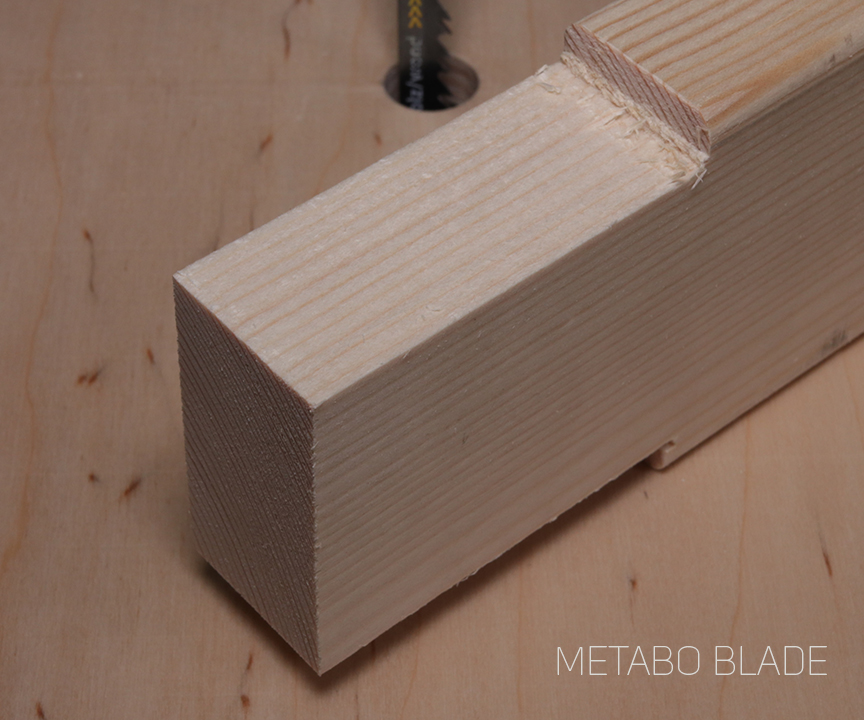

Cutting results in the pictures.

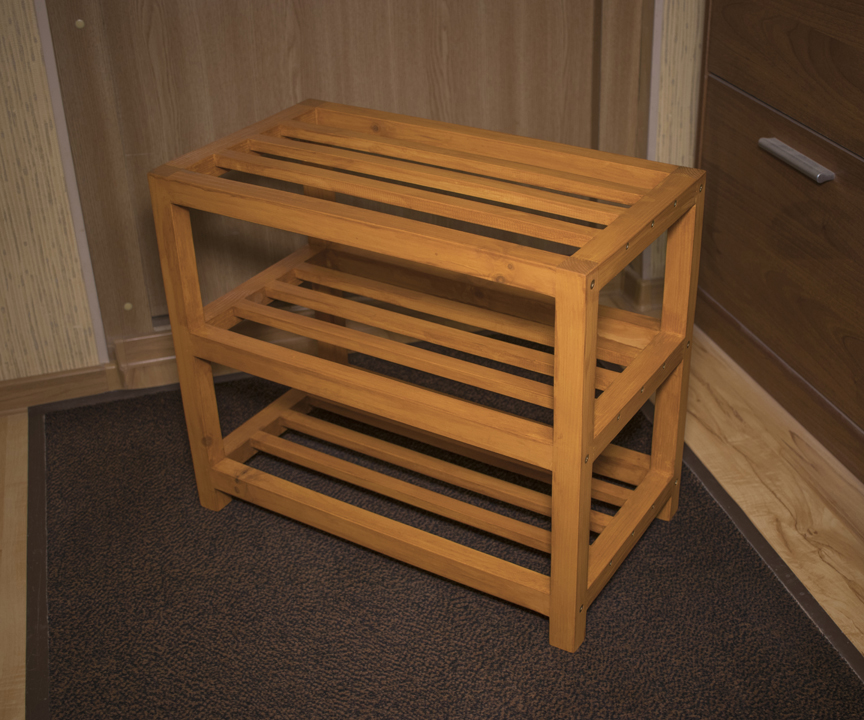

With that new jigsaw bade I made this simple shoe shelf. Had a blast making it, except sanding ha ha!

And that's it - the build / mod is finished!
I hope this instructable / video was useful and informative. If you liked it, you can support me by liking this Instructable / YouTube video and subscribing for more future content. That means a lot! Feel free to leave any questions about this build. Thank you, for reading / watching! Till next time! :)
