Rotating Lamp Cover
I made a interactive rotating fabric lamp cover which you can also move it up and down.
Supplies
Hardware:
3D printer at least 15cm*15cm*15cm
TPU and PLA
textile that can be bounced with TPU
heat press machine
scissors that can cut fabric
adhension
a round lamp with a hole at center which diamater is smaller than 13cm
Software:
Fusion 360
Ultimaker Cura

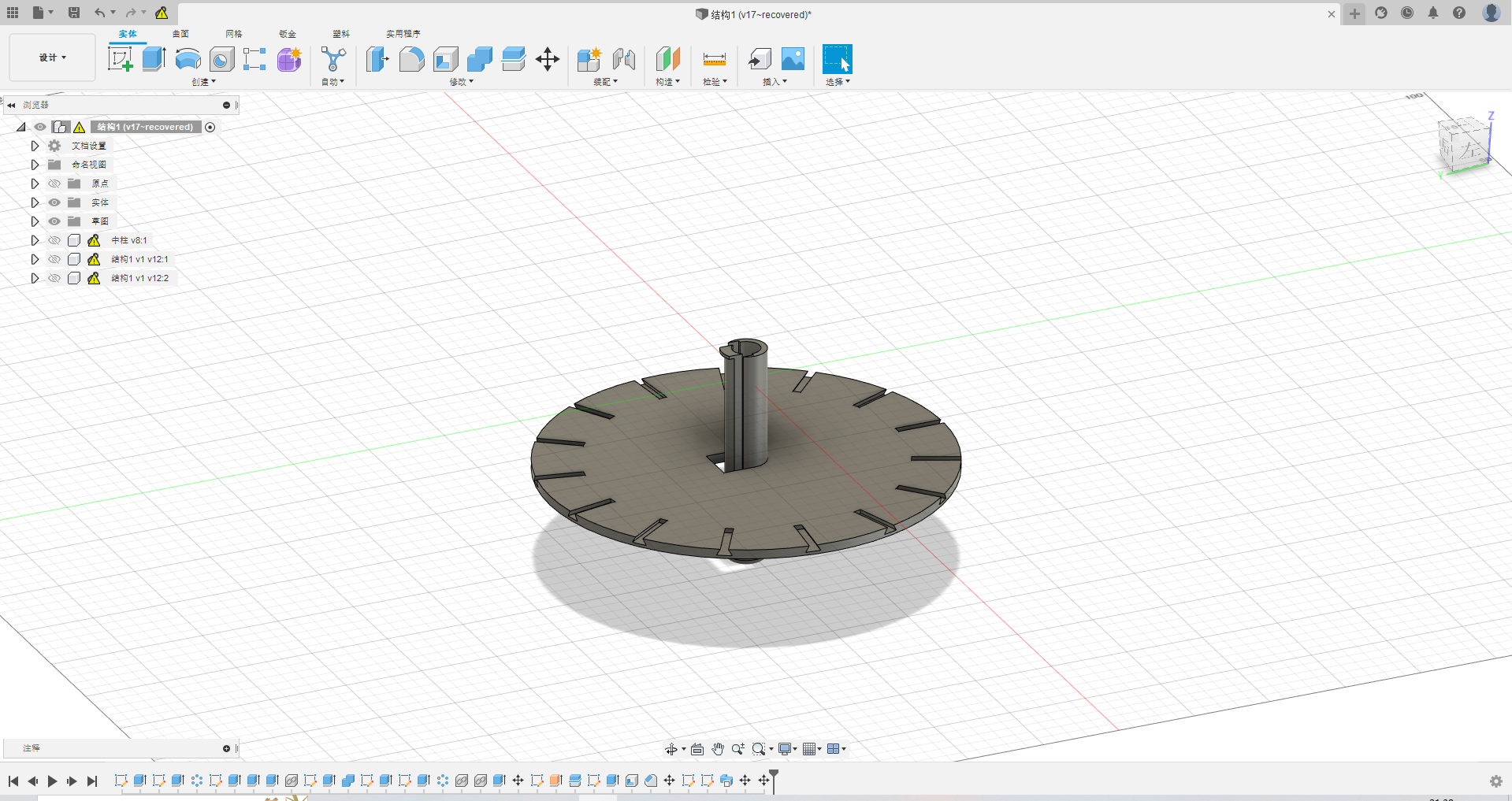

Print the PLA Parts
download our f3z file and export as stl file , then slice in Ultimaker Cura and print them
Print TPU Parts
download our f3d files and export as stl files, then slice in Cura and print 15 parts for each file(30 in total)
Cut Fabric
Cut 15 pieces of 3mm*150mm elastic fabric
Heat Press Fabric and TPU Parts
The 2mm*3mm adhension is between the TPU and the cloth, and the ends of each cloth are connected with a large TPU part and a small TPU part respectively, with the cloth on the top and the TPU on the bottom, 280 degrees heat press for 10 seconds. Repeat this process for 15 times.
Assemble Step 1
Pass the Top part through the hole in the middle of the lamp
Assemble Step 2
2.Slide the end of the fabric connected to the larger TPU part into the groove of the bottom part and repeat 15 times
Assemble Step 3
3.Pinch the place of the bottom part that is shown in the image 3 and insert the middle column of the bottom part into the column of the Top part.
Assemble Step 4
Slide the TPU parts at the other end of the fabric into the grooves of the Top part
