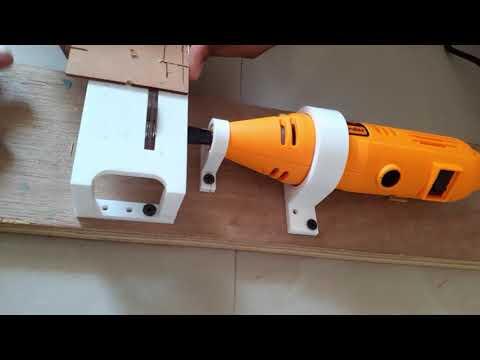

Perfect Straight Cutting Table

This Project is designed to cut material easy and safer way.

Use of rotary tool without any safety cause problem while cutting.

I have an INGCO rotary tool for Cutting small Wooden pieces and remove a small amount of material.

So, I make the design of a small Cutting table that uses a Rotary Tool for precise cutting Material Straight and safely.

Collect all supplies and Start Making.

• Rotary Tool(Dremel or any Rotary Grinder)
• Rotary tool Cutting Accessories
• Vernier Caliper for measure Diameter
• PC For design part in Tinkercad or Fusion360.
• 3D Printer access
• Some ½’’ Phillip head Screw & Screwdriver

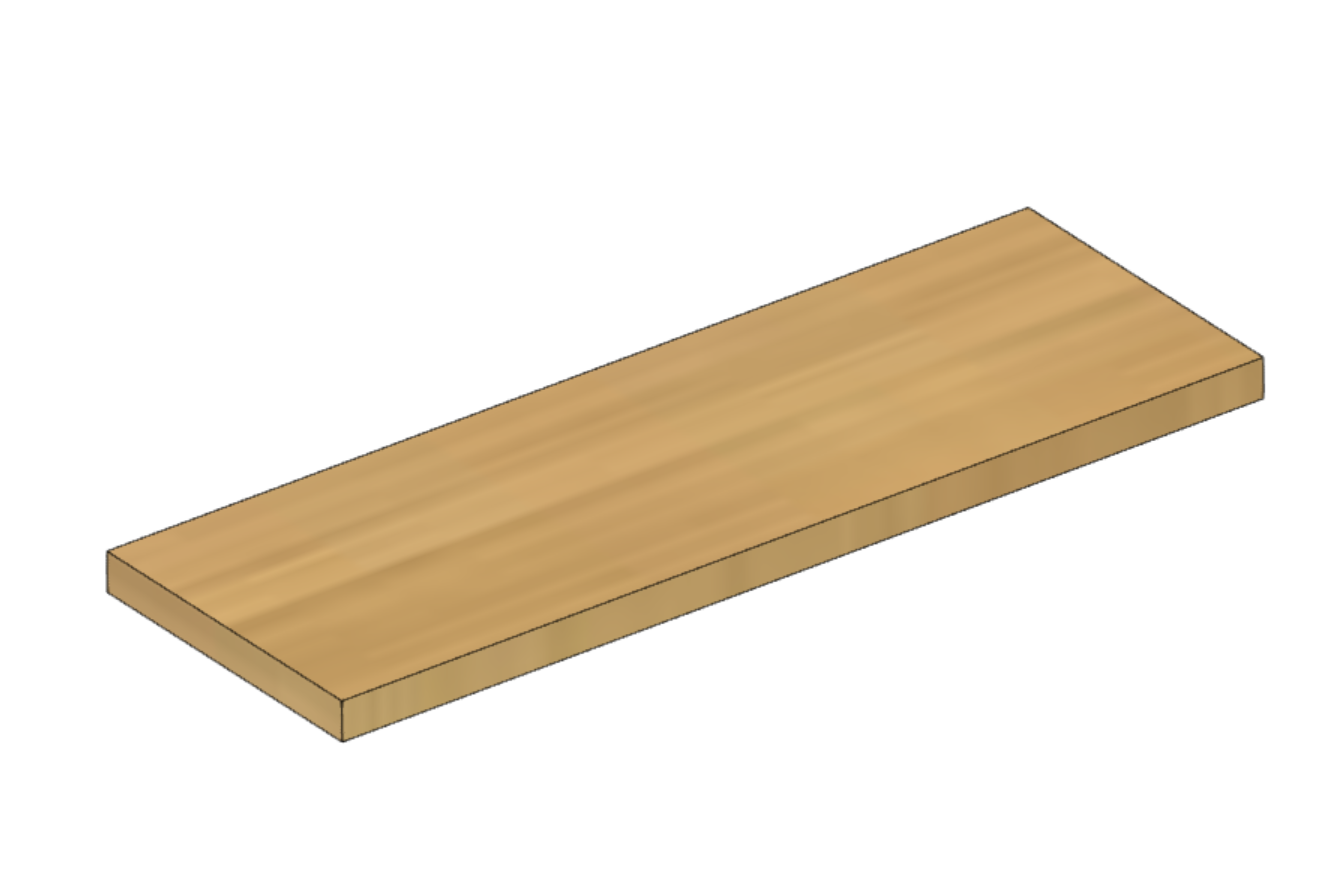

• Rough Plywood Board.

• Start your computer and design your part Using Tinkercad.
• I use the INGCO Rotary tool to make this project.
• You can Buy it on Amazon for $50.
• The first measure Diameter of thread on top is around 22mm and the diameter of the center Round part is 48.5 mm.
• According to your Rotary tool Measure it and make a clamp design to fix the rotary tool on Board.

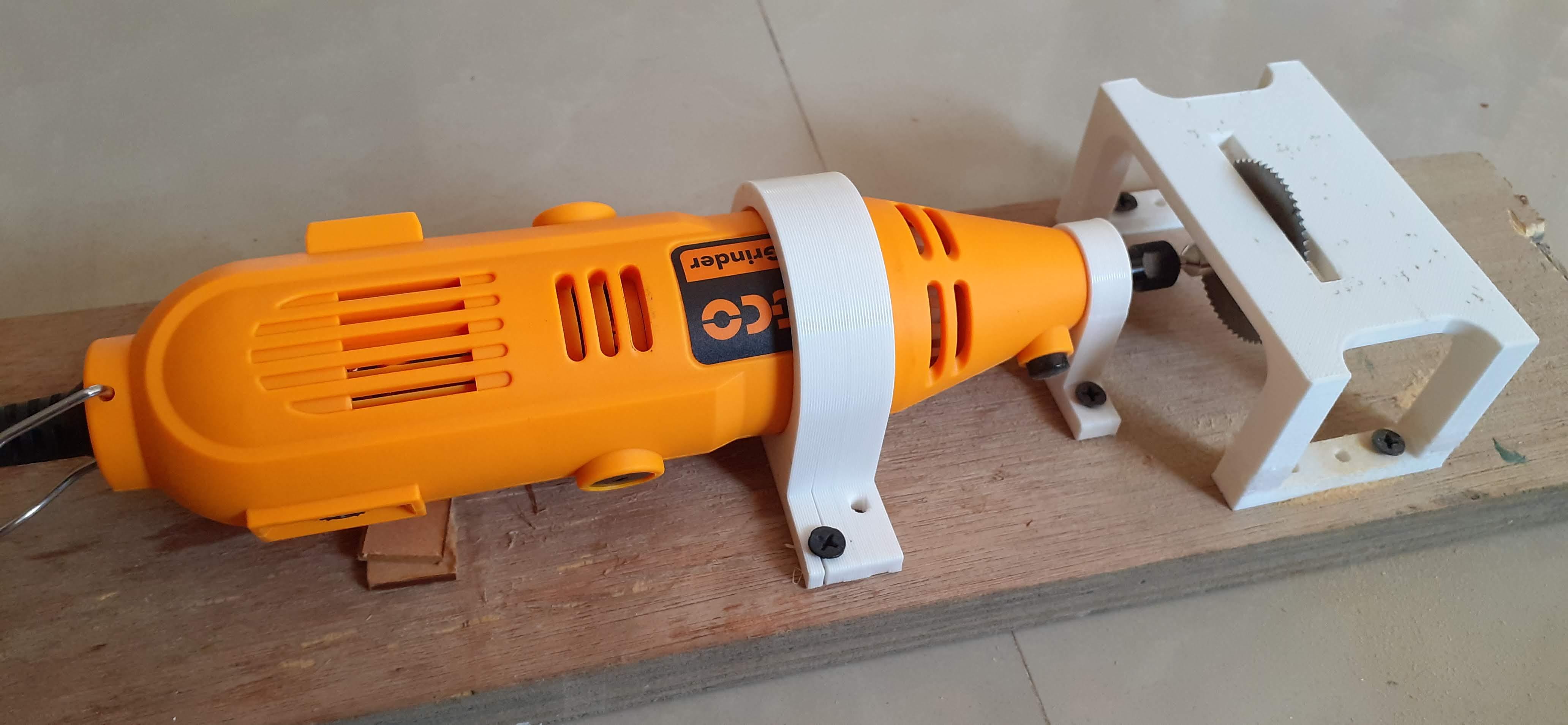

As in Image

1> INGCO Mini Grinder Rotary Tool.

2> Big Clamp To Fix tool From the center

3> Small Clamp to fix tool from the front

4> cutting Table to place material and Cut.

• Check out my design and use it if you have the same Rotary tool.
• Else make your own design Like mine with different dimensions and Export design for 3d printing.

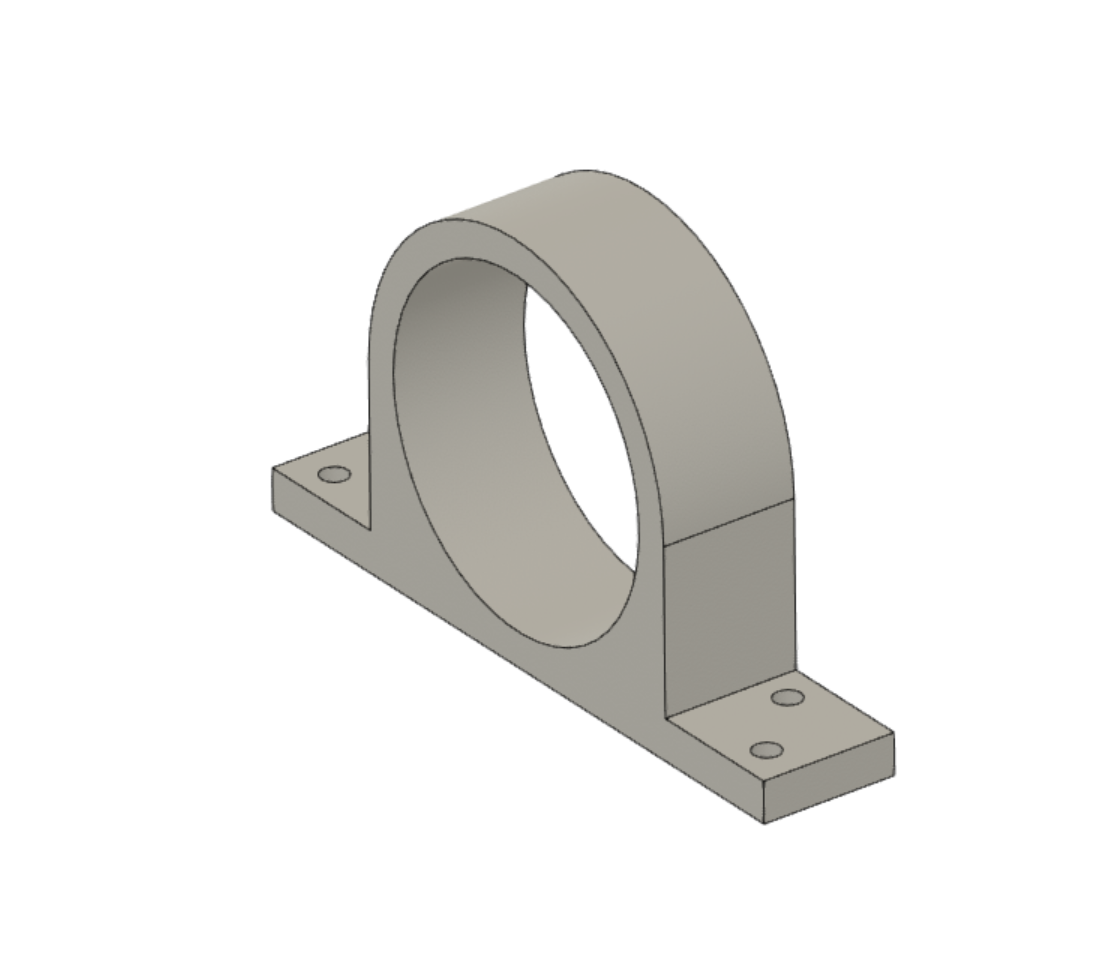

• Make the design of small and Big Clamp to fix the Rotary tool on Board.

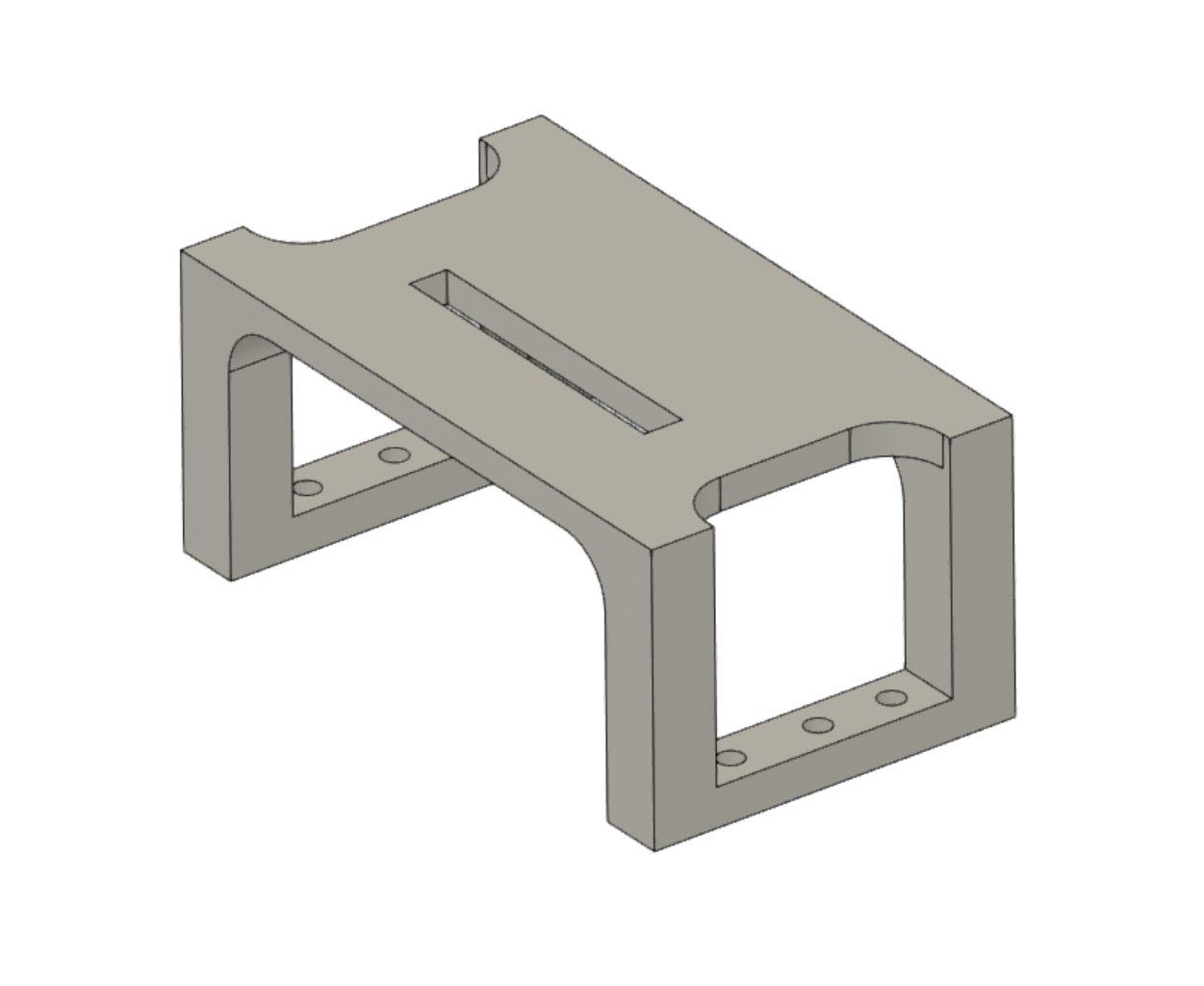

• Make a Rotary table design for insert cutting blade on fix height.
• Export.STL File and Use Slicer to make a 3d printable file for your printer.

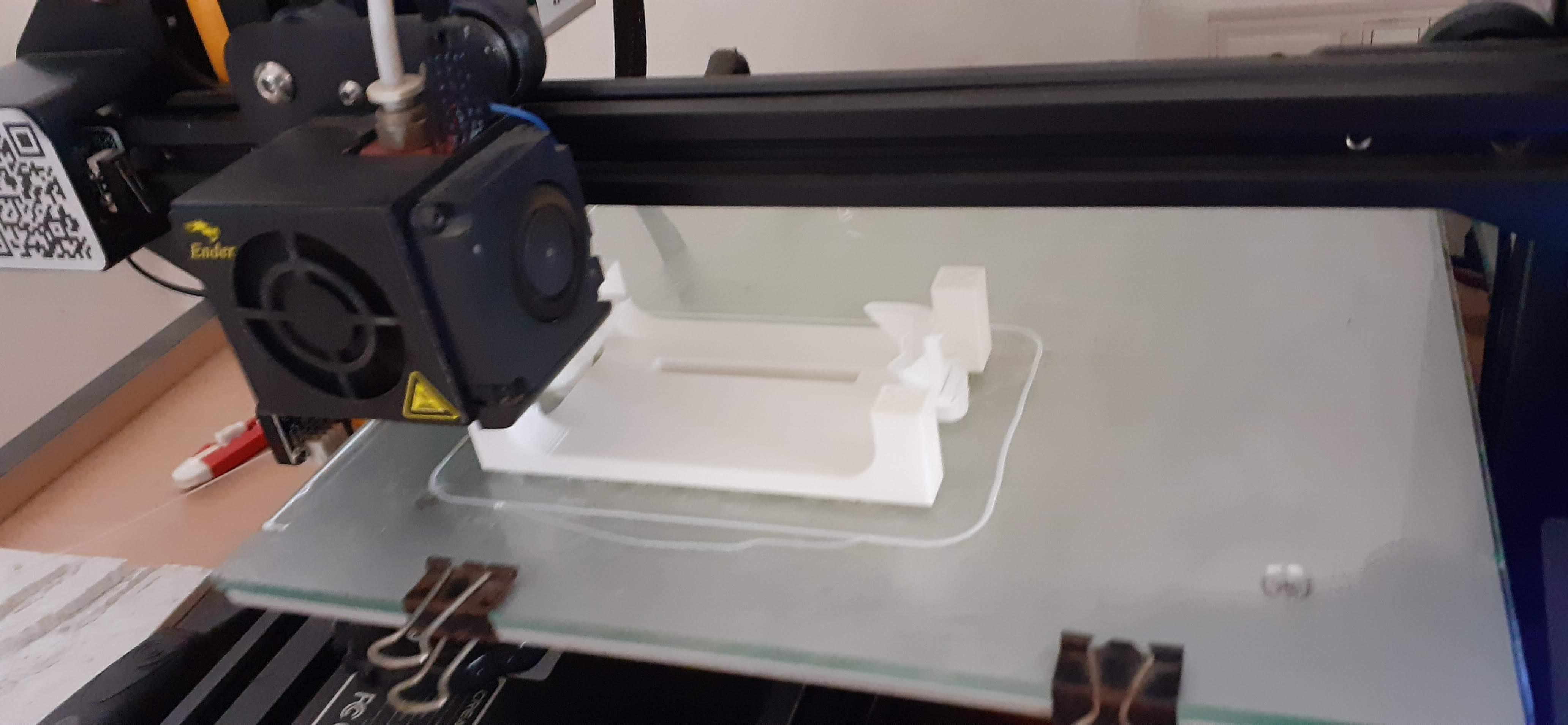

• 3D Print your file.

• Use Below 3D printing Setting for Good Parts.

• Nozzle: 0.4mm
• Layer height: 0.2 mm
• Infill: 20 %
• Support: Enable
• Speed : 45 mm/sec
• Adhesion:Brim

• Use ½’’ Phillip head Screw to fix clamps and Rotary Table on Board using Screwdriver as shown in Image.
• Maintain distance for Rigid Connection.
• Insert Rotary tool n clamp and connect Cutting blade. Connect the Dremel plug and start electricity and test rotation of the tool.

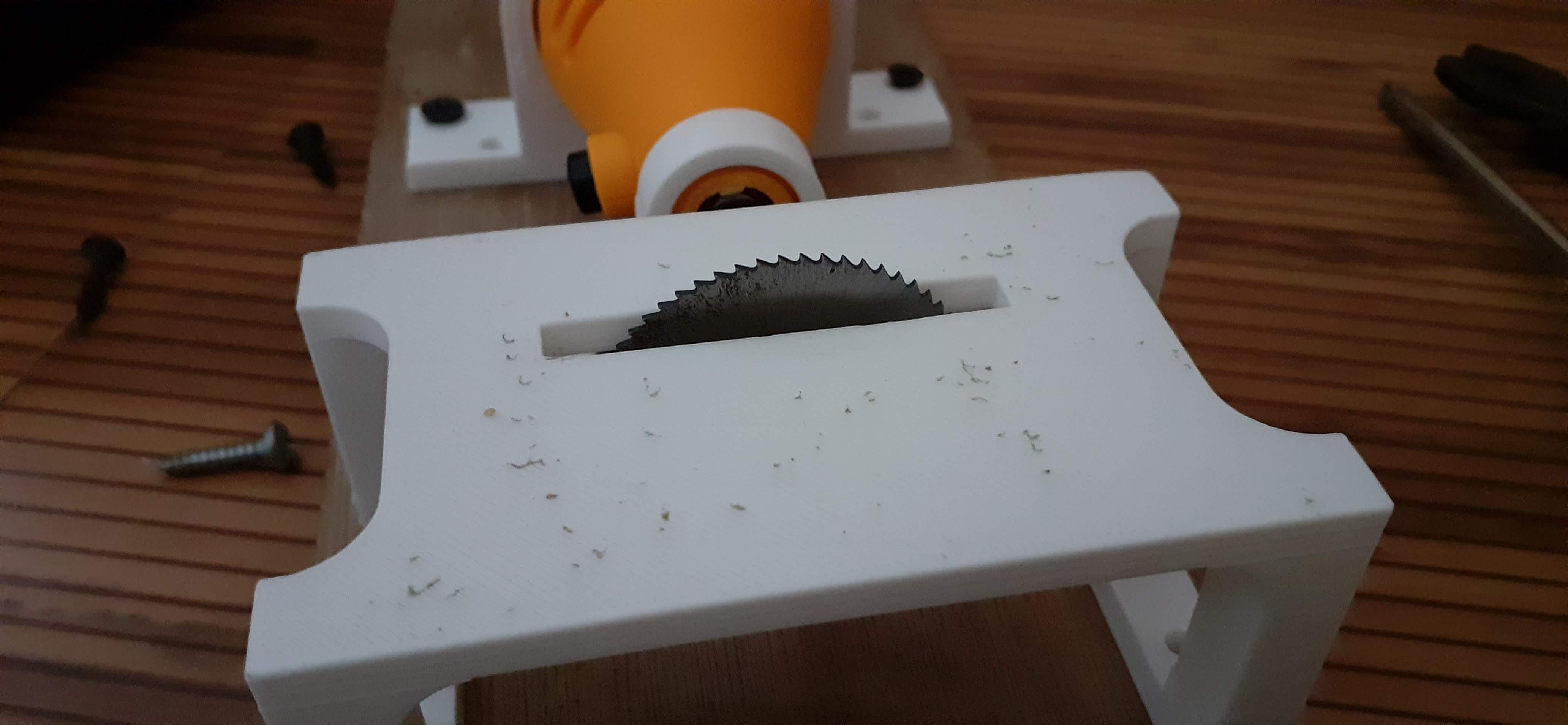

• You can change various diameter blades According to Use.

After all, set “Double check Clamp Rigidity of clamp and tool”.

• Select cutting material Like 2-5mm MDF, Acrylic sheet, Wooden piece, etc.
• Start the Rotary tool and Move your Cutting material Slowly toward the blade to cut it.
• Check out my Making on youtube.
• https://youtu.be/xDogYobUQII
• Enjoy making.
