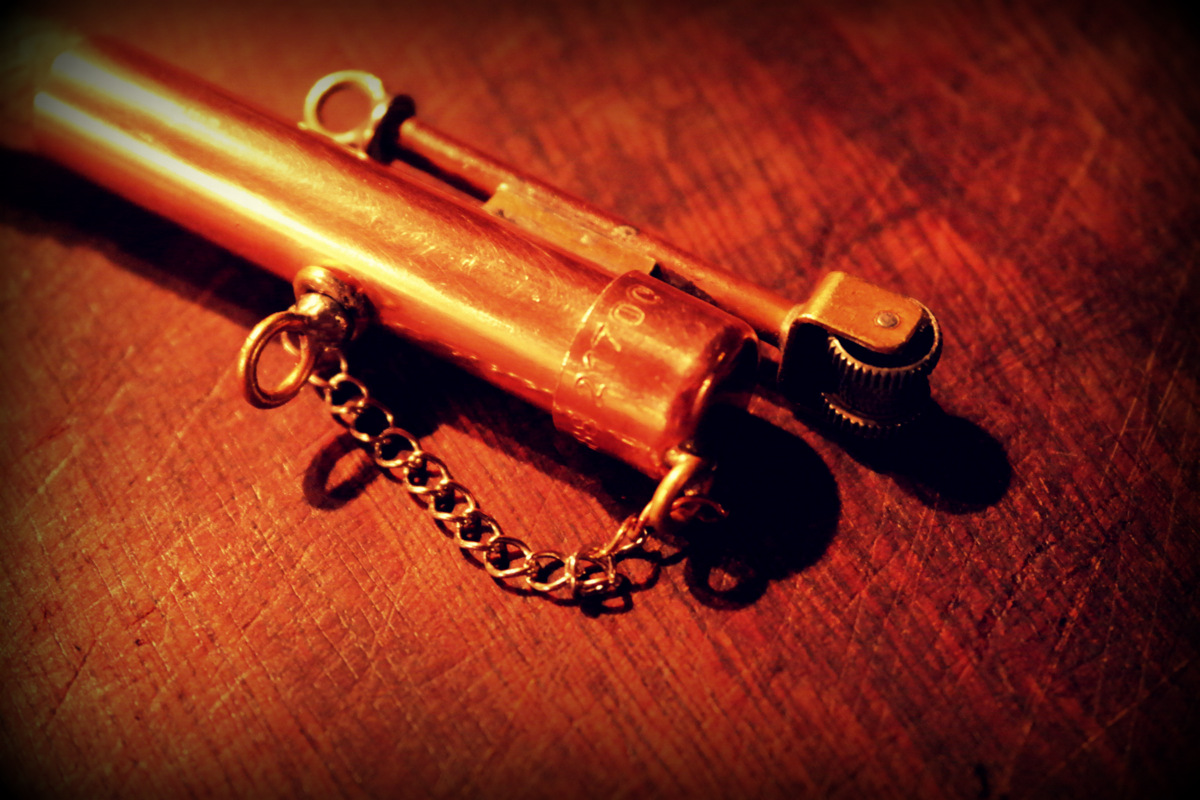

Rope Lighter (Windproof)

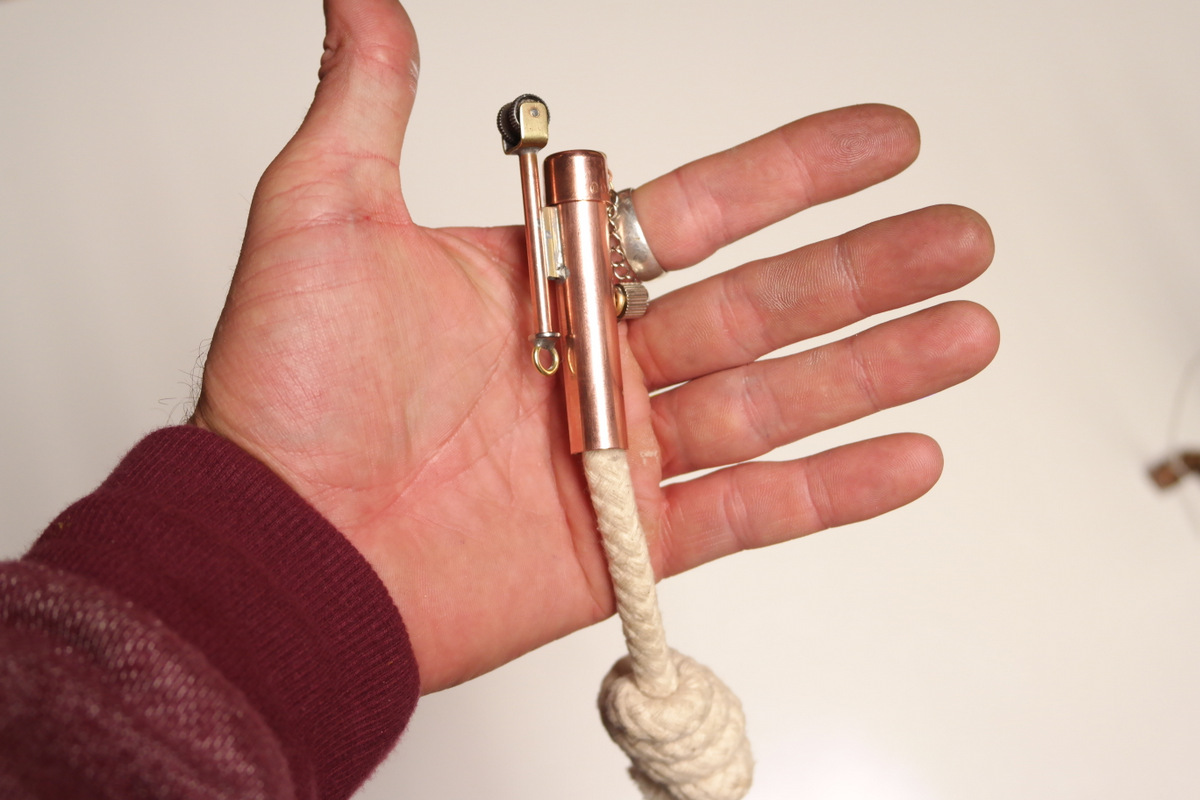

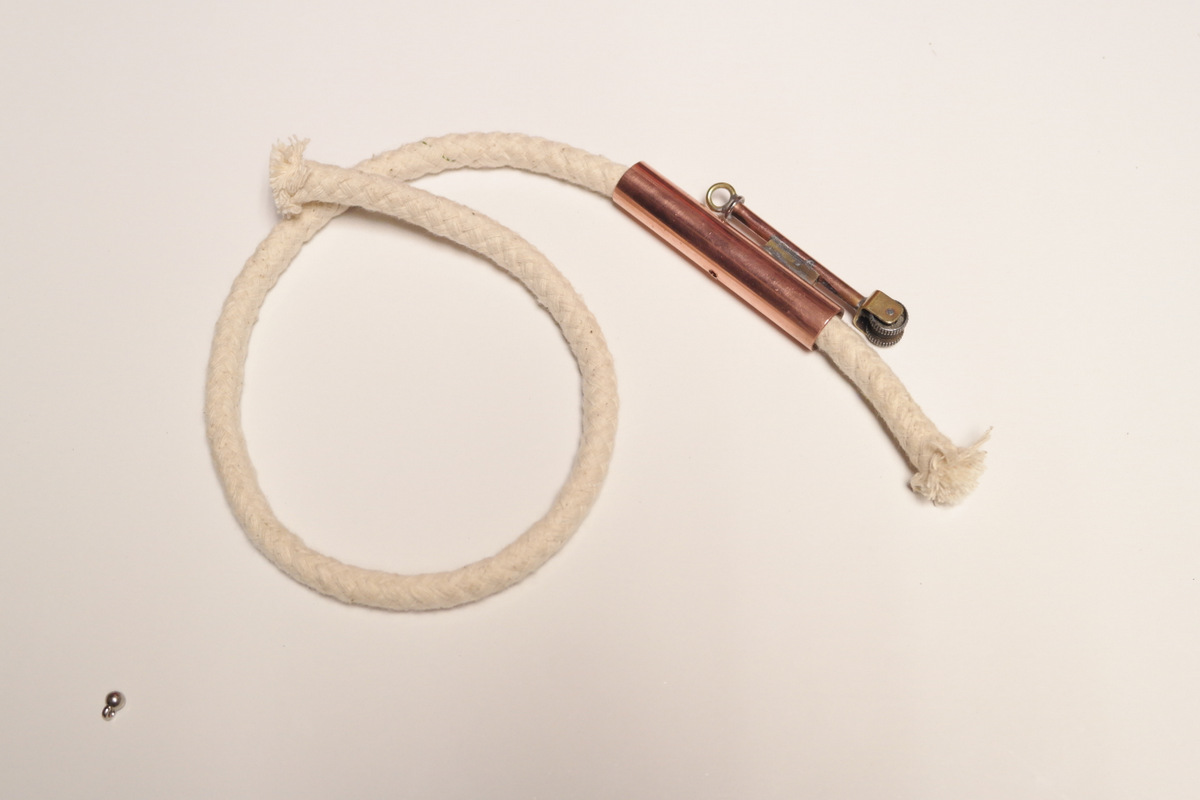

Rope lighters (also known as Sheppard's lighter) were billed as windproof lighters. Sailors often made them so they could light their pipe or cigarette when the wind blew strong on the deck of the ship. You can still buy them as well but why buy when you can make!

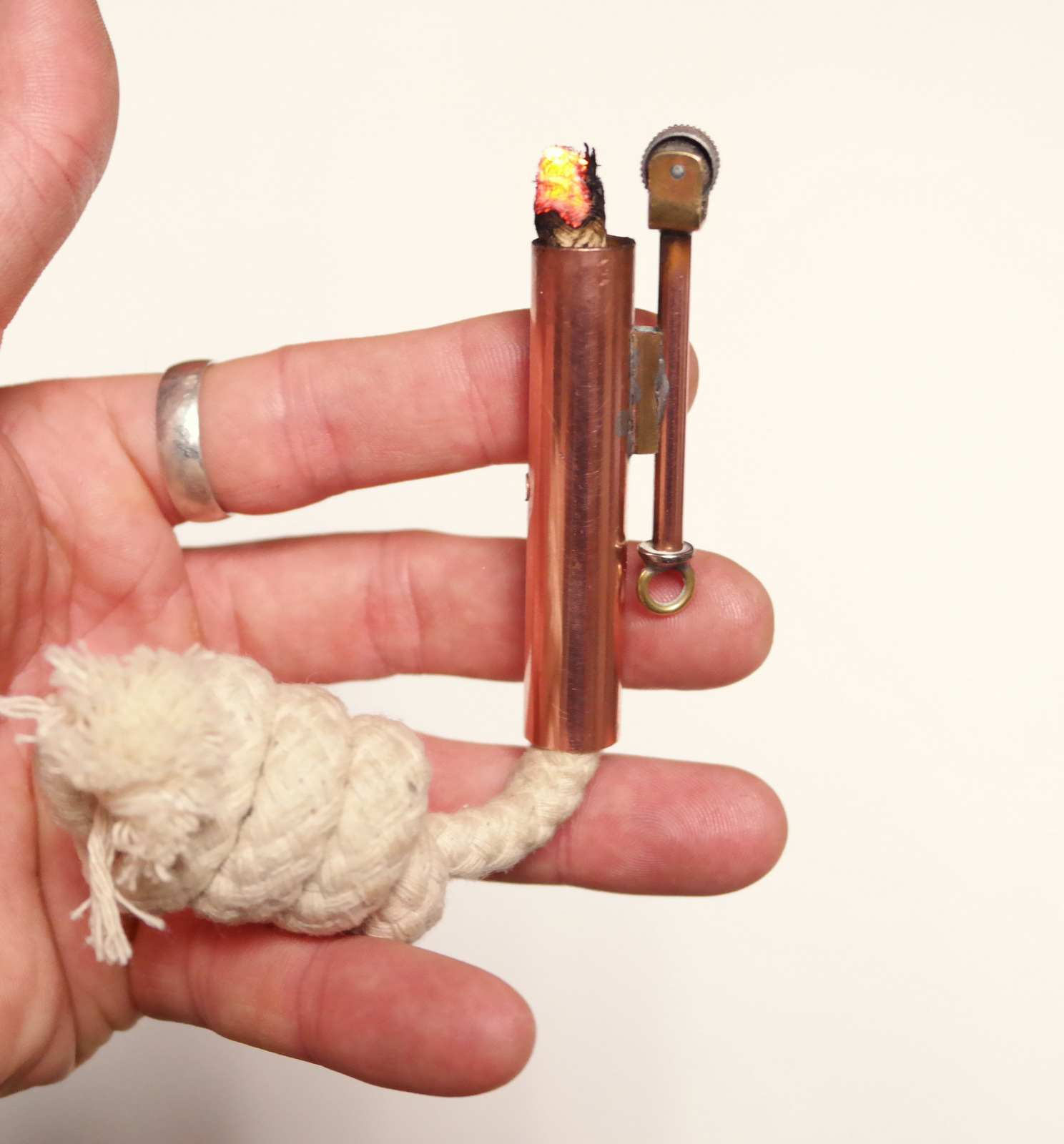

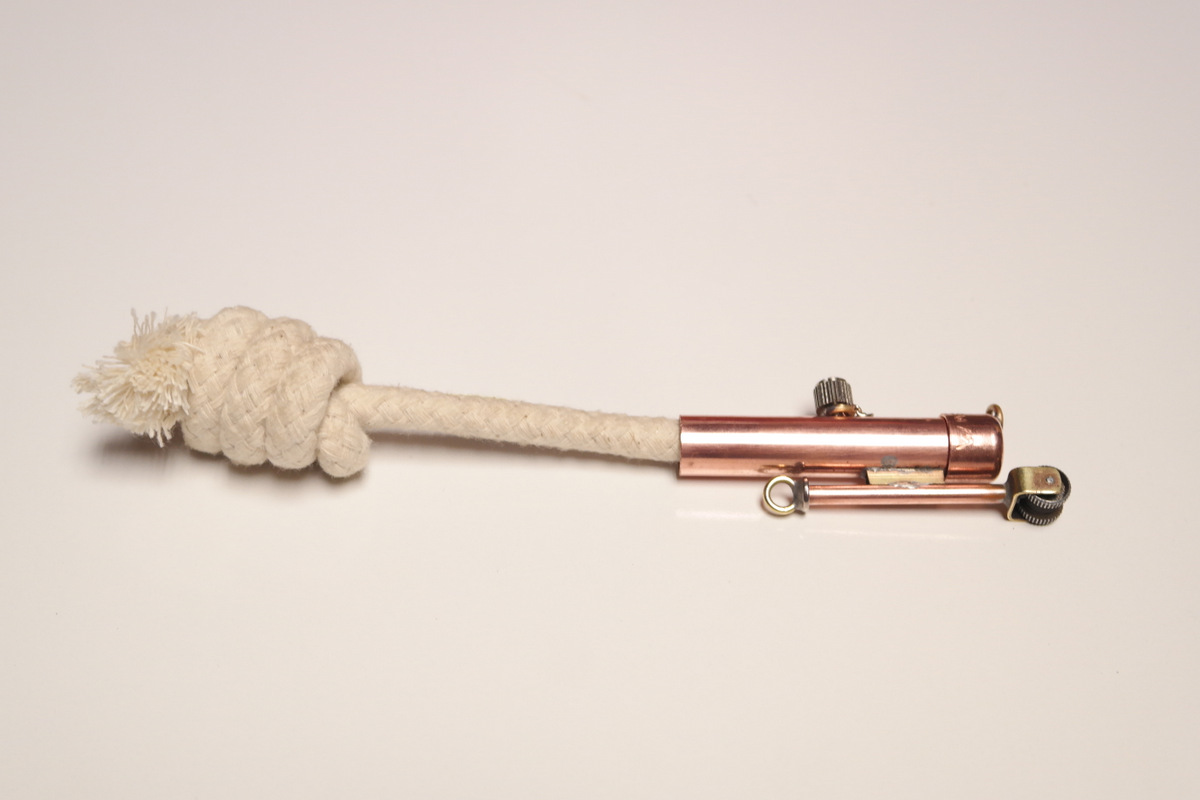

What makes it unique is that conventional fuel is not needed, and there is no flame. The method of operation is to strike the attached sparkwheel to create sparks, which are caught on a charred cotton rope, that has been partially withdrawn from a metal tube housing. Once an ember is generated, it is windproof, and is extinguished by retracting the cord back inside the tube and an attached lid snuffs it out. It's also an easy way to create a live ember and when combined with tinder, can be coaxed into a flame for starting campfires.

I've made a couple different lighters recently which can be found here and here.

This is a really fun project and if you have some basic soldering skills you'll be able to make one.

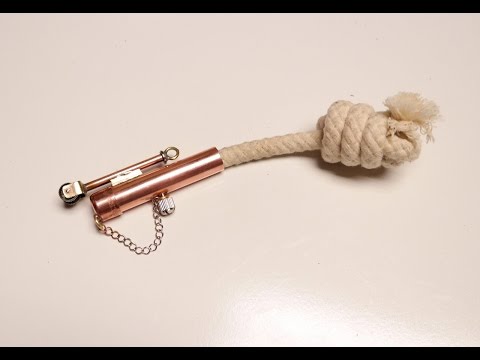

Check out the video to see it in action.

Lets get making

Parts and Tools

Parts

1. Old lighter . Try and make it the larger kind as the sparkwheel is larger and so is the flint.

2. 1 x 15mm copper cap. Hardware store or eBay. Cheaper from the hardware store

3. 12.7mm (1/2") copper tube. You can find this in the plumbing section at your hardware store. This tube will fit inside the 15mm caps

4. 4mm brass or copper tube. Hobby or RC shop. If you are using a small Bic lighter sparkwheel and spring, you can probably use 3mm tube

5. Brass strip. Hobby or RC shop. Don't get it too thick or you will never be able to bend it. Same goes with too thin! This is used as a bracket for the sparkwheel

6. Brass rectangular tube. Again a hobby or RC will have this

7. 1 x small screw. The screw needs to be slightly smaller than the small brass tube (4mm). These are used to hold the spring into place

8. Robe - I used 100% cotton rope - also known as sash rope

9. Small piece of chain (I recycled some from an old necklace)

Tools:

1. Pliers. Needle nose, small and large ones. Just use whatever you have

2. Blow torch. I used a mini one and a larger one to solder the larger copper piping together.

3. Solder

4. Dremel (always comes in handy)

5. Grinder

6. Files

7. Drill

8. Metal Polish

Pull Apart You Lighter

Steps:

1. First remove the metal guard.

2. Next, carefully remove the sparkwheel making sure that the spring doesn't fly off.

3. Put aside the sparkwheel, flint and spring

4. Discard the empty lighter.

Tube and Screw for Sparkwheel

Steps:

Tube for Spring

1. Put the spring next to the tube. You will want to cut the tube the same length as the spring.

2. Cut the tube. I used a dremel with a cutting wheel

3. File the end and make it smooth. Also, de-burr the inside. You can see in the last image that once the flint is in the tube there is about 10-15mm of the spring sticking out. The more pressure you have the spring under, the more spark you'll get. However, it will mean that putting the screw in place to hold the spring will mean it is under pressure and could make the job hard.

Adding the screw

It's best adding the screw first before you cut the copper tube. Reason being, you need to lock the tube in a vice to be able to force the screw into the end of the tube

1. Secure the copper tube in a vice. You will probably squash the tube but don't worry, you won't need this bit

2. With a small, round file, de-burr the inside.

3. Push the screw into the top and then with a phillips head, start to turn the screw into the copper. You you have a tap then you can just use this to make the thread. As I didn't, I just screwed the screw in with force to make the thread.

Making the Bracket

his can be a little tricky. You want to make the bracket so the spark wheel fits correctly.

Steps:

1. Make a 90 degree bend in the copper strip.

2. Next, grab the spark wheel and use this to work out where to make the next bend. You want to have it so when bent into a "U" shape, the 2 pins on the spark wheel rest on the copper strip.

3. Cut and trim the bracket and lastly, round off the edges. I used a sanding drum on my dremel but you could also use a file.

Adding the Sparkwheel to the Bracket

In the images below I added the sparkwheel first to the bracket. It's actually easier to solder on the tube first.

Steps:

1. Use the spark wheel to determine where you need to add the first hole. Once the first hole is drilled you can use this to determine where the second needs to go. If the holes aren't lined-up correctly, you can adjust the arms on the bracket with a pair of pliers to get the holes even

2. Carefully drill the first hole. The drill piece you use should be the same size as the pins on the spark wheel. The hole can be off-centre so if it isn't in the middle don't fret.

3. Drill the other hole and remove any burrs.

4. Here's what you need to do to get the wheel into the bracket: - Put the wheel on top of the arms of the bracket. - Push down on the wheel and try and push it into the bracket. If you can't, bend one of the bracket arms slightly and push the sparkwheel into place. - Once in the bracket, line-up the pins on the wheel to the holes in the bracket. If you had to bend one of the bracket arms, then use some pliers or a vice to straighten and secure the wheel into place. - Test to make sure that it spins freely

Soldering the Bracket to the Tube

Steps:

1. Drill a hole into the bottom of the bracket. Mark the centre and make a hole. The hole should be the same size as the tube for the spring. You want this fit to be as tight as possible so start with a drill bit slightly smaller than the tube and work your way up.

2. Push the bracket onto the tube for the spring. Only have a small section of the tube sticking through the bracket

3. Next, secure in a vice and add some flux to where the two parts meet

4. With a mini blow torch, heat up the section and add some solder to the joint.

4. Lastly, you need to place a screw into the bottom of the tube to hold the spring and flint into place. As brass is soft, all you need to do is to screw it into the tube with some force. Un-screw and screw it into the tube until it's flush with the tube.

Fitting the Flint, Spring and Screw

Steps:

1. Put the flint into the tube first. I used 2 pieces of flint as the tube is quite long.

2. Next, stretch the spring a little and put into the tube

3. Lastly, put the screw into the bottom of the tube and with a screwdriver, force it into the tube. Keep on un-screwing and screwing it in until it is flush. If you can’t get it flush, leave it where it is and try again once you have attached the sparkwheel to the chamber

Adding the Sparkwheel to the Copper Tube

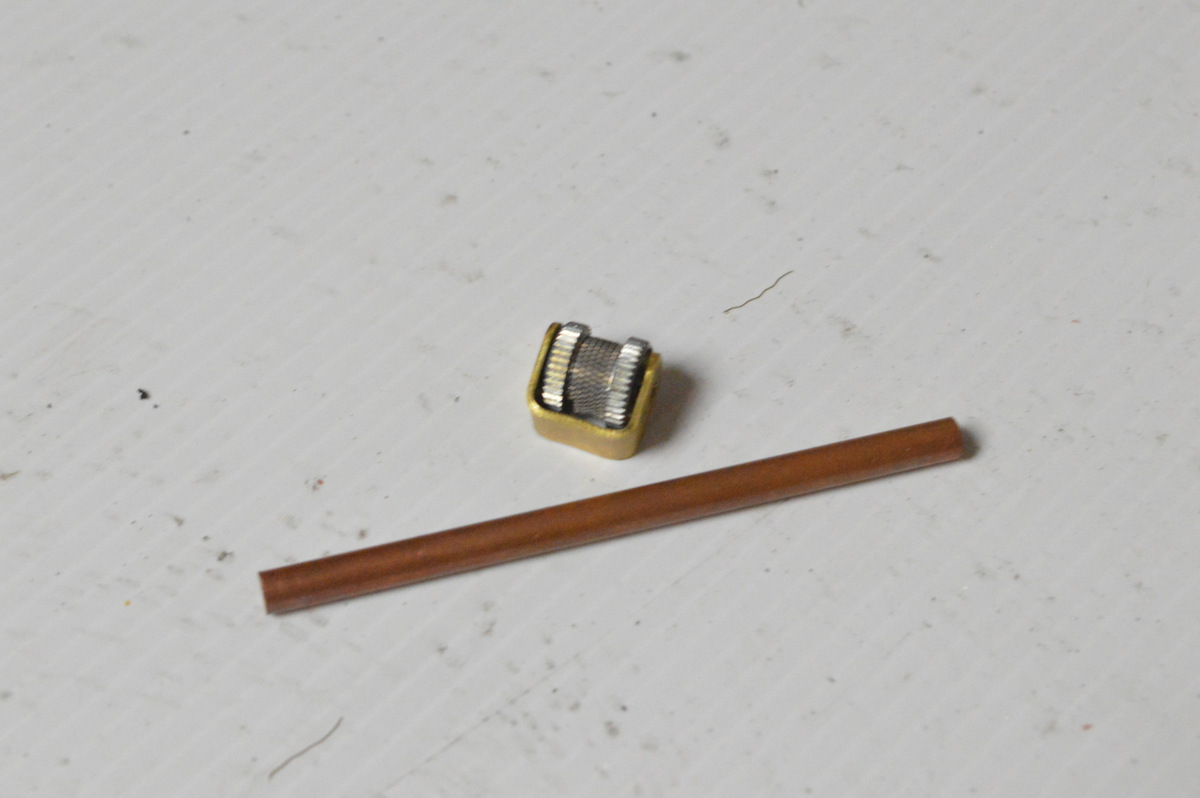

The next thing that you need to do is to add the sparkwheel to the ¼ inch copper tube. To attach the sparkwheel to the body of the chamber, you need to modify come brass channel.

Steps:

1. Cut a 70mm length of the ¼” tube and file any burrs off the end.

2. Clean the tube as well as it’s better to have a clean surface when soldering

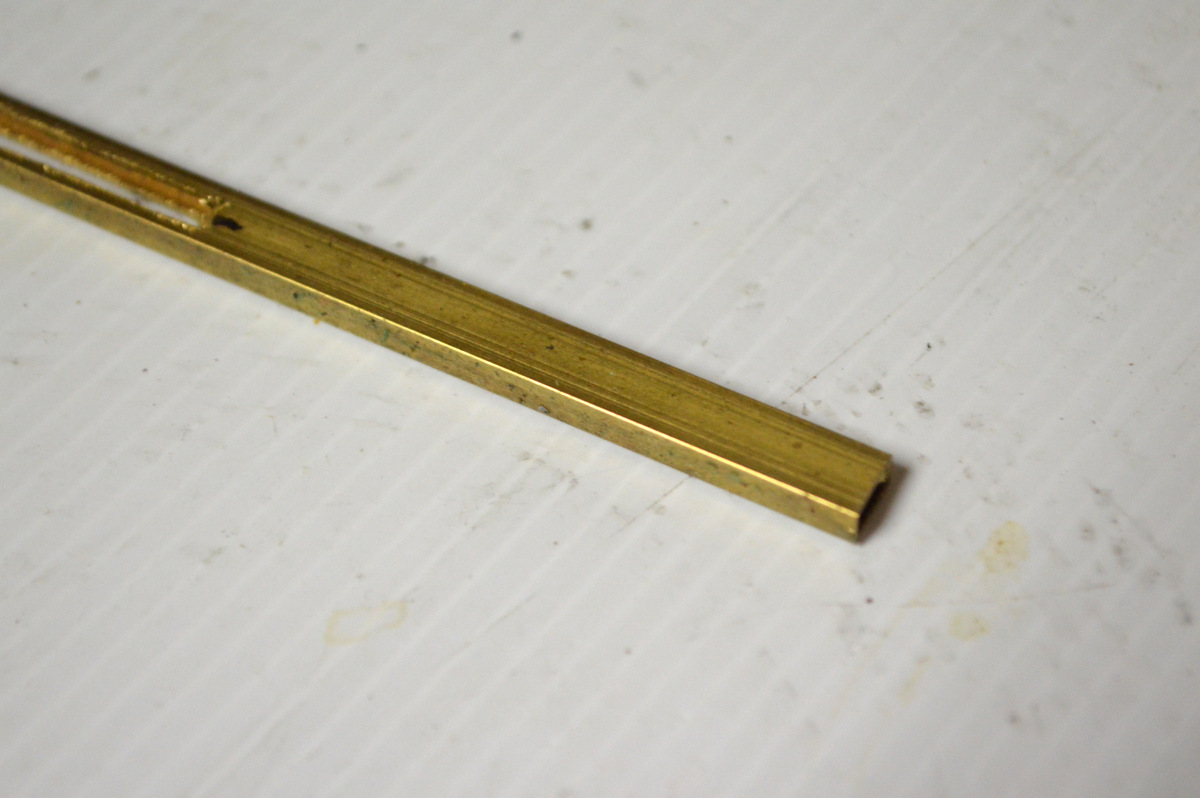

3. Grab a length of the brass channel and place it into a vice.

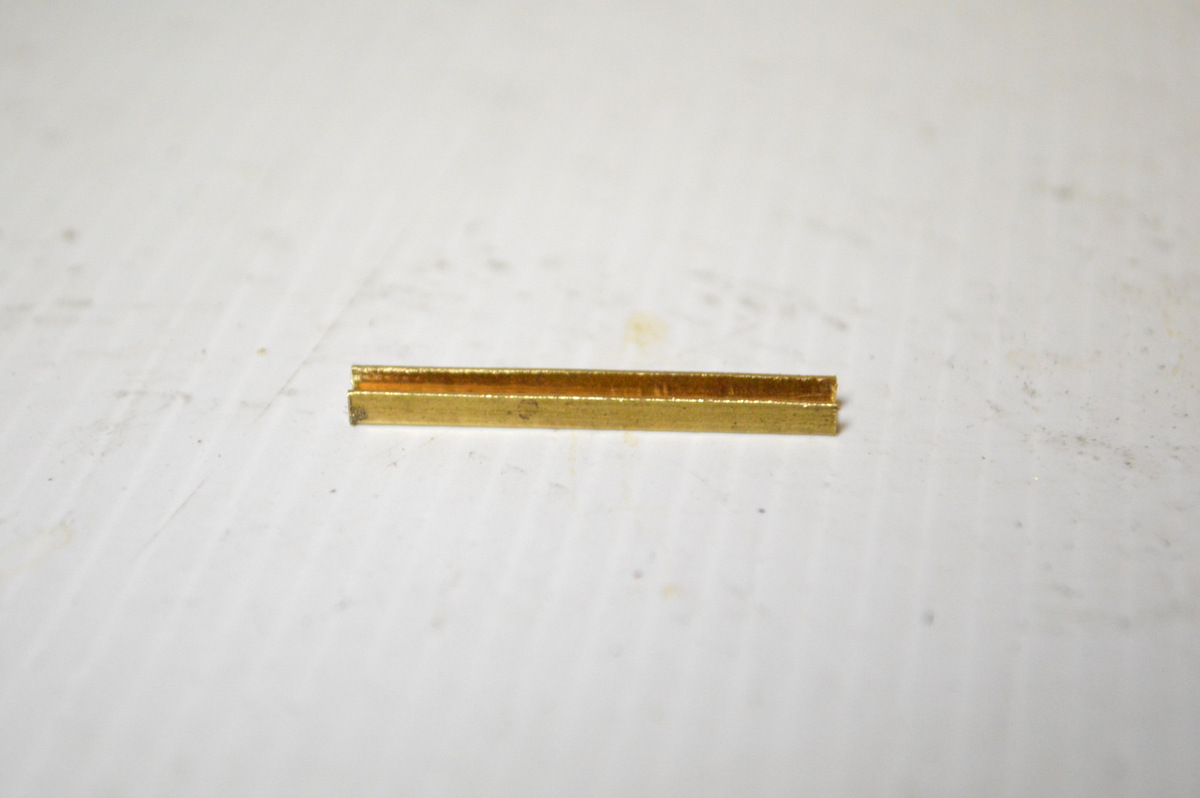

4. Next start grinding the top section to turn it into "C" channel. This will become the bracket that will be between the sparkwheel and the chamber.

5. File down to make it even and remove the burrs. Cut to size

6. Add some flux to the flat section of the bracket and place it on top of the chamber. Do the same to the sparkwheel tube and place this onto the "C" section of the bracket.

7. Secure the lighter in a vice and with a mini blow torch, heat-up the area. Add some solder to the joins. This is quite a tricky process as it's hard to line-up the sparkwheel, bracket and chamber just right. Take your time and ensure that everything is straight before you solder.

8. Lastly, give everything a good polish

Maing the Cap

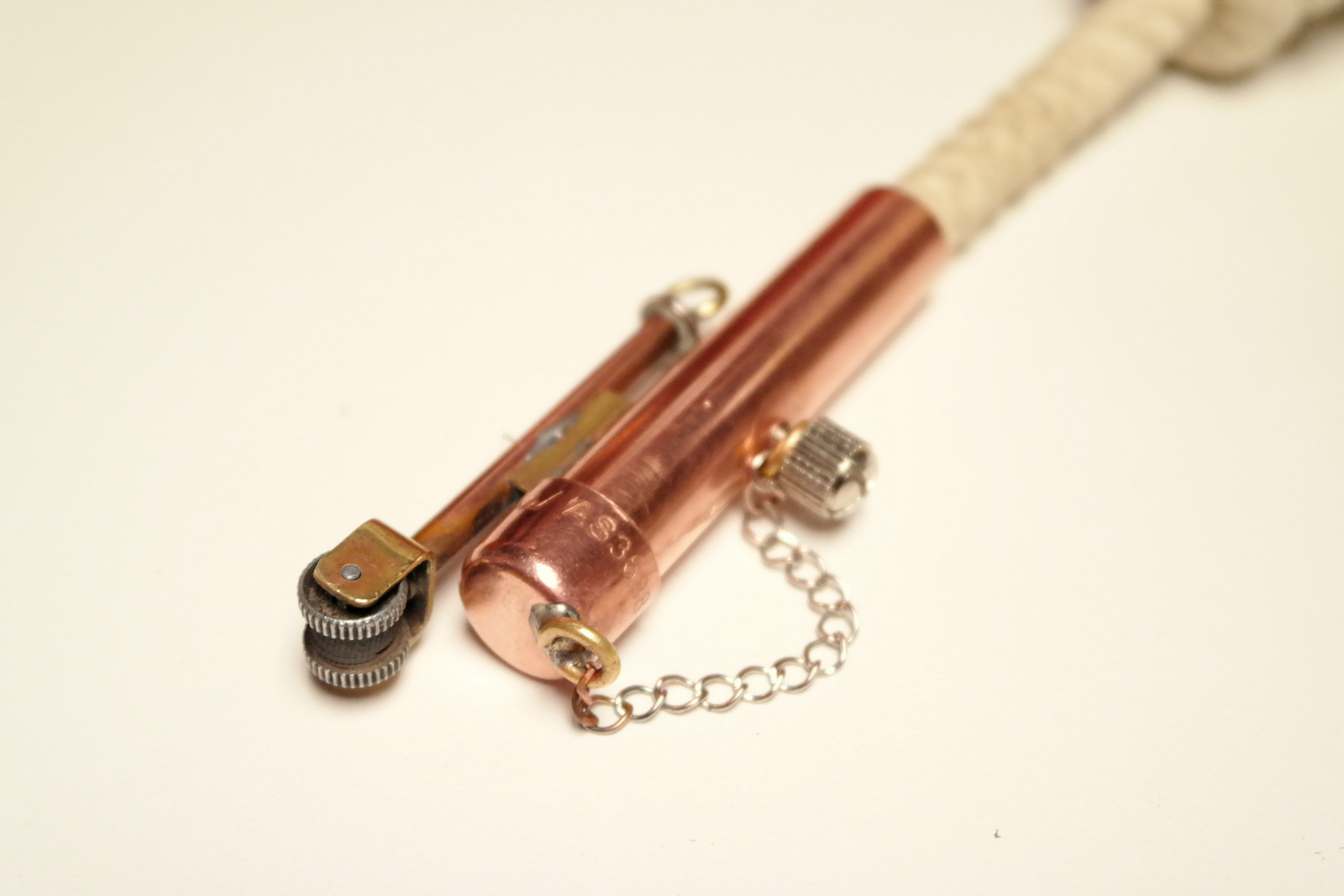

To help secure the ropeinto the copper tube, I decided to add a screw to act as a stopper. I also added a chain to the cap so I wouldn’t lose it

Steps:

1. First create a couple of small brass rings out of some brass (or copper) wire. Just twist the wire around the end of some pliers, cut and solder the 2 ends

2. Next solder one of the rings to the top of the cap and add a small piece of chain to the loop. I used a piece of chain from some old jewellery.

3. Find a screw that you want to use. I used a Knurled, hand turn screw (M3, 12mm long). Drill a hole into the copper tube and with a die, make a thread

4. Put the other brass ring onto the end of the chain and push the screw through the ring.

5. Secure the screw into the copper tube
