Rope From Discarded Textiles
![weave on wall-bewerkt.jpg](/proxy/?url=https://content.instructables.com/FBI/DL8T/KIRFCJDL/FBIDL8TKIRFCJDL.jpg&filename=weave on wall-bewerkt.jpg)
![IMG_6168.jpg](/proxy/?url=https://content.instructables.com/FDZ/DDDX/KIRFCJAQ/FDZDDDXKIRFCJAQ.jpg&filename=IMG_6168.jpg)
This is a project for The royal academy of art in The Hague, The Netherlands.
I developed a simple rope making machine that transforms discarded textile strips into a beautiful and rigid rope. As this project was only 20 weeks, I did not finish the project and was not done with experimenting yet. That is why I invite everyone to join this project and come up with applications for the rope!
Supplies
You will need:
* Woodglue * M6 nuts (9x) * M6 eye bolt 60mm shaft * 3-5mm rope * 30mm screws (6x) * (cordless) drill * lasercutter
Please Use This File to Lasercut All Parts
Downloads
Assemble Rope Machine According to the Exploded View
![1.JPG](/proxy/?url=https://content.instructables.com/FNZ/MEOA/KIRFC7FR/FNZMEOAKIRFC7FR.jpg&filename=1.JPG)
![2.JPG](/proxy/?url=https://content.instructables.com/F5Y/IADN/KIRFC7FS/F5YIADNKIRFC7FS.jpg&filename=2.JPG)
![3.JPG](/proxy/?url=https://content.instructables.com/FTP/1NG6/KIRFC7FT/FTP1NG6KIRFC7FT.jpg&filename=3.JPG)
Attach the Rope Machine to a Table Using Glue Clamps
![DSC_0124-min.jpg](/proxy/?url=https://content.instructables.com/F16/2LQK/KIRFCIV3/F162LQKKIRFCIV3.jpg&filename=DSC_0124-min.jpg)
Attach Securing Part to Table Also Using Glue Clamps
![DSC_0126-min.jpg](/proxy/?url=https://content.instructables.com/FEE/EYZO/KIRFCIX8/FEEEYZOKIRFCIX8.jpg&filename=DSC_0126-min.jpg)

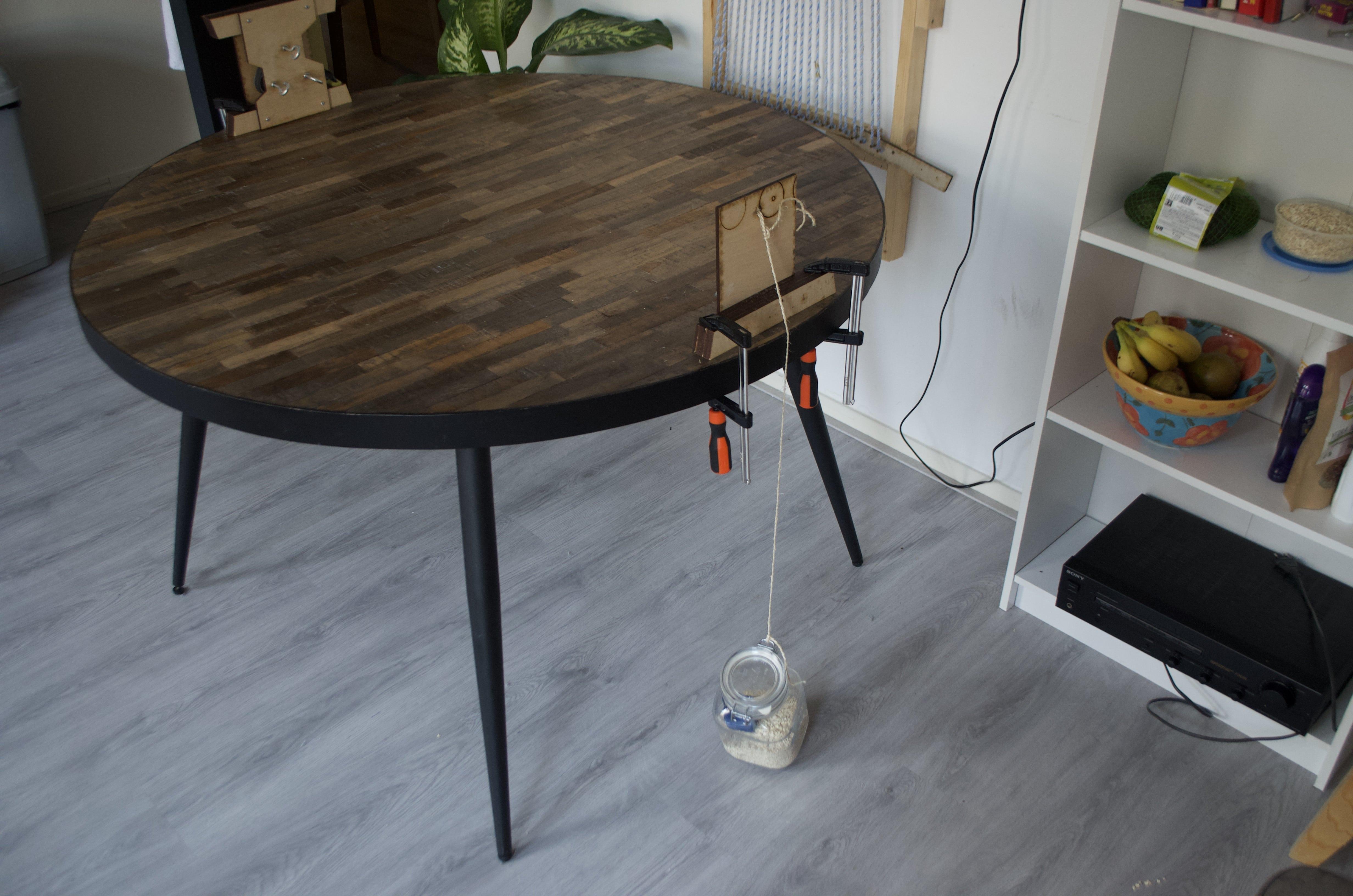

Attach Counterweight to the Securing Part and Bearing Part
![DSC_0129-min.jpg](/proxy/?url=https://content.instructables.com/FCB/SB97/KIRFCIXR/FCBSB97KIRFCIXR.jpg&filename=DSC_0129-min.jpg)
![DSC_0128-min.jpg](/proxy/?url=https://content.instructables.com/FOD/ZST8/KIRFCIXQ/FODZST8KIRFCIXQ.jpg&filename=DSC_0128-min.jpg)
Attach Textile Strips to Rope Making Machine
![DSC_0134-min.jpg](/proxy/?url=https://content.instructables.com/F3Z/RYSW/KIRFCIZJ/F3ZRYSWKIRFCIZJ.jpg&filename=DSC_0134-min.jpg)
Attach Textile Strips to Bearing Part and Cut Off Access Strip
![DSC_0136-min.jpg](/proxy/?url=https://content.instructables.com/F0T/B2RS/KIRFCIZN/F0TB2RSKIRFCIZN.jpg&filename=DSC_0136-min.jpg)

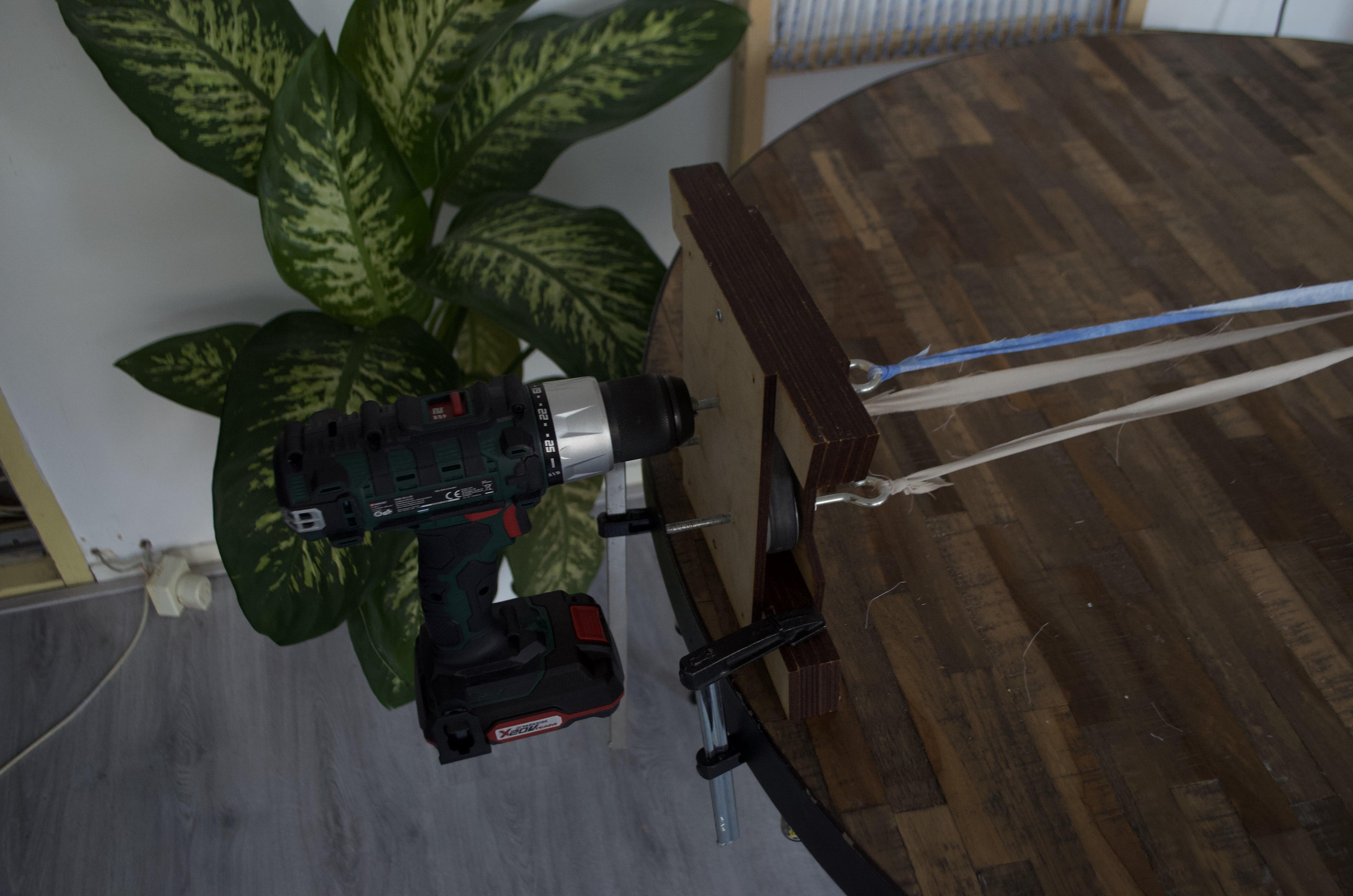

Attach Cordless Drill to the Rope Machine
![DSC_0138-min.jpg](/proxy/?url=https://content.instructables.com/F2F/VR5O/KIRFCIZY/F2FVR5OKIRFCIZY.jpg&filename=DSC_0138-min.jpg)

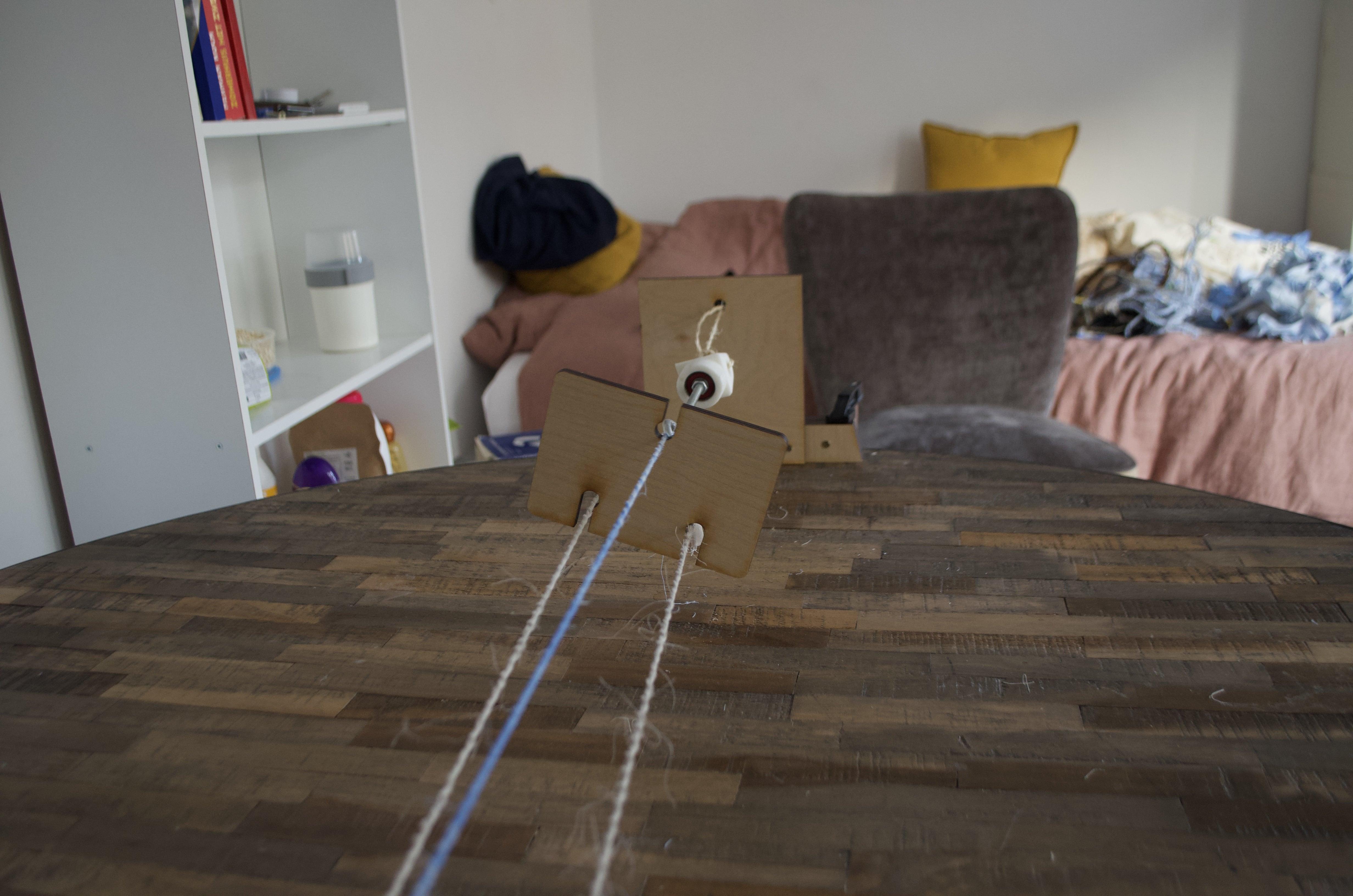

Slide Divider Part Between the Strips
![DSC_0139-min.jpg](/proxy/?url=https://content.instructables.com/F14/QWPQ/KIRFCJ09/F14QWPQKIRFCJ09.jpg&filename=DSC_0139-min.jpg)
Start Spinning the Rope Until a 45 Degree Angle
![DSC_0140-min.jpg](/proxy/?url=https://content.instructables.com/FAR/DZ0D/KIRFCJ0K/FARDZ0DKIRFCJ0K.jpg&filename=DSC_0140-min.jpg)
Slowly Move Divider Part Towards Cordless Drill and See the Rope Form
![DSC_0142.jpg](/proxy/?url=https://content.instructables.com/FJT/YNDW/KIRFCJ0O/FJTYNDWKIRFCJ0O.jpg&filename=DSC_0142.jpg)
Don't forget to tie off the rope with a piece of electrical tape to prevent unrafeling.
Enjoy Working With Your Rope! Try Out Different Applications and Share Them With Me
![rope samples rolled up 2.jpg](/proxy/?url=https://content.instructables.com/FVP/545C/KIRFCJB1/FVP545CKIRFCJB1.jpg&filename=rope samples rolled up 2.jpg)
![weave close up 2-bewerkt.jpg](/proxy/?url=https://content.instructables.com/F7Q/B5ER/KIRFCJDI/F7QB5ERKIRFCJDI.jpg&filename=weave close up 2-bewerkt.jpg)
