Hi Creative people! In this Instructables I will show you how I made a rock paper scissors game, Yes you heard it right!

Remember those days we used to play rock paper scissors for decision-making?

What were those good olden days, Those days are unforgettable, as we get older we will have only a few friends left, and some end without any friends.

This may seem funny but it is the harsh truth and most of them might have already experienced this.

Now you may ask why am I telling all these? The answer lies within this project.

I made this as an interactive project as well for a few who are introverts or struck with boredom.

'This is a friend for you who never cheats in decision making otherwise your friends used to! when they play rock paper scissors.

Outline of this project

This circuit for this project was made using Tinkercad Circuits followed by simulation using the same software

Advantages of Simulation

Think of a project where you build it without any virtual testing, in the end, if the project fails you might end up wasting time in the process.

To eliminate all these dramas I suggest using simulators.

In this project I used the Tinkercad Circuits simulator to build and test the circuit, Later i converted that virtual project to a physical project using real electronic components.

This assures 100% flawless working of the project so you can save time and money.

Note: Thanks to WWW.LETSMAKEPROJECTS.COM for arduino Codes

What Does our Project do?

As stated earlier rock paper scissor needs 2 people to play the game, here you are one person and the other is this device.

Thank You NextPCB:

This project is completed with amazing success thanks to NextPCB support. If you have any PCB projects please visit their website to get attractive discounts.

Why NextPCB

  • Most Efficient, Economic, Innovative PCB Solutions
  • Higher Quality
  • Lower Cost
  • Faster Delivery


This is an interactive device and this can be used to have a great family time!

This works as a perfect replacement for your friend!(kidding)

Just show your signs in front of this device and see what the machine gives out.

There is no chance of cheating from the device end as the servos are coded to appear randomly.

With this being said let us head toward building this project.

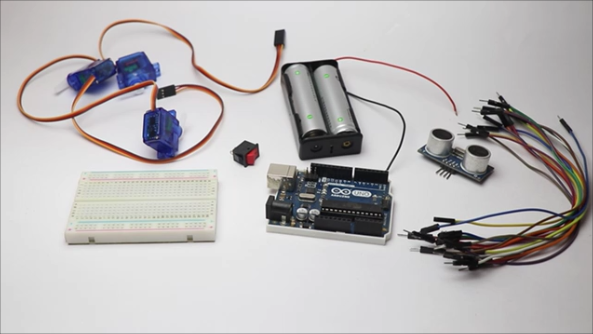

Supplies


Here is the list of materials you will need to build this project also I have given buying links

  • Tinkercad
  • Arduino IDE
  • Computer/laptop with internet connection
  • Cardboard to make the frame
  • Arduino UNO Get from here

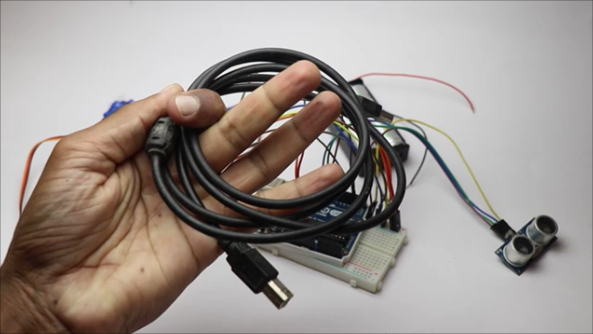

  • programming cable
  • Plastic Servos x 3 from Here
  • Simple on-off switch
  • Rechargeable batteries/18650 or lithium-ion batteries
  • Battery holder
  • Small Breadboard
  • Jumper wires
  • Ultrasonic sensor and jumper wires from here
  • Hot glue
  • Super glue
  • Black fabric paint
  • Transparent tape

You can get the product from my links above so that you are supporting me at no additional cost to you.

Simulation Using Tinkercad Circuits Editor

circuit rock paper.png

Before building a real model I used Tinkercard to make the circuit.

VIDEO: I have recorded the simulation video and attached it to the end of this step to show how exactly it works so that you have a clear idea about its functionalities.

To avoid any room for confusion I have added a video of using the simulator after building the circuit.

It is very simple and easy to build a circuit all you need to do is drag and drop the components, connect them with colorful wires, and upload the code in text form.

I already wrote the code and just fed those code.

Just enable the simulator to check if the code is working.

The code works perfectly fine and i have given the same codes for you to play with.

Kindly refer to below steps for code.

As per the code, the motion of servos is random so the next move of the servo can't be determined.

Rock Paper Scissors Circuit Diagram

rock paper circuit diagram.png

The circuit used to make this project is shown above

It is simple and easy, if you find any difficulties in reading the circuit here is the written explanation for circuit building

Ultrasonic or HC-SR04 sensor Connections

It has 4 set of pins that are Gnd, Trig, Echo and Vcc

Gnd and Vcc are for negative and positive power supply and these are directly connected to - and + rails on a breadboard

Trig is connected to D11 pin on Uno

Echo is connected to D10 pin

Arduino uno Connections

Power supply to all the components is provided by Uno board

So we will connect Gnd of Uno to - rail of breadboard

5v of Uno to + rail of breadboard

Gnd and Vin pin of Arduino will be used for external power supply from the battery

Micro servo connections

We will use 3 micro servos in this project

Each micro servo has 3 input pins

Positive, Negative and Signal pin

Positive and negative pin of all 3 servos will be connect to + and - rails of the breadboard

While the signal pin of servos will be connected to D3, D6 and D9 pins on Uno

This completes the circuit


Making Connections


As we have already gone through the simulation and circuit building the circuit won't be any difficult job

Start by connecting jumper wires to the components followed by connections with the breadboard

Avoid using loose jumper wires while making the connections because if you do and in the end, if any components did not work it is a difficult task to find the exact spot resulting in wasting time

After you build the connections between all the components we are ready to upload the code

Arduino Code for Rock Paper Scissors

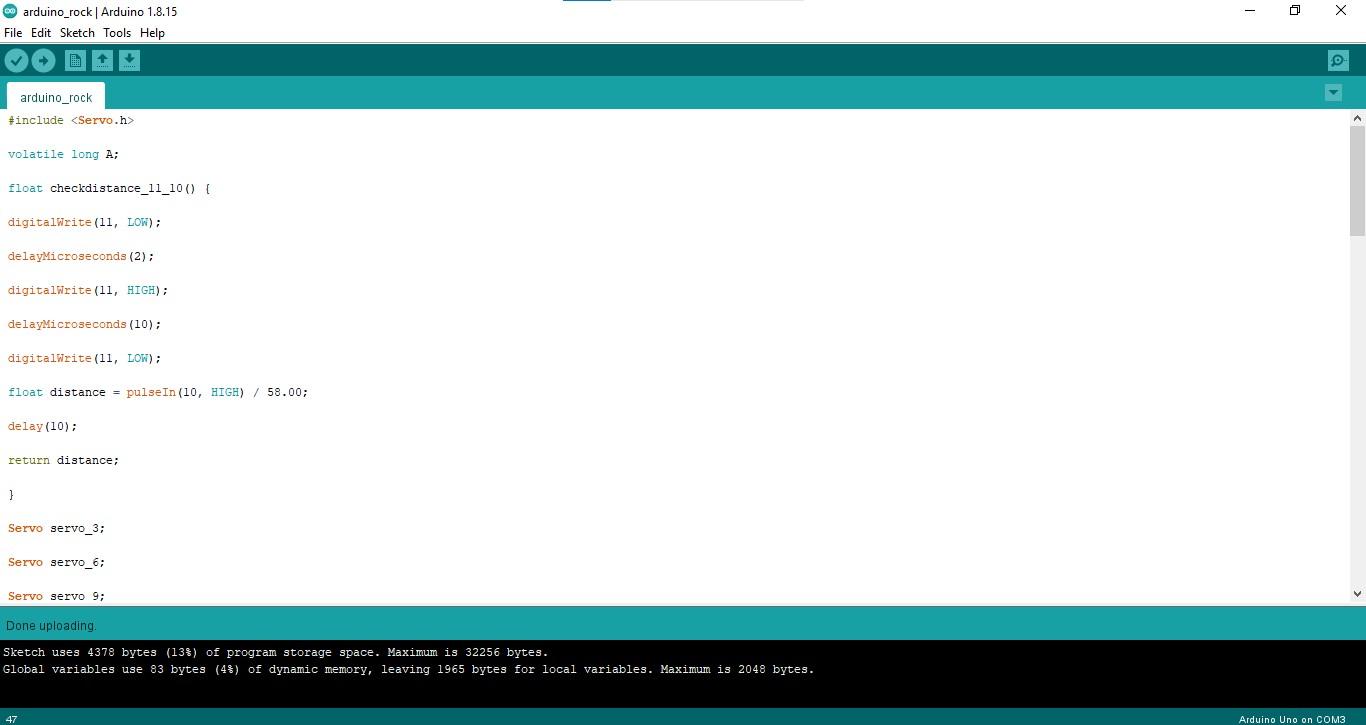

Here is the Arduino code for Rock paper Scissors the same code was used in the simulator

You can download this code and open in Arduino IDE

Connect UNO board with the programming cable and check for the proper port in IDE by going to menu - tools - port

Select the port, select the type of board and click on upload

Once the board is uploaded with the code we can test the circuit

Note: I recommend not to use power from Arduino USB instead use a separate power source like I did from the battery

second image on this step shows pins that are alloted to micro servos

Making Frame


To hold all the electronics I made a case out of cardboard, as the electronic components come in standard sizes you can use these dimensions without worrying about fitting issues.

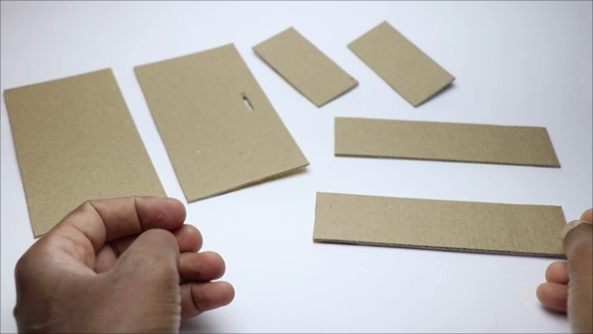

I used the pieces of these dimensions

For the base and Top 2 pieces of 15 x 8cm

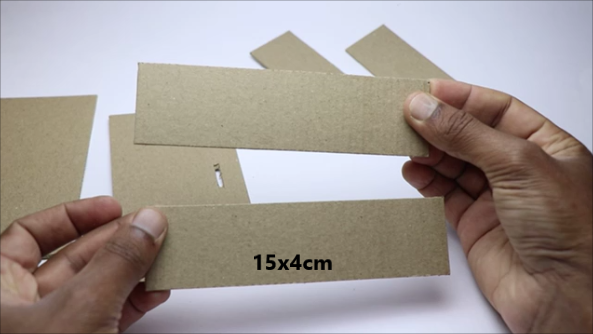

For sides 2 pieces of 15 x 4cm and edges 8 x 4cm

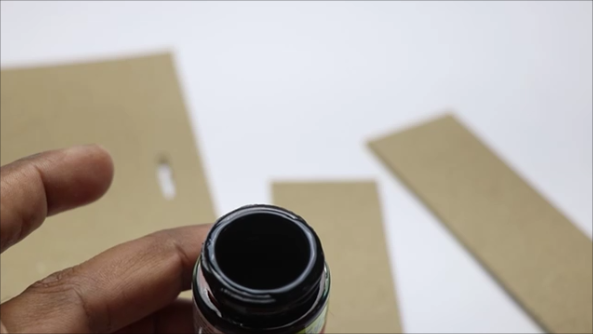

You can use this cardboard but to give it a more appealing look i painted them black using fabric paint

Did You know?

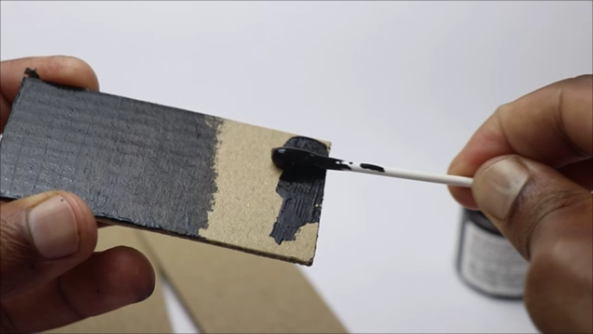

If you don't have a paint brush and wat to paint cardboard you can use earbuds / ear swabs, These work just fine for painting cardboard

Building Frame

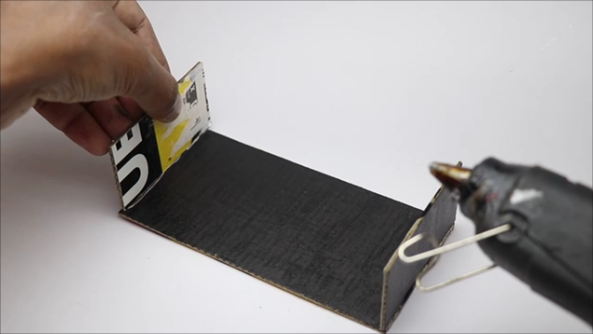

Once the cardboard-painted areas are dry we can assemble them, I don't suggest you use super glue for sticking because in case if you miss any spot after applying superglue the surface becomes very hard, and applying glue again ti the same spot won't serve any better

I recommend to use hot glue, here follow the images on the steps provided, start with the base later the edges

To enhance the strength add hot glue for the corners too

Adding Components Inside Frame


After we have our frame ready we can add electronics that we already assembled earlier.

Before fixing the components inside the frame test the circuit for working, if you miss anything fix it first.

To avoid slipping any components use a tiny amount of superglue before placing the components in the base.

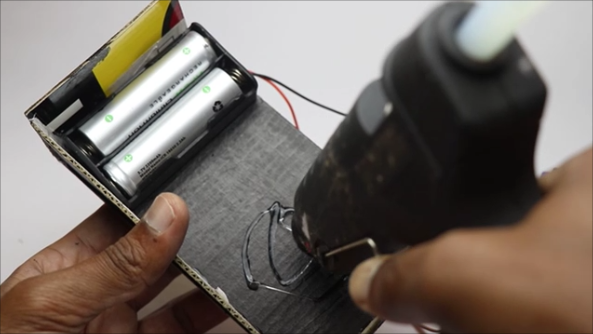

I will be adding a battery holder and breadboard to the base whereas Arduino sits on top of the small breadboard.

Add a switch between the battery and Arduino board, this simple switch should be providing power at the press of a button

The last image of this step shows a bird's eye view of all the components that are in the box.

Now the base part is read, we will work on the top part in the next step.

Set Top Part


The top part has all the working components like servos which is the most important part of our project

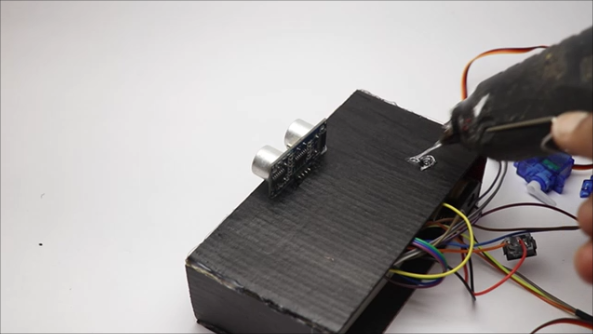

We will add an ultrasonic sensor first to the top lid (made from cardboard earlier)

I have made a small slot in the cardboard to add this sensor, you can make it on the exact spot to

Use hot glue to couple everything together

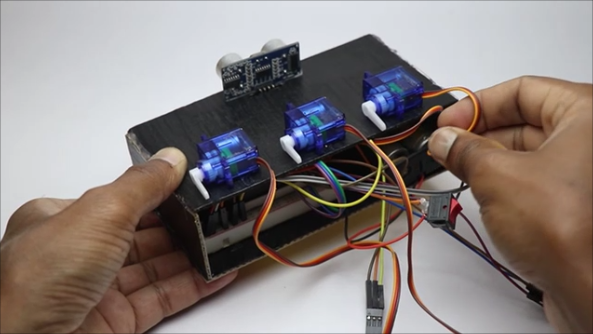

Now our top part is ready, before gluing the servos on top switch on the device first and check for servo movements

You cannot skip this part and directly glue it because the wrong placement of the servo results in improper movements

check for movements and stick the servos to top

End of this process we have almost the project ready to be finished

Finishing


You know and i know that this project used lots of jumper wires and leaving them outside makes the project look messy.

So finishing will make this look a lot cleaner.

Since we are using rechargeable batteries after a long period of using this device battery needs to be charged, for this purpose we need a system to open and close the frame

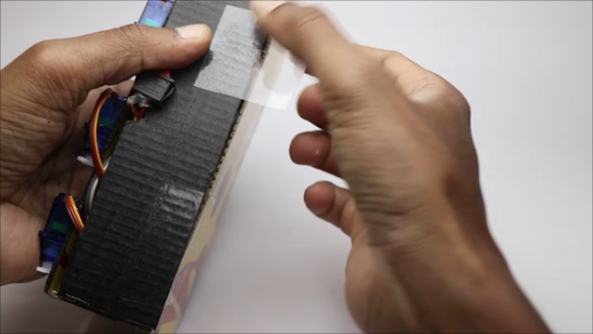

For this purpose, one side of back frame is coupled using transparent tape/ duct tape so that we have access to the battery and circuit whenever needed

Have a look at those placements of switches shown in above images

Adding Signs

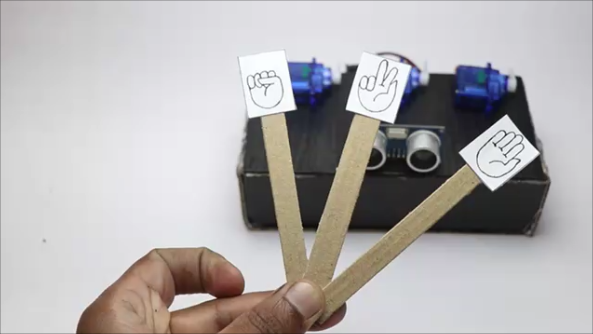

I have cut strips of cardboard that are 1cm x 11cm that will be added to the horns of the micro servo, I had a plan of 3d printing most of the parts for this project but as most of them won't have a 3d printer at their house I made using cardboard.

Now this can be made by anyone as everyone has access to cardboard

Rock, paper, and scissors signs/symbols I have hand drawn on a piece of paper

Stick these signs to the tip of the cardboard stripes, now with the help of superglue connect these strips to the horns of the micro servo

once you have the glue completely dry test this device, obviously it should work without any issues

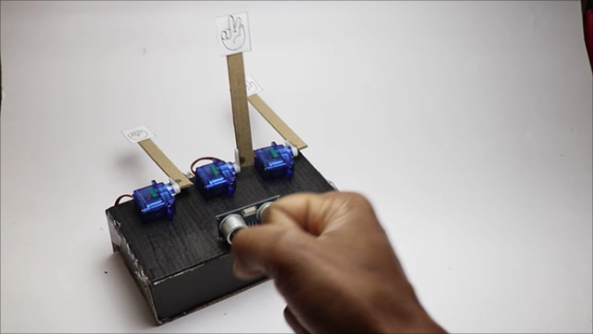

How to Use


It is very simple to use this device

  • Just switch on the button and wait for 2 seconds.
  • Now just bring your hands close to the sensor and start making rock paper or scissor signs
  • The device shows its own signs
  • Now you have a tough competitor!
  • The signs from the device will be random hence you can't predict the next move
  • Take this device to family time parties or your friend's house to impress them.

Have fun!

Rock Paper Scissors Game Working Video

Make Rock Paper Scissors game using Arduino and Tinkercad

You can refer to this video tutorial if you have any questions on any steps, if this still didn't help there is always a comments section to get in touch

Thank you for reading till here and Happy making.

If your browser is unable to play this video directly paste this link on your url search tab https://youtu.be/Rsipdg-W-uE
