Robot Surgery Game
![main1.jpg](/proxy/?url=https://content.instructables.com/F7U/B5PA/GONGICUK/F7UB5PAGONGICUK.jpg&filename=main1.jpg)
Not just anyone can perform surgery. It takes decades of schooling and years of experience to become a surgeon. Fortunately, most anyone can not only play operation, but build their own custom operation game. In this way you can practice removing unnecessary bits from whatever sentient life-form you wish. You may not get a surgical license for this, but you will surely have a better time than attending medical school.
Go Get Stuff
![1A.jpg](/proxy/?url=https://content.instructables.com/FHO/HAHH/GONGIAZV/FHOHAHHGONGIAZV.jpg&filename=1A.jpg)

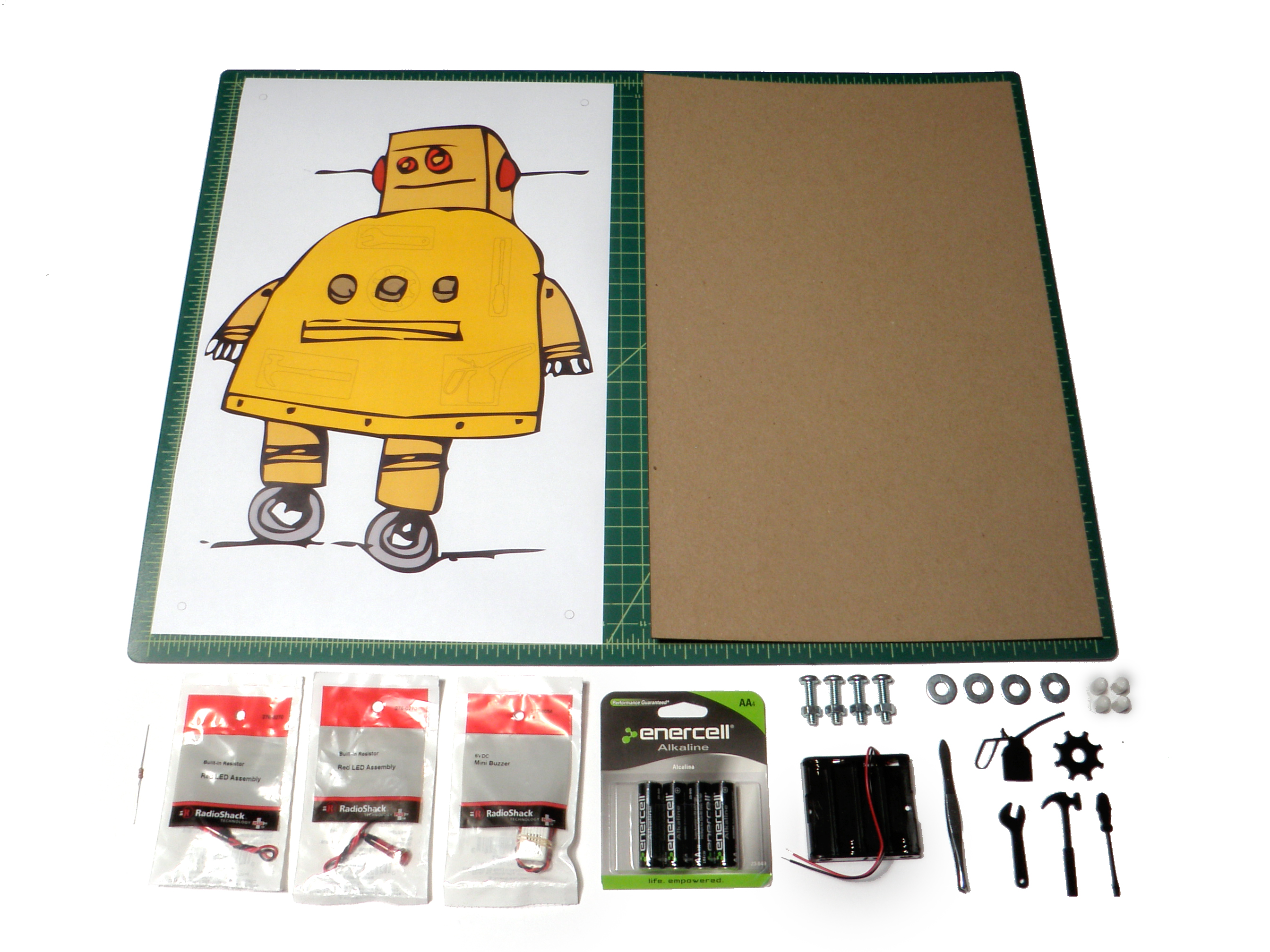

You will need:
- 4 "AA" Battery Holder (Model: 270-391 | Catalog #: 270-391)
- (x2) Red LED with Holder (Model: 276-084 | Catalog #: 276-084)
- 75dB Piezo Electric Buzzer (Model: 273-054 | Catalog #: 273-054)
- 220 ohm 1/4W 5% Carbon Film Resistor (Model: 271-1313 | Catalog #: 271-1313)
- Enercell® "AA" Alkaline Batteries (4-Pack) (Model: AA-4PK | Catalog #: 23-849)
- Robot operation template (see attached)
- Operation pieces
- (x4) 1/4" x 1-1/14" bolts with nuts
- (x4) Washers
- (x4) Rubber bolt covers
- 11 x 17 mat board.
- Aluminum foil
- Two zip ties
- 4 "AA" Battery Holder (Model: 270-391 | Catalog #: 270-391)
- (x2) Red LED with Holder (Model: 276-084 | Catalog #: 276-084)
- 75dB Piezo Electric Buzzer (Model: 273-054 | Catalog #: 273-054)
- 220 ohm 1/4W 5% Carbon Film Resistor (Model: 271-1313 | Catalog #: 271-1313)
- Enercell® "AA" Alkaline Batteries (4-Pack) (Model: AA-4PK | Catalog #: 23-849)
- Robot operation template (see attached)
- Operation pieces
- (x4) 1/4" x 1-1/14" bolts with nuts
- (x4) Washers
- (x4) Rubber bolt covers
- 11 x 17 mat board.
- Aluminum foil
- Two zip ties
Downloads
Glue
![2A.jpg](/proxy/?url=https://content.instructables.com/F2C/SYNK/GOOP69ZY/F2CSYNKGOOP69ZY.jpg&filename=2A.jpg)
![2B.jpg](/proxy/?url=https://content.instructables.com/F9E/7G67/GOTSZ5L9/F9E7G67GOTSZ5L9.jpg&filename=2B.jpg)
![2C.jpg](/proxy/?url=https://content.instructables.com/FAS/FDJT/GONGIB0V/FASFDJTGONGIB0V.jpg&filename=2C.jpg)

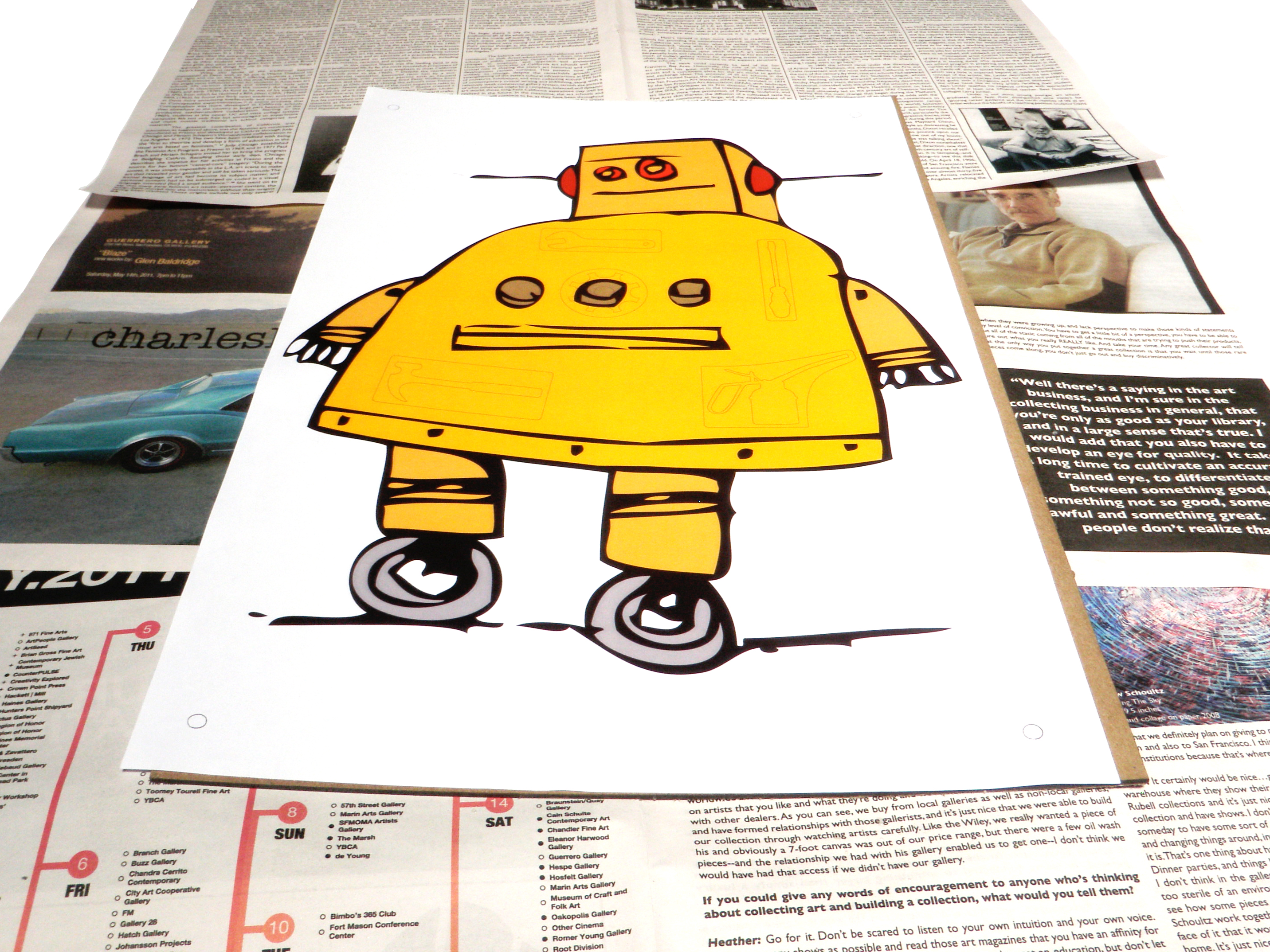

Cover your mat board with spray glue and center your robot cut template on top.
Smooth it out to get rid of air bubbles and make sure it is attached well.
Smooth it out to get rid of air bubbles and make sure it is attached well.
Cut
![3A.jpg](/proxy/?url=https://content.instructables.com/FQ6/9CID/GONGIB0W/FQ69CIDGONGIB0W.jpg&filename=3A.jpg)
![3B.jpg](/proxy/?url=https://content.instructables.com/F5H/1D0H/GOOP6A0Q/F5H1D0HGOOP6A0Q.jpg&filename=3B.jpg)

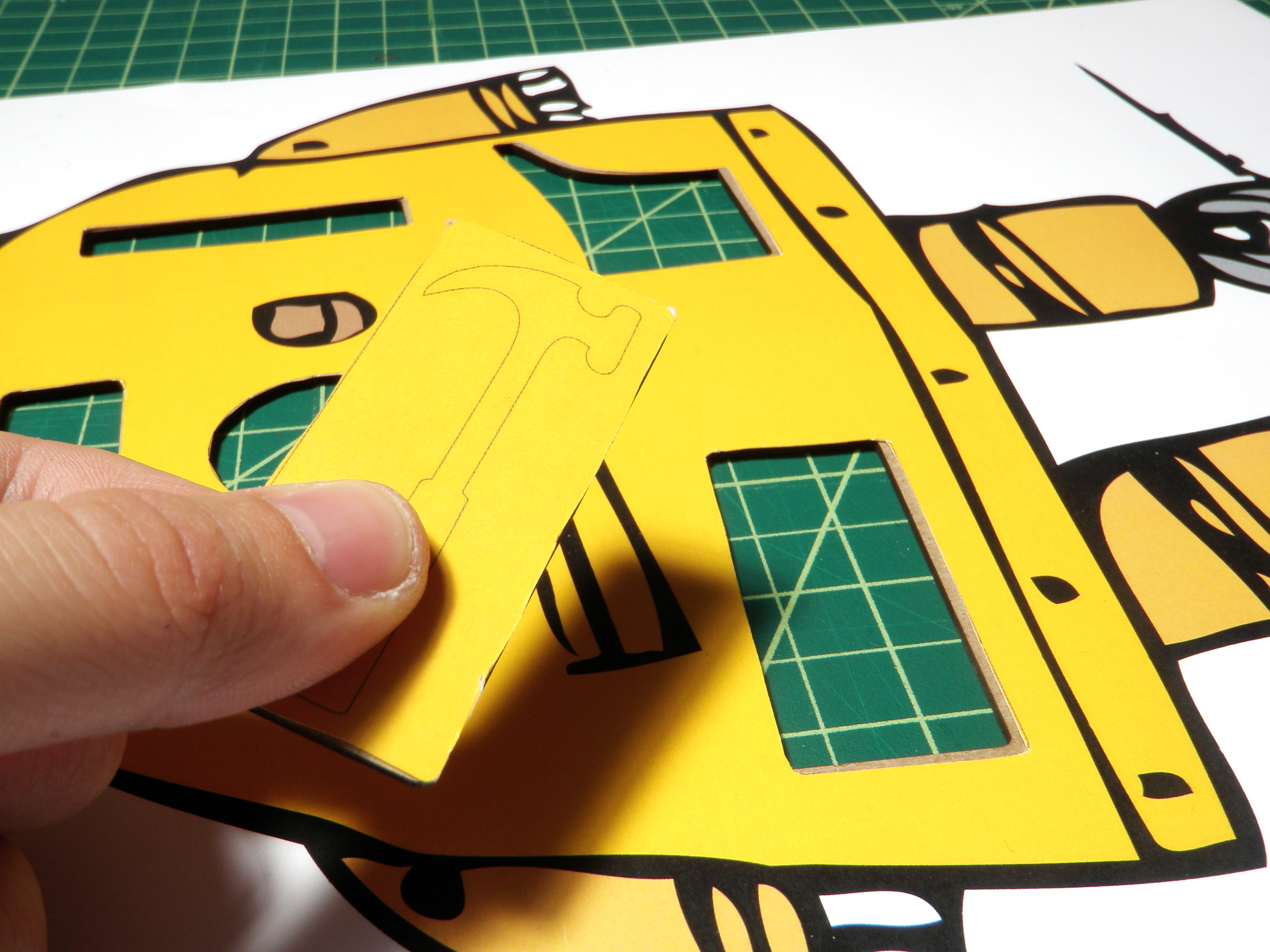

Use a craft knife to cut out the inner pieces by following the outlines.
Glue Some More
![4A.jpg](/proxy/?url=https://content.instructables.com/FVE/VEN6/GOOP6A0V/FVEVEN6GOOP6A0V.jpg&filename=4A.jpg)
![4B.jpg](/proxy/?url=https://content.instructables.com/FIY/3QMF/GONGIB22/FIY3QMFGONGIB22.jpg&filename=4B.jpg)

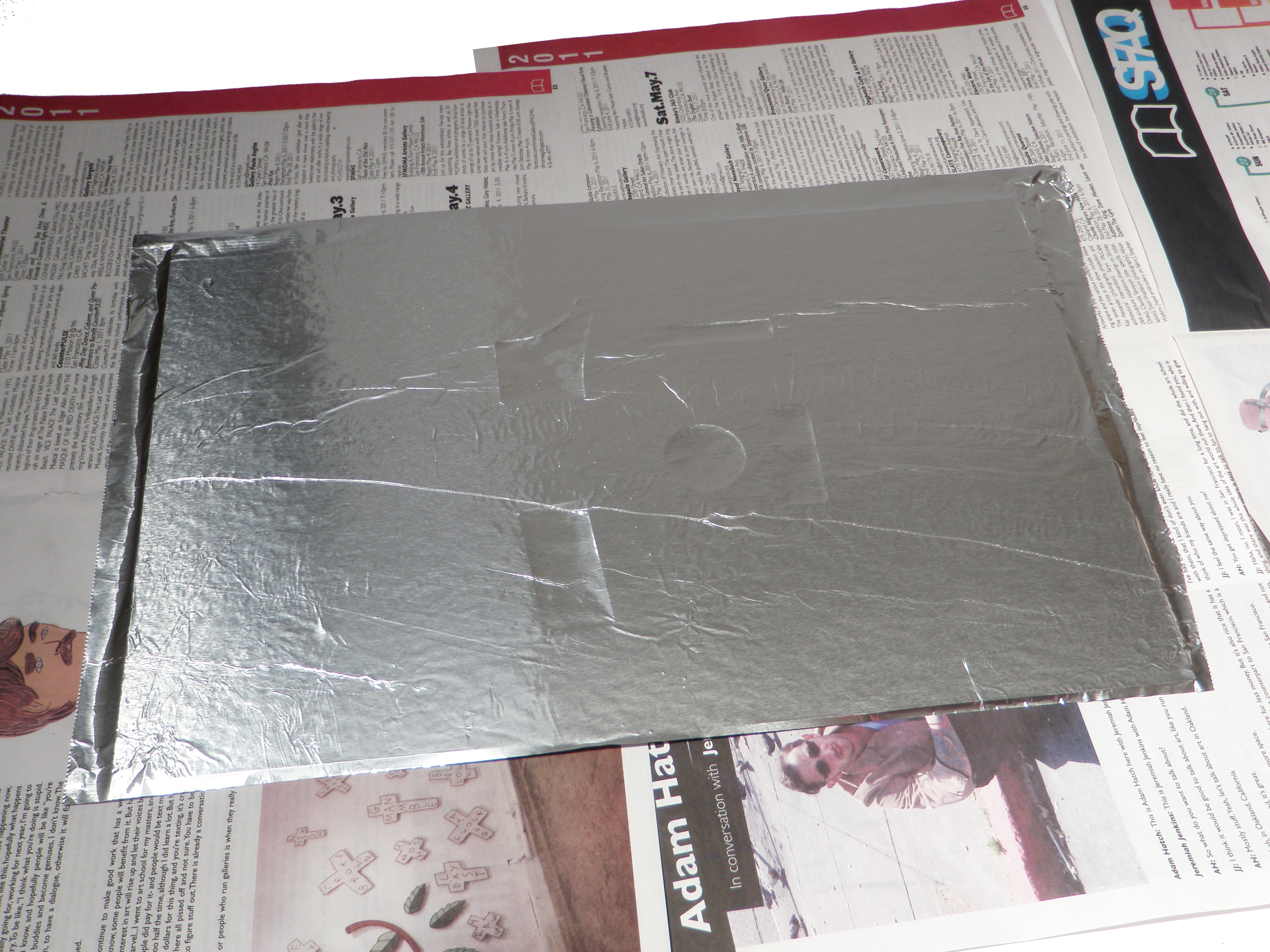

Flip your board over and spray the back with glue. Firmly attache a sheet of aluminum over top of the entire back side.
Aluminum Edges
![5A.jpg](/proxy/?url=https://content.instructables.com/FXB/2FGP/GONGIB94/FXB2FGPGONGIB94.jpg&filename=5A.jpg)
![5B.jpg](/proxy/?url=https://content.instructables.com/F3U/35RA/GOTSZ6KQ/F3U35RAGOTSZ6KQ.jpg&filename=5B.jpg)
![5C.jpg](/proxy/?url=https://content.instructables.com/FMQ/CRYN/GOOP6AF5/FMQCRYNGOOP6AF5.jpg&filename=5C.jpg)
![5D.jpg](/proxy/?url=https://content.instructables.com/FOR/NGQJ/GONGIB6V/FORNGQJGONGIB6V.jpg&filename=5D.jpg)
![5E.jpg](/proxy/?url=https://content.instructables.com/F3K/XYP5/GOOP6AHS/F3KXYP5GOOP6AHS.jpg&filename=5E.jpg)
![5F.jpg](/proxy/?url=https://content.instructables.com/FYG/1C2L/GONGIB8X/FYG1C2LGONGIB8X.jpg&filename=5F.jpg)
![5G.jpg](/proxy/?url=https://content.instructables.com/F37/J9OU/GOOP6AAE/F37J9OUGOOP6AAE.jpg&filename=5G.jpg)
![5H.jpg](/proxy/?url=https://content.instructables.com/FB3/Q3G9/GOOP6AC0/FB3Q3G9GOOP6AC0.jpg&filename=5H.jpg)

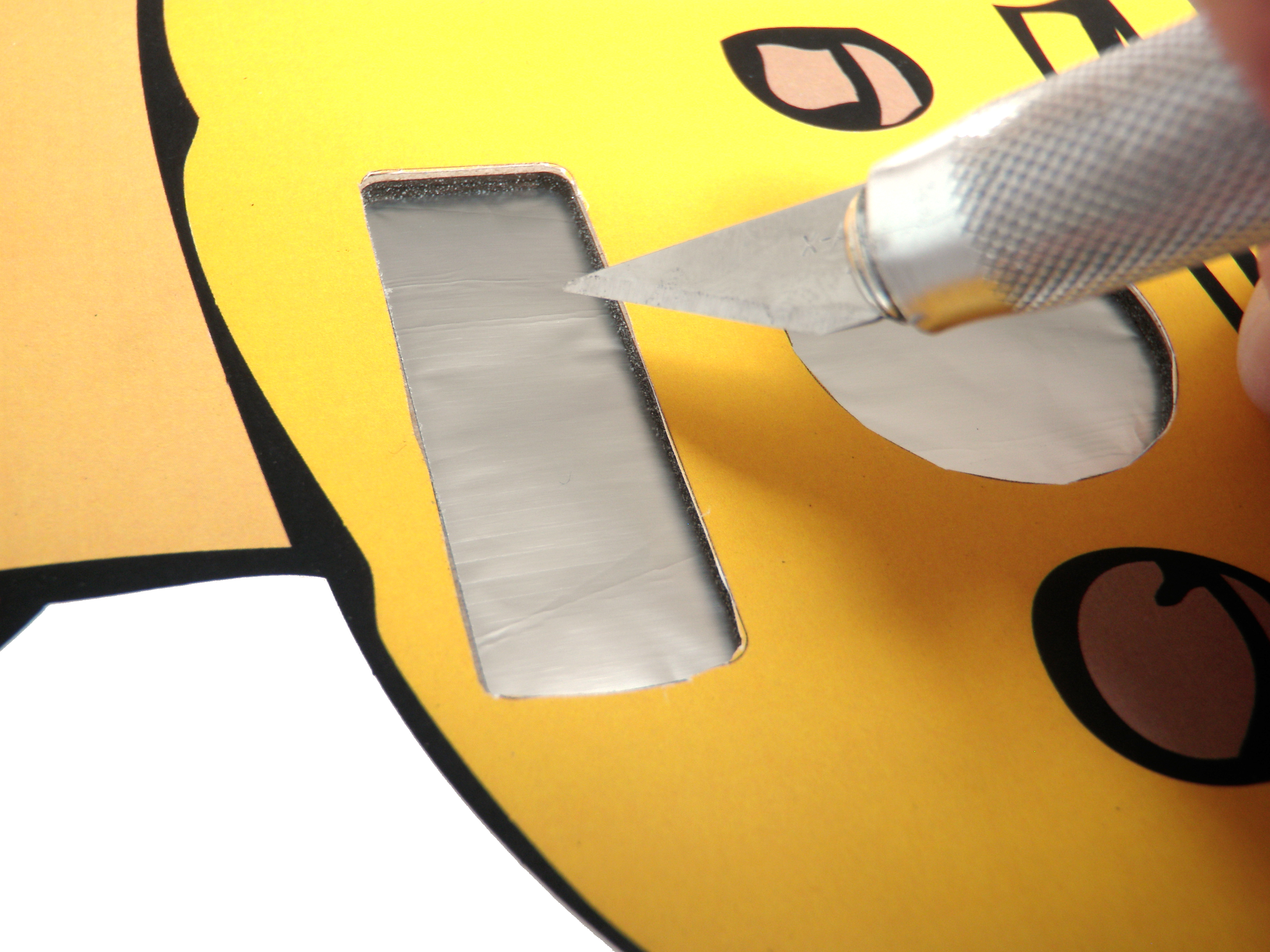

Flip the board back over. Trim away the excess aluminum foil from around the board's edges

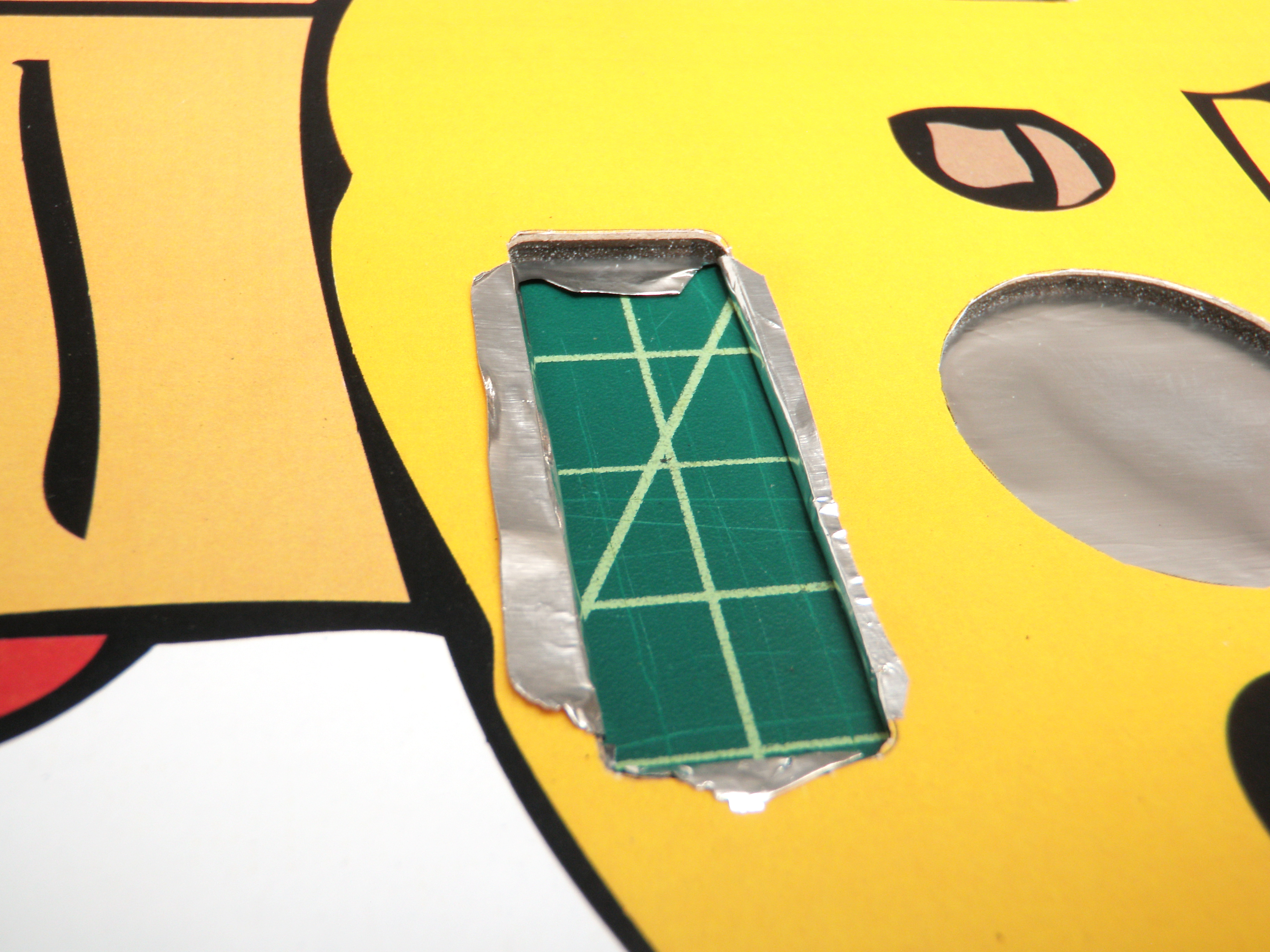

Carefully cut the inner shapes and fold the aluminum up and over the lips of the opening onto the picture side.
Carefully cut the inner shapes and fold the aluminum up and over the lips of the opening onto the picture side.
More Holes
![6A.jpg](/proxy/?url=https://content.instructables.com/FJ7/QLN7/GONGIBBI/FJ7QLN7GONGIBBI.jpg&filename=6A.jpg)
![6B.jpg](/proxy/?url=https://content.instructables.com/FM7/OM0X/GONGIBAQ/FM7OM0XGONGIBAQ.jpg&filename=6B.jpg)
![6C.jpg](/proxy/?url=https://content.instructables.com/F8D/S3LT/GOTSZ6RH/F8DS3LTGOTSZ6RH.jpg&filename=6C.jpg)

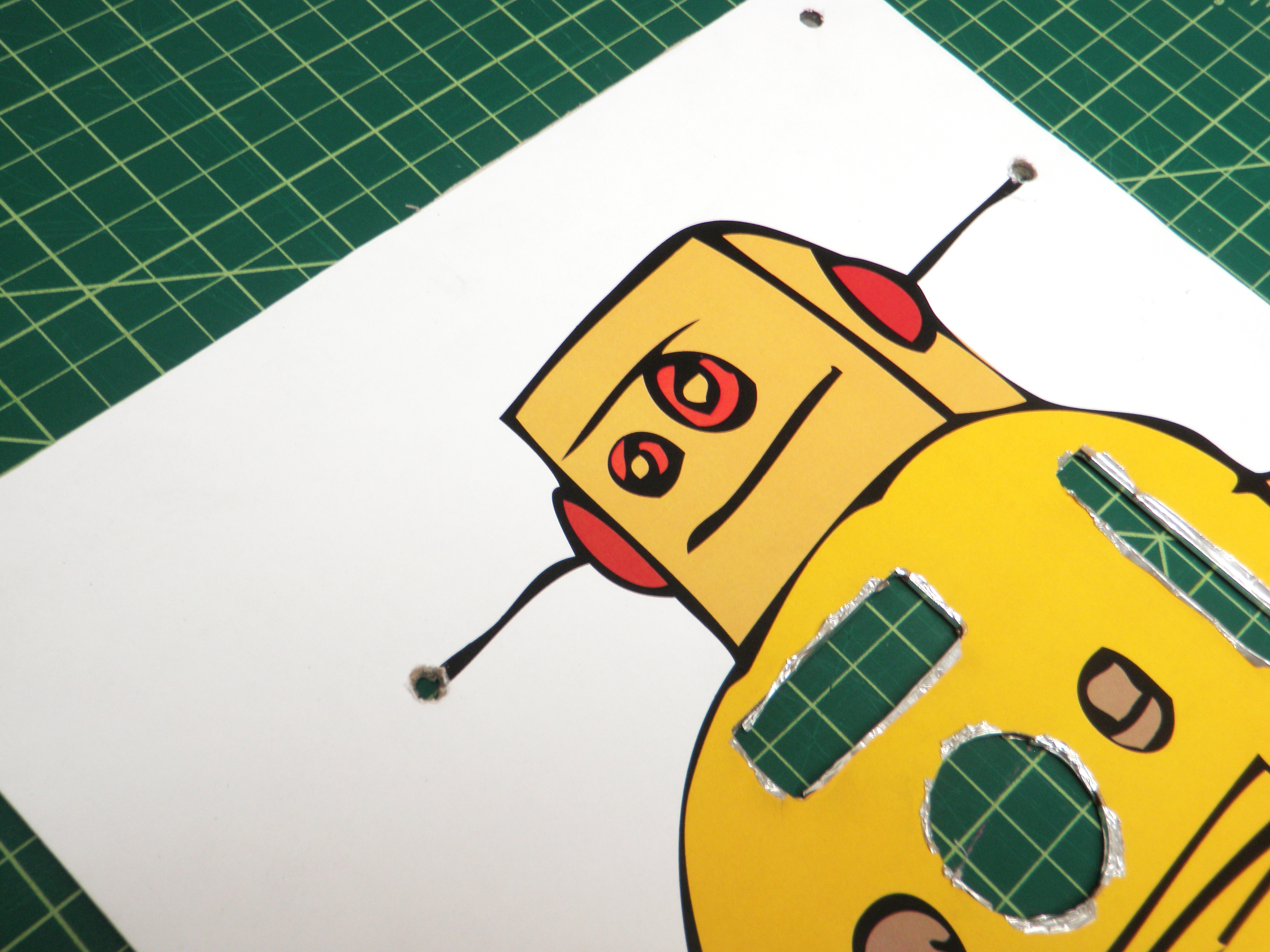

Cut two small 1/4" holes at the end of the robot's antennae.
LEDs
![7A.jpg](/proxy/?url=https://content.instructables.com/FZI/BEWQ/GOTSZBF6/FZIBEWQGOTSZBF6.jpg&filename=7A.jpg)
![7B.jpg](/proxy/?url=https://content.instructables.com/F2K/WAFS/GOOP6CA5/F2KWAFSGOOP6CA5.jpg&filename=7B.jpg)
![7C.jpg](/proxy/?url=https://content.instructables.com/F6G/OE07/GOTSZBE9/F6GOE07GOTSZBE9.jpg&filename=7C.jpg)
![7F.jpg](/proxy/?url=https://content.instructables.com/FLM/O95N/GONGIC70/FLMO95NGONGIC70.jpg&filename=7F.jpg)
![7D.jpg](/proxy/?url=https://content.instructables.com/FRI/WK6I/GONGIC6H/FRIWK6IGONGIC6H.jpg&filename=7D.jpg)
![7E.jpg](/proxy/?url=https://content.instructables.com/F9M/1ZQ1/GOOP6CAM/F9M1ZQ1GOOP6CAM.jpg&filename=7E.jpg)

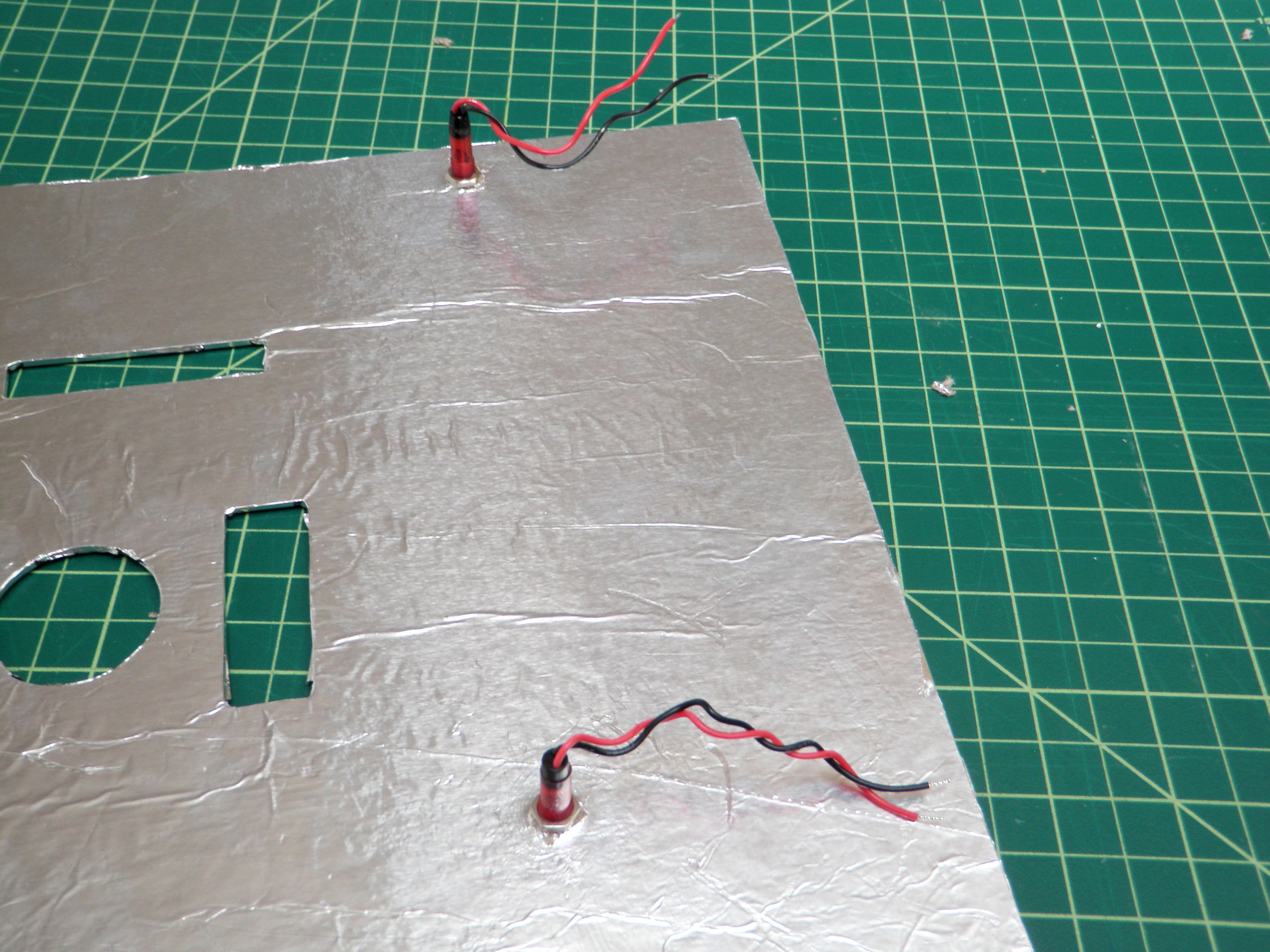

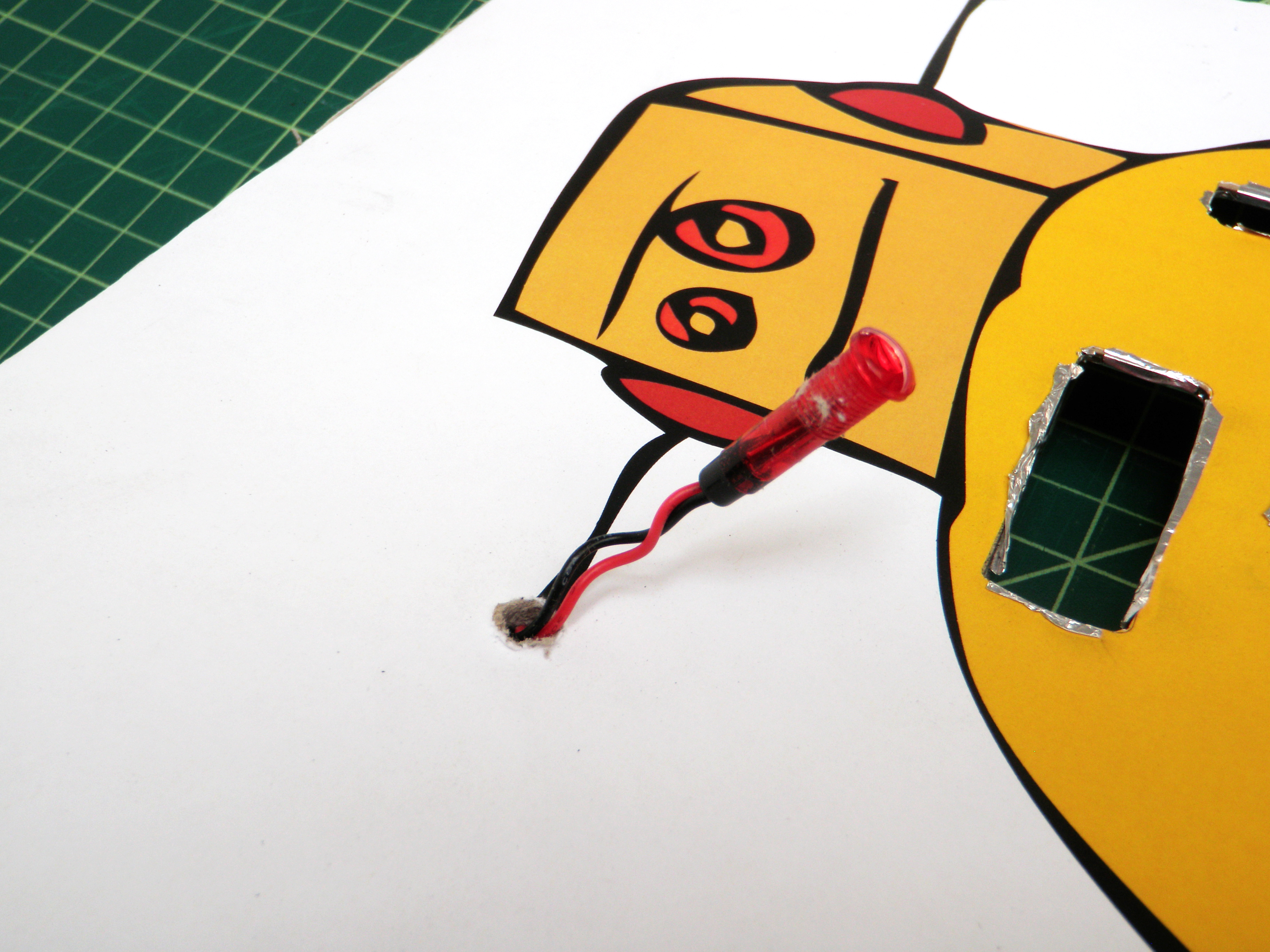

Pass your LED assemblies down through these openings and securely fasten them in place.
Bolts
![8A.jpg](/proxy/?url=https://content.instructables.com/FUR/V26E/GOTSZBLN/FURV26EGOTSZBLN.jpg&filename=8A.jpg)
![8B.jpg](/proxy/?url=https://content.instructables.com/FVA/B86X/GONGIC8H/FVAB86XGONGIC8H.jpg&filename=8B.jpg)
![8C.jpg](/proxy/?url=https://content.instructables.com/F8M/44GW/GONGIC8J/F8M44GWGONGIC8J.jpg&filename=8C.jpg)
![8D.jpg](/proxy/?url=https://content.instructables.com/F41/A70N/GONGIC8K/F41A70NGONGIC8K.jpg&filename=8D.jpg)
![8E.jpg](/proxy/?url=https://content.instructables.com/FZE/5X3D/GOOP6CM4/FZE5X3DGOOP6CM4.jpg&filename=8E.jpg)
![8F.jpg](/proxy/?url=https://content.instructables.com/FNO/A7ZD/GONGIC8N/FNOA7ZDGONGIC8N.jpg&filename=8F.jpg)
![8G.jpg](/proxy/?url=https://content.instructables.com/FBS/TJE7/GOTSZBM1/FBSTJE7GOTSZBM1.jpg&filename=8G.jpg)
![8H.jpg](/proxy/?url=https://content.instructables.com/FGP/SQMA/GOTSZBMP/FGPSQMAGOTSZBMP.jpg&filename=8H.jpg)
![8I.jpg](/proxy/?url=https://content.instructables.com/F5L/1CY0/GOTSZBMY/F5L1CY0GOTSZBMY.jpg&filename=8I.jpg)
![8J.jpg](/proxy/?url=https://content.instructables.com/FYQ/MENS/GONGIC91/FYQMENSGONGIC91.jpg&filename=8J.jpg)

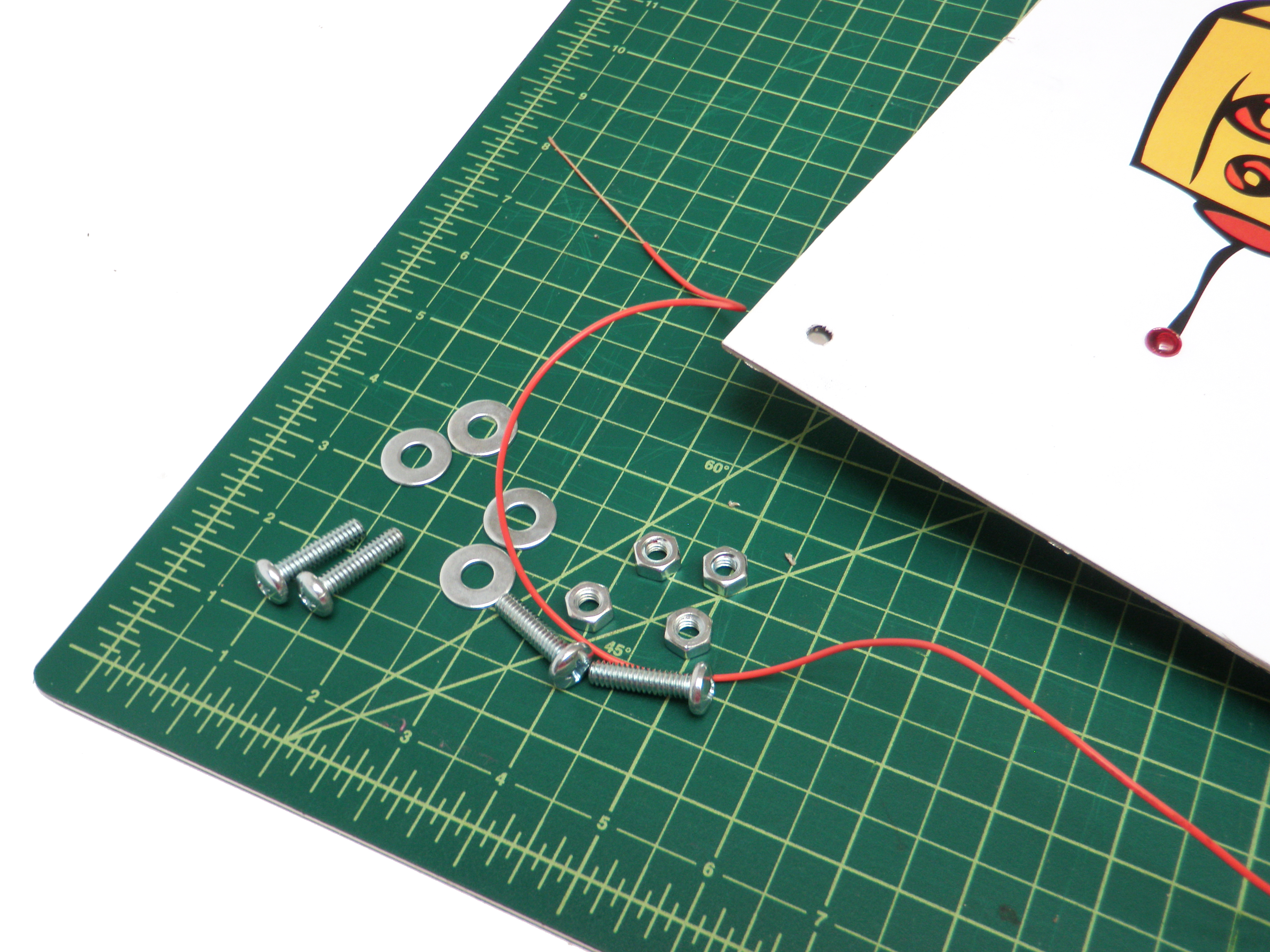

Pass one of the bolts through from front to back.

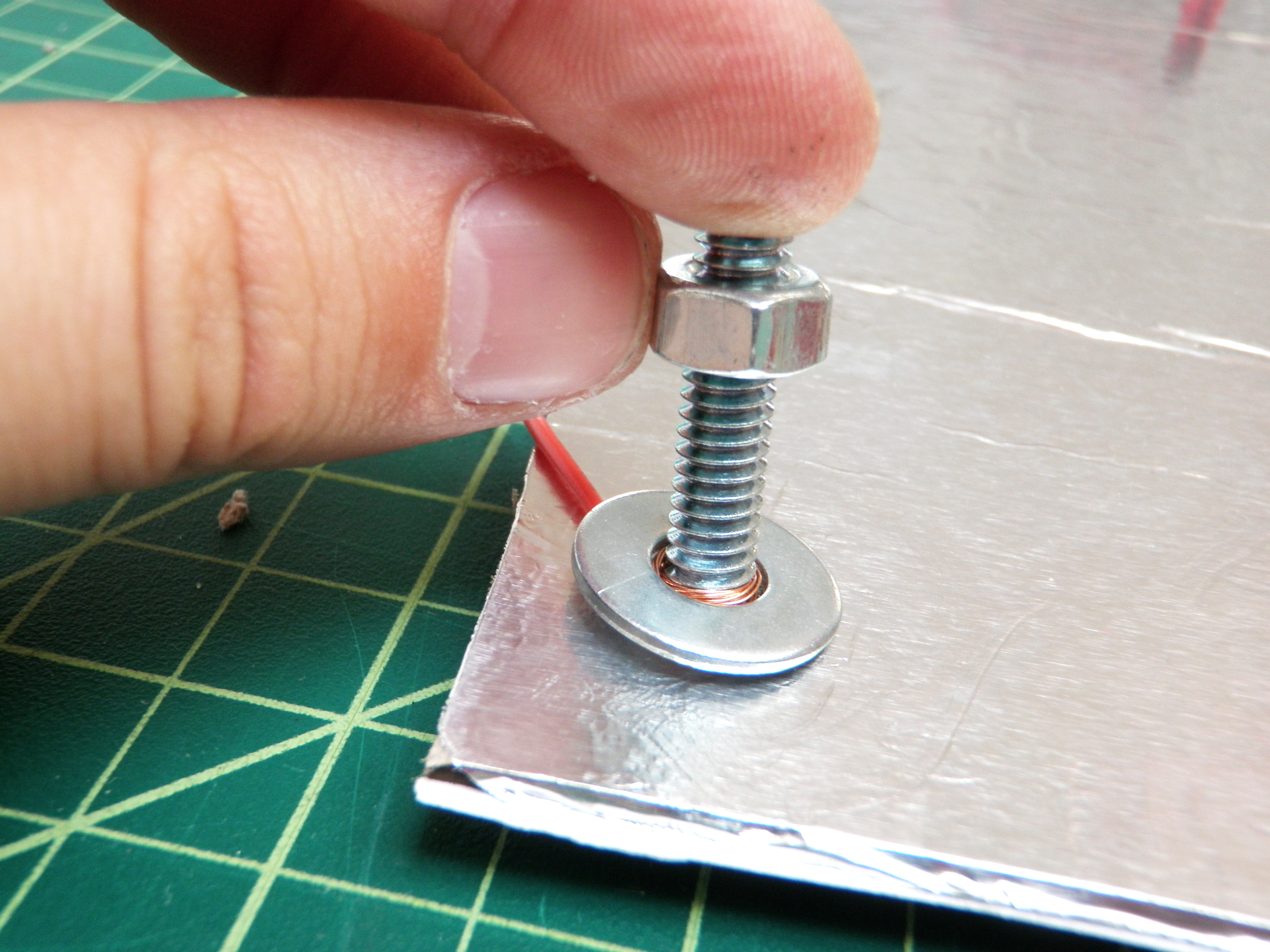

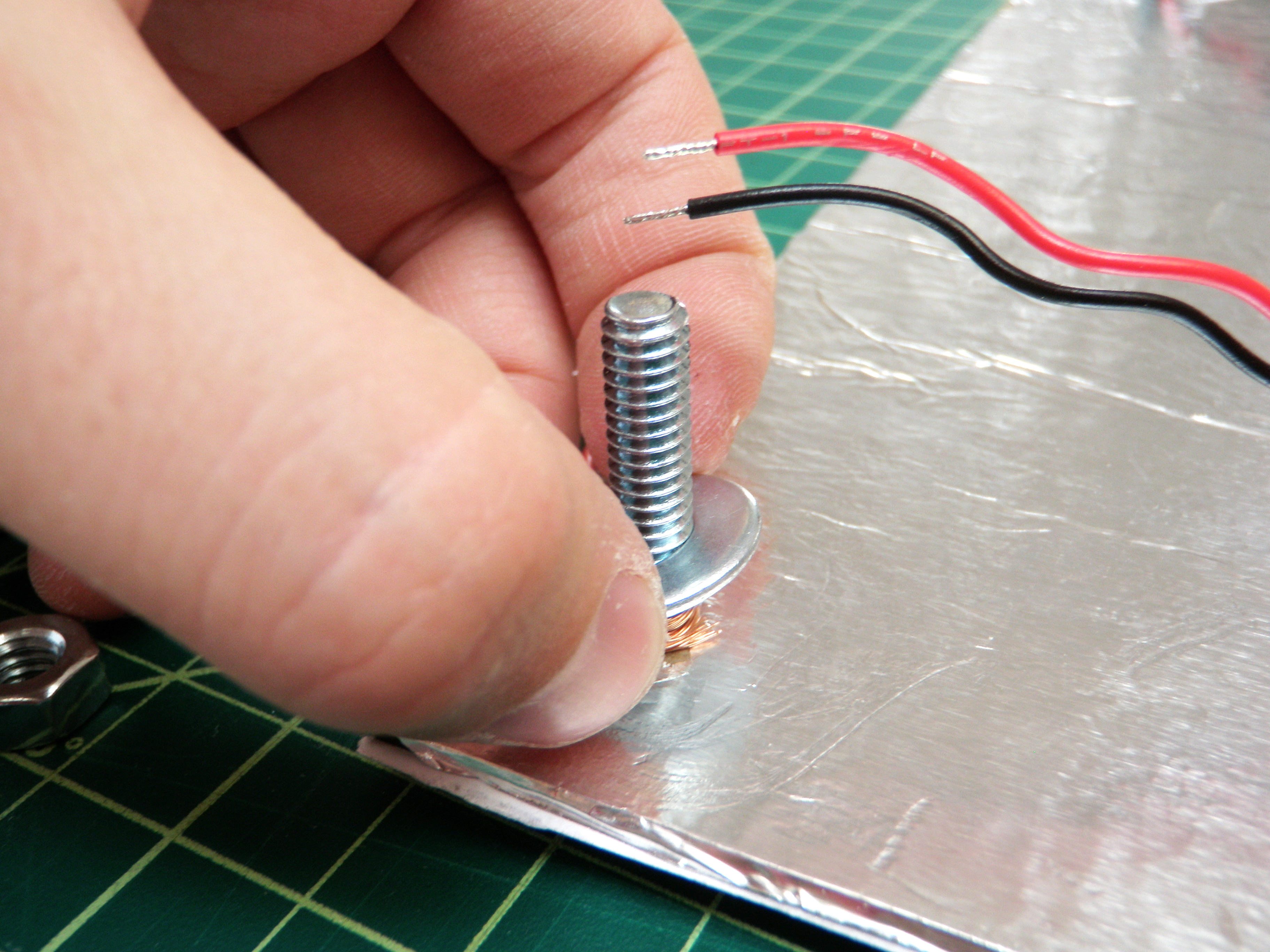

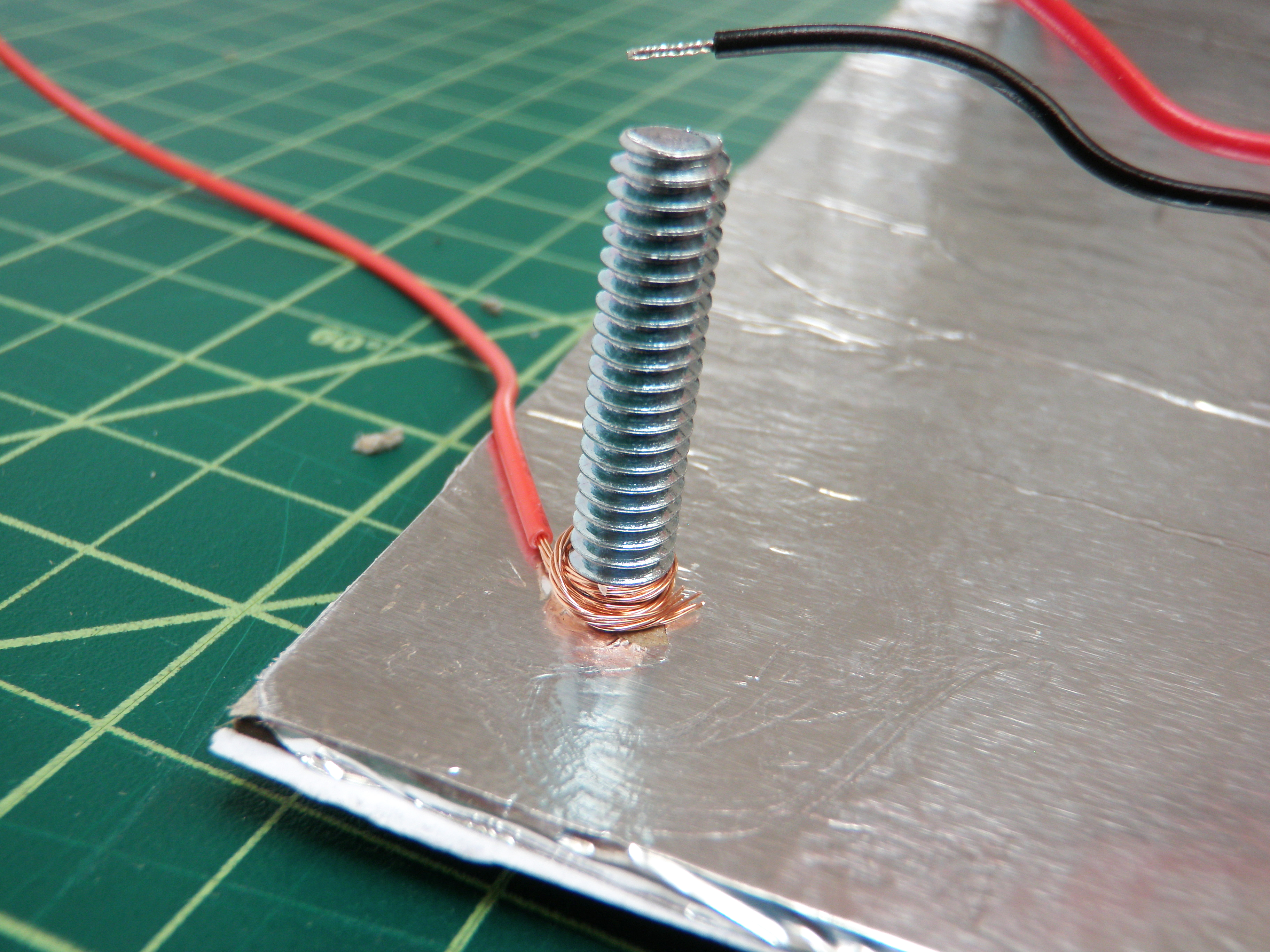

Cut a 12" piece of wire and expose three inches. Wrap the exposed wire around this first bolt. Put on a washer and then fasten it down with a nut.

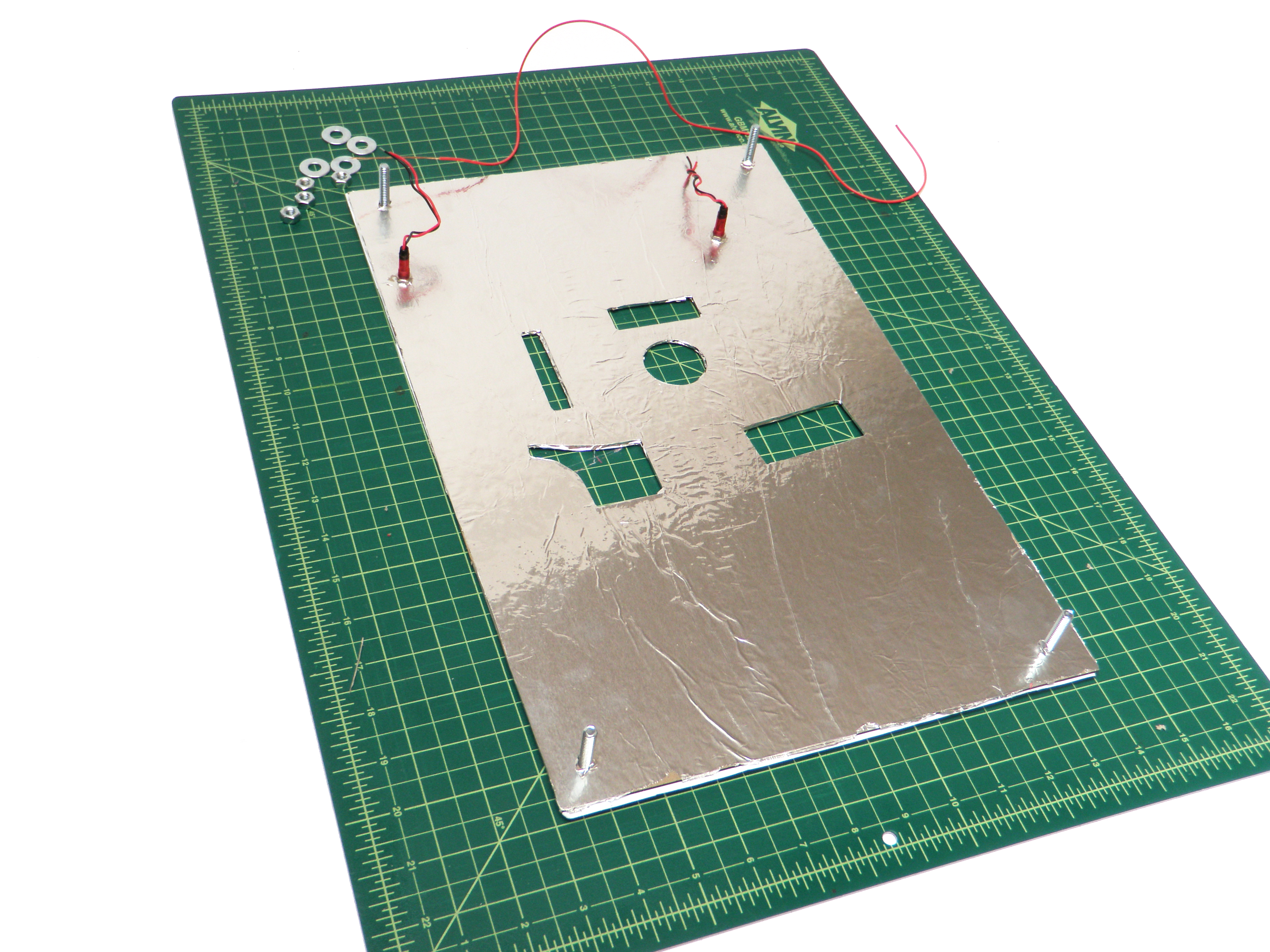

Pass the remaining bolts through, add washers and fasten them in place with nuts.
Cut a 12" piece of wire and expose three inches. Wrap the exposed wire around this first bolt. Put on a washer and then fasten it down with a nut.
Pass the remaining bolts through, add washers and fasten them in place with nuts.
Buzzer
![9A.jpg](/proxy/?url=https://content.instructables.com/F58/PHO1/GONGIC9B/F58PHO1GONGIC9B.jpg&filename=9A.jpg)
![9B.jpg](/proxy/?url=https://content.instructables.com/FOP/QRCQ/GOTSZBN7/FOPQRCQGOTSZBN7.jpg&filename=9B.jpg)
![9C.jpg](/proxy/?url=https://content.instructables.com/FVN/G5IZ/GOTSZBN4/FVNG5IZGOTSZBN4.jpg&filename=9C.jpg)

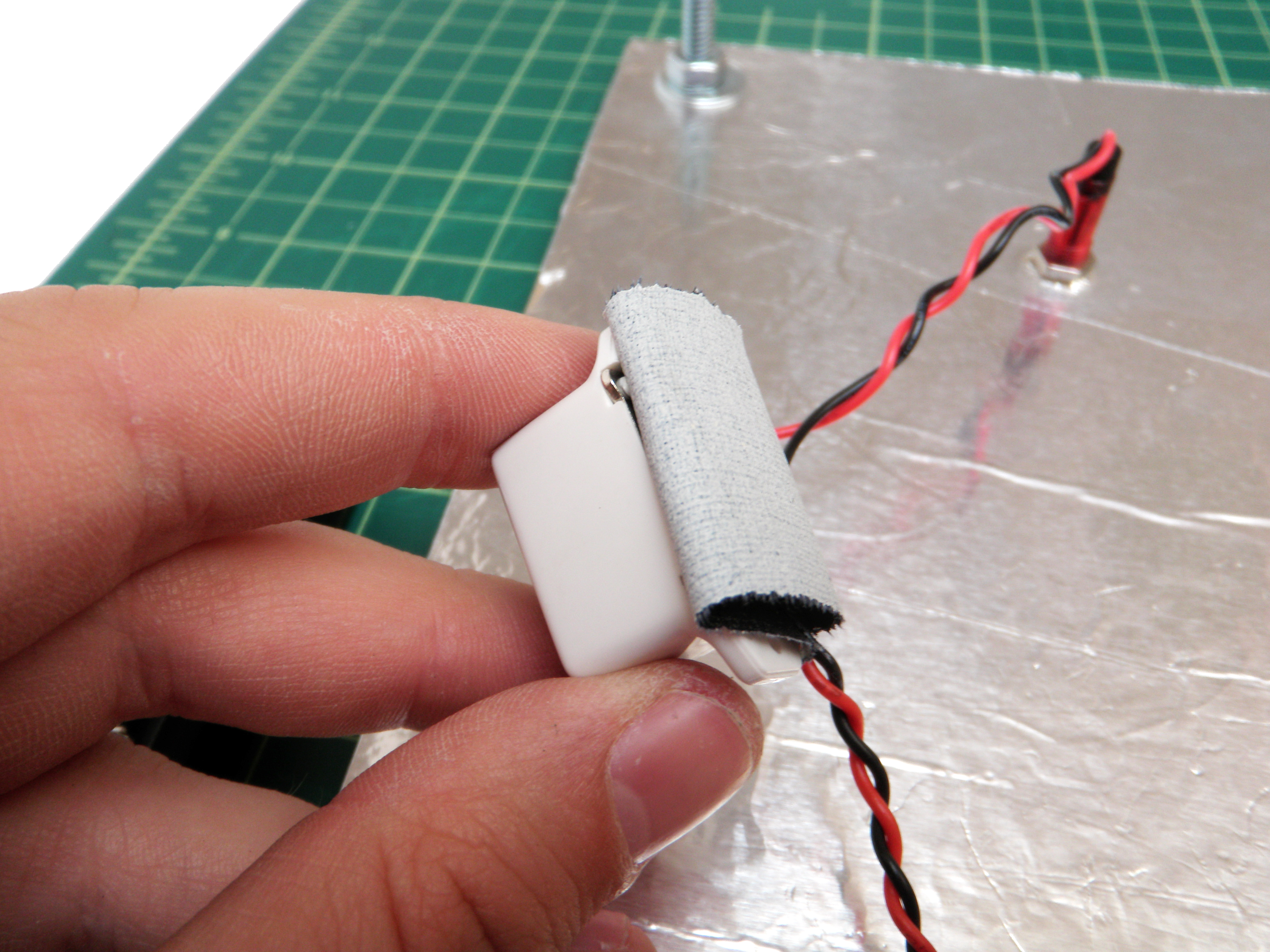

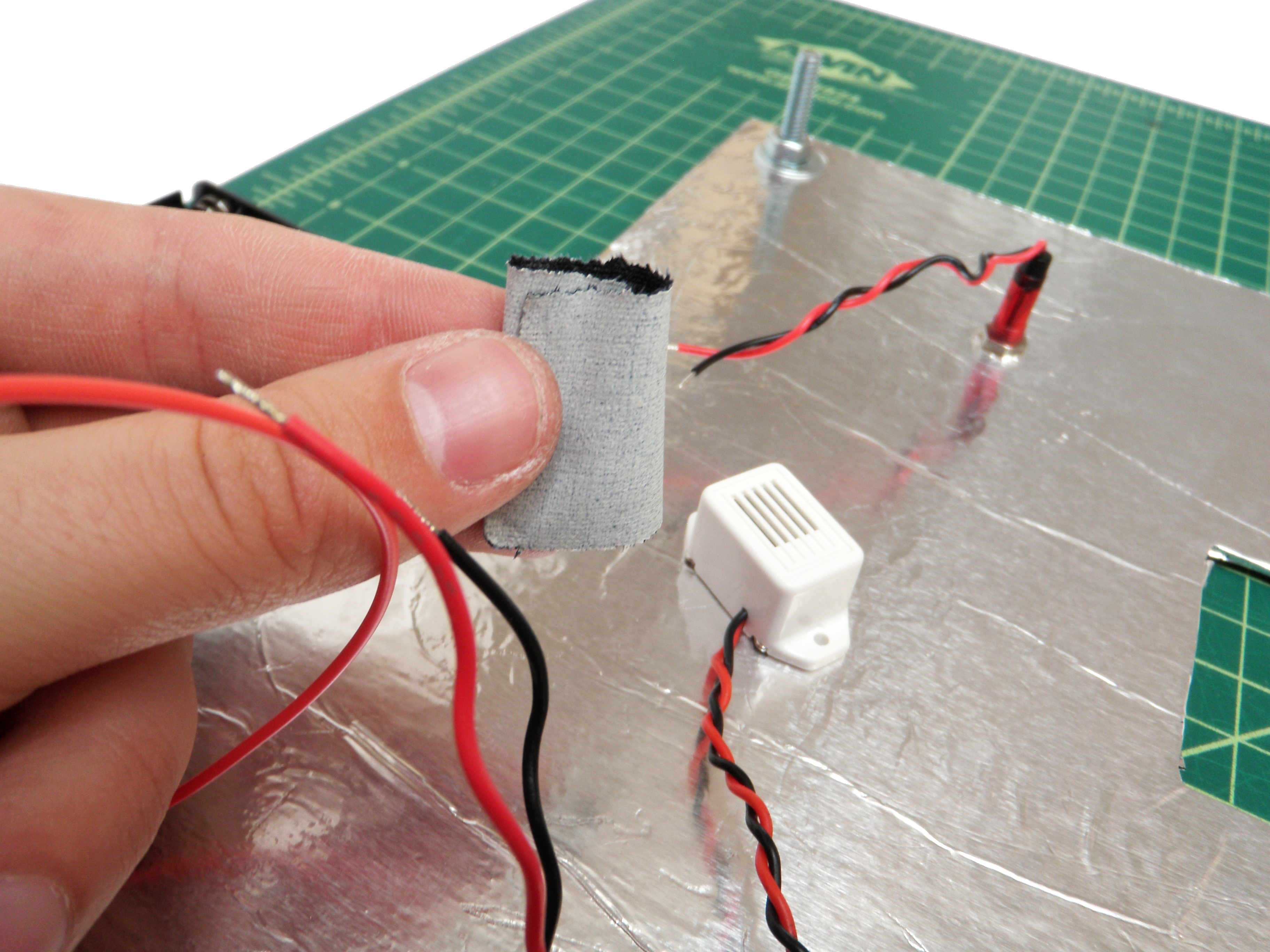

Make a loop of tape and stick your buzzer to the aluminum side of your board.
Tweezers
![10A.jpg](/proxy/?url=https://content.instructables.com/FP5/XNMY/GOY3BCFH/FP5XNMYGOY3BCFH.jpg&filename=10A.jpg)

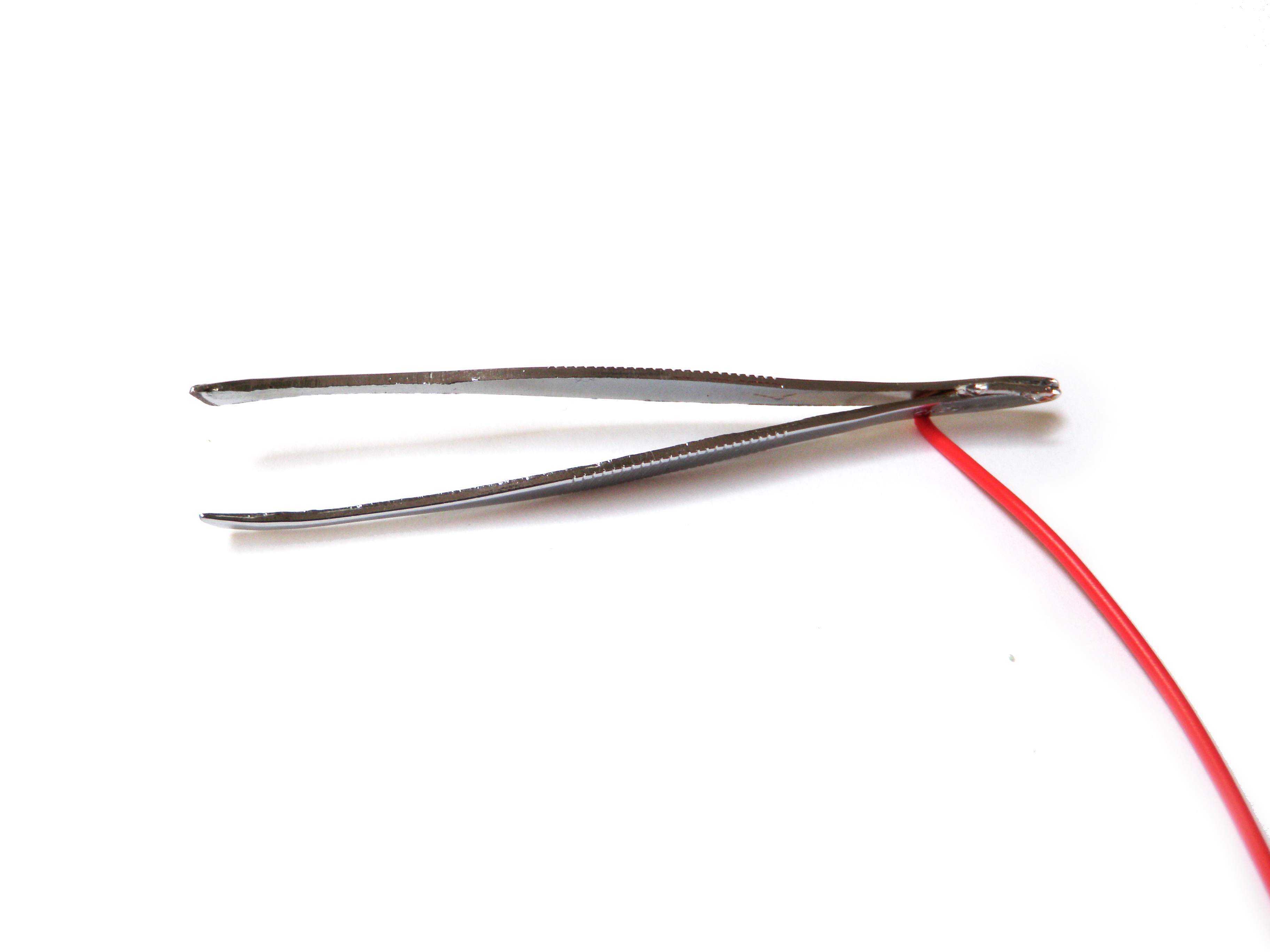

Cut a two foot section of wire and expose about two inches worth.
Solder this wire to the joint of your tweezers.
Solder this wire to the joint of your tweezers.
Wire It Up
![11A.jpg](/proxy/?url=https://content.instructables.com/F4P/TGFL/GONGICGW/F4PTGFLGONGICGW.jpg&filename=11A.jpg)
![11B.jpg](/proxy/?url=https://content.instructables.com/FF9/CMBW/GONGICHT/FF9CMBWGONGICHT.jpg&filename=11B.jpg)
![11C.jpg](/proxy/?url=https://content.instructables.com/F81/RISV/GONGICGZ/F81RISVGONGICGZ.jpg&filename=11C.jpg)

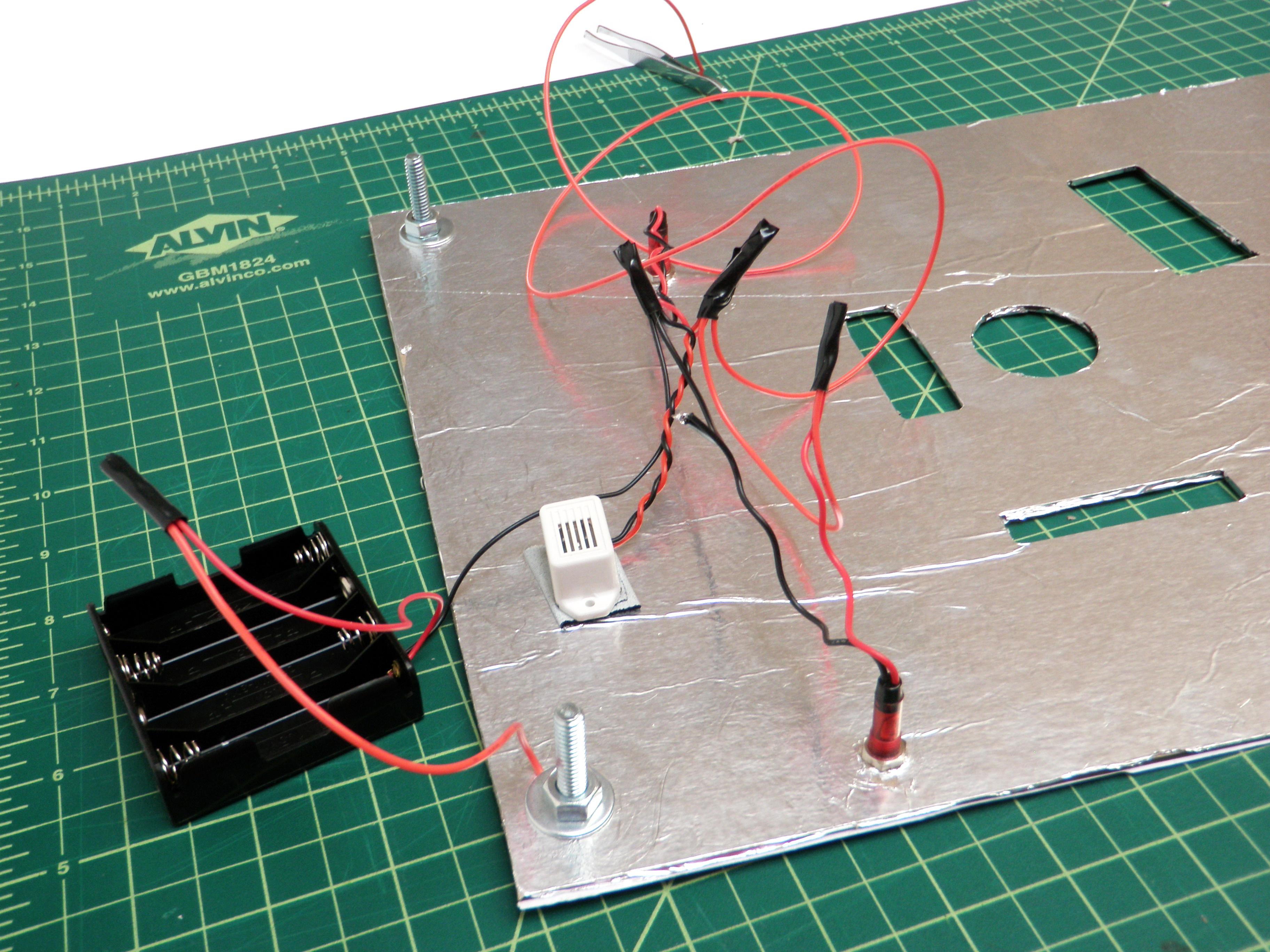

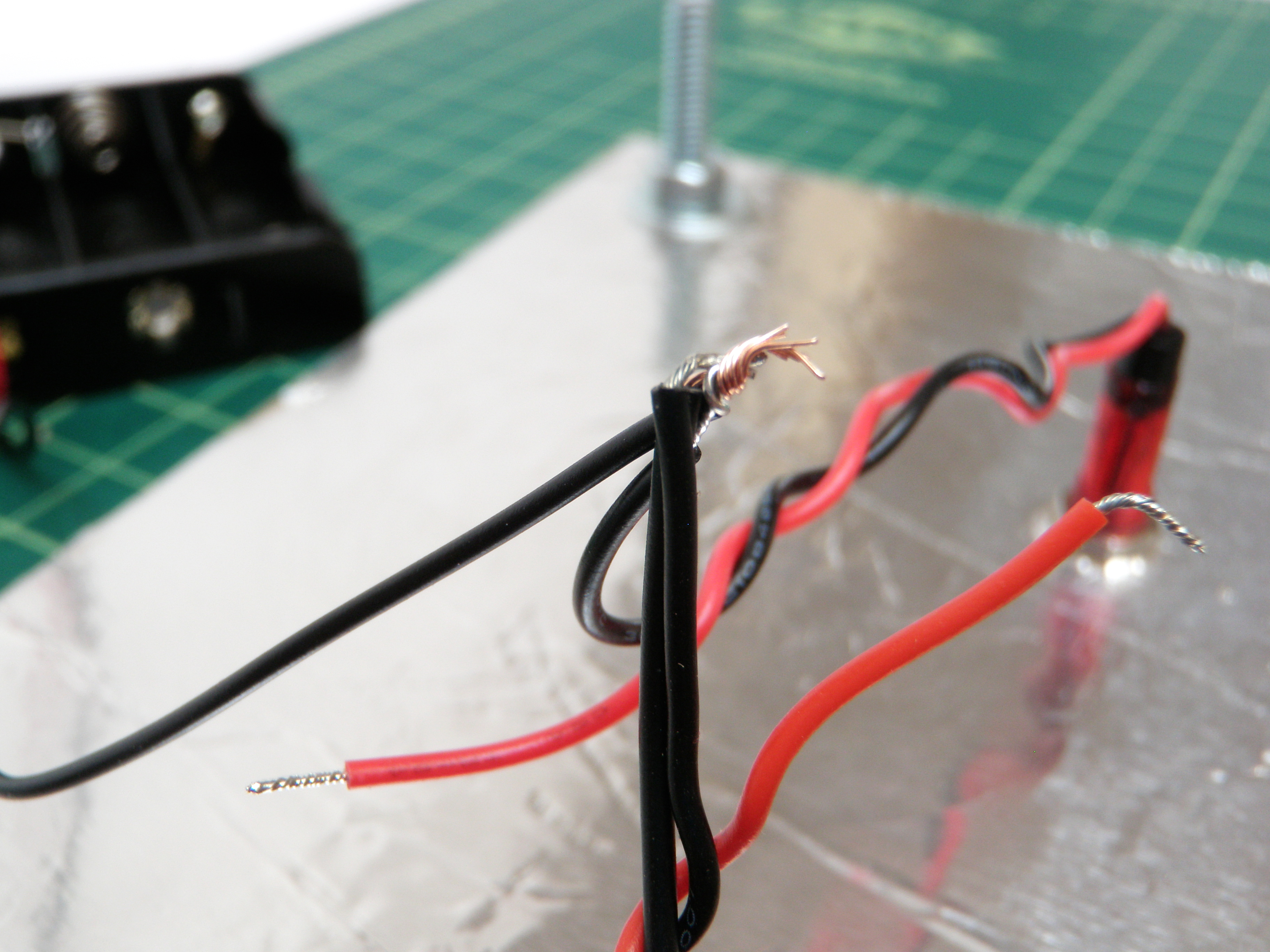

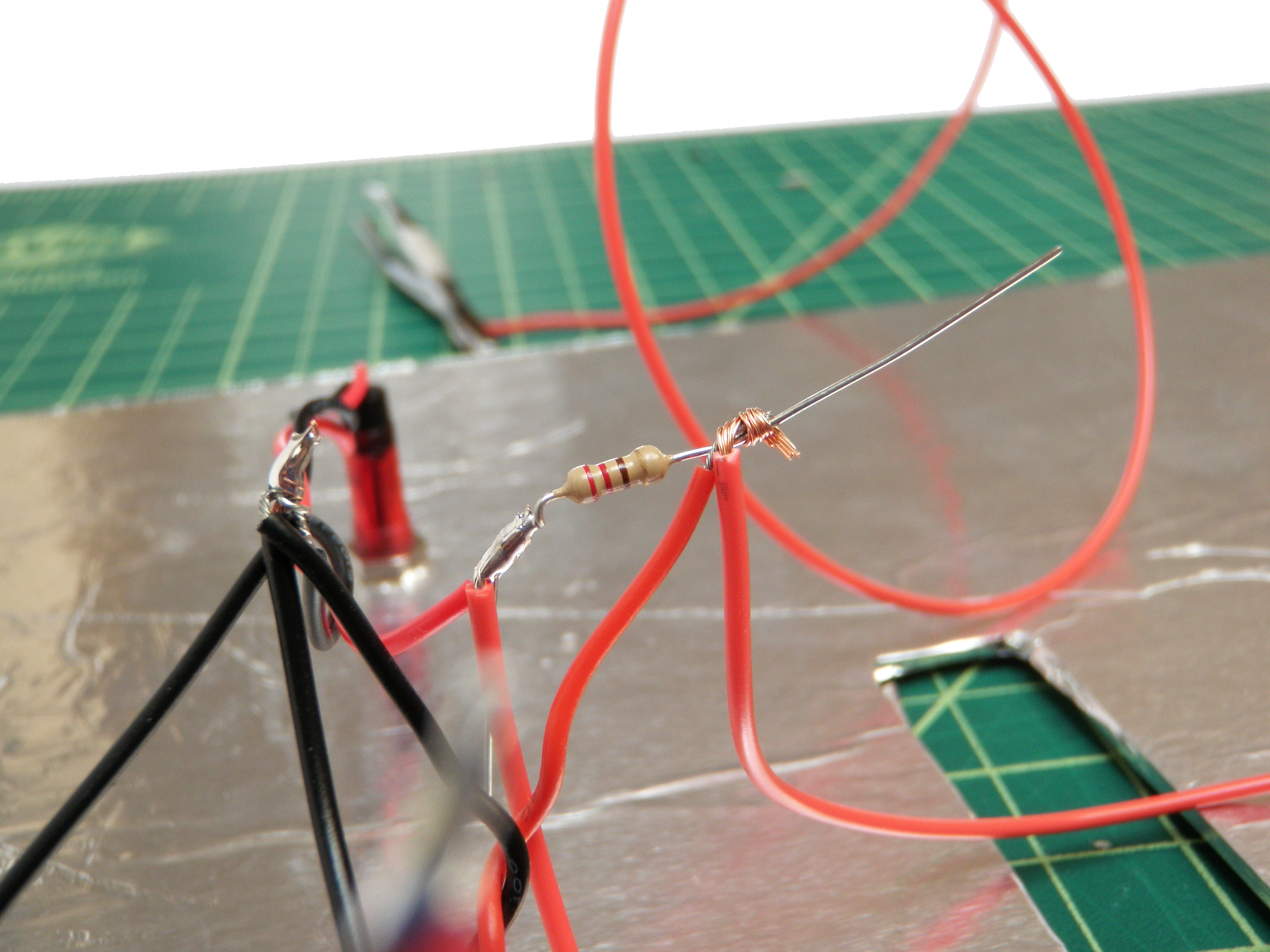

Wire the red wire fastened to the bolt to the red wire of the battery holder.
Wire the two red LED wires to your 220 ohm resistor.
Wire the red buzzer wire and the tweezers wire to the other side of the resistor.
Wire together all of the black wires.
Wire the two red LED wires to your 220 ohm resistor.
Wire the red buzzer wire and the tweezers wire to the other side of the resistor.
Wire together all of the black wires.
Clean It Up
![12A.jpg](/proxy/?url=https://content.instructables.com/F18/Y662/GOTSZBWI/F18Y662GOTSZBWI.jpg&filename=12A.jpg)
![12B.jpg](/proxy/?url=https://content.instructables.com/FEM/5VT8/GONGICK5/FEM5VT8GONGICK5.jpg&filename=12B.jpg)
![12C.jpg](/proxy/?url=https://content.instructables.com/FQO/TE6W/GOOP6D8D/FQOTE6WGOOP6D8D.jpg&filename=12C.jpg)
Cover all of the exposed wires with electrical tape so that they can't cross.
Bundle together all of the wires with zip ties, except for the tweezers wire.
Bundle together all of the wires with zip ties, except for the tweezers wire.
Finishing Touches
![13A.jpg](/proxy/?url=https://content.instructables.com/F7S/CCSN/GOOP6EXZ/F7SCCSNGOOP6EXZ.jpg&filename=13A.jpg)
![13B.jpg](/proxy/?url=https://content.instructables.com/FTI/SGLJ/GOTSZC77/FTISGLJGOTSZC77.jpg&filename=13B.jpg)
![13C.jpg](/proxy/?url=https://content.instructables.com/FCP/JOY7/GOTSZC7N/FCPJOY7GOTSZC7N.jpg&filename=13C.jpg)

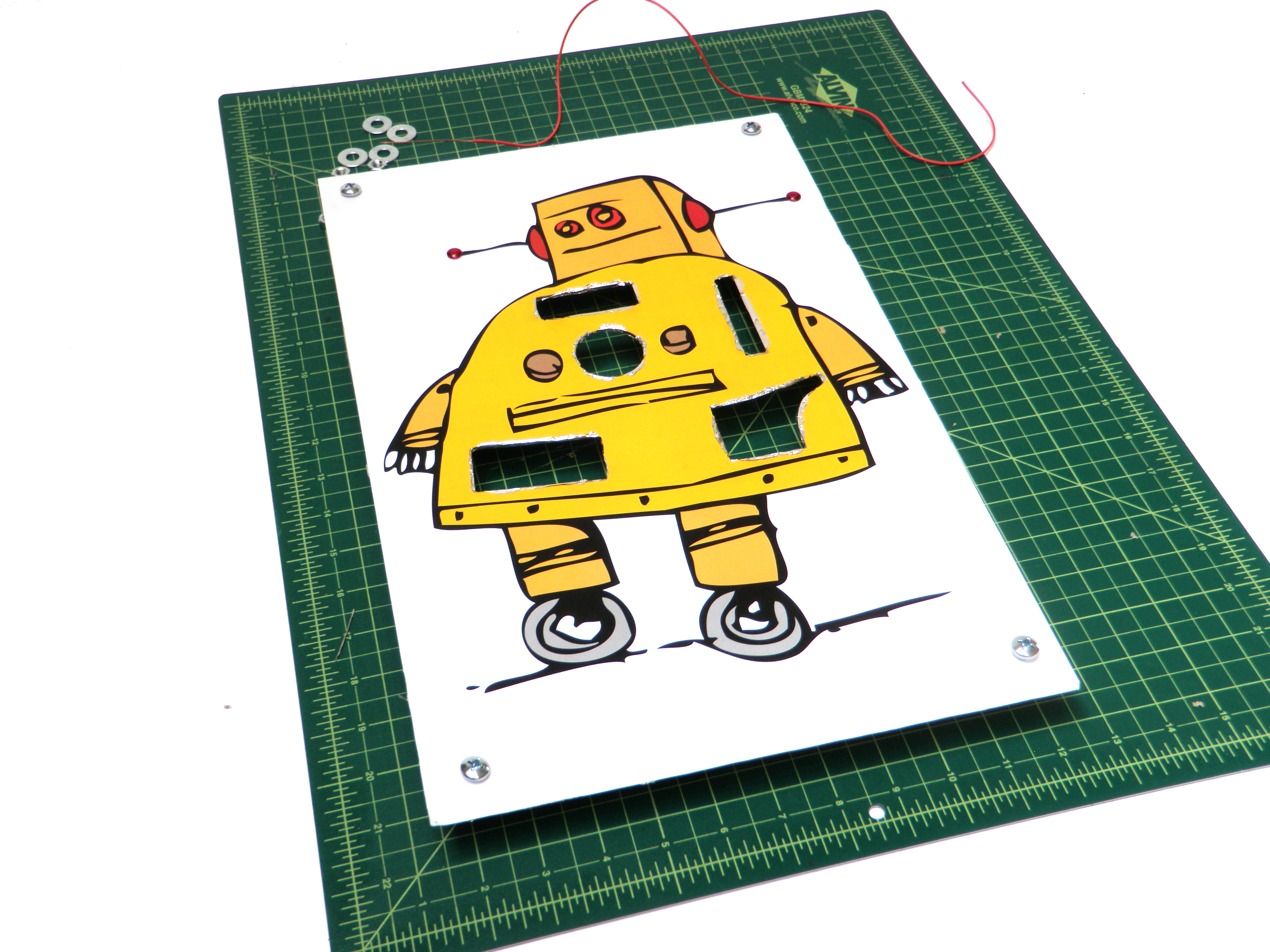

Put your thread covers onto the ends of each of the bolts.
Batteries
![14A.jpg](/proxy/?url=https://content.instructables.com/FWJ/UQGH/GONGICP0/FWJUQGHGONGICP0.jpg&filename=14A.jpg)

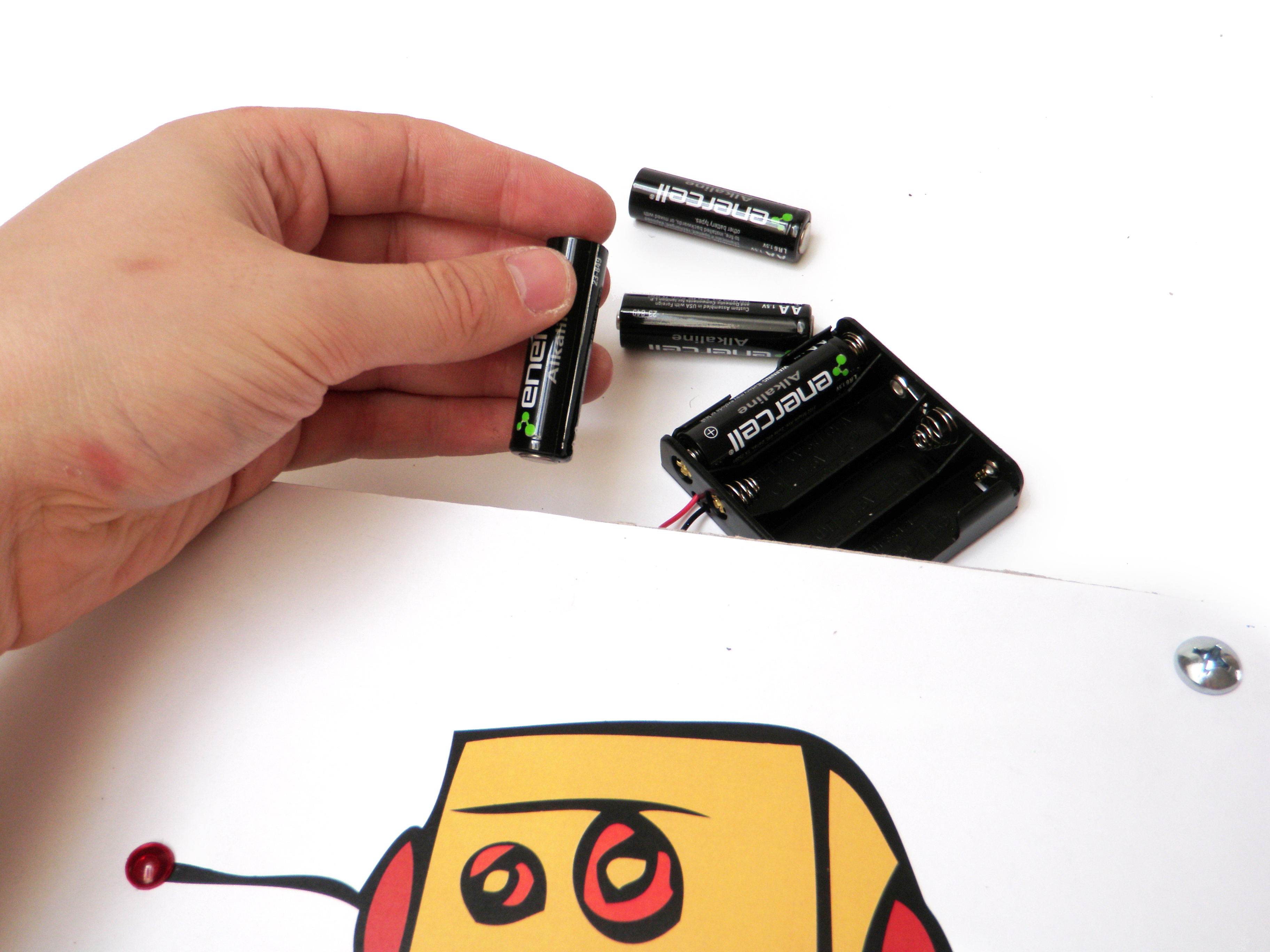

Put your batteries into the battery holder.
Now, when you touch the tweezers anywhere on the aluminum foil, the LEDs should light up and the buzzer should buzz.
Now, when you touch the tweezers anywhere on the aluminum foil, the LEDs should light up and the buzzer should buzz.
Game Pieces
![15A.jpg](/proxy/?url=https://content.instructables.com/F2P/O0S5/GOOP6F52/F2PO0S5GOOP6F52.jpg&filename=15A.jpg)

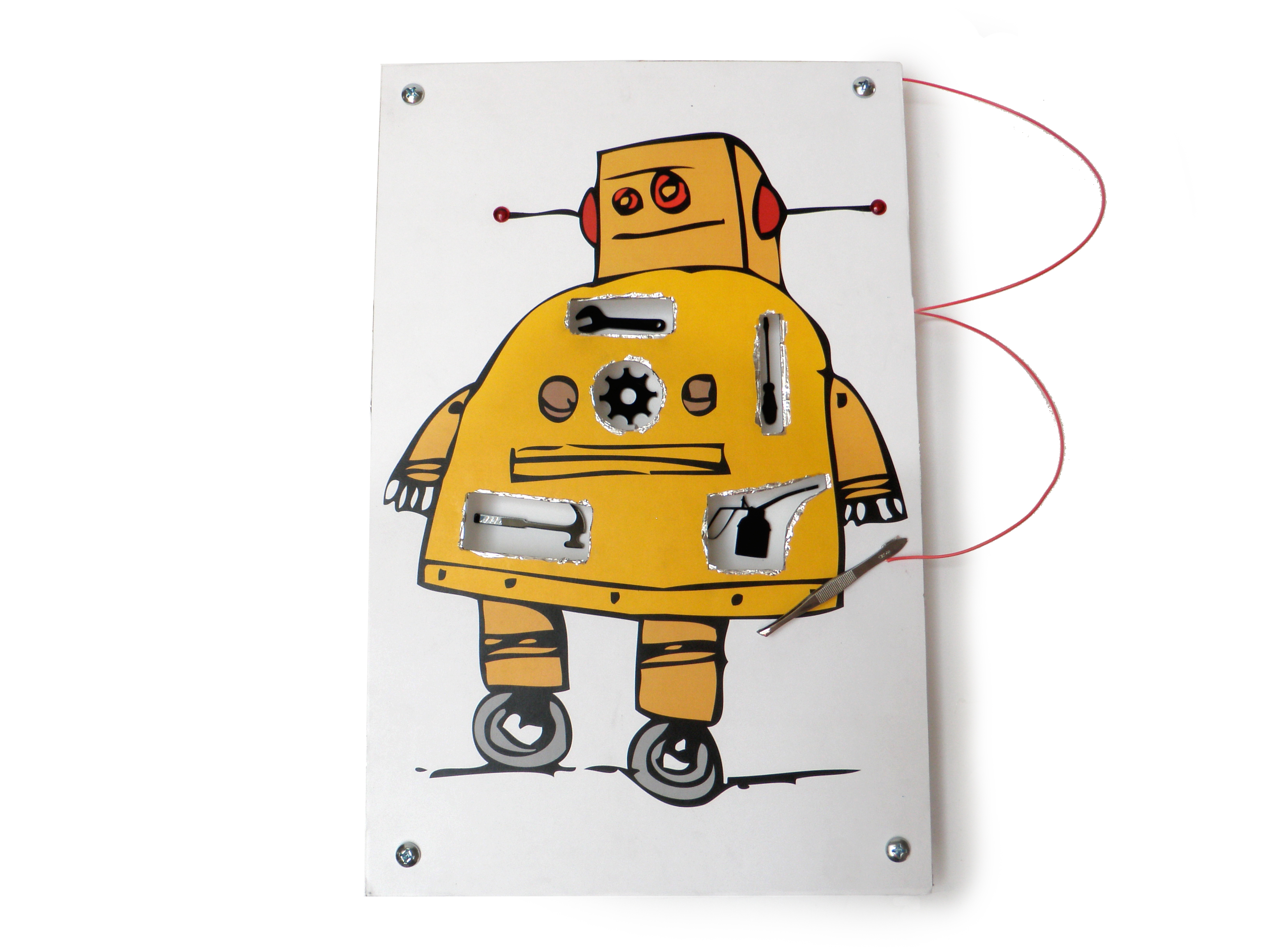

Drop your game pieces into the appropriate holes.
Play!
![16A.jpg](/proxy/?url=https://content.instructables.com/FTB/H5HC/GOOP6F63/FTBH5HCGOOP6F63.jpg&filename=16A.jpg)
Try to remove the pieces without touching the sides of the hole with the tweezers. If it buzzes, you lose your turn. The person to pull out the most pieces wins.
