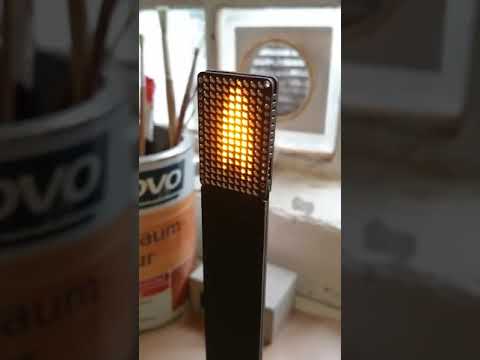

video 2018 09 04 14 28 12

After building some of these:

https://www.instructables.com/id/Matrix-LED-Light/

i've decided to bring the candle onto another level. While the first one looks good, it does look a little bit too much like the original. Nothing against the first design. It looks cool and modern.

My new approach is a little bit warmer and uses different materials. Still quite geometrical.

It "feels" warmer, just by breaking the light at the edges of the concrete, which makes a passive light.

So ... this is my entry to the "REMIX"-Contest. Would be happy, if you vote for me.


Tools and Material


Wood, concrete, brassrods and some electronic parts. And wood glaze, if you like.

  • A router/trimmer and basic woodworking tools
  • a 160x160mm piece of wood (about 18mm thick)
  • 3D-Printer
  • 3M 8402 silicon Tape (or another idea, like grease or silicon-spray)
  • quickcrete, (concrete)
  • arduino pro micro 16Mhz (8Mhz doesn't work)
  • TP4506 LiPo-loader
  • Adafruit LED-Matrix (yellow) and PWM Driver
  • 0.8mm Brassrods
  • double-sided gluetape
  • hotglue gun (helps a lot)
  • thin wire
  • small switch
  • 18650 flat LiPo (40mm wide fits perfect. 2000mha)

I've bought all electronics at EXP-Tech. The TP4506 and the pro micro where bought at ali-express.

Brassrods came from conrad-electronic. All other stuff (except the 3M 8402) where bought at a warehouse.

The Ring (3D Parts)


This took a lot of tries. How to cast a ring with rods inside and with nothing but PLA in my 3D-Printer.

The ring is made of one piece of concrete and the rods are in the concrete. Put in place before casting.

To get it in one piece, i had to print several parts which can be brake away after casting. And i had to find a "thing" which makes it more easy to seperate the 3D-printed parts from the concrete. Did i mention the rods? Well, those where another problem.

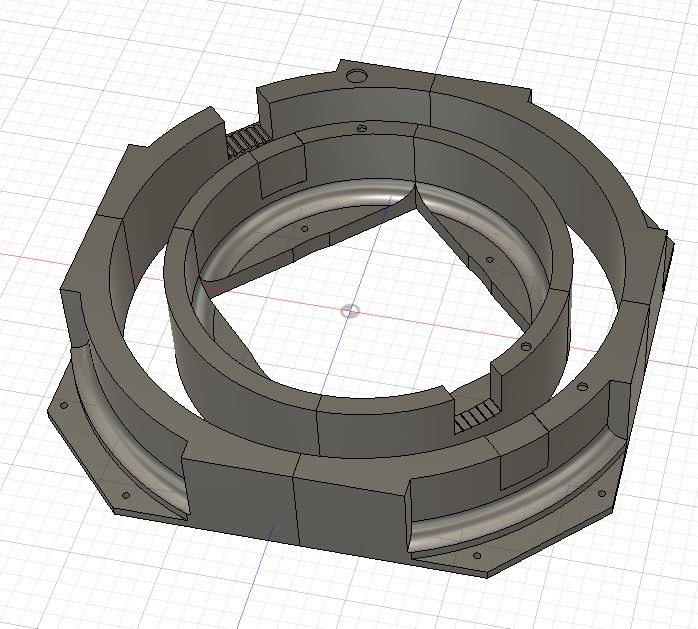

To start building the casting-form you'll need to print every part. Some parts have numbers, which equal to the number of prints of each part.

I'm using Material4Print with 30% infill on an anycubic i3 mega.

Every part is separated into one file, so you can position it to your possibilities on your printer.

Downloads

Building the Casting Form

photo_2019-03-12_06-57-50 (2).jpg
photo_2019-03-12_06-56-19 (2).jpg
photo_2019-03-12_06-57-35 (2).jpg

The pictures give you an idea of how to build it.

You need a solid base. Some flat piece of wood ("Siebdruckplatte" in german).

To get a smooth finish i've wrapped all parts with 3M 8402 Tape. It's hard to get and quite expensive. But it works perfectly. And i've pre-punched the holes for the brassrods.

(My first idea was to use seven rods. But in the end it looks better with just four. And it is more interesting to build.)

Everything wrapped, try to solve the puzzle. The long helper can be used to get a real straight line in the "open" parts. Those parts, which have to hold the rods in place.

So put everything in place, screw the parts without rods onto your base, prepare your "rod-parts", bring them back to your base ... and screw them on. See the pictures for details.

And keep in mind, that you have to cut the tape later at the pre-pressed parts. Those have to be removed after casting or you won't be able to get the PLA from your concrete-ring. Hard to describe, but you'll see the problem, when you have build it.

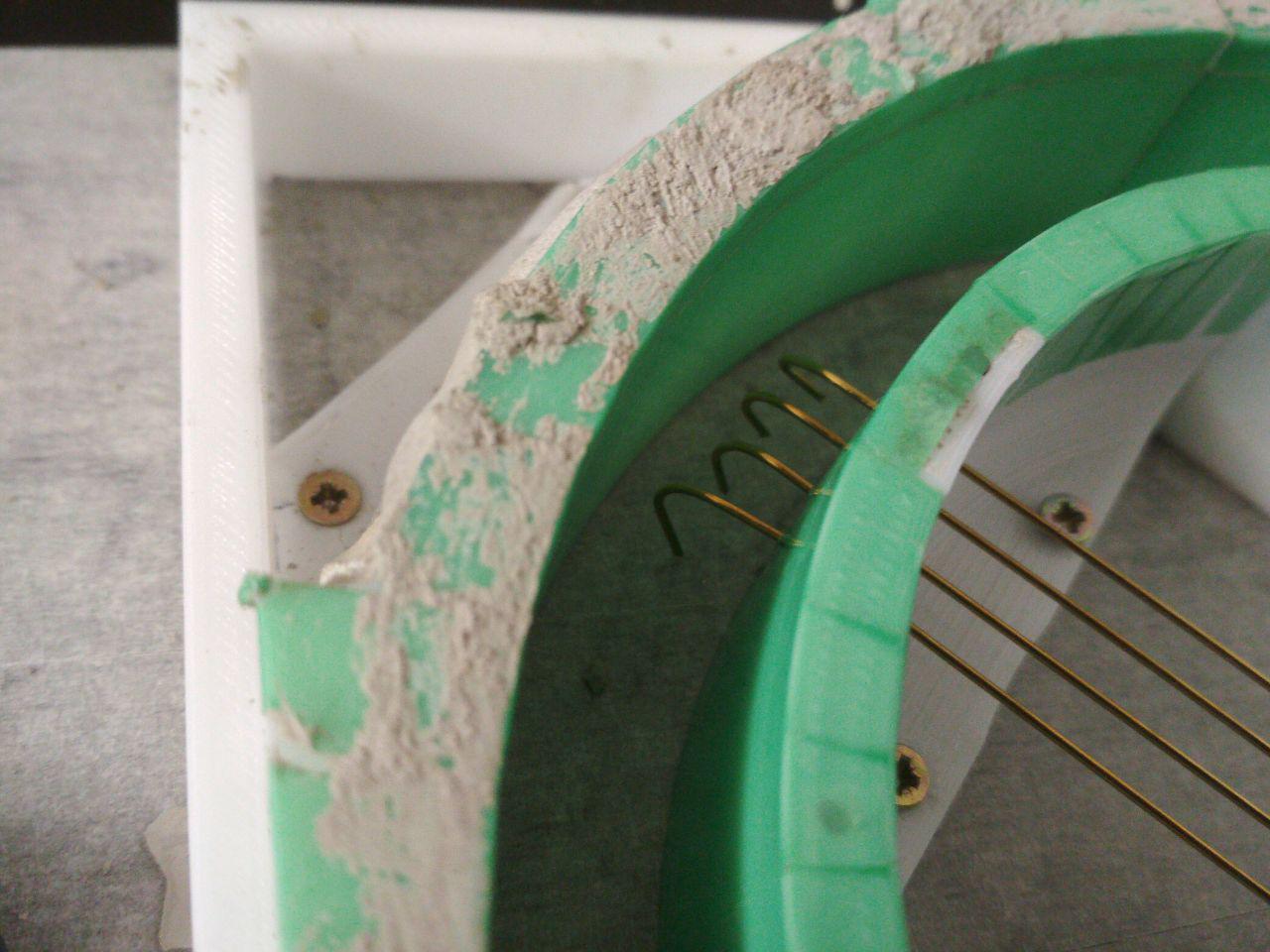

In the last "after casting" picture, you see the piece of PLA and the green tape, which have to be removed.

Bring the cleaned rods into position. Be carefull. Those small rods are quite weak. Position 1, 3, 5 and 7.

If you like to use all 7, you can do that, too. But i couldn't get all 7 straight. So missing every second part is a good option.

Bend the end a little bit. The end should not touch the casting-form. And after that, you should cover those rods.

Casting


Quickcrete is on of my favourite things in the last two years. Just mix it quite liquid. Just as liquid as something you would still be able to suck through a big straw.

You'll need about 500g of concrete. Well, you don't need that much, but it is very much easier if you have too much concrete. Mix it, stir it and get ready to cast.

Casting needs some preperation. Have everything in place. Some plastic to smooth the final surface. Towels. Water. Just everything you can think of what you "might" need.

Quickcrete dries quick. Obvious.

Too much isn't a problem, as long as the concrete is liquid enough. Just use a piece of plastik to smooth the surface.

Let it dry ...

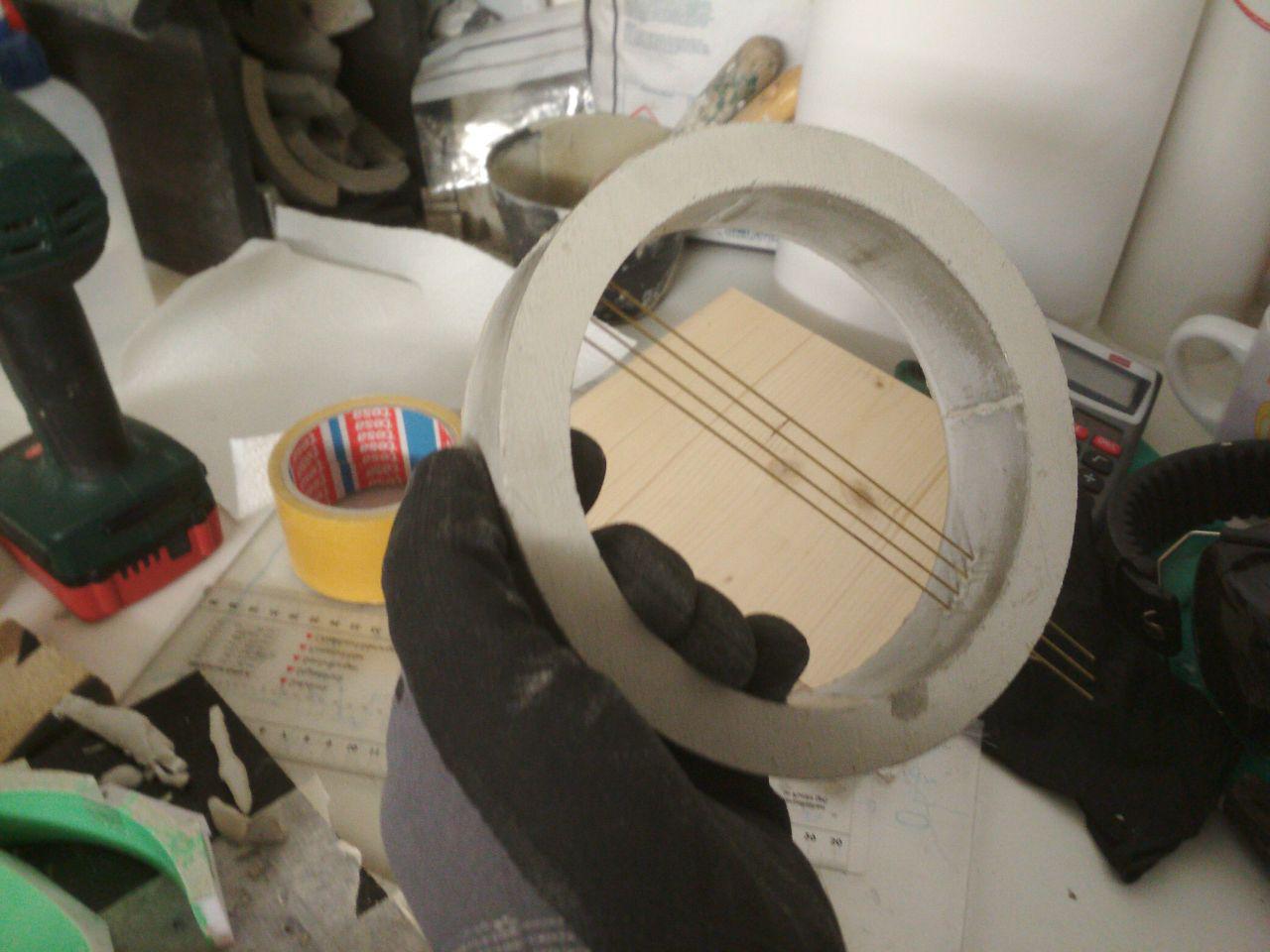

Openening the Mold


How long is long enough? Even it is quickcrete, i let it dry abou 48 hours before i try to demold it.

That's just my tip.

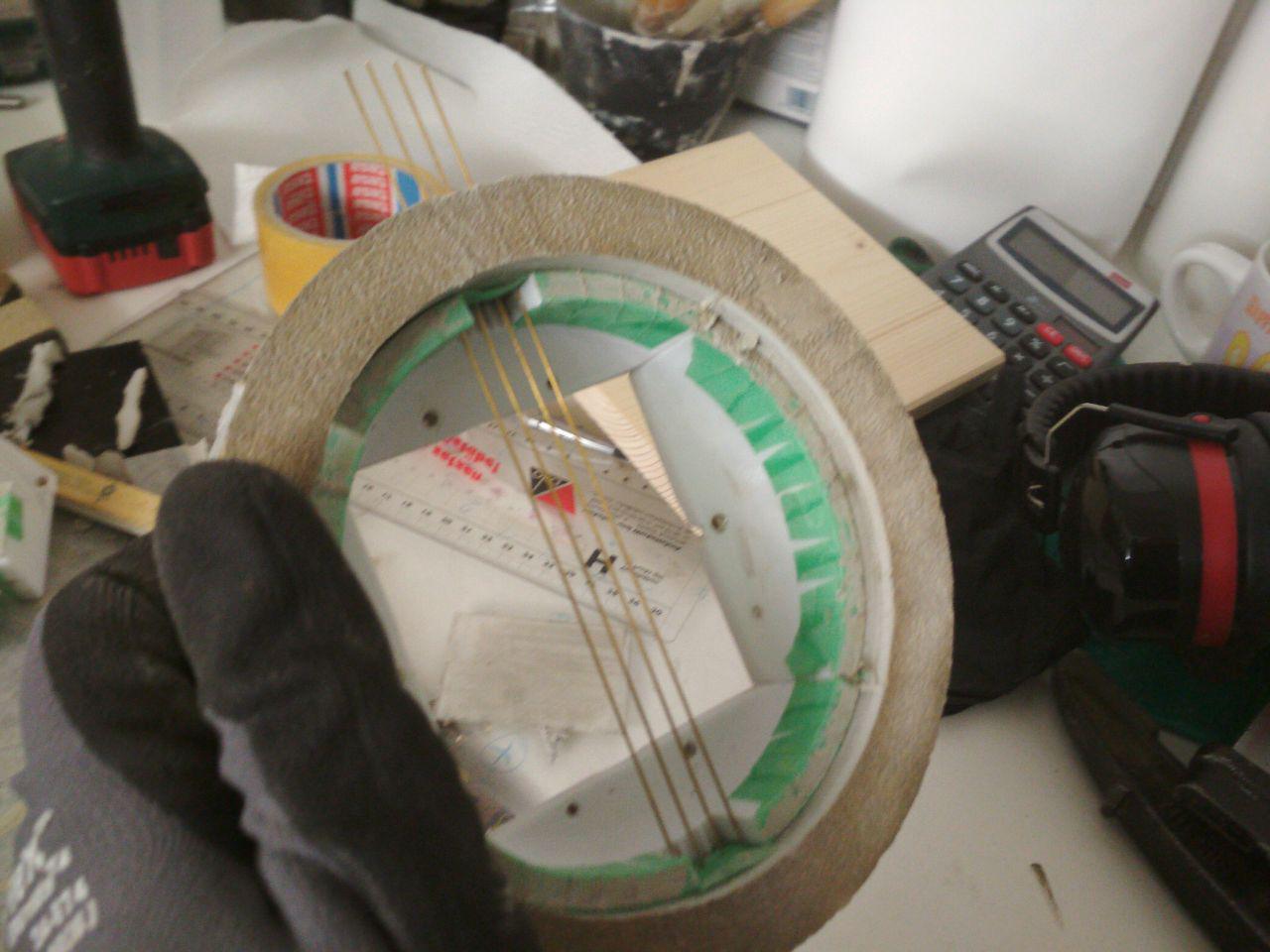

Start by getting rid of the screws and try gently to get the base off. Pull the helpers off and find all concrete drops which could lead into problems, when you try to push the PLA-Parts away from the concrete.

At first, you should remove the little "helpers" inside, which have hold the brass into it's position.

AND cut or remove the tape at that 3 positions.

To remove the shell, start on the outer side removing the first parts.This is the most exiting part of this instructable.

Be gently, use "the force" ... just don't use too much strength.

See the pictures to get a better idea. The inner parts have to be pushed downwards.

So now let it dry for another 24 hours. After that, you can destroy the surface a little bit with a file. Just as you like.

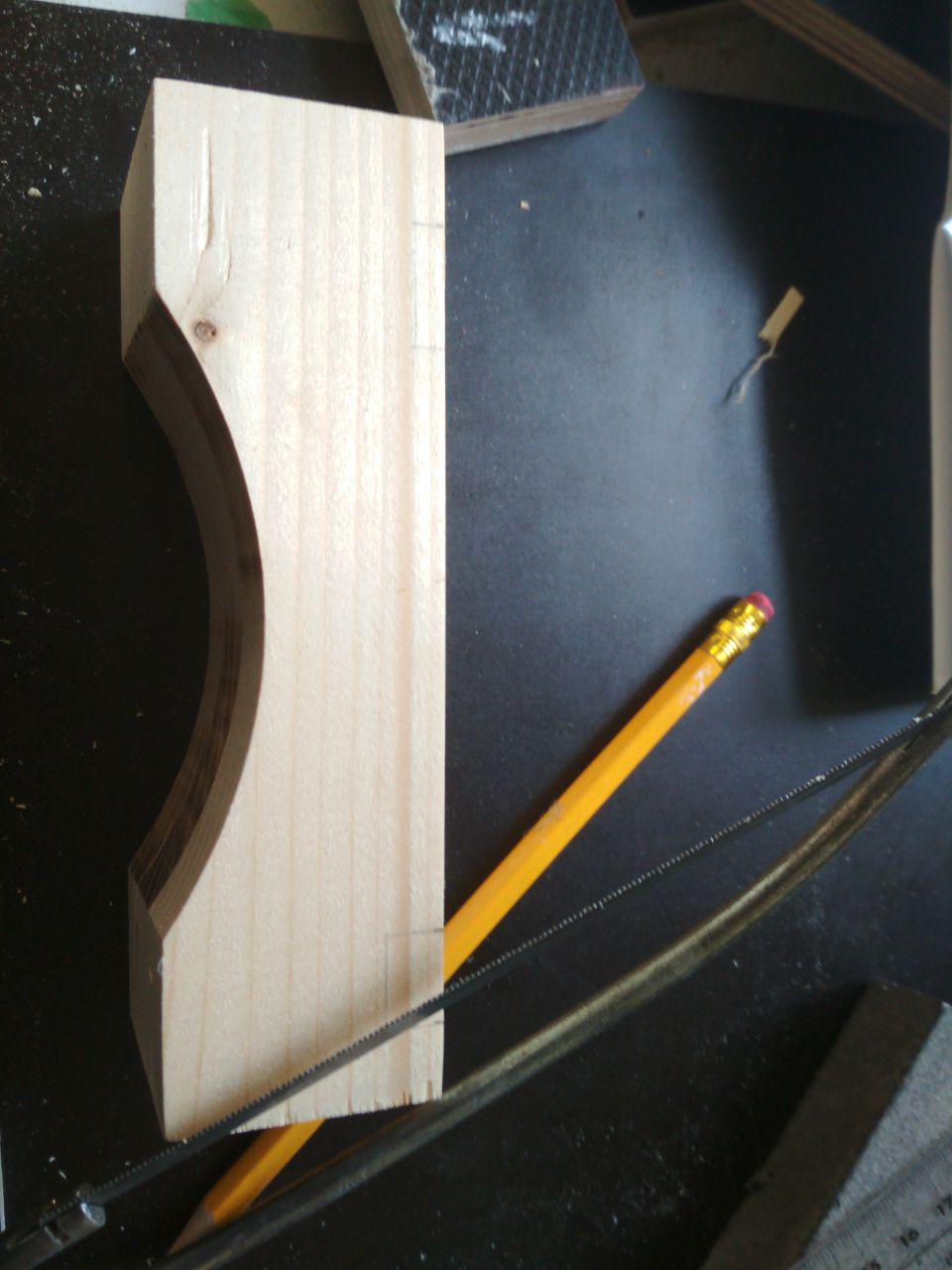

Wood - Part 1

photo_2019-03-12_06-56-19 (3).jpg

The wood-case is made of three parts. Why three and not one?

Well ... i'm not able to work on thicker pieces of wood. So i made it in three parts.

With a CNC you could probably make it in one part. With nothing but a mittersaw, jigsaw and a small router i didn't find an option. And three parted gives it a little bit extra.

So you need a piece of wood in (at least) 160x160x18mm and the attached router-guide (3D-print).

Bring the guide into position and draw the line a little bit away from the guide. This will be the line to cut with the jigsaw.

-------------

Well, you could directly use the router to cut the circle-part. But if you use the jigsaw first, the router will just have to trim the rest which will result in a better surface. And you have to make three identical parts. So using less force is allways a good idea.

------------

After using the jigsaw, glue the guide with a thin double-sided tape on to the wood.

Use your router ro trim the rest of it.

Remove the guide and cut the piece off. About 40mm. Mark the position on your mittersaw, becaus all parts should be equal.

Repeat this step three times to get three equal parts. Don't worry, if the heights are a little bit different. You can use your grinding machine or your mitter saw to correct them. The circle part is important.

Downloads

Wood - Part 2

photo_2019-03-12_06-57-33 (2).jpg

Now we will use the router to hollow the case. Which isn't a case, yet.

Bring the inner and the outer part in position and draw a rectangle with 28x120mm.

Mill about 11 mm deep. I do this in three steps. And i allways build a guide before i start to mill.

This depends on your skills.

The inner part can be cut with a jigsaw or whatever you like to use.

Dimensions are: 11x120 mm. This doesn't have to look perfect. But it helps, when it is a little bit deeper than the other parts.

This will give you a little bit more space for the wires, which will soldered to the rods.

-----------------------------

So the 28mm on the front and back part are 28/2. 14mm deep. The inner part is 11mm deep. This gives us 3mm space to guide the wires.

Wood - Part Three

photo_2019-03-12_06-57-18 (2).jpg

Time to bring them together and cut out some parts.

Woodglue and some time. Just make sure, the circle-parts fit as perfect as possible.

After drying, you can start to cut or grind it to perfect shape. I'm using my mitter saw to cut off the "not so straight" parts. You should end up with something like picture 2. ~140mm wide.

Now it is time to make a hole for the rods. I'm using a drill and a hand-jigsaw.

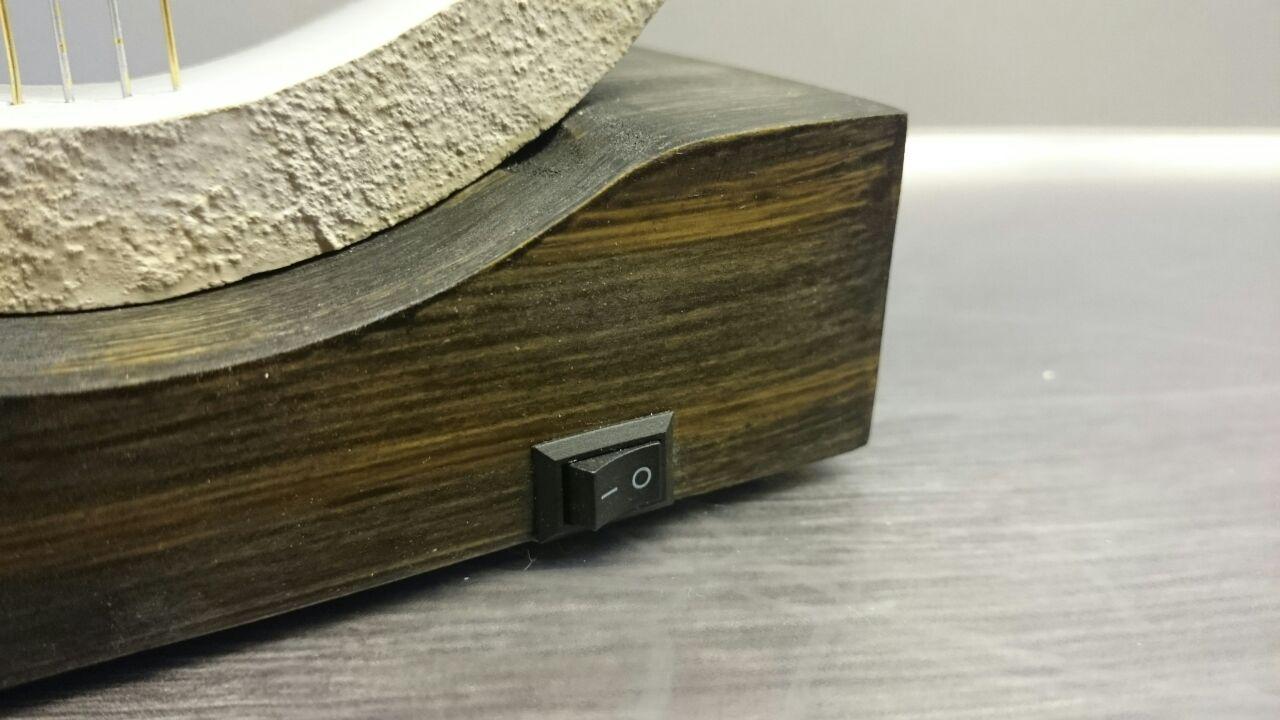

And the last part is to cut out the USB-Loader and the switch. This depends on your switch.

Everything cut you can start to paint it, if you want to. I'm using three layers of black woodglaze.

Letting every layer dry for at least 24hours and sanding every layer. Mayber not necessary. But that is the way i've learned it.

The Matrix

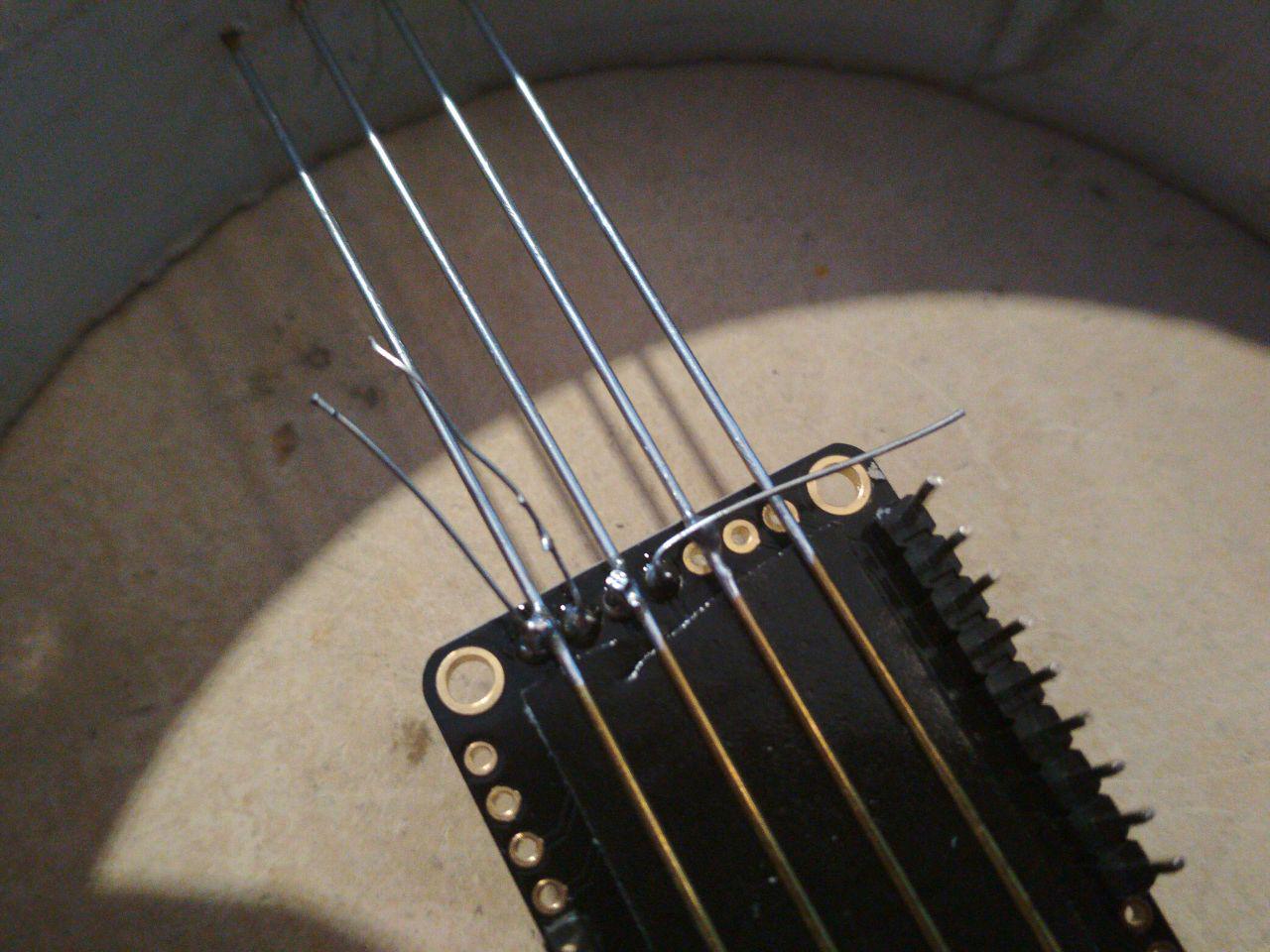

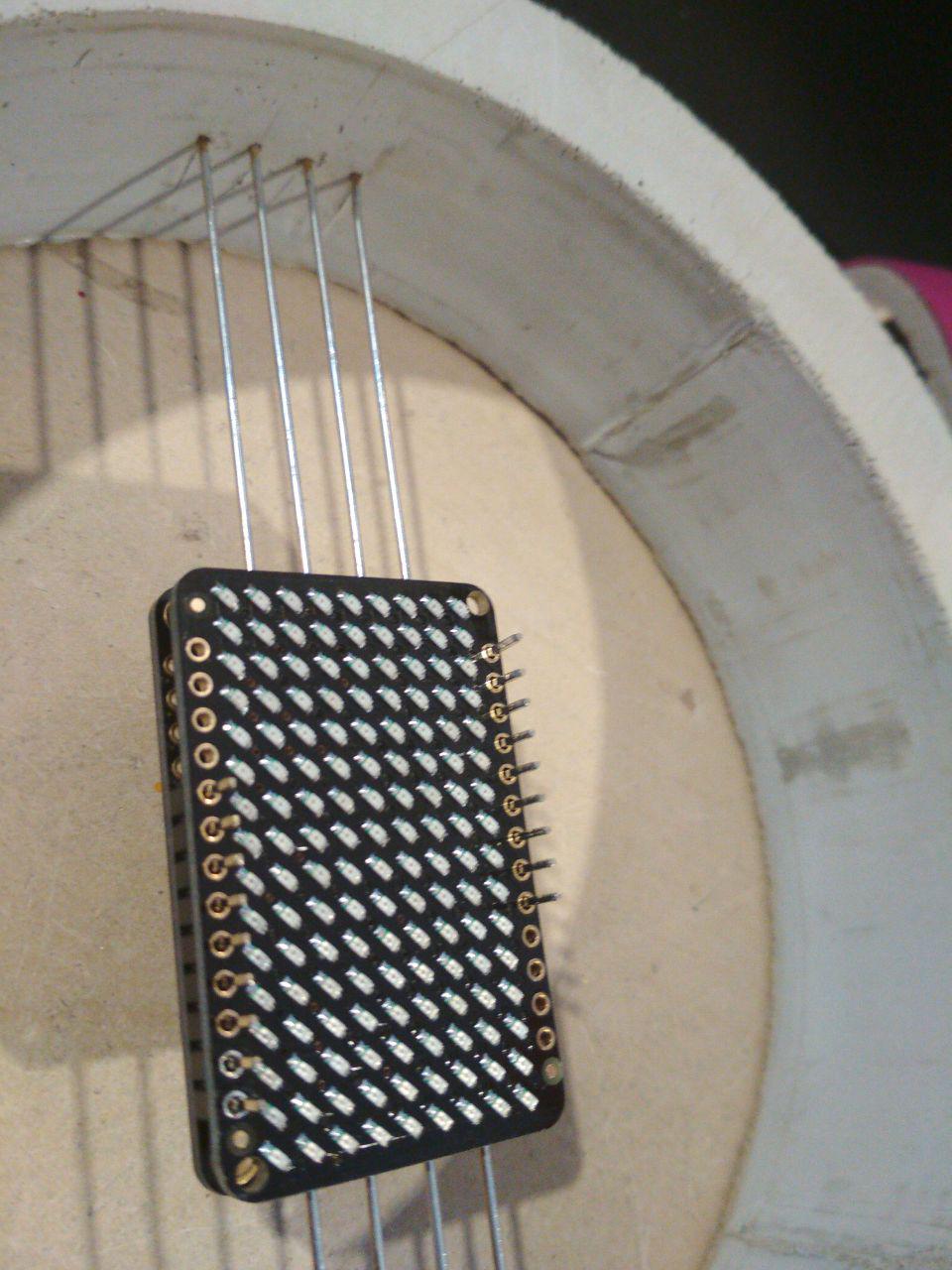

Next step is to solder the matrix to the rods.

To be exact, it's soldering and 1mm thick double-sided tape.

Start with the PWM-Driver and solder the pins. Add some LED-legs (or similar) to VCC, GND, SDA, SCL.

Glue double-sided tape on it and bring it with a steady hand a keen eye onto the rods.

Be carefull. It will look strange, if the display gets out of centre.

(Btw i've painted the rods with silver-paint.)

When in position, you can start soldering the rods to the pins (the LED-legs). It doesn't really matter, which pin goes to which rod. Just don't solder two rods together. I'm using this method:

VCC: rod 1

GND: rod 4

SDA: rod 2

SCL: rod 3

You should measure it before you solder the LED-Matrix to the PWM-Modul.

Two to One

photo_2019-03-12_06-57-05 (2).jpg

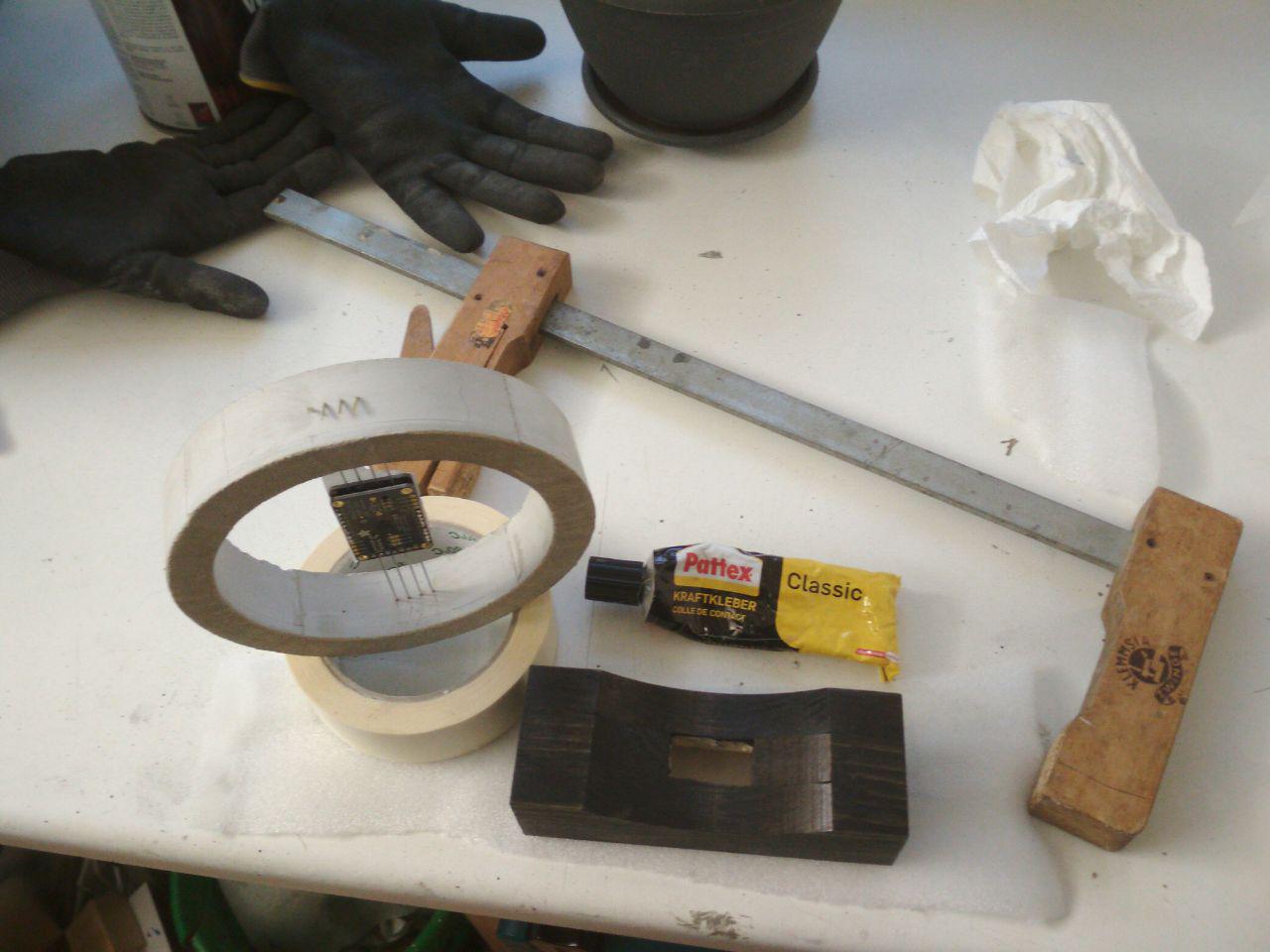

To bring the wood-part and the concrete-part together, i'm using glue.

"Pattex Kraftkleber". I think that every strong glue will work. Clean surface and maybe a little bit sanding before attaching the glue.

As allways ... let it dry at least twice the time you think you should.

Electronics


At first flash the pro micro. Code is attached. And cut the LEDs off. This will increase the battery time.

So now on to the rods. Add a wire with different colour to each rod. This will make it a lot easier.

Test them. All working? Then put hotglue into the hole.

The rest of this is quite selfexplaining. Batterie to the TP4506 and the TP4506 to Switch->RAW and GND at the Arduino.

Wires (rods):

SDA to Pin2

SCL to pin 3

VCC to VCC

GND to GND

I've used doublesided Tape to glue the TP to the Batterie and used hotglue, wherever it seemed to be necessary.

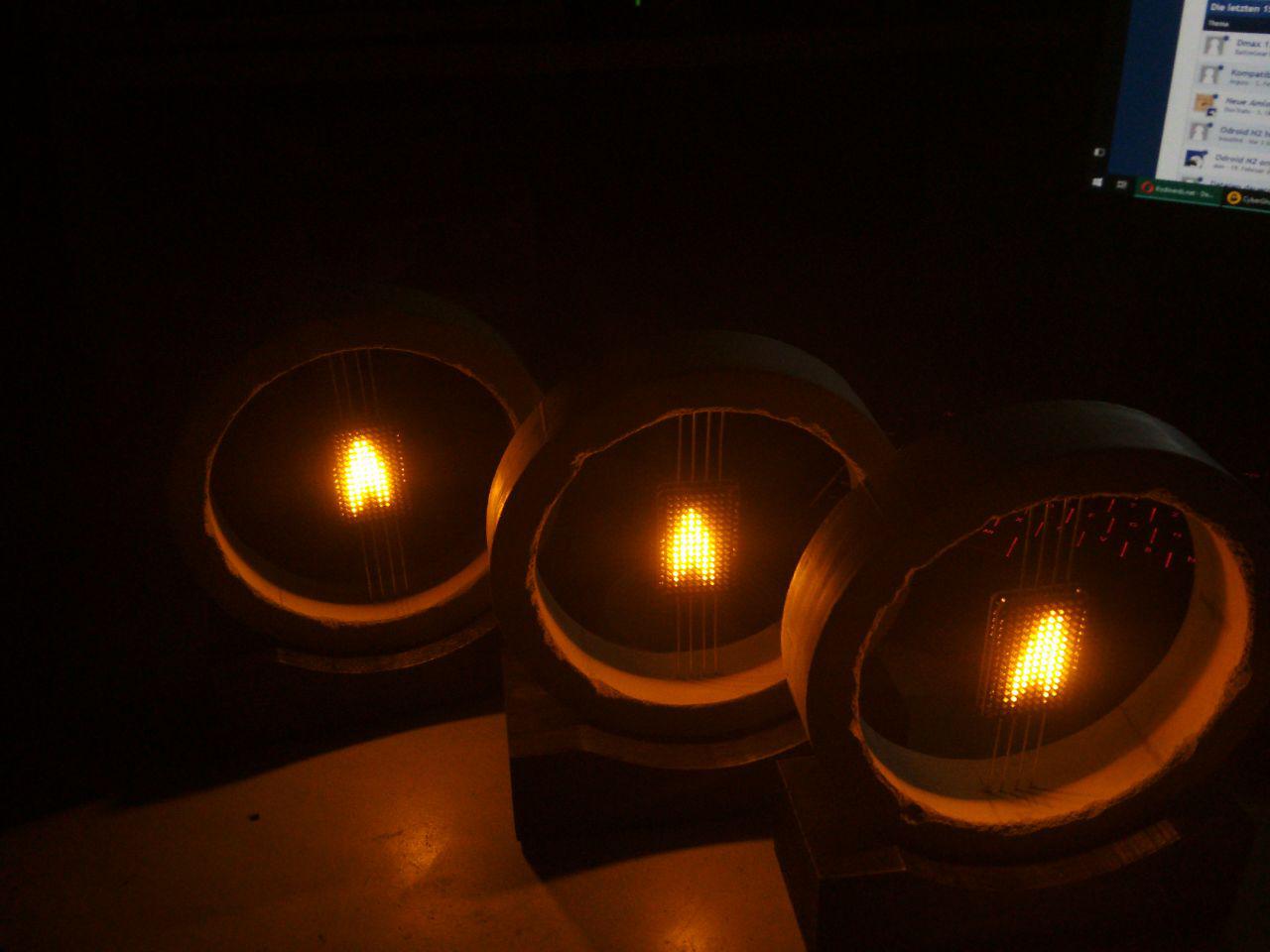

Final Thoughts

photo_2018-12-26_09-12-29 (2).jpg
photo_2018-12-26_09-12-28 (2).jpg

The only thing missing is a cover. This is up to you. PVC, Metall, Wood ... just don't use PLA. The battery get's warm while loading and a thin layer of PLA could deform.

Some feets to get a floating look and that's it.

---------------------

By now i've made four of these. And every one went a little better. Just some small changes made it much easier.

All changes are in this instructable. It takes about 6 hours +drying time to build one. So this can take a week.

All my electronic tests can be found in the previous instructable:

https://www.instructables.com/id/Matrix-LED-Light/

Thank you for reading. Hoping my english is getting better.

And, if you like, please vote for me :)
