Ribba LightBox: Keep Calm and Exterminate

This is a quick Weekend Project. I wanted to test to engrave on glass, but I had the idea to paint it first black, to bring the picture more in scene.

I still own a few old Ikea Ribba frames, the one with the glass front, so it was great for this project.

Take the ribba frame appart.

Clean the glassplate with acohol and use a spraycan with black color to paint it.

Let it dry.

The “keep it calm and exterminate” was not my idea, I saw it on a T-shirt

I loved it, so I created my own

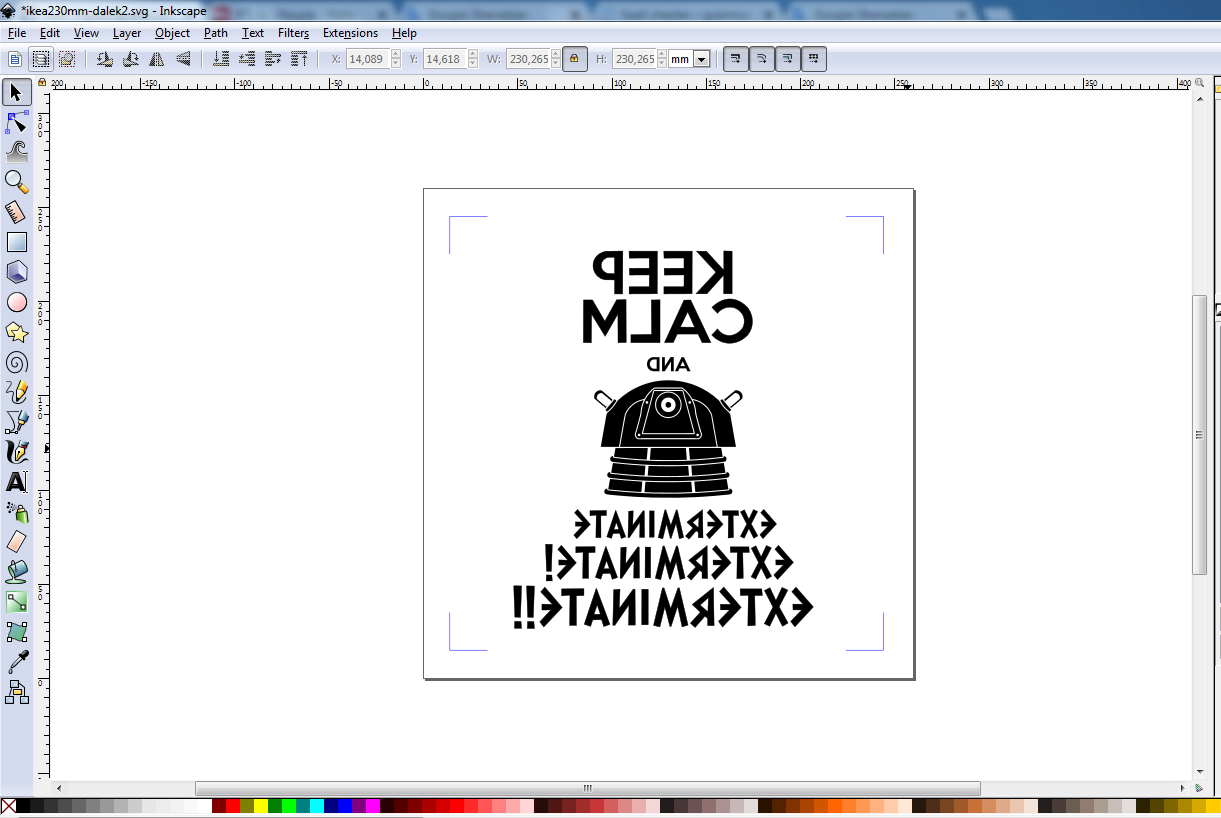

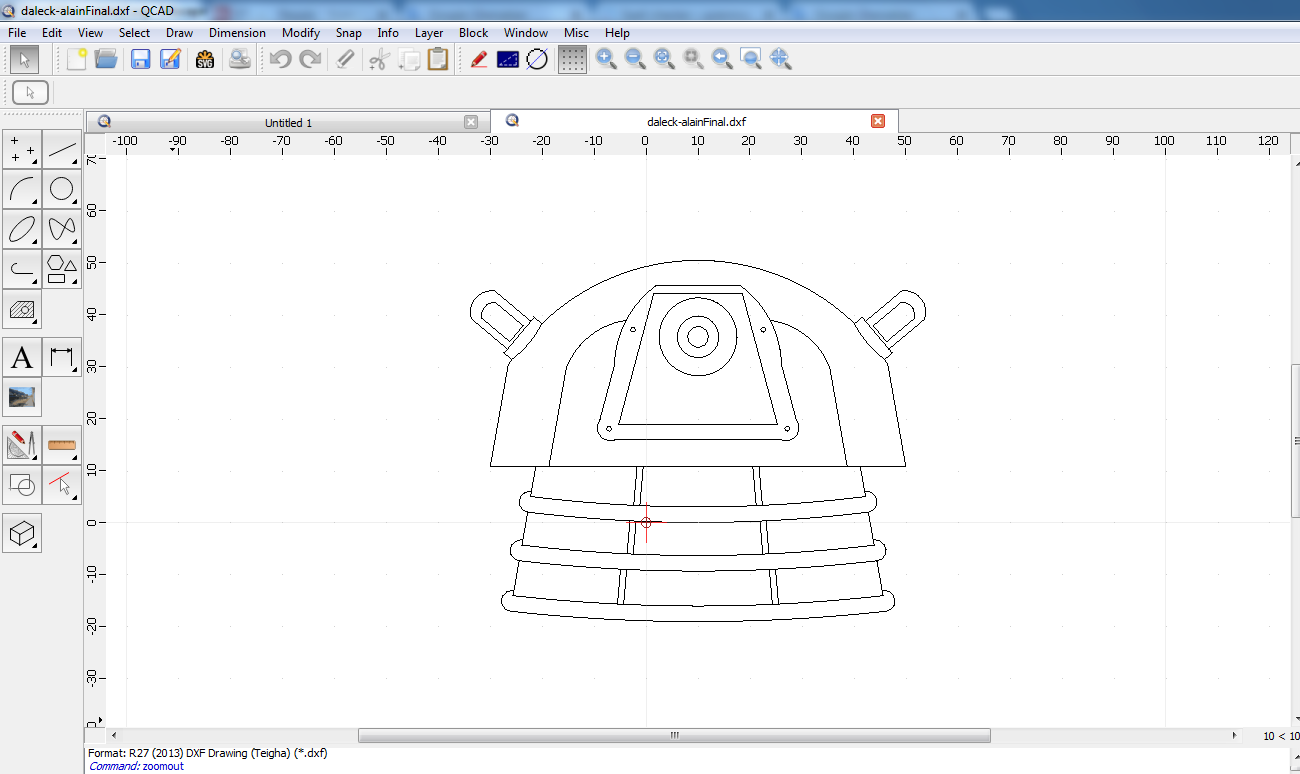

The Dalek has been drawn in QCad, the characters and and the composing had been done in Inkscape.

https://www.qcad.org/en/

https://inkscape.org/en/

I first lasered markers on a peace of wood to align the glassplate.

To do the laser job I use an Epilog zing 16 30Watt.

I use my self designed PCB’s, but perfboard should be perfect to.

Any other light source will work to.

The micro USB breakout board will be installed on the back to connect a 5V USB power supply

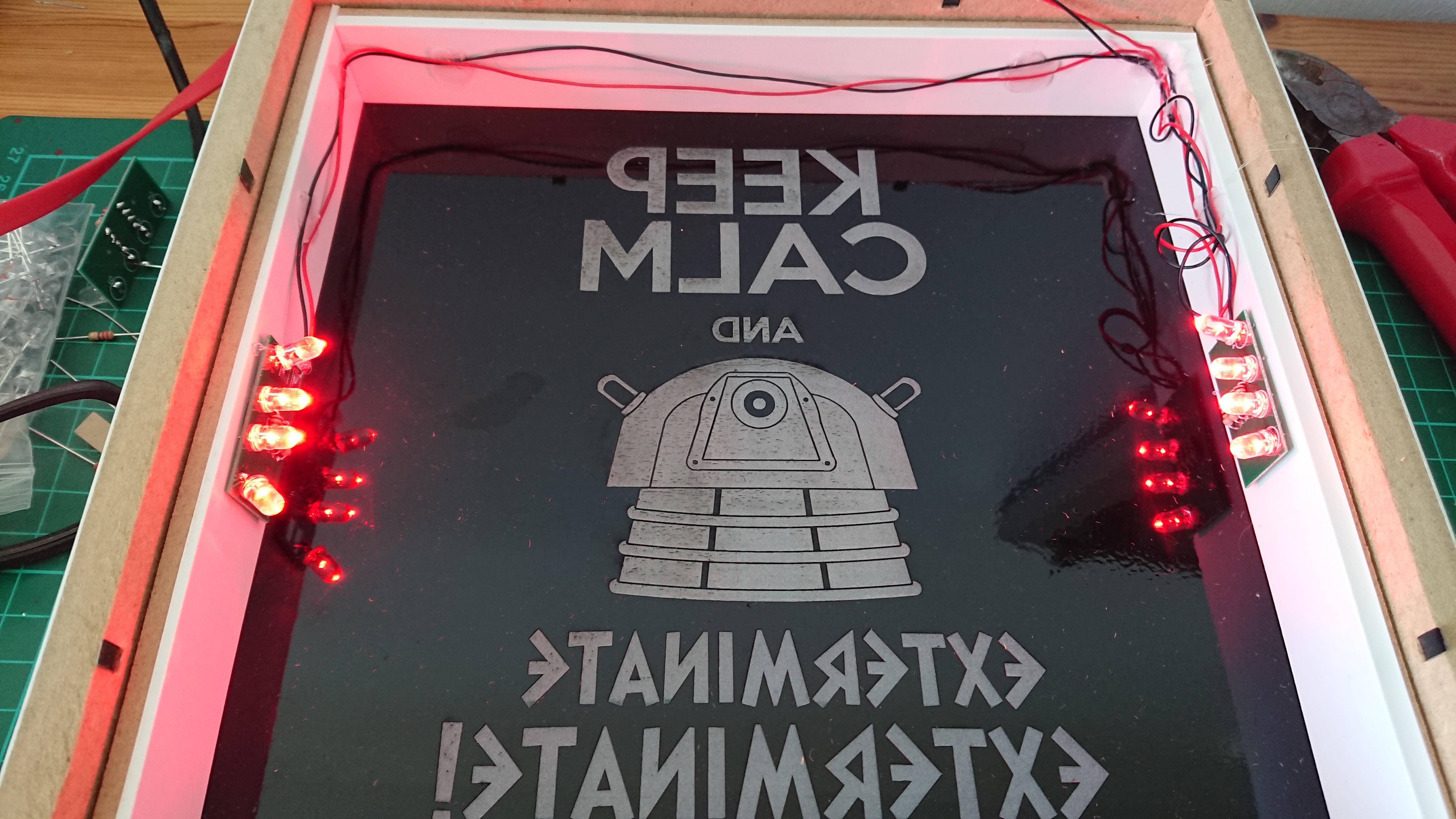

Build the frame together and install red LEDs inside. On the backside a glued alufoil, to reflect the light.

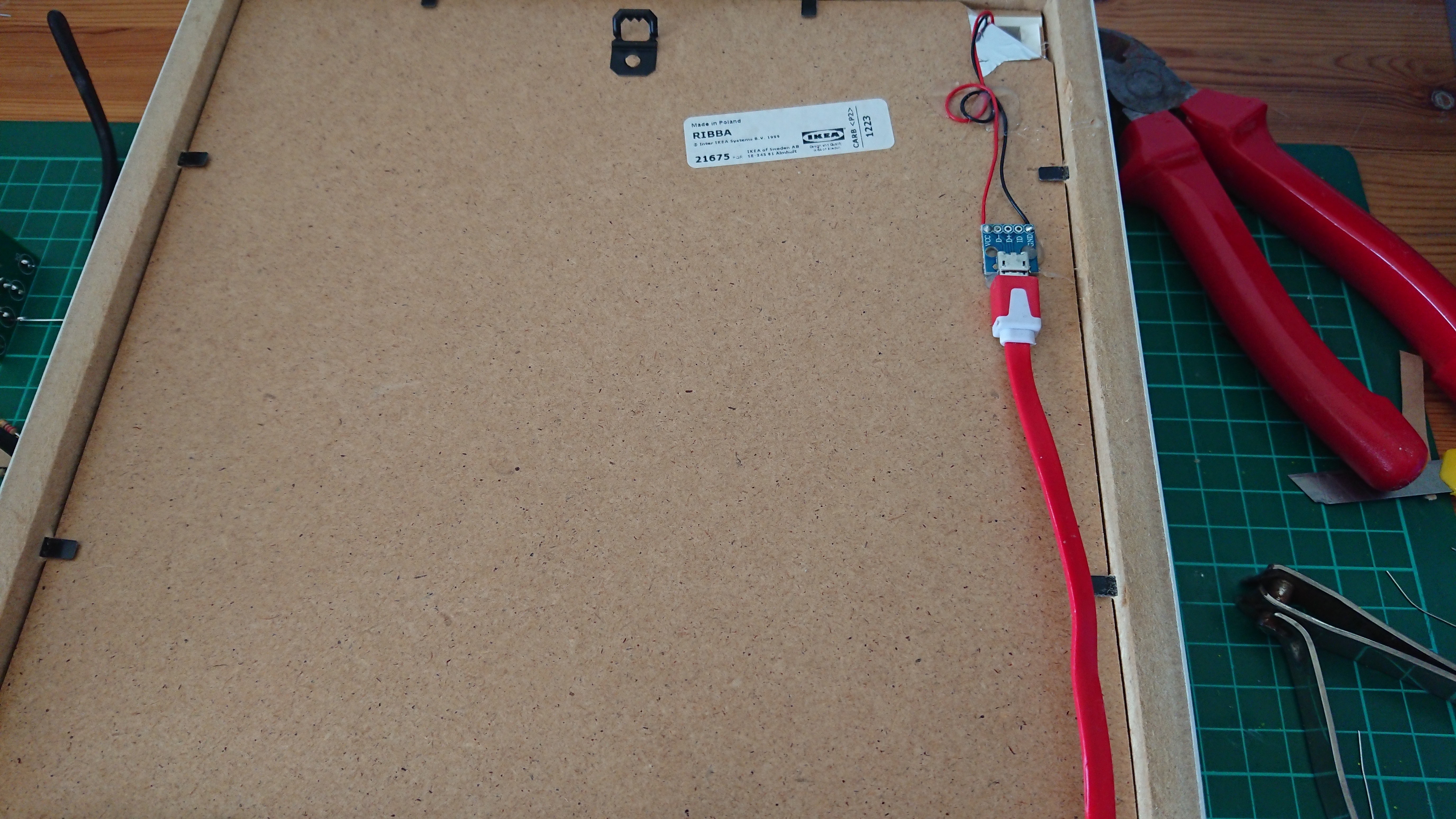

The micro USB breakout board is fixed with hot glue or screws on the back of the frame.

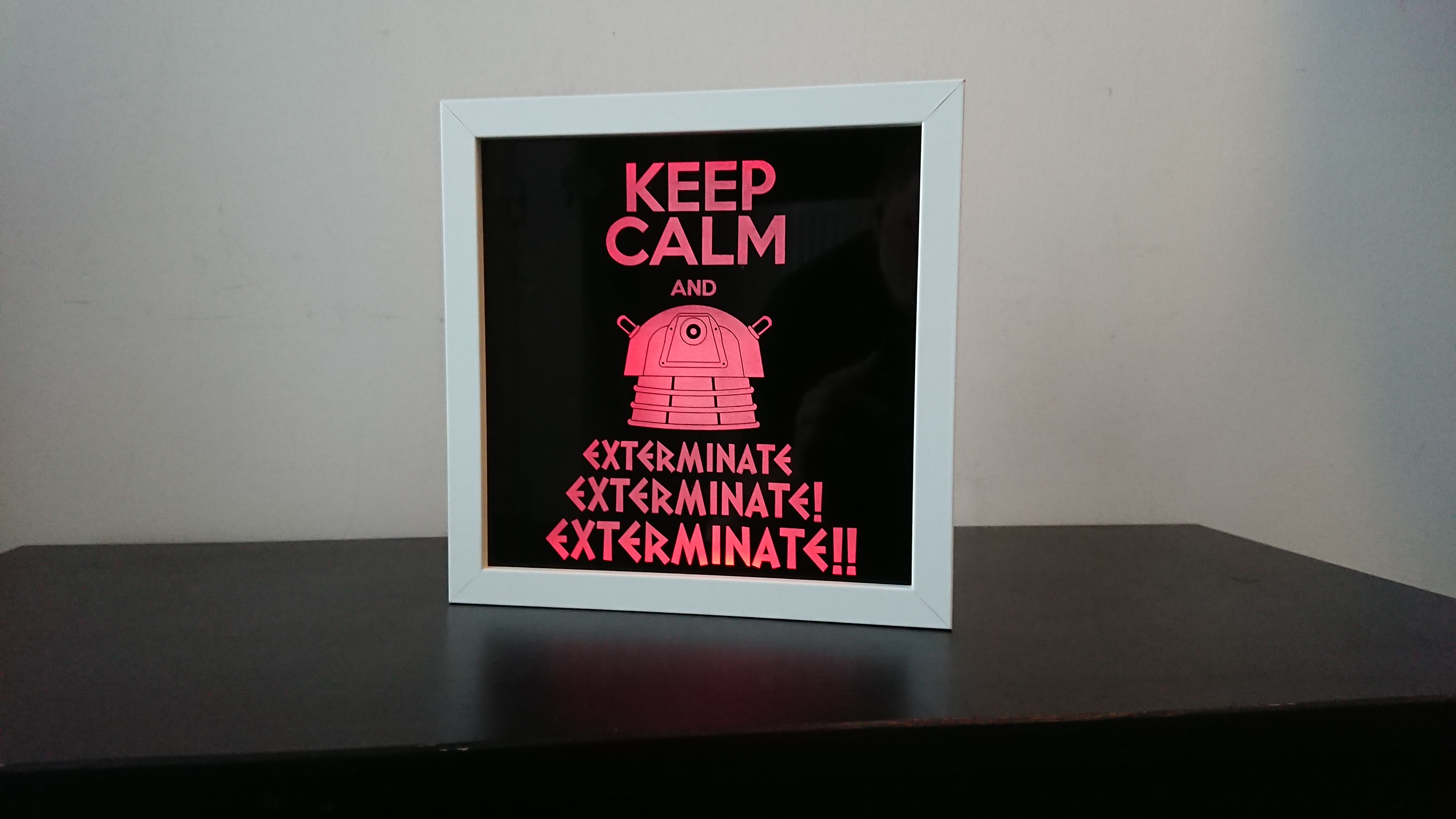

Here is the final Lightbox
