Rf Controlled Robo Car

hey everyone today I'am going to show you how to make a very simple remote controlled robo car .

to make this project you will need some electronival and mechanical parts .

for the reciver the you will need following things

1. 2x dc 30 rpm motors

2. rf reciver with decoder- you can buy this on -http://www.amazon.in/ELEMENTZ-WIRELESS-COMMUNICATI...

3.L293D motor driver - you can get this here -http://www.amazon.in/H-Bridge-Driver-module-Arduin...

4.jumper wires -http://www.amazon.in/ePro-Labs-Male-Male-Female-Fe...

5.housing plate

6.castor wheel

7.L clamps -to attach motors

8.some nuts and bolts

9.hot glue gun (if required)

10. 2x wheels

the parts for transmitter are the following

1. rf transmitter

2. 4x push back buttons

3. housing for it

connections for reciver is there in the photo.

rf pins to l293d

d11 to a1

d10 to a2

d9 to b1

d8 to b2

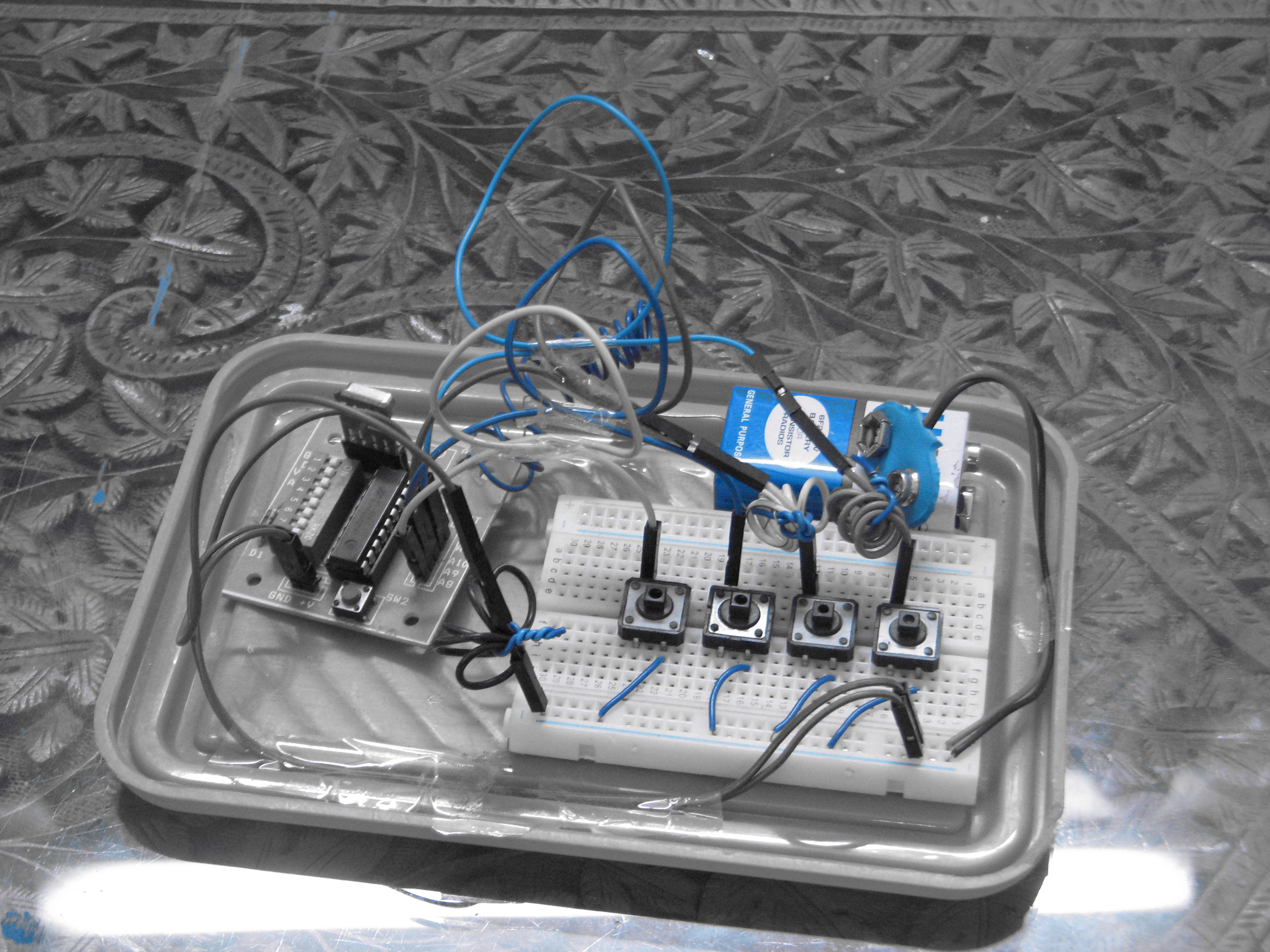

transmitter connections shown in the diagram.

out puts

a11

a10

a9

a8

vt pin should be directly grounded with out ayn switch .

mount all of your electronics on the housing and now you are ready to go!!!!!!!!!!!!!!.
