Retro Electric Bike

by TheFullMetalAlchemist in Workshop > Electric Vehicles

50851 Views, 356 Favorites, 0 Comments

Retro Electric Bike

3d render2.jpg

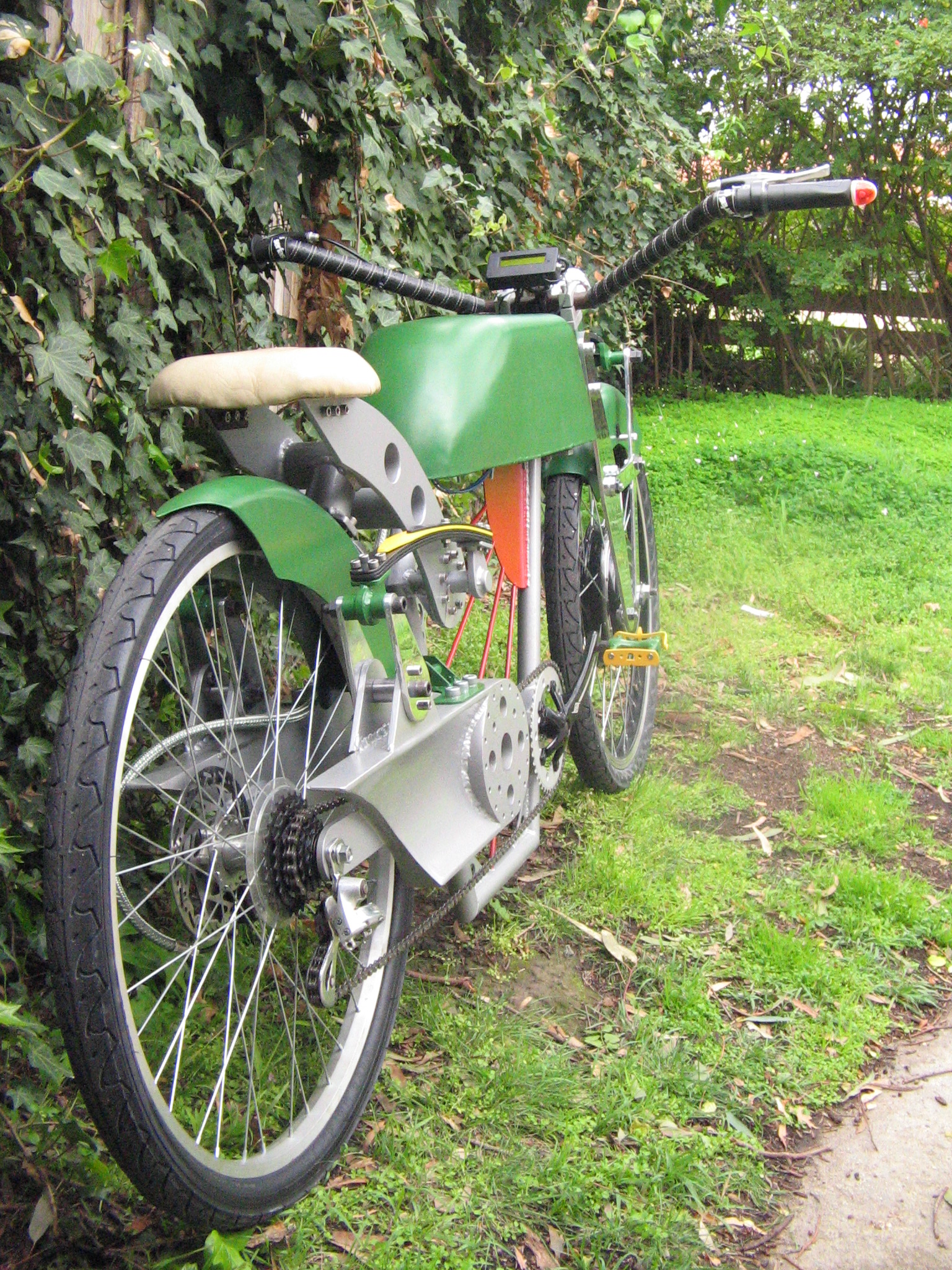

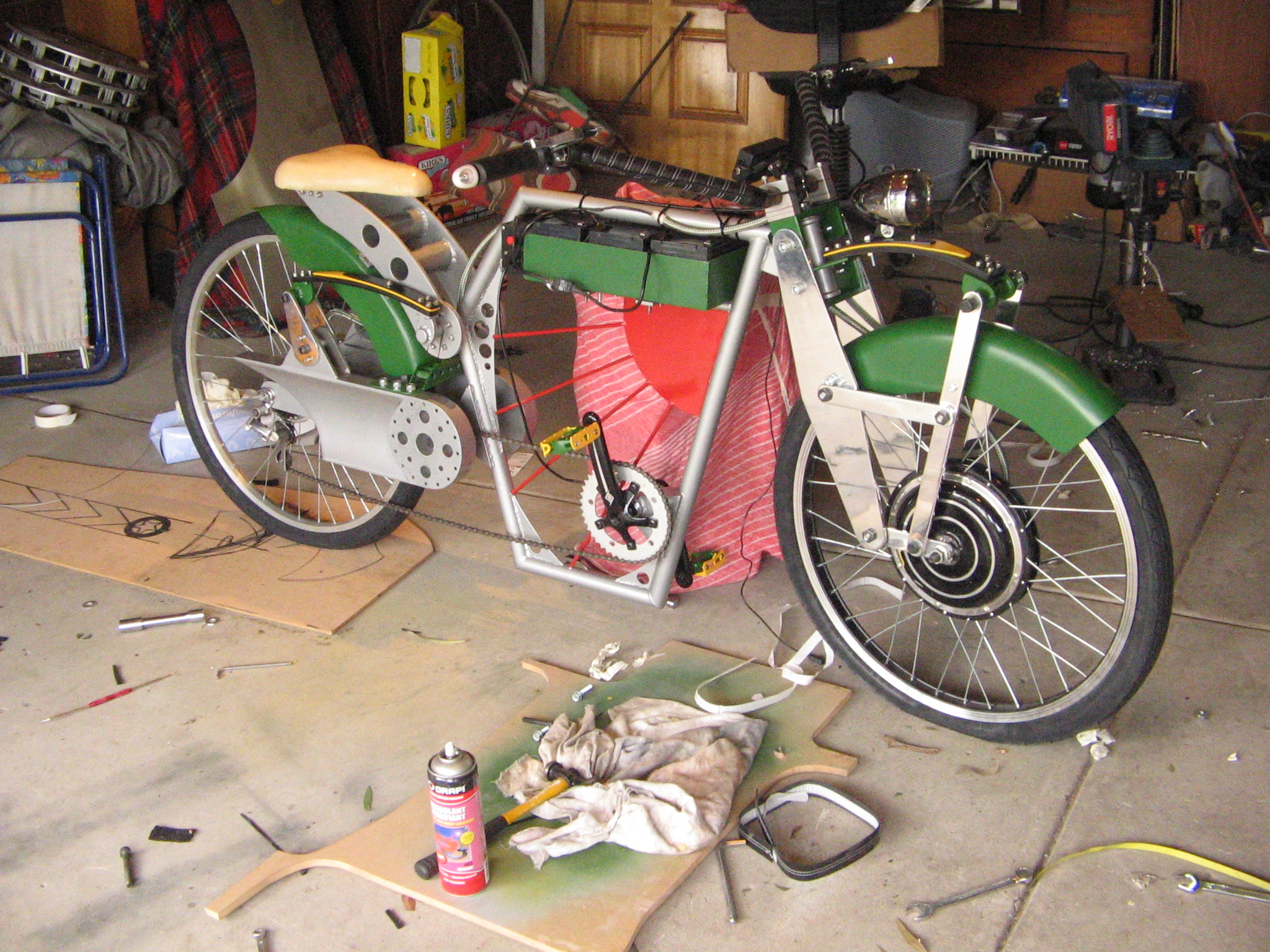

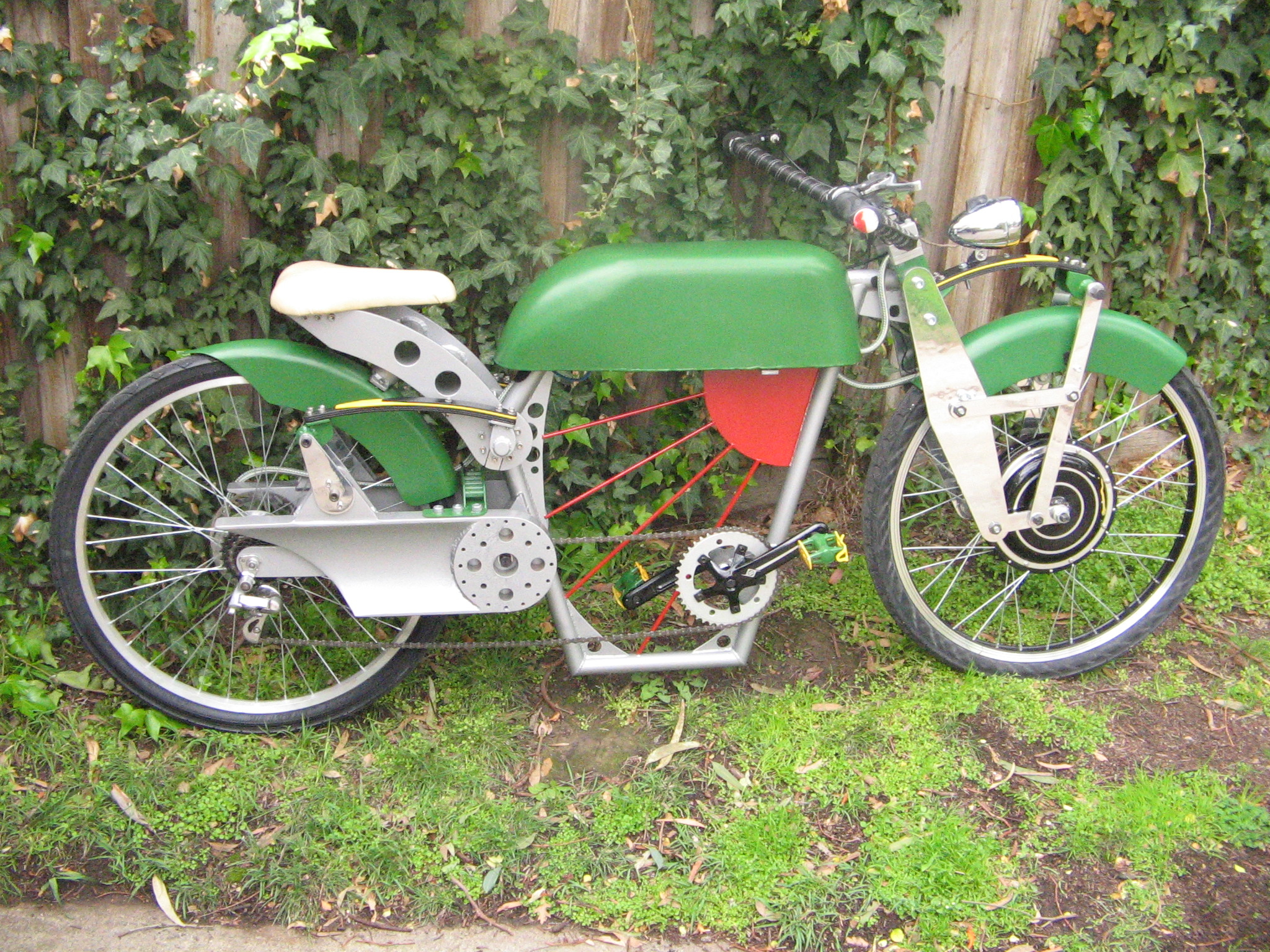

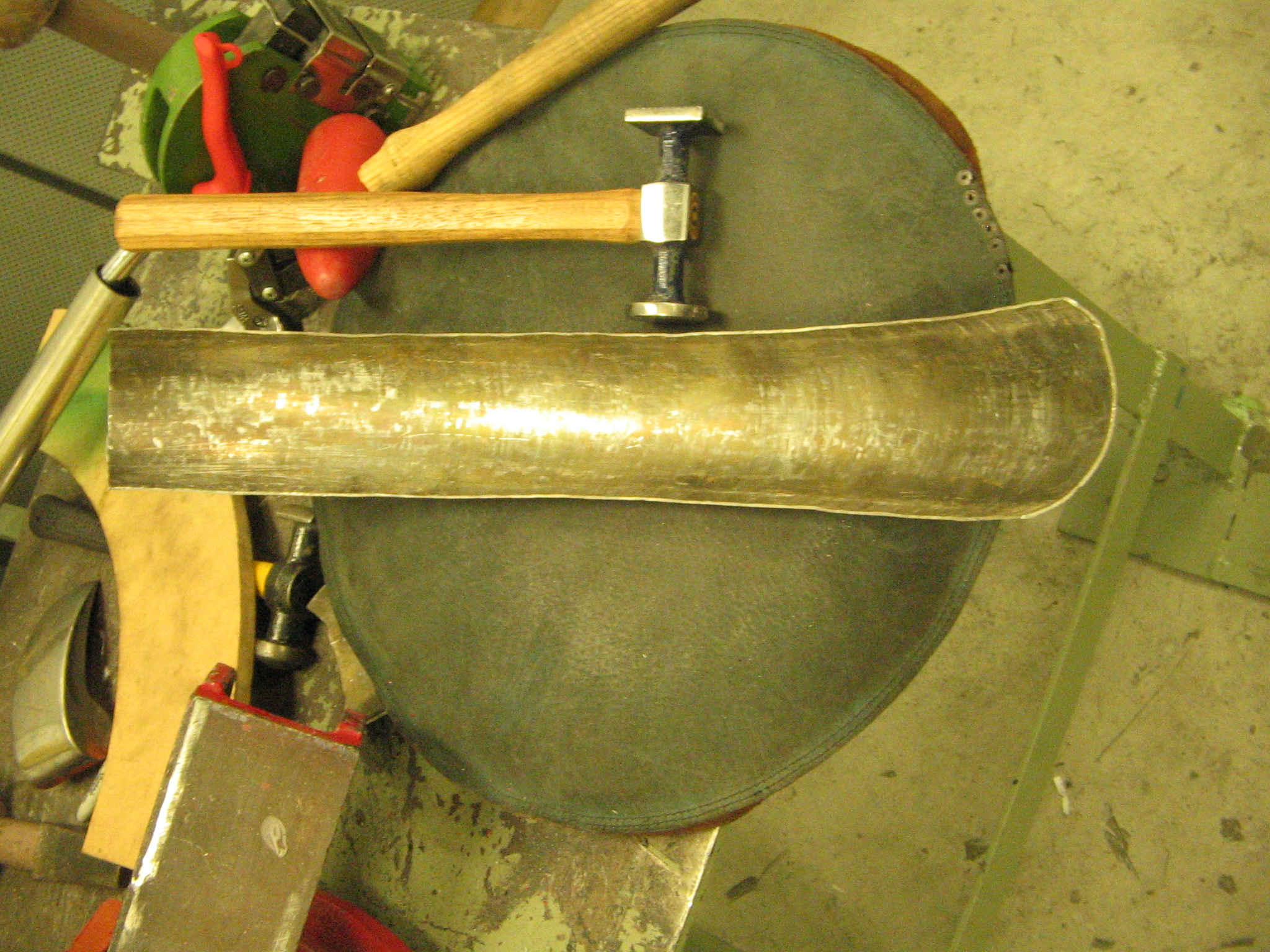

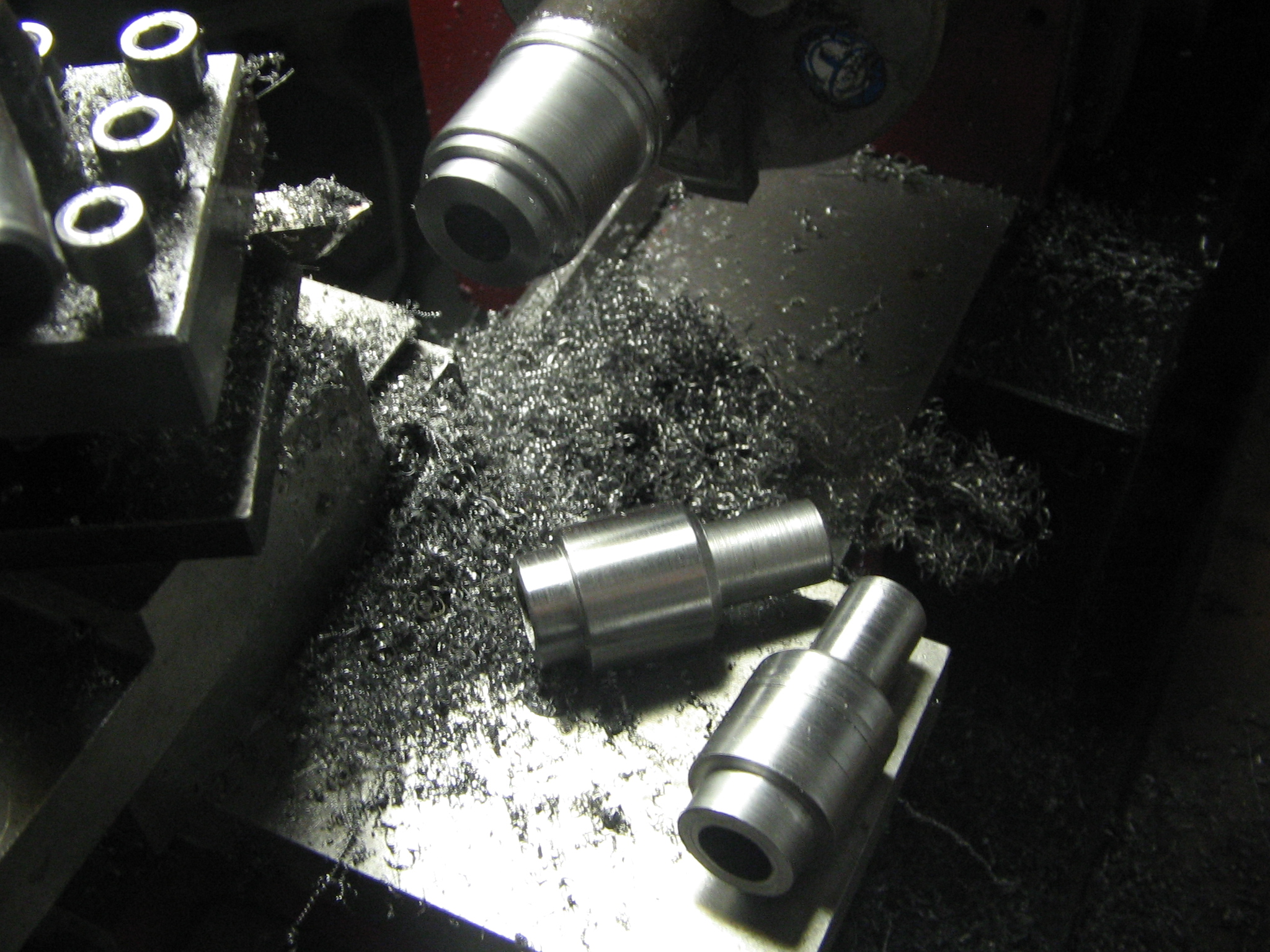

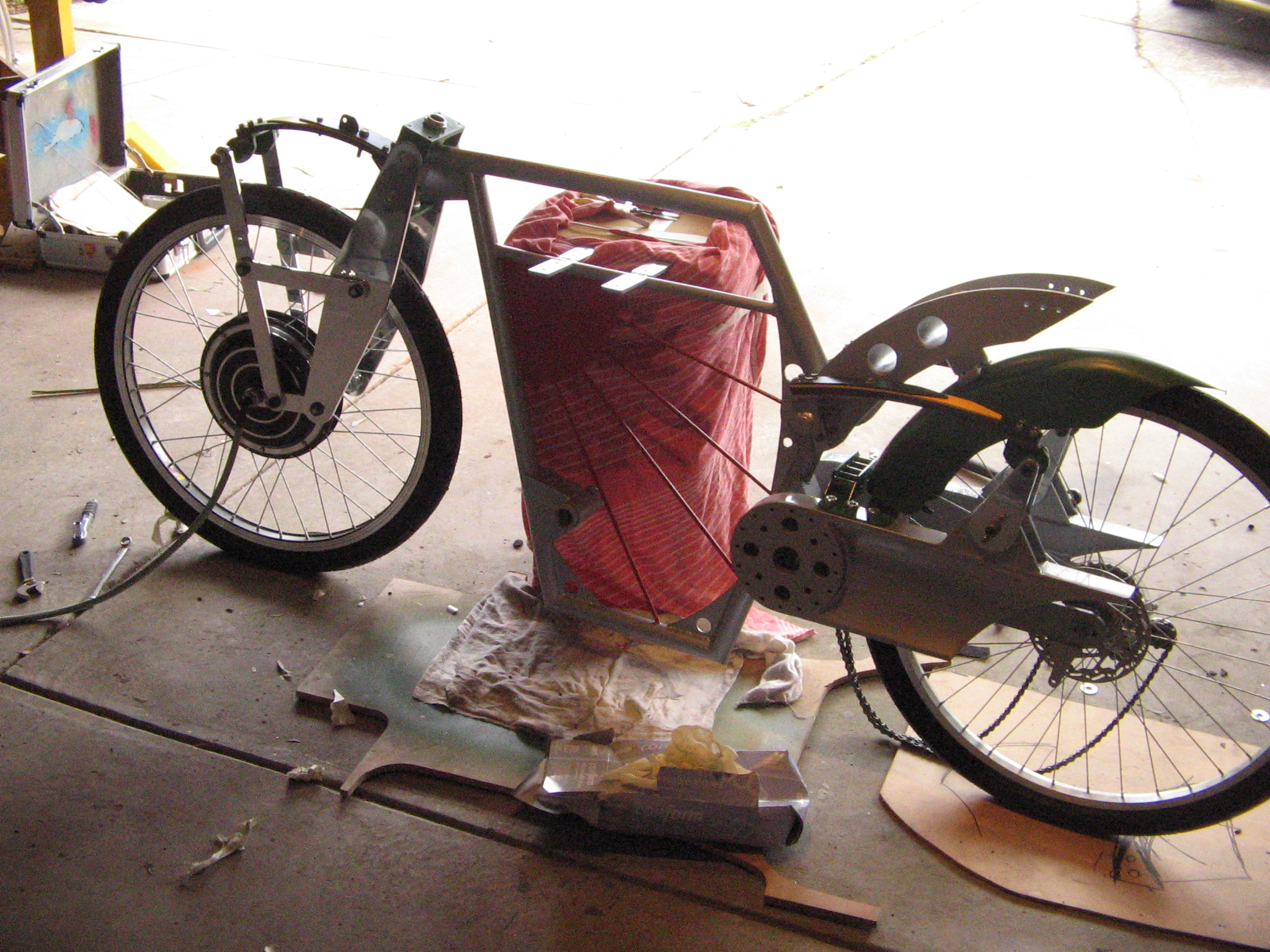

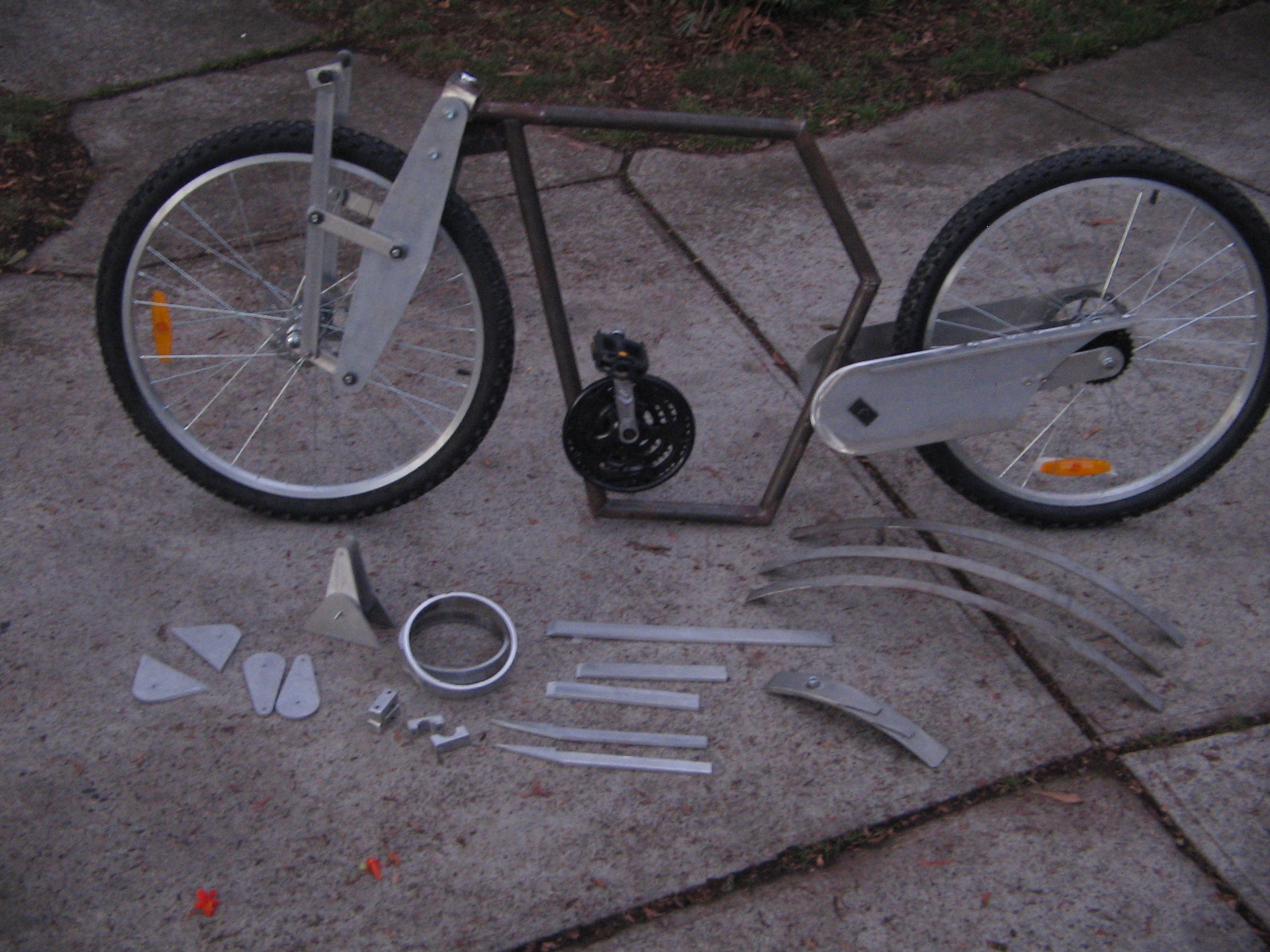

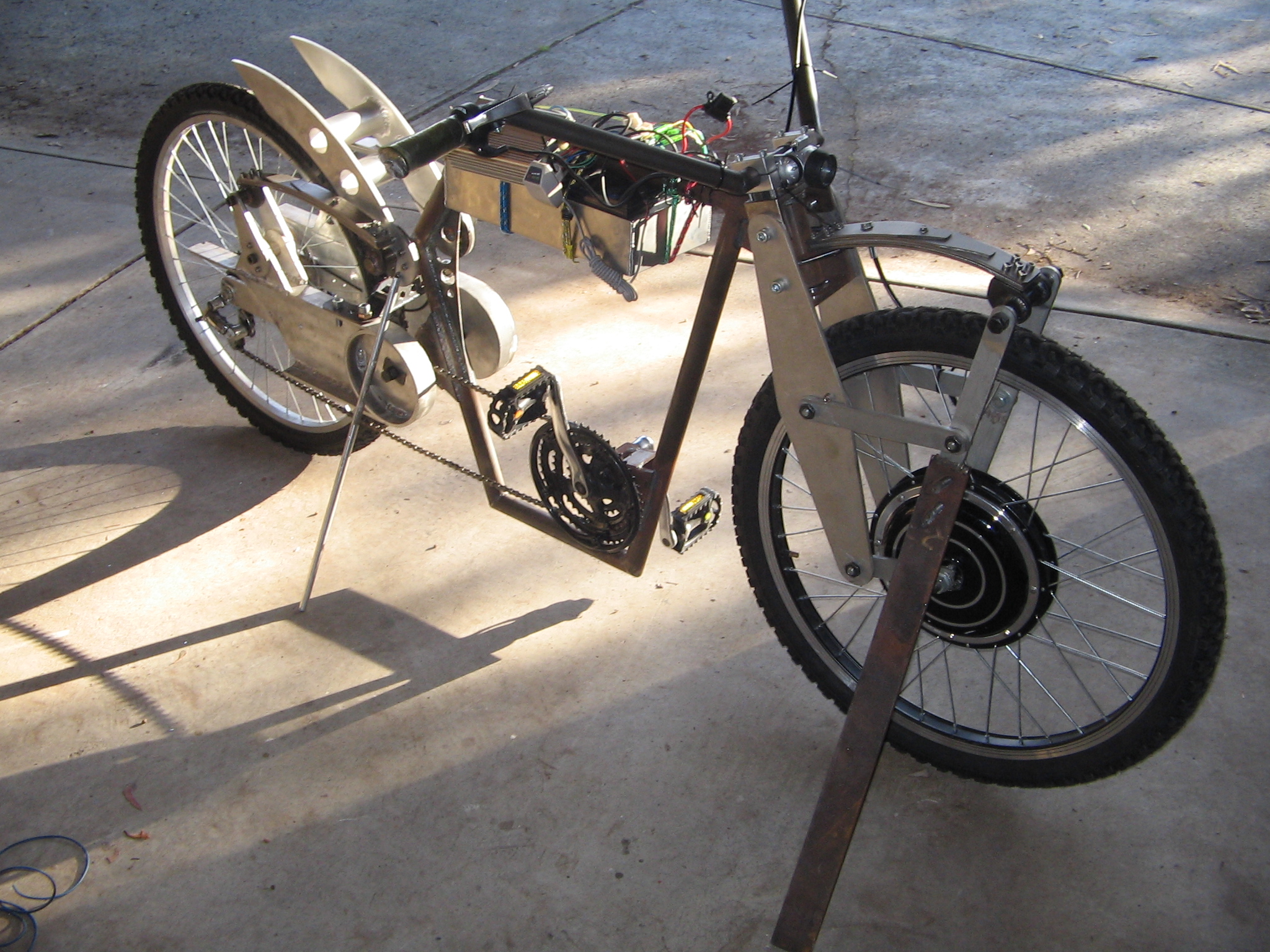

This is a custom pedal/electric bike I designed and built for school. This slideshow shows the start to finish build of the project.
I am doing Metal Fabrication Engineering along side a boiler making apprenticeship. I am looking to head into custom electric motorbikes or the automotive fabrication area after my apprenticeship and maybe one day have my own shop.
Location: Melbourne, Australia.

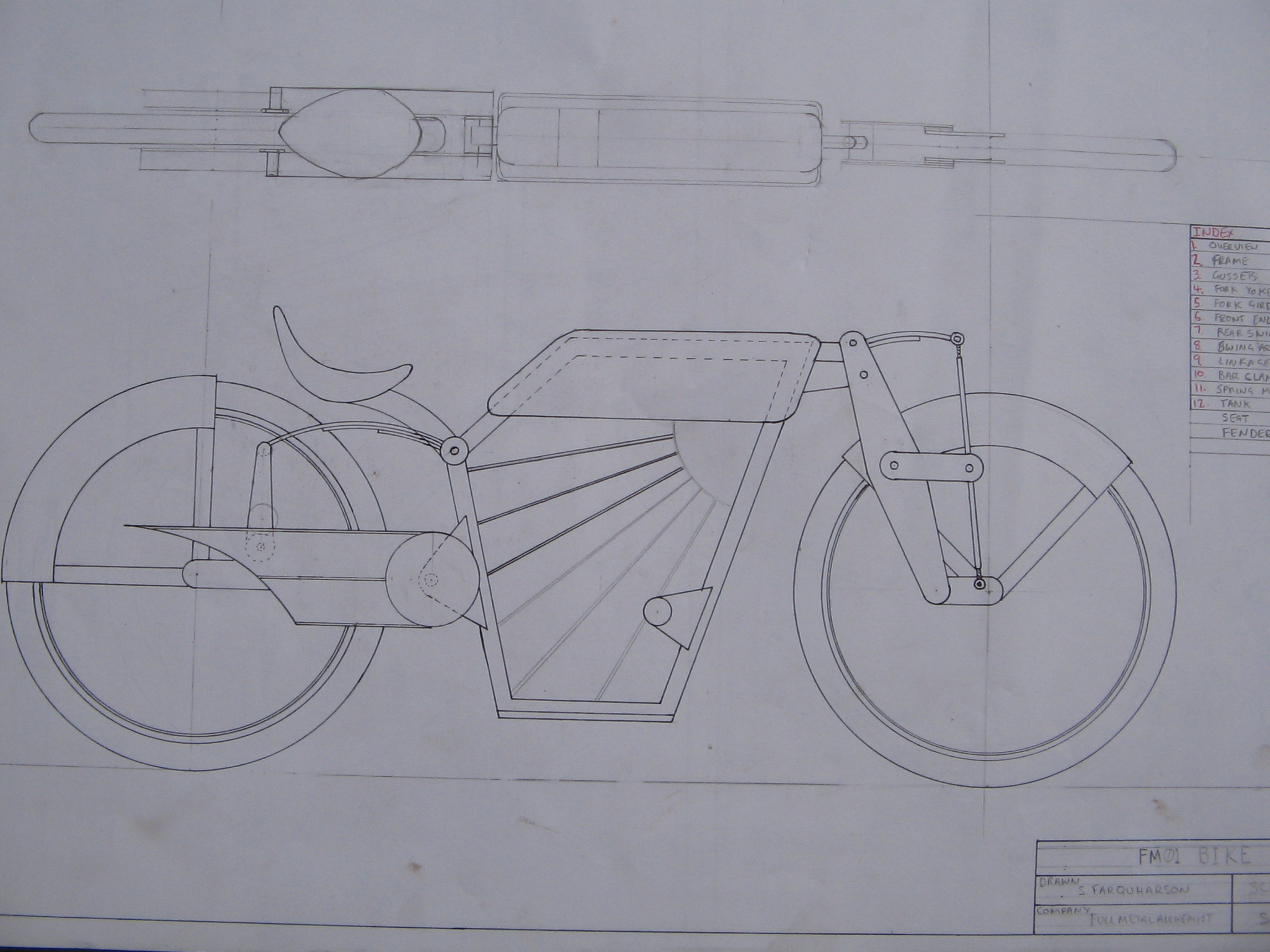

Inspired by the bikes from the 30s and 40s with a touch of WW2 Japanese Zero Fighter.

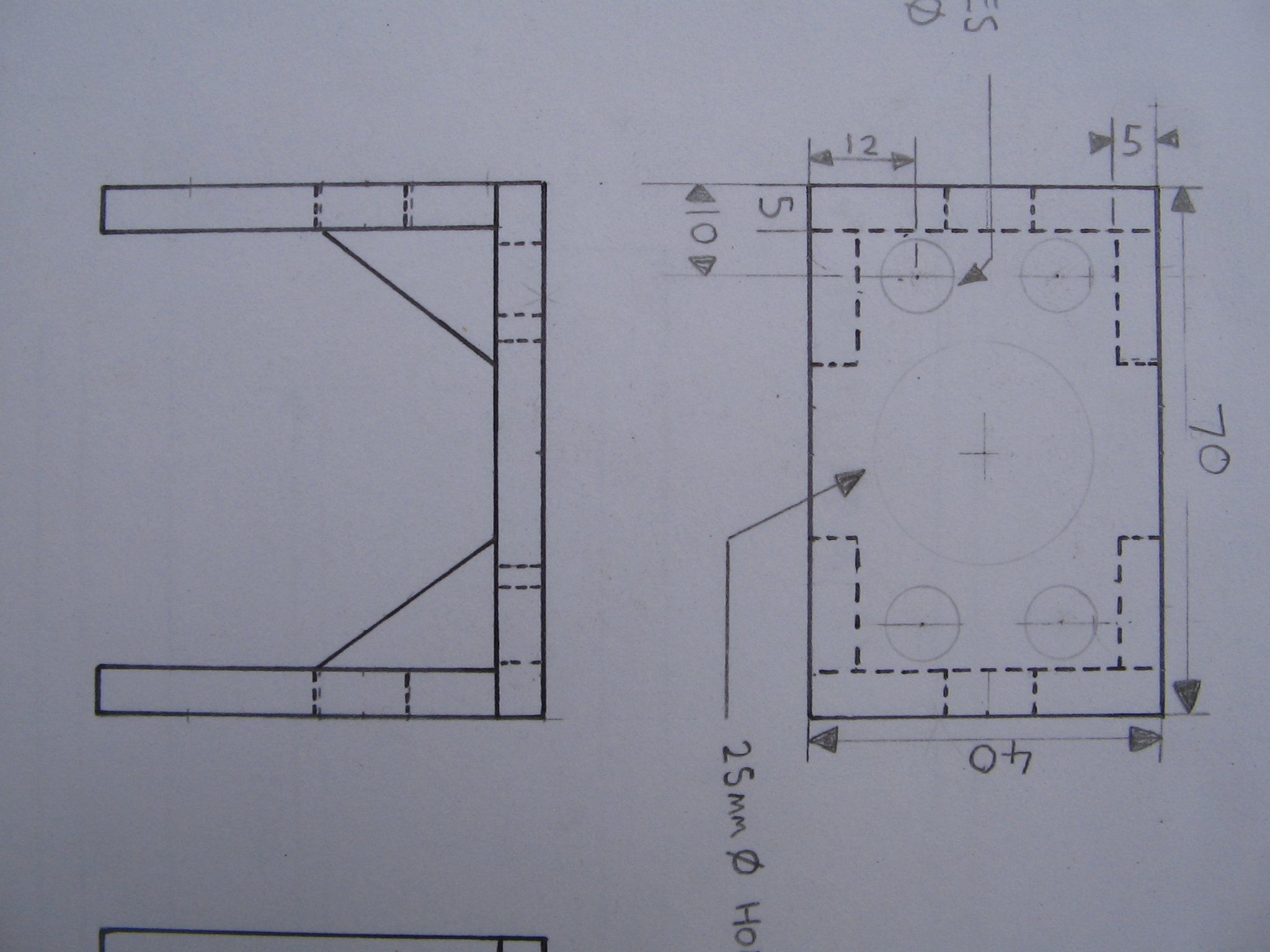

Bike Specs.

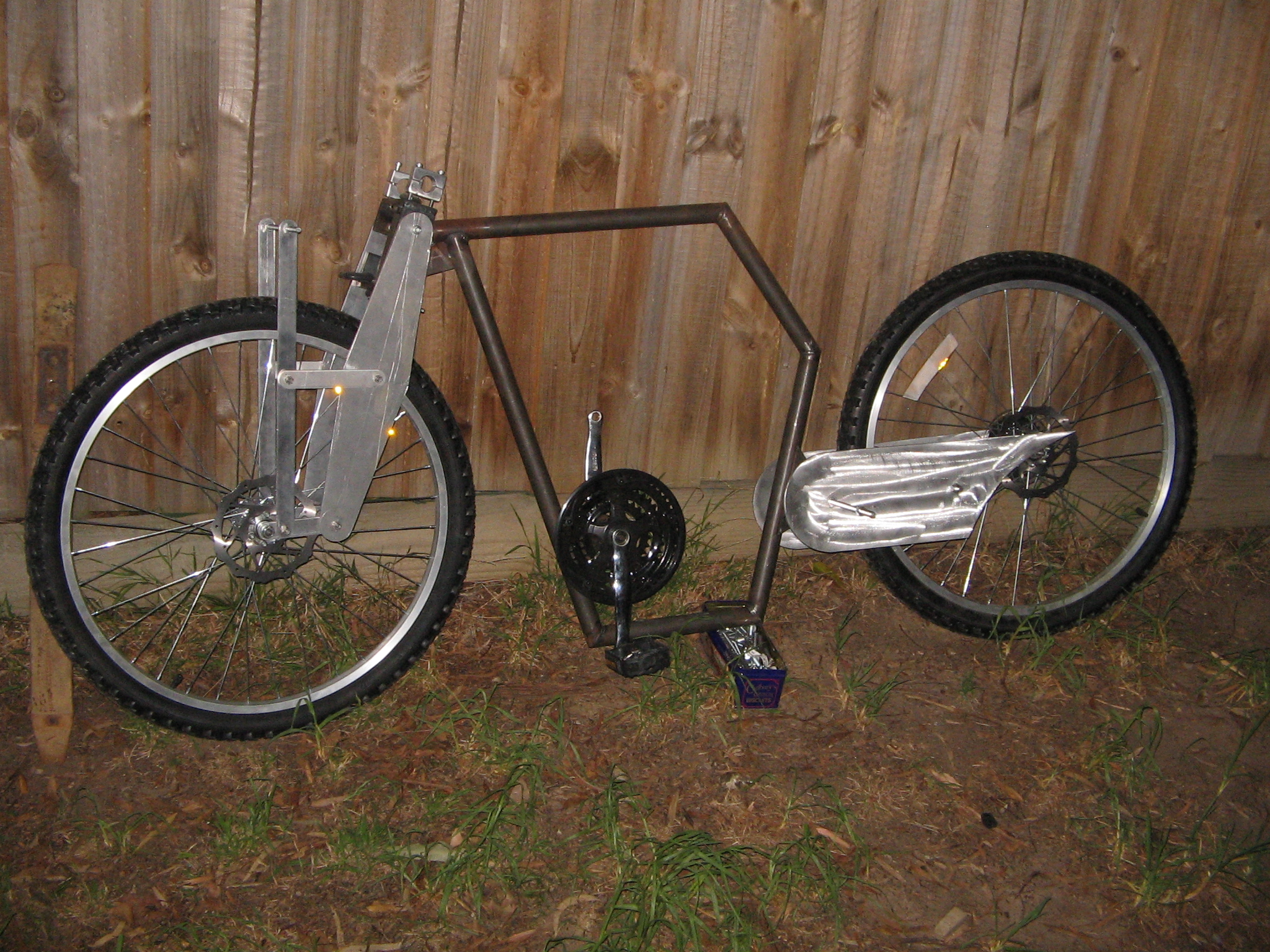

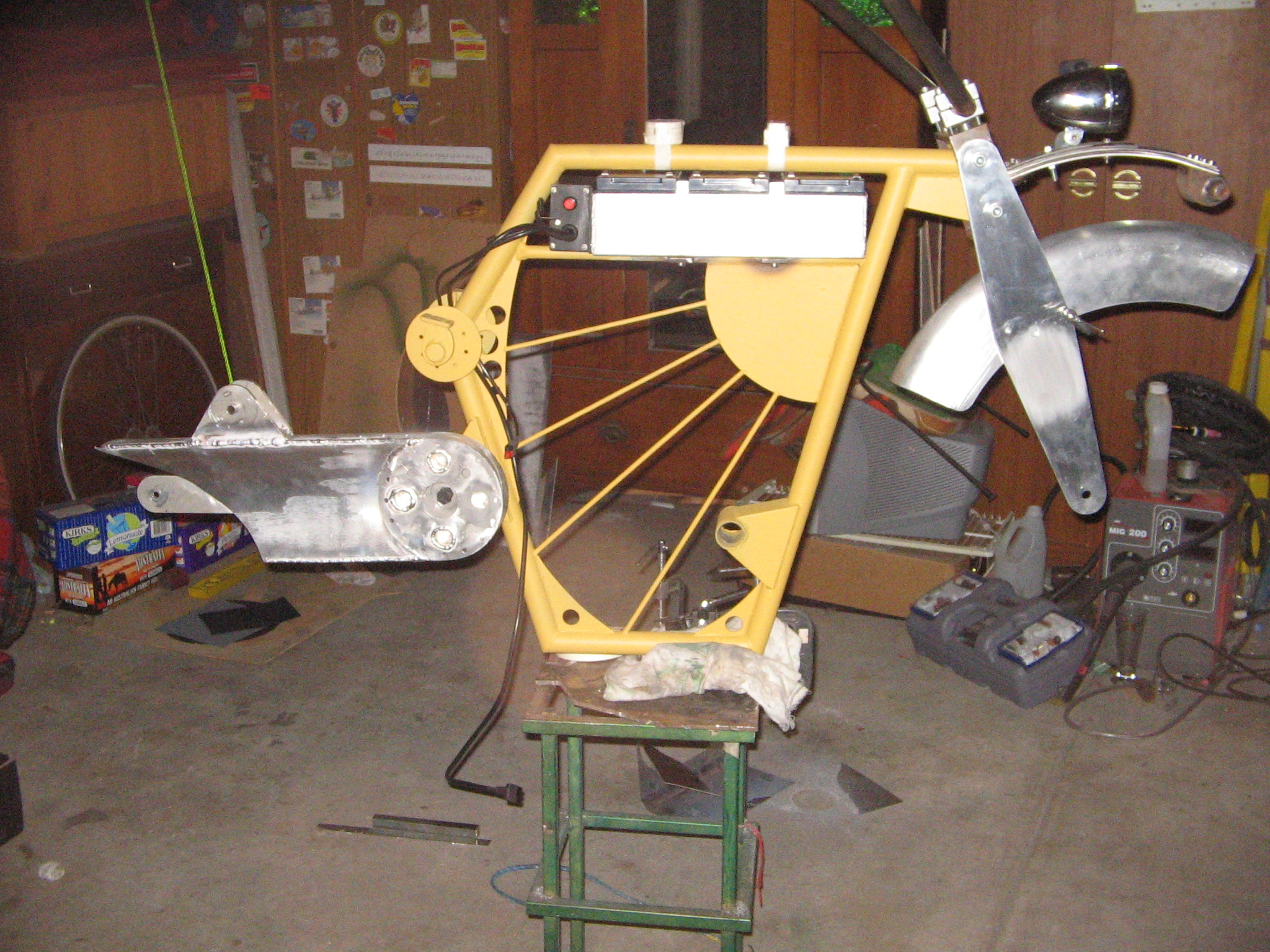

Frame: 4130 Chromoly

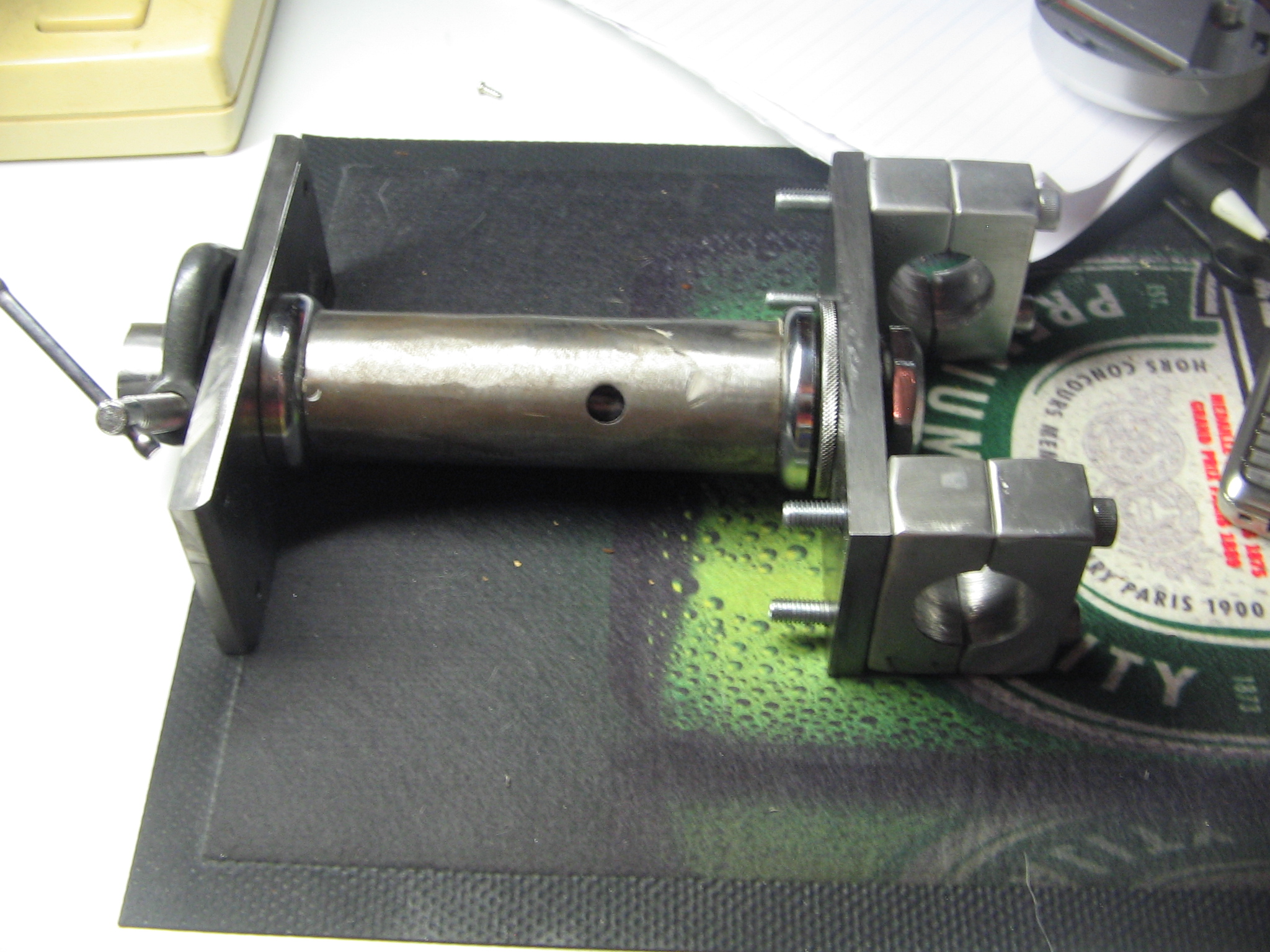

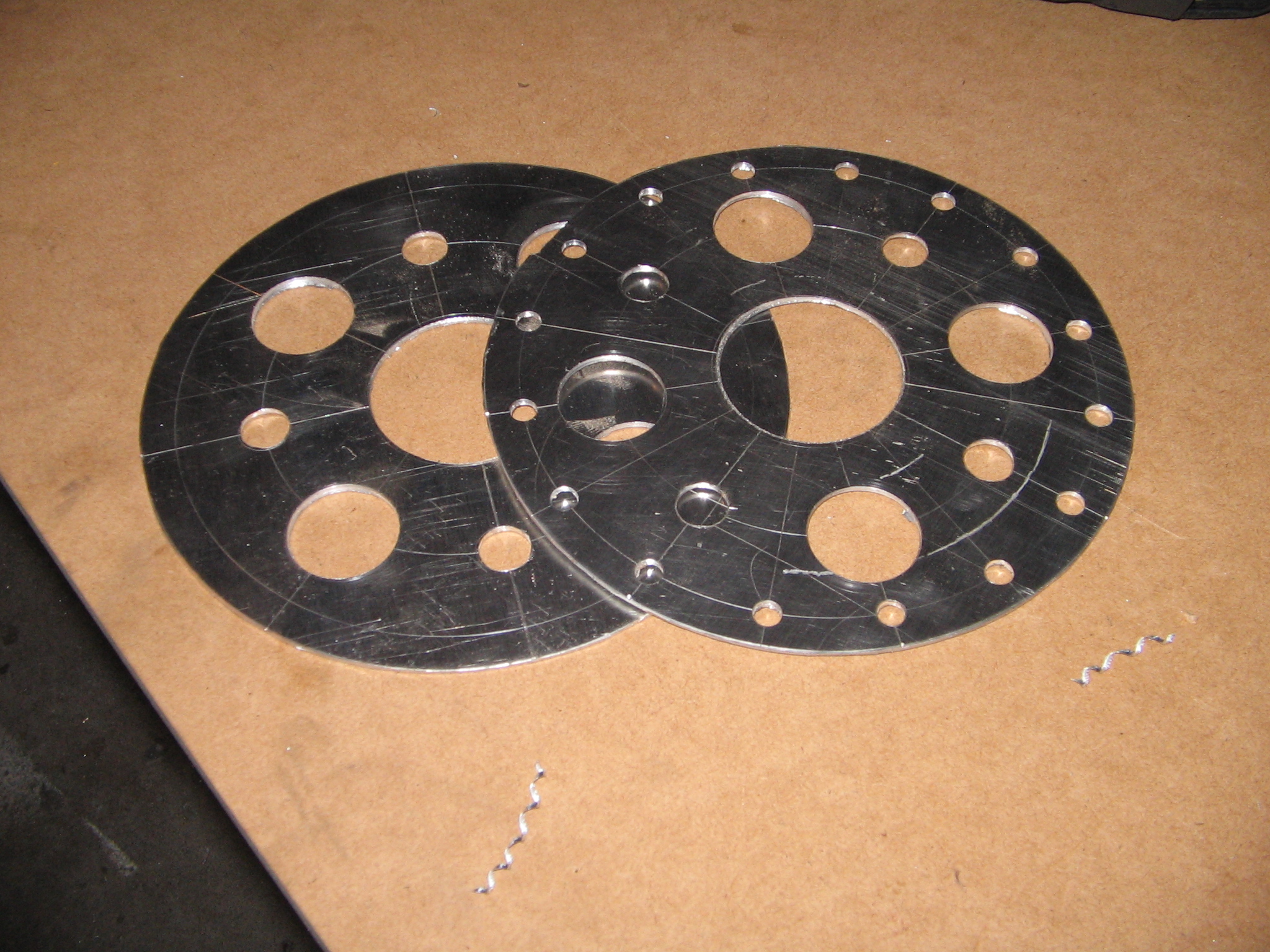

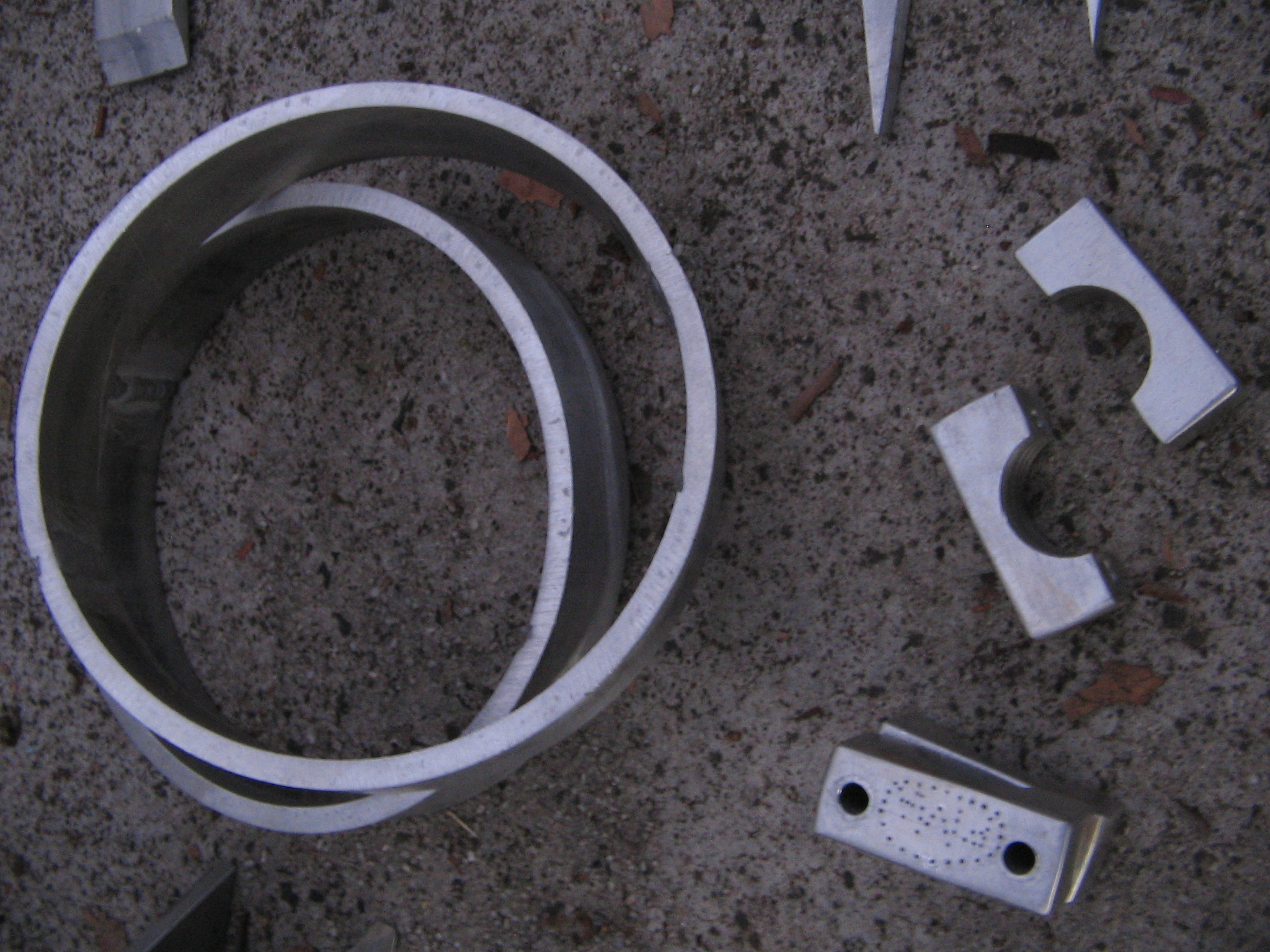

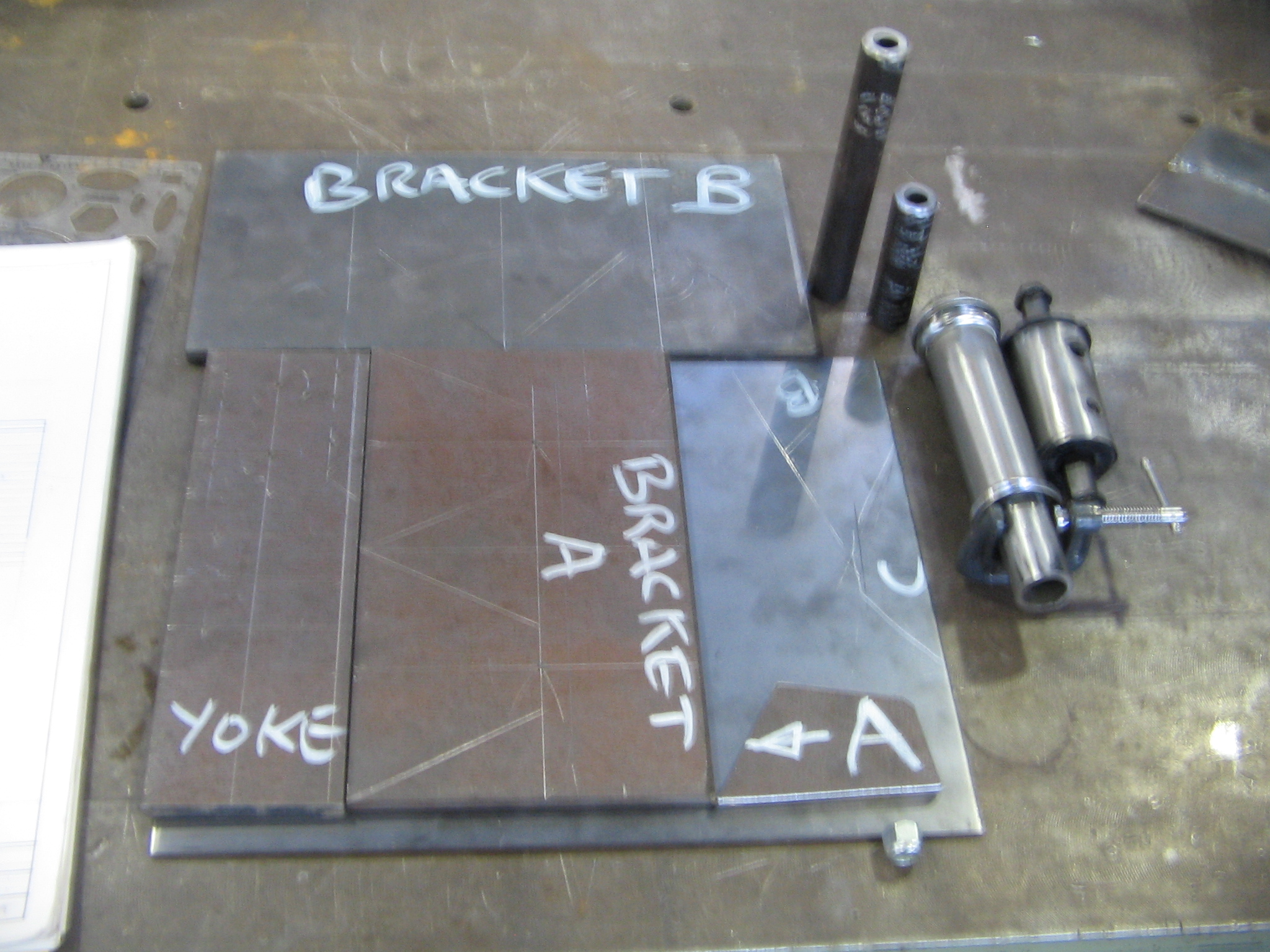

Swing arms and Front end: 6061 Aluminium.

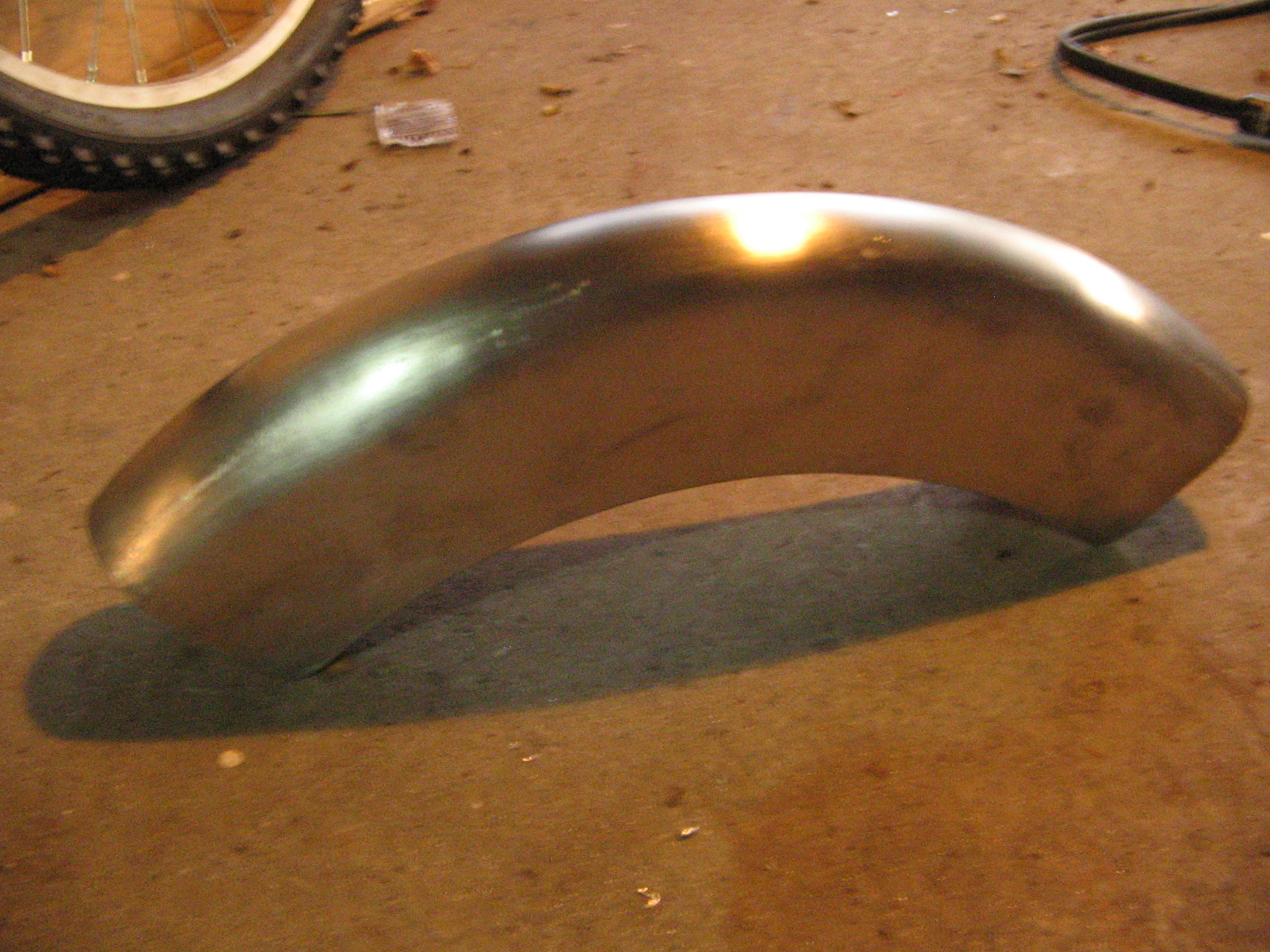

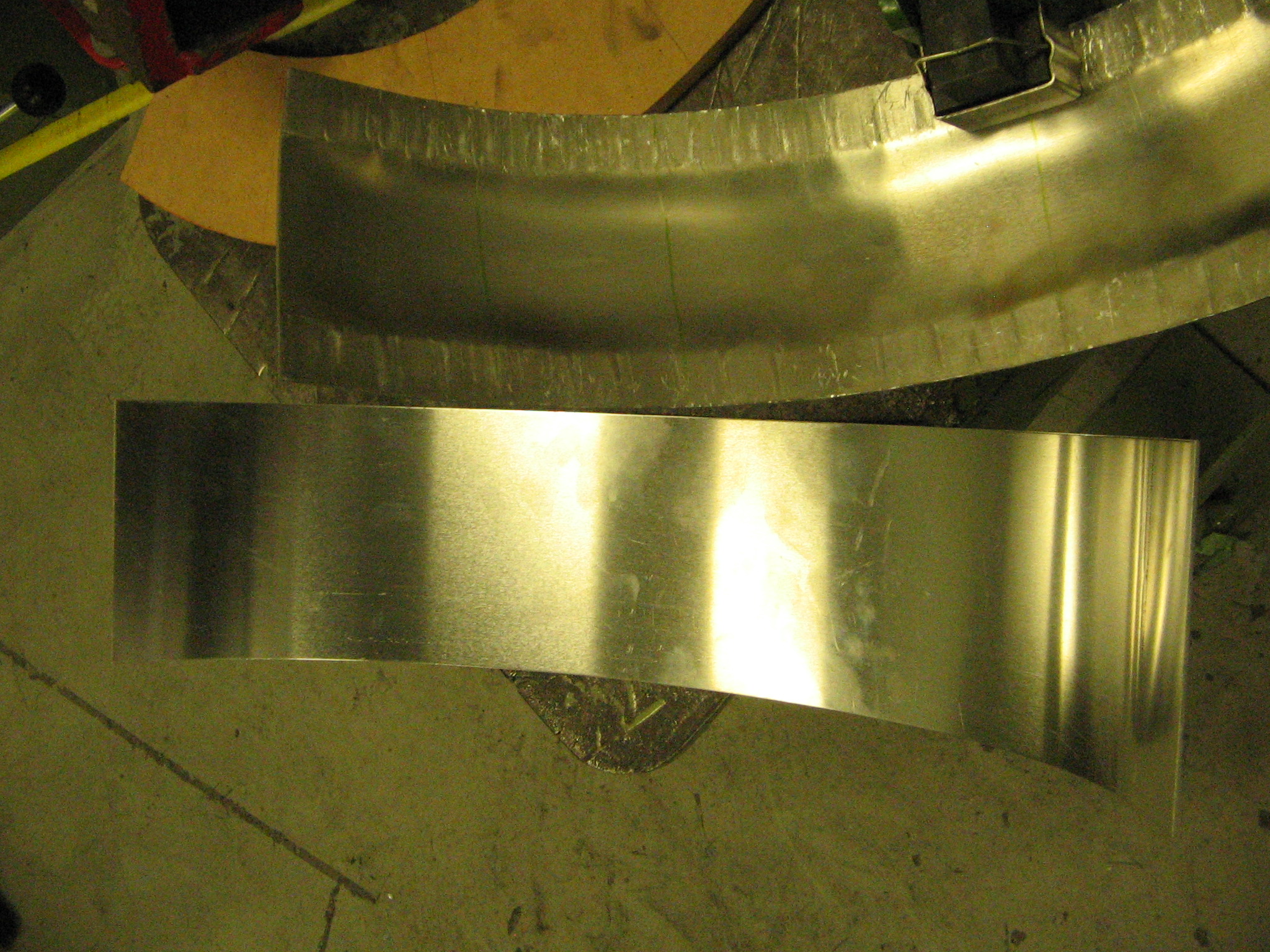

Tank and Fenders: Aluminium

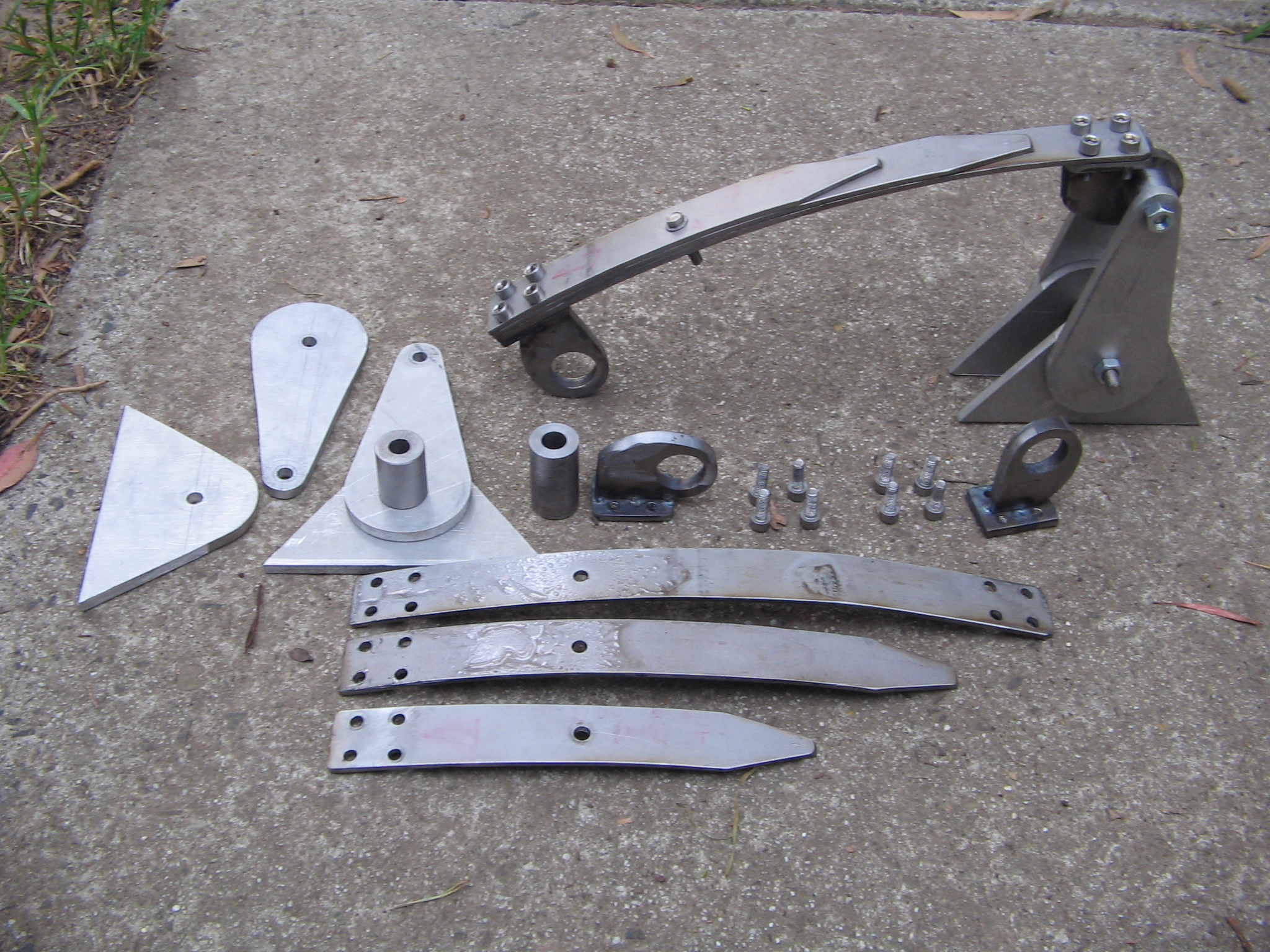

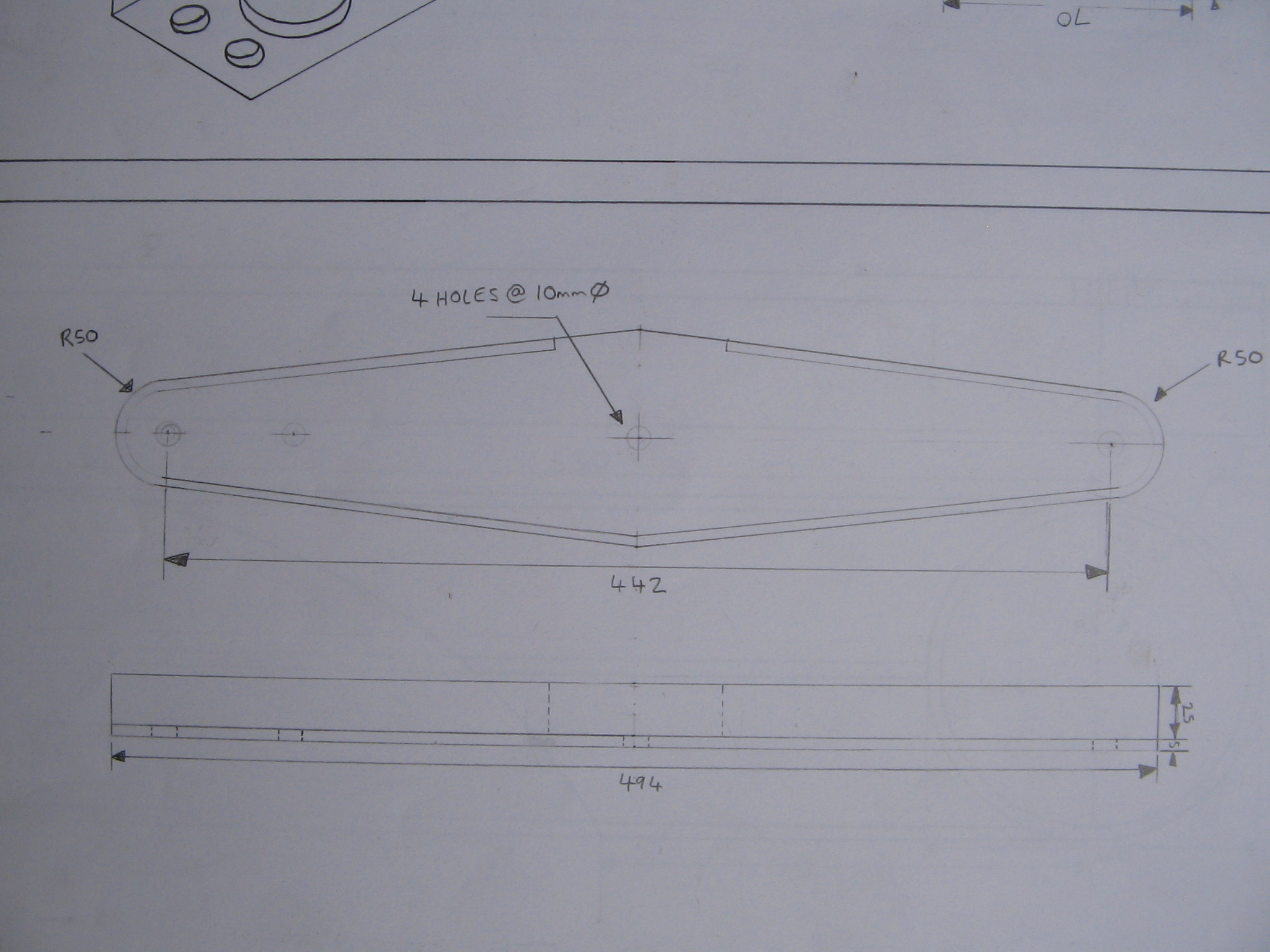

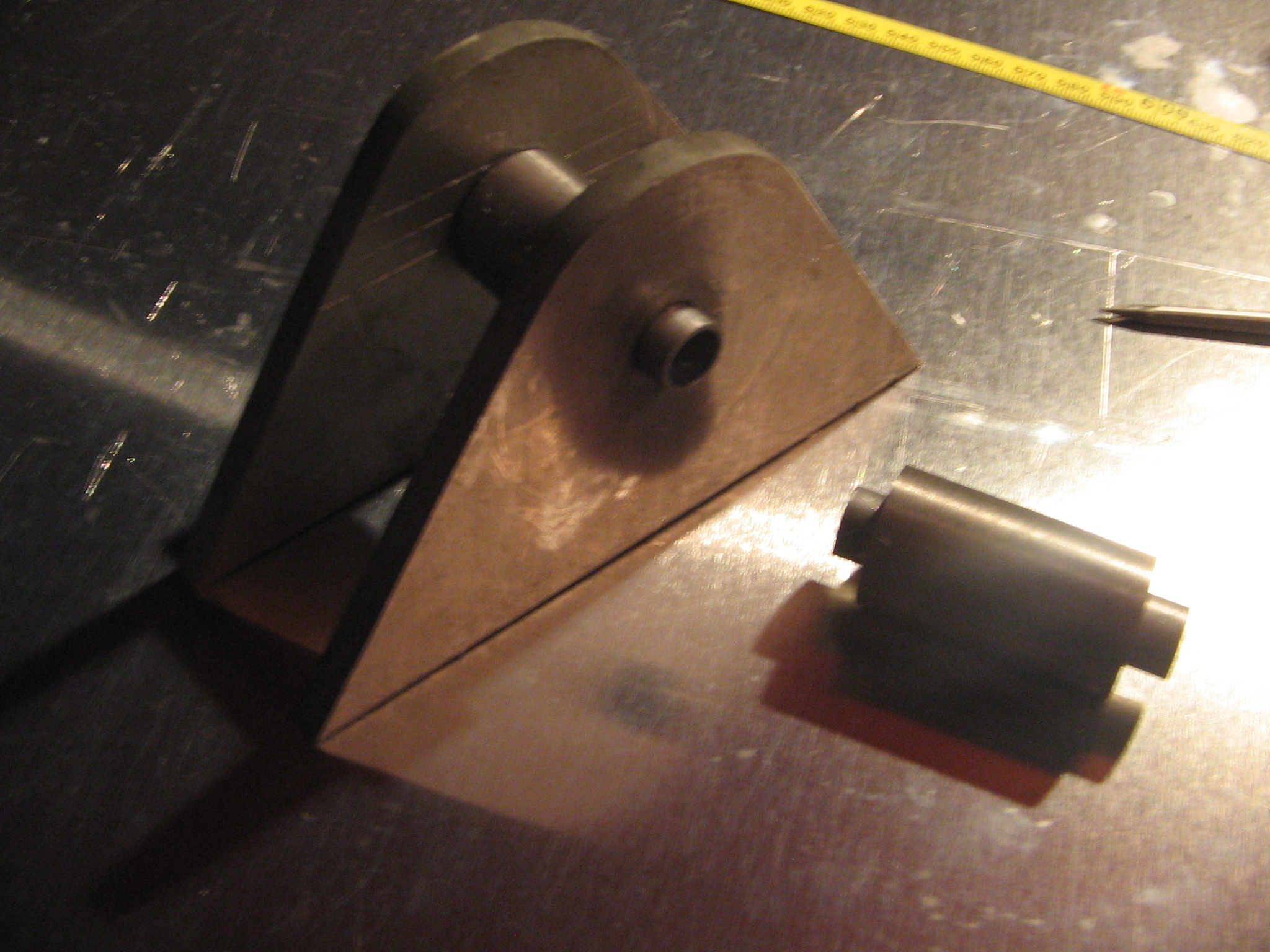

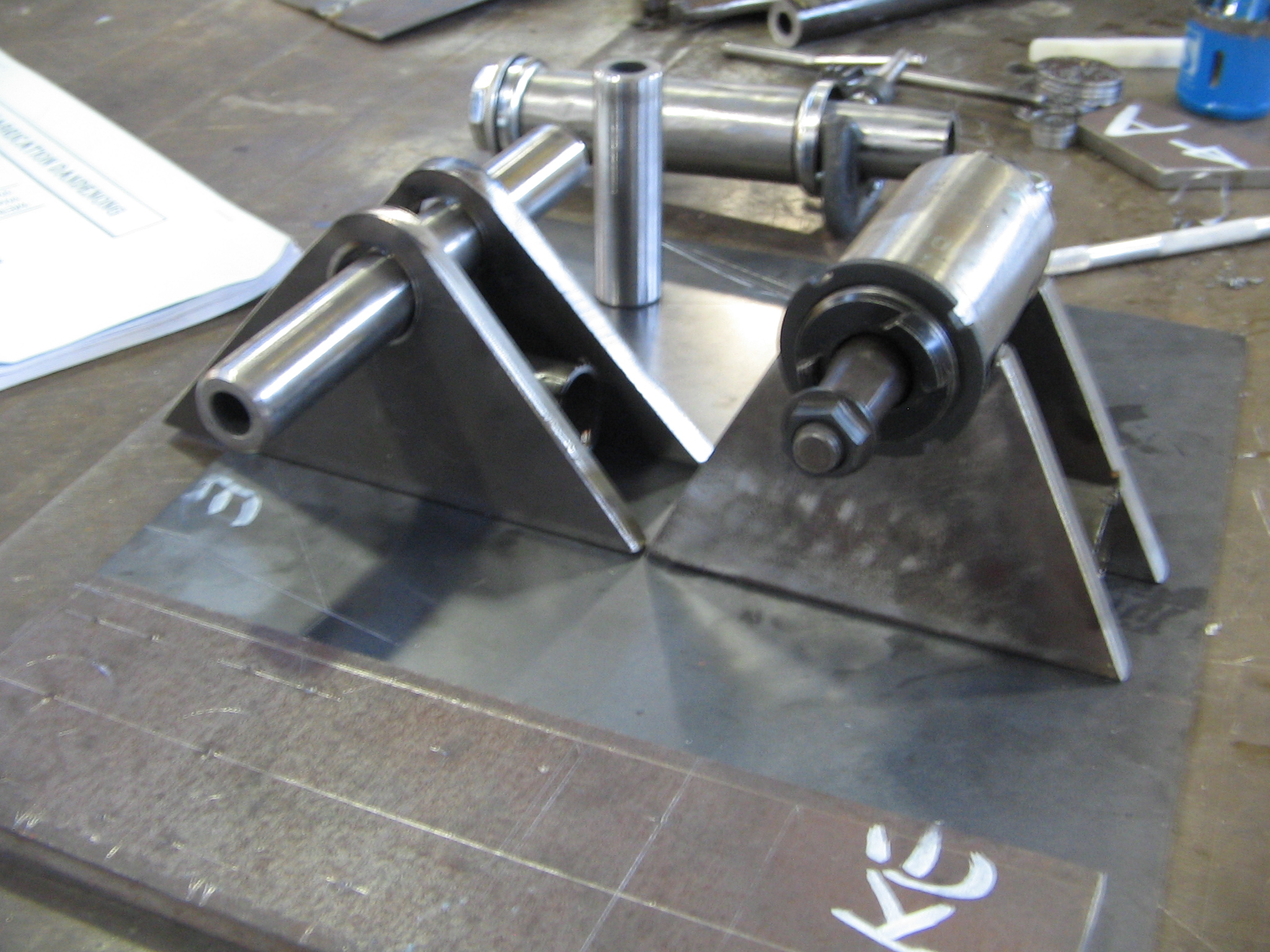

Leaf Spring Suspension

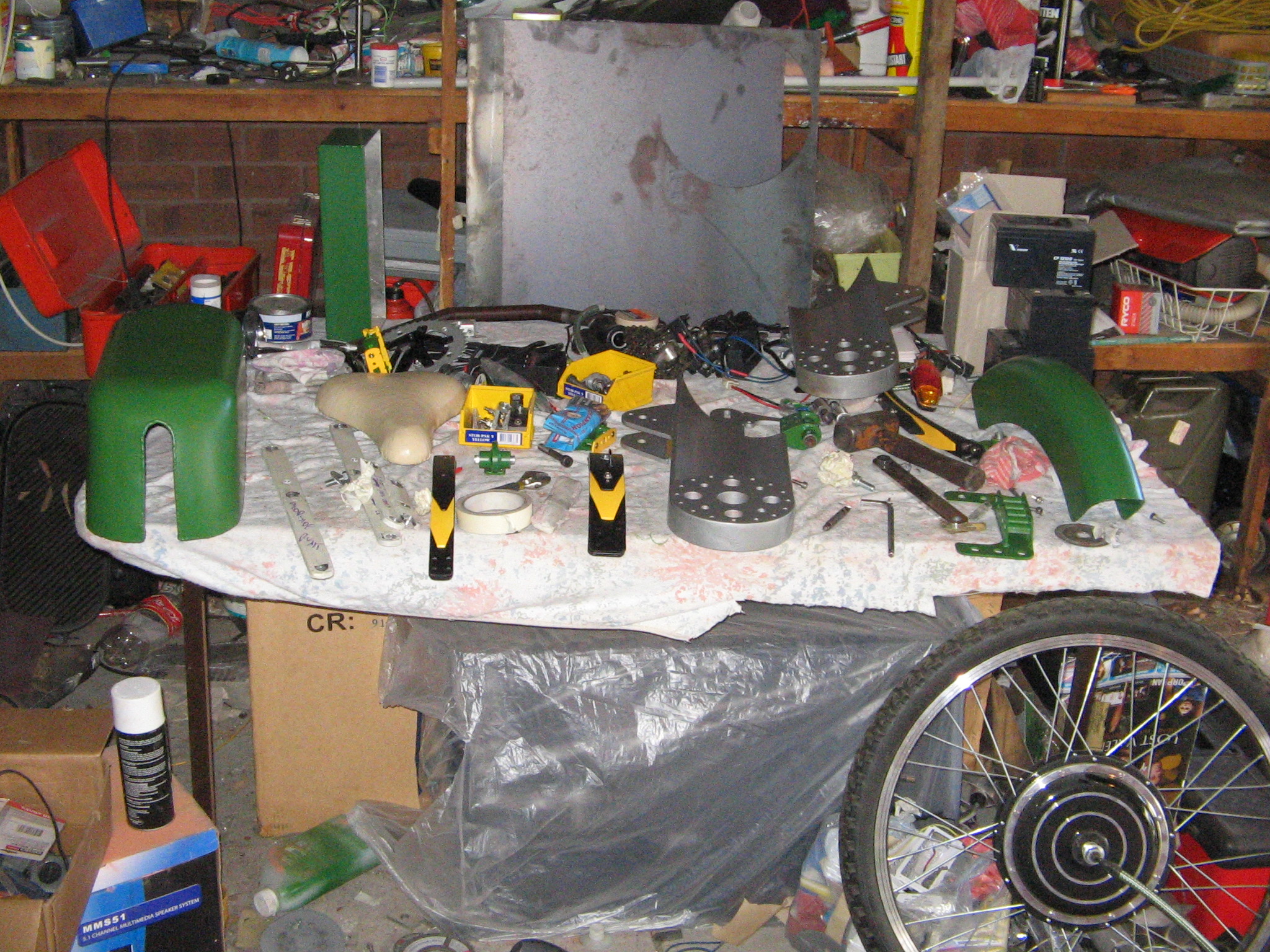

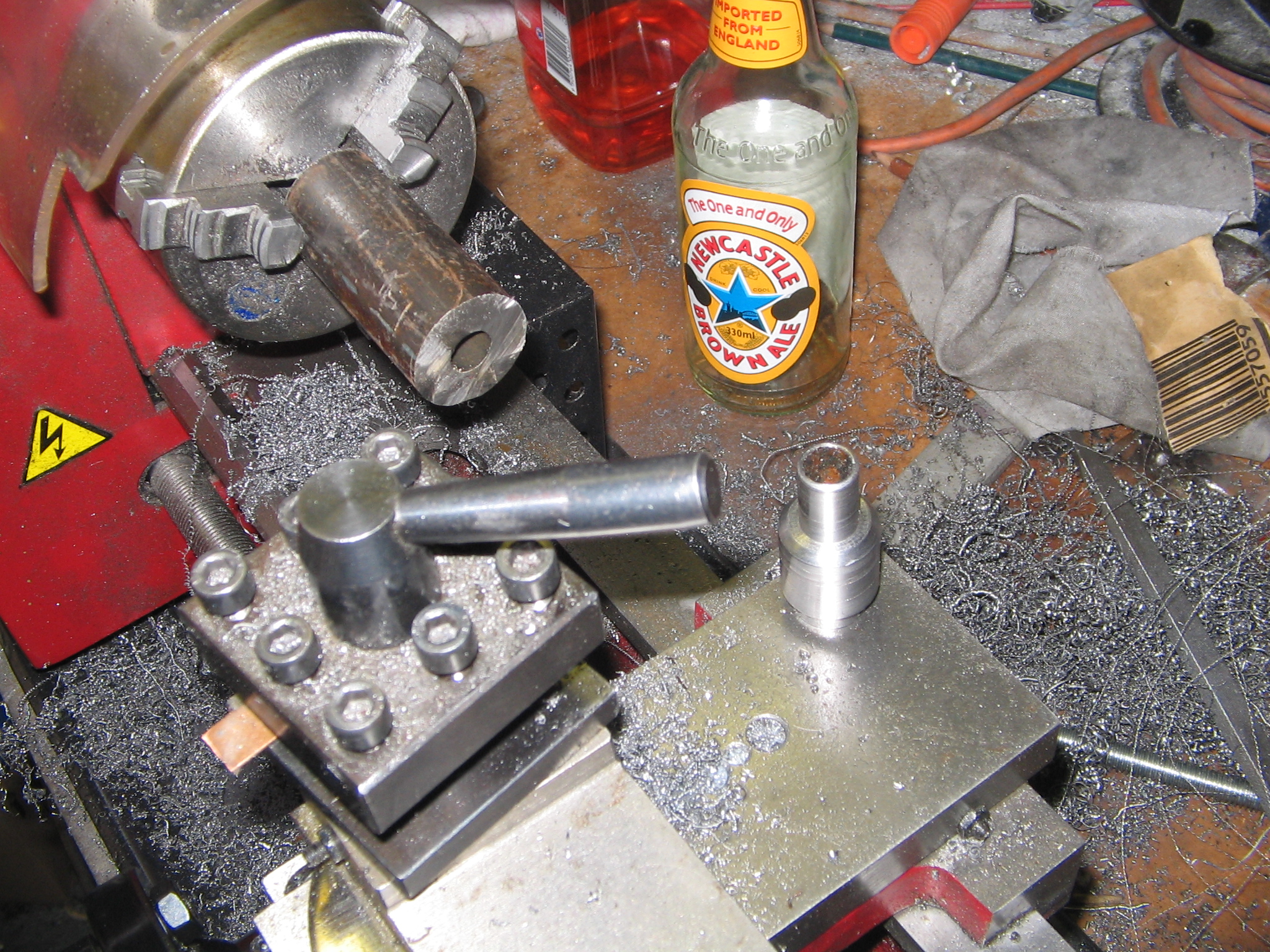

181 Hand cut pieces
30 parts
86 Bolts.
600+ hours over 16 weeks
Materials and parts $2500 AUD

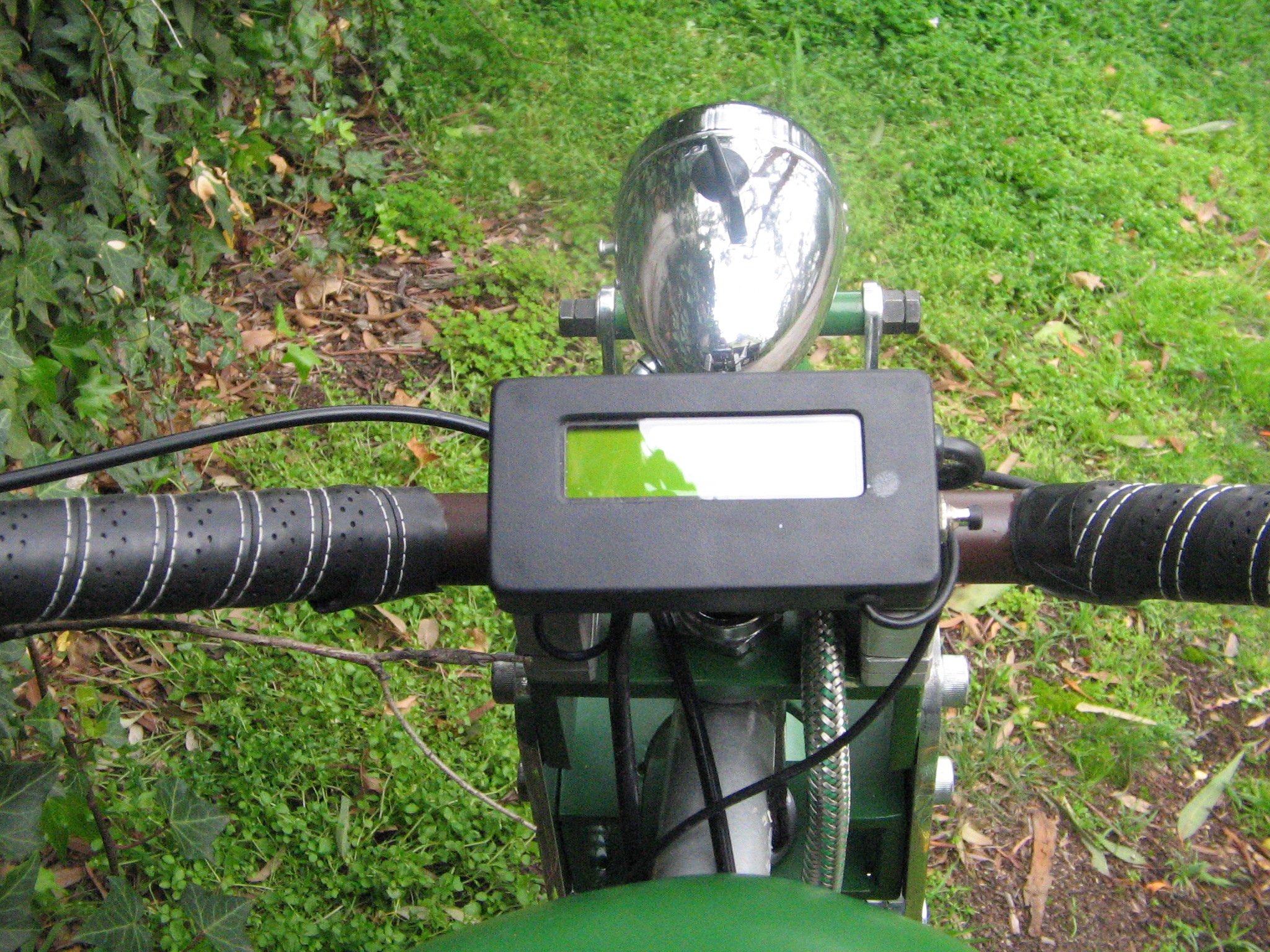

Electrics : 500w 36v Front Hub 3 X 12v 12Ah AGM SLA Batteries Control and cycle Analyst from http://www.ebikes.ca
