Retro ESP32

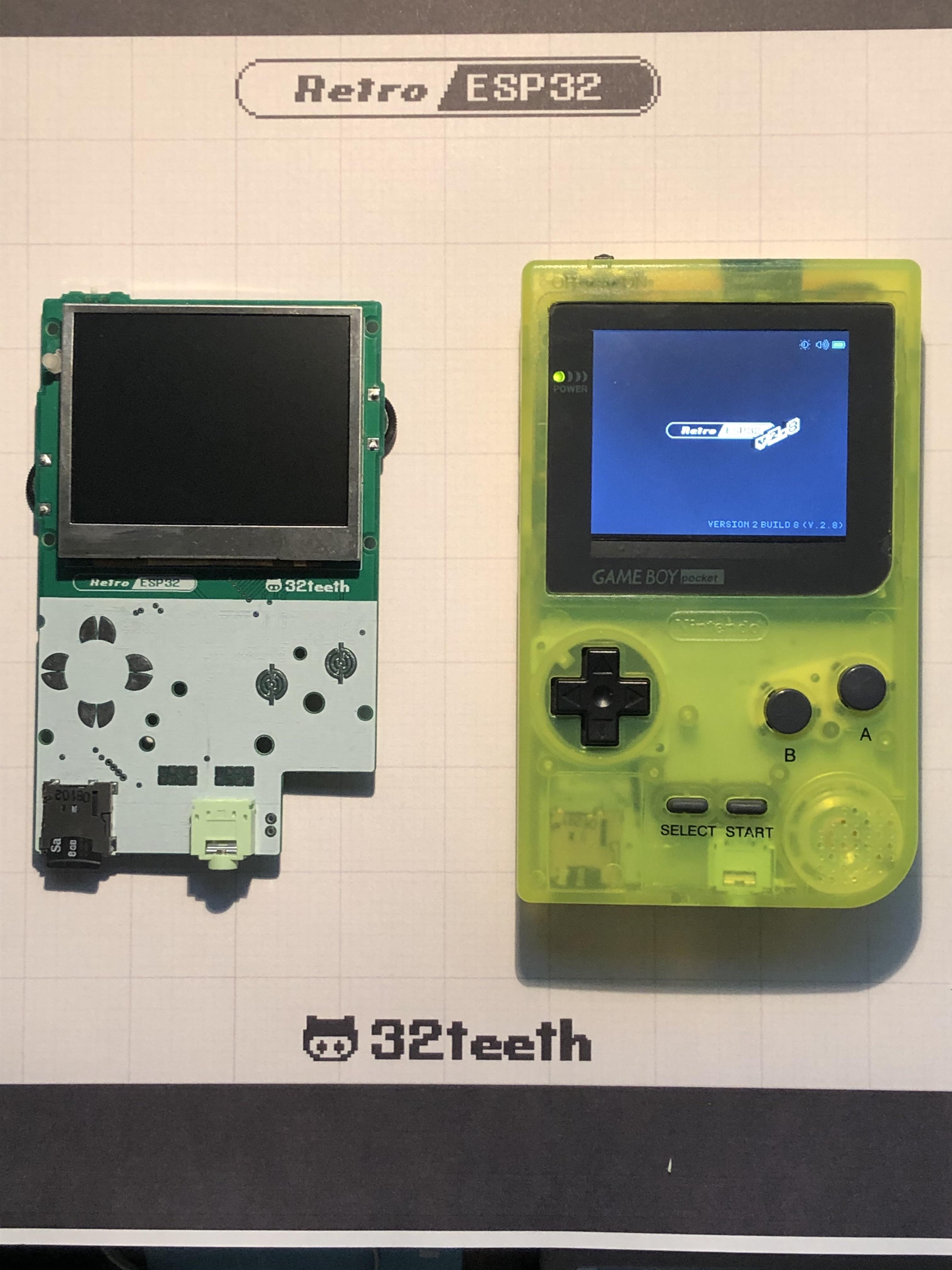

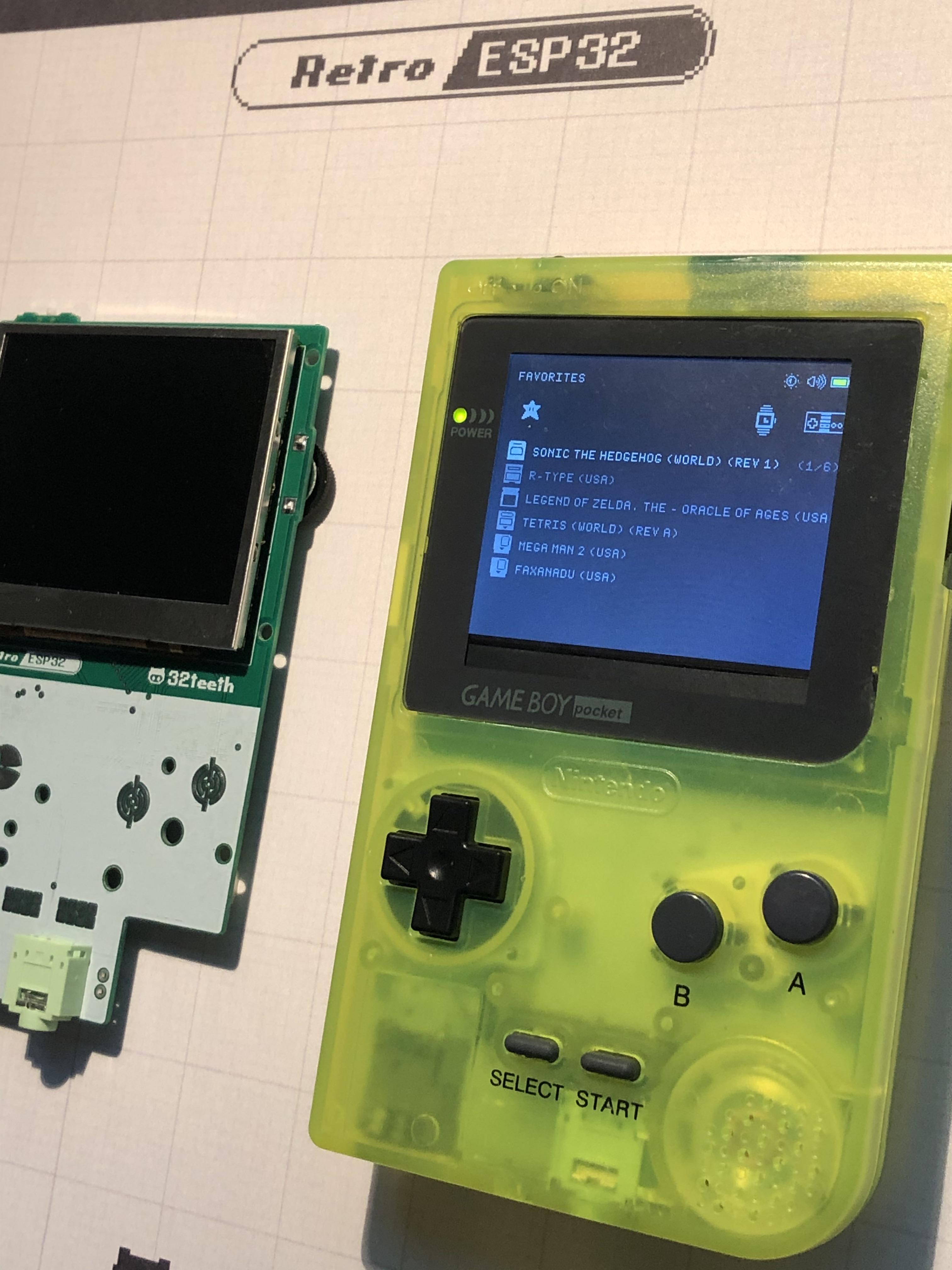

Game Boy Pocket - ESP32 Drop In Solution

Retro ESP32 is a Game Boy Pocket form factor, drop in solution for retro gaming.

Introduction

Do we need one?

From the makers of the Gaboze Pocaio

Features

Things you can find on this kit
  • 2.6" TFT LCD
  • USB (Charge Port, Serial Port)
  • Brightness Control Thumbwheel
  • Volume Control Thumbwheel
  • Power LED - 3mm diffused
  • New Conductive Pads
  • Headphone Jack (LM4857)
  • Speaker capability (LM4857)
  • Audio Amp (LM4857)

  • FULLY ASSEMBLED PCB

Firmware

Something a little different

Installed for you is the base firmware for running all your other applications.

If you wish to jump straight into emulation... ...see the installation section below

Software

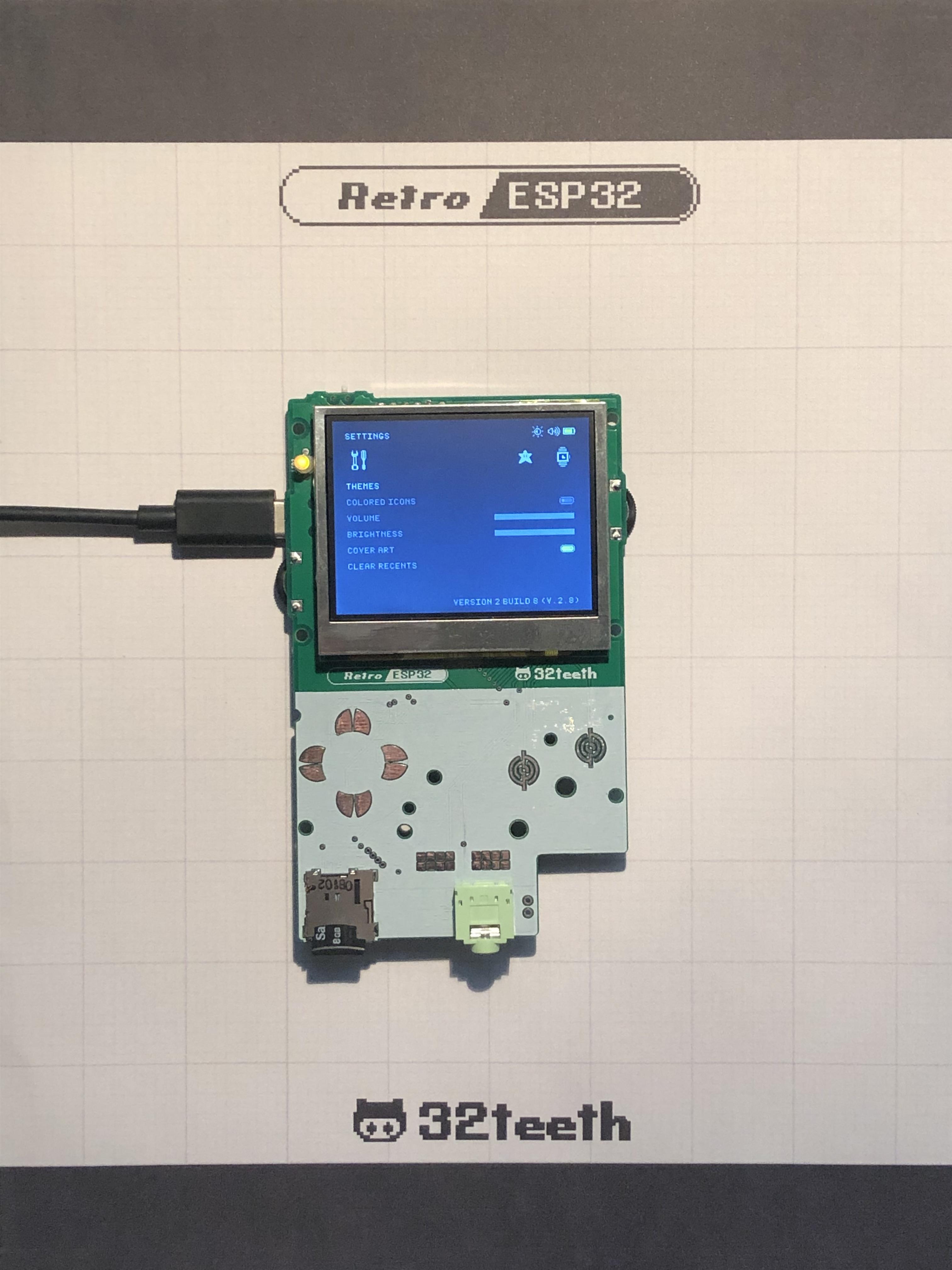

Custom Retro ESP32 Emulator Launcher

Installation

Copy, Mount, Flash

We kept installation of Retro ESP32 super simple.

  1. Downloads the latest release
  2. Unzip the file
  3. Copy RetroESP32.fw to the odroid/firmware folder of your prepared SD card
  4. Mount the SD Card back into your Retro ESP32 mainboard
  5. Restart Holding the B button
  6. Select Retro ESP32 from the firmware list
  7. Sit back and relax while your Odroid Go flashes the new firmware

Supported Emulators

What else do you need to know
  • Nintendo Entertainment System
  • Nintendo Game Boy
  • Nintendo Game Boy Color
  • Sega Master System
  • Sega Game Gear
  • Colecovision
  • Sinclair Zx Spectrum 48k
  • Atari 2600
  • Atari 7800
  • Atari Lynx
  • PC Engine

Wiki

Don't forget to read it

Retro ESP32 Wiki

What's Included

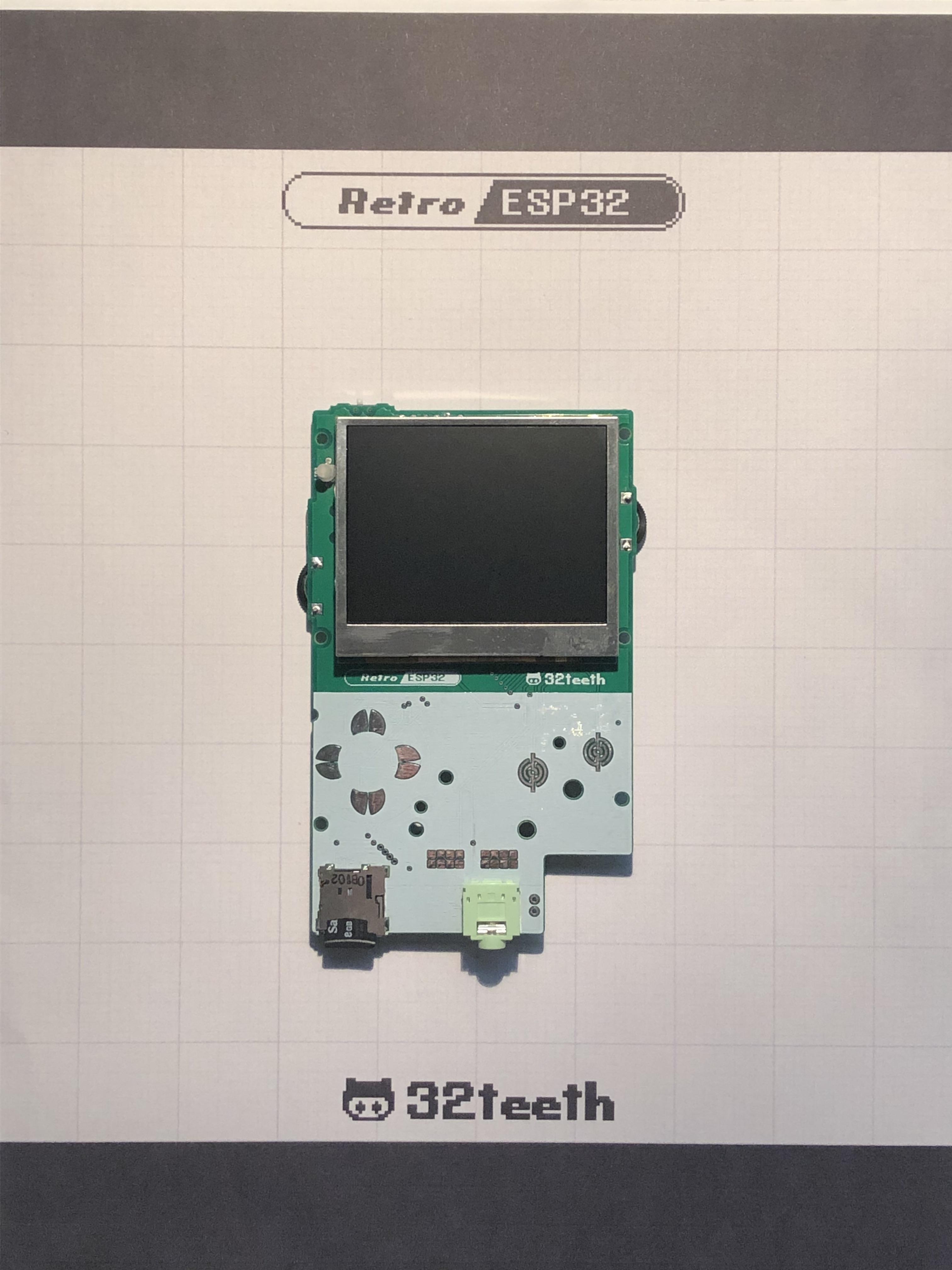

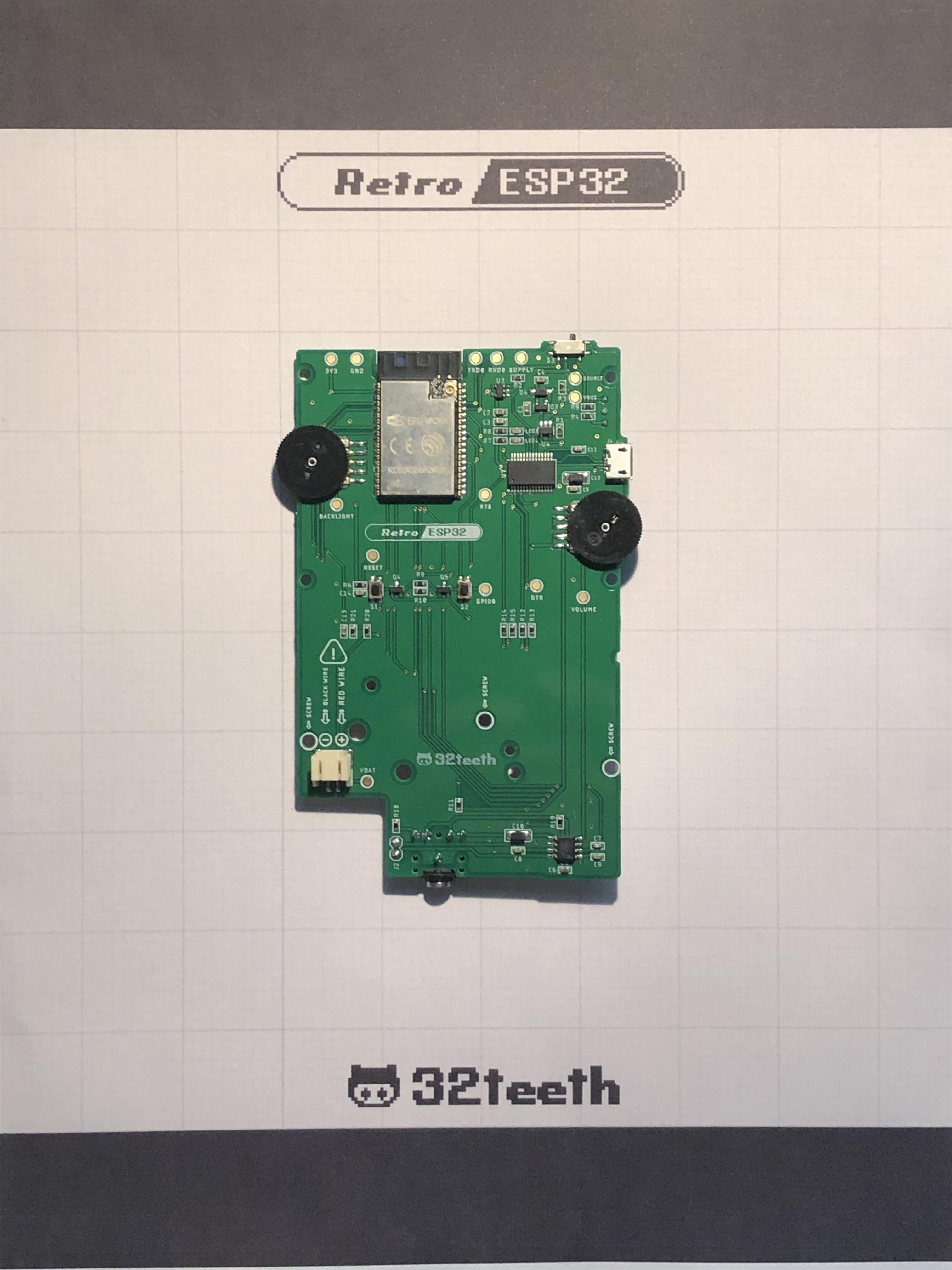

The Retro ESP32 mainboard. Fully assembled, soldered and ready to go

What's NOT Included

Have your say!

Don't be shy, our team is here

Have a great idea? Want to see a feature? Ran into a problem? Use our Project and Issue sections to have your say.

Although we do this for 💕 of 🕹ī¸


We Also Like Coffee!
Please Consider Supporting

Backstory


Why?

We love Hard Kernel and their amazing product base including the Odroid GO

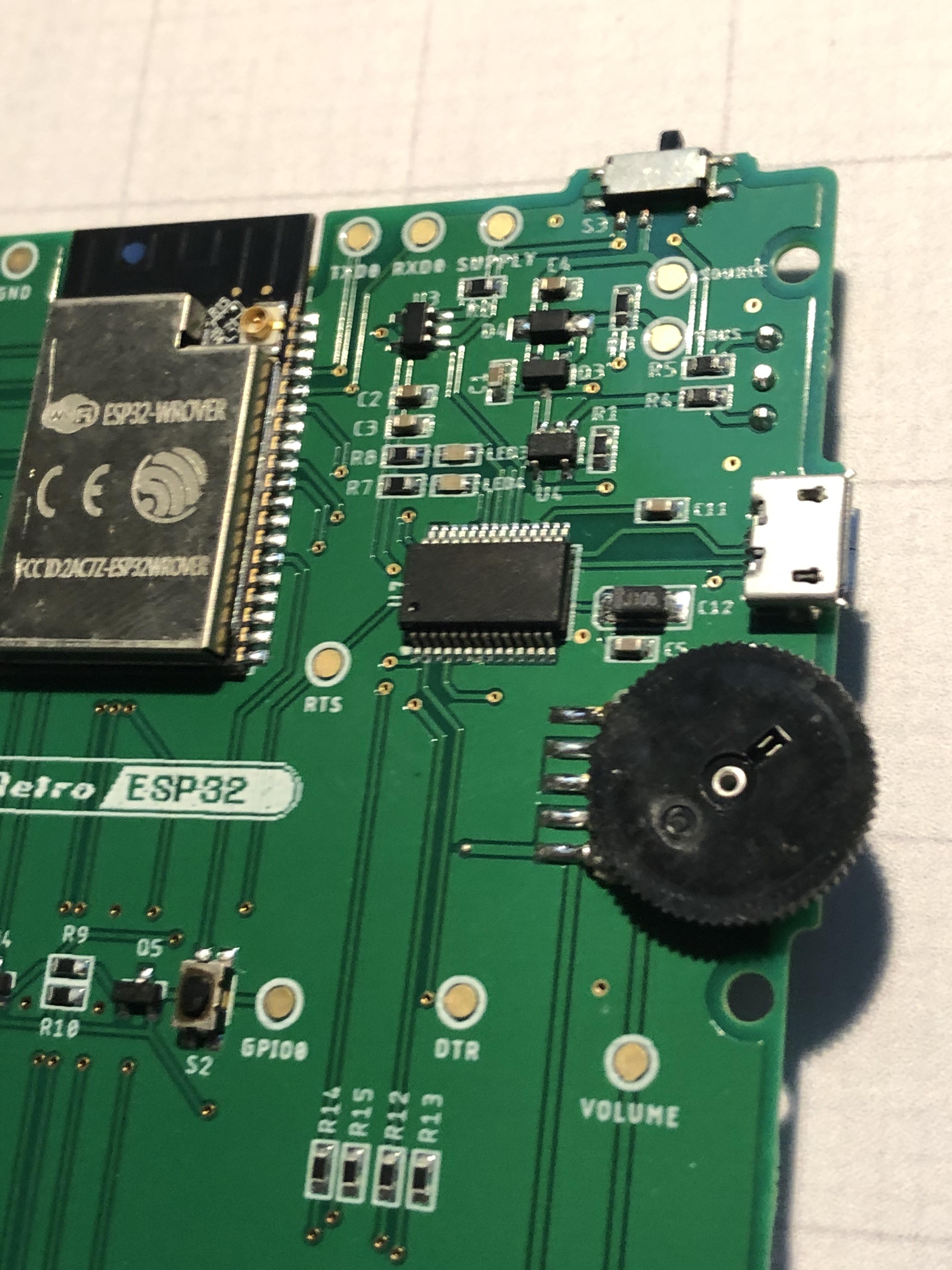

We wanted to design, build and solution on trusted SoC. The ESP32 Wrover was selected for ease of use and extensive build tools available across all development platforms.

This STEM based ESP32 for your Game Boy Pocket is a real treat.

Features include:
  • 2.6" 320x240 TFT Display
  • Audio Amp (Headphone / Speaker)
  • Volume and Brightness Control
  • FTDI FT232RL USB UART

What?

The Retro ESP32 is intended as an educational 'toy' for the world of Makers

A low barrier to entry and NO soldering experience needed, AT ALL, there is NOTHING to solder, plug in and go!

It has full support for:
  • ESP-ISP Dev Toolchain
  • Arduino Toolchain
  • Whatever else you want to throw at it

This is a great opportunity to get your STEM on!

Really?

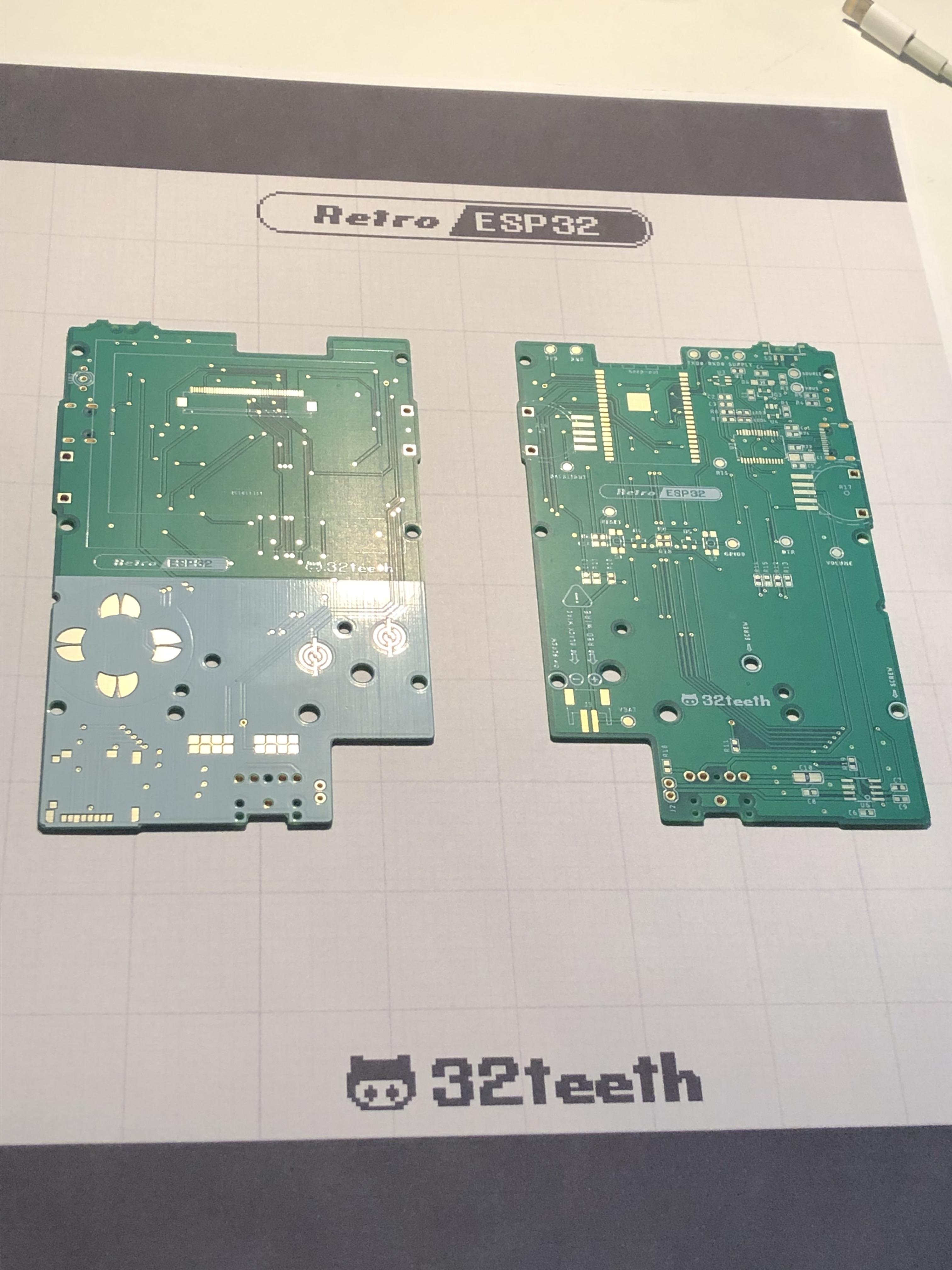

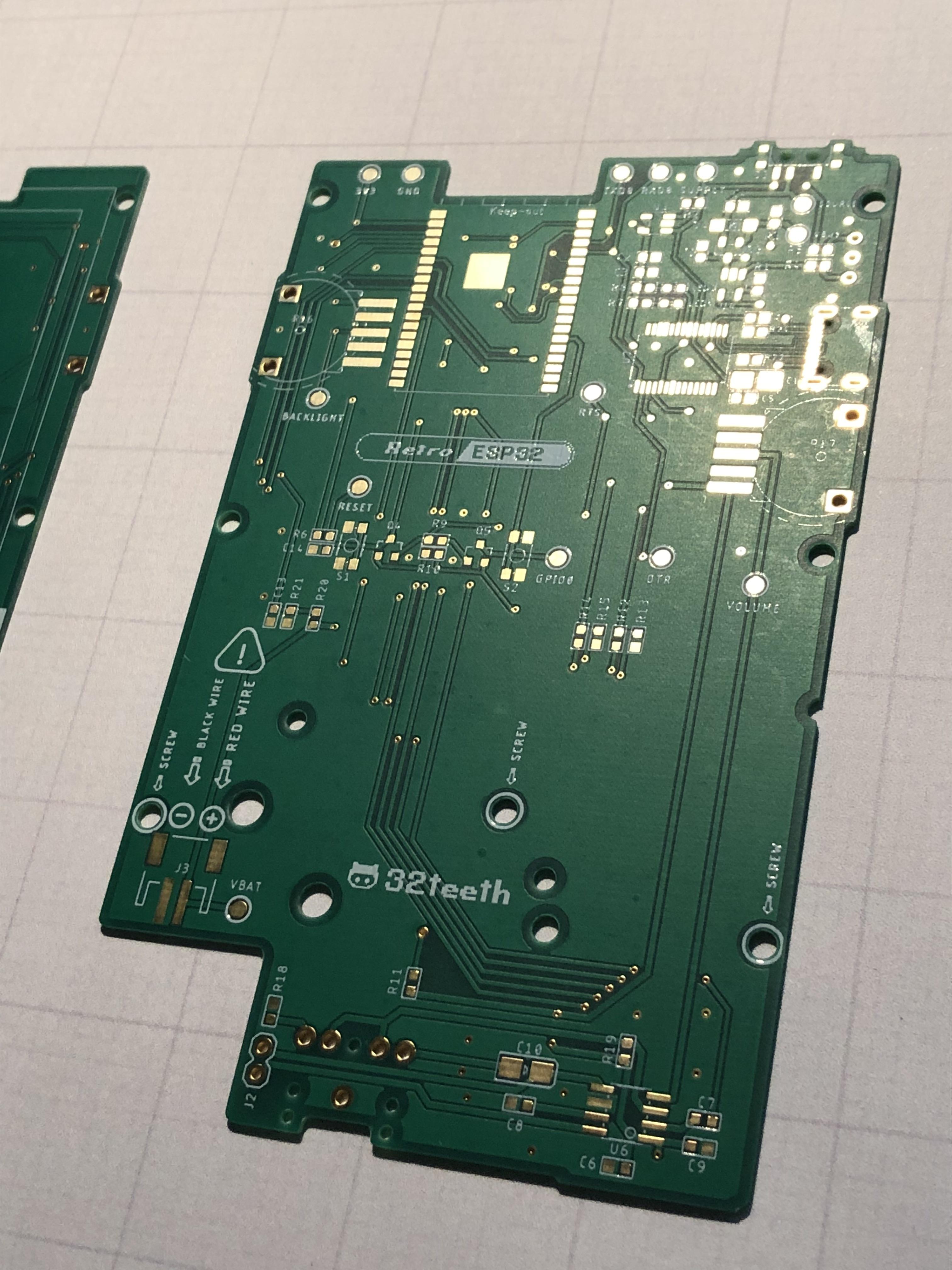

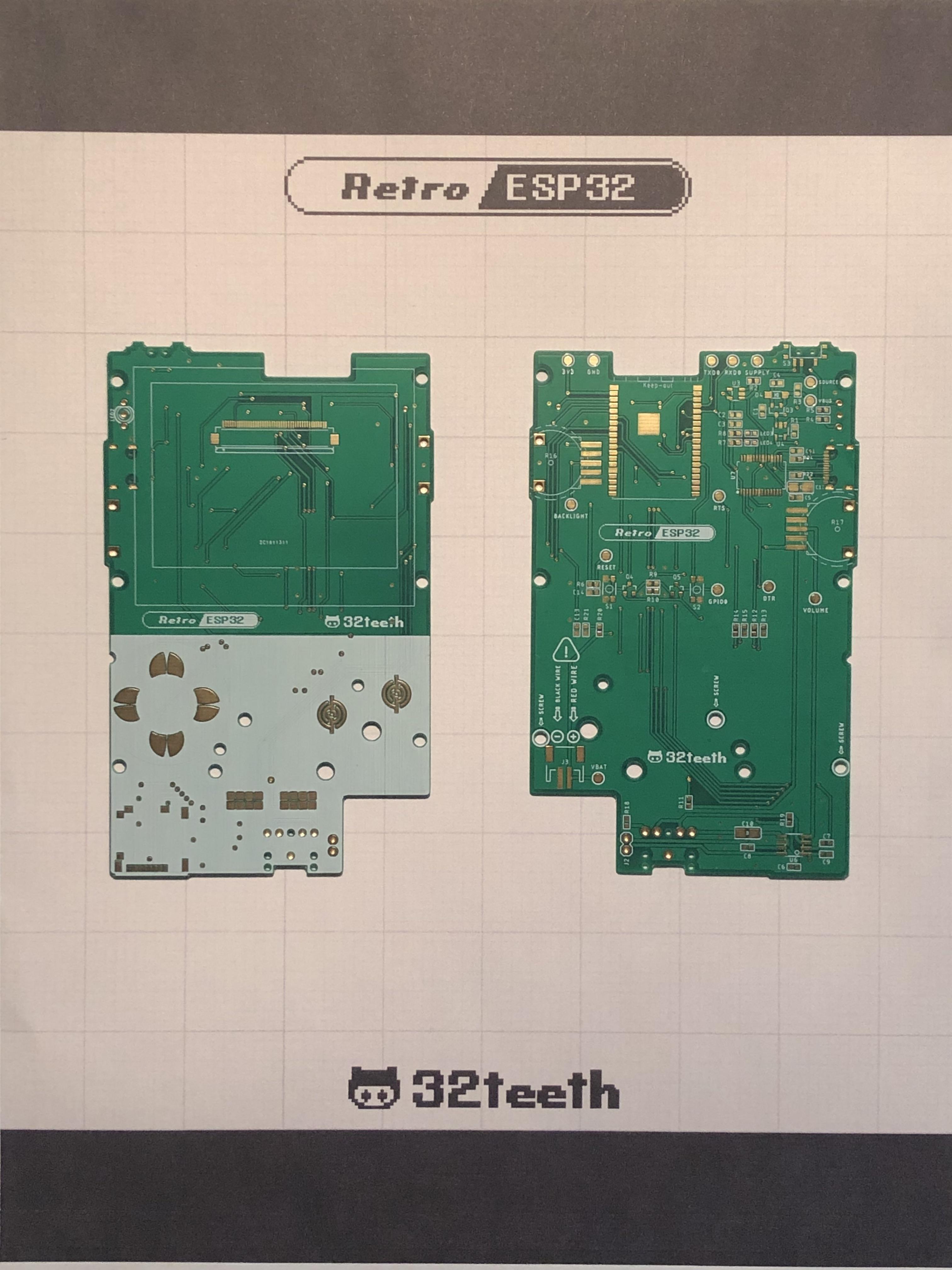

Yes, It's a drop in PCB with the form factor of the Game Boy Pocket

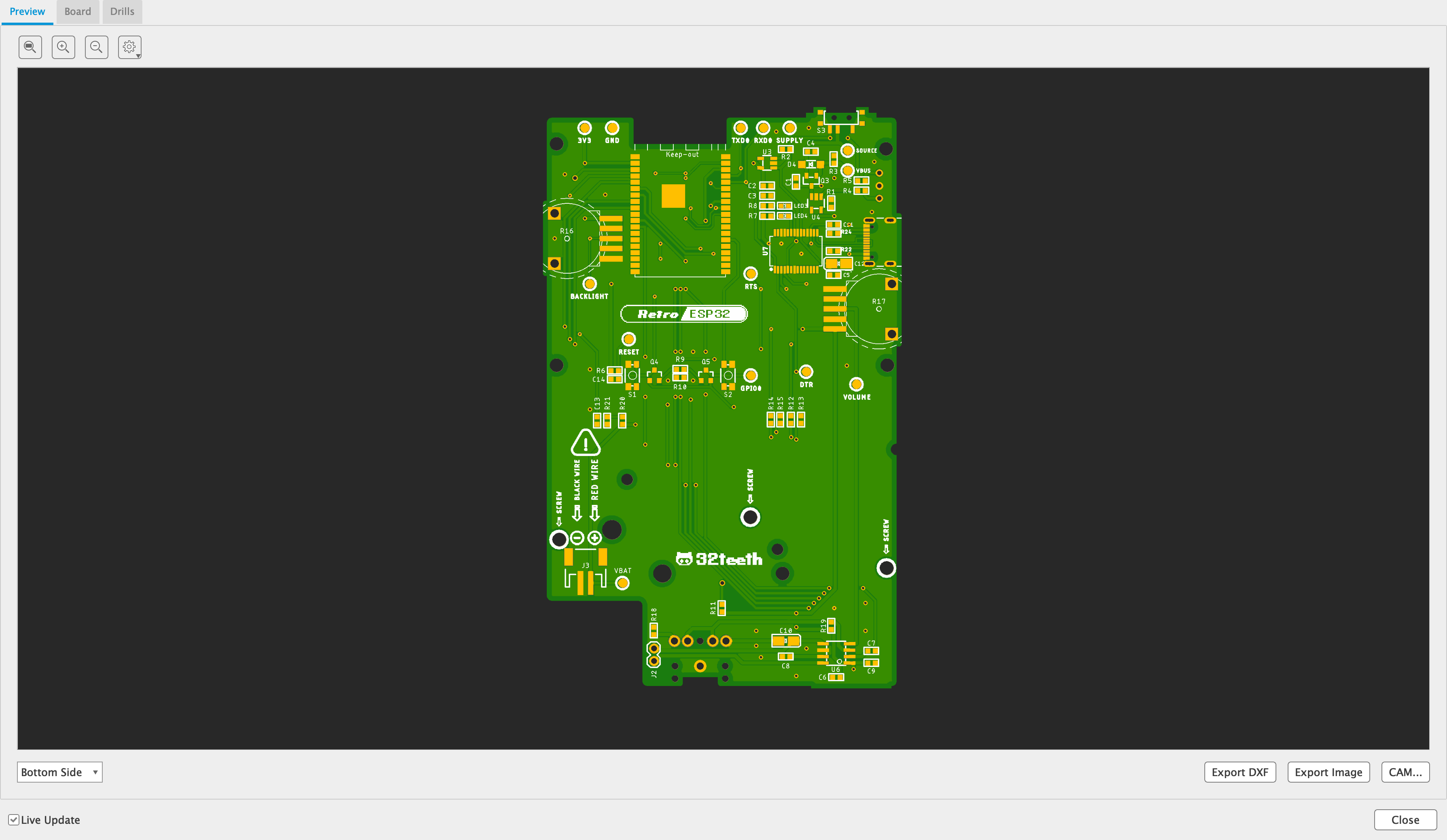

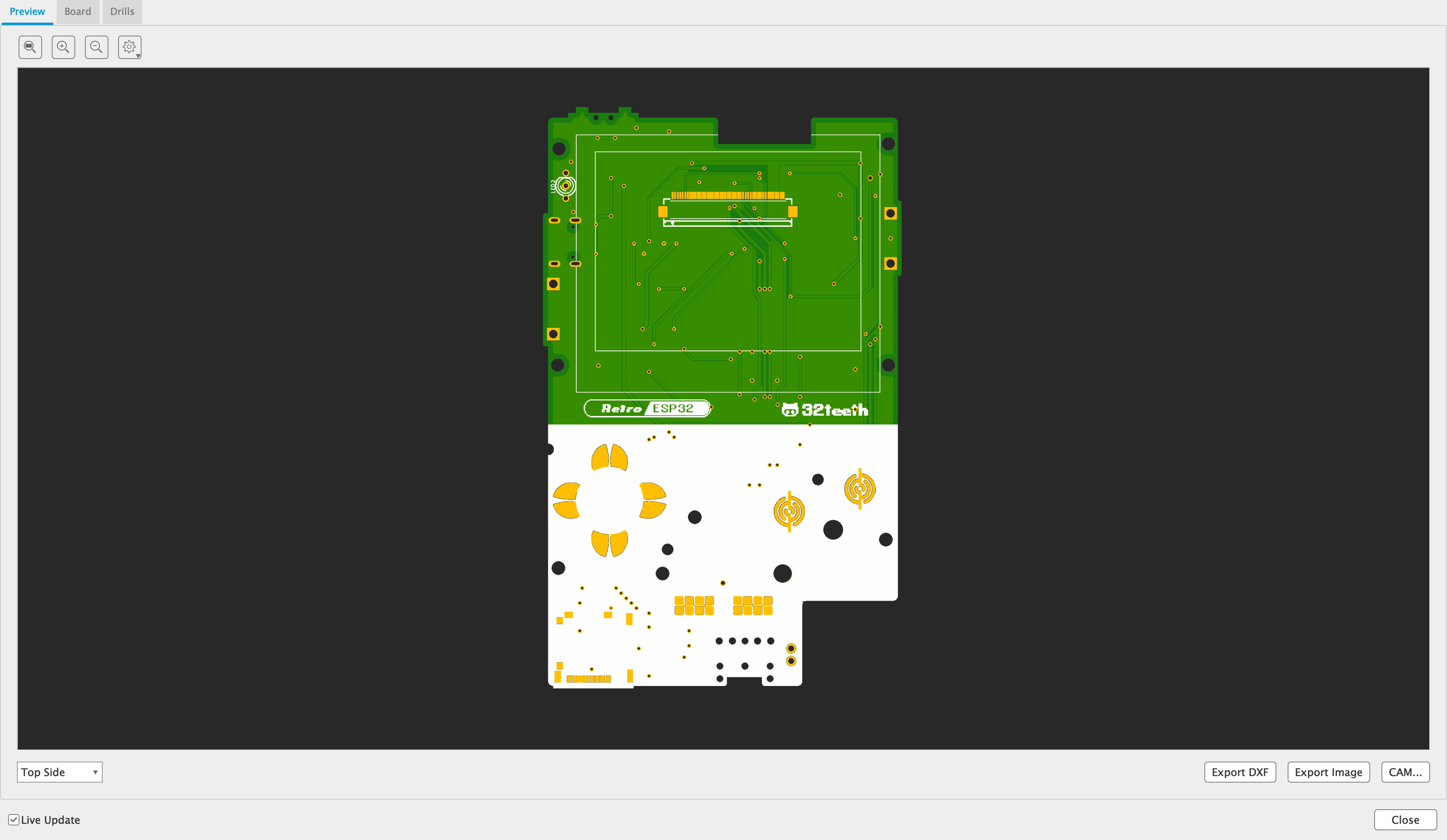

Eagle CAD!

Screen Shot 2021-01-22 at 10.39.37 AM.png
Screen Shot 2021-01-22 at 10.40.10 AM.png
Screen Shot 2021-01-22 at 10.40.29 AM.png
Screen Shot 2021-01-22 at 10.39.49 AM.png
Screen Shot 2021-01-22 at 10.40.15 AM.png
Screen Shot 2021-01-22 at 10.40.37 AM.png

Downloads

Gallery
