This cable's a lifesaver for recording to a laptop or connecting to a car stereo that has aux input. The only problem is that they normally retail at $20 and up. I decided to make my own cable from the most abundant and inexpensive retractable cables available, Dollar Store USB Cables. I found my source at "Dollar Tree" in Littleton, NH. They carry a cable by eCircuit Electronics.
Parts

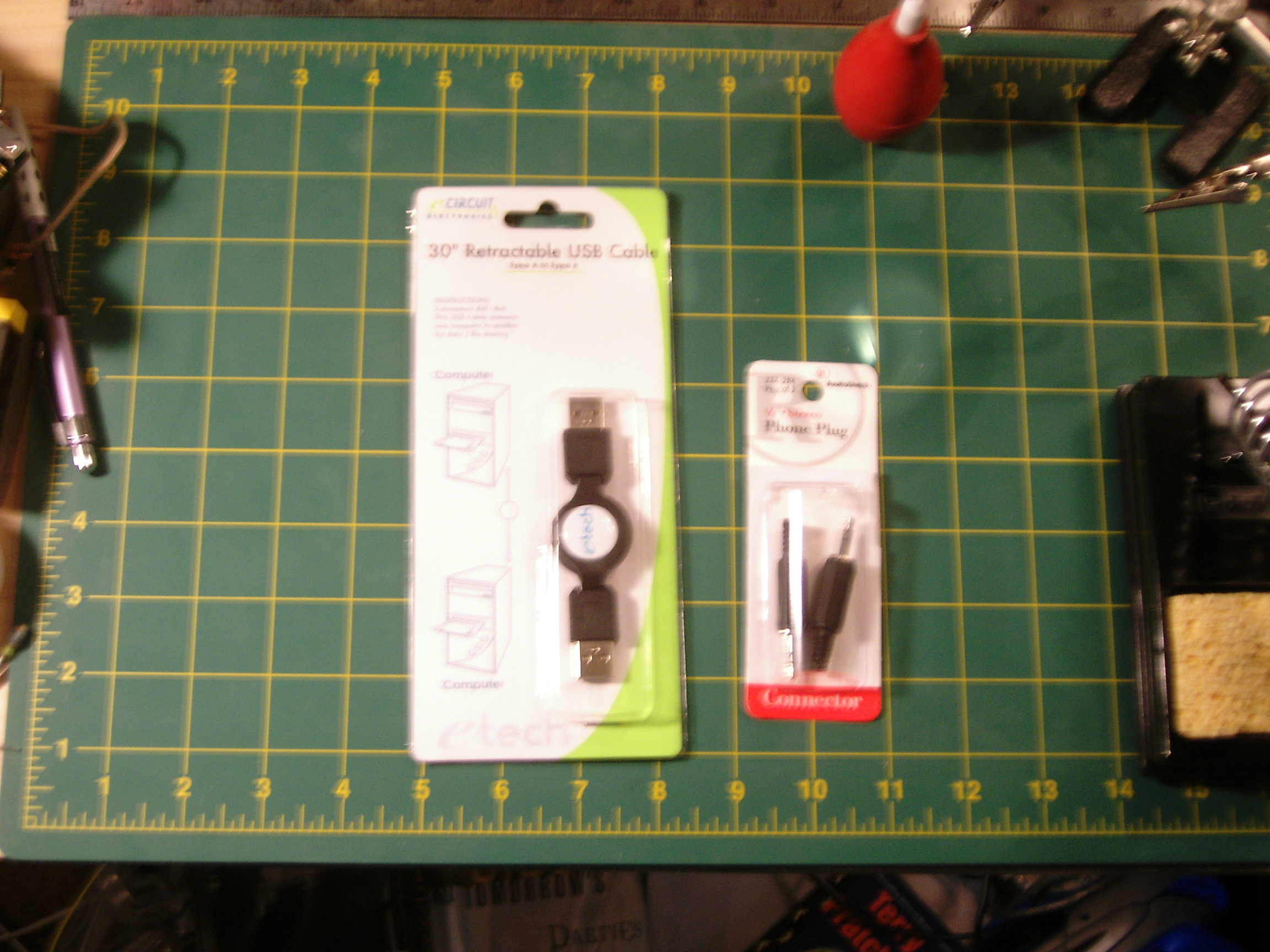

eCircuit retractable USB Male-Male 30" cable - $1
2x 3.5mm male jack plugs - $3.99 @ RadioShack (ouch!)
Equipment
pliers
soldering iron
wire strippers
helping hands
In total, the project cost me $4.99, but it could have been $2-$3 if it weren't for RS' inflated prices.
Parts
eCircuit retractable USB Male-Male 30" cable - $1
2x 3.5mm male jack plugs - $3.99 @ RadioShack (ouch!)
Equipment
pliers
soldering iron
wire strippers
helping hands
In total, the project cost me $4.99, but it could have been $2-$3 if it weren't for RS' inflated prices.
Cut Usb Cable
Extend the cable and snip on each side of the spool, about 1-2" from each end.
Make sure the cable can't retract while working.
Leave enough on the ends to be able to reuse the connectors.
Make sure the cable can't retract while working.
Leave enough on the ends to be able to reuse the connectors.
Strip Wires
remove the outer rubber from about 1/2" on each end, and carefully separate the enameled wire by color; but, don't bother trying to strip it.
then slip the screw on sleeves over the wires.
I cut the strain relief to make the cable more compact.
then slip the screw on sleeves over the wires.
I cut the strain relief to make the cable more compact.
Solder
Twist the inner two sets of wires together (i.e. twist blue and green together) and solder the sets to the plugs (red to tip, bare to ring, blue/green to sleeve/ground)
the enamel should burn off under heat, but triple check your connections with a multimeter to be sure.
then, reassemble.
voila... $5 retractable patch cable
