Restoring a 1937 Typewriter

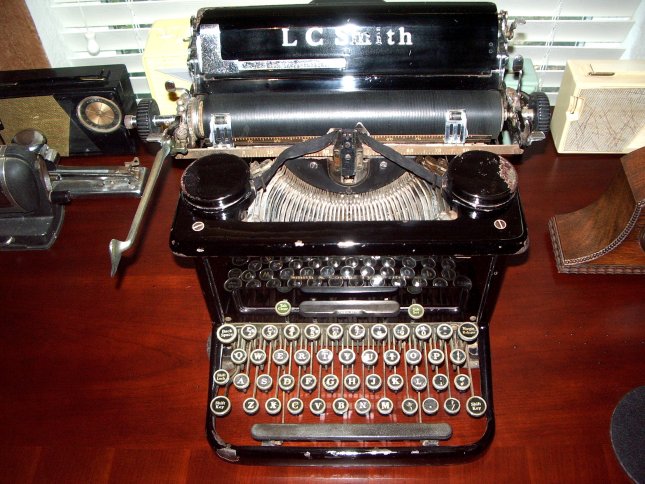

This typewriter is a 1937 LC Smith model 11 that I picked up at a flea market.   It had a number of problems, such as the carriage would hang (and when it didn't hang it squeaked), the space bar only worked randomly, shifted characters did not type on the same line as non-shifted characters, some of the key tops were unreadable, and the entire machine was filthy -- inside and out.

But the price was right -- $15.  And, it looked like all the parts were there.  So, I brought it home to see if I could get it back to something of the machine it once was.

I have no specialized tools to work on typewriters, so I make do with what I have in my little shop.  From a tool perspective, I used the following:
- precision screwdrivers (gunsmith screwdrivers)
- needle nosed pliers
- a 5/16th combination wrench
- a small brass hammer
- air compressor (for blowing out cobwebs)

In terms of supplies:
- Q-tips (about 250 of them)
- coarse automotive rubbing compound
- fine automotive rubbing compound
- automobile wax
- alcohol
- acetone
- metal polish
- and more rags than I could count

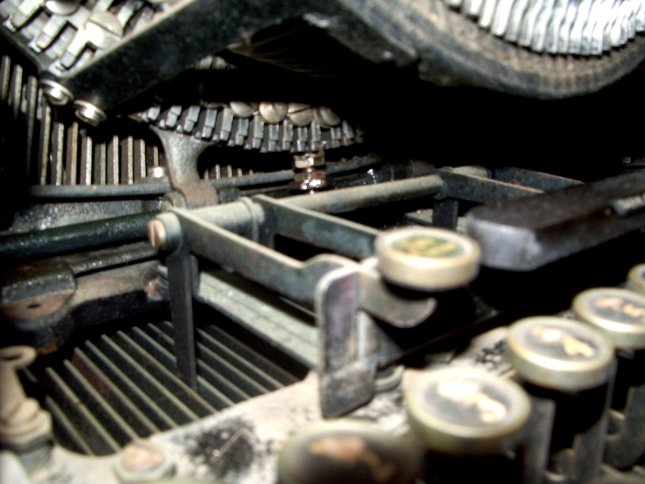

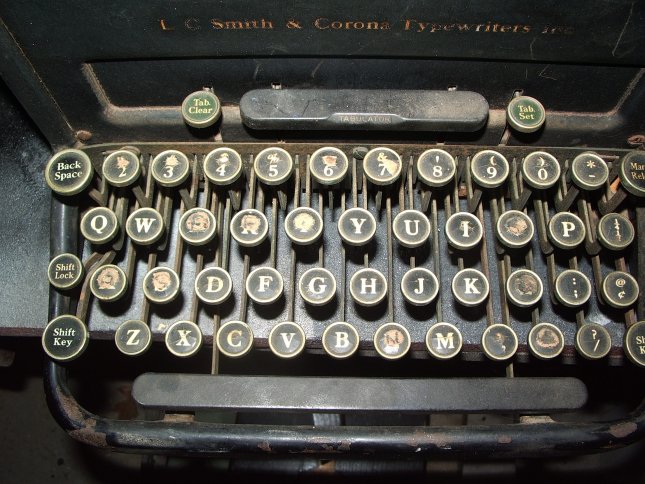

The first thing I tackled was the space bar issue.  If you look closely at photo 1 you will notice that the space bar is not sitting level -- it is higher on one side than the other.

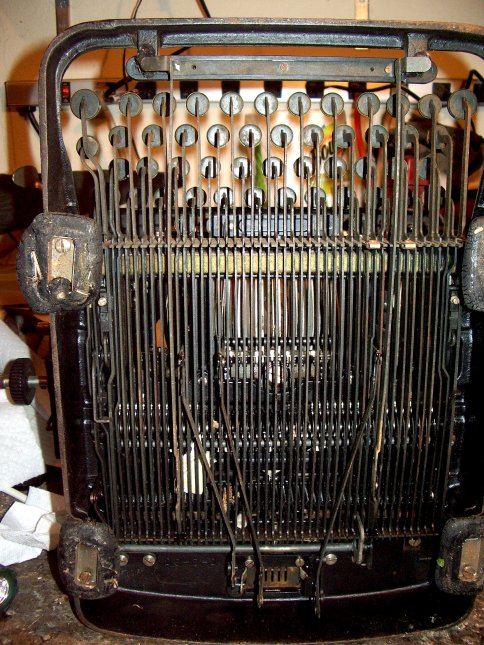

Turning the typewriter on its back (photo 2) I found the problem, actually two problems.  First, a screw was missing that attached the space bar to the space bar lever (noted in photo 2).  Also, the stops on the space bar had been bent downward, probably from someone pulling up on them because of the problem with the carriage hanging up.  I bent them back into position using my needle nose pliers, replaced the screw, and all was well once again in space bar land!

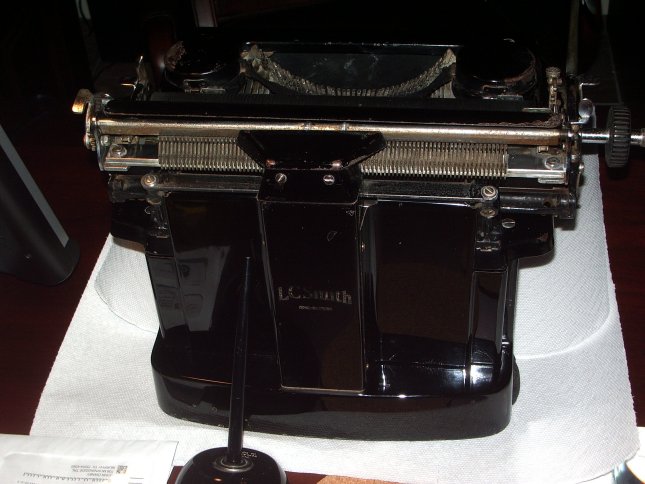

The cause for the carriage hanging took a bit more time.  What I found was at the back of the carriage, the tab bar needed to be adjusted.  Someone probably leaned this old machine on its back without supporting the weight properly, causing the tab bar to move inward slightly.  I slightly loosened the tab bar's screws on both sides (see photos), lightly tapped the bar back into alignment with a brass hammer, and tightened the screws.  This fixed the "carriage hang" problem.  But, the carriage still squeaked when it moved, which is addressed in the next step.

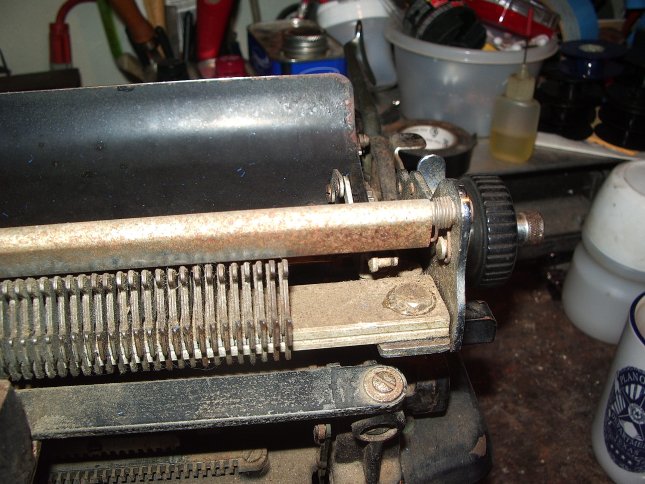

The cause of the squeak was dryness and filth!  I taped an alcohol-soaked cotton swab onto a bamboo skewer, and cleaned the track shown in the photo.  Once I had 74 years of debris cleaned out, I lightly oiled this track with a cotton swab.  The squeak was gone, and the carriage moved like new.

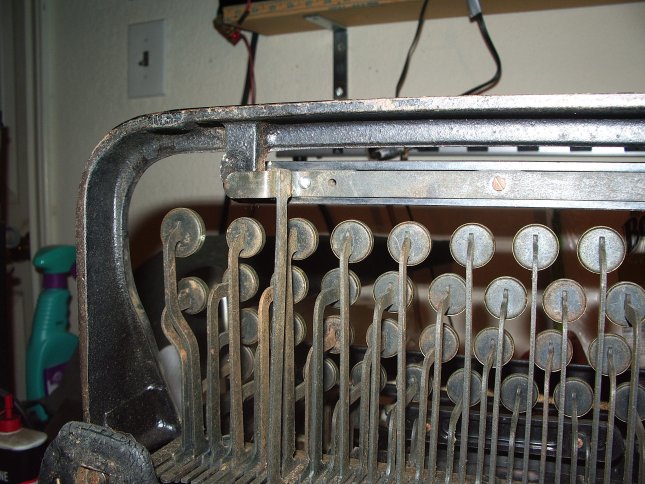

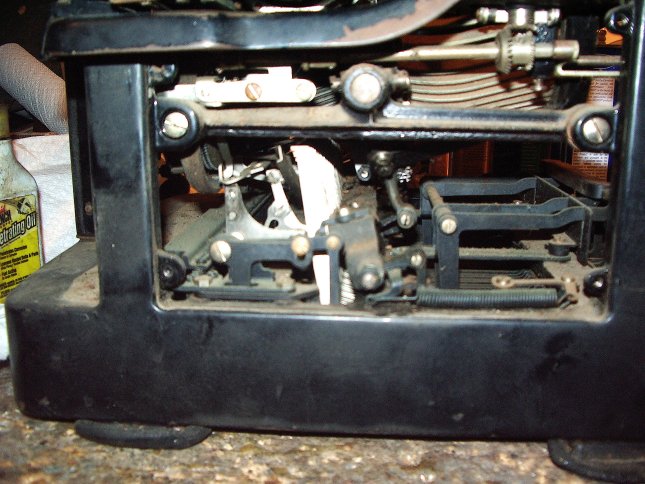

I then removed all the side and back panels from the typewriter and started my search for how to adjust the shifting mechanism.  On this typewriter the shift key moves the type basket to produce the shifting.  I found the adjustment for this underneath the type basket toward the back of the machine.  Since the shifted characters were printing too high, I turned the adjusting nut to allow the type basket to move lower when the shift key was pressed.  I continued adjusting and testing until it was perfectly aligned, then tightened the lock nut.

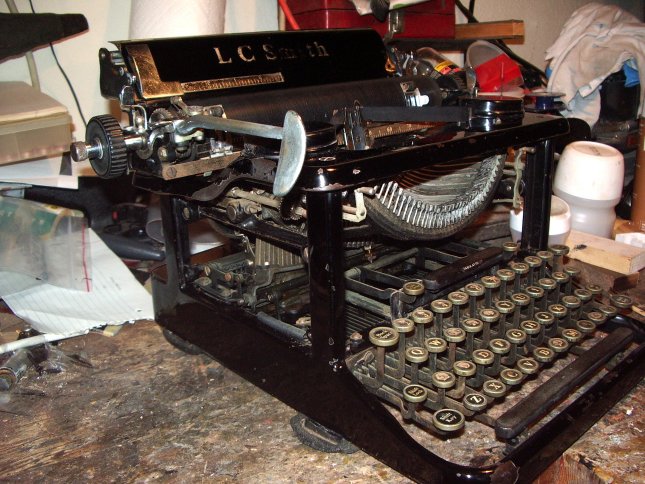

With the mechanical issues behind me, I started on the lengthy process of cleaning this beast.  With all the panels removed, I began by blowing everything out with compressed air.  This removed the cobwebs, but not the 74 years of caked on dust, dirt, and tobacco residue (pretty much every office in the '30's, '40's, and '50's was filled with tobacco smoke).

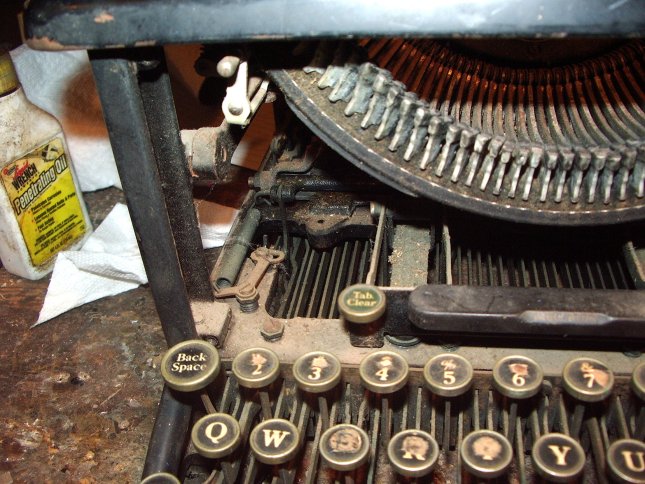

This is where the acetone, alcohol, and q-tips came in.  Using q-tips and cleaners, I cleaned every surface possible inside this machine.  The first three photos show the condition before I began, and the last photo shows the improvement inside the machine.  This was a lengthy process -- I worked on this off and on for almost a week, but when I was finished, 74 years of accumulated dirt and grime were gone!

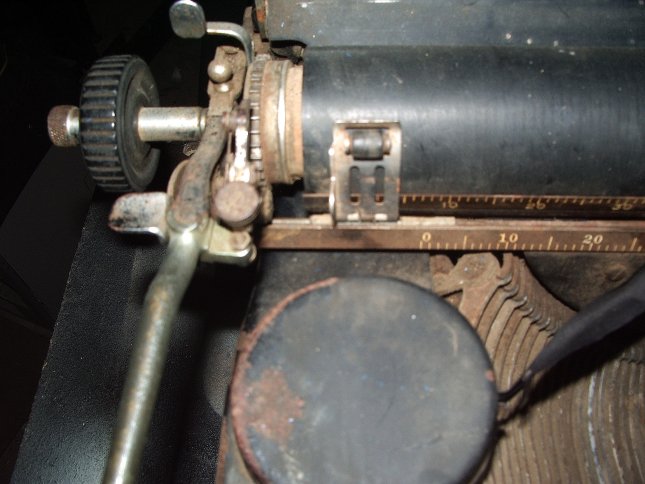

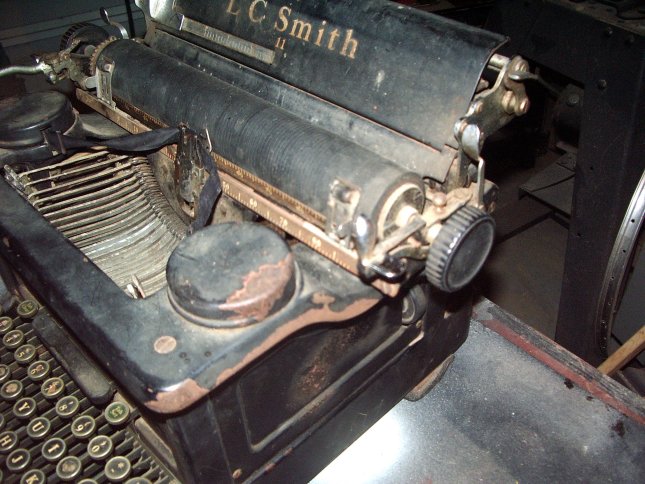

Then the real work began!  74 years of exposure had taken its toll on the outside parts of this typewriter.  Not only do you have the dust, dirt, and smoke residue to deal with, you also have skin oil, oxidation, and accumulated spills that come into play.

The first thing I did was remove the platen and go over everything painted black with a mild cleaner.  I used a few drops of dishwashing detergent in a bottle of water as a cleaner.  I scrubbed everything I could reach with this cleaner, then dried it carefully.

The next step was to go over everything with a strong automobile rubbing compound (red compound).  Using a lot of pressure, I used this rubbing compound on no more than two square inches at a time.  Next came the fine (white) automobile rubbing compound.  During this process I began to see the beginnings of a shine starting to come through.  In several places I had to apply the white compound several times to really begin to see improvement.

The final step for the black metal parts was to use regular automobile wax.

For the plated (shiny) parts I used a metal polish.

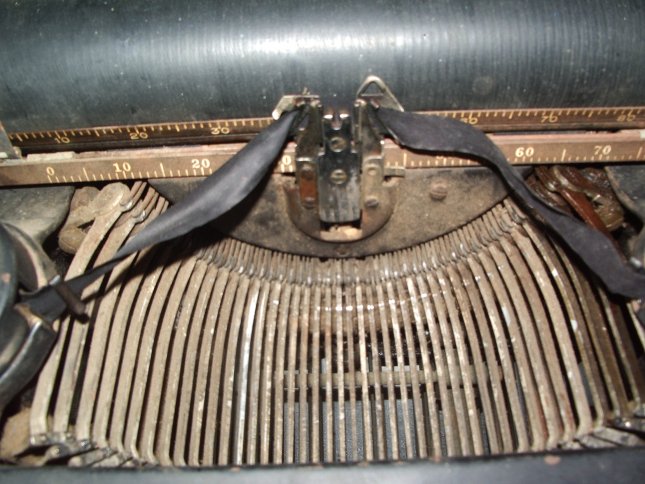

Cleaning the type bars on these old machines is tedious.  Using q-tips and alcohol, I scrubbed both sides (and the tops) of each individual type bar -- one at a time!  Photo 1 shows what they looked like before I started, and photo 2 shows the results.

Cleaning the case was essentially the same process used on the carriage.  I first wiped the surface with a cleaner, then began with the red rubbing compound, then the white rubbing compound, and finally the automobile wax.

I decided to not touch up the areas where paint had worn off on this machine -- I sort of liked the looks of the battle scars.

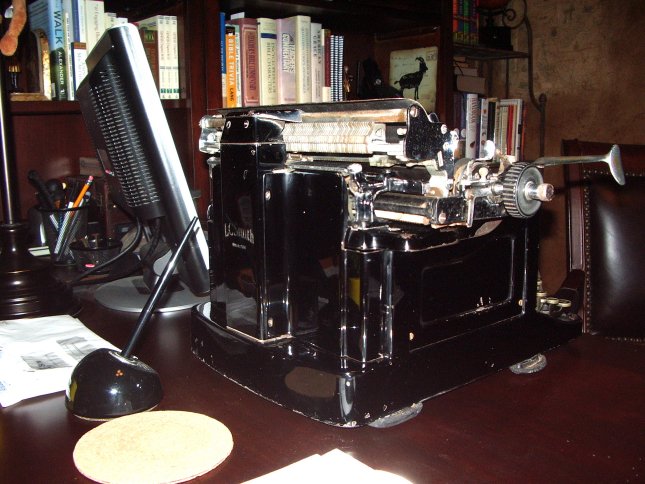

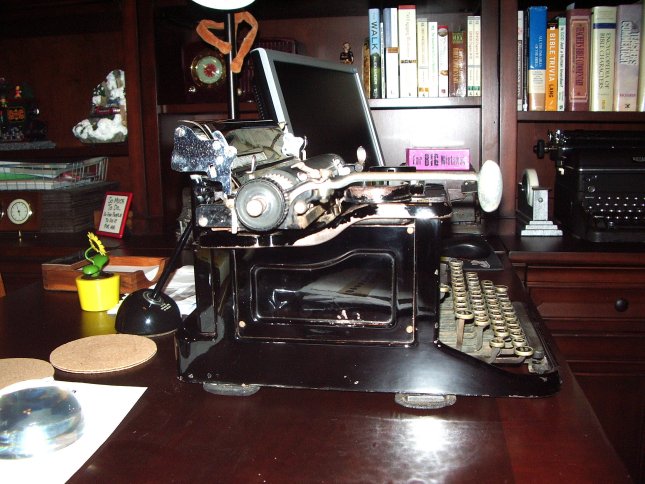

Cleaning the outside of this typewriter took almost as much time as cleaning the inside, but what a difference it made!

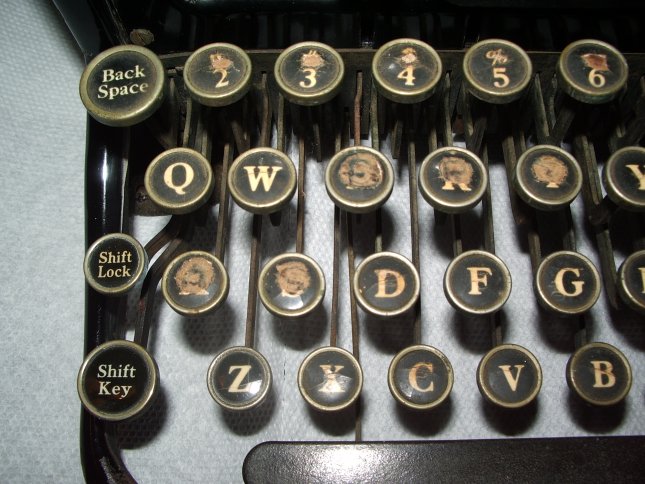

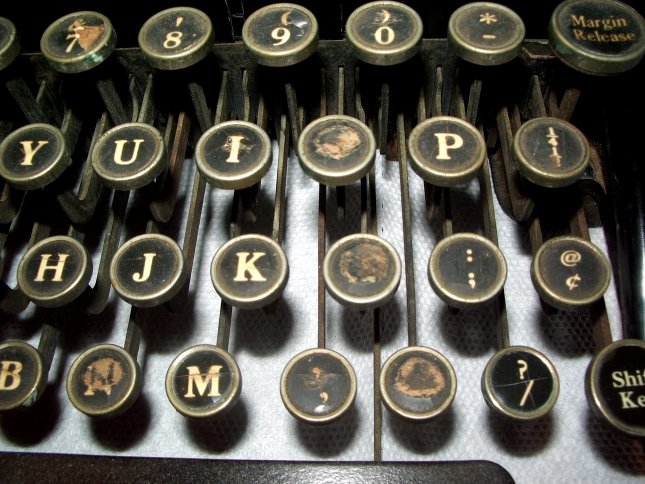

There were 9 keys on this machine that had key tops that were literally worn out (see first three photos).

Using a special font on my computer, I printed new key tops on a piece of off-white paper, and laminated both sides with a cold laminating film.  The film on the top side is designed to mimic the original finish of the key tops, and the film on the back side keeps my glue from discoloring the new key top.

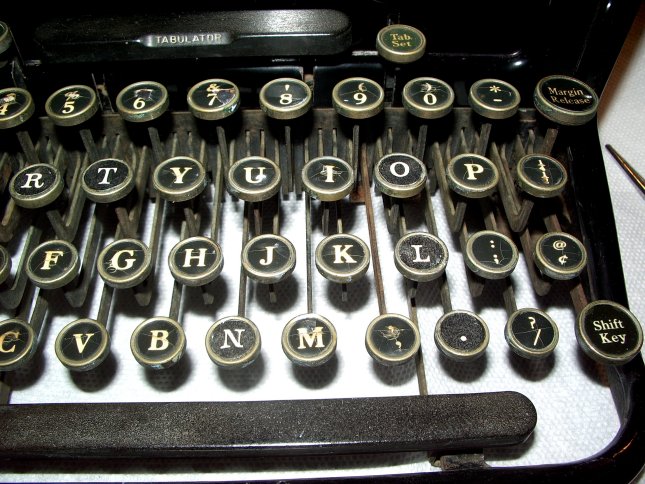

I cut these out and glued them onto the old key tops (see the last two photos).

I then cleaned each key with metal polish.

Now I had a fairly respectable keyboard!

I didn't keep track of how much time I put into this old typewriter, but I'm guessing it was somewhere around 30-40 hours.  I don't really count this time as labor, however, because I enjoy bringing these old machines back to life.

Most people would probably have considered this typewriter beyond help due to the condition I found it in.  The secret to bringing something like this back from the dead is not to be overwhelmed at everything that is wrong, but to tackle each problem one-at-a-time and fix it.  If you stay with it, eventually you have success.

I hope you enjoyed this instructable, and my hope is that it inspires a few people to discover the enjoyment of bringing something old and neglected back to life!
