Resin Finish Swampwood LED Nightlight DIY Homemade
by FoodforDude in Workshop > Woodworking
1005 Views, 3 Favorites, 0 Comments
Resin Finish Swampwood LED Nightlight DIY Homemade
Materials & tools
a piece of dry swampwood
a piece beech board
a piece of leather
dc power supply
2 xenon white LED`s
miniature switch
dc socket
wire
solder
shrinking tube
clear epoxy resin
clear lacquer
brush
cardboard
ruler
pencil
scissor
jigsaw
lighter
sandpaper
tape
4mm, 5mm, 10mm driller
forester`s drill
wooden dowel
glue
2 components filler
The Base

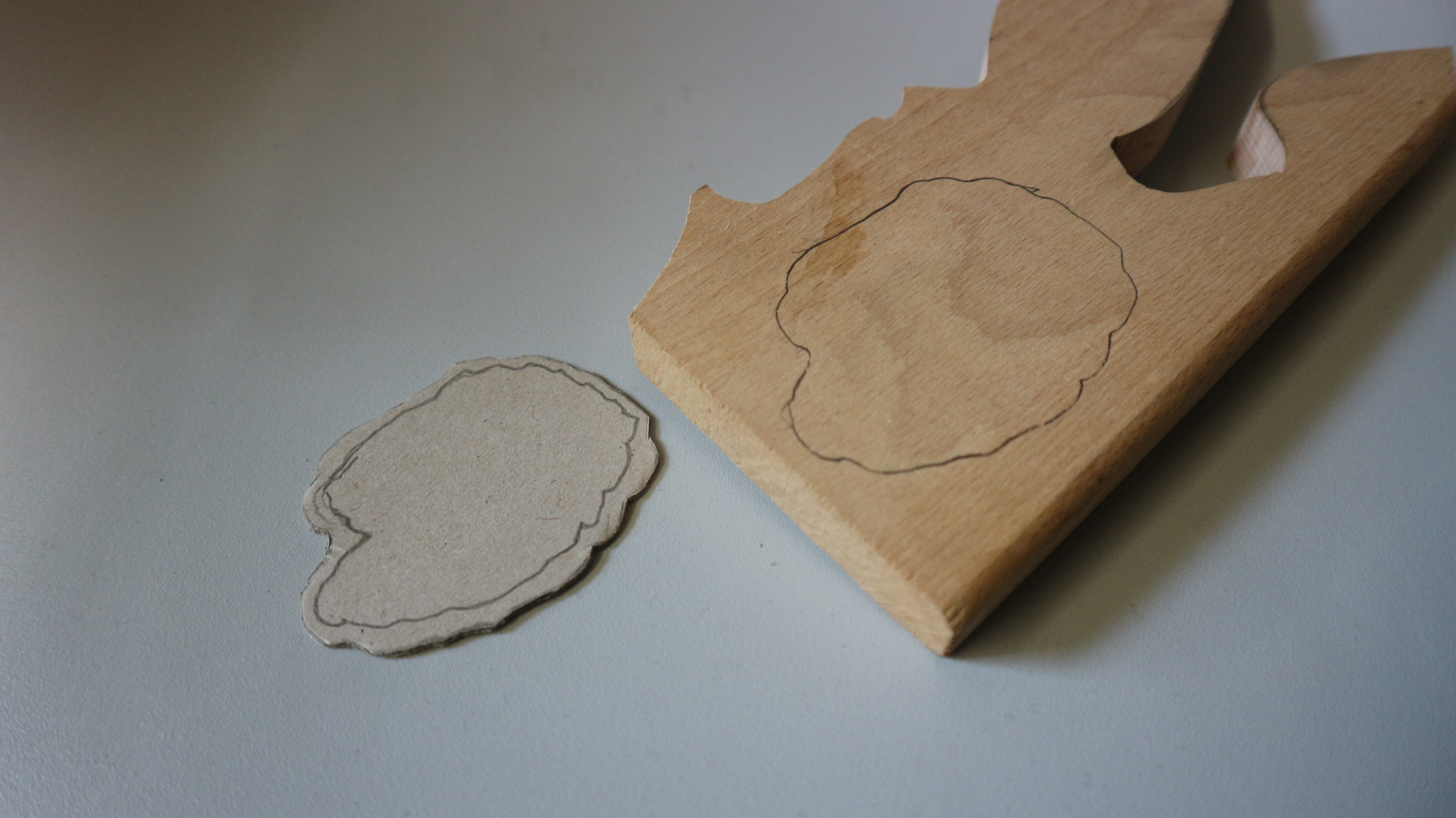

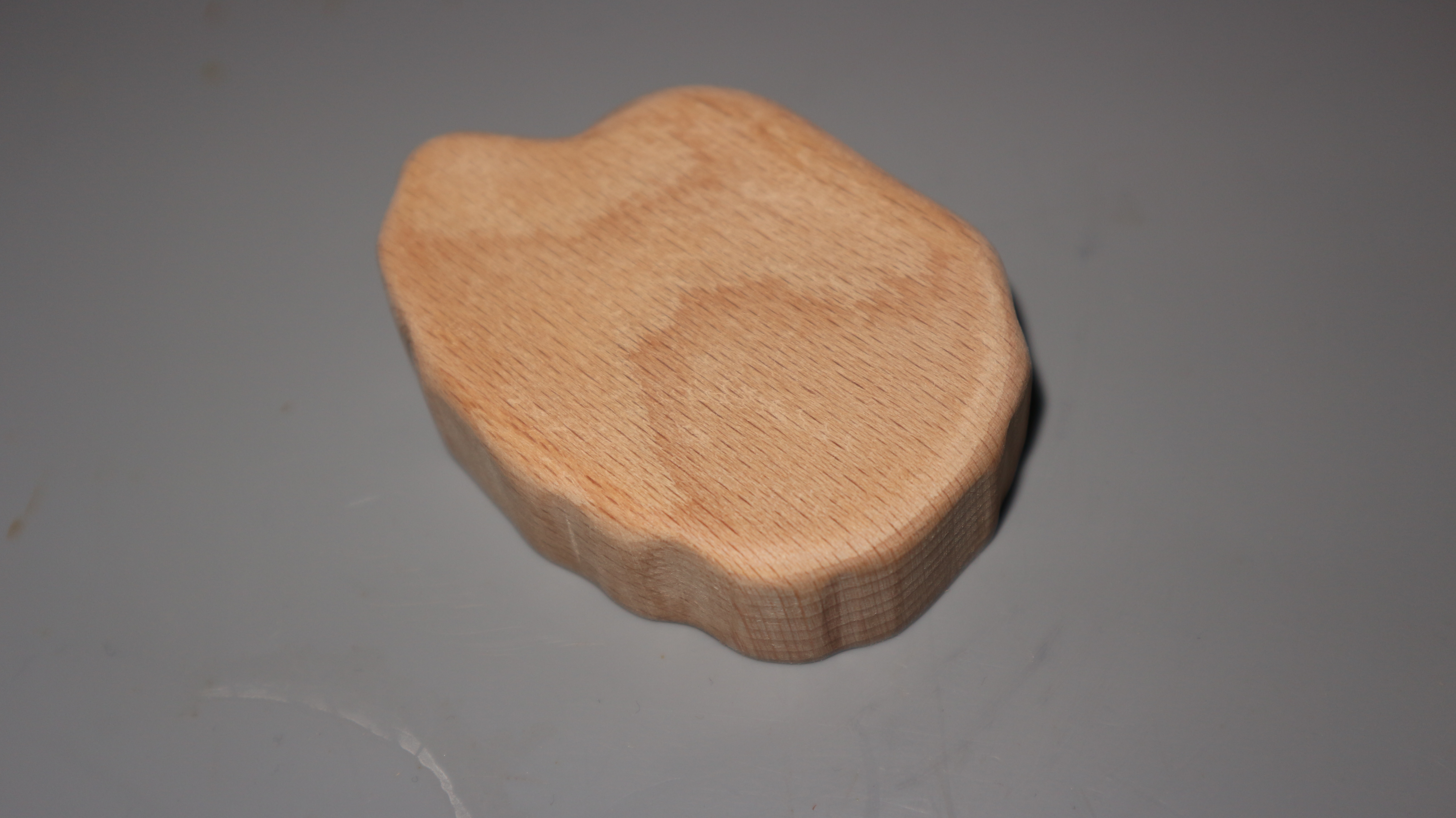

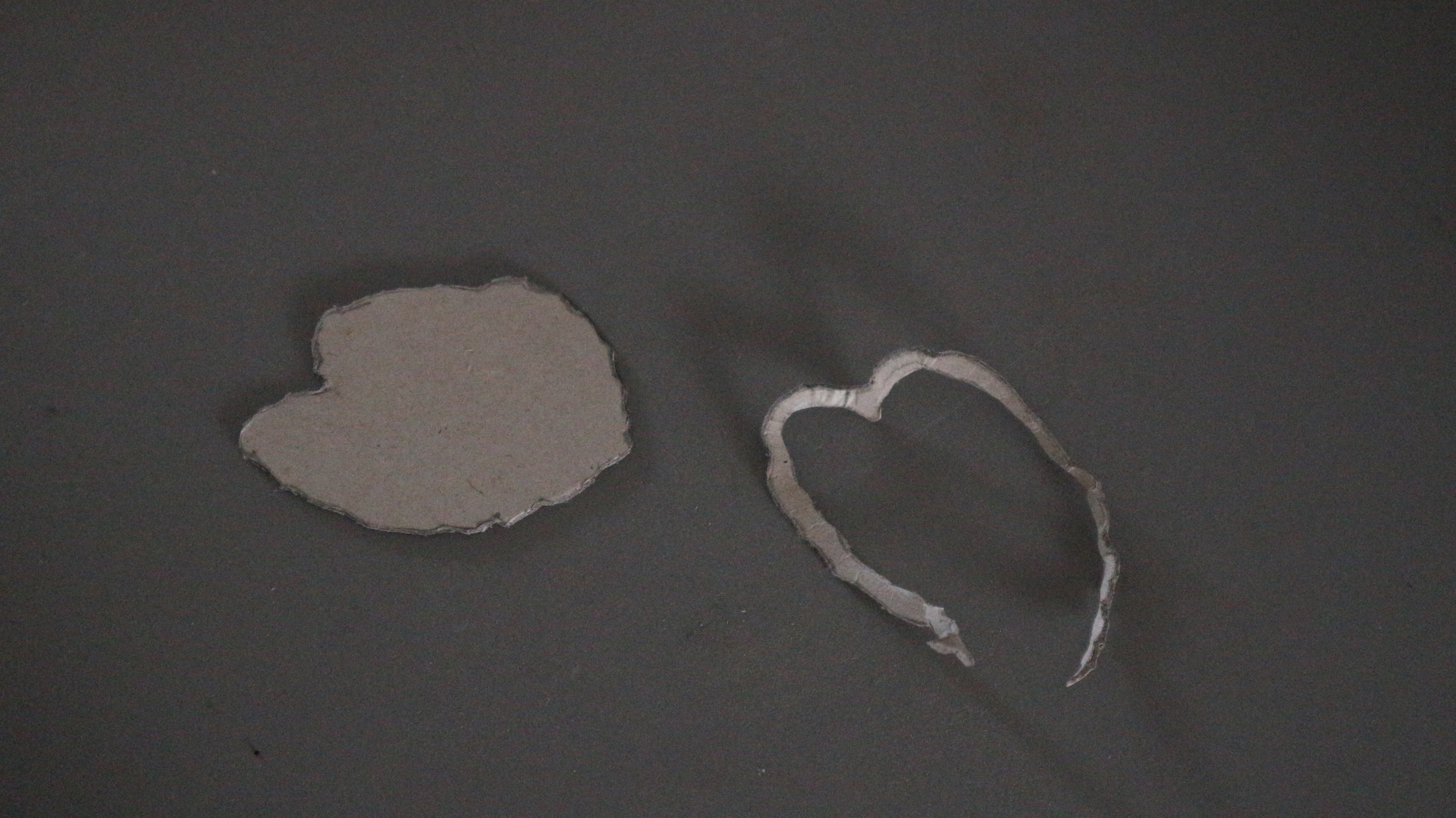

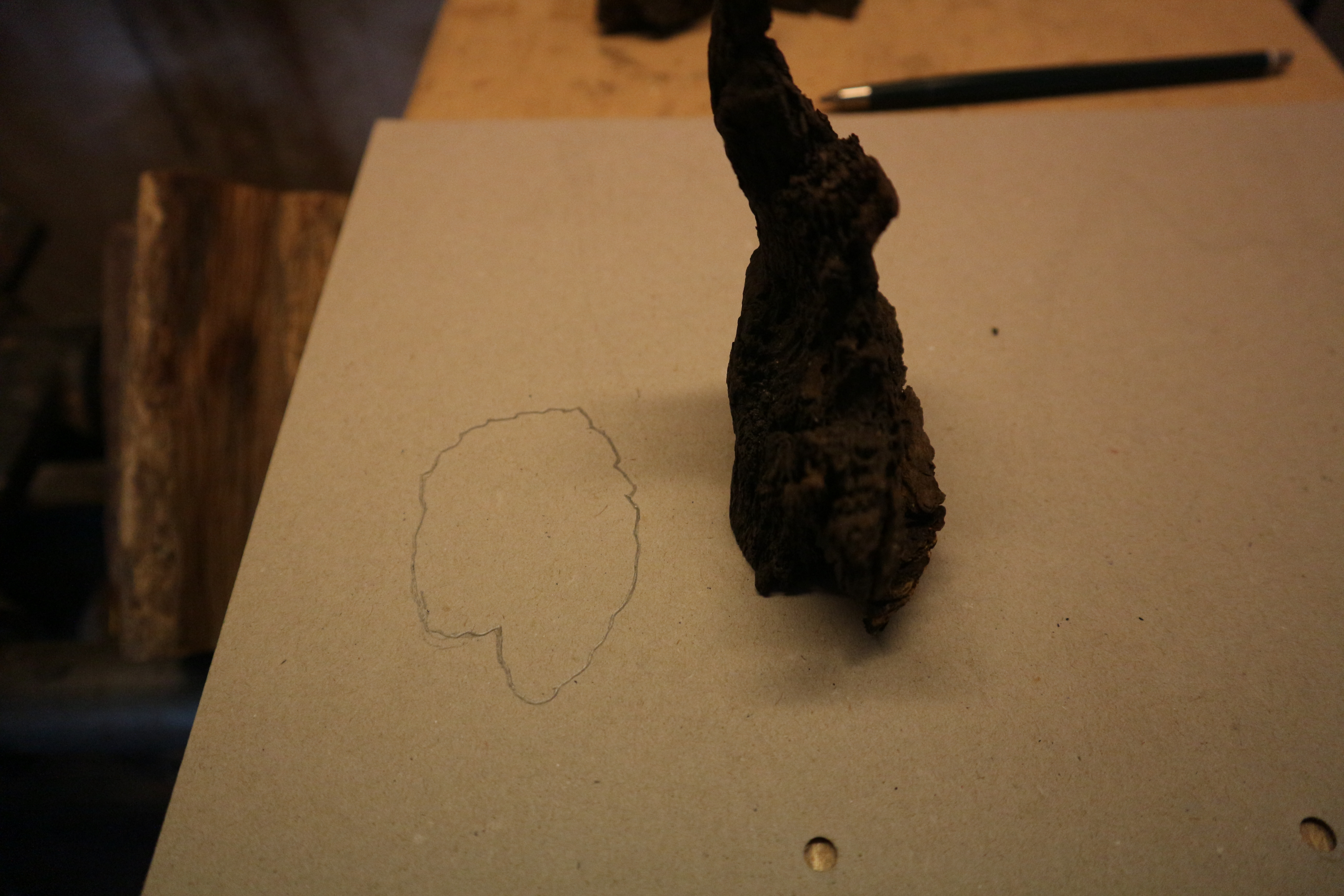

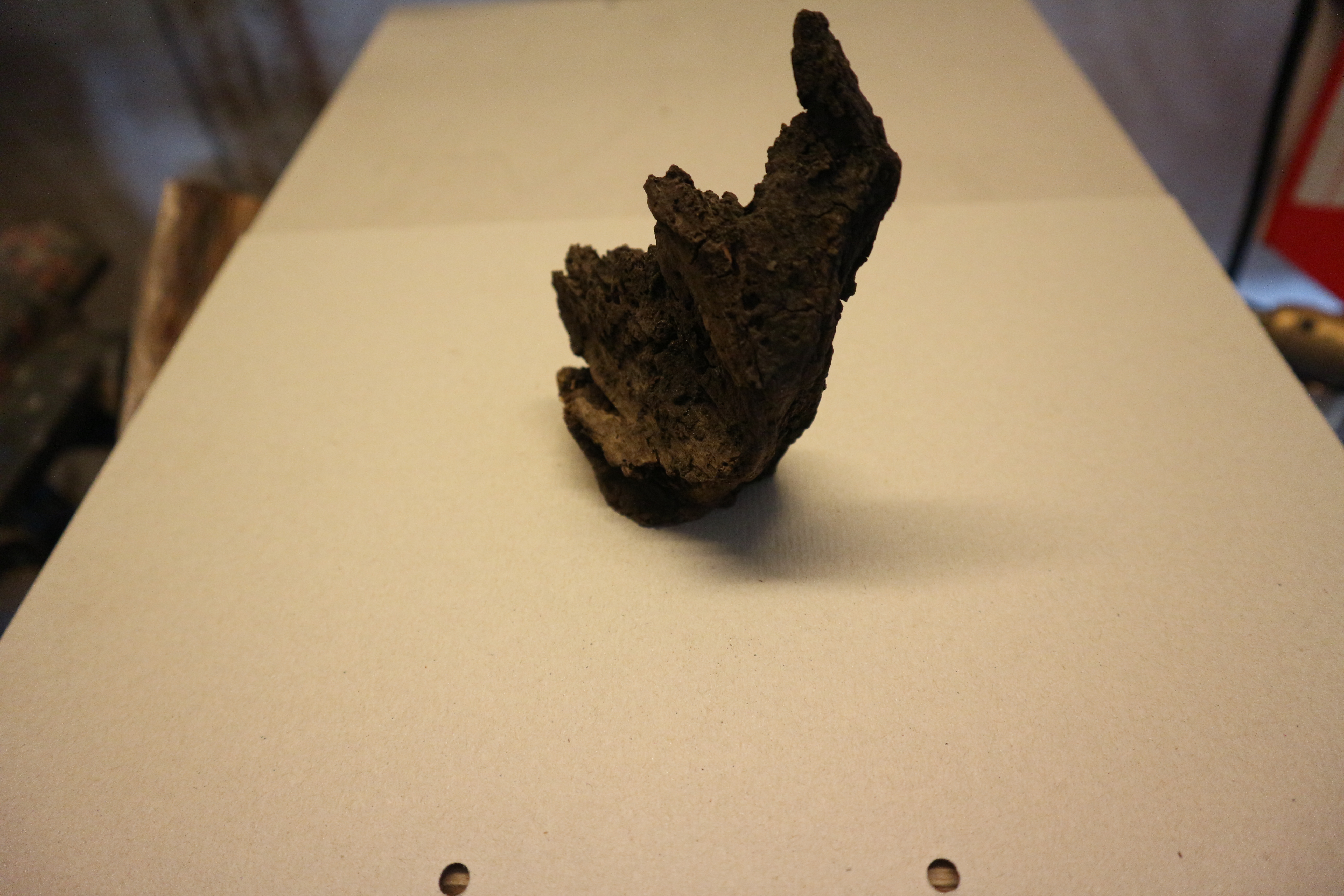

Mark the stand from the swampwood on a piece of cardboard. Mark a second layer and cut it out. Mark it on a piece of beech board. Saw it with a jigsaw. Cut the cardboard again and mark it again on the beech board. Round the edges to the mark.
Epoxy & Electronics

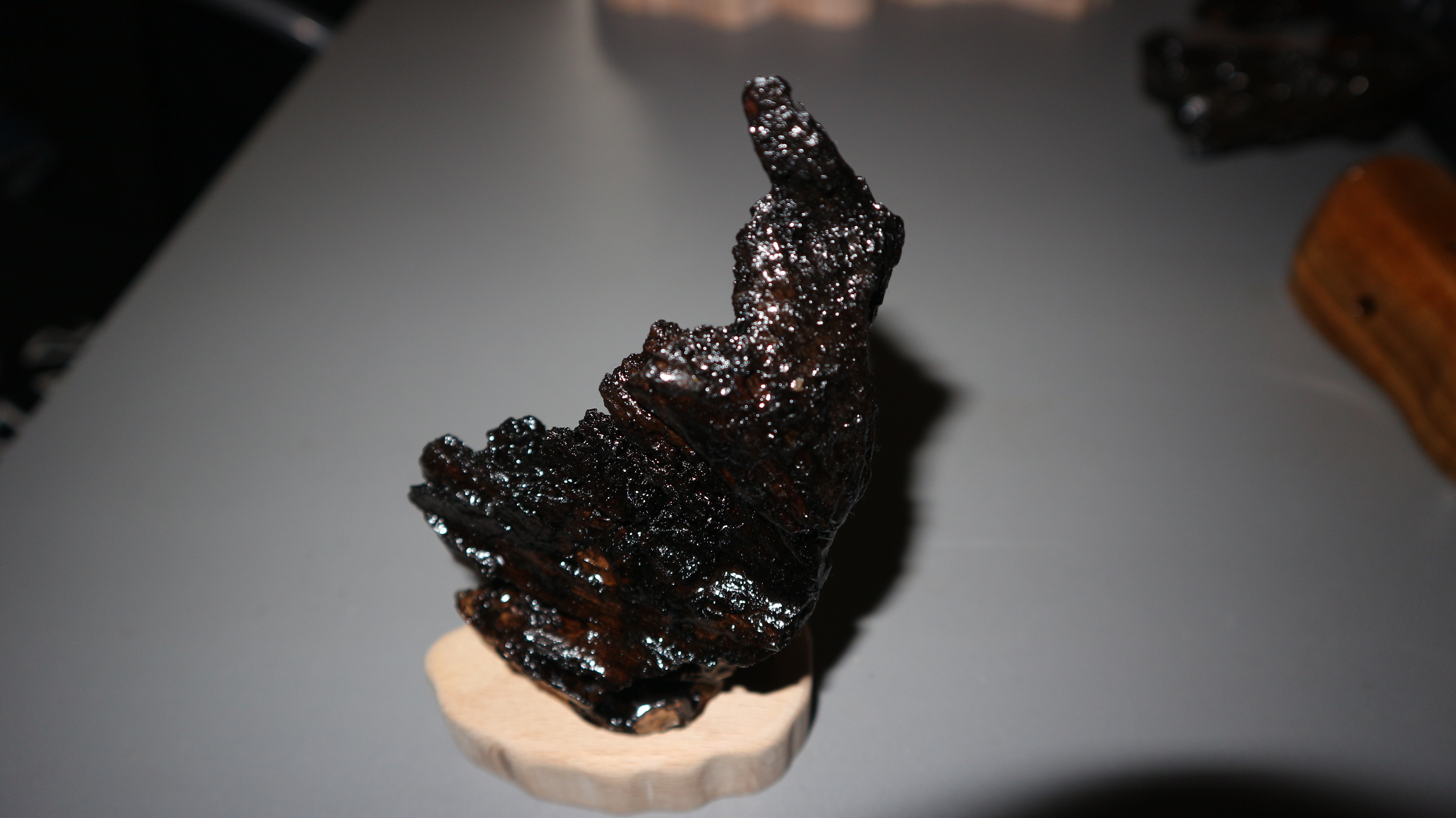

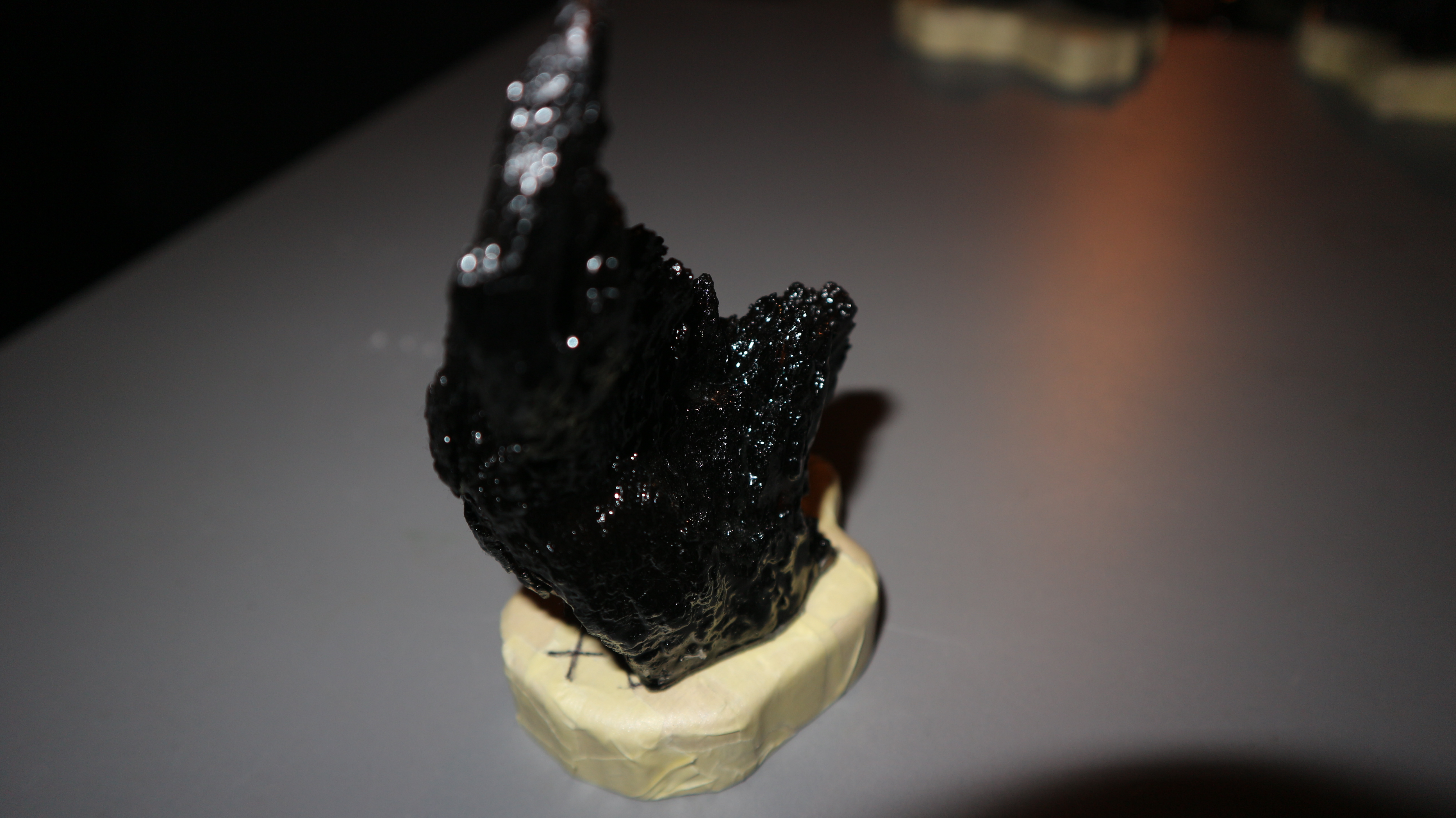

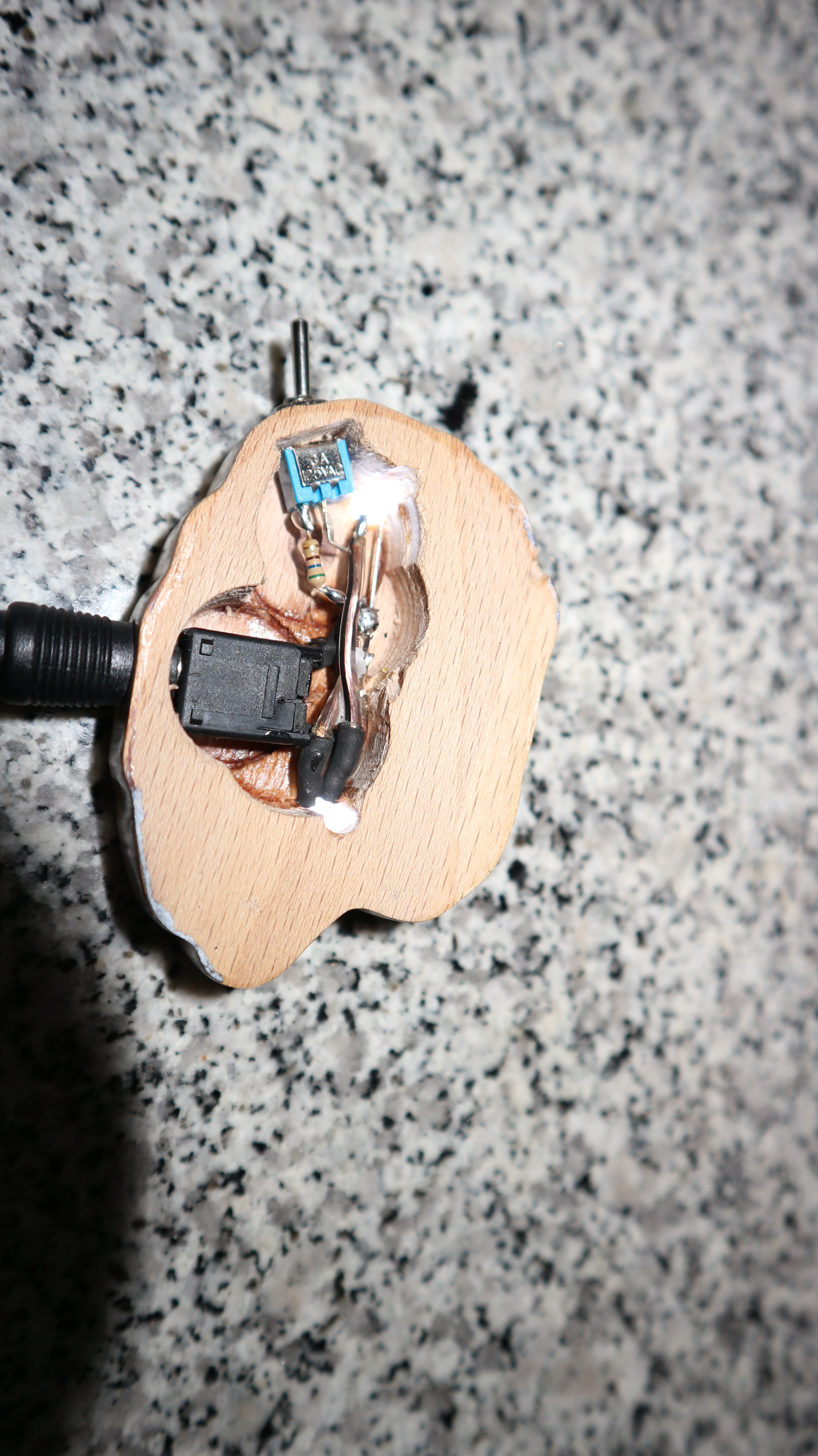

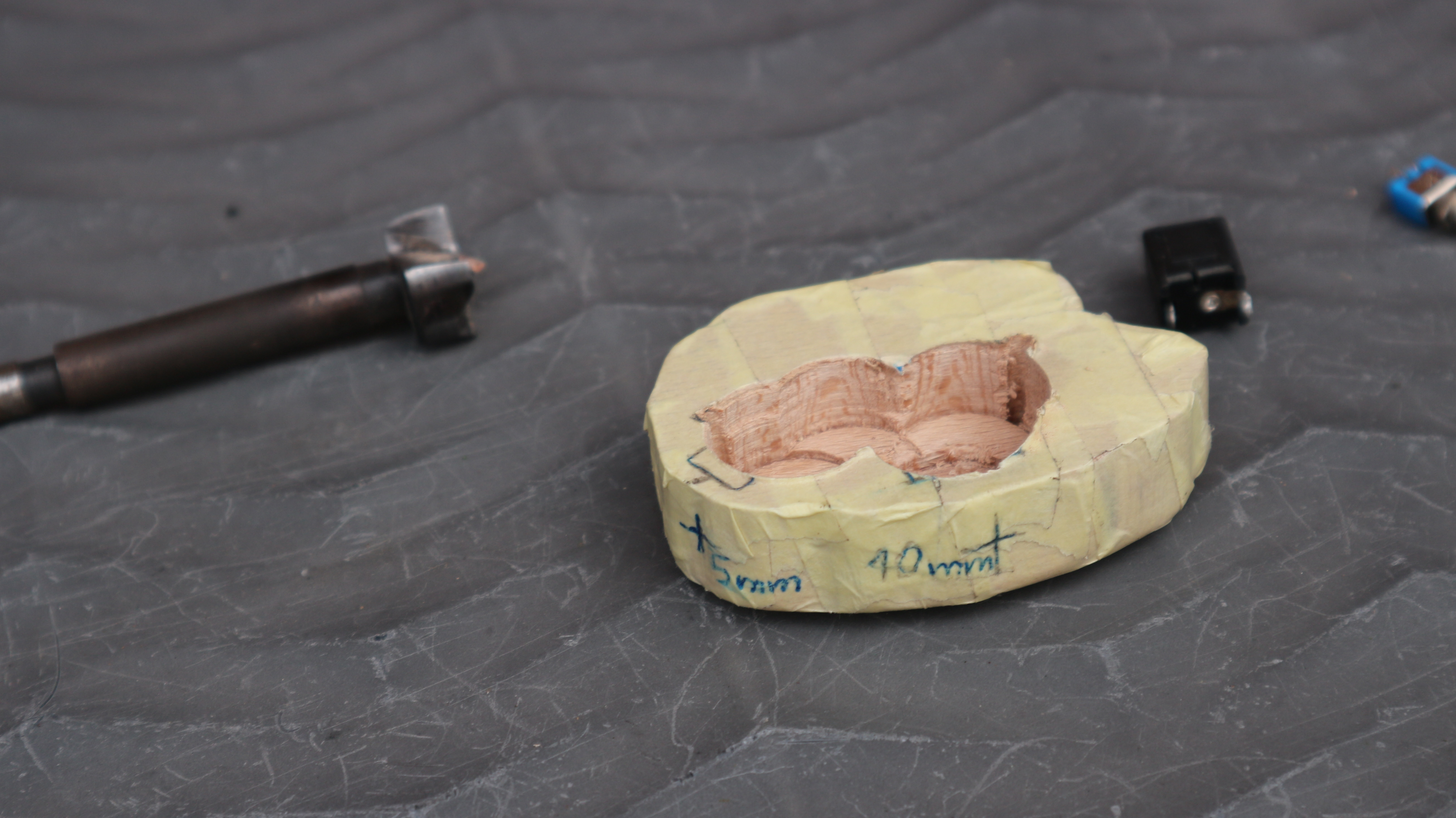

Coat the swampwood with clear epoaxy resin. Let it dry and brush a second layer. Tape the base and mark the stand from the swampwood. Mark the place for the LED`s and drill 4mm holes for it.Mark the space that you need for the electronics. Drill a 5mm hole for the switch and a 10mm hole for the dc plug. Coat it twice with clear lacquer.Solder the electronics and check if everything is working fine.
Finish

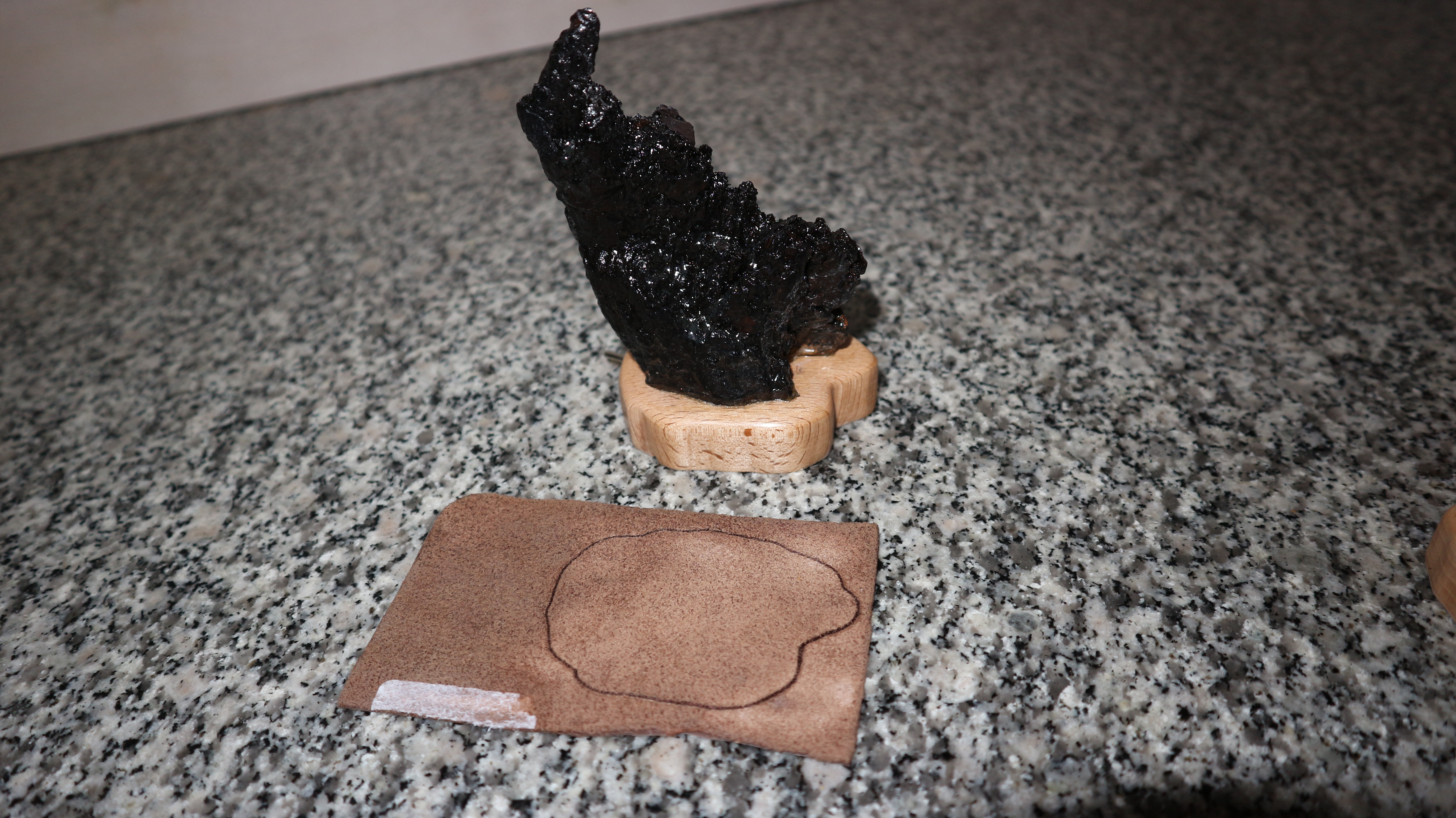

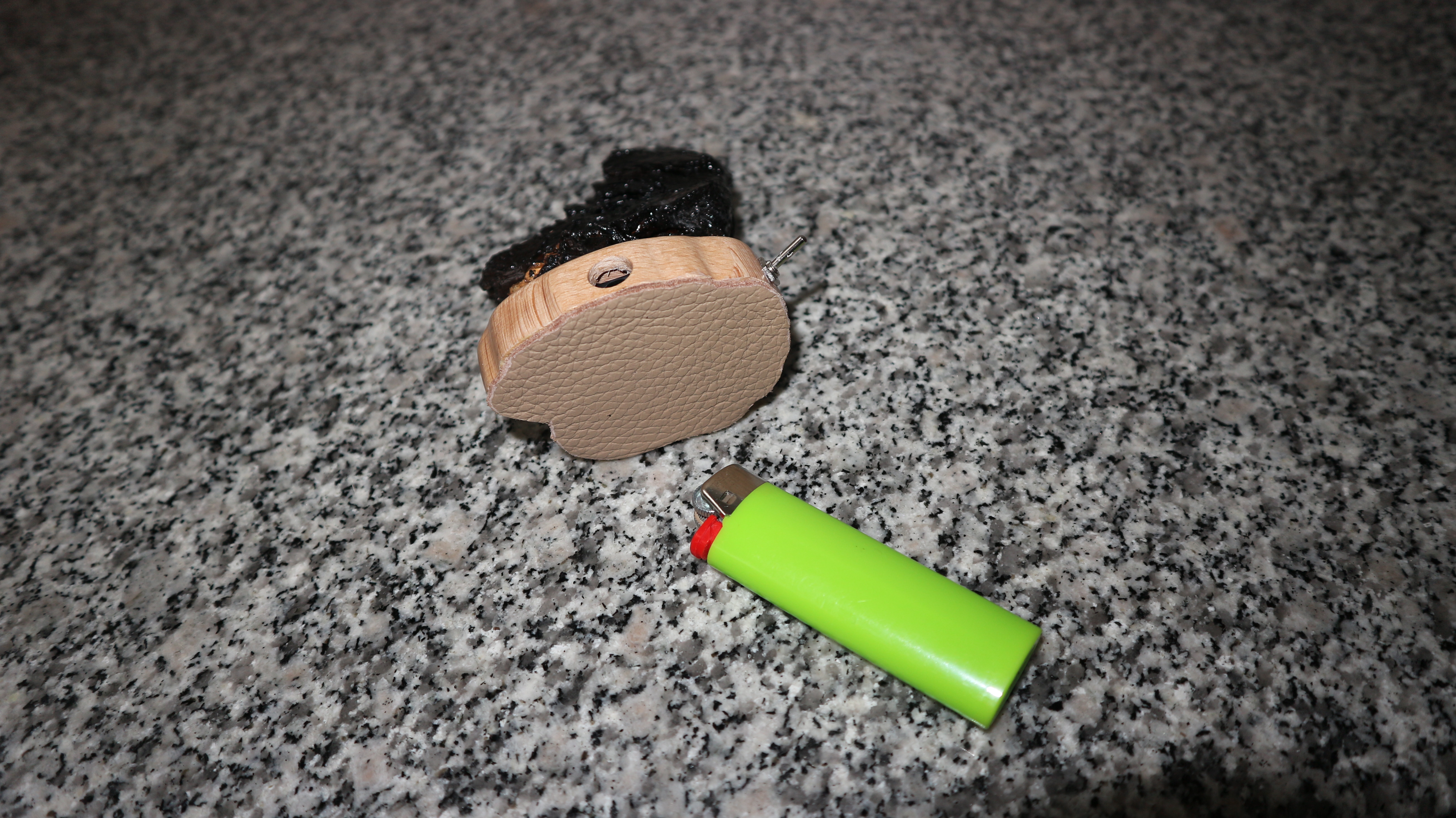

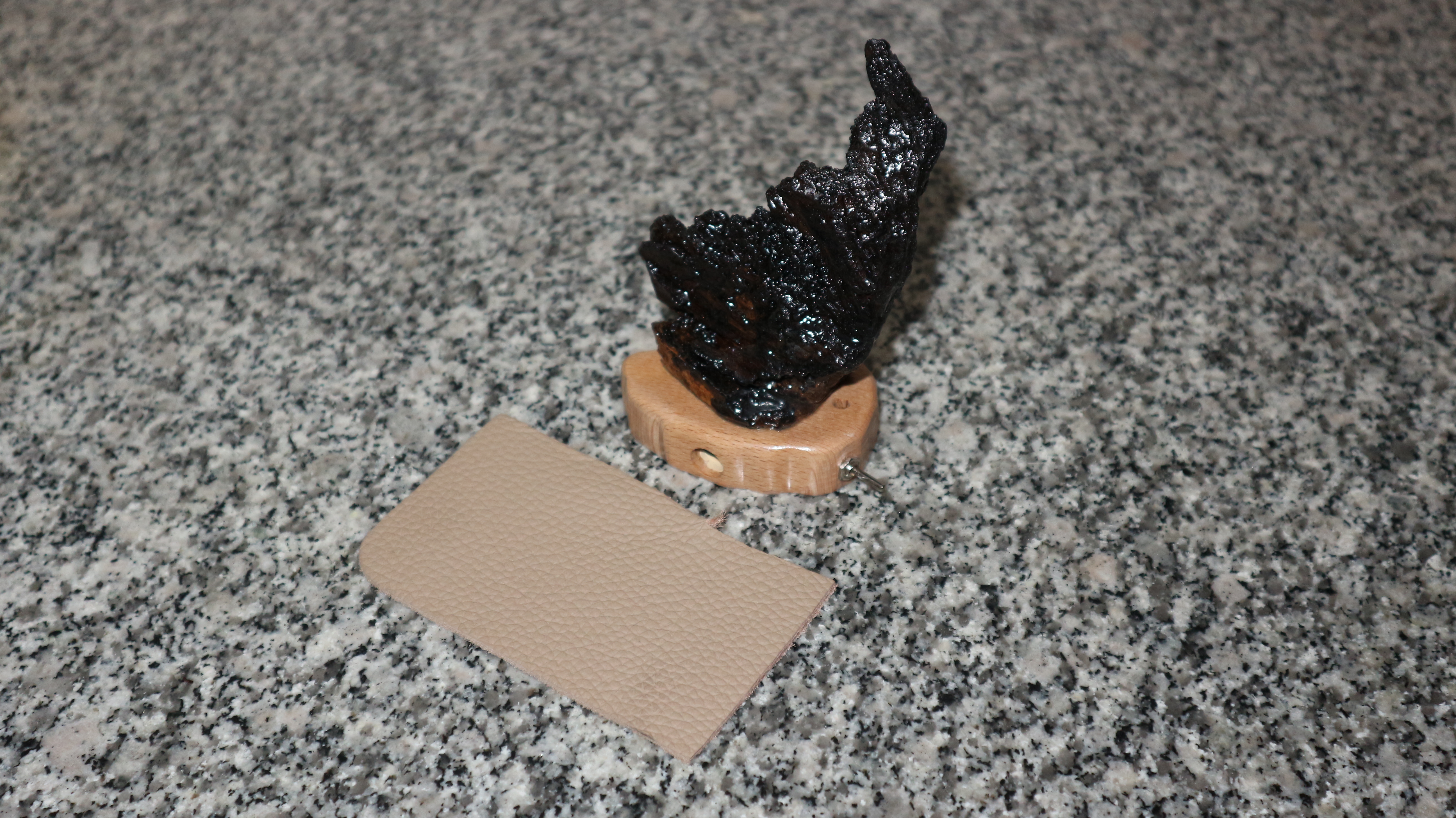

Drill a hole for wooden dowel a in the base and in the swampwood. Glue the swampwood and the base togehter. Fill the underside with 2 components filler. Mark the stand on the underside from a piece of leather. Cut the leather and glue it on the underside. Flame carefully the edges. Stick the dc plug in it and enjoy.
