Replacement of Canon PowerShot SX130IS Battery Compartment Door

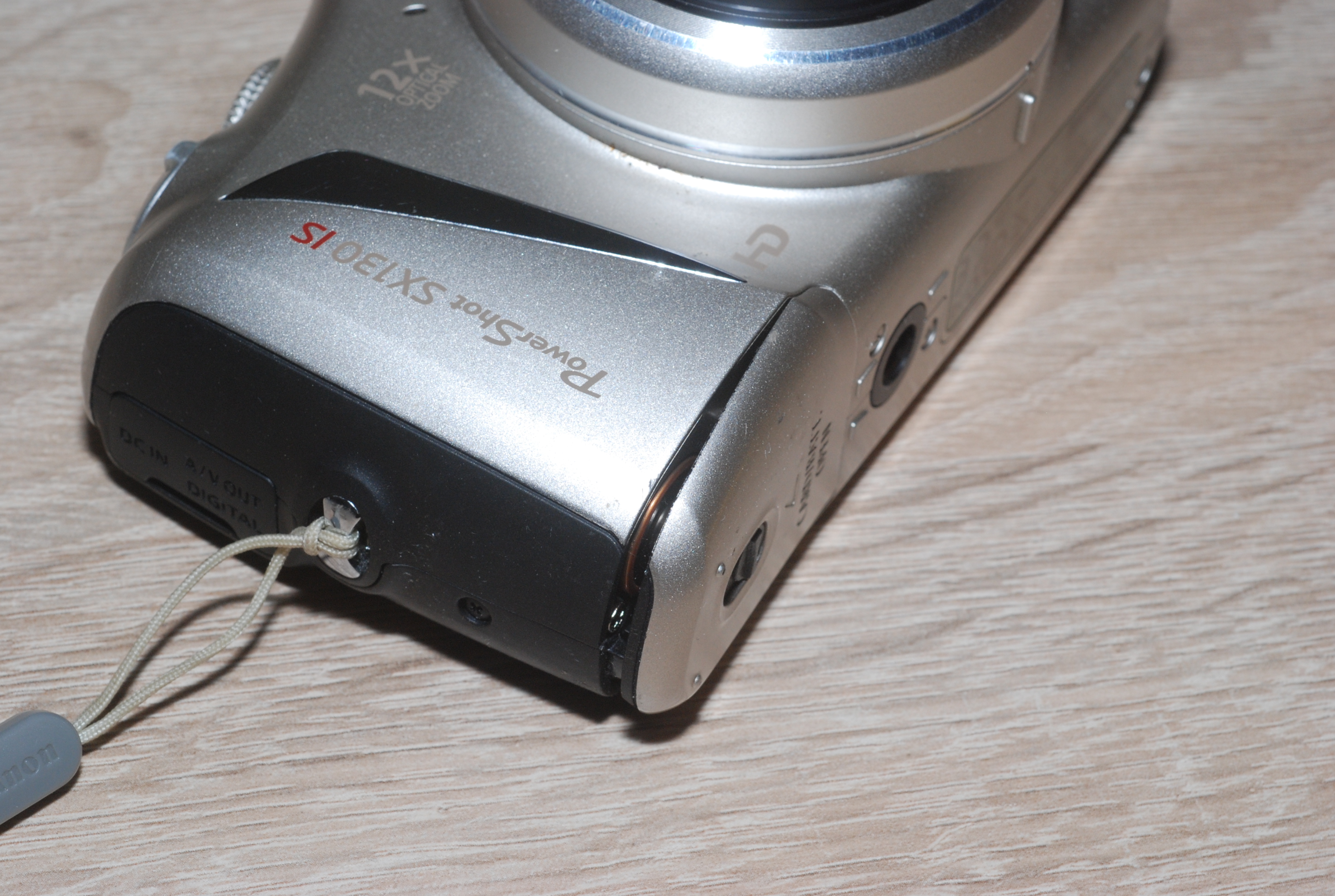

The battery compartment door is the weakest point on most digital cameras as on my Canon SX130IS. One day through battery replacement I noticed a little gap between door and camera casing: one of the little hooks of the door was gone forever. I cannot remember that I have dropped or forced it but you know "Mr. Nobody" is living in every house around the world.

A short research on the net confirmed that I am not alone with this problem.

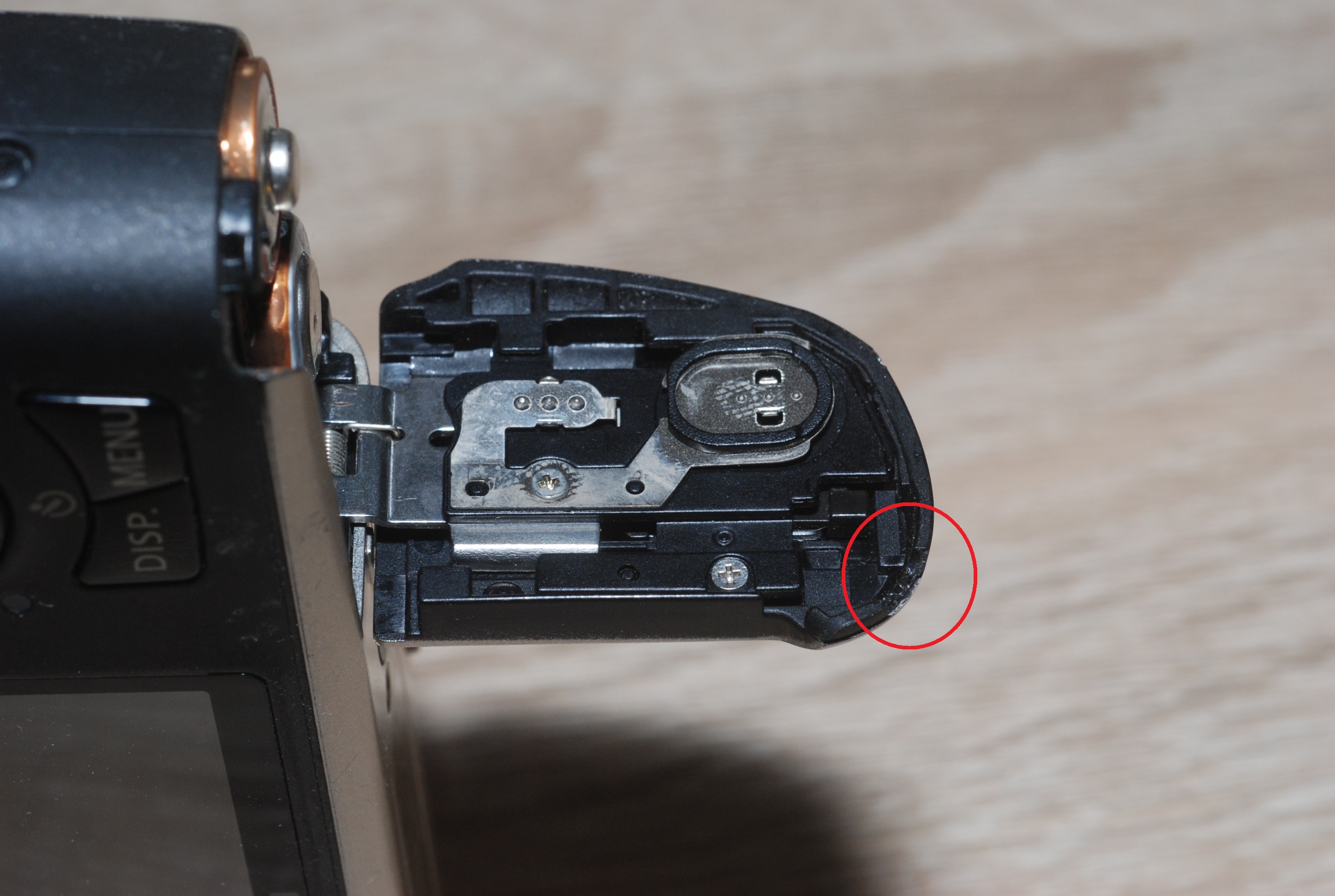

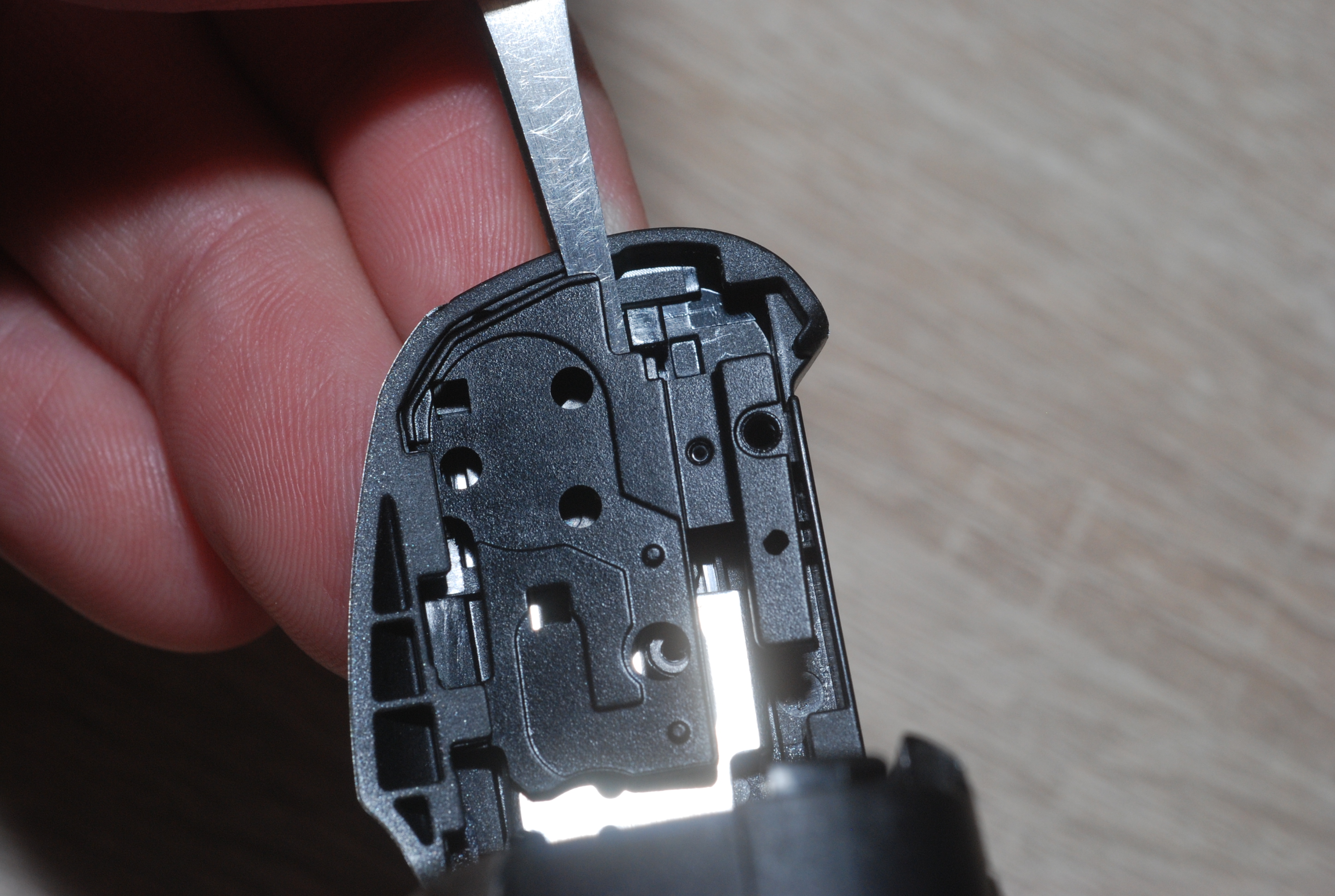

Check out the exact problem first: Are the hooks at the door broken or at the camera itself? There are 4 hooks at the camera (see red circles). On my camera two hooks were missing: one at the door and one at the camera.

Anyway I decide to give it a try and ordered a new battery door.

Here you go how you can replace it within some minutes...

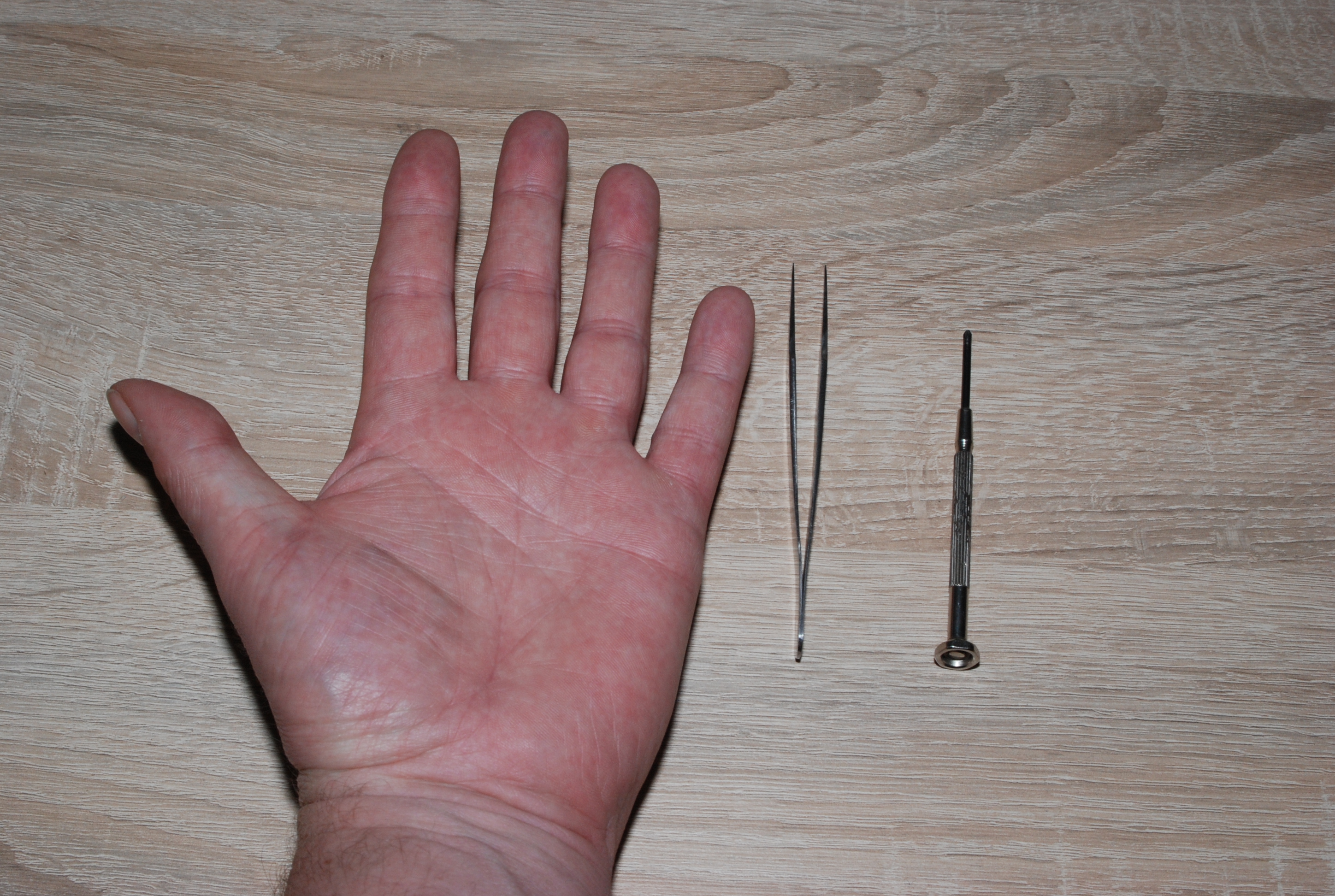

- very small Phillips screwdriver

- tweezer

- human multi-purpose device

- some silence and patience

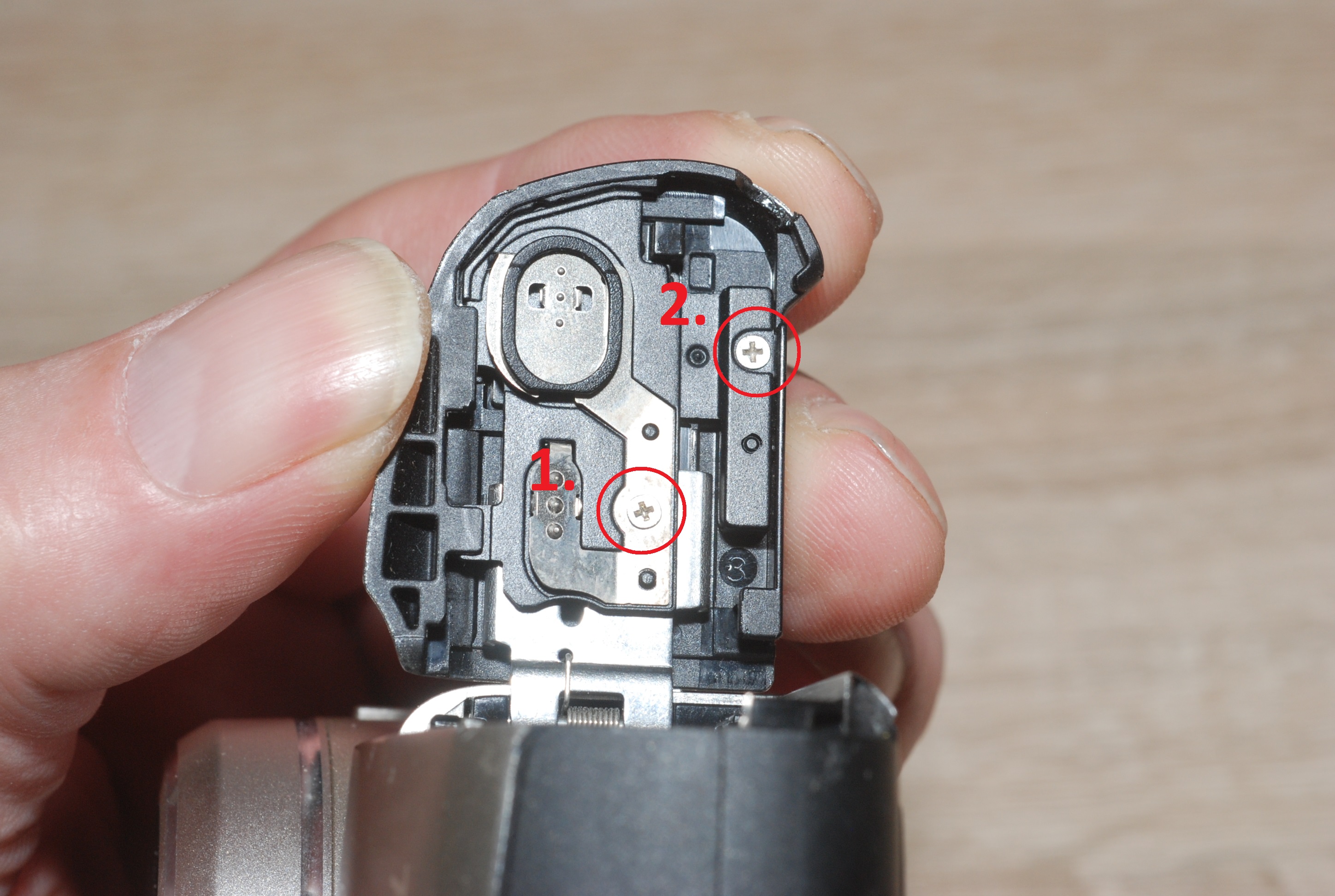

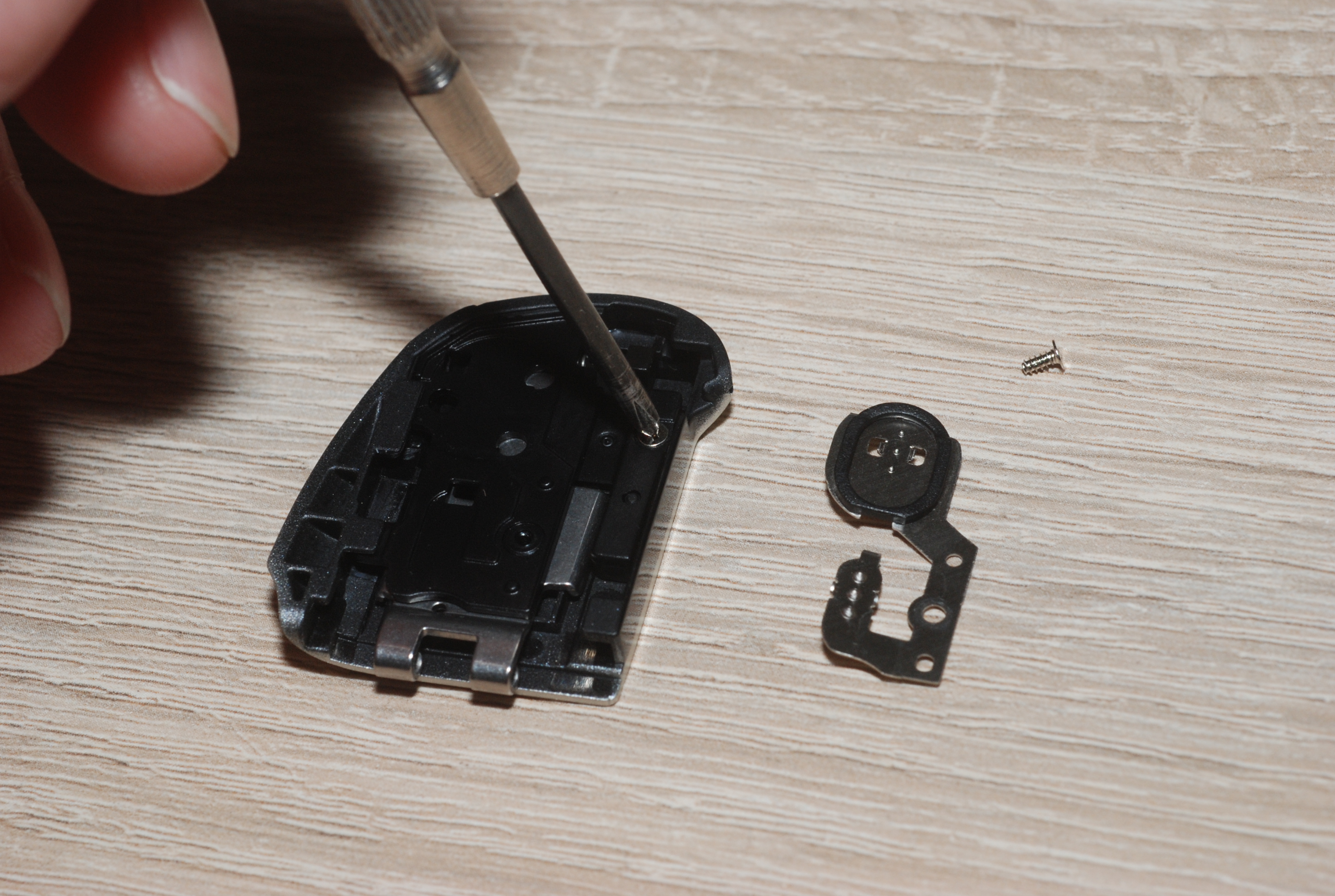

Unscrew number "1" and remove the contact sheet.

Unscrew number "2" and remove the black plastic piece (take care on the little spring under it).

Let the metal hinge of the door as is.

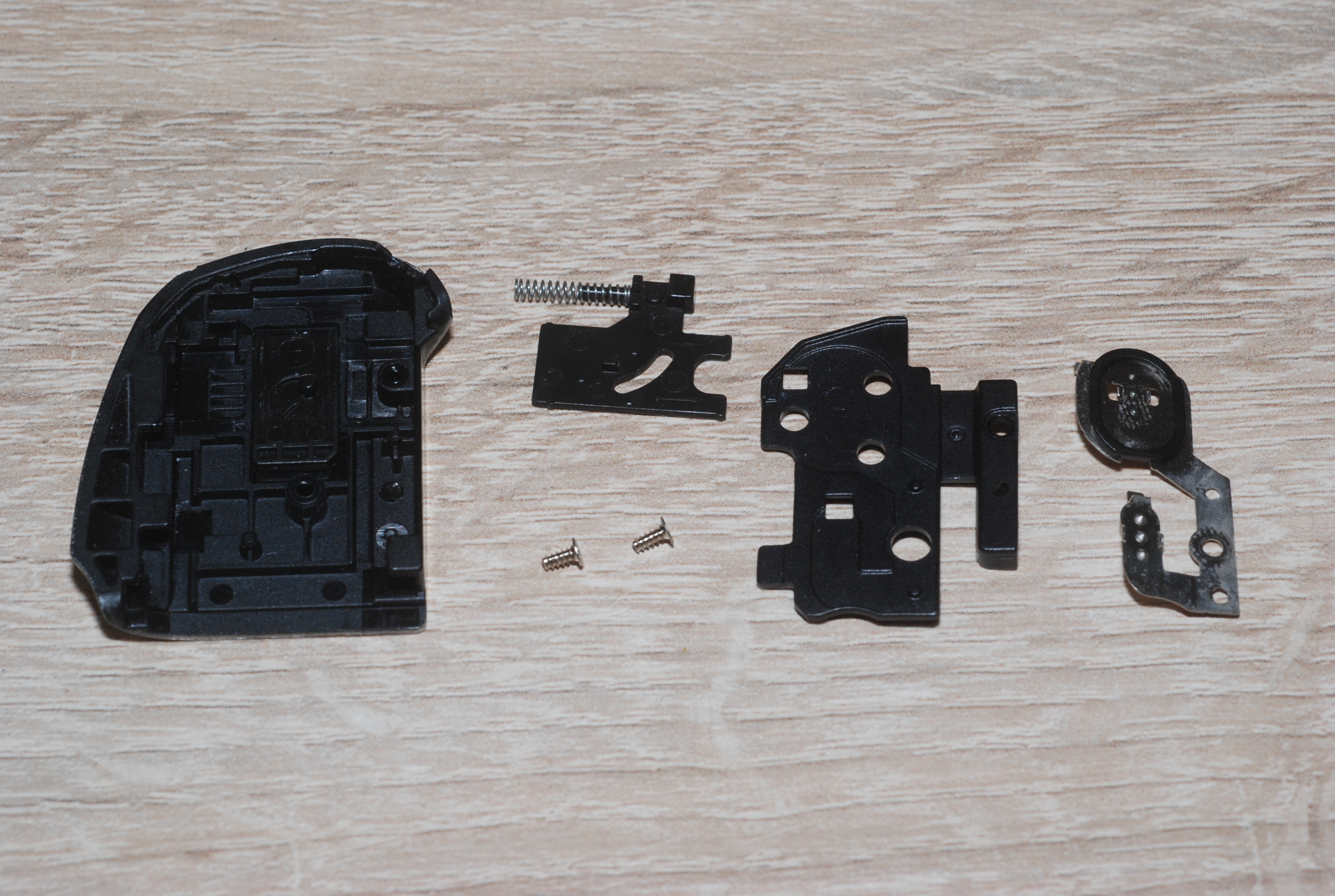

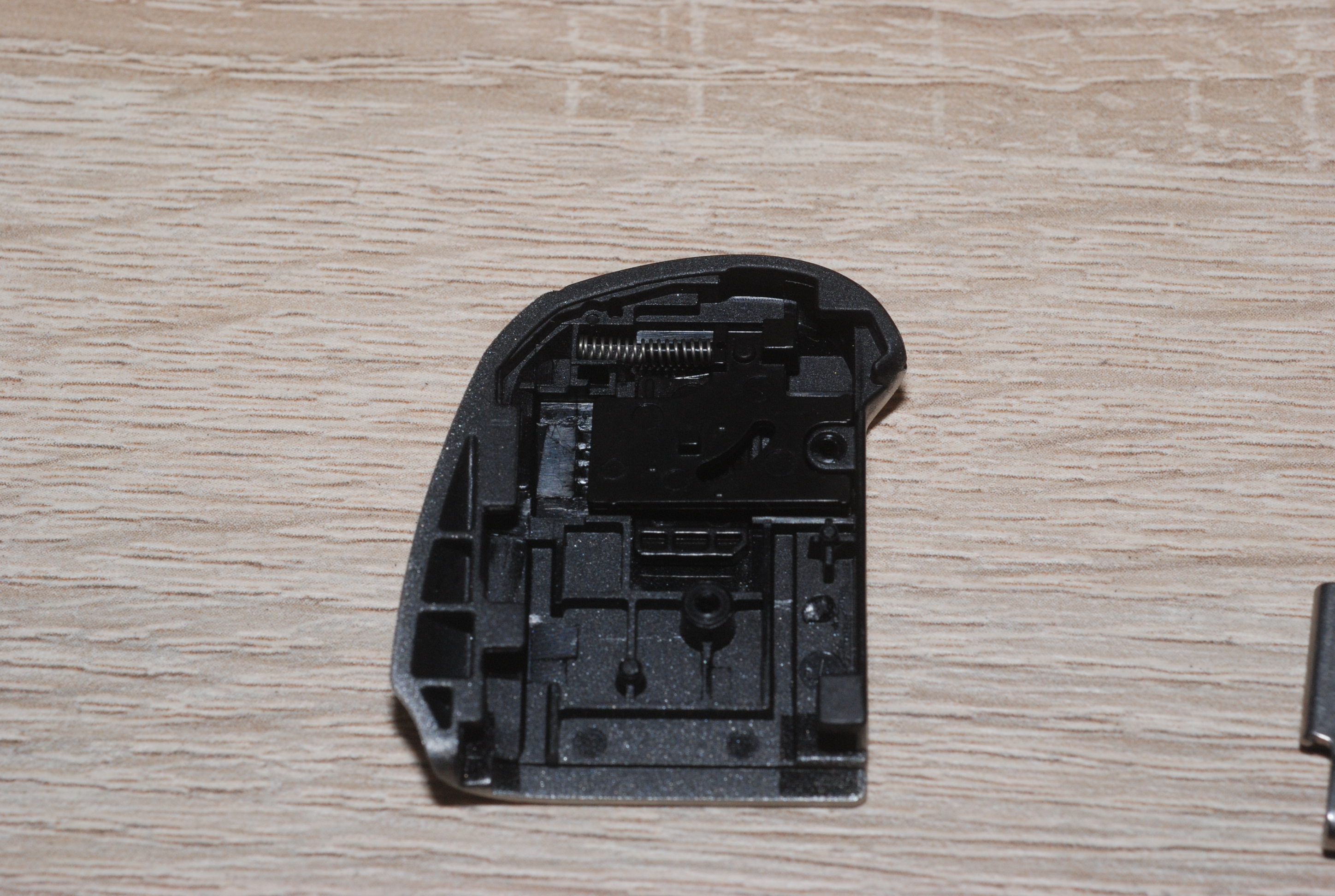

Now you have the pictured parts (put them away for future projects - you never know)

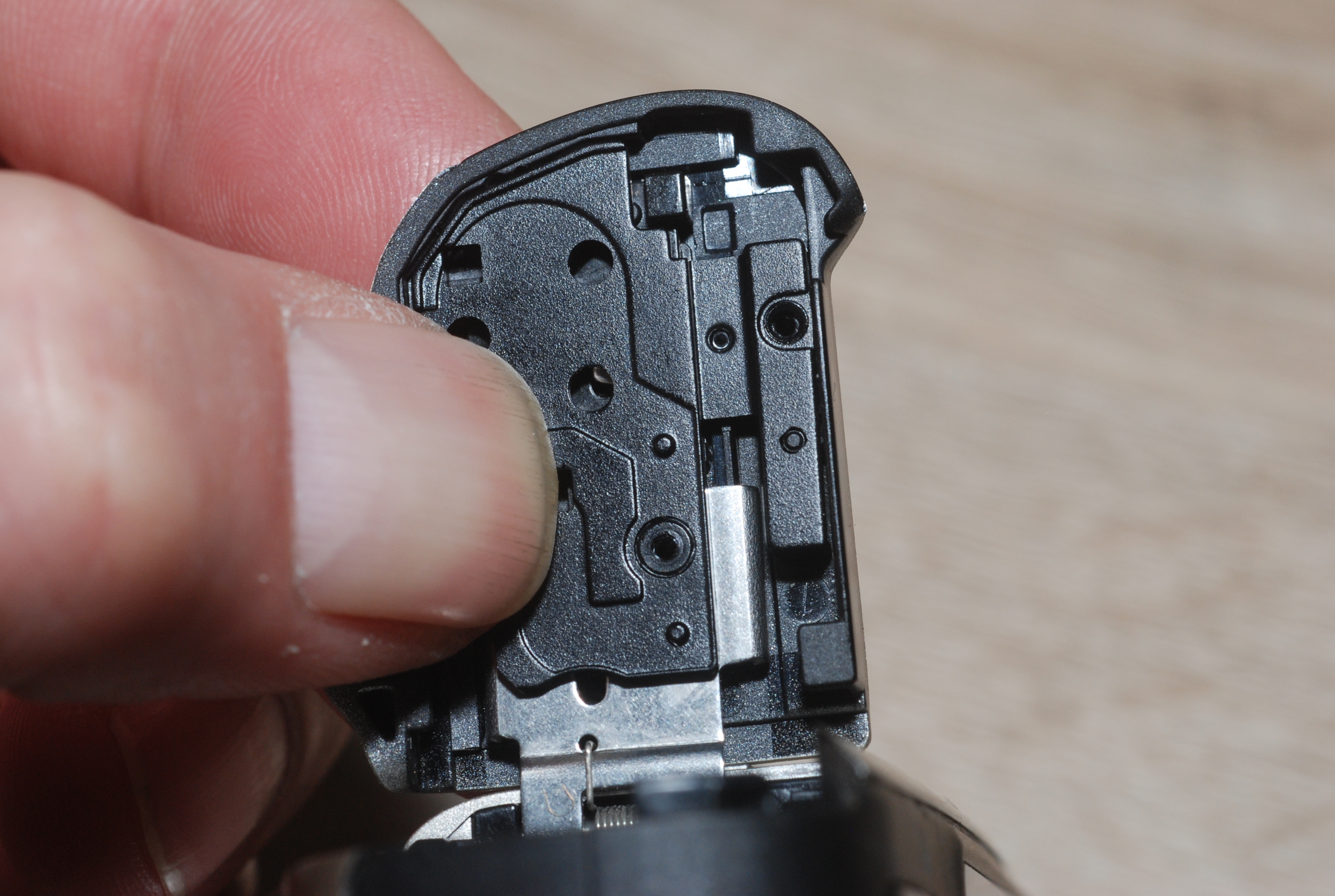

Repeat Step 2 but remove the metal hinge this time.

Put the part with the spring back so far it is not in place.

This part is a bit tricky because sometimes the spring don`t want to be where you want it.

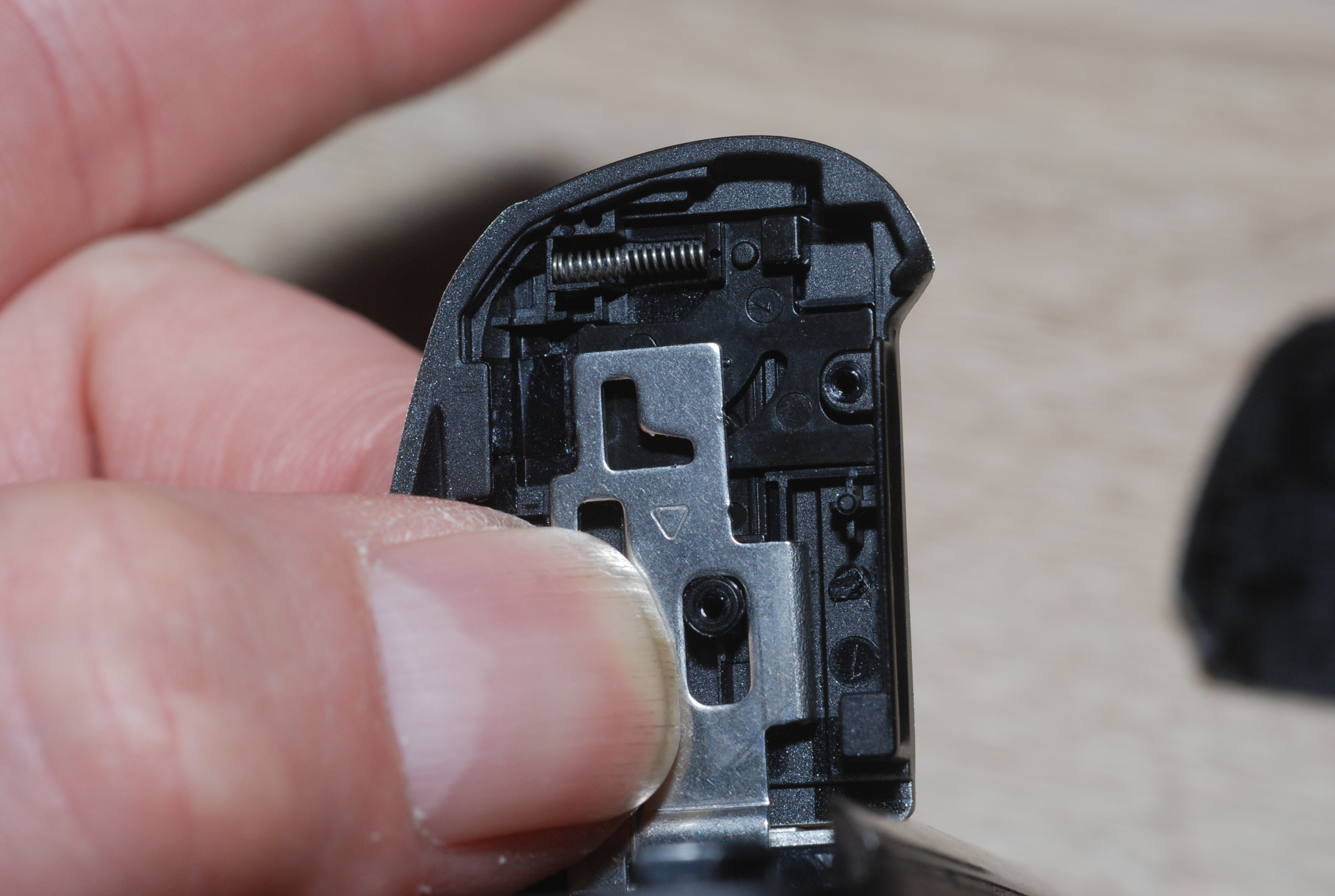

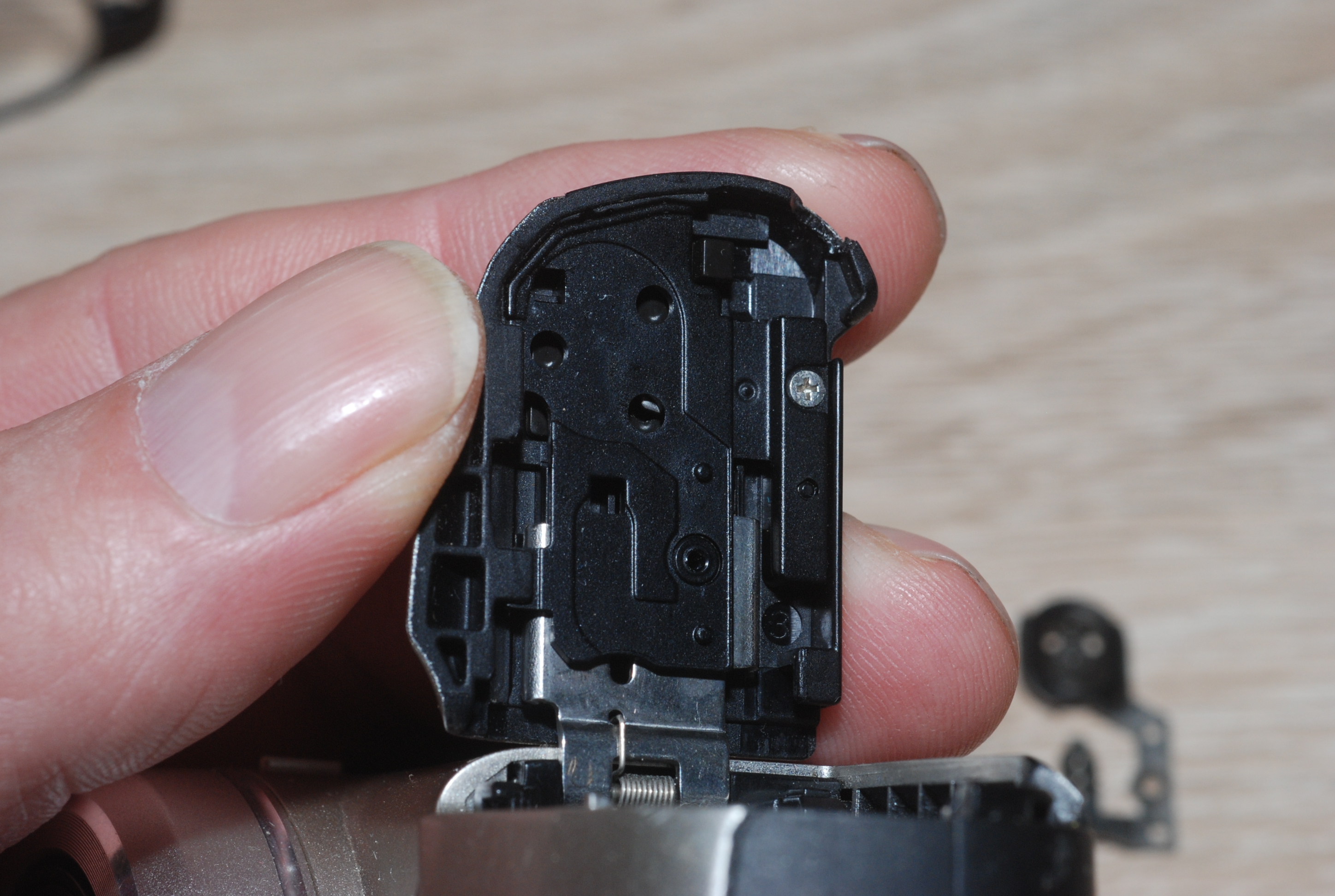

Put the door including spring carefully to the hinge in place.

Hold both parts together between thumb and pointer.

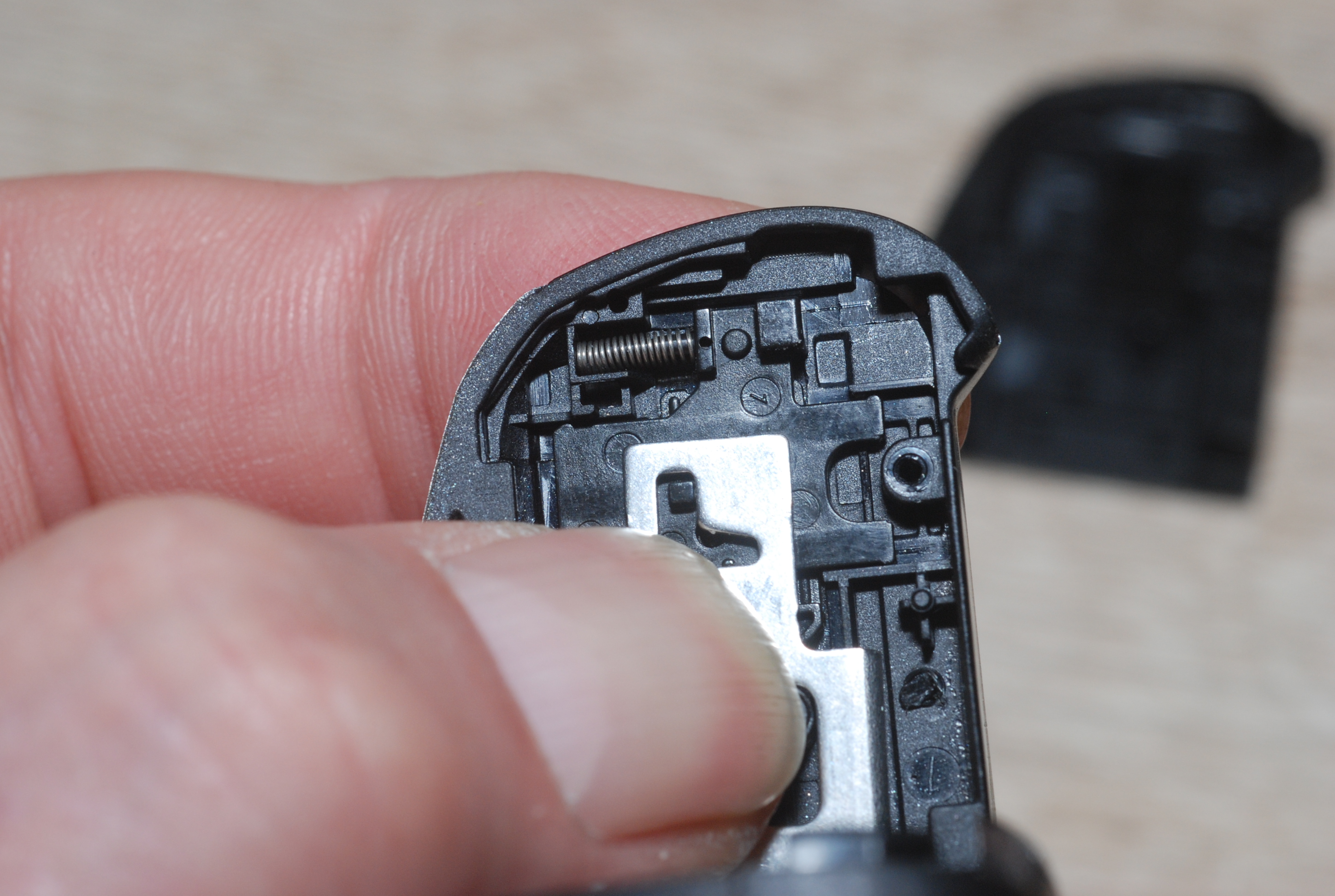

Push the plastic part of the spring to the left with your screwdriver until you see a small pin inside of the "L" shaped area of the metal hinge.

Still hold both parts together.

Take the tweezer and hold both parts together from above - you can release your fingers now.

Put back the black plastic part and hold it down before you remove the tweezer.

Screw in number "2" - it is easy to do with one hand when your screwdriver tip is magnetic.

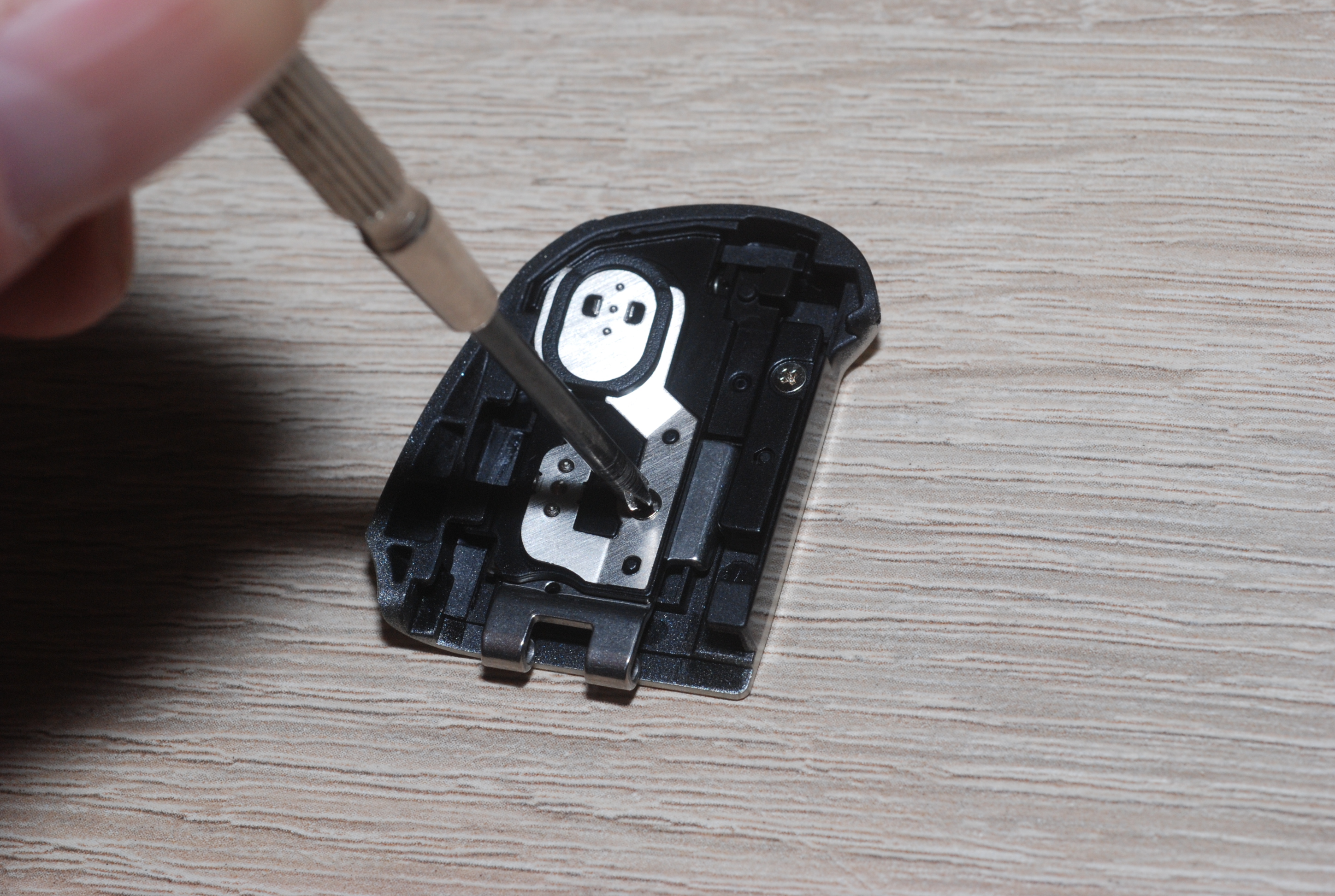

Put back the battery contact sheets and screw in number "1".

That`s it - ready to shoot again.
