Replace Coil Springs (the LOW-COST Way)
by Error Code Guy in Workshop > Cars
7733 Views, 1 Favorites, 0 Comments
Replace Coil Springs (the LOW-COST Way)
![replace coil springs (the LOW-COST way)](/proxy/?url=https://content.instructables.com/F61/H5BB/JLGV06T7/F61H5BBJLGV06T7.jpg&filename=replace coil springs (the LOW-COST way))
SOMETIMES you can have a broken coil spring and not even know it. The cars not quite driving right but you’re not sure why. One trick to verifying a broken spring is to look at the other side and compare. Putting a new spring on your car isn’t hard when you understand the basic concepts. In this video I go through the basics so you can feel confident to safely install coil springs. Hope you enjoy the video.
Take Out the Assembly
![Screenshot from 2018-08-31 17-51-13.png](/proxy/?url=https://content.instructables.com/FG5/I9DT/JLGUTN7C/FG5I9DTJLGUTN7C.png&filename=Screenshot from 2018-08-31 17-51-13.png)
![Screenshot from 2018-08-31 17-51-32.png](/proxy/?url=https://content.instructables.com/F12/Y2EO/JLGUTN7B/F12Y2EOJLGUTN7B.png&filename=Screenshot from 2018-08-31 17-51-32.png)
![Screenshot from 2018-08-31 17-53-46.png](/proxy/?url=https://content.instructables.com/FX5/ALAZ/JLGUTN77/FX5ALAZJLGUTN77.png&filename=Screenshot from 2018-08-31 17-53-46.png)
![Screenshot from 2018-08-31 17-54-31.png](/proxy/?url=https://content.instructables.com/F8D/OM58/JLGUTN74/F8DOM58JLGUTN74.png&filename=Screenshot from 2018-08-31 17-54-31.png)
![Screenshot from 2018-08-31 17-55-04.png](/proxy/?url=https://content.instructables.com/FXG/BHOG/JLGUTN73/FXGBHOGJLGUTN73.png&filename=Screenshot from 2018-08-31 17-55-04.png)
![Screenshot from 2018-08-31 17-55-31.png](/proxy/?url=https://content.instructables.com/FTV/4008/JLGUTN72/FTV4008JLGUTN72.png&filename=Screenshot from 2018-08-31 17-55-31.png)

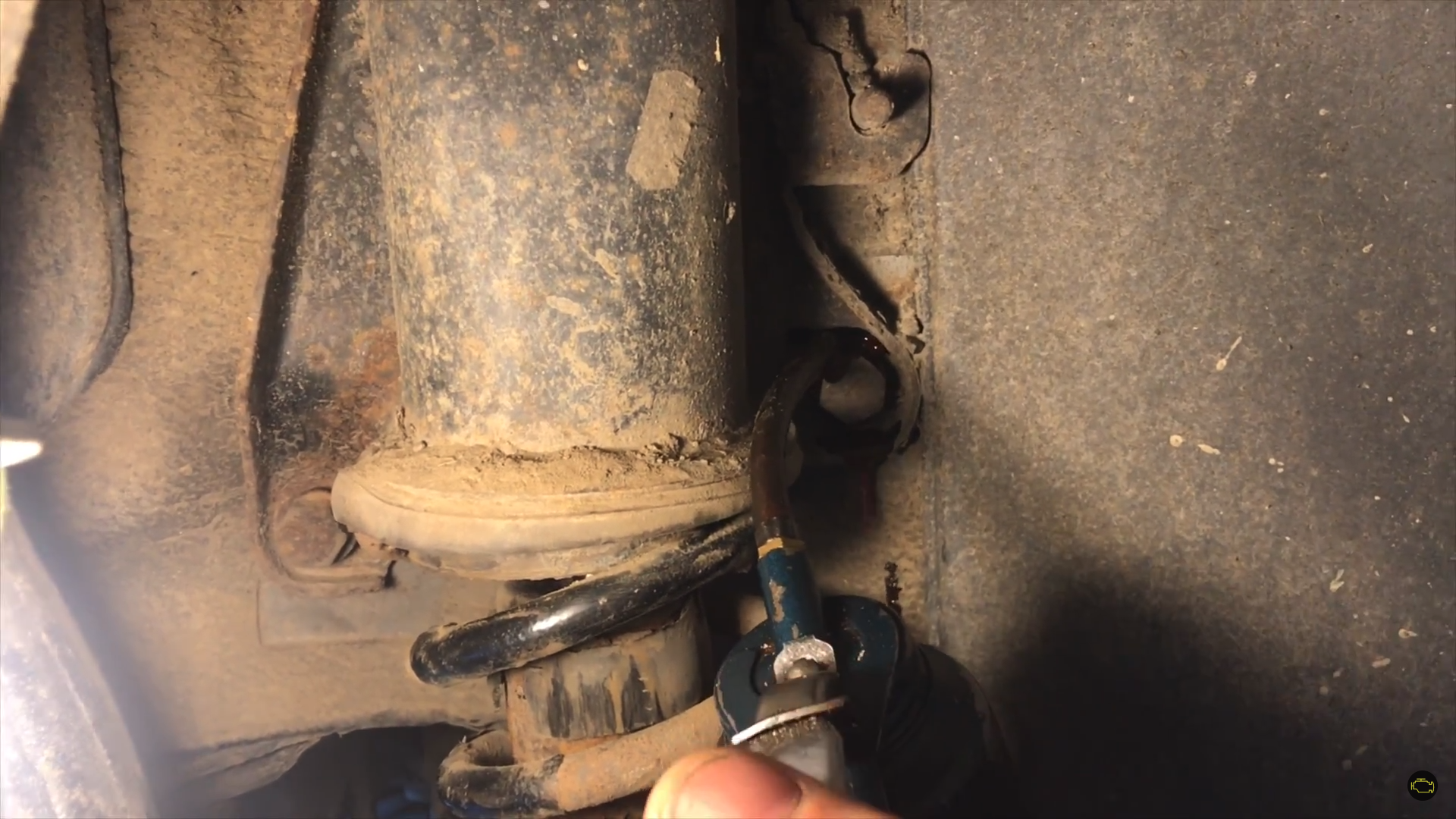

Start by putting oil that looks like it needs it. Then take out the all the bolts and take out the assembly
Take the Strut Assembly Out of the Cover
![Screenshot from 2018-08-31 17-56-04.png](/proxy/?url=https://content.instructables.com/FD6/AOJ9/JLGUTN70/FD6AOJ9JLGUTN70.png&filename=Screenshot from 2018-08-31 17-56-04.png)
![Screenshot from 2018-08-31 17-56-15.png](/proxy/?url=https://content.instructables.com/FYX/R0MJ/JLGUTN6Z/FYXR0MJJLGUTN6Z.png&filename=Screenshot from 2018-08-31 17-56-15.png)
If you use a impact hammer to take out the bolt that holds the strut in to the cover it will save you a lot of time!!
Take Off the Old and Broken Spring
![Screenshot from 2018-08-31 17-57-57.png](/proxy/?url=https://content.instructables.com/FKZ/0UEJ/JLGUTN6W/FKZ0UEJJLGUTN6W.png&filename=Screenshot from 2018-08-31 17-57-57.png)
![Screenshot from 2018-08-31 17-59-37.png](/proxy/?url=https://content.instructables.com/FEB/6IWO/JLGUTN6U/FEB6IWOJLGUTN6U.png&filename=Screenshot from 2018-08-31 17-59-37.png)
![Screenshot from 2018-08-31 17-57-07.png](/proxy/?url=https://content.instructables.com/FR4/HQOK/JLGUTN6Y/FR4HQOKJLGUTN6Y.png&filename=Screenshot from 2018-08-31 17-57-07.png)

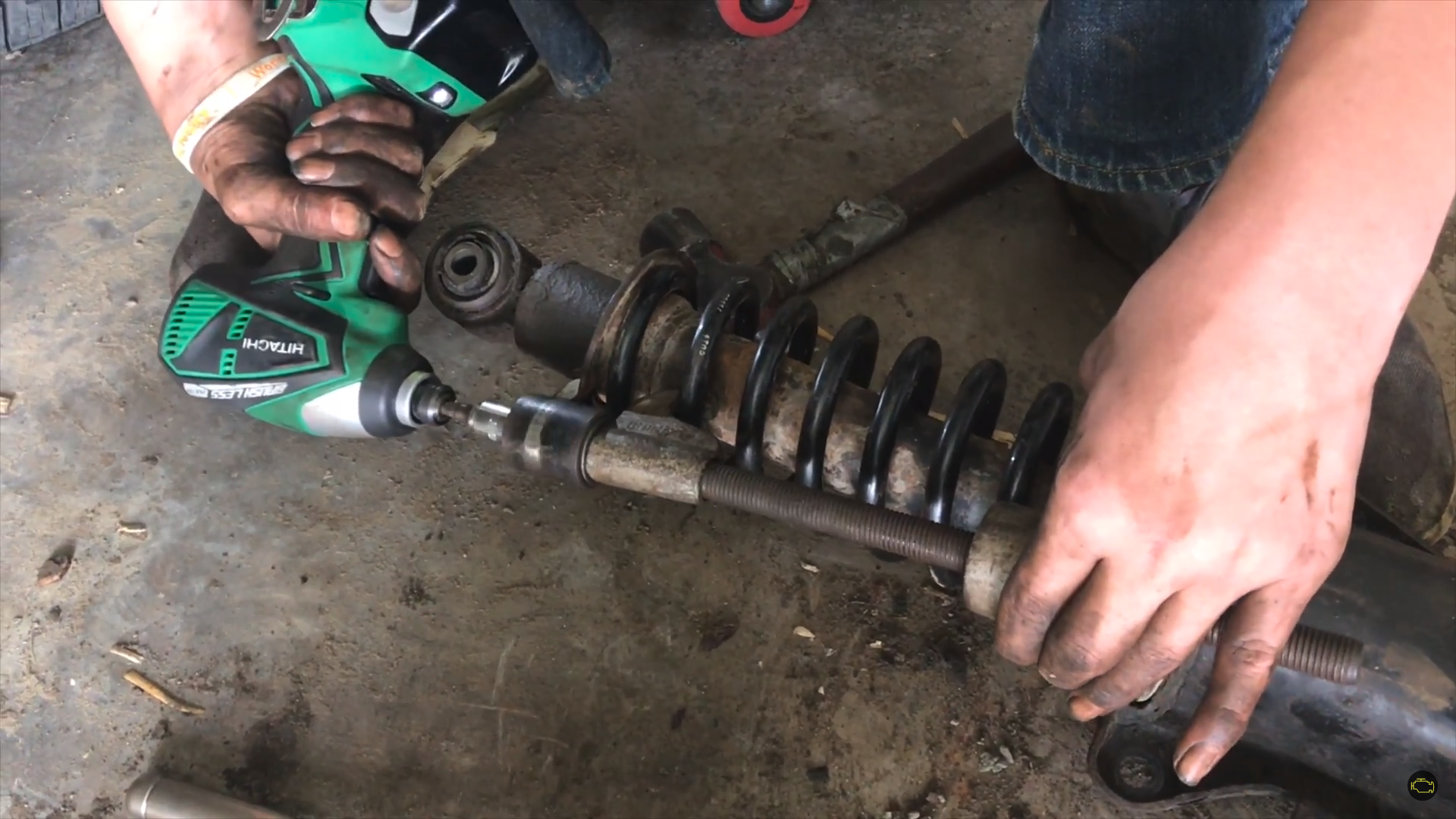

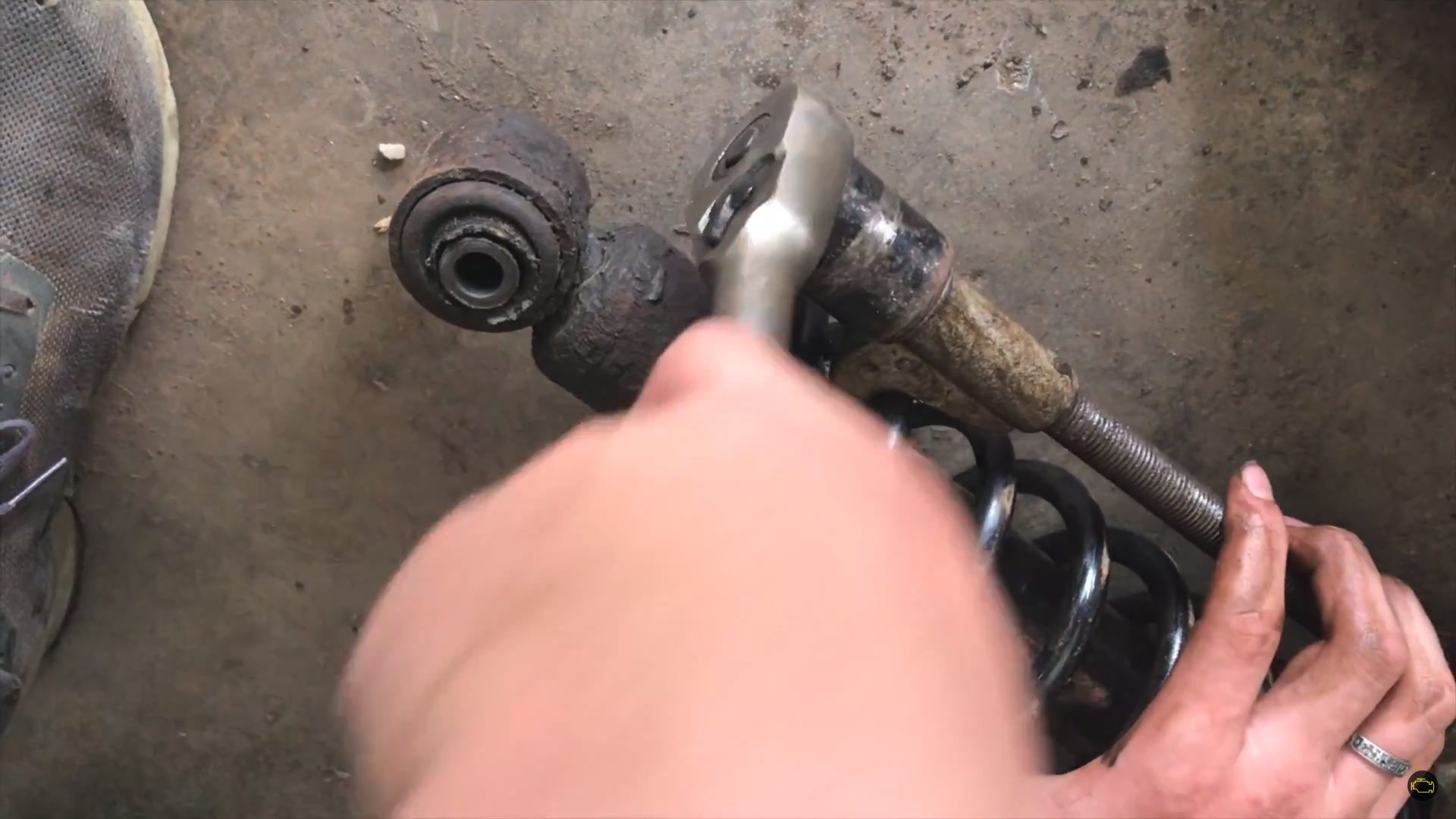

Decompress the old spring by ratcheting the compressor tool off.
Put on the New the New Spring
![Screenshot from 2018-08-31 17-59-04.png](/proxy/?url=https://content.instructables.com/F7T/PJCA/JLGUTN6V/F7TPJCAJLGUTN6V.png&filename=Screenshot from 2018-08-31 17-59-04.png)
![Screenshot from 2018-08-31 17-57-42.png](/proxy/?url=https://content.instructables.com/FQW/8DG6/JLGUTN6X/FQW8DG6JLGUTN6X.png&filename=Screenshot from 2018-08-31 17-57-42.png)
![Screenshot from 2018-08-31 18-00-45.png](/proxy/?url=https://content.instructables.com/FYB/M1YV/JLGUTN6S/FYBM1YVJLGUTN6S.png&filename=Screenshot from 2018-08-31 18-00-45.png)
Compress the new spring And put it on the strut and put the strut bolt back on.
Reassemble Everything
![Screenshot from 2018-08-31 18-02-58.png](/proxy/?url=https://content.instructables.com/FT4/STGN/JLGUTN6O/FT4STGNJLGUTN6O.png&filename=Screenshot from 2018-08-31 18-02-58.png)
![Screenshot from 2018-08-31 18-01-42.png](/proxy/?url=https://content.instructables.com/F3M/E7I9/JLGUTN6Q/F3ME7I9JLGUTN6Q.png&filename=Screenshot from 2018-08-31 18-01-42.png)
![Screenshot from 2018-08-31 18-02-19.png](/proxy/?url=https://content.instructables.com/FJY/GCPH/JLGUTN6P/FJYGCPHJLGUTN6P.png&filename=Screenshot from 2018-08-31 18-02-19.png)
![Screenshot from 2018-08-31 18-00-57.png](/proxy/?url=https://content.instructables.com/F83/LLZ3/JLGUTN6R/F83LLZ3JLGUTN6R.png&filename=Screenshot from 2018-08-31 18-00-57.png)
![Screenshot from 2018-08-31 18-03-12.png](/proxy/?url=https://content.instructables.com/FWL/CT0L/JLGUTN6N/FWLCT0LJLGUTN6N.png&filename=Screenshot from 2018-08-31 18-03-12.png)
Make sure you put Anti-Seize on all of the bolts before you put them all back on you will thank yourself later. Use a jack to push the holes into place and put the bolts back in.
