In this project, I am doing Refurbish, Repair and Modify of Different Types Extension Electric Board. We all have Extension Electric Boards at home but some of them are in a damaged condition so they need to repair or modify so don't throw them in the garbage. Now it is time to Refurbish, Repair and Modify the Extension Electric Board, here I am having three different types of Extension Electric Board which I will going to Repair.

The first one is a central body of the old circular electric board and I also need the Load Meter in my Lab to measure the power consumption of devices so I bought Digital Power Meter and attached it to the old switchboard and fitted it in 3D printed Body.

The second one is an old PC Extension Electric Board and it was not badly damaged so I repair it with new wiring, paints and Screws.

The third one is a simple Extension Electric Board which I am using in Lab for Machines but I always have to turn off things manually. Adding WiFi And Relay to the Extension Electric Board was a great thing to do with it and so that I can control any machine through WiFi.

Load Meter

Make LOAD Meter | Repair and Modify Extension Electric Board
Make LOAD Meter (Test Run) | Repair and Modify Extension Electric Board

Load Meter is very helpful for measuring power consumption by electrical devices. This Load Meter can measures power load upto 23Kw energy.

Materials


1) Old Circular electric board

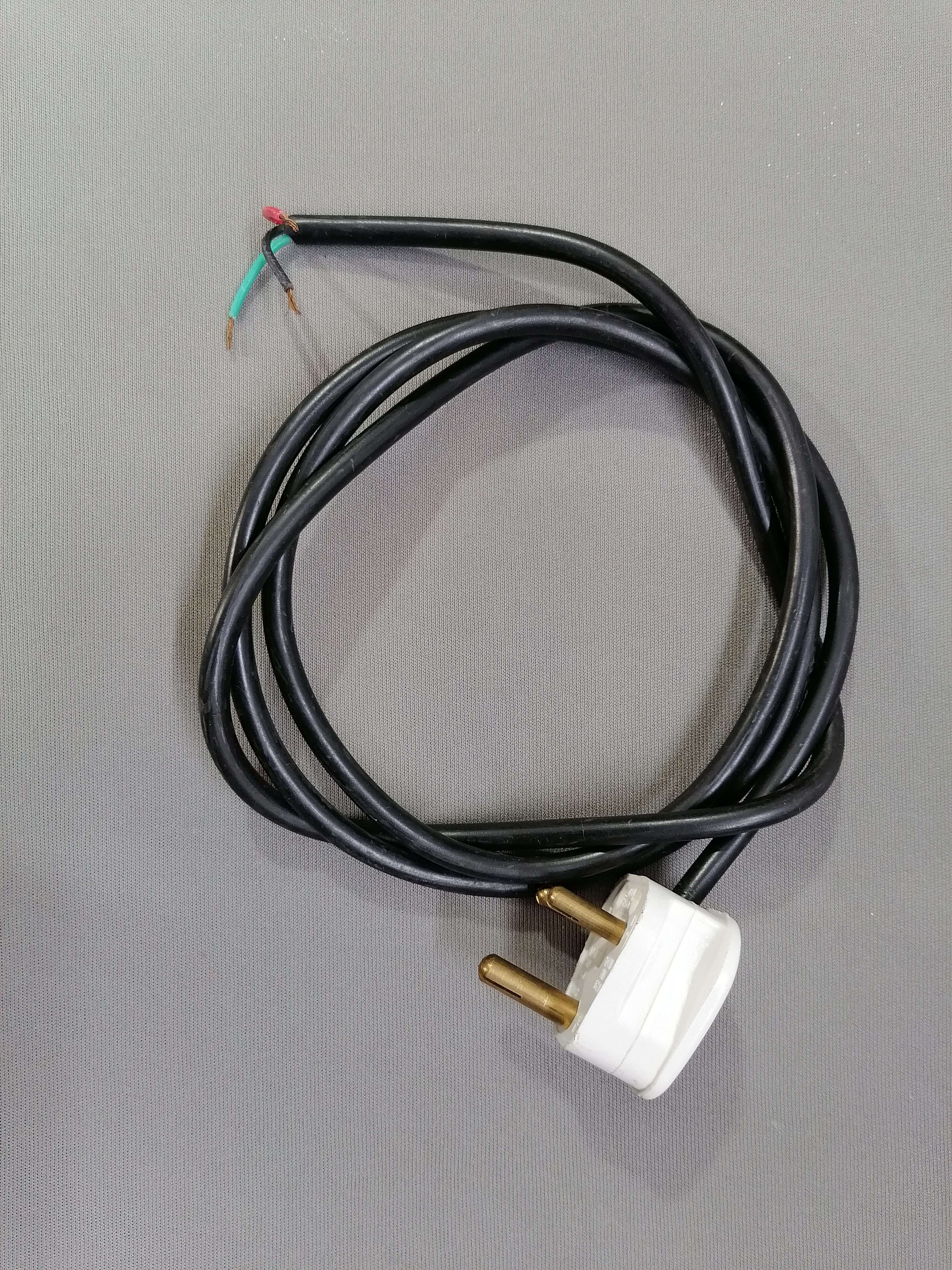

2) Power Cord - 1.5m

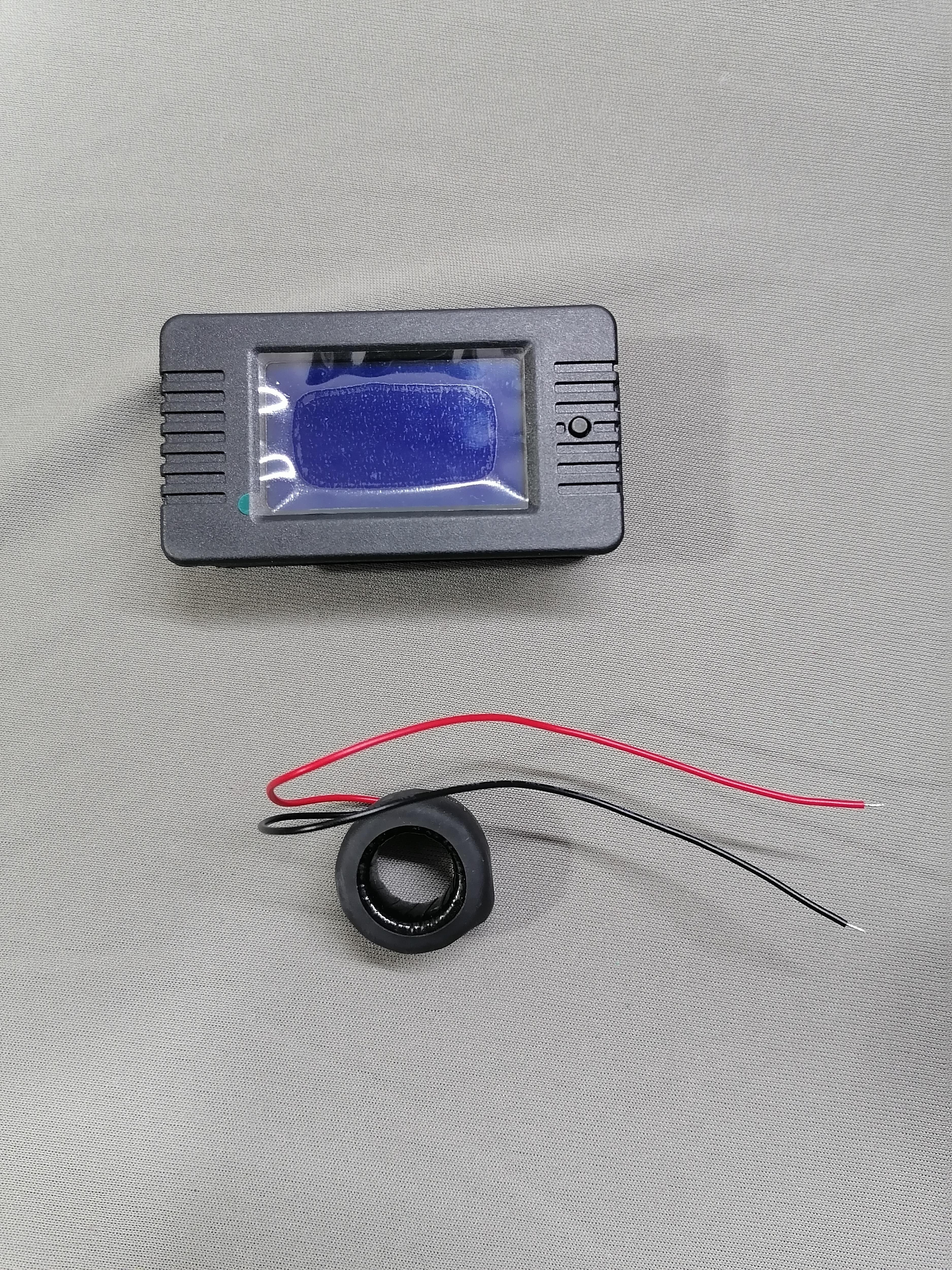

3) PZEM-022 100A AC Digital Power Monitor Voltmeter Ammeter Frequency Factor Meter

4) Screw- 4 quantity (8mmx3mm)

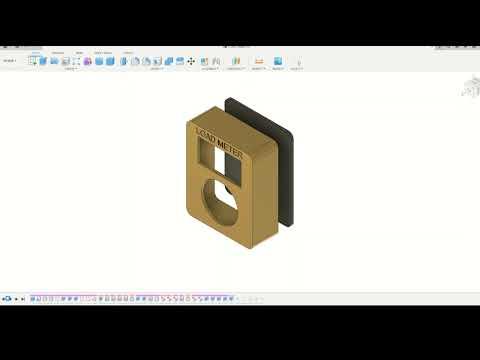

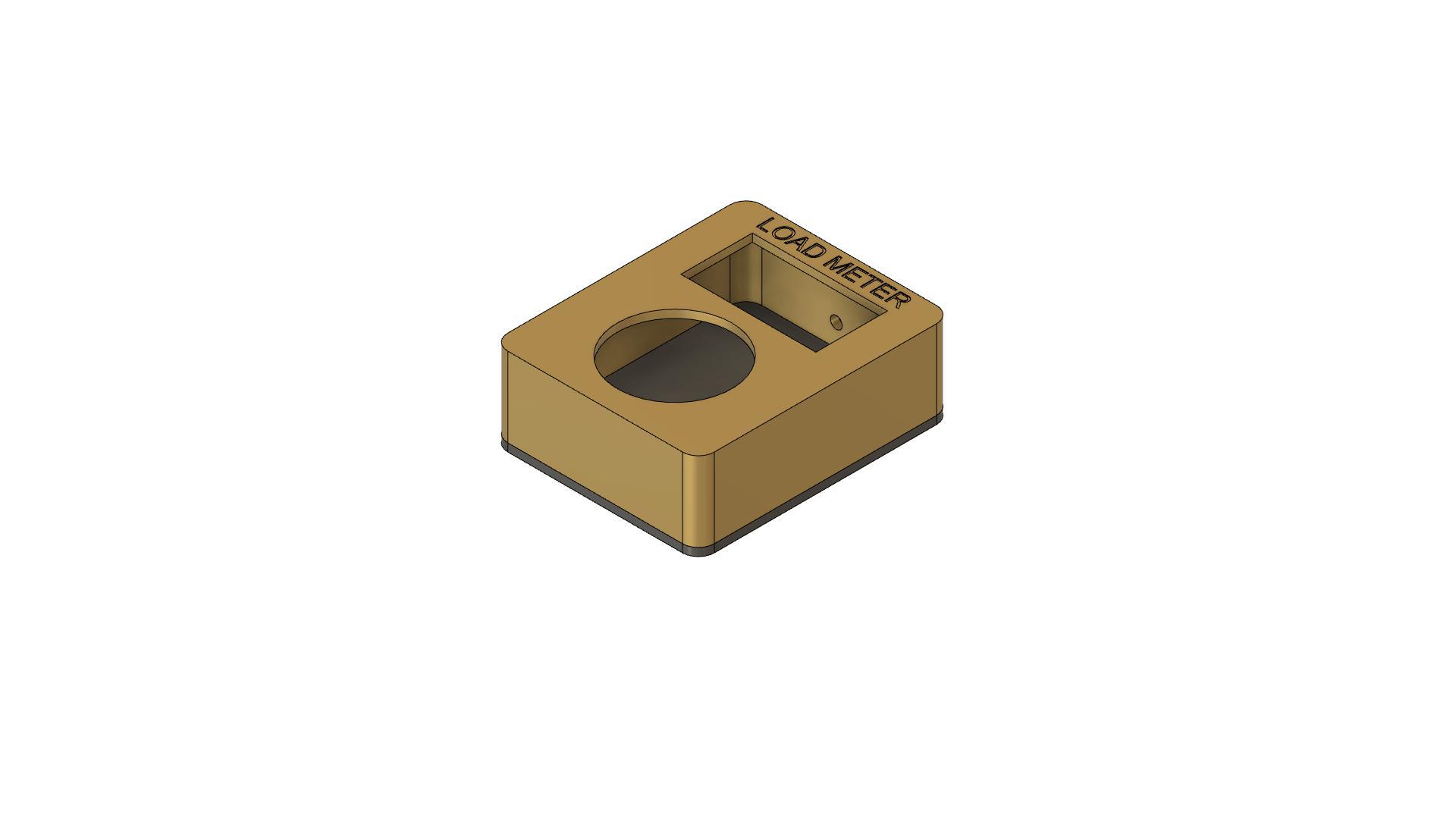

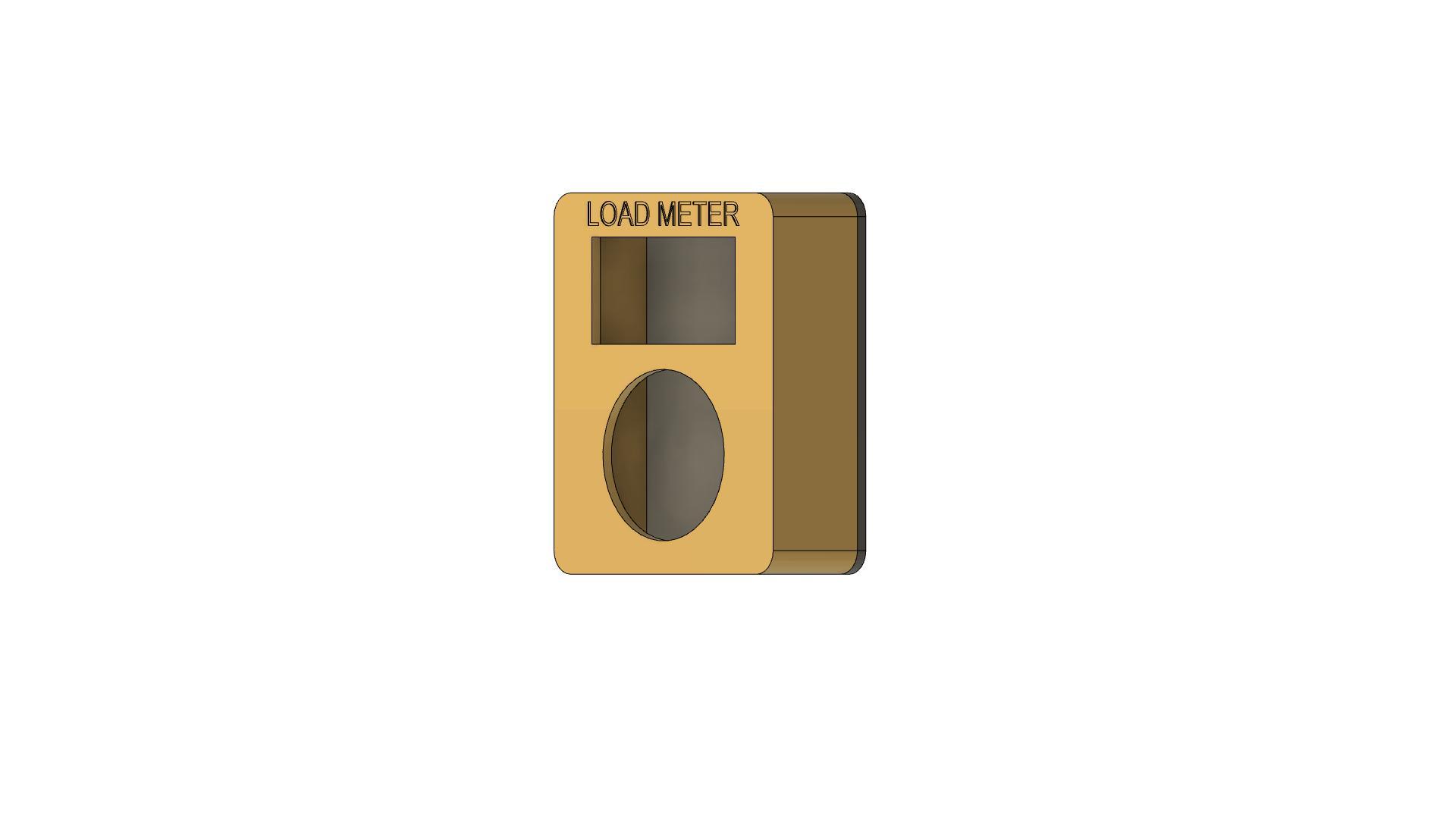

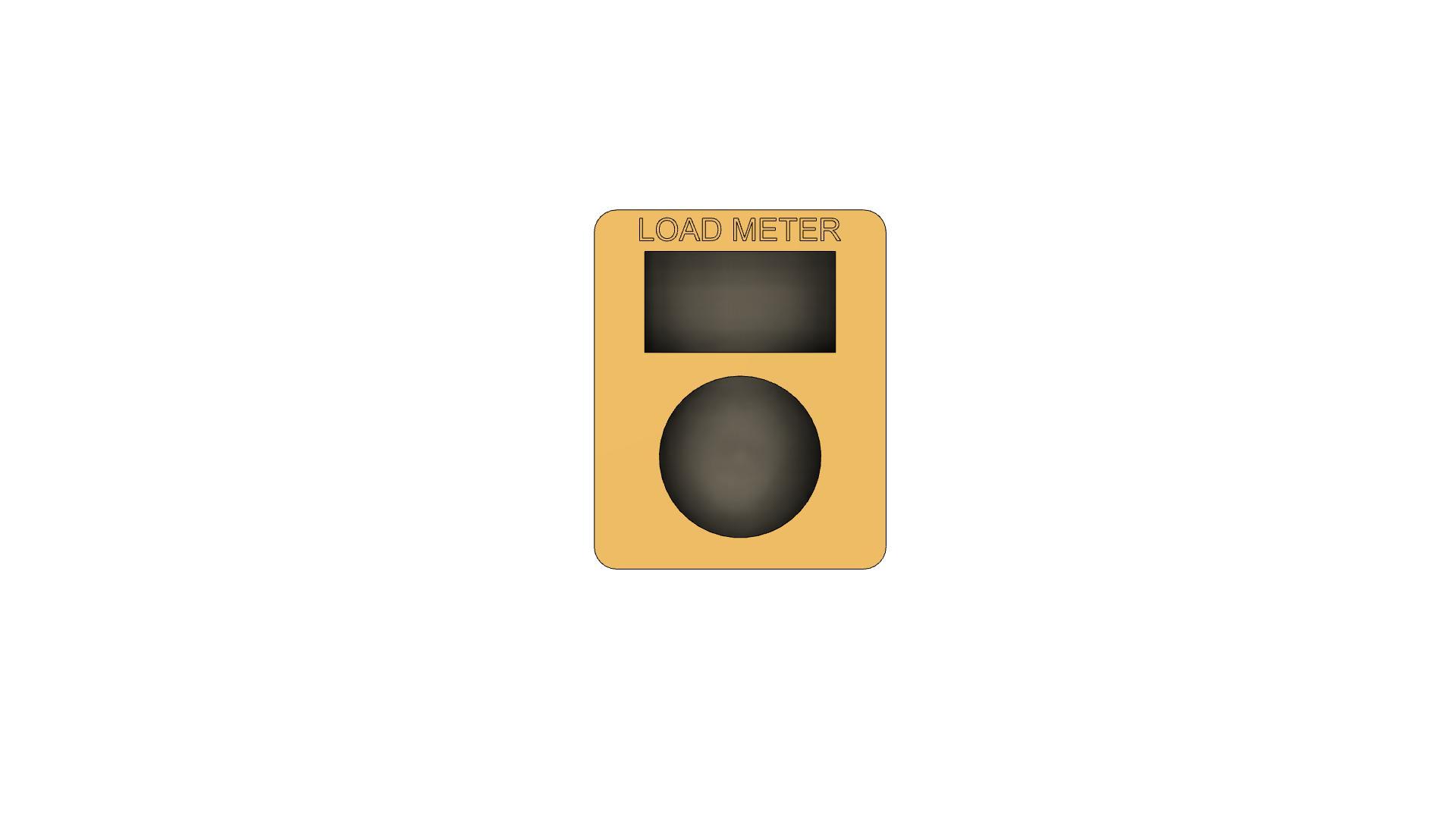

Design and Animation in Fusion360

Make LOAD Meter (Animation in Fusion360) | Repair and Modify Extension Electric Board
Make LOAD Meter (Design in Fusion360) | Repair and Modify Extension Electric Board

Design And Animation In Fusion360.

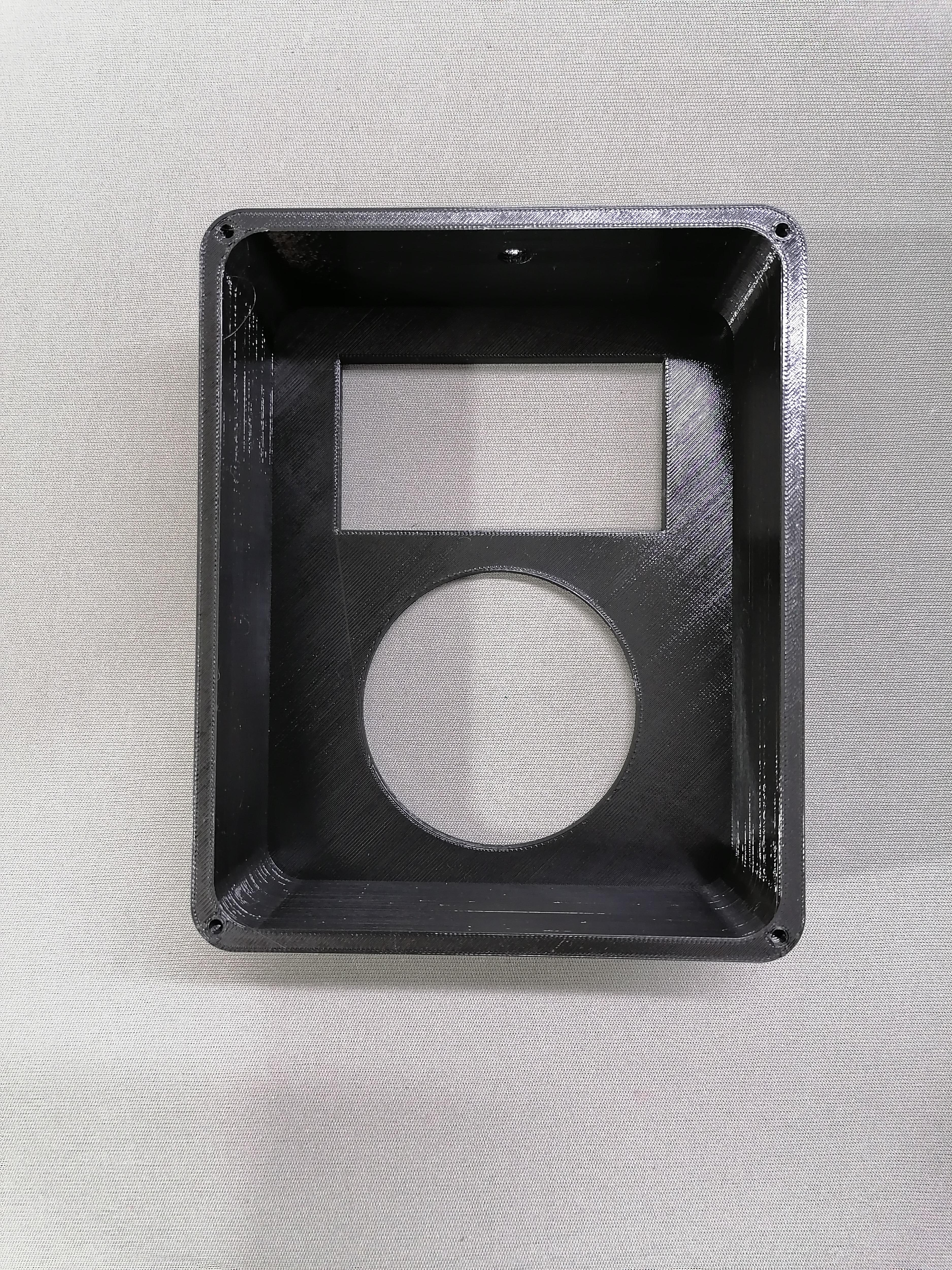

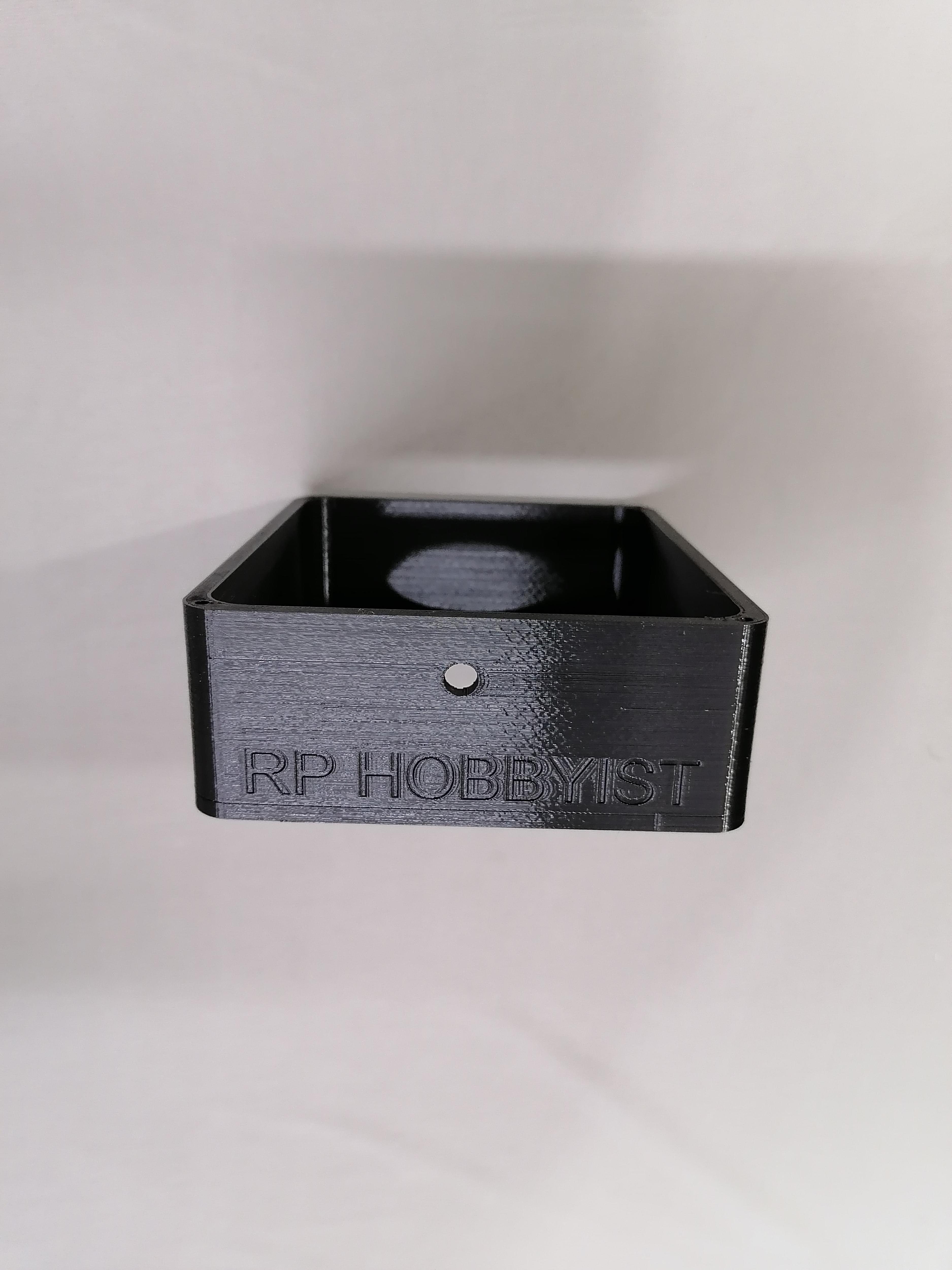

3D Print

Make LOAD Meter (3D Printing) | Repair and Modify Extension Electric Board
Make LOAD Meter (3D Printing) | Repair and Modify Extension Electric Board

3D print all Parts.

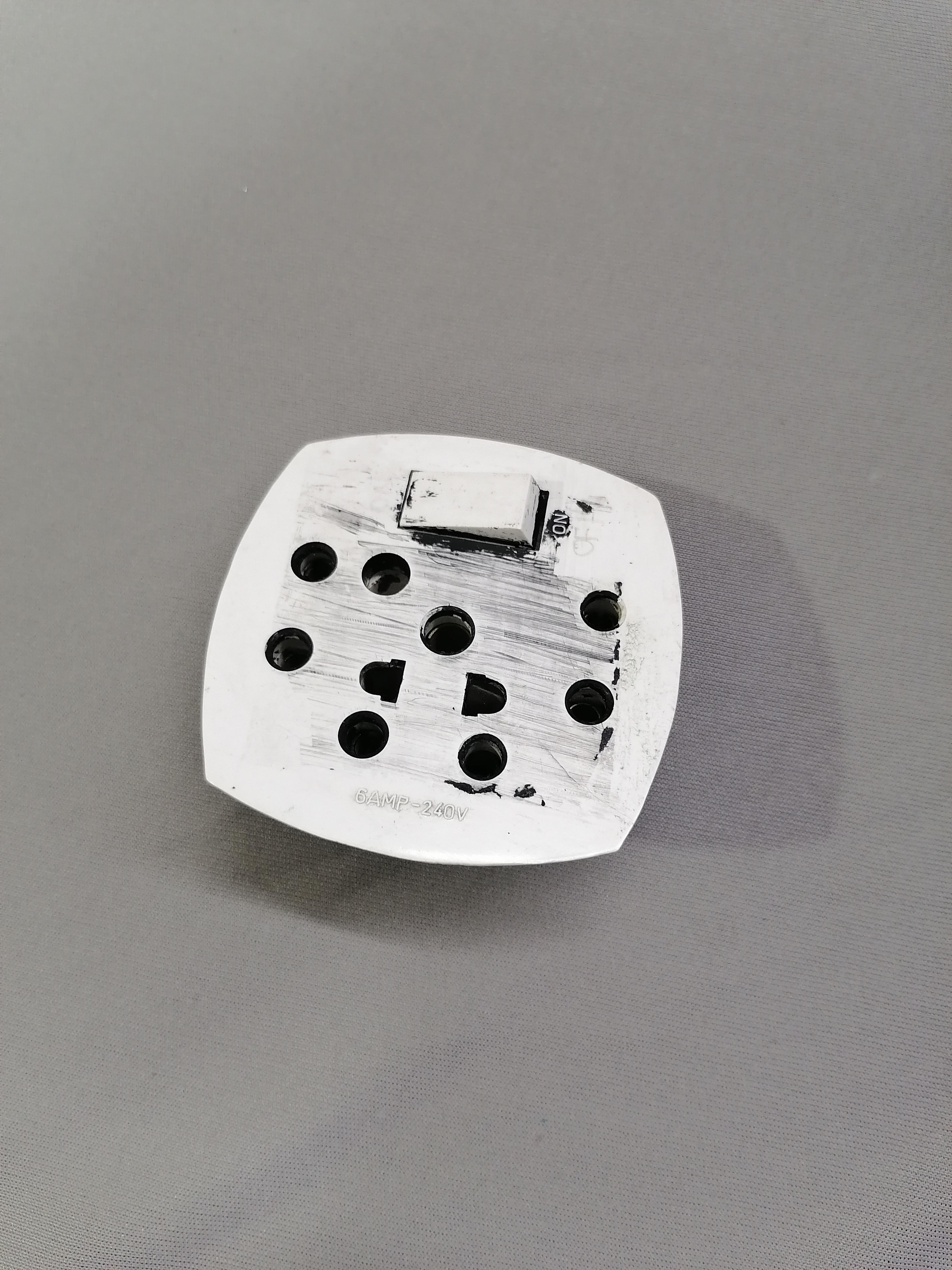

Clean Board and Paint It


Clean board first then paint it.

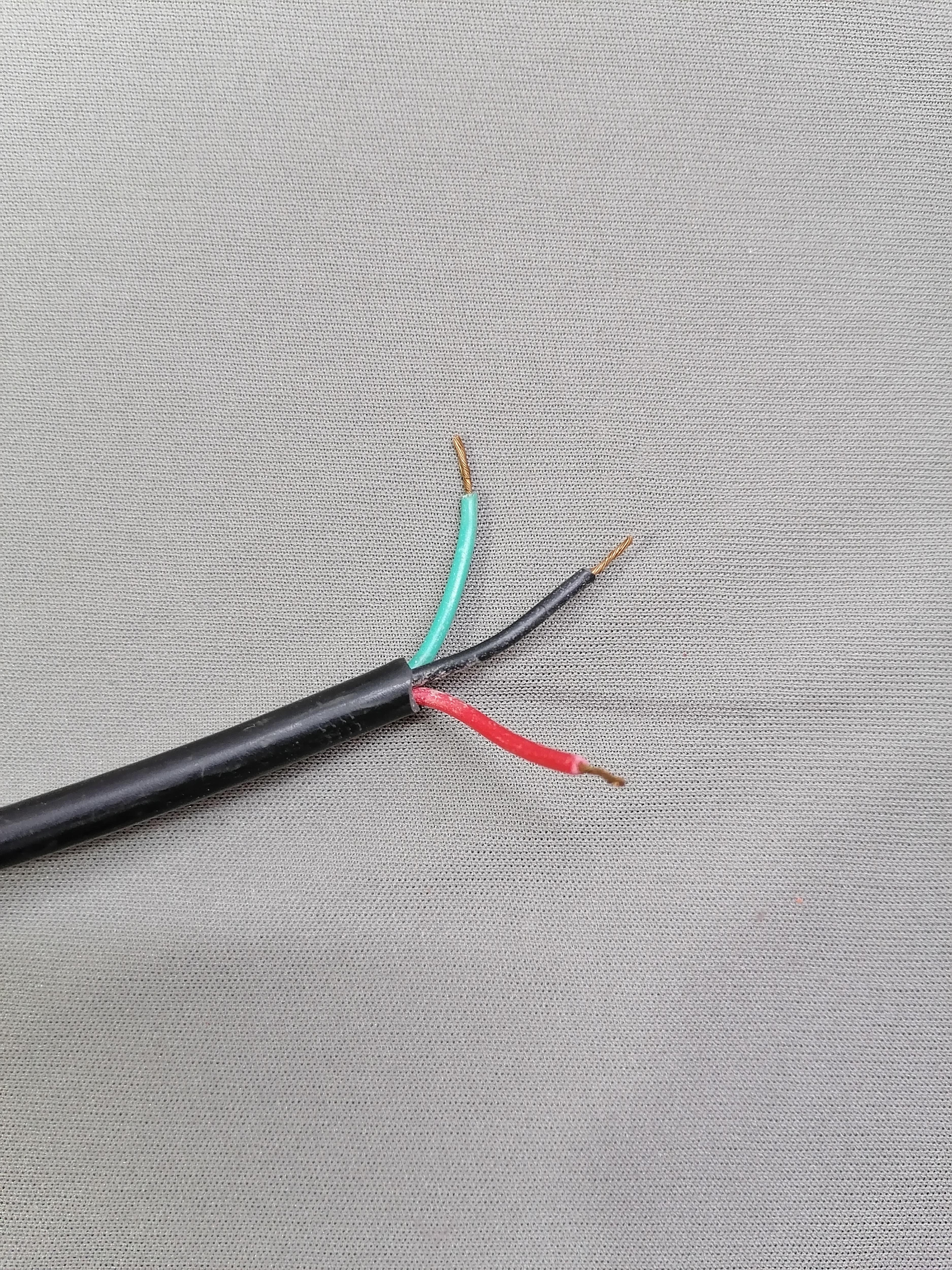

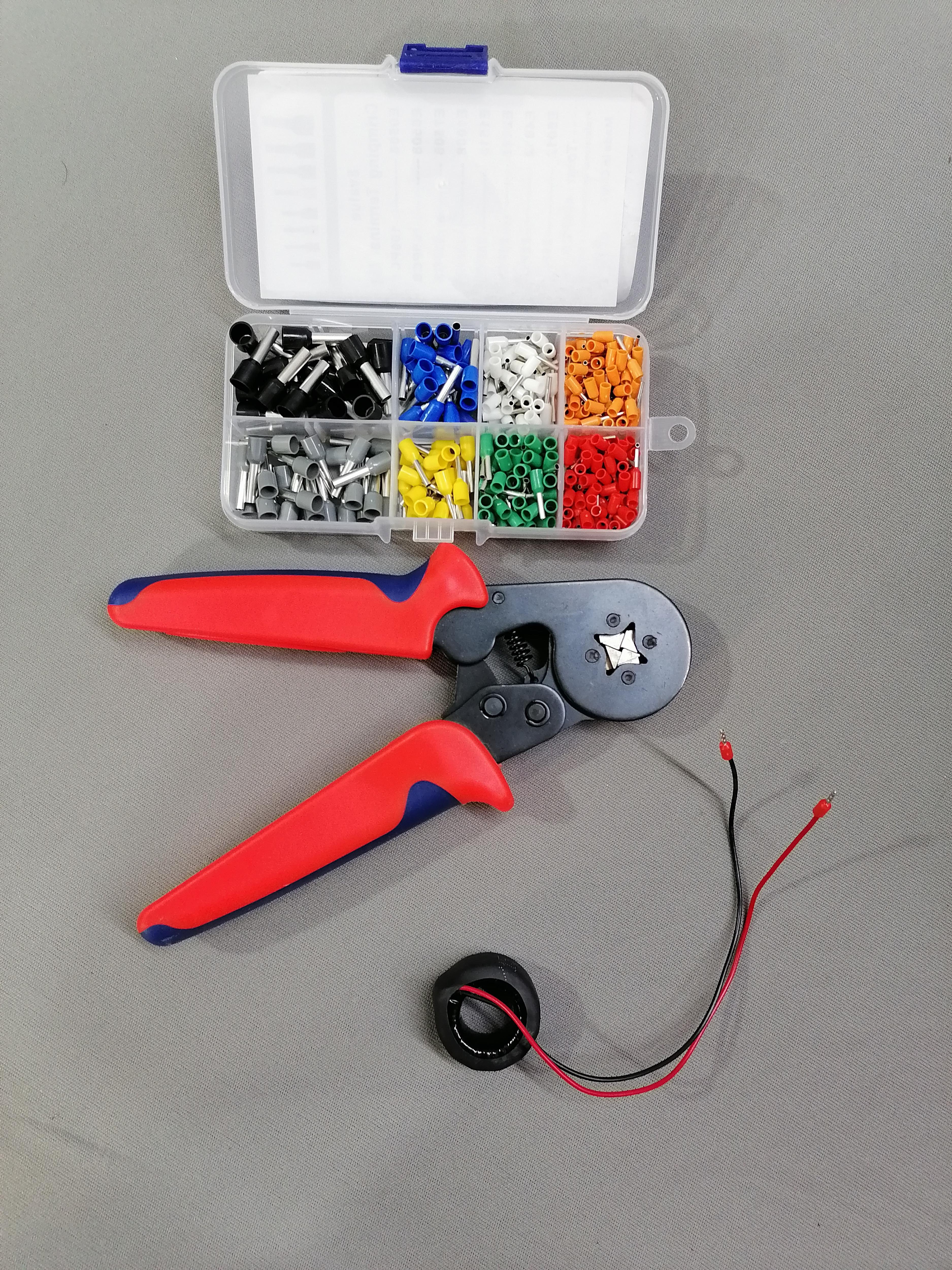

Crimping Terminals of Wires


Crimping Terminals of power cord and CT.

Rewire Board With New Wires


Rewire the Board With New Wires.

Insert Meter and Board Into Body


Insert Meter And Board Into Body and glued it with super glue.

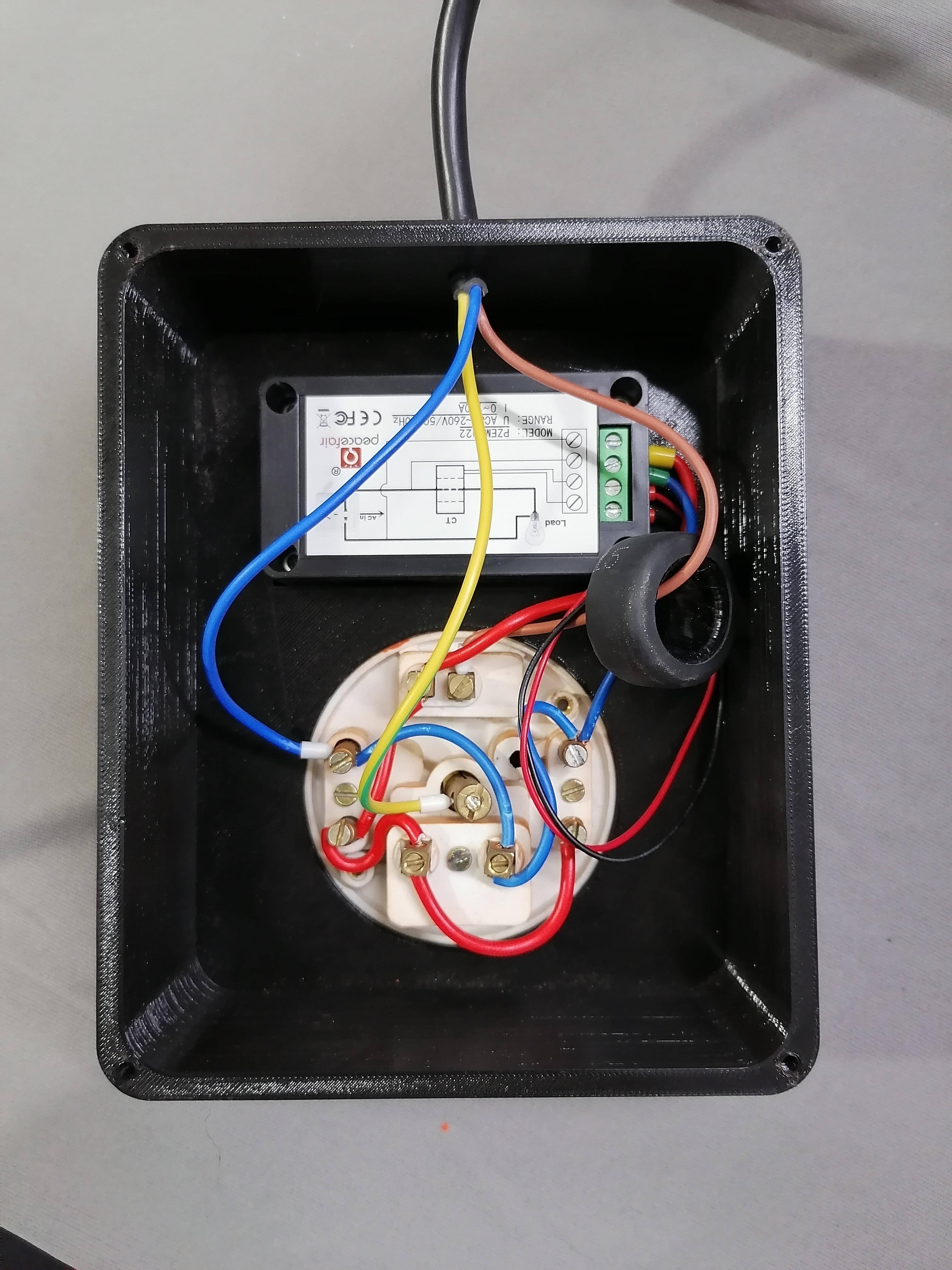

Do Wiring for Meter and Board


Do the wire diagram as given on power meter.

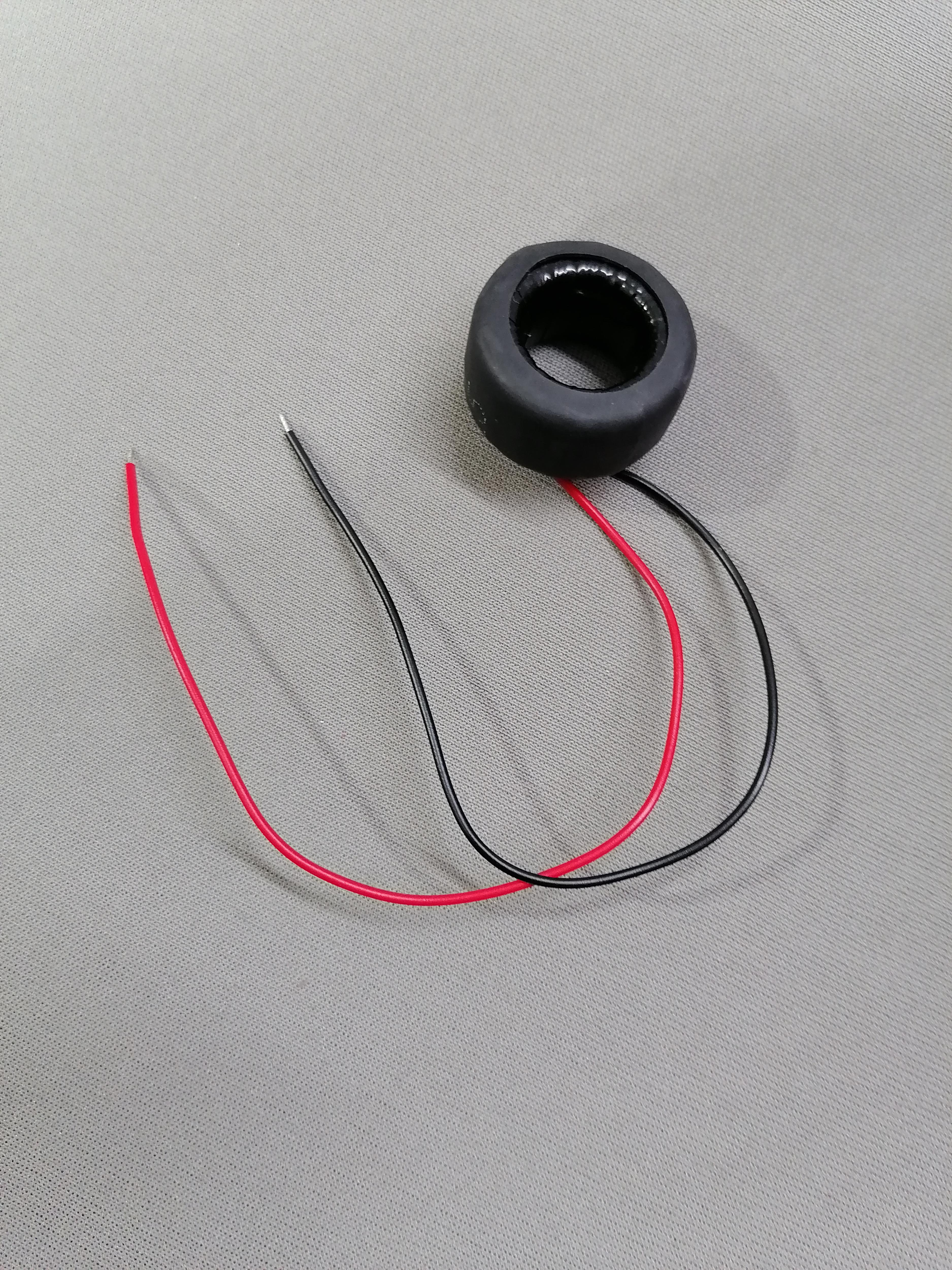

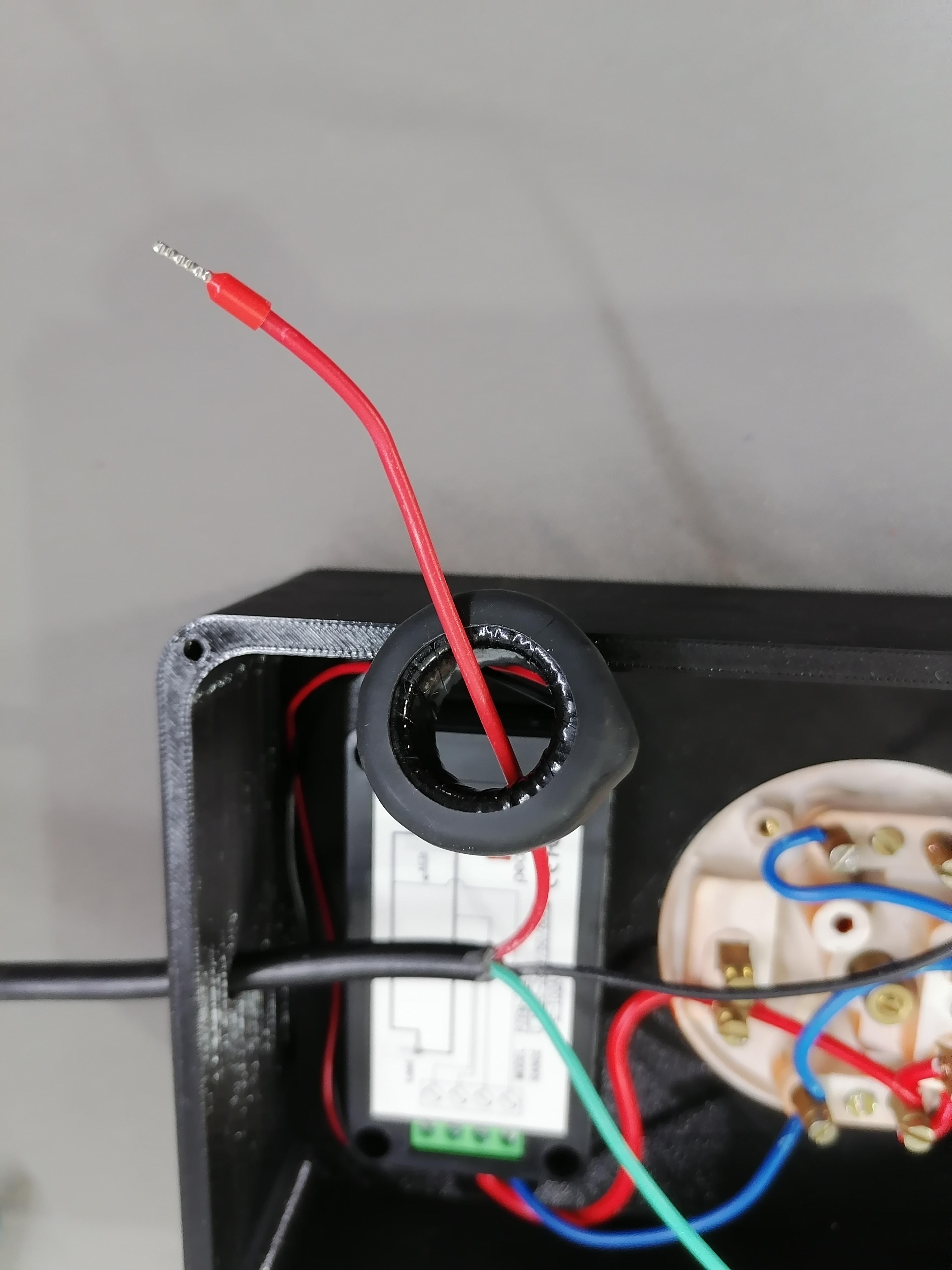

Phase Wire Should Go Through CT


Phase wire should go through CT. Complete all Wire Harness.

Glue the CT to Body


Using Hot Glue Gun glued CT to the body.

Close Back Lid With Screw


Close back Lid with screw

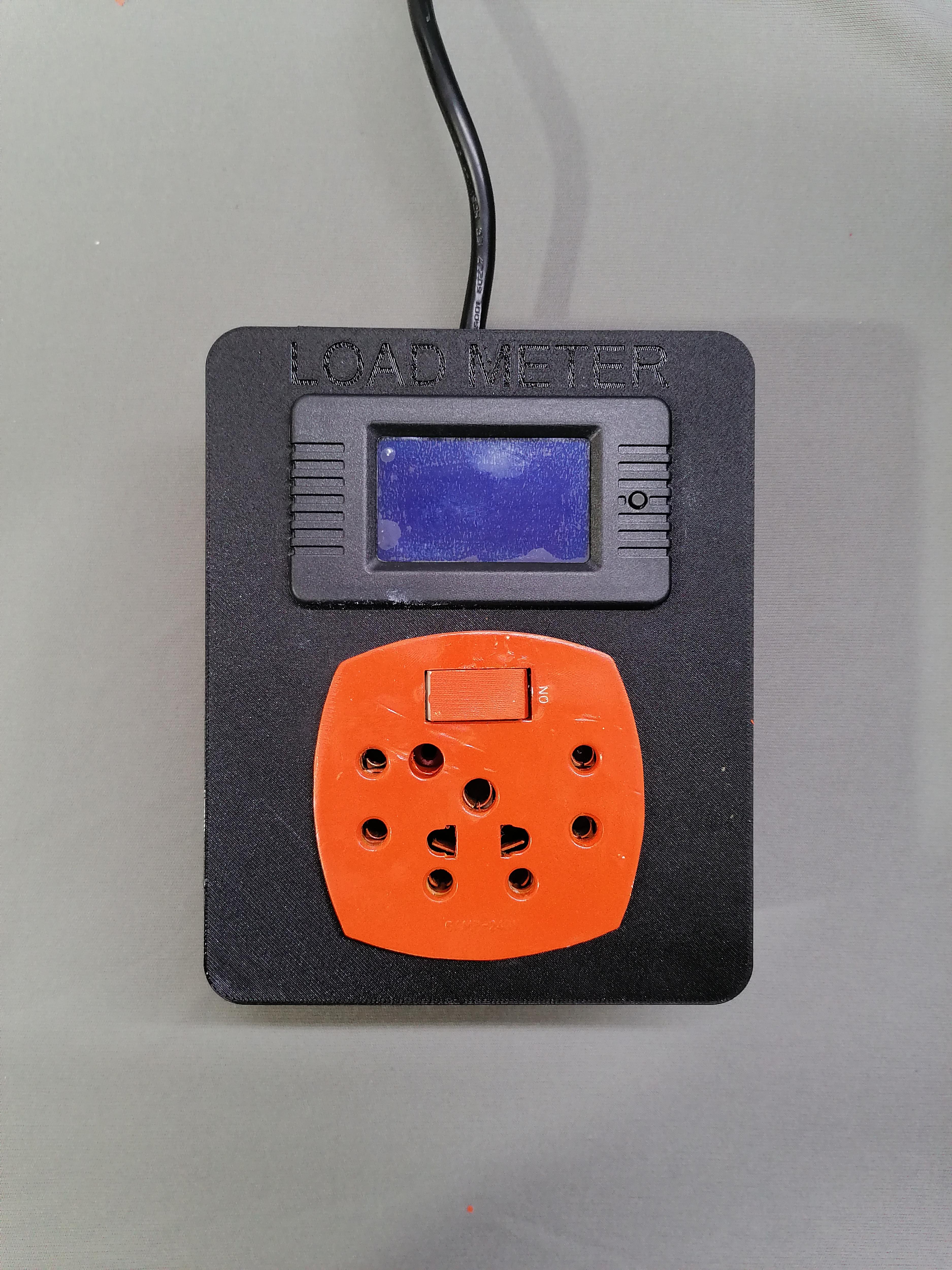

Final Look!!!!! With Test Run

Make LOAD Meter (Test Run) | Repair and Modify Extension Electric Board
Make LOAD Meter | Repair and Modify Extension Electric Board

"Hope you Enjoy to make this project" If you like this project please let now in comment.....

If any question about this project just let me know in comment box!!

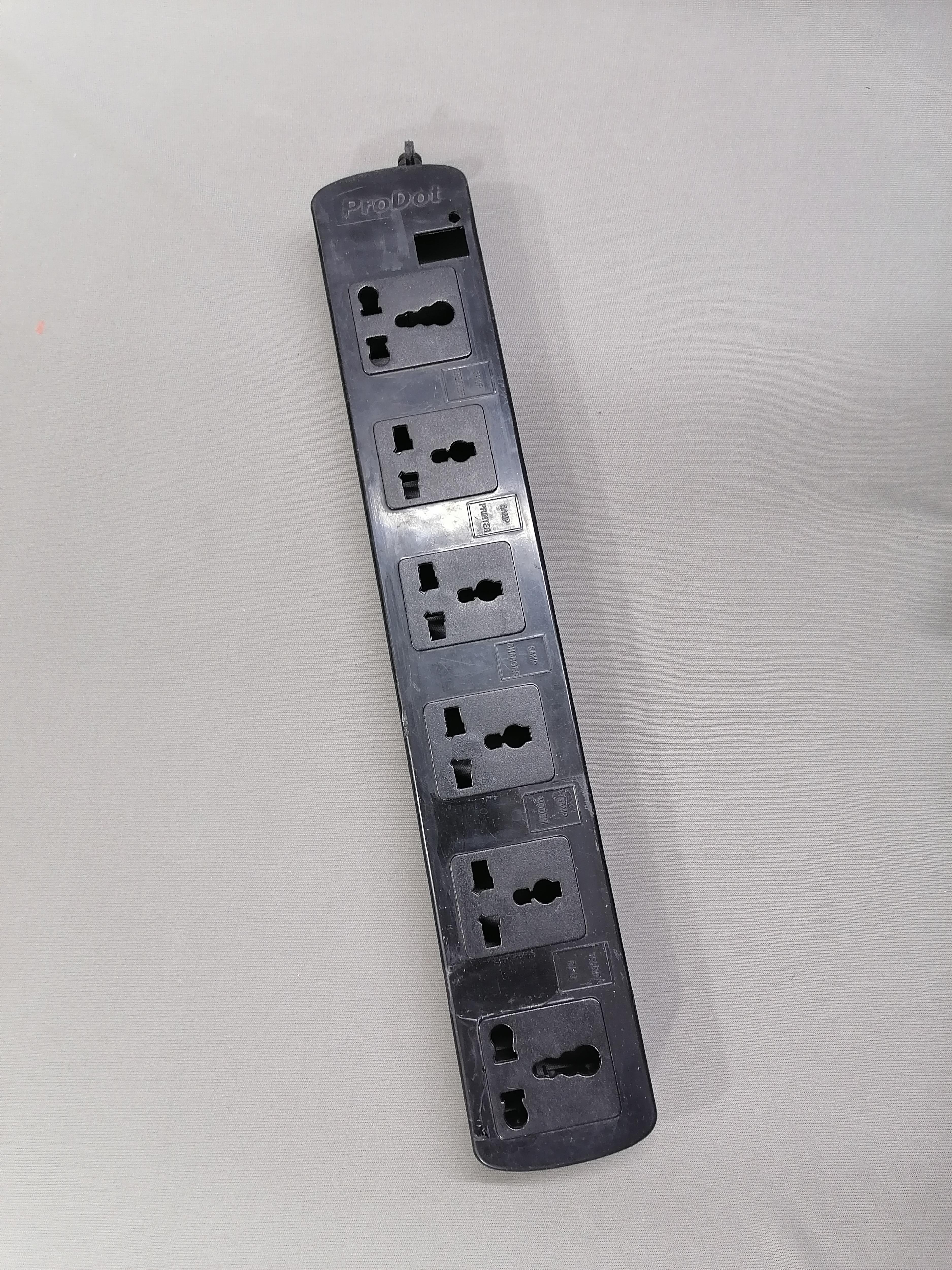

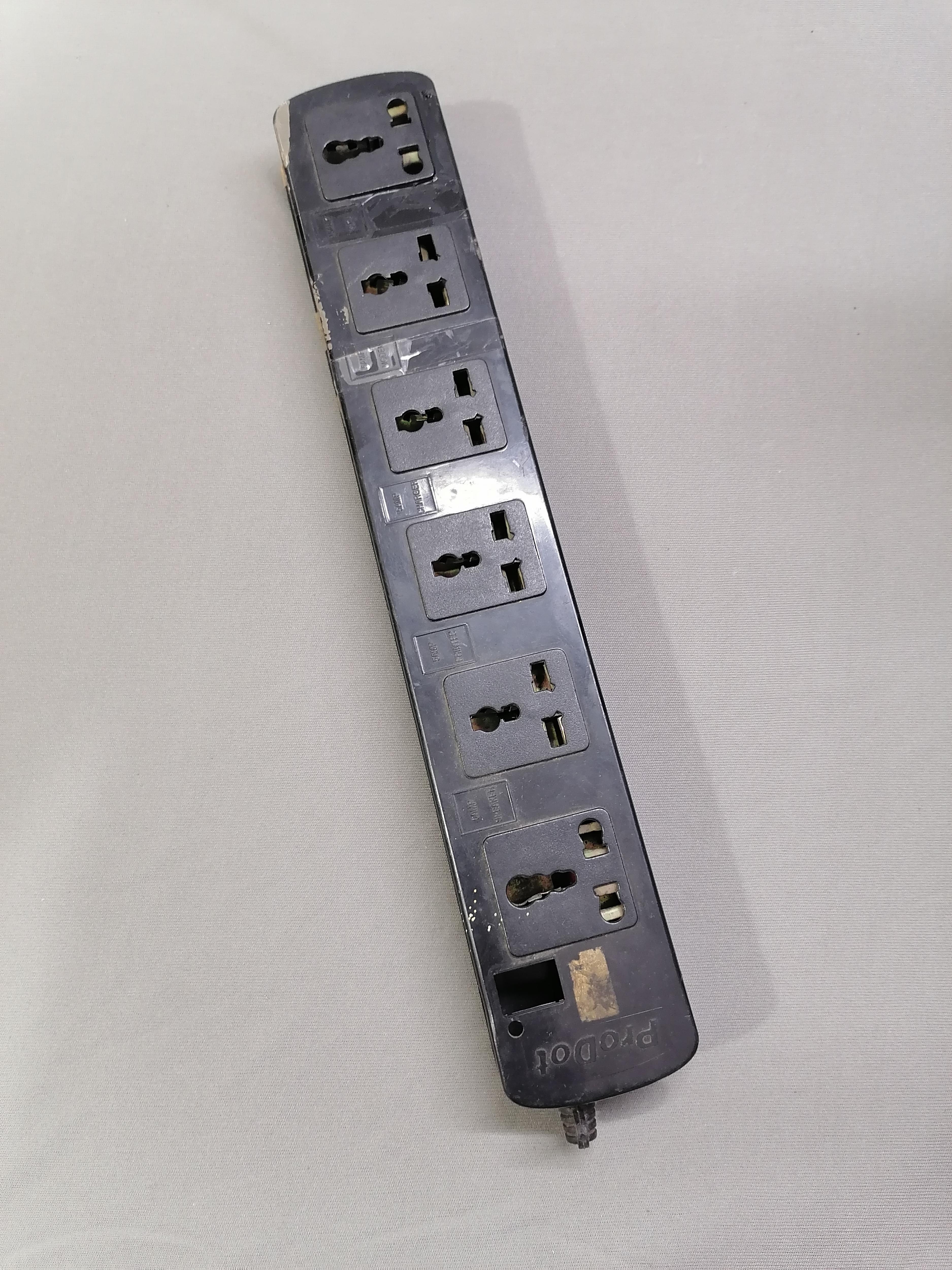

Repair Old PC Extension Electric Board


Repairing old PC Extension Damage Electric board. This board is broken, no power cord, no switch and fuse. But still it can be repair.

Get All Spare Parts for Electric Board


Switch, Fuse and Wire. Also 2 meter power cord with its Pin Top plug.

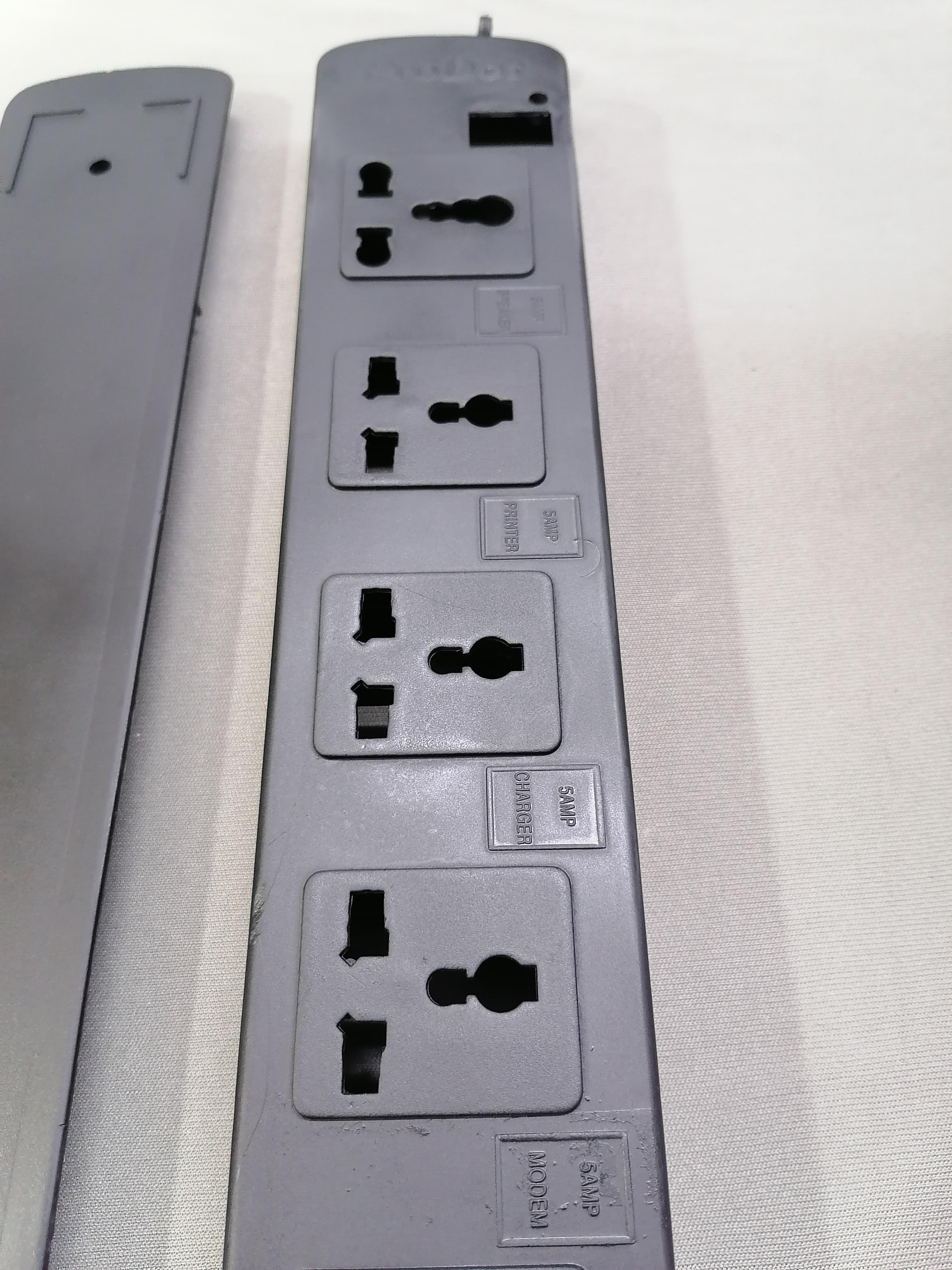

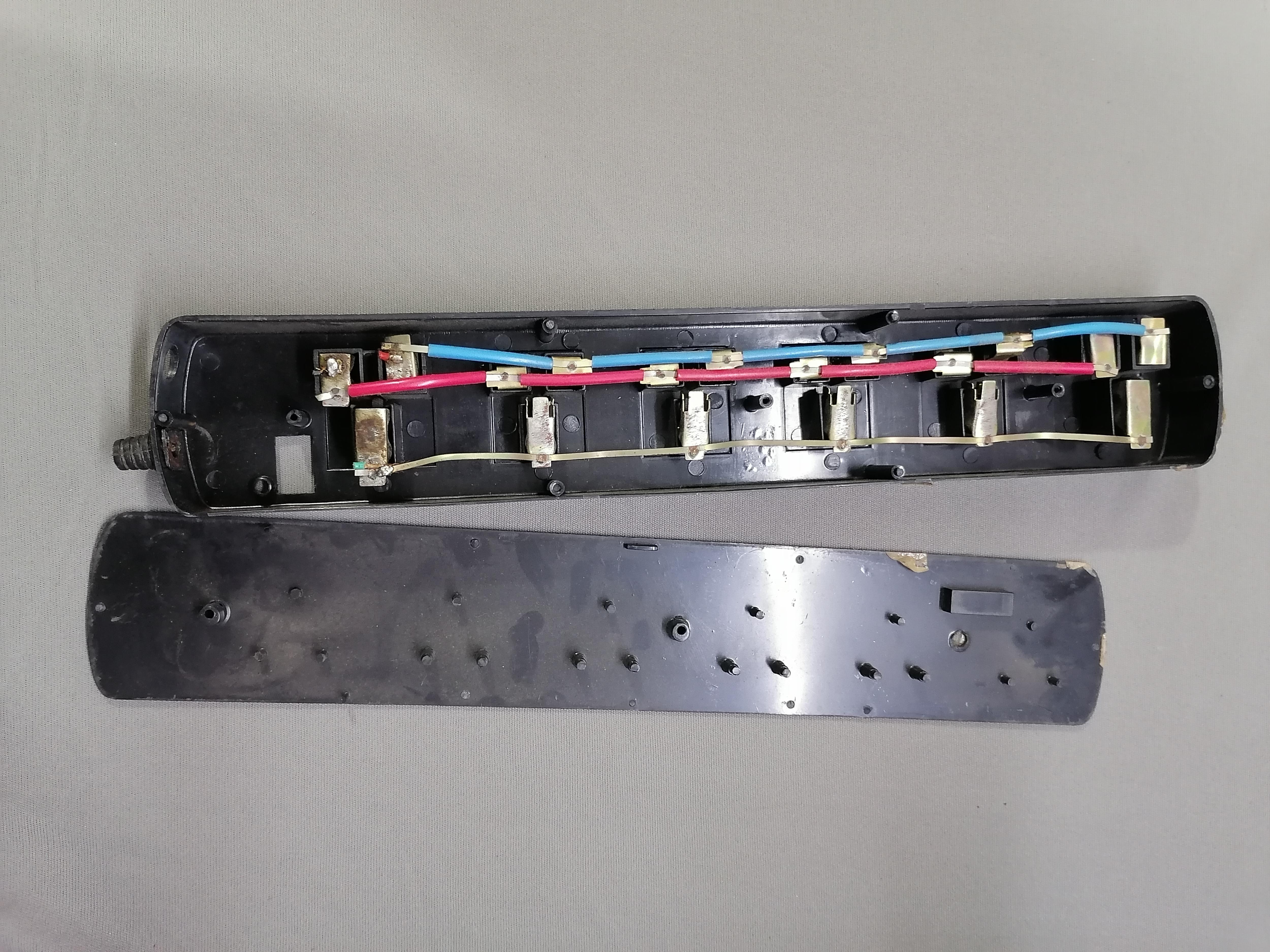

Open and Remove Every Parts and Clean It


Dust everything after opening.

Clean and Remove Any Taps on Body


Clean and remove any taps or glue on body.

Paint the Body


Paint the body.

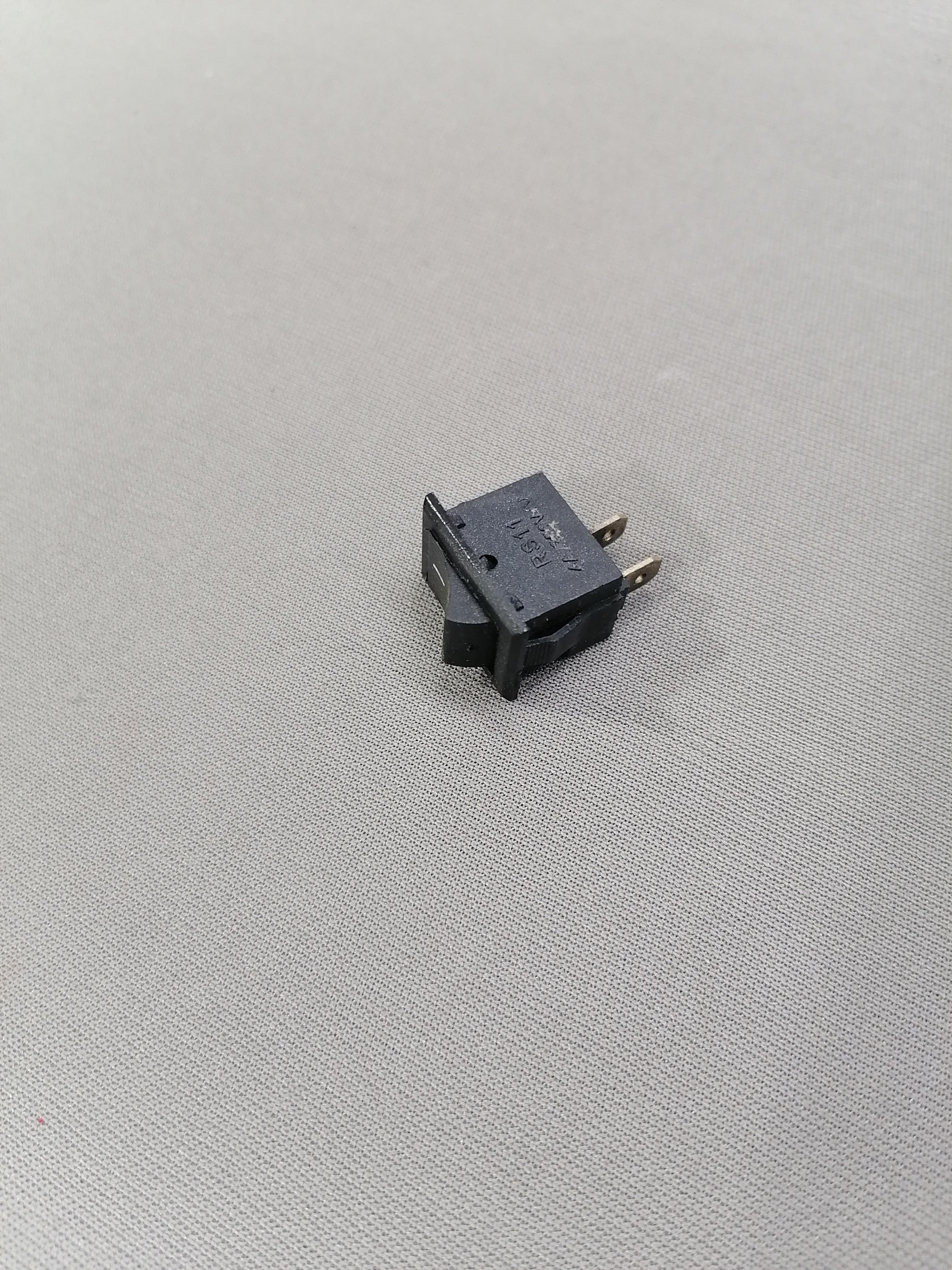

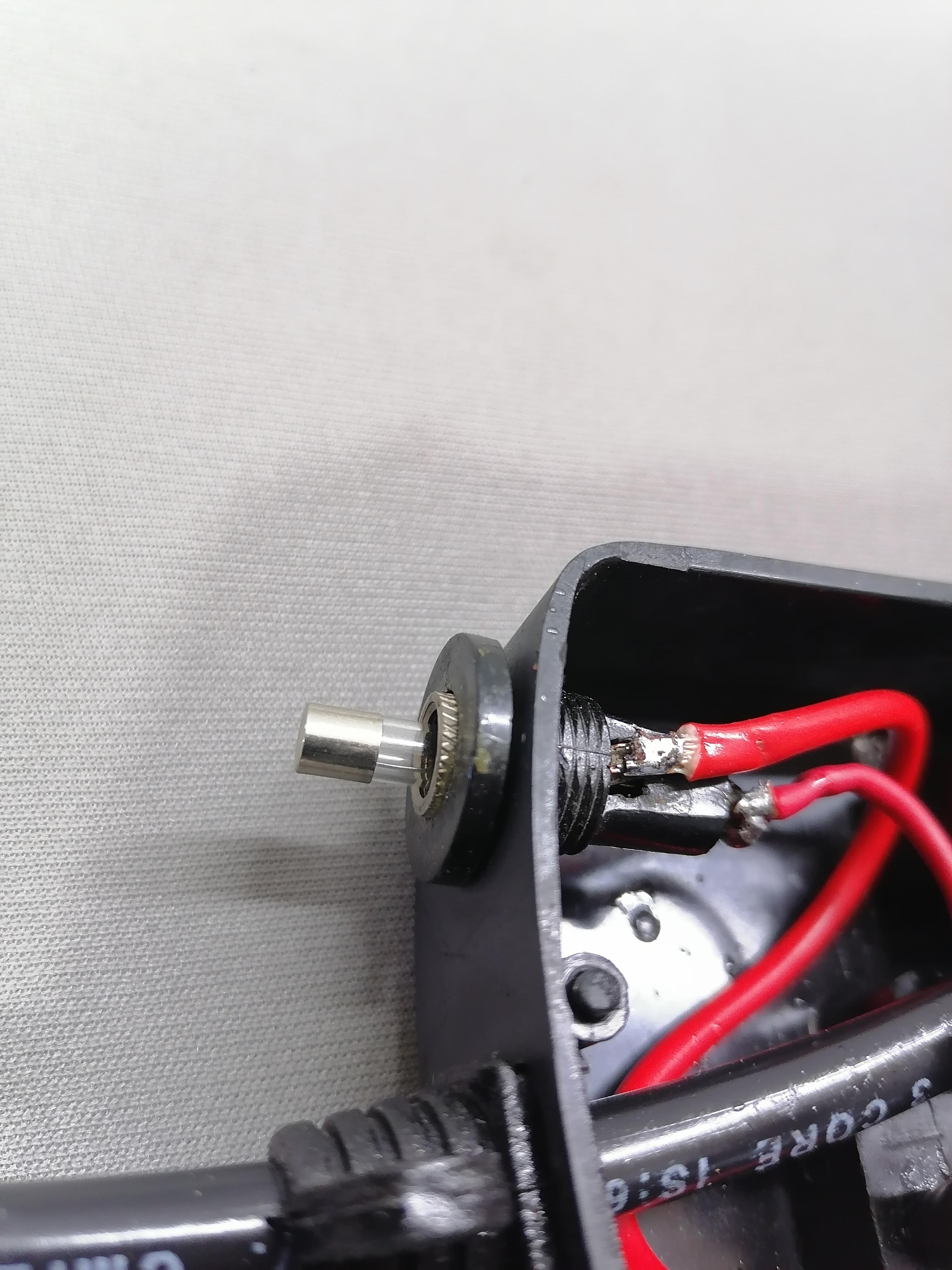

Insert Switch and Fuse Holder


Insert switch and fuse holder

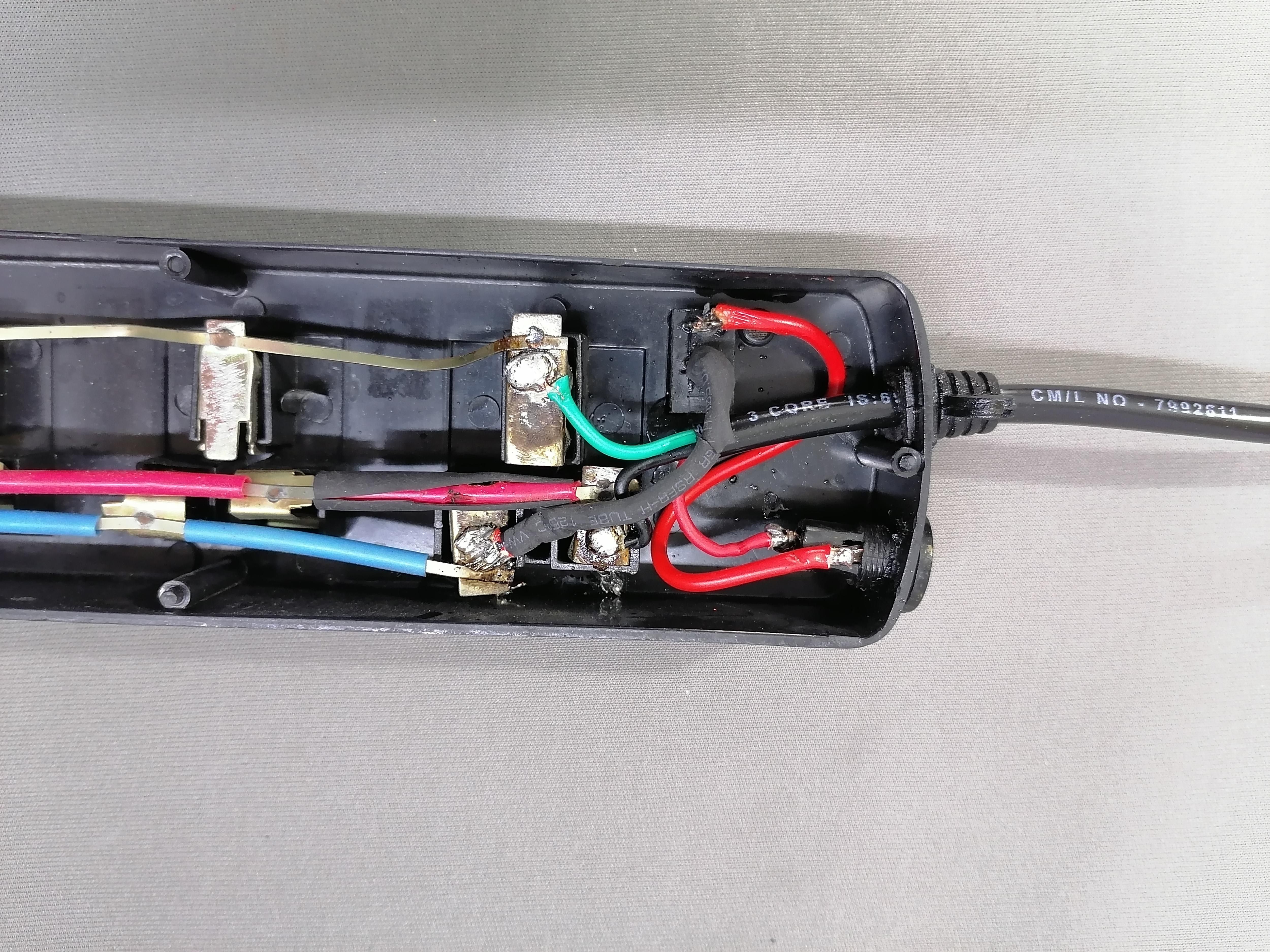

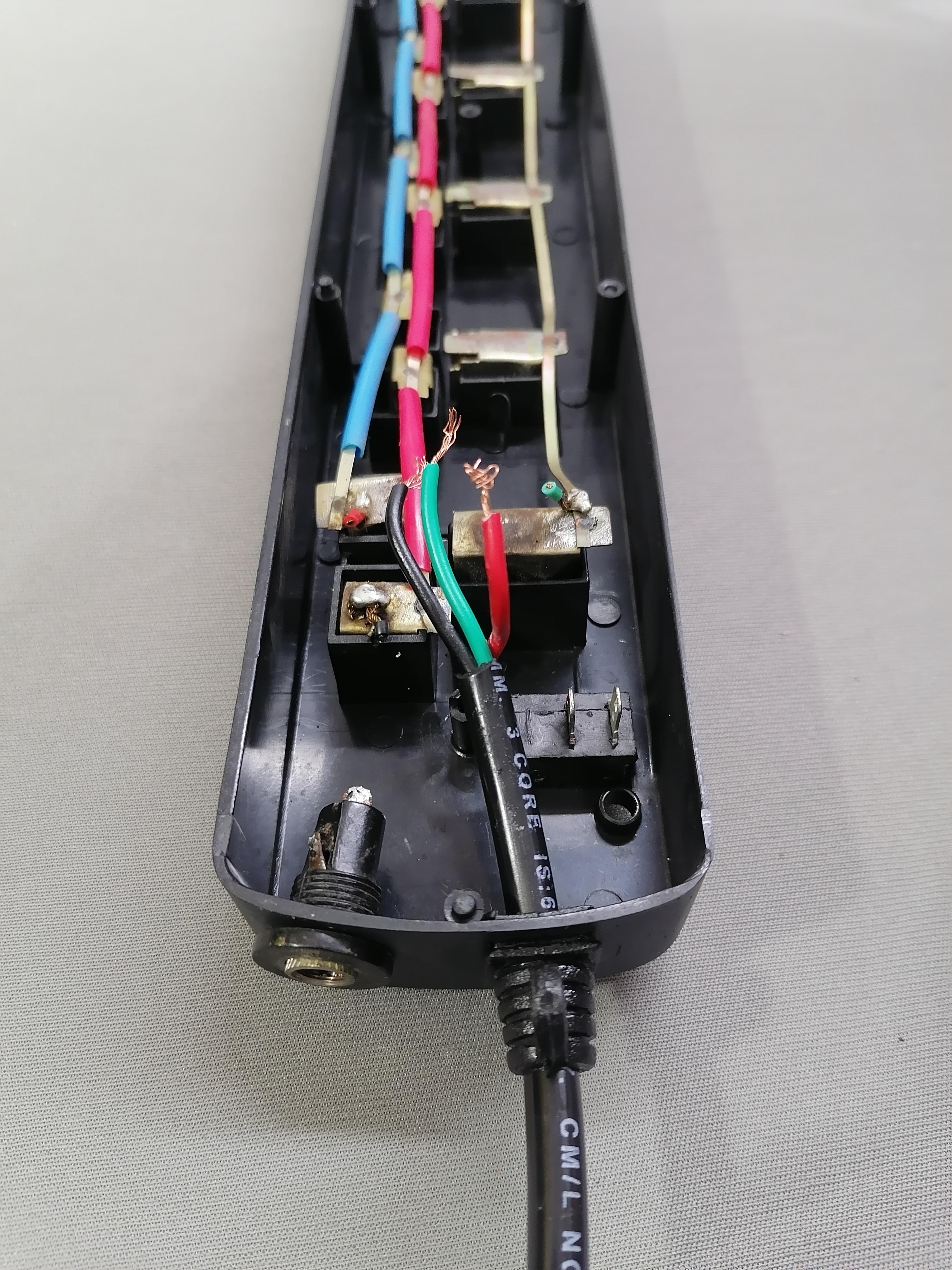

Complete Wire Harness


Connecting phase wire to fuse then to switch.

Insert Fuse and Test Electric Board


Insert the Fuse and test the electric board.

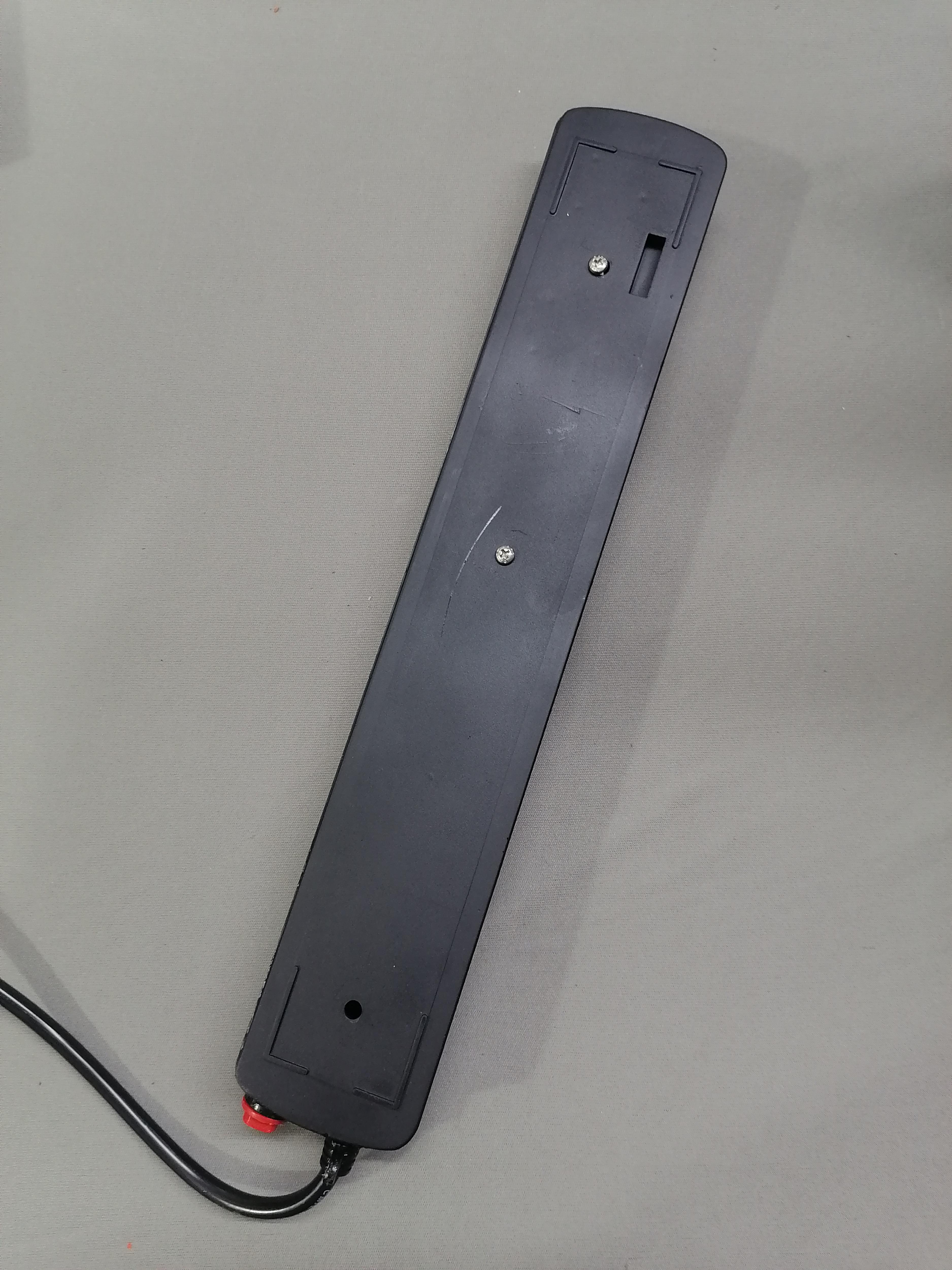

Close Back Lid With Screw


Close back Lid with Screws and use superglue if screw thread are broken.

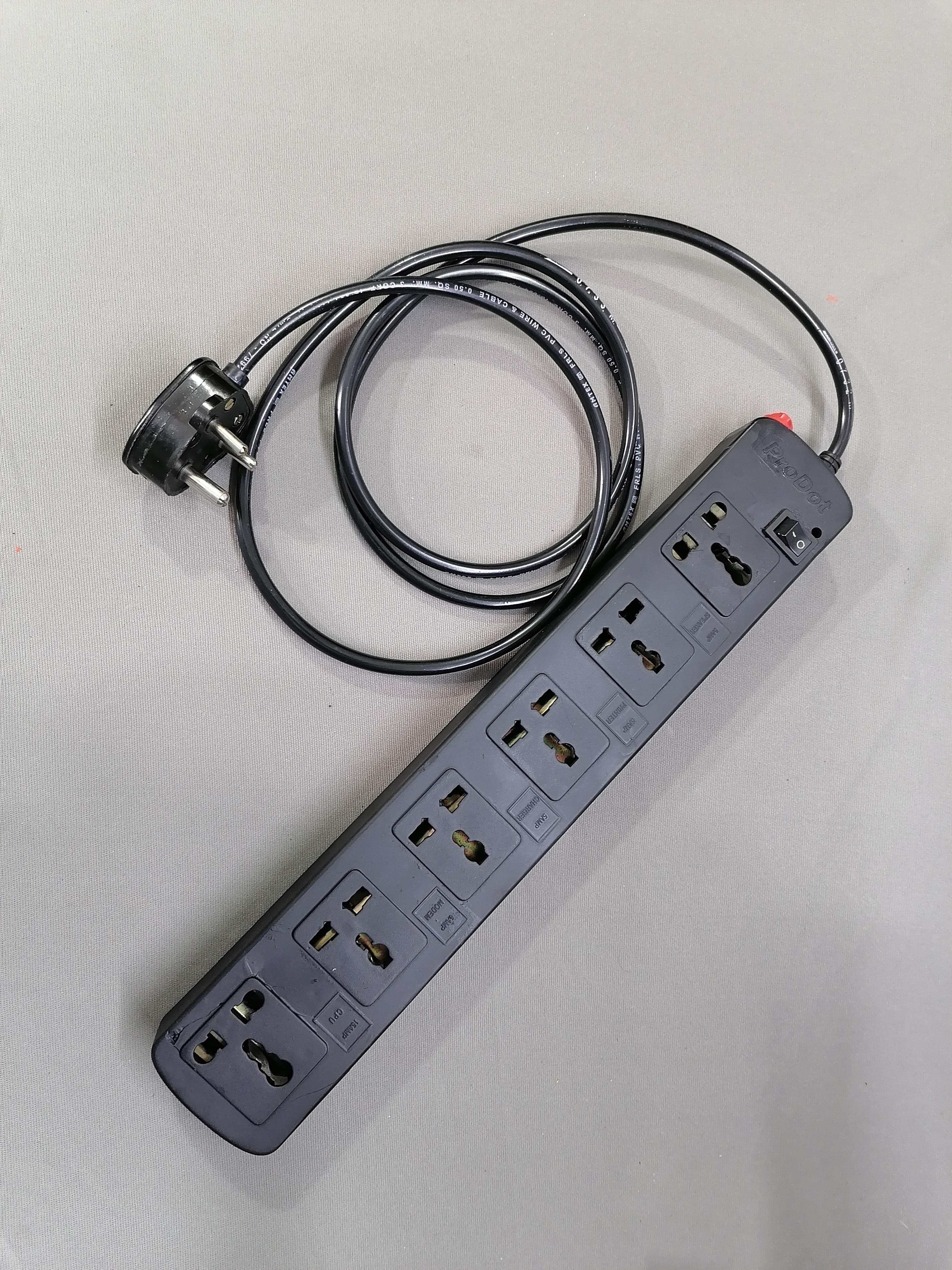

Final Look!!!!


It was worthy to repair it instead throwing in garbage.


"Hope you Enjoy to make this project" If you like this project please let now in comment.....

If any question about this project just let me know in comment box!!


Modifying the Extension Electric Board With WiFi Relay IoT


All we want is remote controlling of electrical switches by using WiFi Relay. Doing turn ON/OFF switches manually many times becomes hard for me in my Lab. So I use some relay modules with Esp8266 for WiFi controlling. All these electronic modules are fitted in the 3D Printed Box external to Extension Electric Board then on Plywood.

Also, this is the best option for the customization of the WiFi Extension Electric Board at an affordable price.

Supplies


1) 2 channel Relay - 4 quantity

2) Esp8266

3) Screw (8mmx3mm) - 4 quantity

4) Wires

5) 5V adapter for Esp8266 (phone charger)

3D Print the Electronic Box


3D Print The Electronic Box.

Rewire the Electric Board (wiring Direction)


Take two wires from all switches and insert in each relay to common pin and NO pin.

Noted: All Switches should remains close position for operating remotely.

Wire Harness

IMG_20200320_210224 (2).jpg

The two wires from all switches and insert in each relay to common pin and NO pin.

And Data pin of all relay should go to there respectively assign pin of Esp8266. I am using 5v adapter to power up the Esp8266 externally.

Noted: I don't know IoT programming, that why I am sharing code here. But there many program codes available online you can use it.

Close All Lids With Screws and Test Run It!!!!


The Result was Awesome now I can control all my machine through my phone.
