Remote Controlled LED

RC controlled LED

This is a very simple build. All you need is

  • 1x brushed ESC
  • 1x 12 Volt LED
  • 1x 3s Lipo
  • 1x RC Transmitter and Receiver

With the brushed ESC you will be able to remote controll the brightness of the LED.

Connect the Brushed ESC

Bildschirmfoto 2015-08-03 um 17.50.09.png

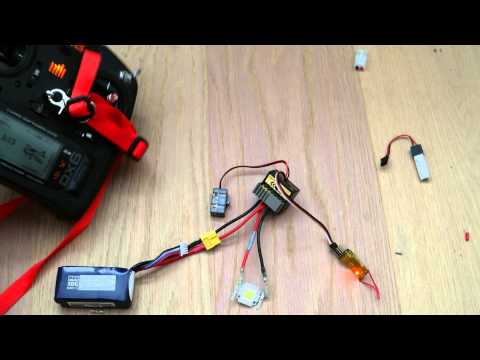

  1. Connect the brushed ESC to the RC receiver
  2. Connect the motor cables of the brushed ESC to the LED. The red cable goes to the positive pole (+), the black to the negative pole (-).
  3. Power the brushed ESC with a 3s Lipo

Power up - now you are ready to remote control with your RC transmitter the brightness of the LED
