Remote Control for Light Easy Way

It is very simple way to make light or fan remote I use RGB LED strip controller & 12v relay.

You can watch Project Video here

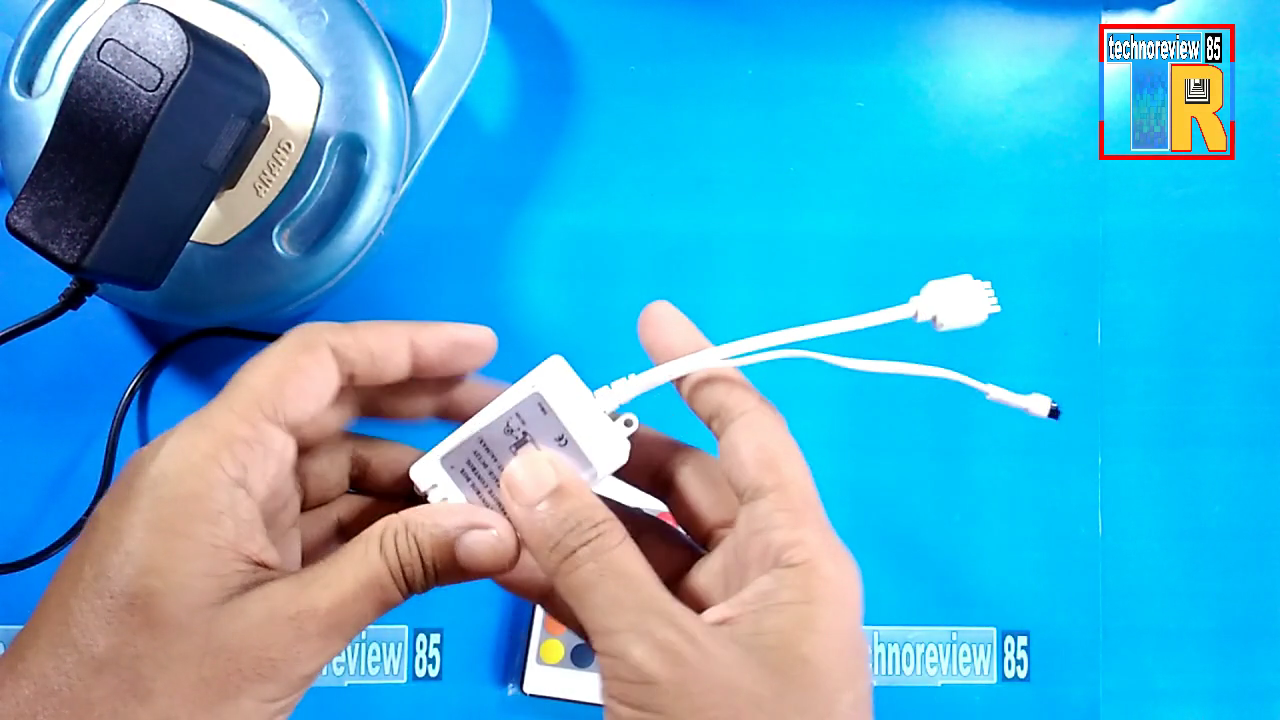

1 - rgb led strip controller

2- ply wood

3-12 v relay

4- connector ( optional)

5- bulb holder ,wire etc

glue controller & relay on a plywood

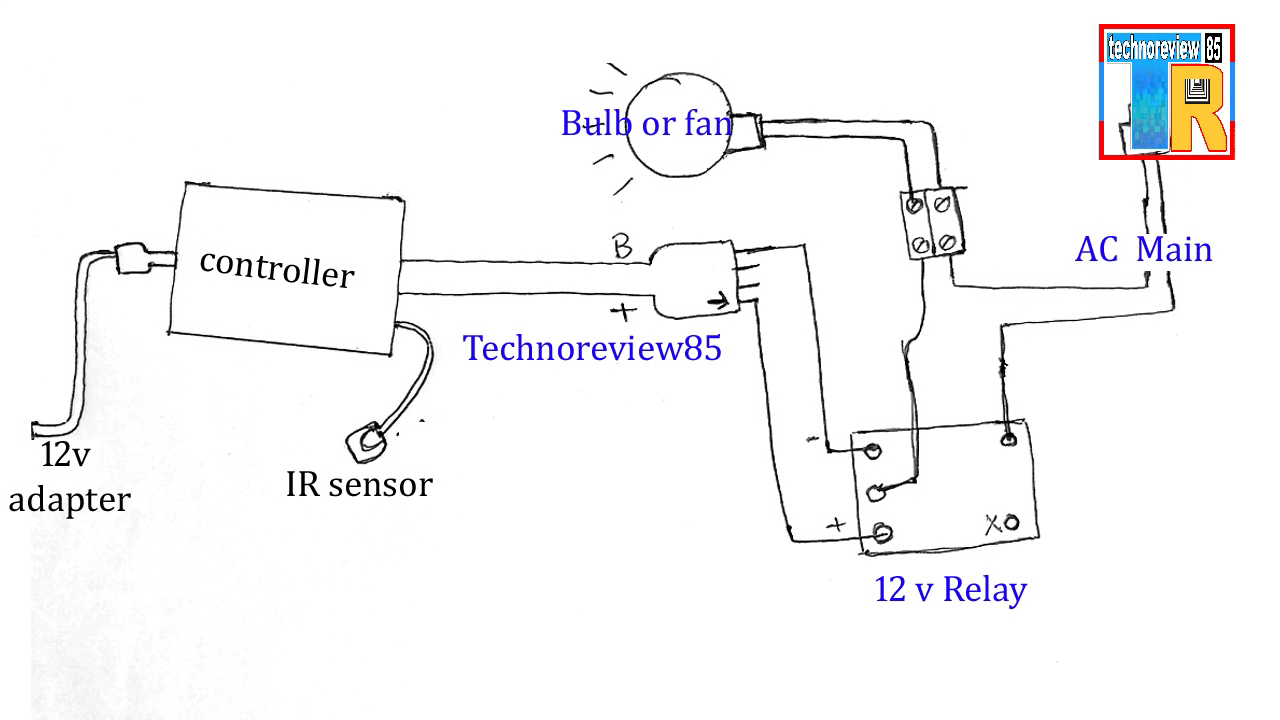

connection is very simple I connect rgb led controller blue pin to 12v relay

when blue switch press on the remote relay will on and bulb will glow

you can use three relay for red ,green blue channel

for watch making video click here
